Pix32 V6 Pixhawk Flight Controller

299.00 $375.00 $

Description

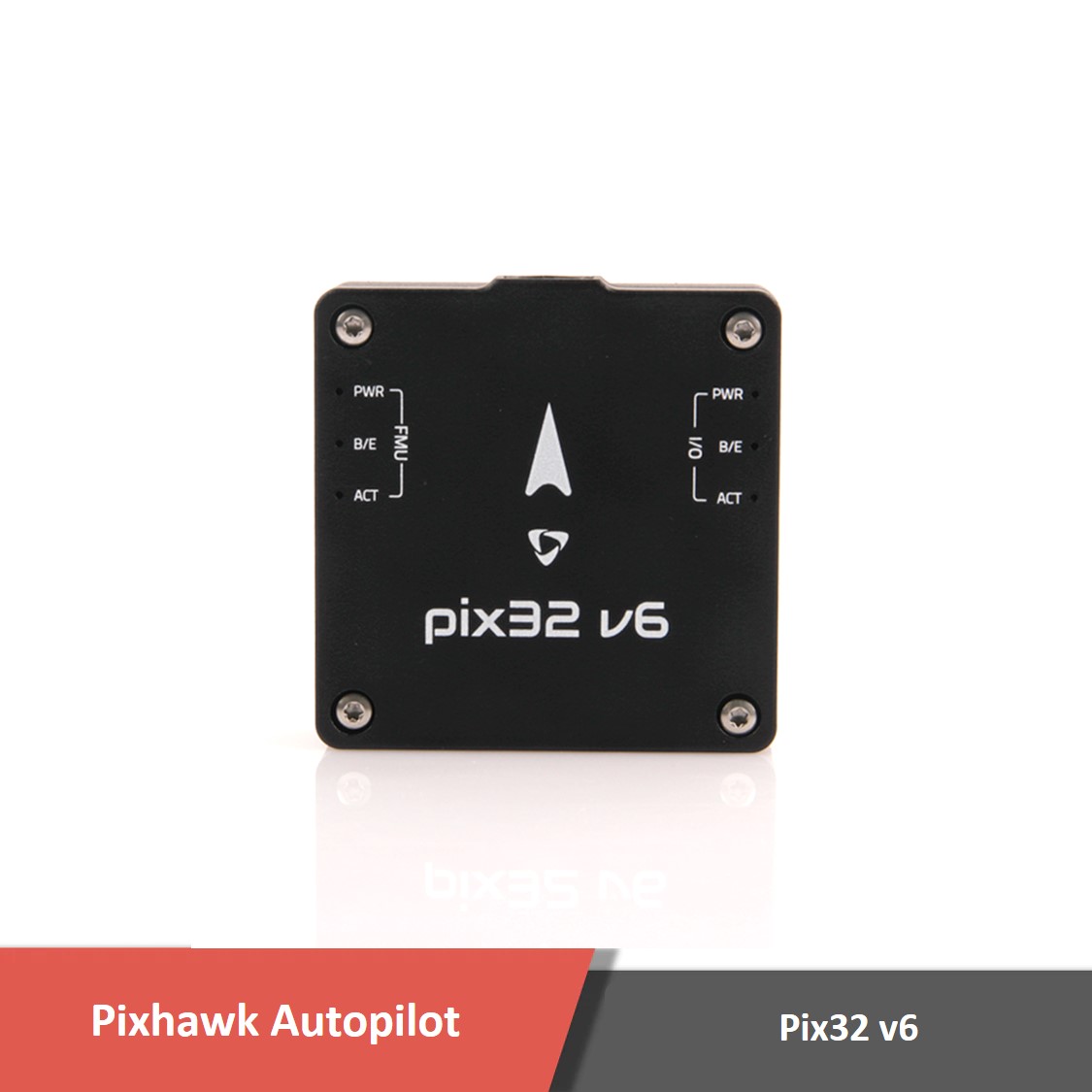

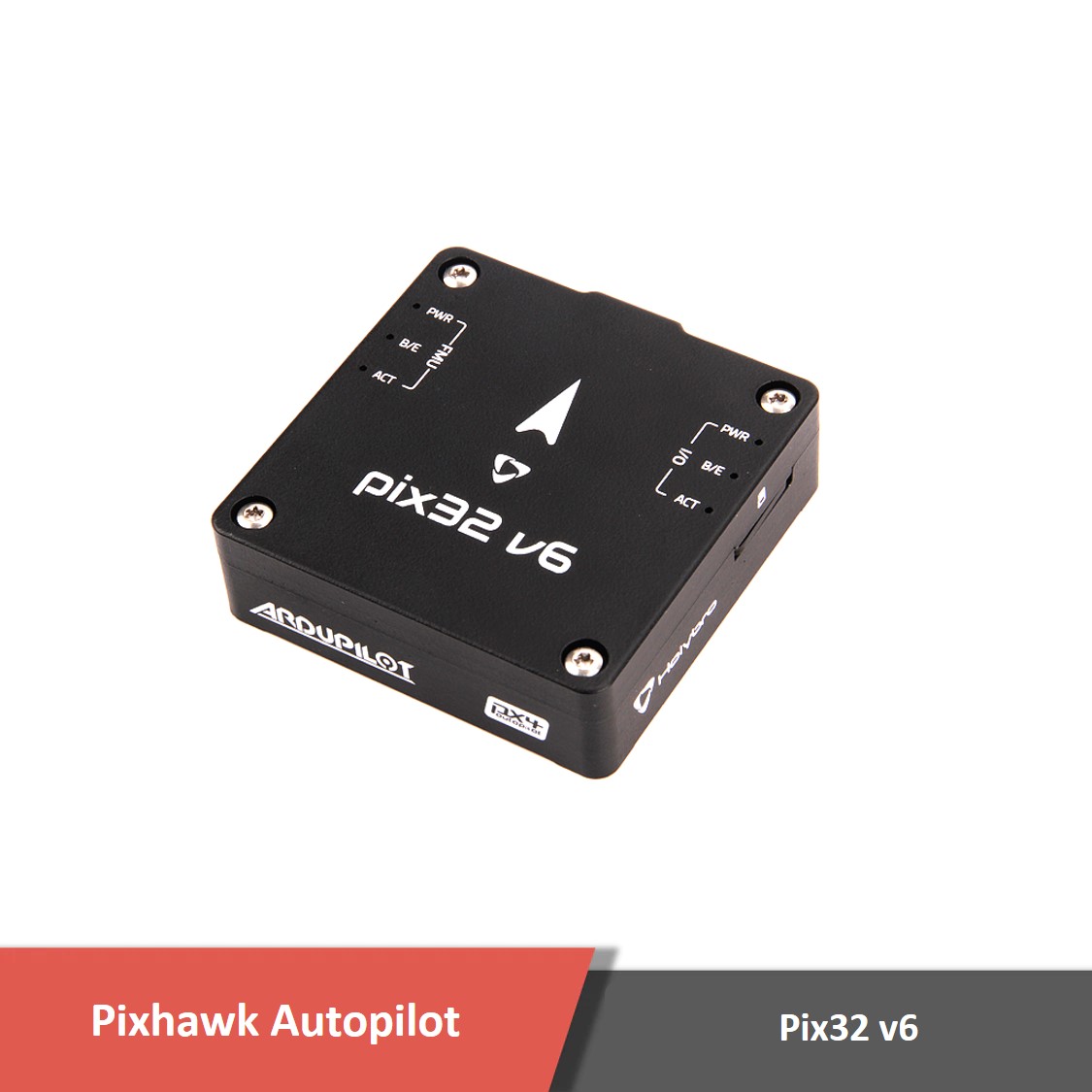

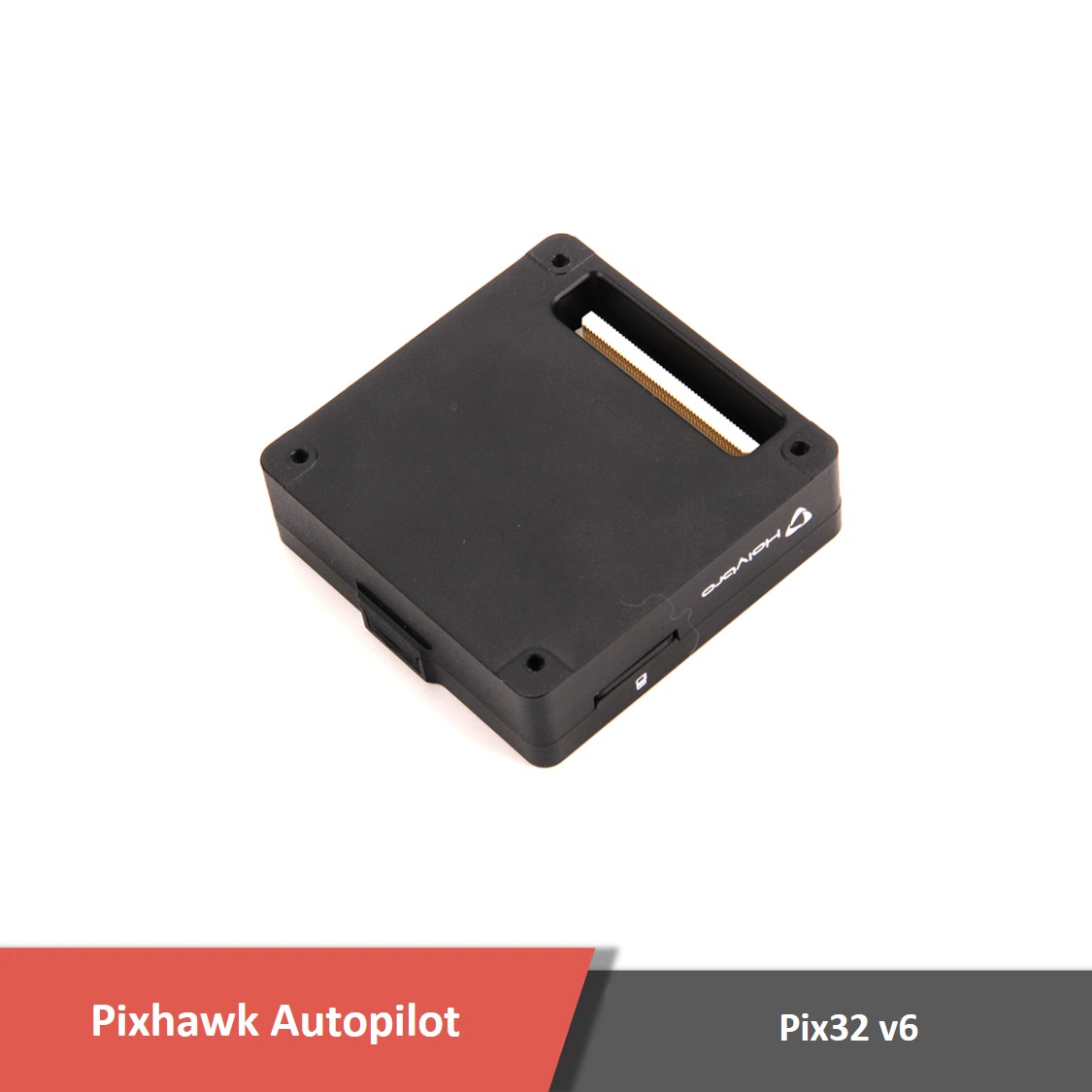

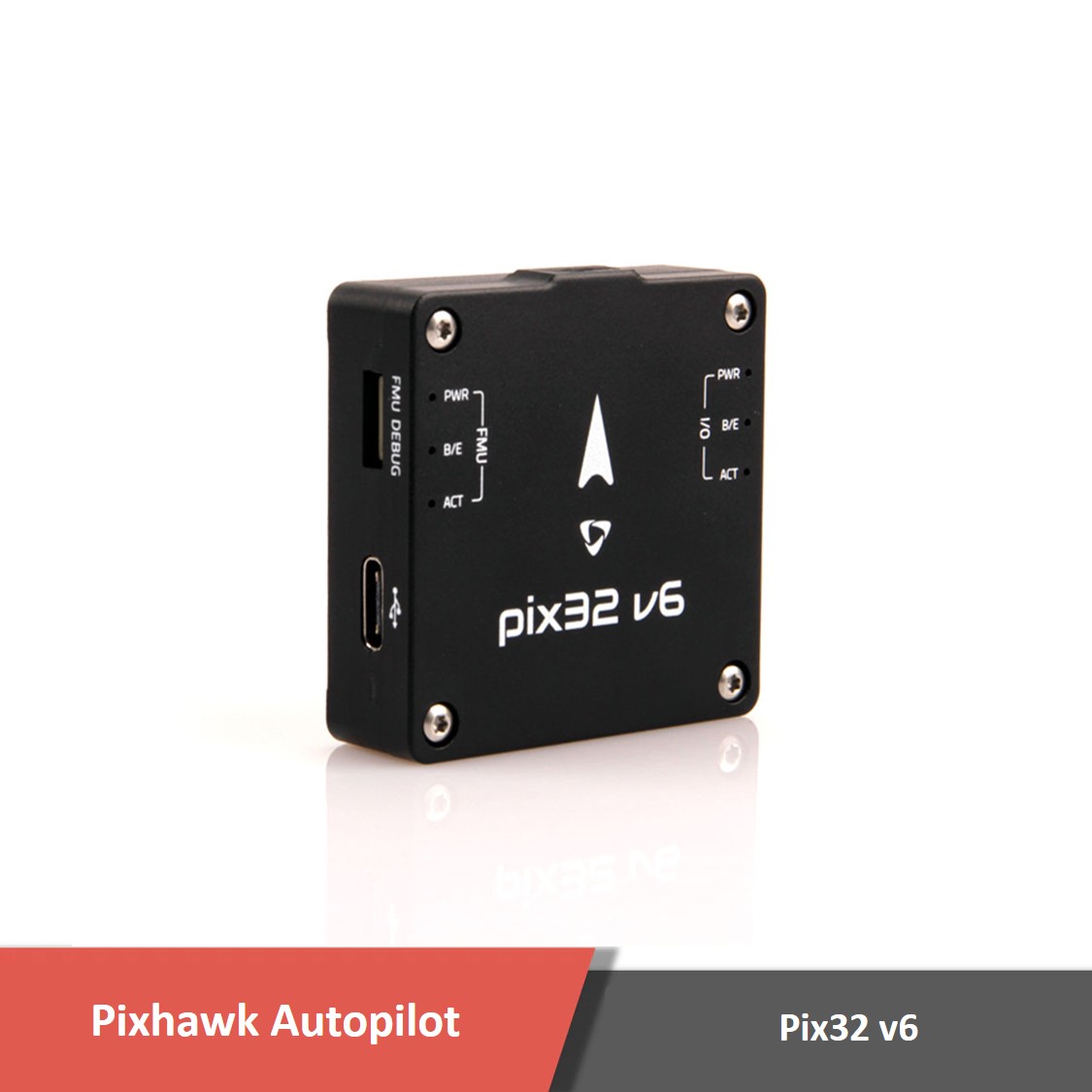

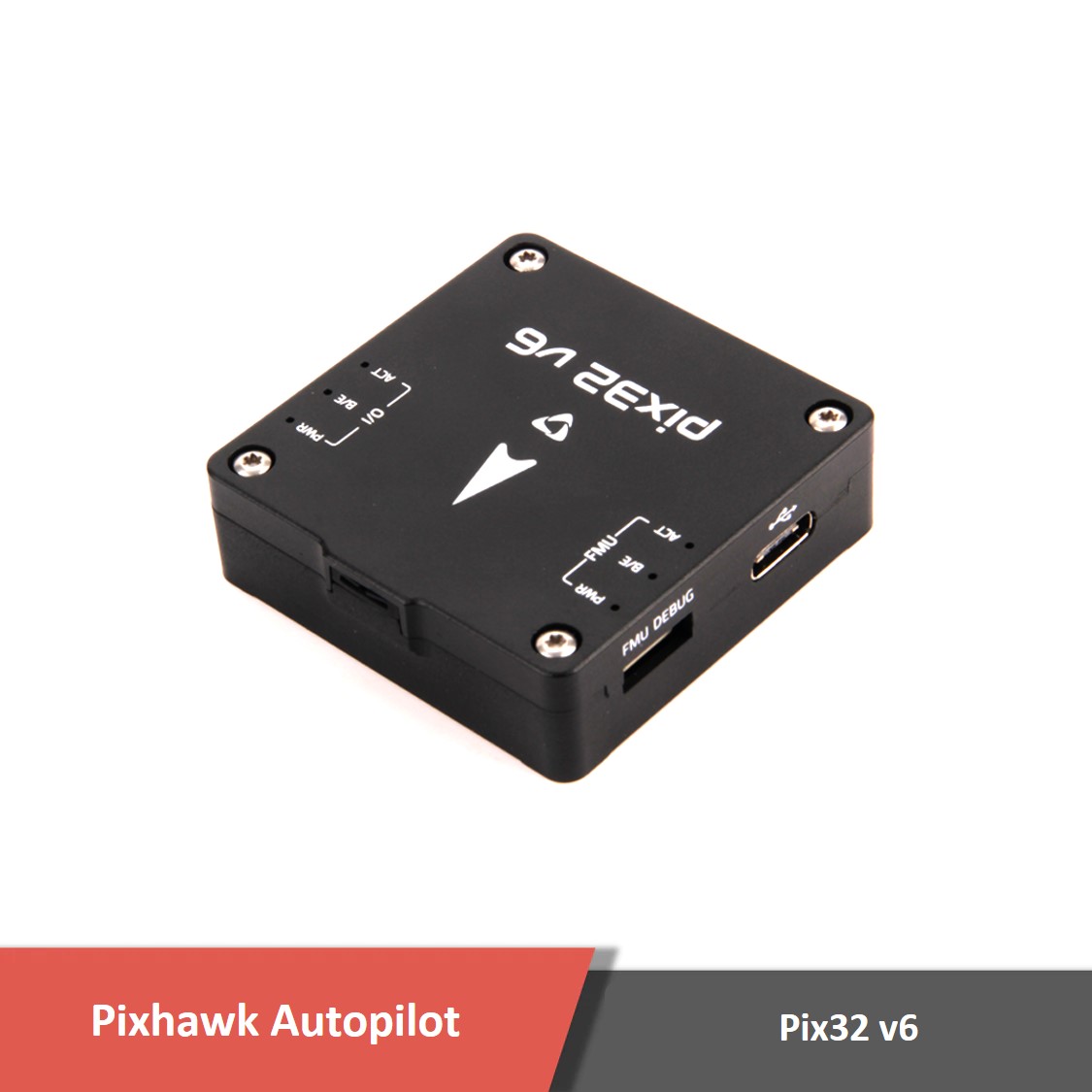

Pix32 V6 Pixhawk Flight Controller

The Pix32 v6 is the updated version of the pix32 v5 flight controllers with the same architecture which means you will need a carrier board to have access to the IO pins. Actually, it has the same sensors and microcontroller version (FMUv6) as the Pixhawk 6C.

It is comprised of a separate flight controller and carrier board which is connected by a 100-pin connector. It is designed for those developers who want to have their own designed carrier board with a compact and well-damped separate IMU& Controller cube.

Like always Holybro Pixhawk autopilots are manufactured with all automated P&P machines hence delivering well-assembled with affordable price on the market.

The Pix32 v6 works based on STM32H743 MCU, along with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

Its H7 microcontroller contains the Arm® Cortex®-M7 core running up to 480 MHz and has 2MB flash memory and 1MB RAM. It includes high-performance, low-noise IMUs on board, designed to be cost-effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

This flight controller is perfect for people that are looking for an affordable and modular flight controller that can use a customized carrier board.

By using a customized Pixhawk baseboard, you can make sure that the physical size, pinouts, and power distribution requirements match your vehicle perfectly, ensuring that you have all the connections you need and none of the expense and bulk of connectors you don’t.

If you want to know more about the latest news about the Pixhawk flight controllers, stay tuned to our blogs.

Key Features

  • High-performance STM32H743 Processor with more computing power & RAM
  • New cost-effective design with the low-profile form factor
  • Newly designed integrated vibration isolation system to filter out high-frequency vibration and reduce noise to ensure accurate readings
  • IMUs are temperature

Additional information

Weight N/A
Dimensions N/A

Specifications

Specifications

Product contents

Product contents

SKU20190/20192 Includes:

  • Pix32 v6 Flight Controller Module
  • Standard baseboard / Mini Baseboard
  • PM02 V3 12S Power Module
  • Standard Cable Set

SKU20191/SKU20193  Includes:

  • Pix32 v6 Flight Controller Module
  • Standard baseboard / Mini Baseboard
  • PM02 V3 12S Power Module
  • Mini Cable Set
  • M8N GPS

Note: Pix32v6 Standard set will ship with the Pix32v5 Baseboard until further notice, for additional information regarding the baseboard please check this Pixhawk Pix32 reference manual.

Documents

Please contact us for more information.
