CUAV CAN Power Distribution Board (PDB)

155.00 $968.00 $

PayPal
Visa
Master

Description

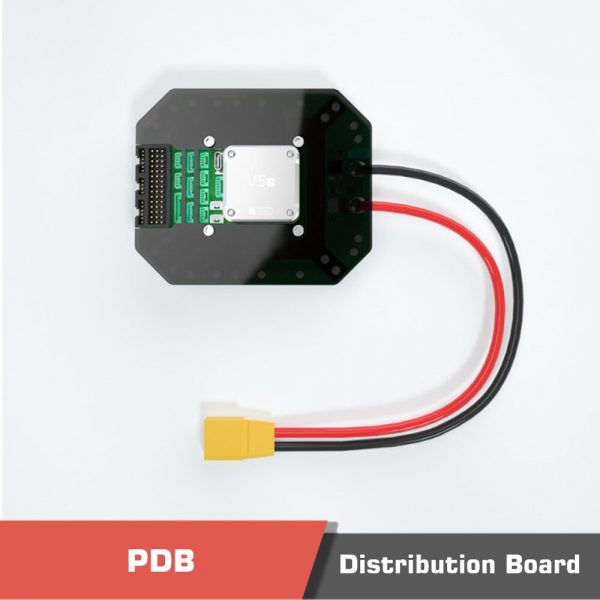

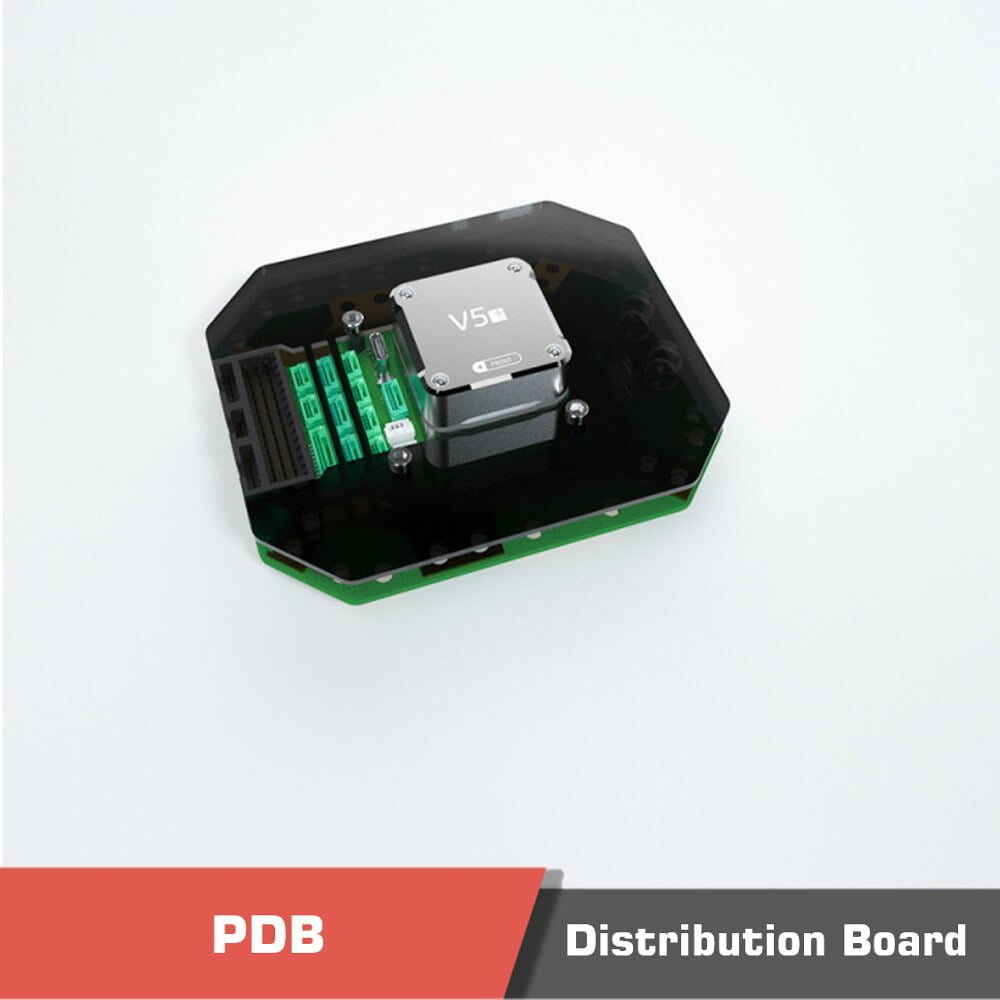

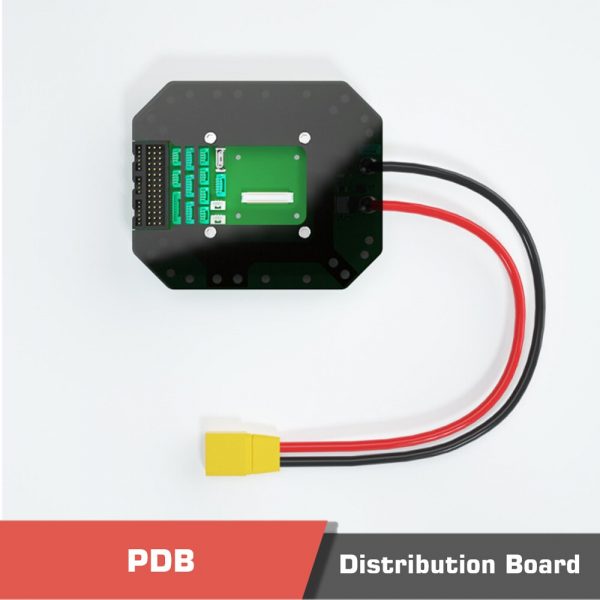

CUAV Drone Power Distribution Board With CAN 180A 4~14S Current & Voltage Sensor For Pixhawk V5+

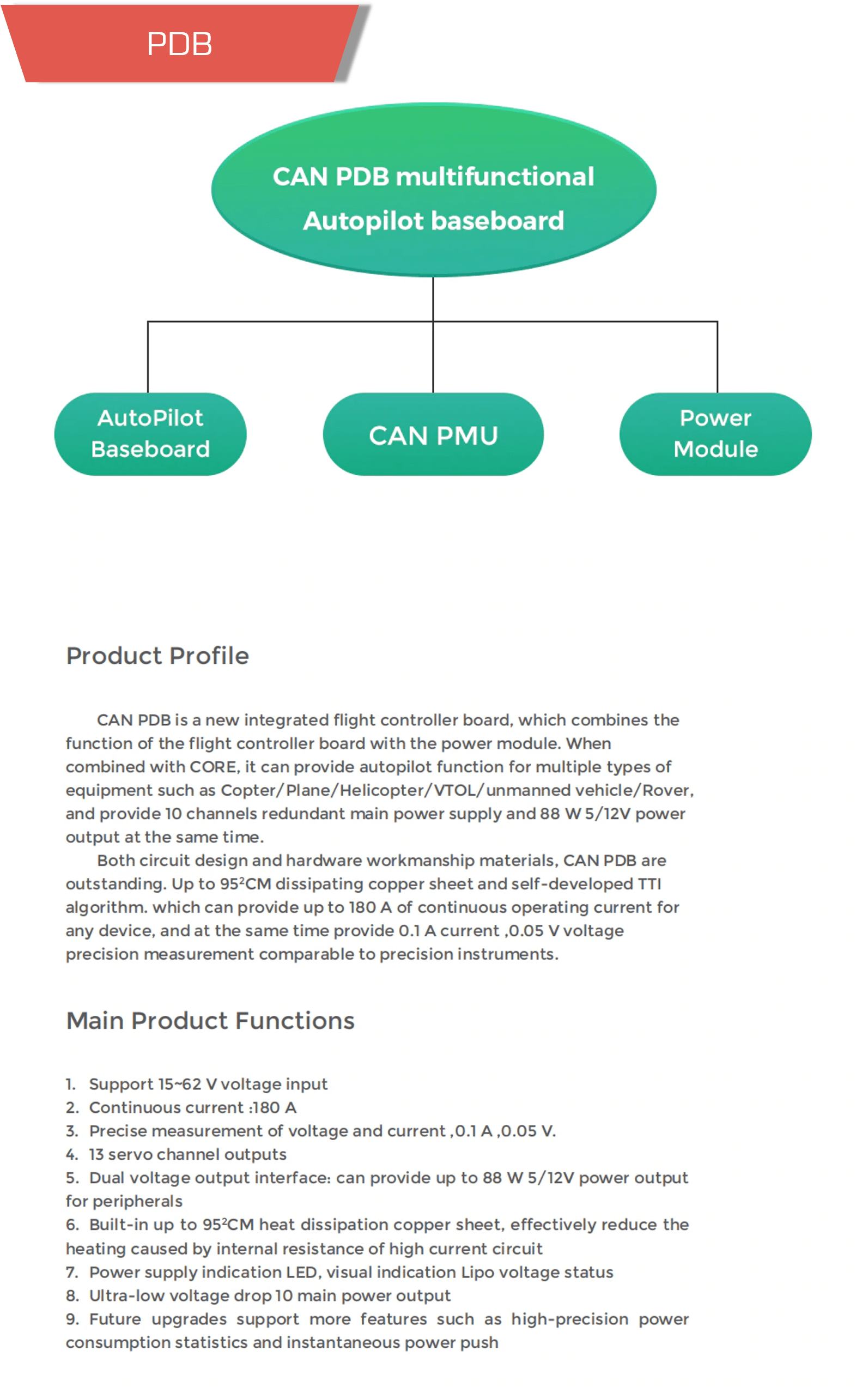

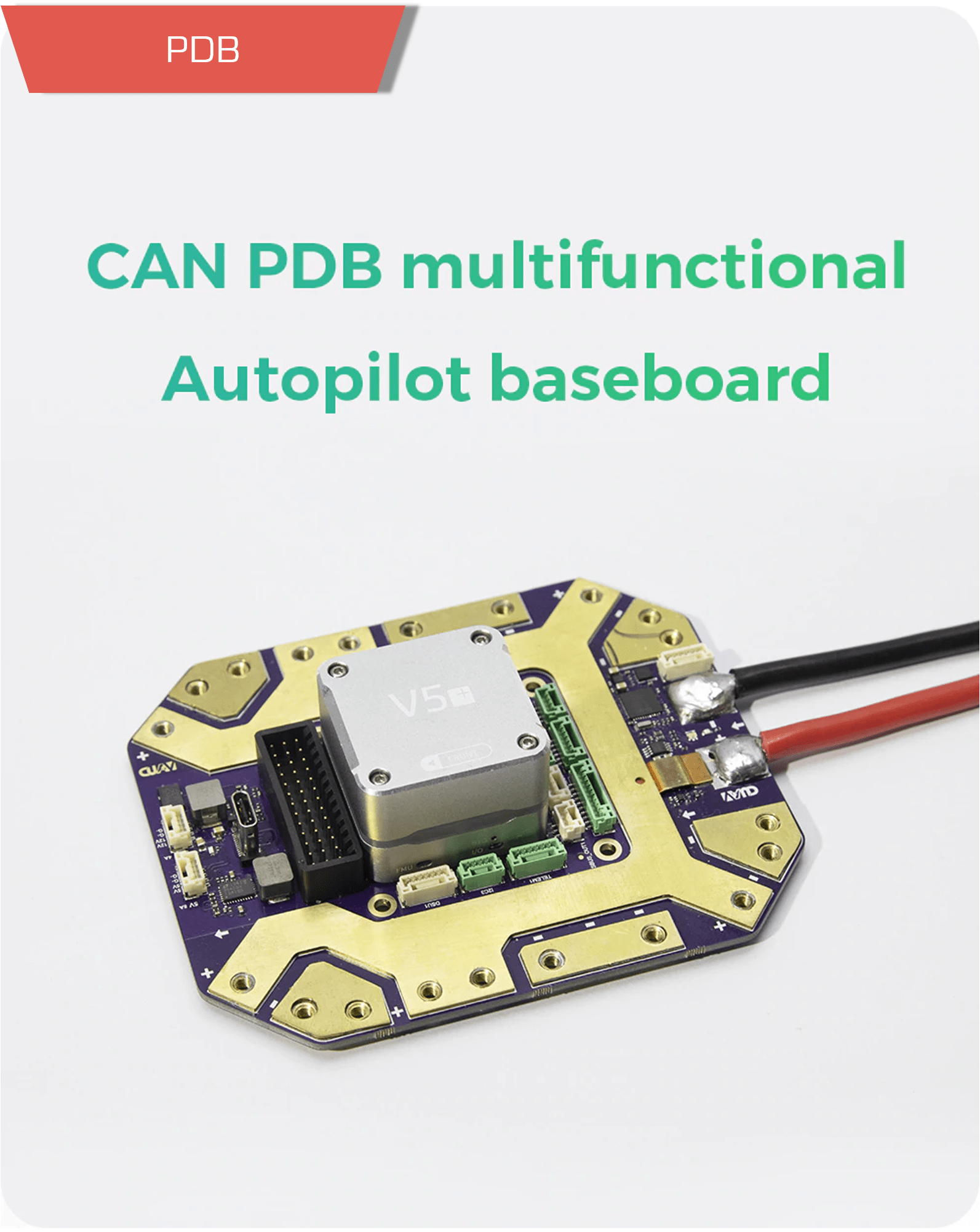

CAN PDB is a new integrated flight controller board, which combines the function of the flight controller board with the power module. When combined with CORE, it can provide autopilot function for multiple types of equipment such as Copter/Plane/Helicopter/VTOL/unmanned vehicle/Rover and provide 10 channels redundant main power supply and 88 W 5/12V power output at the same time. This Pixhawk power distribution module will provide most of the useful ports out of the cubes including PPM, SBUS, DSM, PWM, RSSI, etc.
Both circuit design and hardware workmanship materials, CAN PB are outstanding. Up to 952CM dissipating copper sheet and self-developed TTI algorithm. which can provide up to 180 A of continuous operating current for any device, and at the same time provide 0.1 A current,0.05 V voltage precision measurement comparable to precision instruments.

Main Product Functions

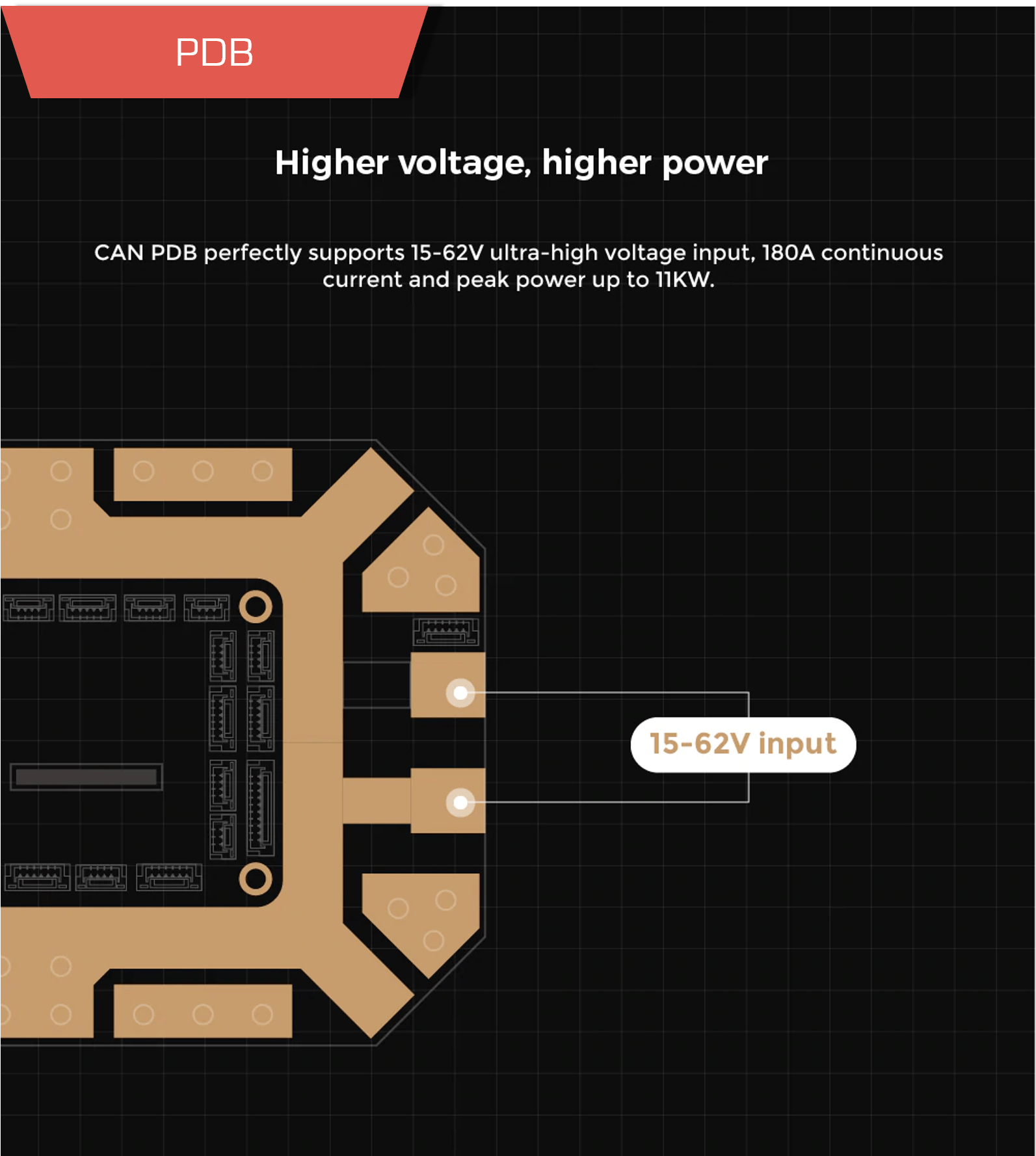

1. Support 15~62 V voltage input
2. Continuous current:180 A
3. Precise measurement of voltage and current,0.1 A,0.05 V.
4. 13 servo channel outputs
5. Dual voltage output interface: can provide up to 88 W 5/12V power output
for peripherals

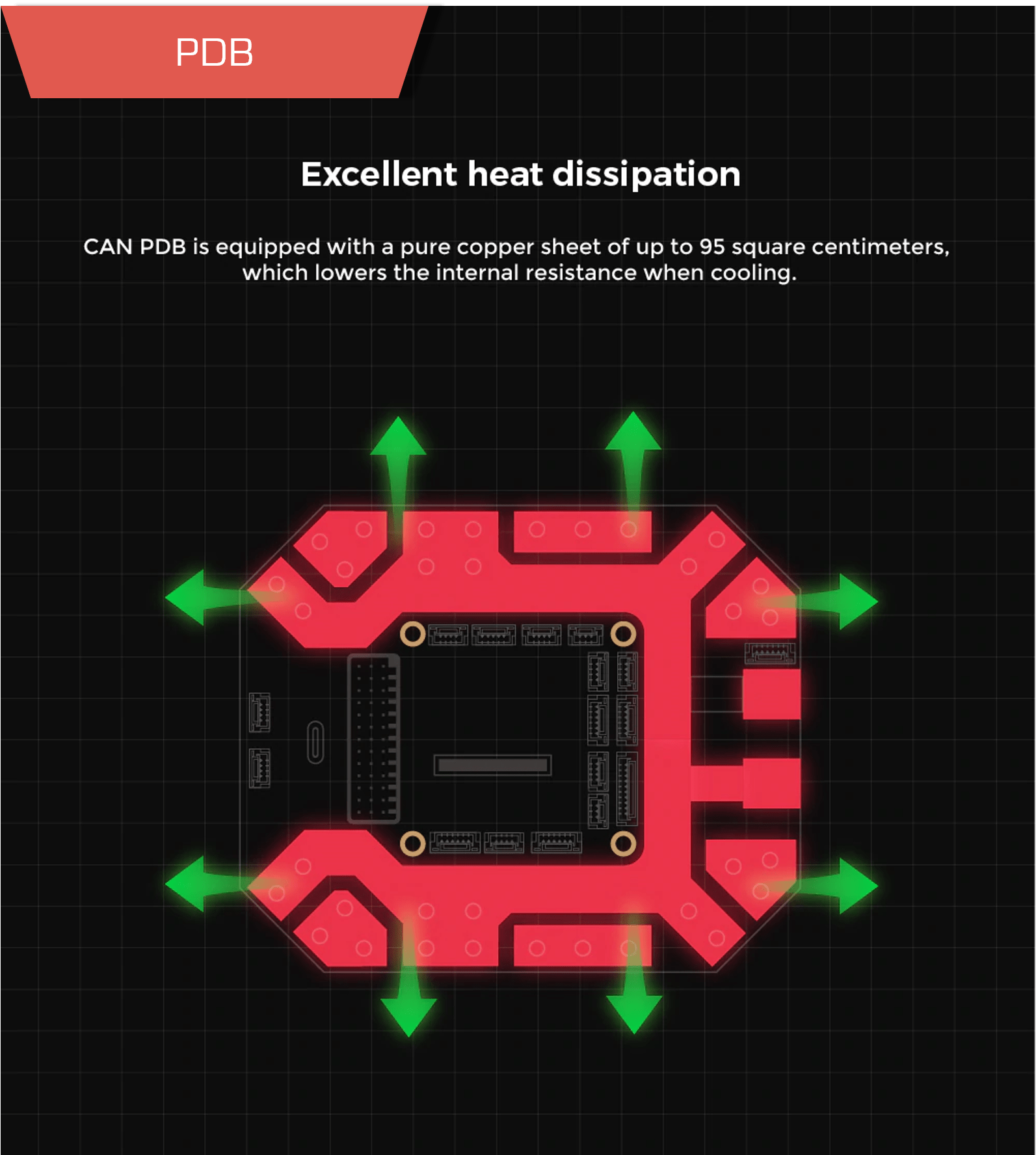

6. Built-in up to 952CM heat dissipation copper sheet, effectively reduce the
heating caused by the internal resistance of a high current circuit
7. Power supply indication LED, visual indication Lipo voltage status
8. Ultra-low-voltage drop 10 main power output
9. Future upgrades support more features such as high-precision power
consumption statistics and instantaneous power push



CUAV CAN Power Distribution 7 min - Power Distribution Board,flight controller,CUAV Drone,CUAV CAN PMU,CUAV CAN PDB,power regulator,pixhawk power module - MotioNew - 3CUAV CAN Power Distribution 1 min - Power Distribution Board,flight controller,CUAV Drone,CUAV CAN PMU,CUAV CAN PDB,power regulator,pixhawk power module - MotioNew - 4 CUAV CAN Power Distribution 8 min - Power Distribution Board,flight controller,CUAV Drone,CUAV CAN PMU,CUAV CAN PDB,power regulator,pixhawk power module - MotioNew - 5  CUAV CAN Power Distribution 4 min - Power Distribution Board,flight controller,CUAV Drone,CUAV CAN PMU,CUAV CAN PDB,power regulator,pixhawk power module - MotioNew - 6 CUAV CAN Power Distribution 5 min - Power Distribution Board,flight controller,CUAV Drone,CUAV CAN PMU,CUAV CAN PDB,power regulator,pixhawk power module - MotioNew - 7 CUAV CAN Power Distribution 3 min - Power Distribution Board,flight controller,CUAV Drone,CUAV CAN PMU,CUAV CAN PDB,power regulator,pixhawk power module - MotioNew - 8CUAV CAN Power Distribution 6 min - Power Distribution Board,flight controller,CUAV Drone,CUAV CAN PMU,CUAV CAN PDB,power regulator,pixhawk power module - MotioNew - 9







Additional information

Weight 0.214 kg

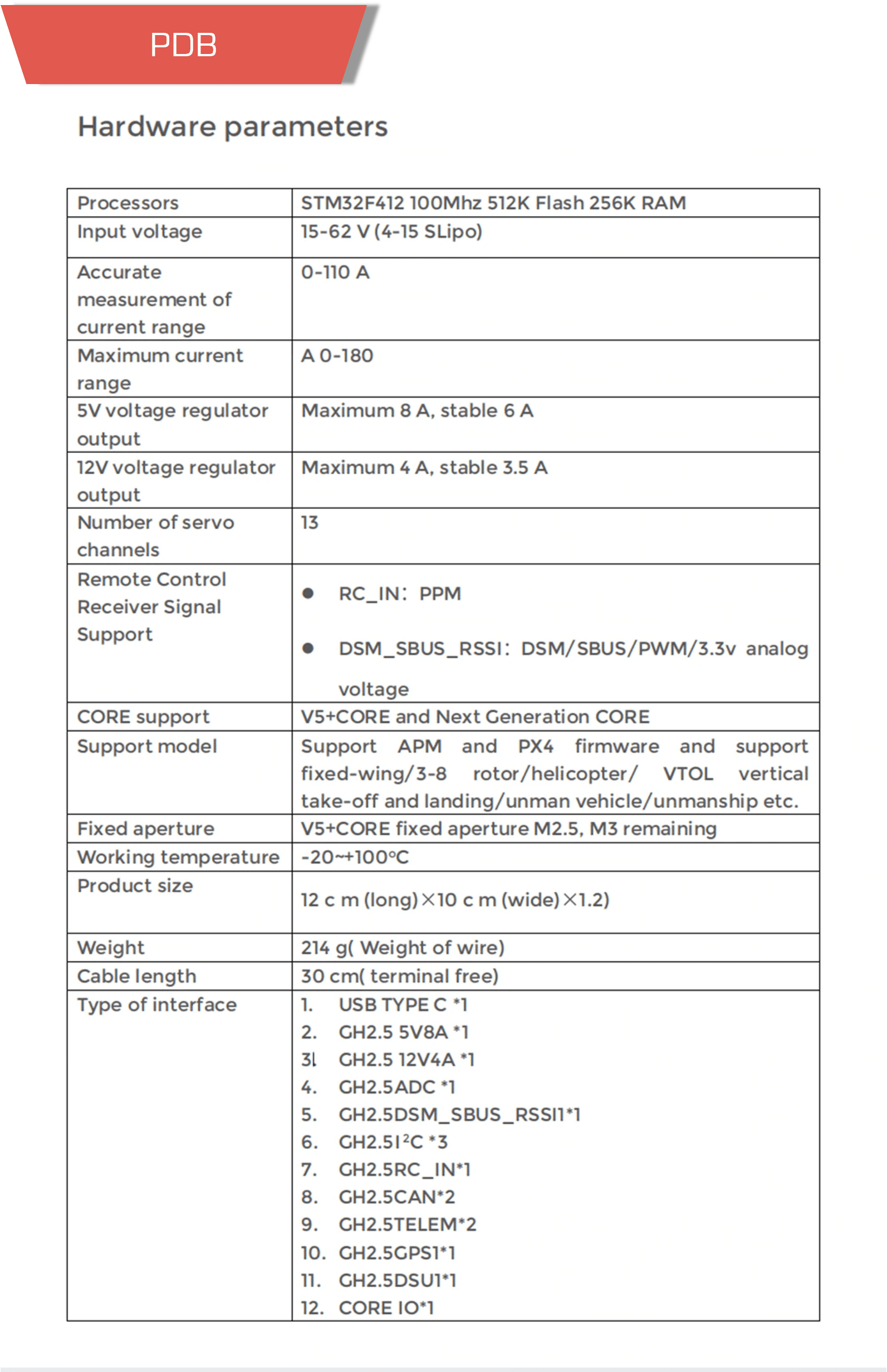

Specifications

  • Compatible Brand: Pixhawk Cube
  • Weight: 214g
  • Dimension: 12x10x1.2cm
  • Operating temperature: -20 ~ 100°C
  • Input voltage 15- 62v (4 – 15S LiPo)Continuous current 110ACompatible with CUAV CorePower Out: 5.4v @ 5A max 8A and 12v 3.5A max 4AUAVCAN Protocol13 PWM OutputCompatible Cubes: CUAV V5, V5+, X7 and X7 Pro

Product contents

Product contents

Documents

Please contact us for more information.
