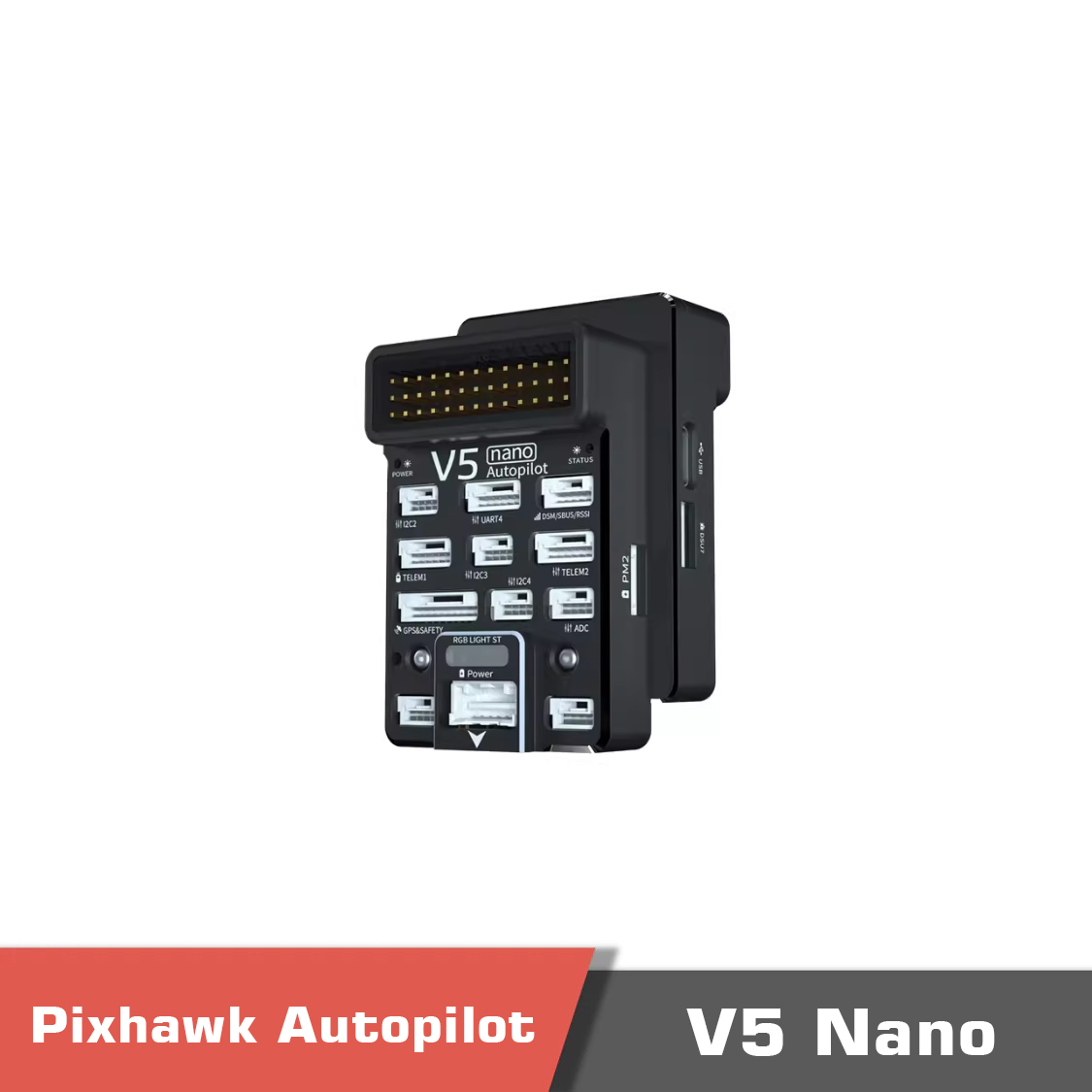

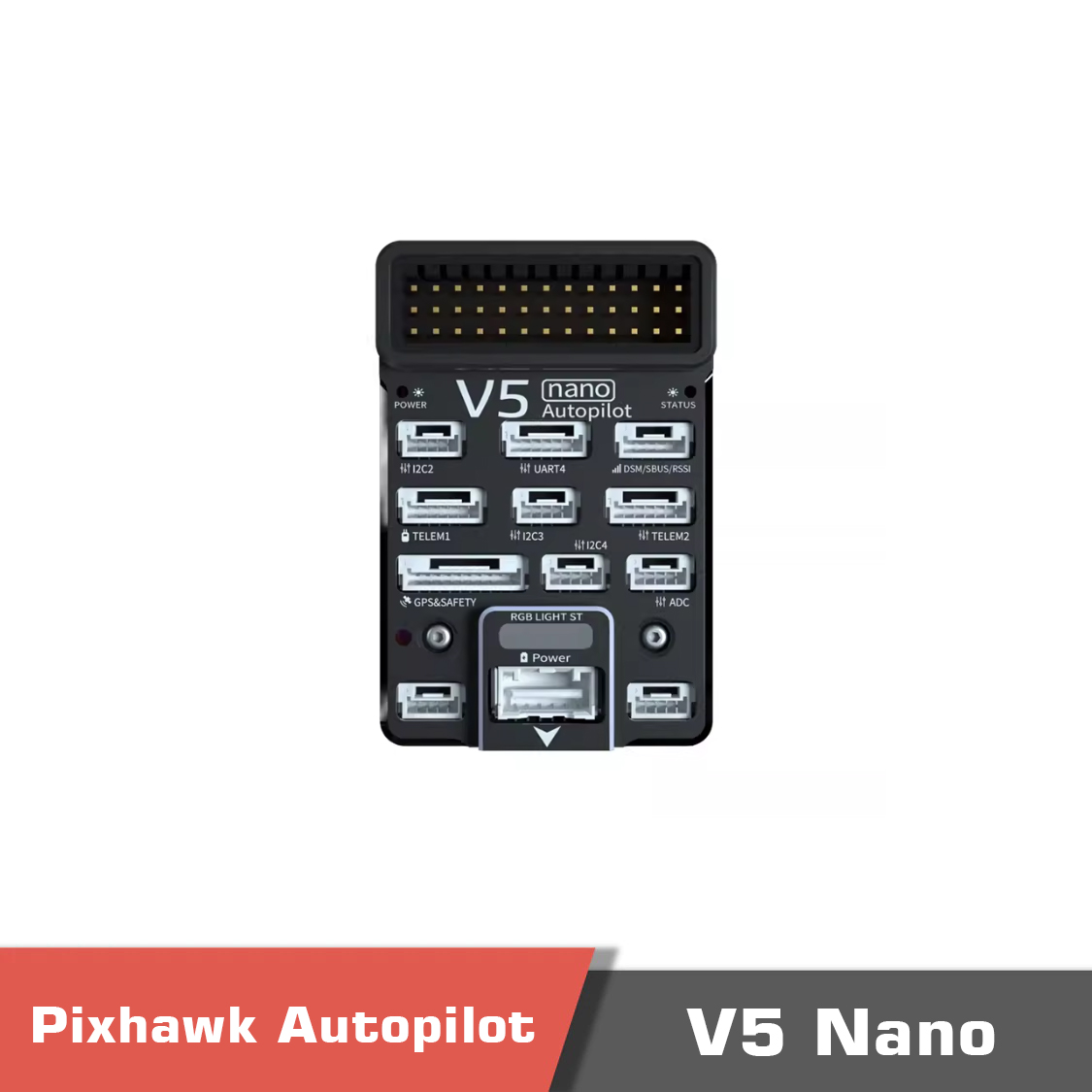

CUAV V5 nano Autopilot Overview

V5 nano is an autopilot for space-constrained applications, designed by CUAV® in collaboration with the PX4 team. The autopilot is small enough to use in 220mm racing drones, but remains powerful enough for most drone use.

Some of its main features include:

  • Full compatibility with the Pixhawk project FMUv5 design standard and uses the Pixhawk Connector Standard for all external interfaces.
  • More advanced processor, RAM and flash memory than FMU v3, along with more stable and reliable sensors.
  • Firmware-compatible with PX4.
  • Generous 2.6mm spacing for for I/O pins, making it easier to use all the interfaces.

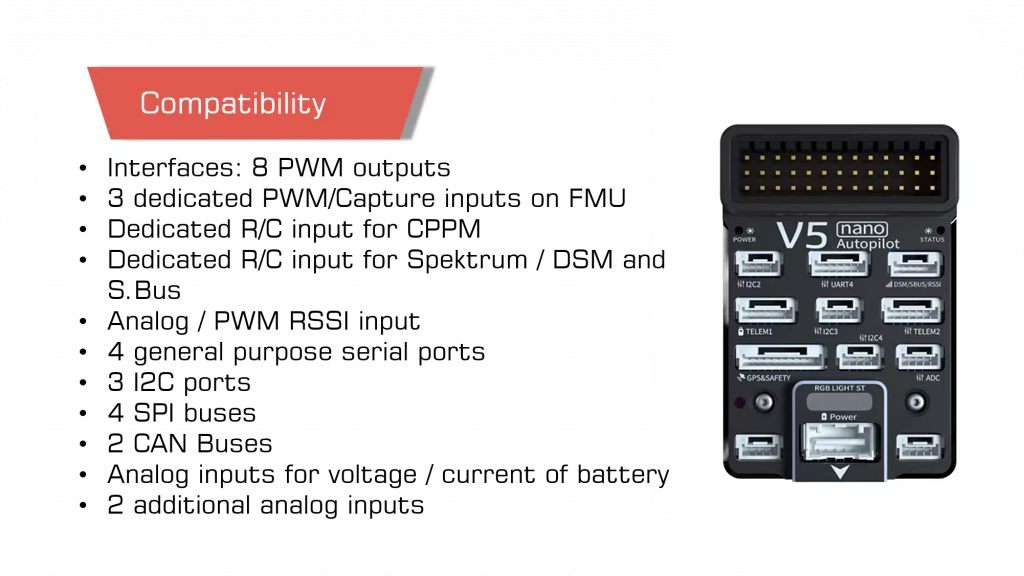

  • 3 dedicated PWM/Capture inputs on FMU
  • Dedicated R/C input for CPPM
  • Dedicated R/C input for Spektrum / DSM and S.Bus
  • Analog / PWM RSSI input
  • 4 general purpose serial ports
  • 3 I2C ports
  • 4 SPI buses
  • 2 CAN Buses
  • Analog inputs for voltage / current of battery
    • 2 additional analog inputs
  • Power System: Power Brick Input: 4.75~5.5V


Ua6714f4284304df393e6e449d803b36ej - CUAV V5 nano Autopilot - MotioNew - 8 Ue2413e6b8483423fbe9c5a2ab2802505B - CUAV V5 nano Autopilot - MotioNew - 9 Uca5eec54965c41bf9dba1500d3e1d566Y - CUAV V5 nano Autopilot - MotioNew - 10 U2747638f80c44a39ac7oo796d530b5dd5c5 - CUAV V5 nano Autopilot - MotioNew - 11 U583c12b2de3b472db759dcfeb30e013eK - CUAV V5 nano Autopilot - MotioNew - 12

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Dimensions 7 × 5 × 3 cm

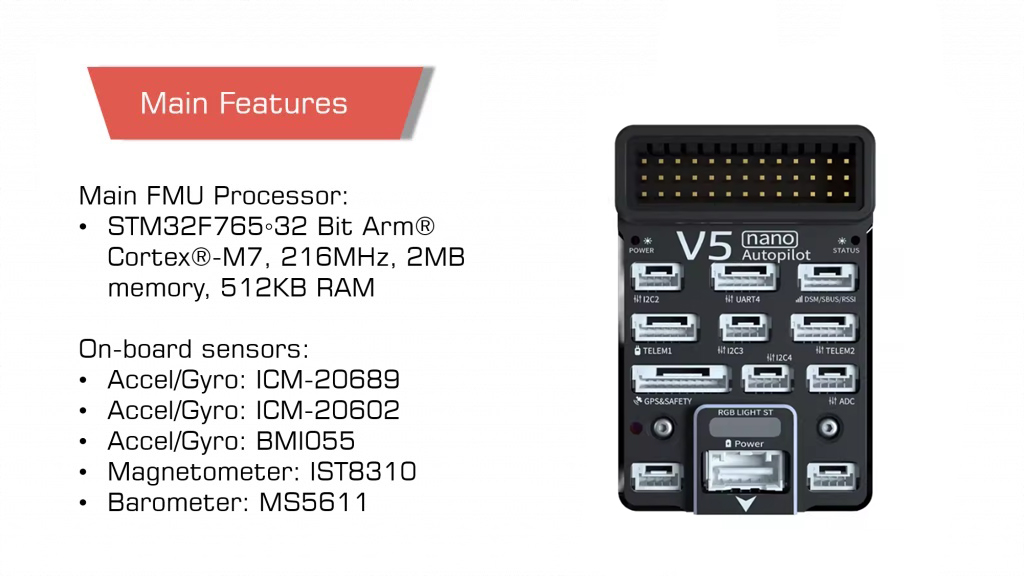

Main FMU Processor STM32F765◦32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
On-board sensors: Accel/Gyro: ICM-20689
Accel/Gyro: ICM-20602
Accel/Gyro: BMI055
Magnetometer IST8310
Barometer MS5611

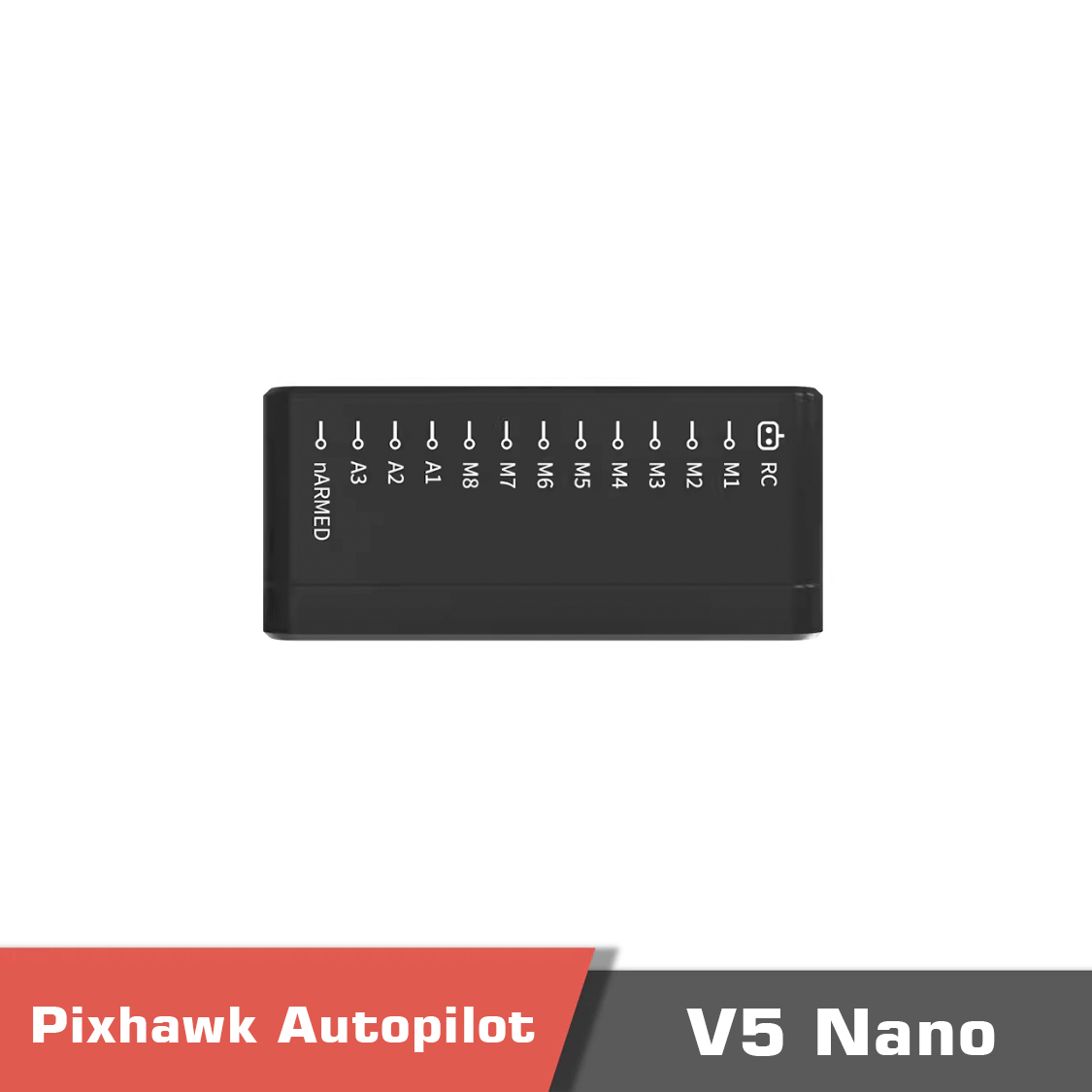

Interfaces 8 PWM outputs

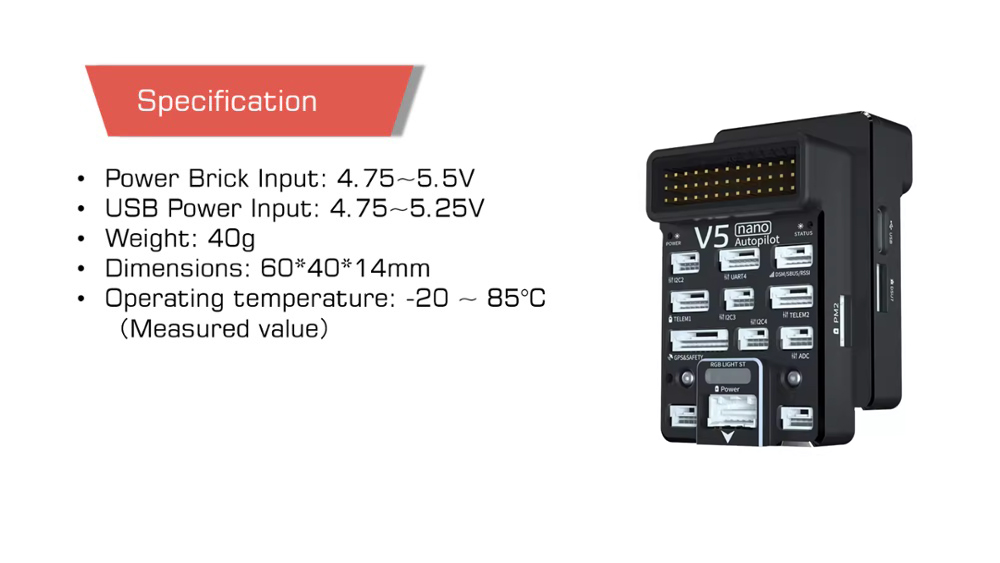

USB Power Input 4.75~5.25V
Weight 40g
Operating temperature -20 ~ 85°C (Measured value)
Dimensions 60*40*14mm


User manual

Product contents

Product contents
