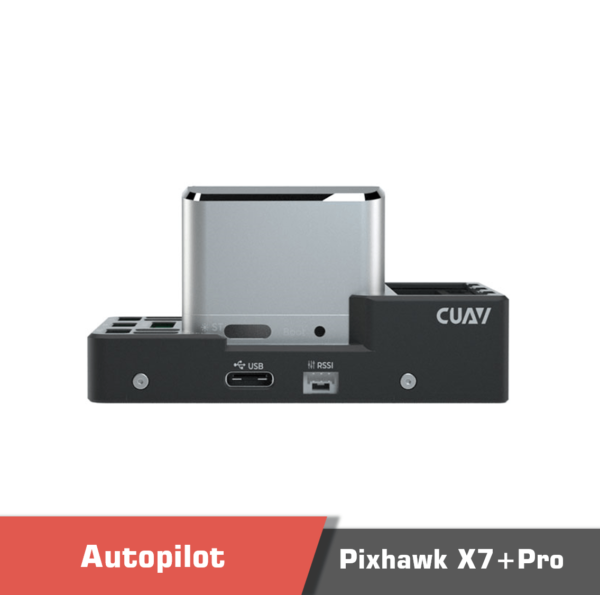

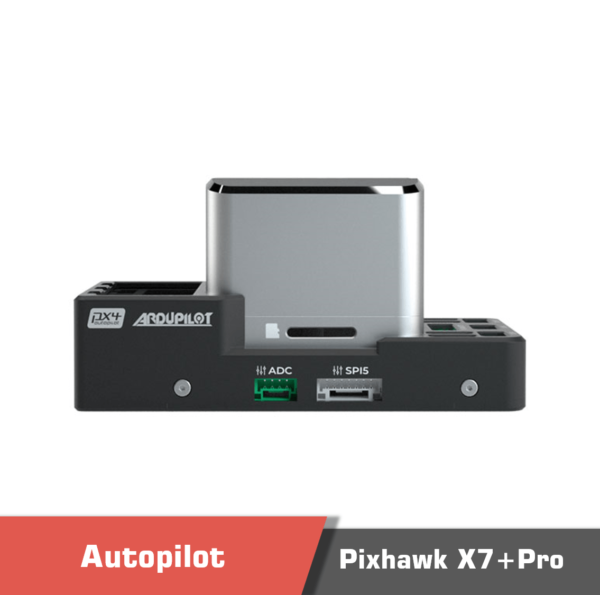

Pixhawk CUAV X7+ Pro

879.00 $1695.00 $

(1 customer review)
PayPal
Visa
Master

Description

CUAV X7+ Pro Flight Controller Overview

It is CUAV’s Pixhawk X7+ PRO autopilot that has been designed independently by the company and is one of the most advanced flight control for drone around. Aside from this, the STM32H743 processor provides high performance and makes use of industrial-grade sensors, as well as ultra-low temperature drift sensors, to ensure the best performance possible. Compared to the previous CUAV X7+ Pro, this flight controller which is a multirotor, VTOL,  and fixed-wing drone autopilot, offers superior performance and enhanced reliability. On this board, you can run the ArduPilot firmware perfectly. There is no doubt that the CUAV X7+ pro is ideal for industrial drones.

Quick Summary of this CUAV

The main FMU processor is the STM32H743
On-board sensors:

Accelerometer/Gyroscope: ICM-20649
Accelerometer/Gyroscope: ADIS16470
Accelerometer/Gyroscope: BMI088
Magnetometer: RM3100
Barometer: MS5611*2

You can find more information on related products by visiting Flight Controllers.

X7 Plus Pro Features:

  • It has the ability to absorb shock internally
  • The modular design makes it suitable for DIY carrier boards
  • Support for USB_HS driver results in faster log downloads
  • A greater amount of D-shots can be output
  • Provide support for the heat transfer to the IMU, which will enhance the performance of the sensor in the long run
  • A dedicated port is provided for the battery of the UAVCAN
  • A three-set IMU sensor system is used
Cuav x7+ proCuav x7 proCuav x7 proCuav x7 proUe6ec4effdc174c52aab60a25ce128321v - cuav x7+ pro - motionew - 15Ub04f560f184c4778a7658222cdb163388 - cuav x7+ pro - motionew - 16X7 plus proX7 plus proX7 plus pro
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications



Specifications
Main FMU Processor STM32H743
Accelerometer/Gyroscope ICM42688-P(X7 Pro: ICM-20649)
Accelerometer/Gyroscope ADIS16470
Accelerometer/Gyroscope ICM20689-P(X7 Pro: BMI088)
Magnetometer RM3100
Barometer MS5611 x2



Other Characteristics
Weight 101g
Operating temperature -20 ~ 85°c
Three IMUs
Supports temperature compensation
Internal shock absorption



Power System
Power 4.5~5.4V
USB Input 4.75~5.25V
Servo Rail Input 0~10V



Interfaces
14x PWM outputs 12x supports Dshot
Support multiple RC inputs SBUs/PPM/DSM
Analogue PWM RSSI input
2x GPS ports GPS and UART 4x ports
4x I2C buses 2x I2C dedicated ports
2x CAN bus ports
2x Power ports Power A is a common ADC interface

Power C is uavcan battery interface

2x ADC input
1x USB ports



Picture3 - cuav x7+ pro - motionew - 17







U4c368413630c4dc29f7e5e83a1ba381bx - cuav x7+ pro - motionew - 18

Product contents

Product contents

Documents

Further info
