Holybro M9N GPS with UBLOX M9N module IST8310 compass

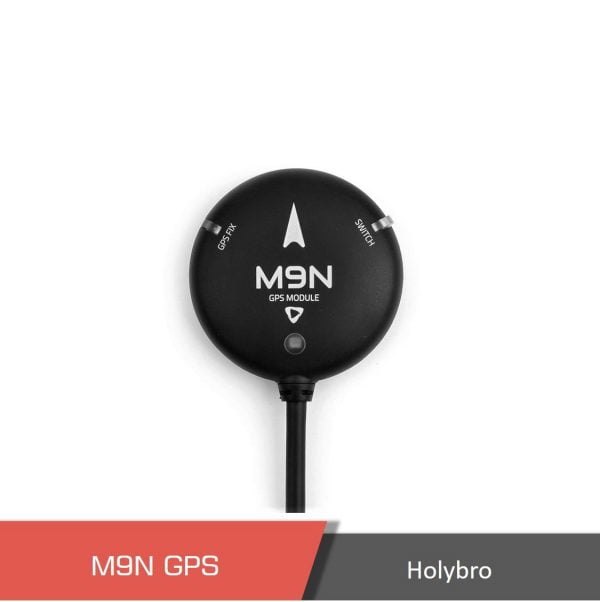

An overview of the Holybro M9N GPS system

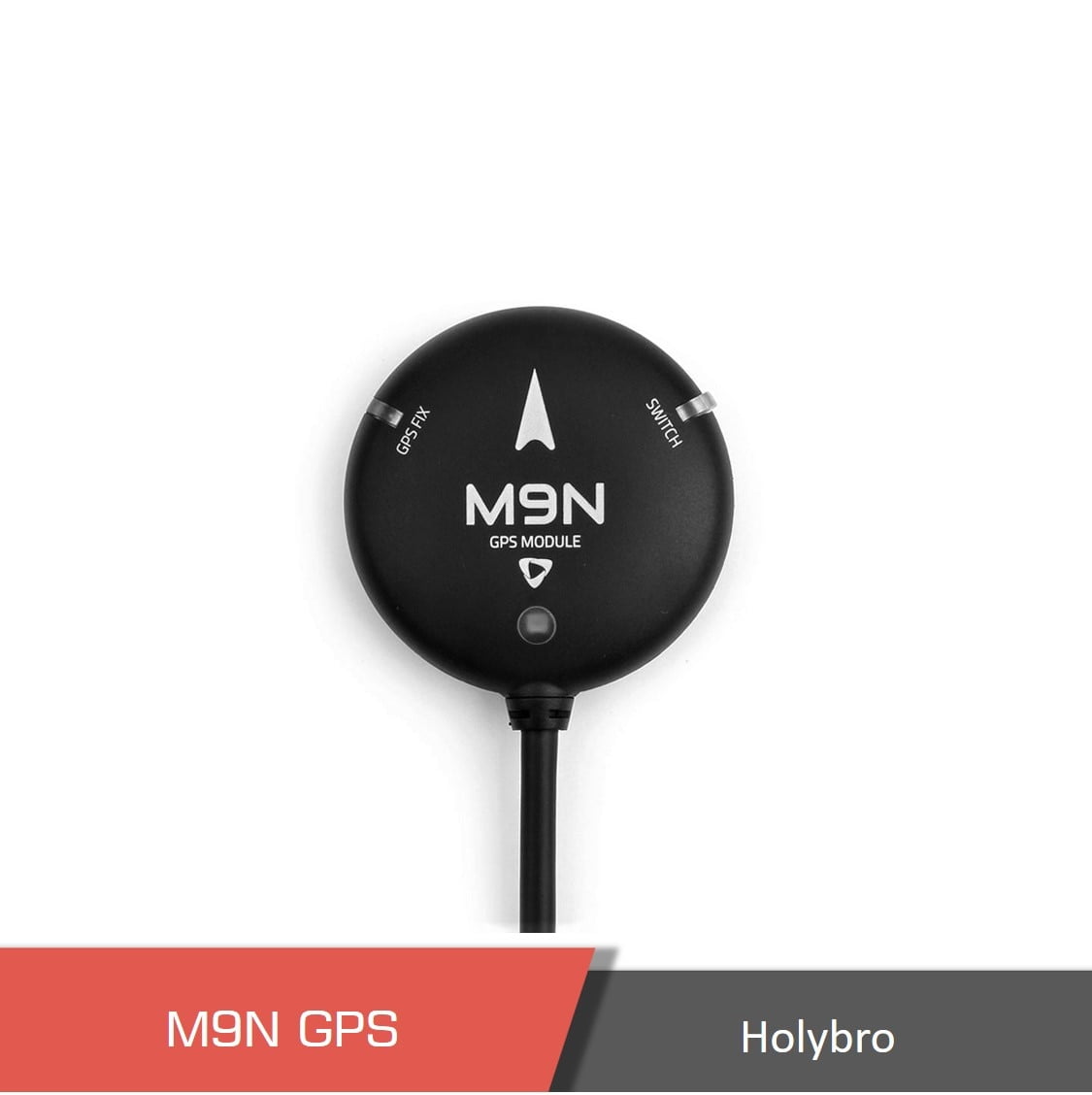

It is equipped with a UBLOX M9N module, an IST8310 compass, a tricolored LED indicator, and a safety switch. Depending on the purpose, there are three different connector options available. A 115200 5Hz baud rate is provided with the module when purchased.

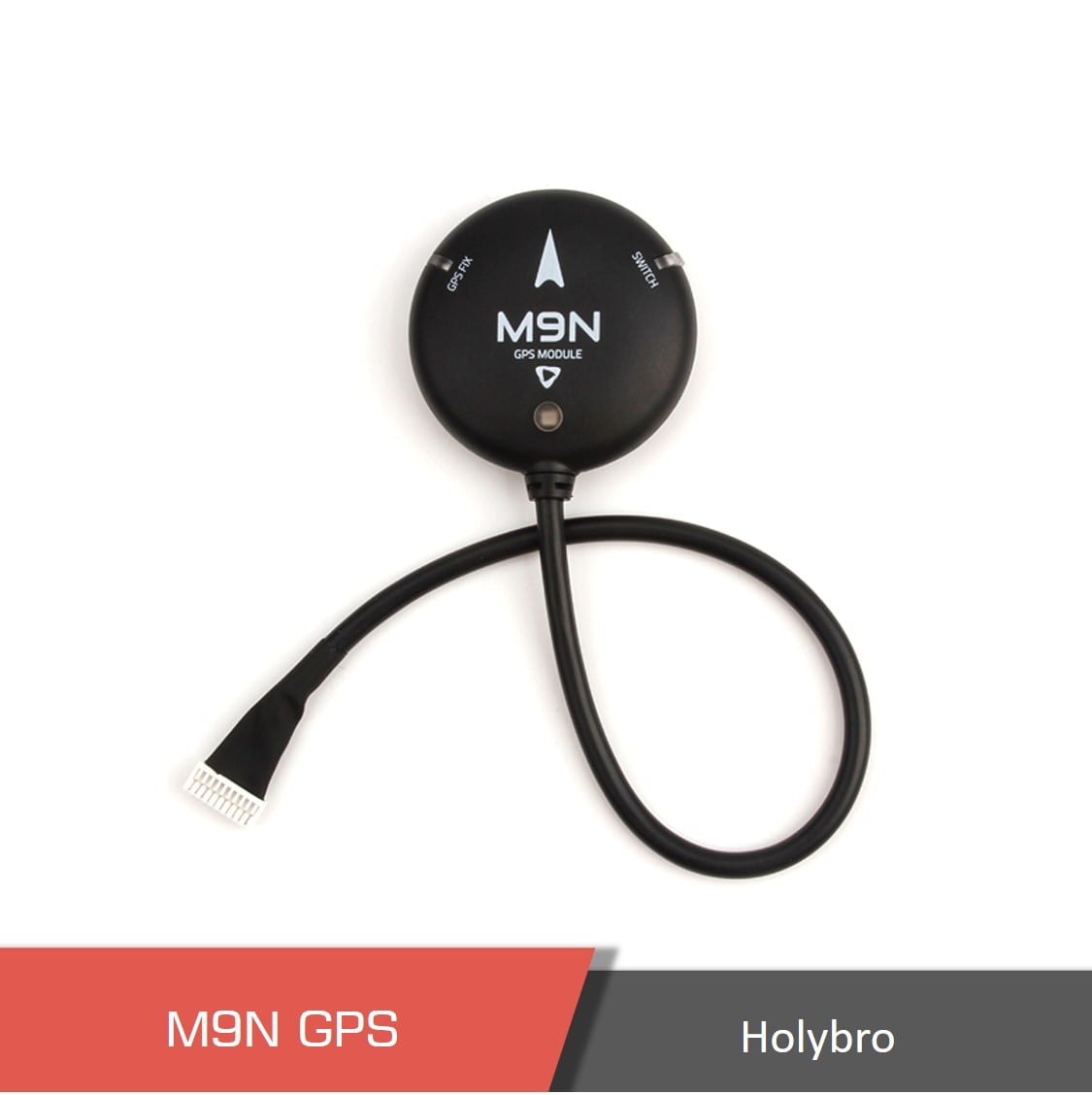

The Holybro M9N GPS (JST GHR1.25mm 10pin cable) is as follows:
With this JST GH 10Pin connector, you can use it on the 10pin “GPS Module” or “GPS1” input port of the Pixhawk Standard Flight Controller.

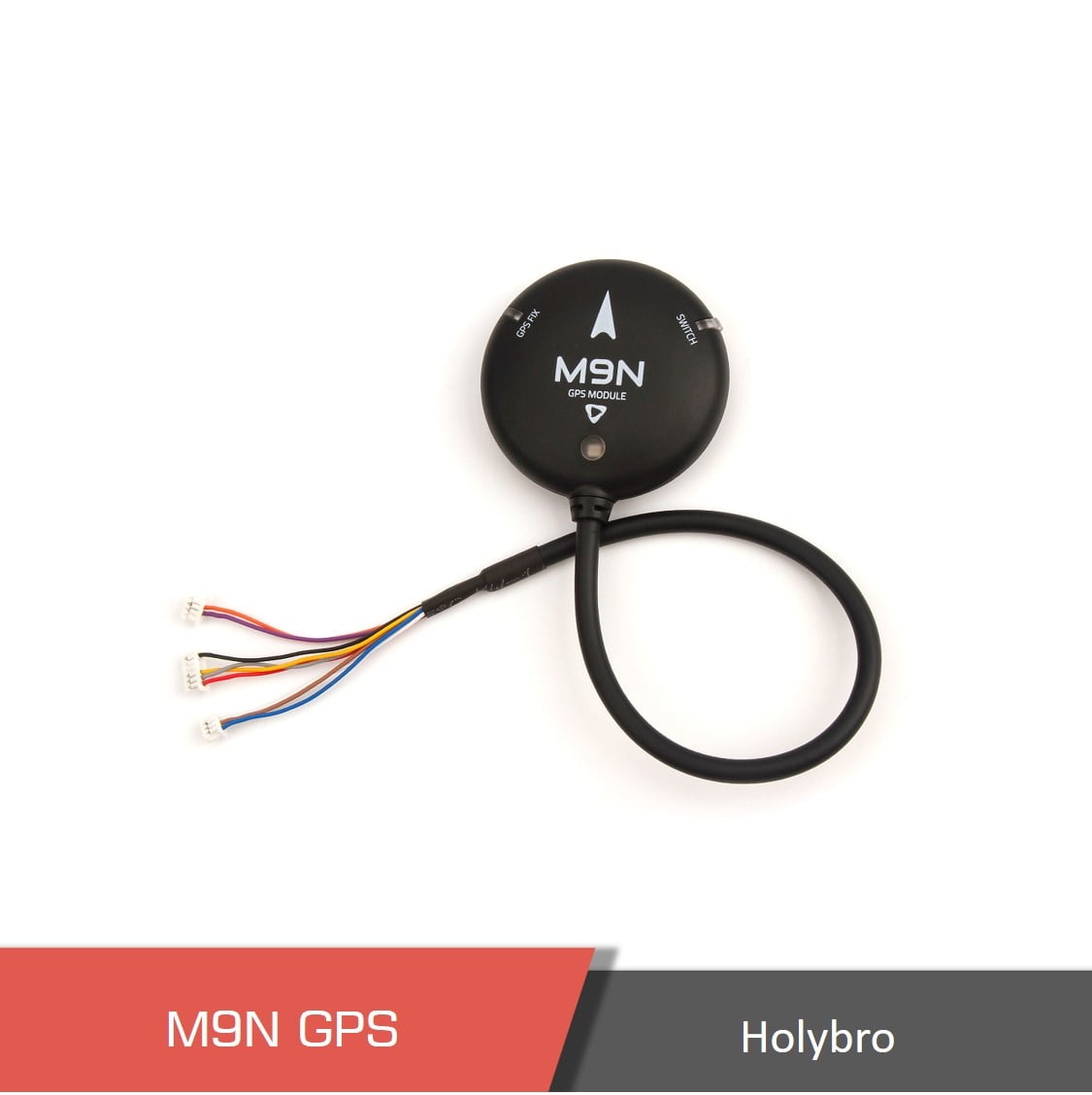

The M9N GPS for Pix32 (Molex1.25mm 6 pins, 4 pins, and 3pins cable):
These Molex1.25mm 6 pins, 4 pins, and 3 pins are designed to handle inputs such as the “Switch”, “GPS” and “I2C” ports on the Pix32.
Using the Holybro M9N 2nd GPS cable (JST GHR1.25mm 6pin cable):
The JST GH 6Pin connector can be used as the secondary GPS of the Pixhawk Standard Flight Controller via the 6 pin “UART & I2C” or “GPS2” input port. In addition to this GPS, it is also compatible with the GPS2 port on the Cube Flight Controller.
If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.
|Dimensions||2.5 × 2.5 × 0.4 cm|
|Low noise||3.3V regulator|
|Current consumptionV||less than 150mA @ 5|
|navigation sensitivity||–167 dBm|
|patch antenna||25 x 25 x 4 mm ceramic|
|regulator||Low noise 3.3V|
|Current consumption||less than 150mA @ 5V|
|LED||Fix indicator LED|
|Diameter||50mm total size, 32 grams with case|
Quick Start Guide
M9N GPS Module *1
‘X’ type folding pedestal mount *1
Carbon rod 70mm & 140mm *1
