Pixhawk 5X Holybro with STM32F7

80.00 $443.50 $



Pixhawk 5x has been discontinued, check the Pixhawk 6x

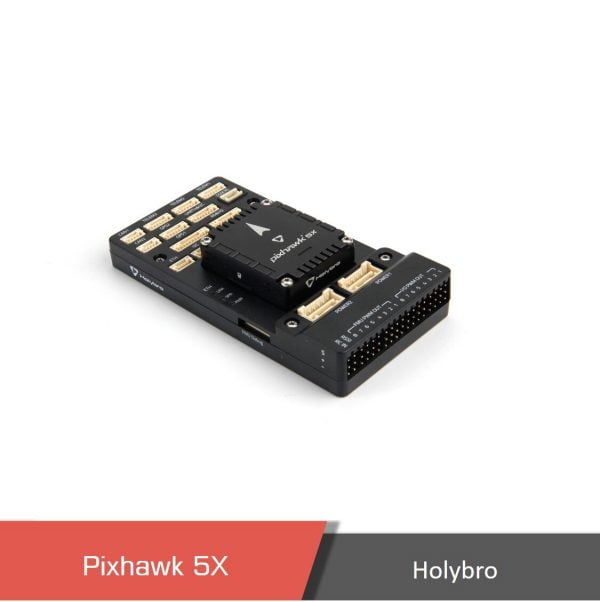

Pixhawk 5X Holybro Overview

The Pixhawk® 5X is the latest update to the successful family of Pixhawk drone flight controllers, based on the Pixhawk FMUv5X Open Standard and the Pixhawk Autopilot Bus Standard. It comes with the latest PX4 Autopilot® pre-installed, triple redundancy, temperature-controlled, isolated sensor domain, delivering incredible performance and reliability. But recently, the Holybro® company is about to release a new version of pixhawk 6. You can find more detail about this product in this latest pixhawk article.

Inside the Pixhawk 5X Holybro, you can find an STMicroelectronics® based STM32F7, paired with sensor technology from Bosch®, InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications. The Pixhawk® 5X’s F7 microcontroller has 2MB flash memory and 512KB RAM. The PX4 drone Autopilot flight controllers takes advantage of the increased power and RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The FMUv5X open standard includes high-performance, low-noise IMUs on board, designed for better stabilization. Triple redundant IMU & double redundant barometer on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability.

An independent LDO powers every sensor set with independent power control. A newly designed vibration isolations to filter out high-frequency vibration and
reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY (LAN8742AI-CZ-TR), high-speed communication with mission computers via ethernet is now supported. Two smart battery monitoring ports (SMBus), support for INA226 SMBus Power module.

The Pixhawk® 5X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

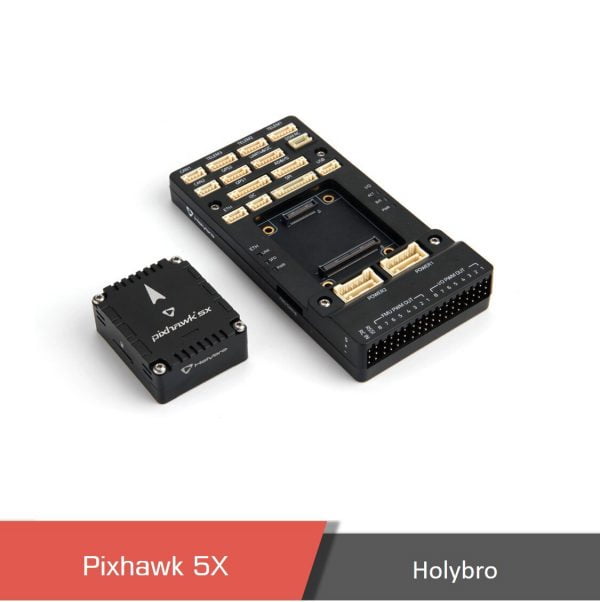

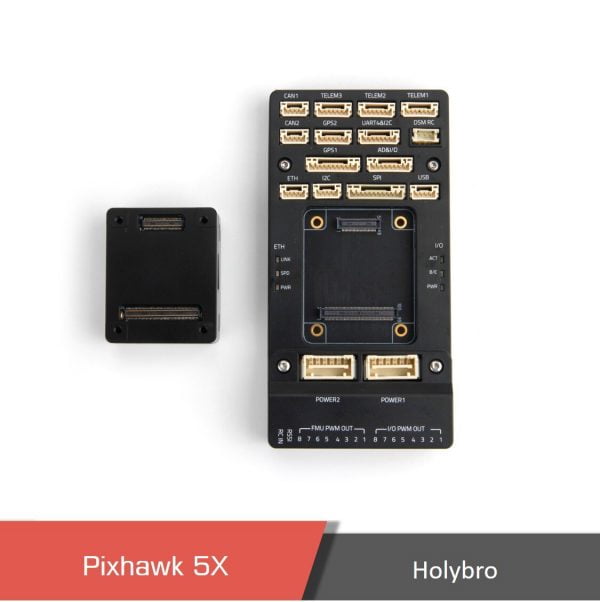

  • Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector, designed for flexible and customizable systems

  • Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses, allowing parallel and continuous operation even in the event of a hardware failure

  • Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control

  • Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

  • Ethernet interface for high-speed mission computer integration

  • Automated sensor calibration eliminating varying signals and temperature

  • IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

  • Two smart batteries monitoring on SMBus

  • Additional GPIO line and 5V for the external NFC reader

  • Secure element for secure authentication of the drone (SE050)

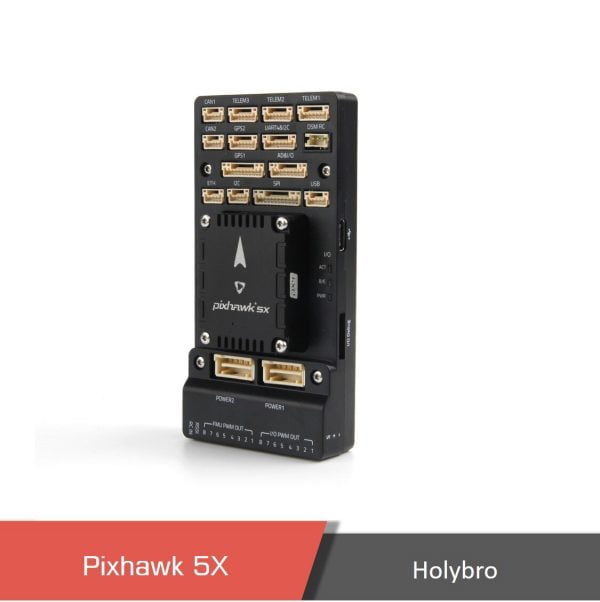

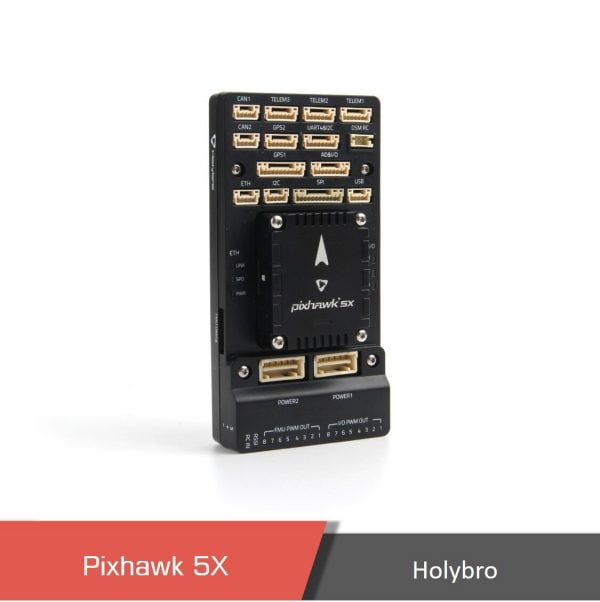

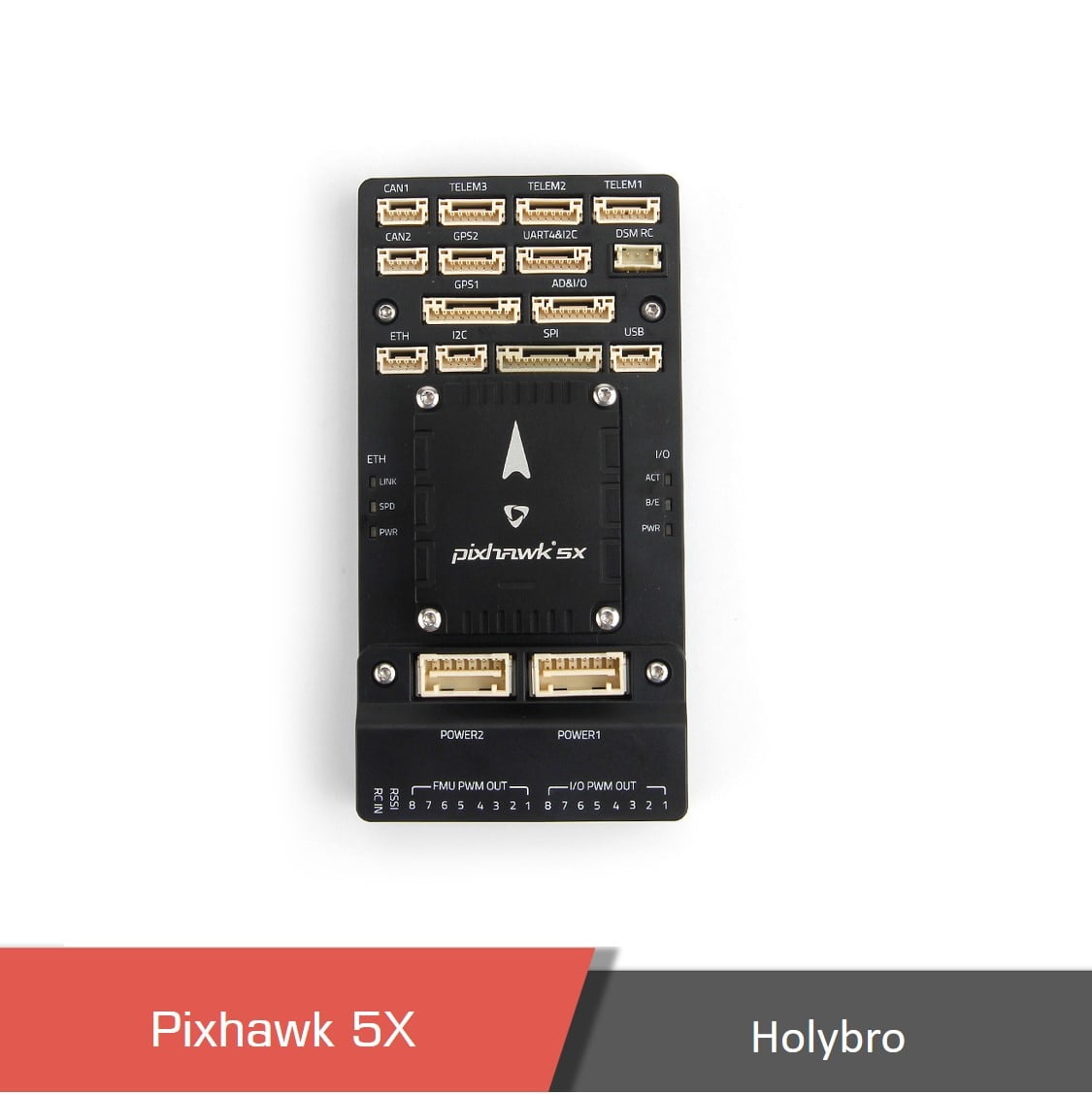

Interfaces of Pixhawk 5X

  • 16- PWM servo outputs

  • R/C input for Spektrum / DSM

  • Dedicated R/C input for PPM and S.Bus input

  • Dedicated analog / PWM RSSI input and S.Bus output

  • 4 general purpose serial ports

                   3 with full flow control

                   1 with separate 1A current limit

                   1 with I2C and additional GPIO line for external NFC reader

  • 2 GPS ports

                  1 full GPS plus Safety Switch Port

                  1 basic GPS port

  • 1 I2C port

  • 1 Ethernet port

                 Transformerless Applications


  • 1 SPI bus

                  2 chip select lines

                  2 data-ready lines

                  1 SPI SYNC line

                  1 SPI reset line

  • 2 CAN Buses for CAN peripheral

                  CAN Bus has individual silent controls or ESC RX-MUX control

  • 2 Power input ports with SMBus

  • 1 AD & IO port

                  2 additional analog input

                  1 PWM/Capture input

                  2 Dedicated debug and GPIO lines


If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 0.1 kg
Dimensions 5.2 × 10.3 × 1.6 cm



Flight Controller Module 23g
Standard Baseboard 51g
Flight Controller Module  38.8 x 31.8 x 14.6mm
Standard Baseboard 52.4 x 103.4 x 16.7mm
Max input voltage  6V
USB Power Input 4.75~5.25V
Servo Rail Input 0~36V


Technical specification
On-board sensors Accel/Gyro: ICM-20649

Accel/Gyro: ICM-42688P

Accel/Gyro: ICM-20602

Mag BMM150
Barometer 2x BMP388
FMU Processor STM32F765

32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM



Electrical data
Max input voltage 6V
USB Power Input 4.75~5.25V
Servo Rail Input 0~36V


Mechanical data
Flight Controller  Dimensions 38.8 x 31.8 x 14.6mm
Standard Baseboard Dimensions 52.4 x 103.4 x 16.7mm
Flight Controller Weight 23g
Standard Baseboard Weight 51g

Product contents

Standard Set (SKU20116) Includes:

  • Pixhawk 5X Flight Controller Module
  • Pixhawk 5X Standard Baseboard
  • Power Distribution Board
  • PM02D Power Module
  • Cable Set

Standard Set + M8N GPS (SKU20117) Includes:

  • Pixhawk 5X Flight Controller Module
  • Pixhawk 5X Standard Baseboard
  • Power Distribution Board
  • PM02D Power Module
  • Cable Set
  • M8N GPS

Standard Set + M9N GPS (SKU20151) Includes:

  • Pixhawk 5X Flight Controller Module
  • Pixhawk 5X Standard Baseboard
  • Power Distribution Board
  • PM02D Power Module
  • Cable Set
  • M9N GPS
