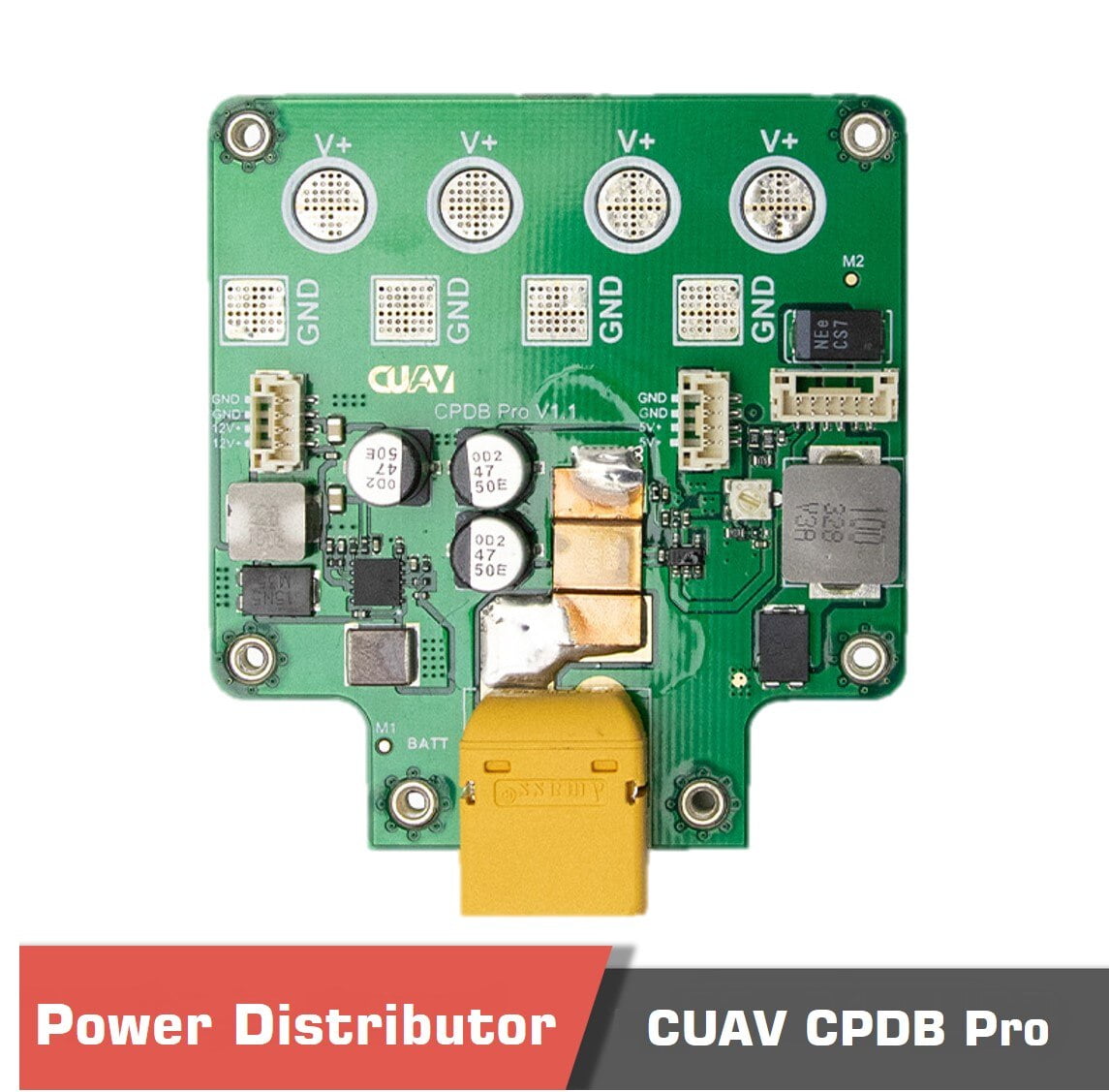

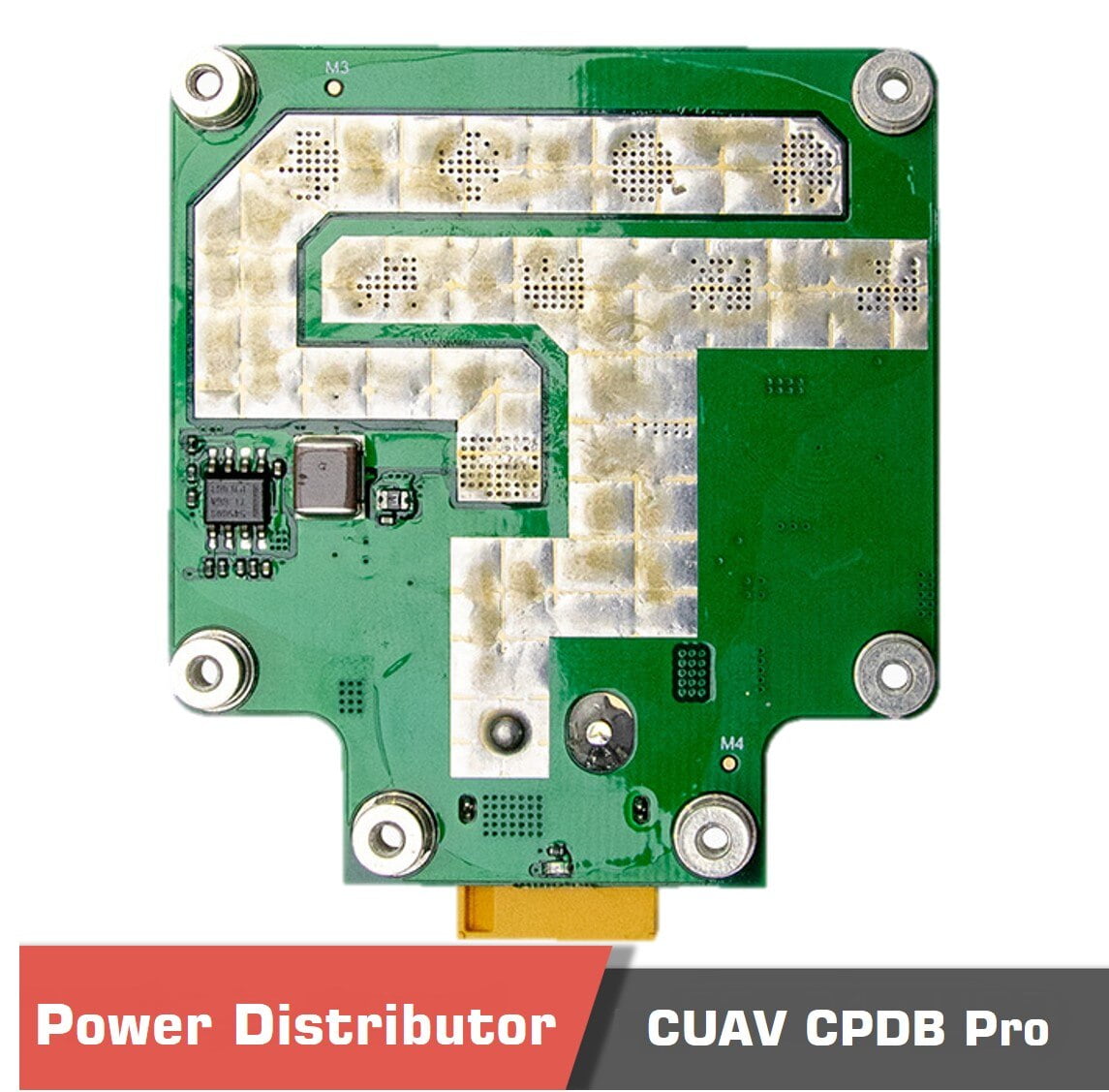

CUAV CPDB Pro Power Distribution Board for Quadcopter

80.00 $

(1 customer review)
PayPal
Visa
Master

Description

CPDB Pro is a UAV power distribution board and power module with an integrated current and voltage meter. It features high accuracy measurement reading power sensors and a wide working voltage. It is mainly used for multi-rotor UAVs but also can be used with VTOL and fixed-wing drones.

CUAV CPDB (Power Distribution Board) Pro Power module for drones has multiple dedicated outputs with 5V and 12V voltage levels and high output current. This power module data interface is analog which means you can read the measured voltage and current data by most of the flight controller’s ADC(Analog to Digital) port that’s the most common with Pixhawk flight controllers.

The CUAV power module can also be used as a BEC power module for Pixhawk flight controllers and power up most of the UAV components such as the video transmitter, Servo motors, OSD, Datalinks, etc.

Key features

  • Supports higher input voltage: 10V-60V(3S ~ 14S battery)
  • More accurate current and voltage detection: voltage detection accuracy: +-O.lv; Current detection accuracy: +-0.2A
  • Supports higher power output current: 5A
  • Maximum (detection) current: 60A
  • Maximum output current: 60A
  • Independent 12V4A interface



Note:
– Battery is not included in the package.

Power distribution boardU7d29be4c9f94484eb3b8f352c310b8626 - power distribution board,power module for pixhawk,uav voltage regulator,cpdb pro,power module,power module pixhawk,bec power module,drone bec module - motionew - 5Uf8f1025e5e52475a908ad2dd900774eet - power distribution board,power module for pixhawk,uav voltage regulator,cpdb pro,power module,power module pixhawk,bec power module,drone bec module - motionew - 6U5eae2bdb0f9c49f2b3c96695b6efcbd19 - power distribution board,power module for pixhawk,uav voltage regulator,cpdb pro,power module,power module pixhawk,bec power module,drone bec module - motionew - 7U3224a4495af3483eb6cb8d306f745662e - power distribution board,power module for pixhawk,uav voltage regulator,cpdb pro,power module,power module pixhawk,bec power module,drone bec module - motionew - 8



Specifications

Specifications

  • Compatible Brand: Pixhawk/APM
  • Weight: 33g
  • Dimension: 65x60mm
  • Operating temperature: -20 ~ 80°C
  • Max Current: 60A
  • Input Voltage: 10-60V
  • -Working voltage: 10~60v
  •  Working current: 0~80A – Current accuracy: 0.2A
  •  Voltage accuracy: 0.1V
  •  ESC power interface: 4
  •  Power interface load capacity:
    * 12v out: 4A
    * 5V out: 2A
    * FC power: 5A
  •  Interface Type:
    * Battery interface: XT60 (Battery is not included)
    * 12V OUT/5V OUT/FCP Power: GH1.2

Product contents

Product contents

Documents

Documents

Cuav cpdb user manual
