NEW Holybro Pixhawk 6C UAV Flight Controller

139.00 $231.00 $

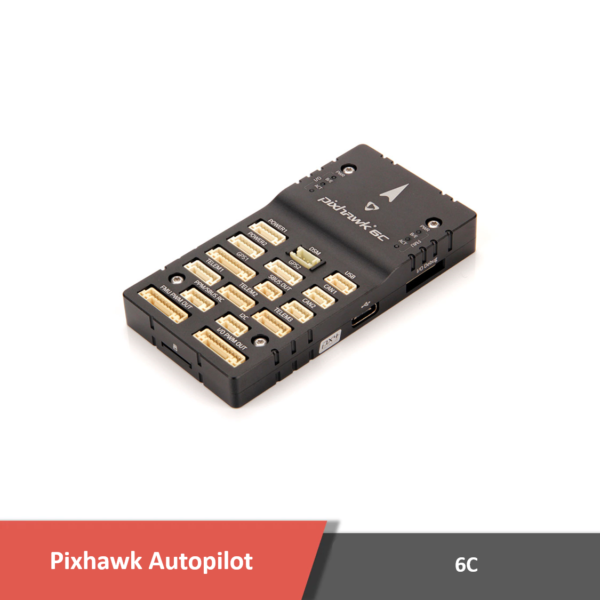

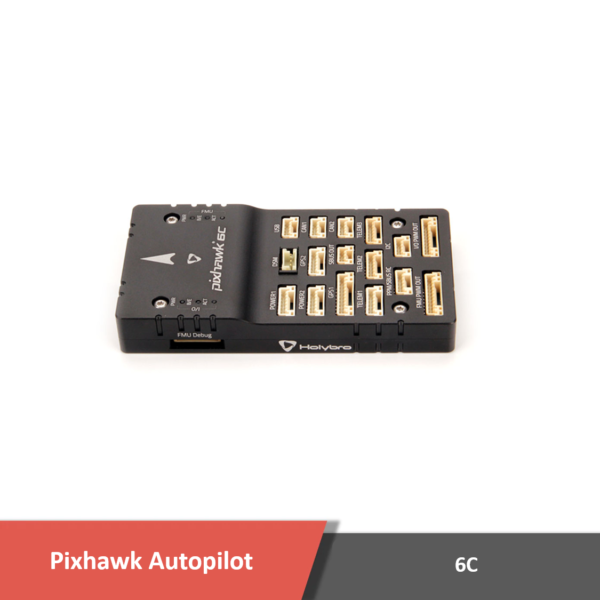

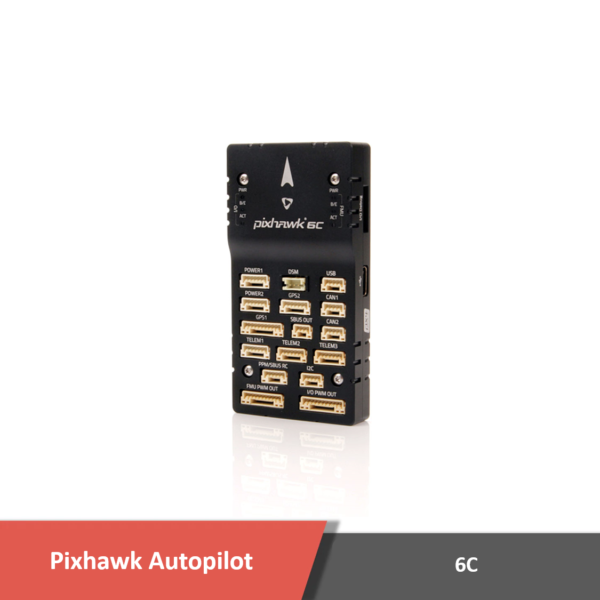

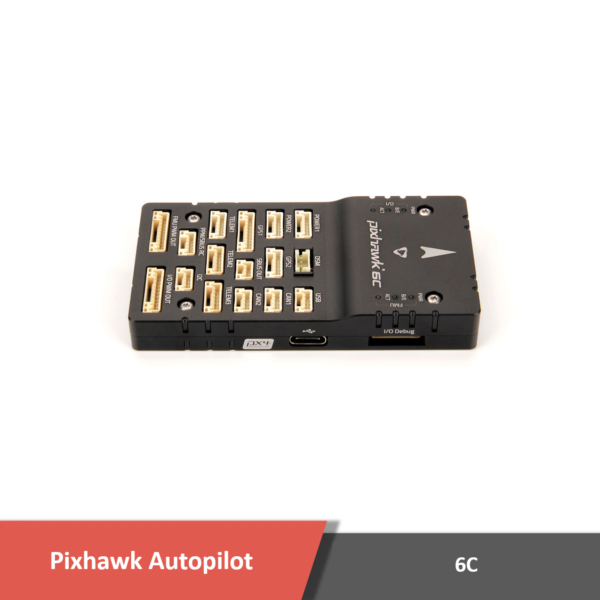

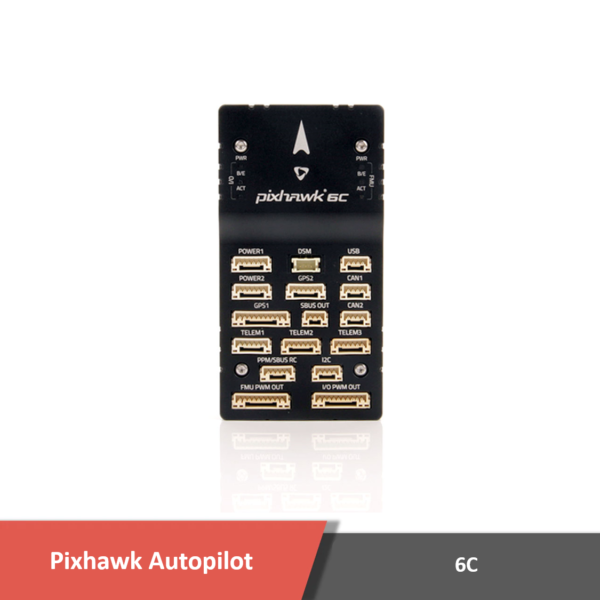

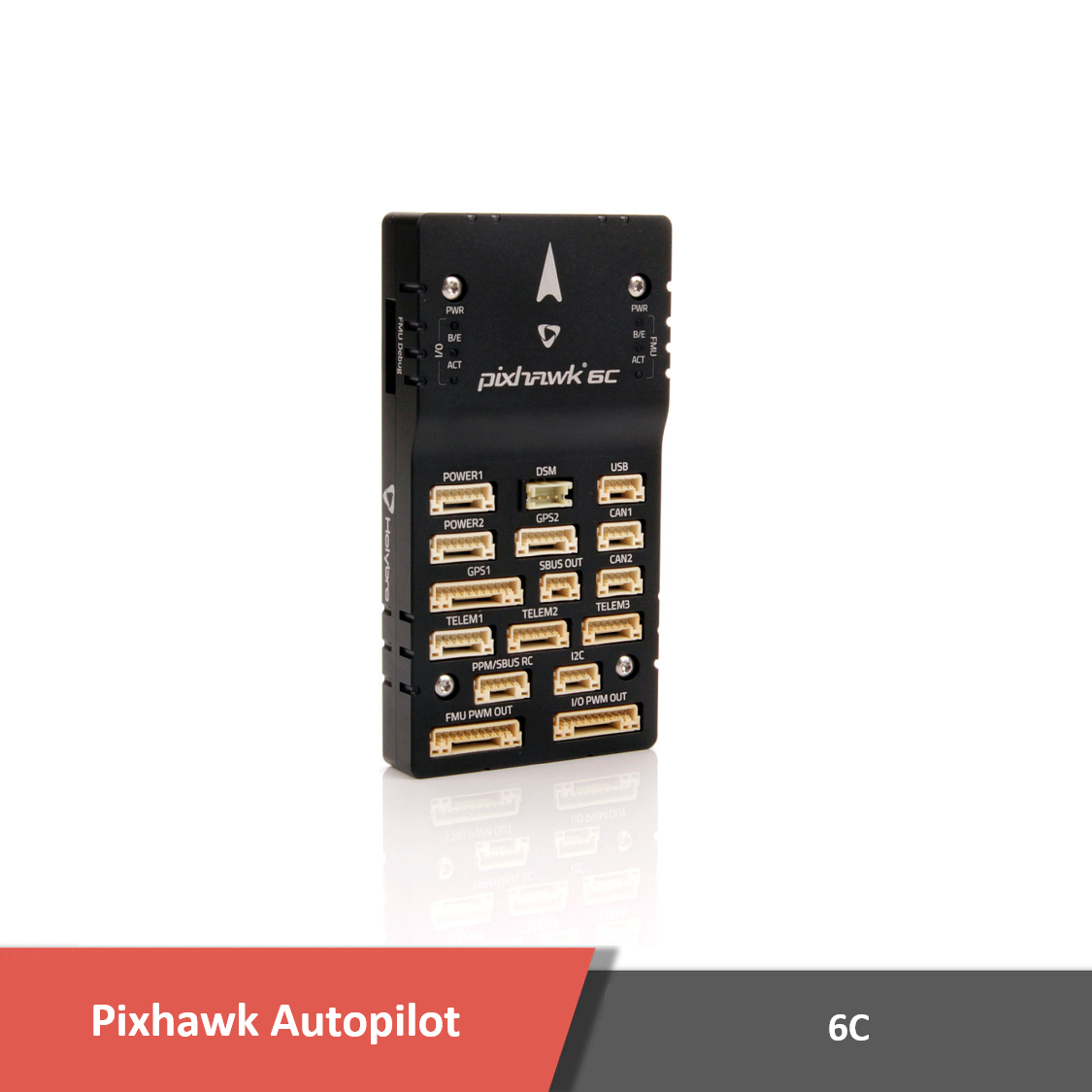

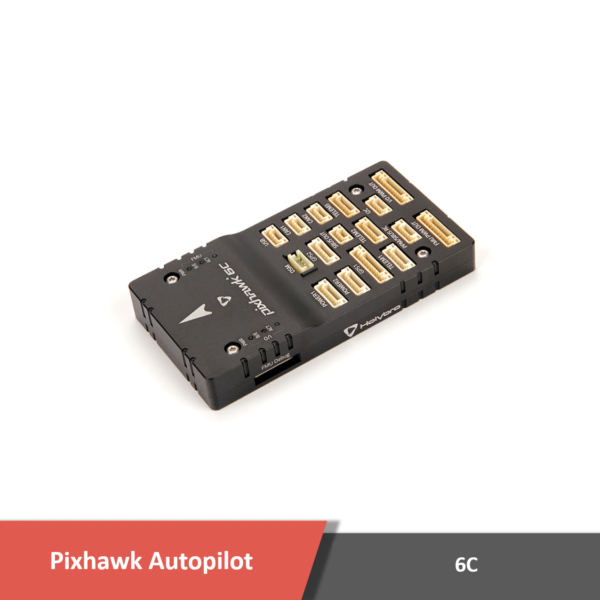

Holybro Pixhawk 6C UAV Flight Controller Overview

As the latest model of the Pixhawk® family of drone flight controllers, this Holybro relies on the Pixhawk® FMUv6C Open Standard and the Pixhawk® Autopilot Bus Standard. In this model, PX4 Autopilot® is pre-installed.

In the Pixhawk® 6C, you’ll find a microchip constructed from STMicroelectronics®, known as the STM32H743, which comes with sensor technology from Bosch® & InvenSense®, enabling you to control any autonomous vehicle, suitable for both academic and commercial applications, depending on the application.

Pixhawk 6C Power with H7 Microcontroller for Enhanced Performance and Efficiency

The Pixhawk 6C has H7 microcontroller consists of an Arm® Cortex®-M7 core that operates at 480 MHz, and has an internal memory of 2MB flash memory and 1MB RAM. This updated processor can make developers more productive and efficient when they are developing their work, allowing them to perform complex algorithms and models with ease. High-performance, low-noise IMUs are included in this FMUv open standard, which is designed to be cost-effective while at the same time providing redundant IMUs. It allows vehicles to achieve better overall flight performance by reducing noise and filtering out high-frequency vibrations.

This product is perfect for developers at corporate research labs, startups, academics (researchers, professors, students), and commercial applications.

The key points of the design of Holybro Pixhawk 6C

  • H7 Processors with a clock speed of up to 480 MHz provide high performance
  • Designed for a low-profile form factor with a new cost-effective design
  • This is a redundant inertial measurement unit (IMU) from Bosch® and InvenSense®
  • The newly designed integrated vibration isolation system eliminates high frequency vibration from the measurement system and eliminates noise, so that accurate reading are kept
  • Onboard heating resistors on IMUs allow their working temperature to be controlled according to the ambient temperature to ensure maximum performance


Holybro pixhawk 6c


If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.

Additional information

Weight 0.0 kg
Dimensions 9 × 5 × 4 cm
Case Material

Plastic, Aluminum


PM02, PM07, PM06, None


M9N, M10, None


Processors & Sensors
FMU Processor STM32H743

32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM

IO Processor STM32F103

32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors


Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611



Electrical data
 Max input voltage Ratings 6V
 USB Power Input Ratings: 4.75~5.25V
 Servo Rail Input Ratings: 0~36V
Telem1 Max output current limiter: 1.5A
  All other port combined output current limiter: 1.5A


Mechanical Data
Dimensions 84.8 x 44 x 12.4 mm
Weight 59.3 g



16x PWM servo outputs 8 from IO, 8 from FMU
3x general purpose serial ports Telem1 – Full flow control, separate 1.5A current limit
Telem2 – Full flow control

2x GPS ports
GPS1 – Full GPS port (GPS plus safety switch)
GPS2 – Basic GPS port
1x I2C Port Supports dedicated I2C calibration EEPROM located on sensor module
2x CAN Buses CAN Bus has individual silent controls or ESC RX-MUX control
2x Debug Port FMU Debug
I/O Debug
Dedicated R/C input for Spektrum / DSM and S.BUS, CPPM, analog / PWM RSSI
Dedicated S.BUS output
2 Power input ports (Analog)


Product contents

All the bundles include the plastic version of the Pixhawk 6C.

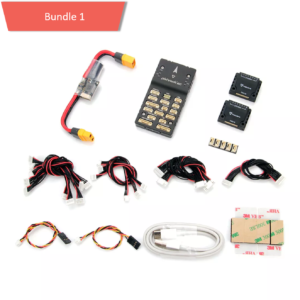

Bundle 1

  • Pixhawk 6C Flight Controller Module
  • PM02 V3 12S Power Module
  • Cable Set

6c bundle1 - holybro pixhawk 6c - motionew - 9

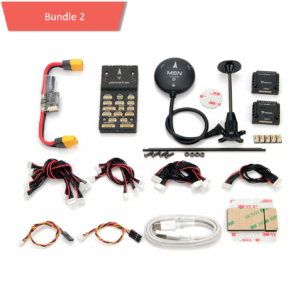

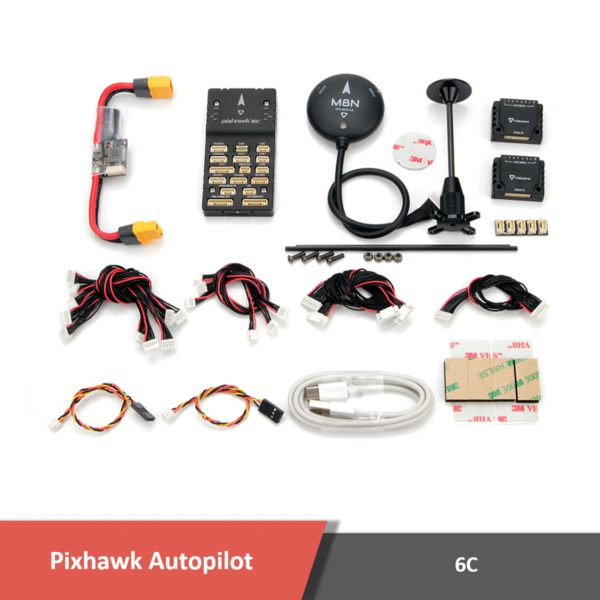

Bundle 2

  • Pixhawk 6C Flight Controller Module
  • PM02 V3 12S Power Module
  • Cable Set
  • M8N GPS

6c bundle2 - holybro pixhawk 6c - motionew - 10

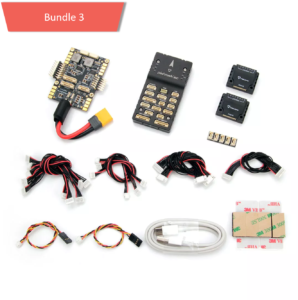

Bundle 3

  • Pixhawk 6C Flight Controller Module
  • PM07 V3 12S Power Module
  • Cable Set

6c bundle3 - holybro pixhawk 6c - motionew - 11

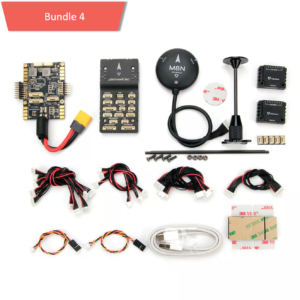

Bundle 4

  • Pixhawk 6C Flight Controller Module
  • PM07 12S Power Module
  • Cable Set
  • M8N GPS

6c bundle4 - holybro pixhawk 6c - motionew - 12


User manual
