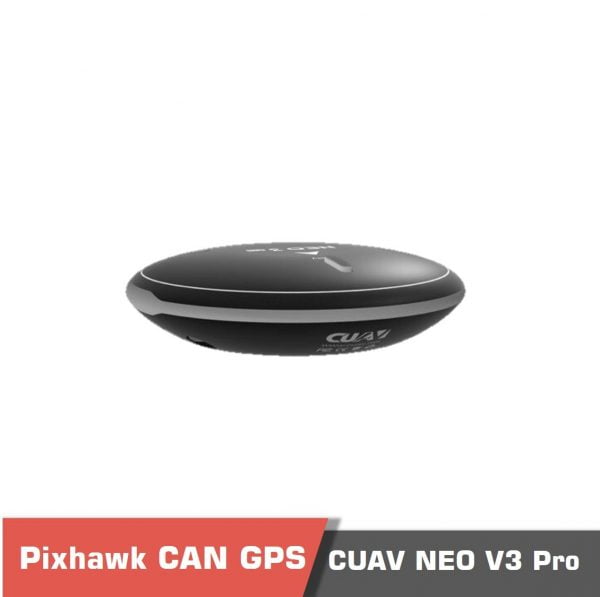

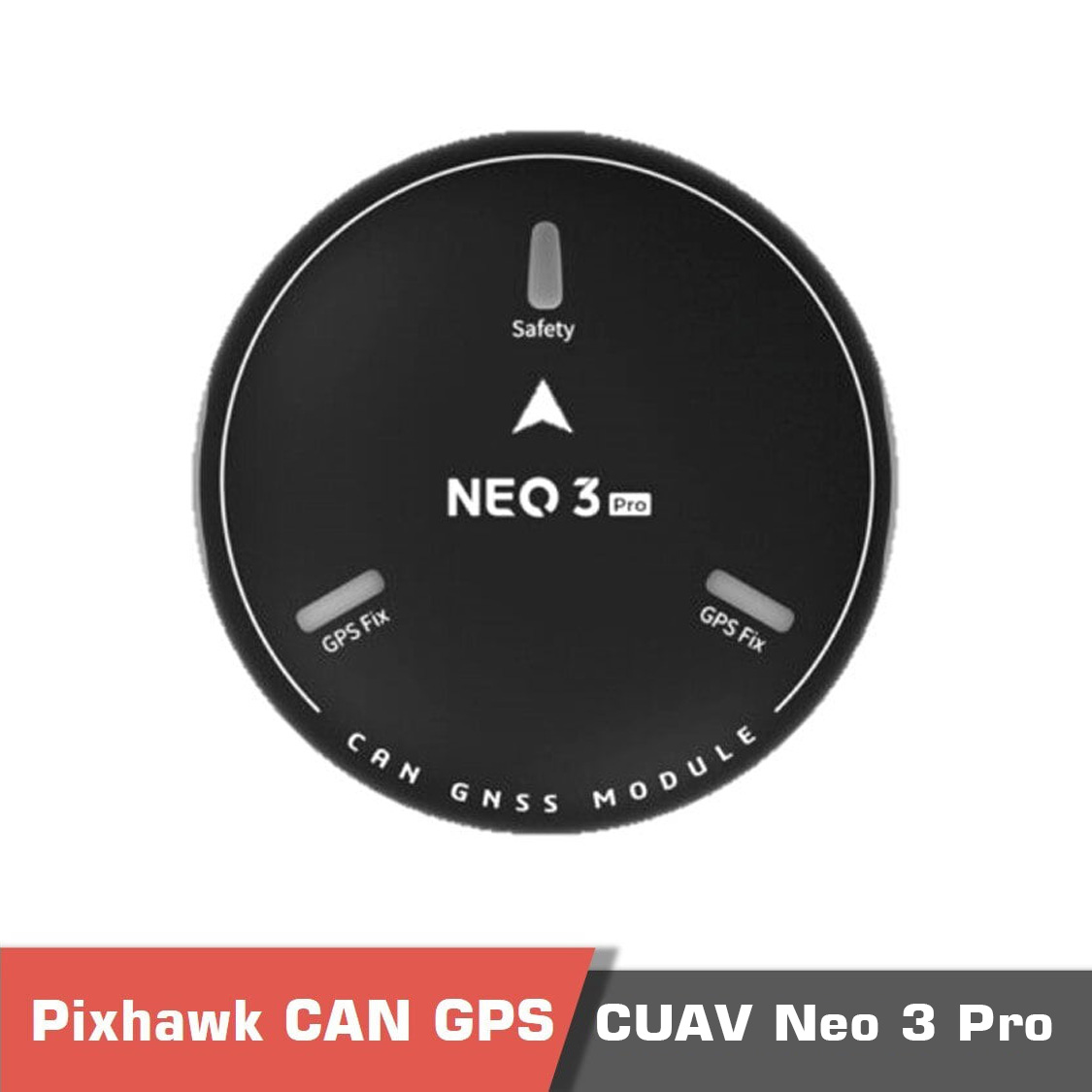

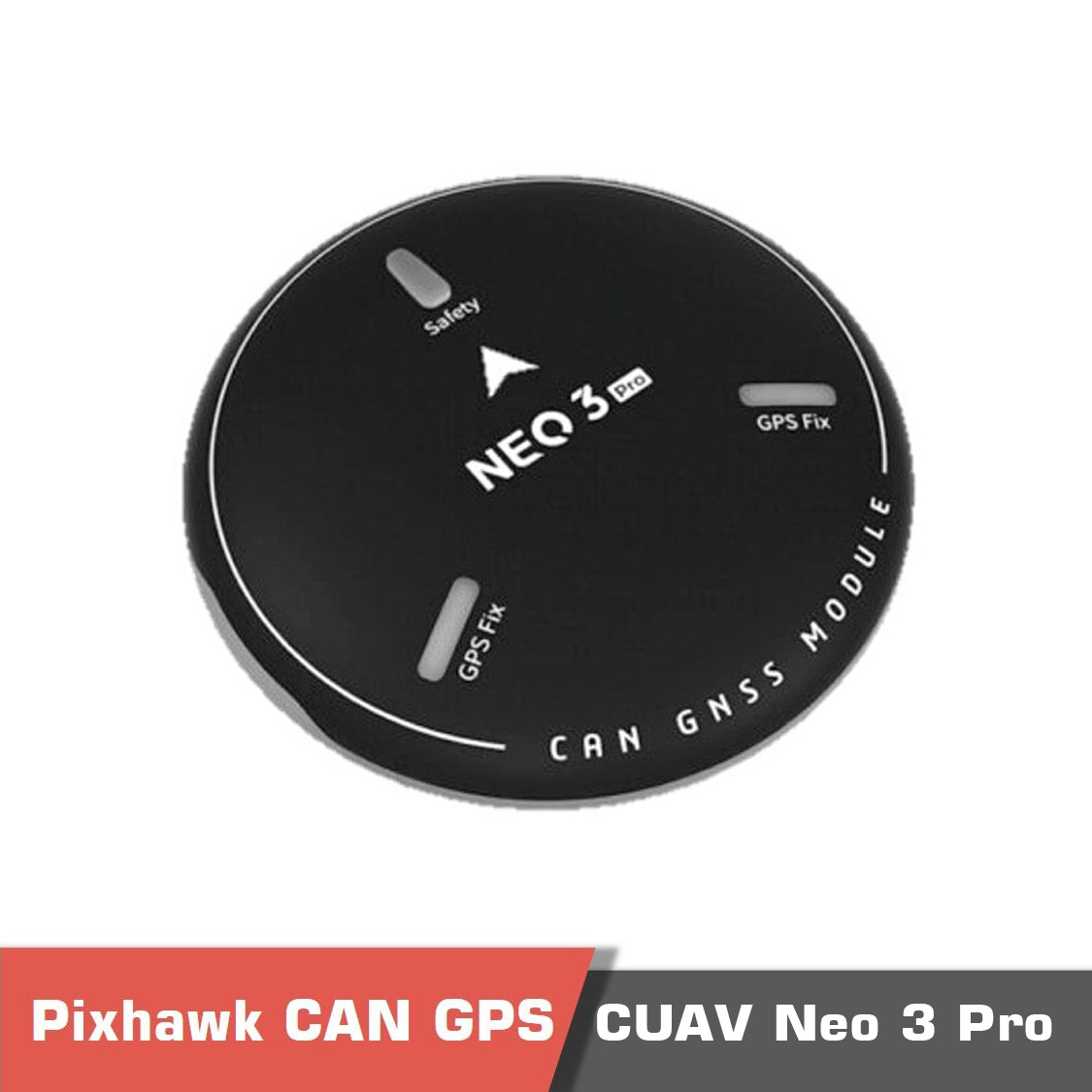

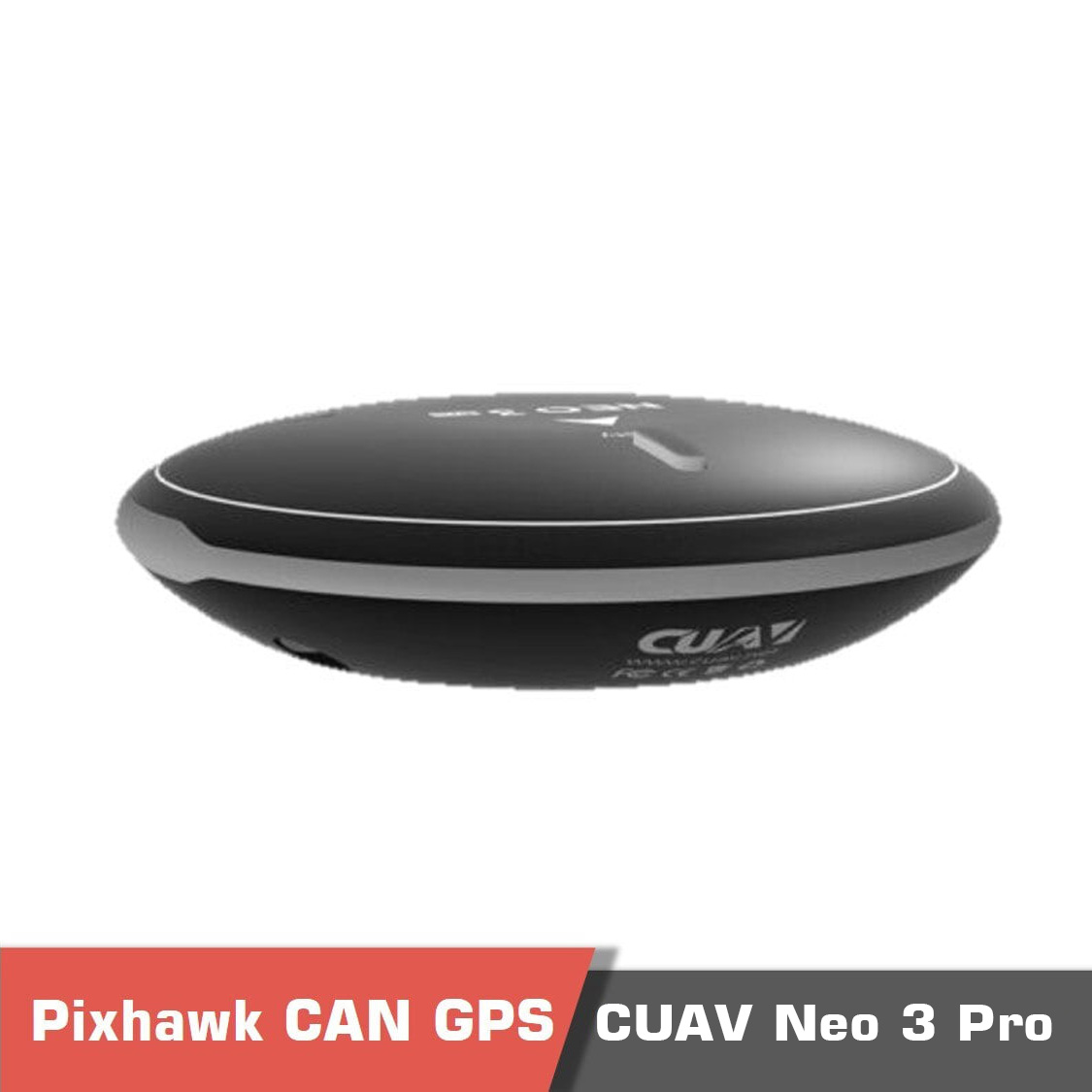

CUAV NEO 3 Pro GNSS UAV Module

155.00 $

PayPal
Visa
Master

Description

CUAV NEO 3 Pro GNSS UAV Module Overview

CUAV developed the NEO 3 pro as a DroneCAN standard GPS. All in one package, it comes with an industrial-grade compass, barometer, flight controller status light, buzzer, and safety switch. Besides being highly safe and interference resistant, it integrates the Ublox M9n module and receives signals from GPS, Galileo, GLONASS, and Beidou simultaneously.

This GNSS module is upgraded from the NEO V2, there is a hardware design continuing the NEO product line, the database supports Beidou, Galileo, Glonas and GPS signals at the same time, and even the horizontal positioning accuracy is up to 0.7mm. The device is equipped with a safety switch, buzzer, and RGB light.

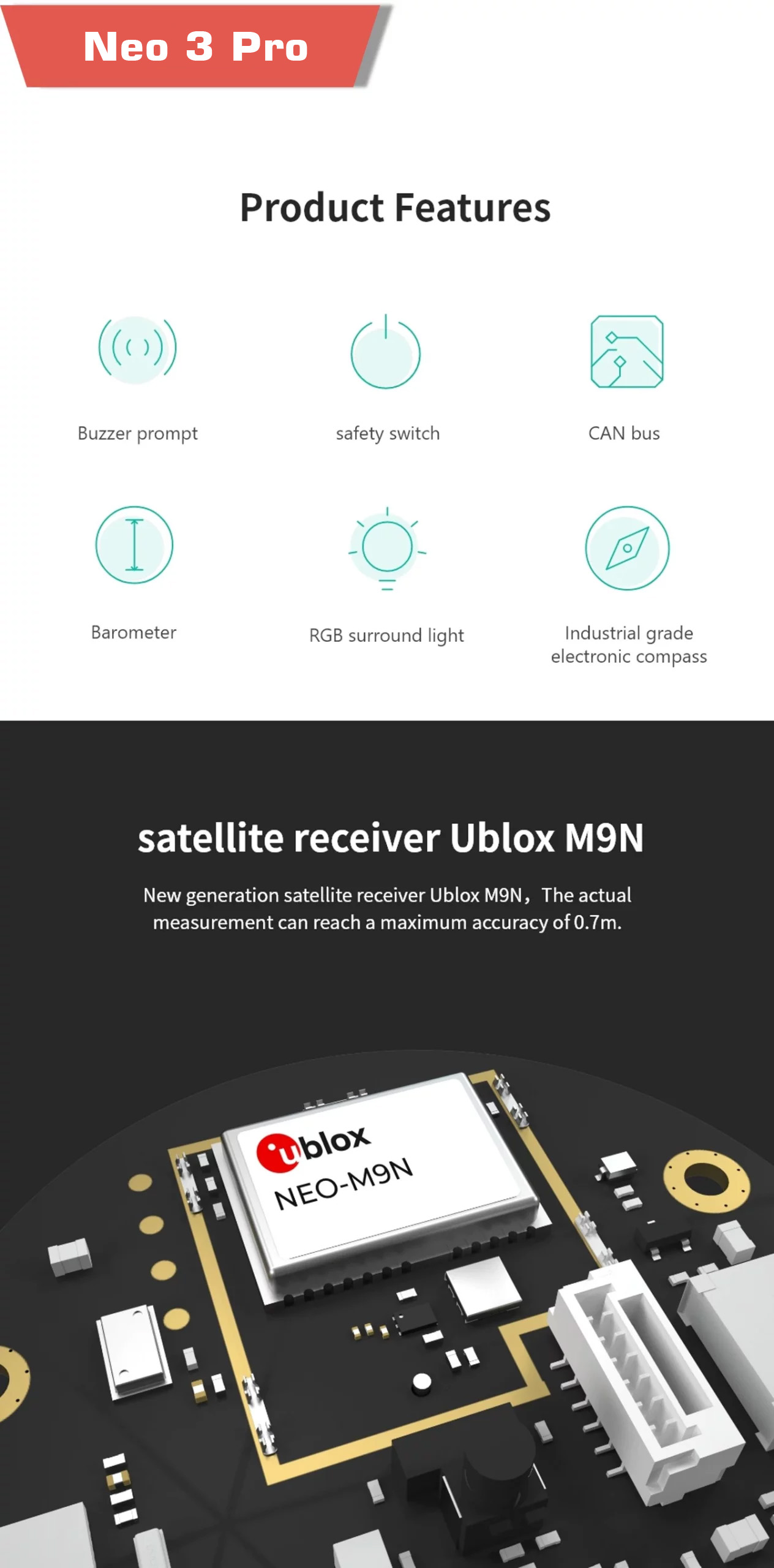

Uf2378d9e5c9947e998e15c4e82288ab6X scaled - CUAV NEO 3 Pro - MotioNew - 4

This is a satellite receiver from Ublox called the M9N

The Ublox M9N satellite receiver, which is the next generation of satellite receiver, can measure at a maximum accuracy of 0.7 meters.

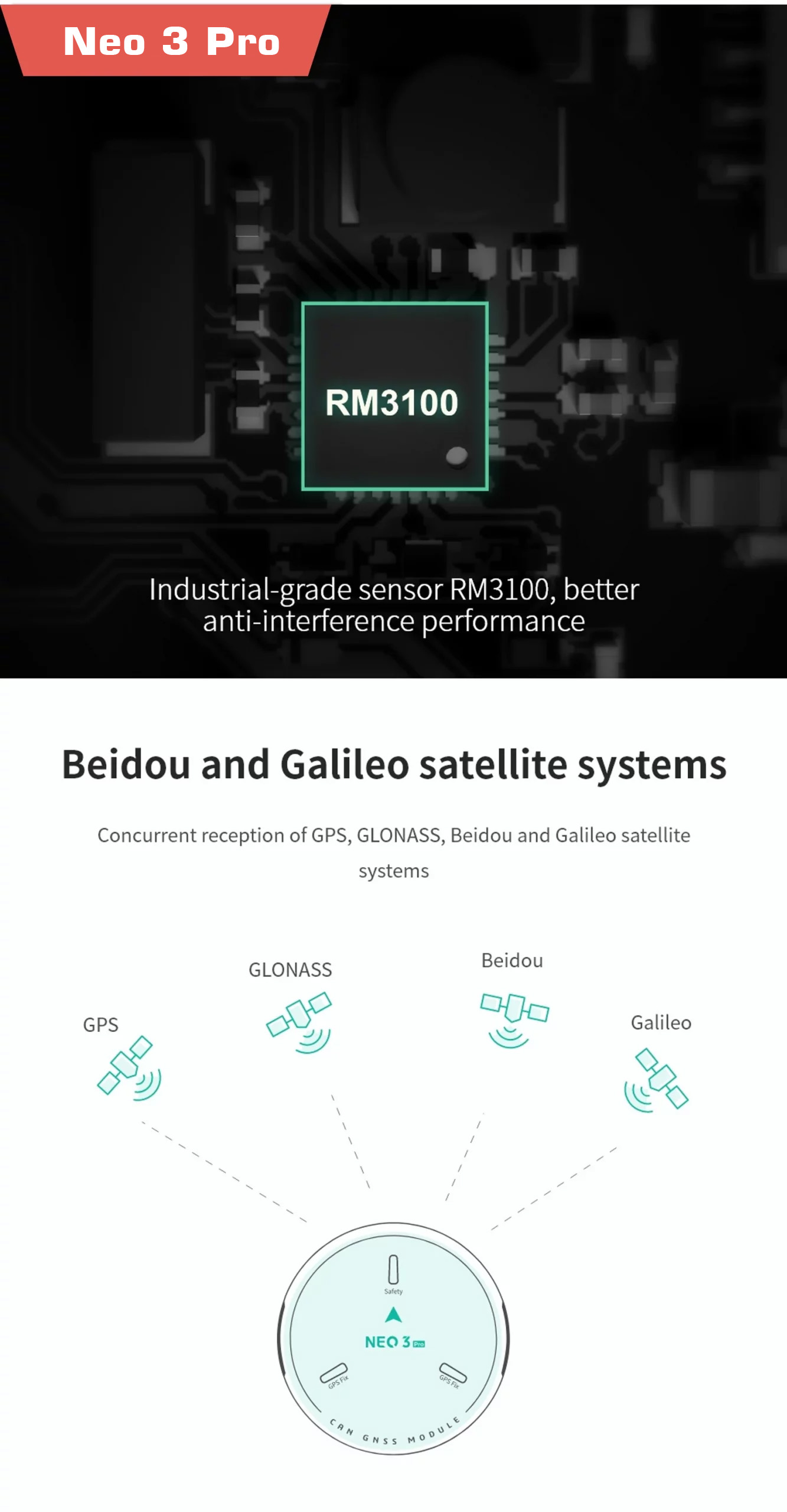

Ud5f5fbb772ec4eea901a994256624ebdD scaled - CUAV NEO 3 Pro - MotioNew - 5

Four satellite systems receiving the signal simultaneously

Provides simultaneous reception of four satellite systems, Beidou, Galileo, Glonas, and GPS.

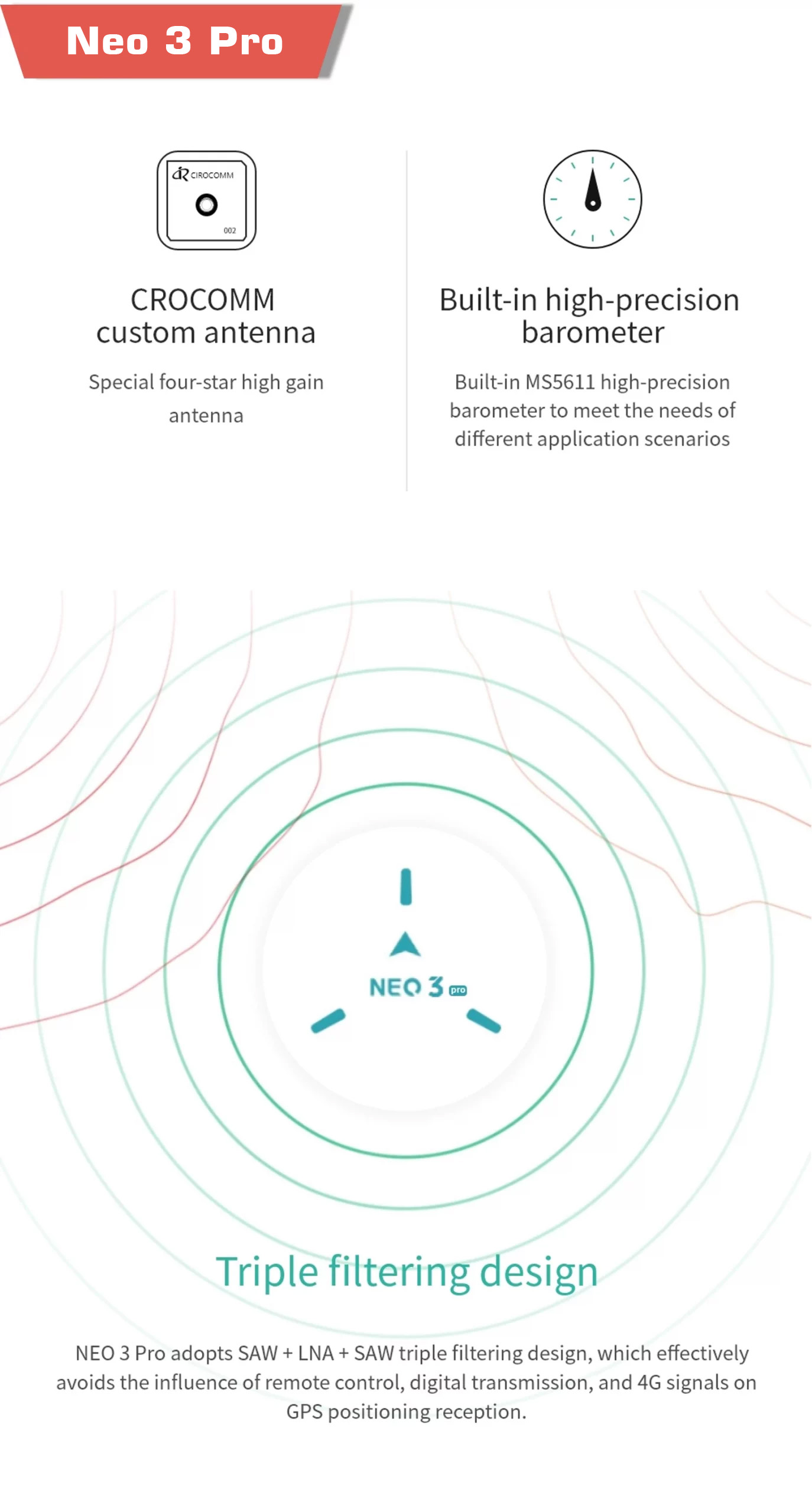

U75dc99e373204ef28b986d2935ad3876m scaled - CUAV NEO 3 Pro - MotioNew - 6

A triple filter design has been developed

With NEO 3 Pro, you get a SAW+LNA+SAW triple filter design, which prevents the influence of remote controls, data transmissions, and 4G signals on GPS positioning reception.



Notes that are important

  • As for the NEO 3 Pro, it supports RTCM3.3 injection, but not RTCM output; it can achieve pseudorange differential (meter-level positioning), but does not support carrier phase differential (RTK), and it requires a base station that supports RTCM3.3 output to function properly.
  • The nominal accuracy of the NEO 3 Pro level is 1.5m when the SBAS enhancement system is enabled; when the SBAS enhancement system is not enabled, it is 2.0m


If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 0.1 kg
Dimensions 10 × 10 × 10 cm

Specifications

Compatible Brand Pixhawk
Weight 33g
Dimension 60*60*16MM
Operating temperature -10~70℃
Input voltage 5V
Interface Type GHR-04V-S
Protocol UAVCAN
GNSS Bands: GPS/QZSS L1 C/A,GLONASS L10F ,BeiDou B1I,Galileo E1B/C,SBAS L1 C/A WAAS, EGNOS, MSAS, GAGAN
GNSS Positionin Available
Number of satellites(MAX) Up to 32
Processor STM32F412
Compass RM3100
Barometer MS5611
GNSS receiver UBLOX NEO M9N
RGB drive NCP5623C
Buzzer Passive buzzer
GNSS Augmentation System SBAS WAAS,EGNOS,MSAS
QZSS L1s(SAIF)
other RTCM3.3
Number of concurrent GNSS 4
Frequency band GPS L1C/A
GLONASS L10F
Beidou B1I
Galileo E1B/C
Horizontal accuracy 2.0M
Speed accuracy 0.05M/S
Nav. update rate 25Hz(Max)
Acquisition Cold start 24S
Hot start 2S
Aided start 2s
Number of satellites(MAX) 32+
Sensitivity Tracking and nav -167dBm
Cold start Hot star -148dBm
Reacquisition -160dBm
Protocol UAVCAN
Port TYpe GHR-04V-S
Supported flight controller CUAV series,
series Pixahwk
Wave filtering SAW+LNA+SAW
Anti-Electromagnetic/radio frequency interference EMI+RFI
Support Flight control type Ardupilot/PX4*(PX4 is still working hard to adapt to the clock)
Input voltage 5V
Operating temperature -10~70℃
Size 60*60*16MM 60*60*16MM

U479cefefddf34ab6b37b4e784d045cccu - CUAV NEO 3 Pro - MotioNew - 7

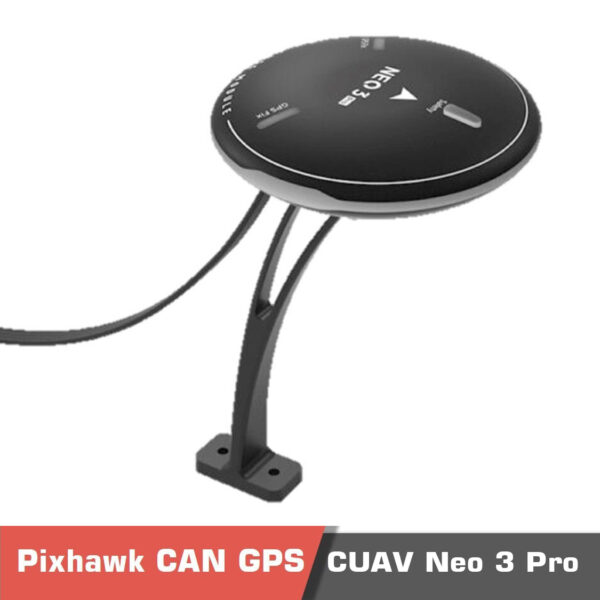

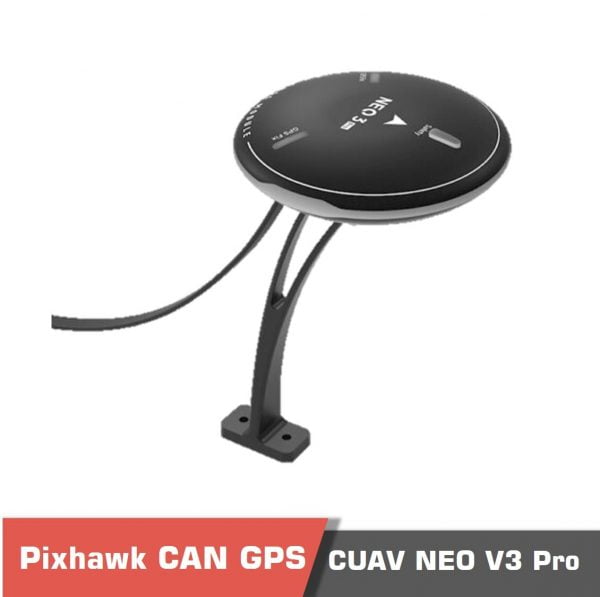

Product contents

1xNEO 3 Pro Module

1XGPS Stand

1XCAN Connect cable

Ub74cc9c95ce04157ba7a55e510197d87L scaled - CUAV NEO 3 Pro - MotioNew - 8

Documents

Please contact us for more information.
