Holybro M8N GPS with UBLOX M8N module IST8310 compass
Holybro M8N GPS system

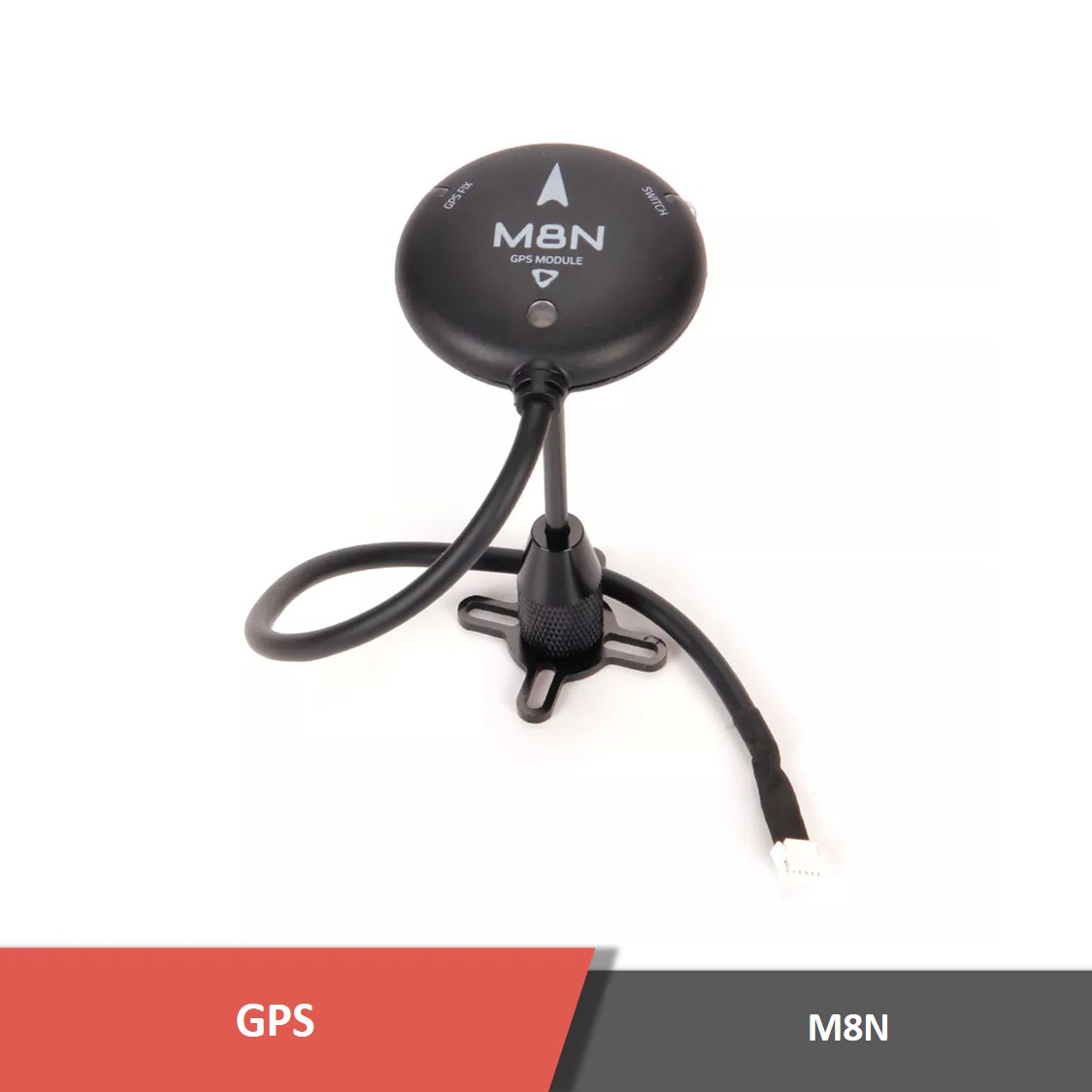

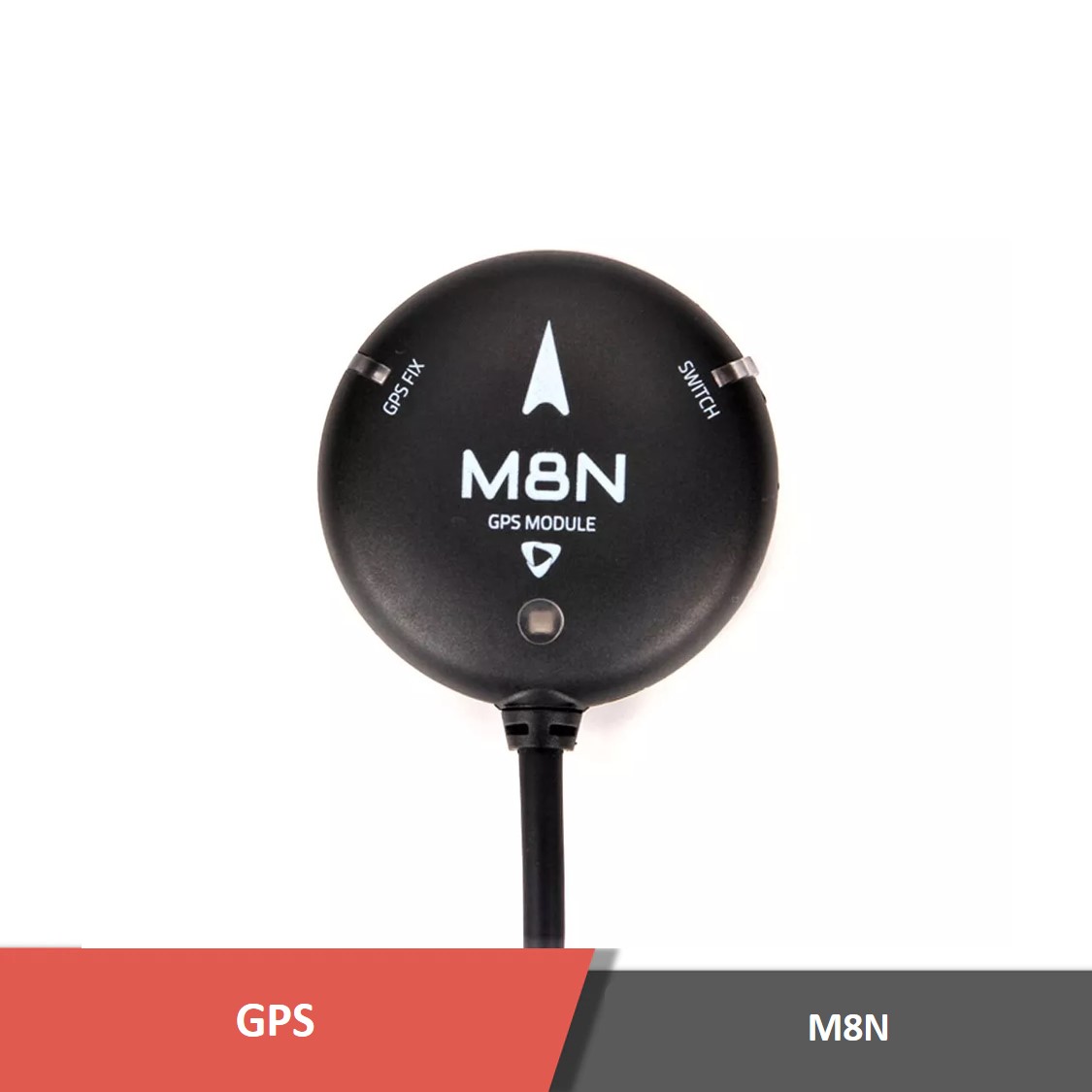

It is equipped with a UBLOX M8N module, an IST8310 compass, a tricolored LED indicator, and a safety switch. Depending on the purpose, there are three different connector options available. A 38400 5Hz baud rate is provided with the module when purchased.
Features and Specifications:
– Ublox Neo-M8N module
– Industry-leading –167 dBm navigation sensitivity
– Cold starts: 26s
– LNA MAX2659ELT+
– 25 x 25 x 4 mm ceramic patch antenna
– Rechargeable Farah capacitance
– Low noise 3.3V regulator
– Current consumption: less than 150mA @ 5V
– Fix indicator LEDs
– Protective case
– Cable Length: 26cm
– Diameter 50mm total size, 32 grams with the case.
The Holybro M8N GPS (JST GHR1.25mm 10pin cable) is as follows:

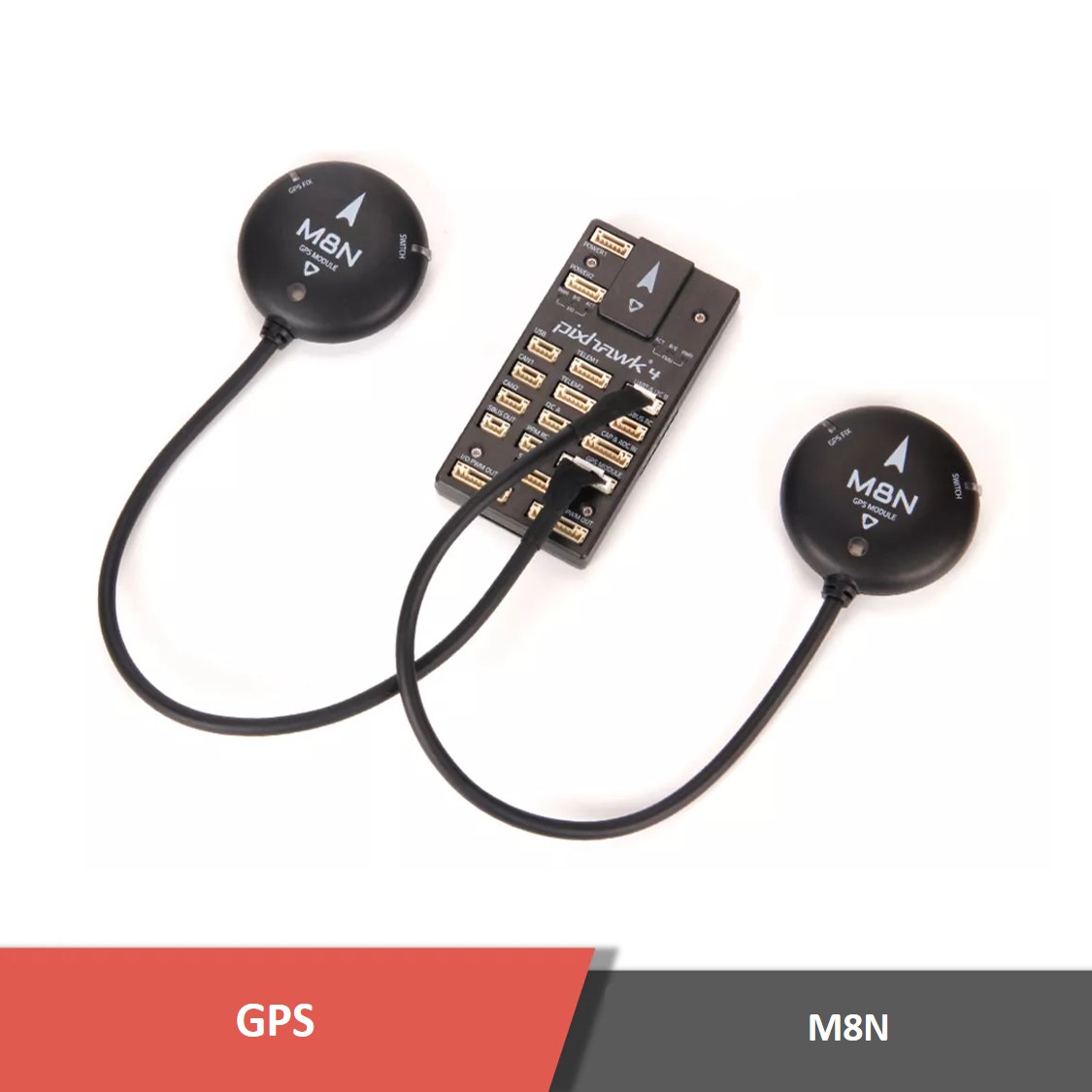

With this JST GH 10Pin connector, you can use it on the 10pin “GPS Module” or “GPS1” input port of the Pixhawk Standard Flight Controller.

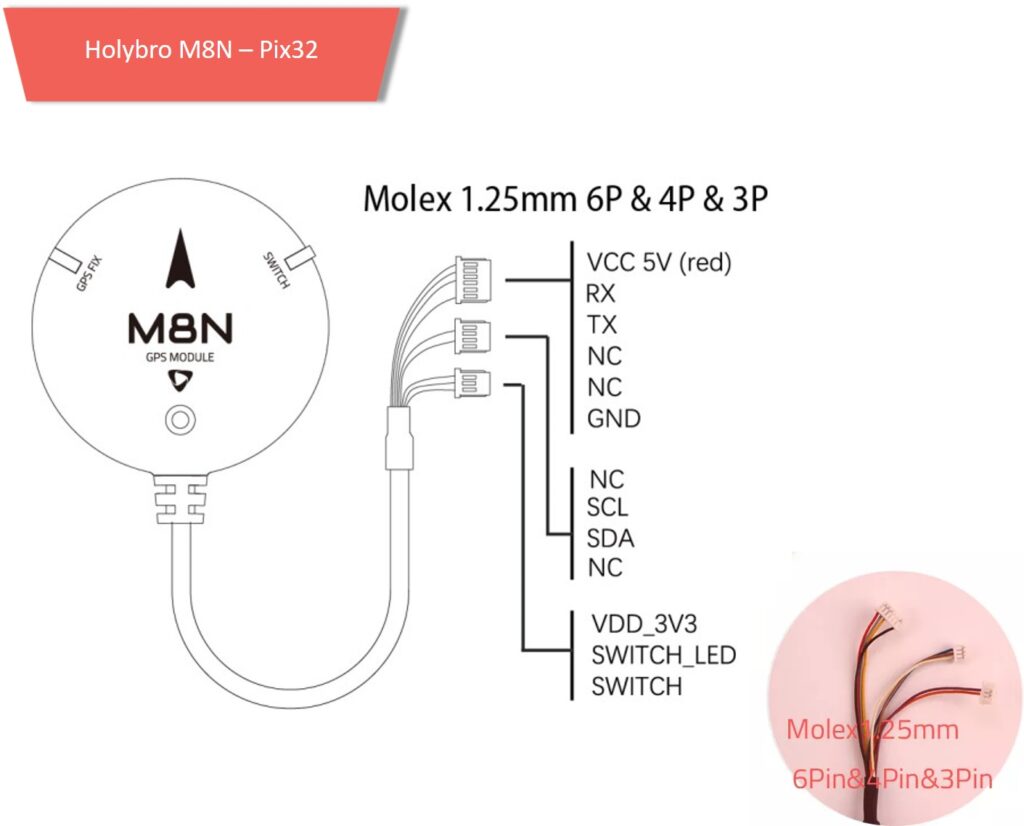

The M8N GPS for Pix32 (Molex1.25mm 6 pins, 4 pins, and 3pins cable):
These Molex1.25mm 6 pins, 4 pins, and 3 pins are designed to handle inputs such as the “Switch”, “GPS” and “I2C” ports on the Pix32.
Using the Holybro M8N 2nd GPS cable (JST GHR1.25mm 6pin cable):

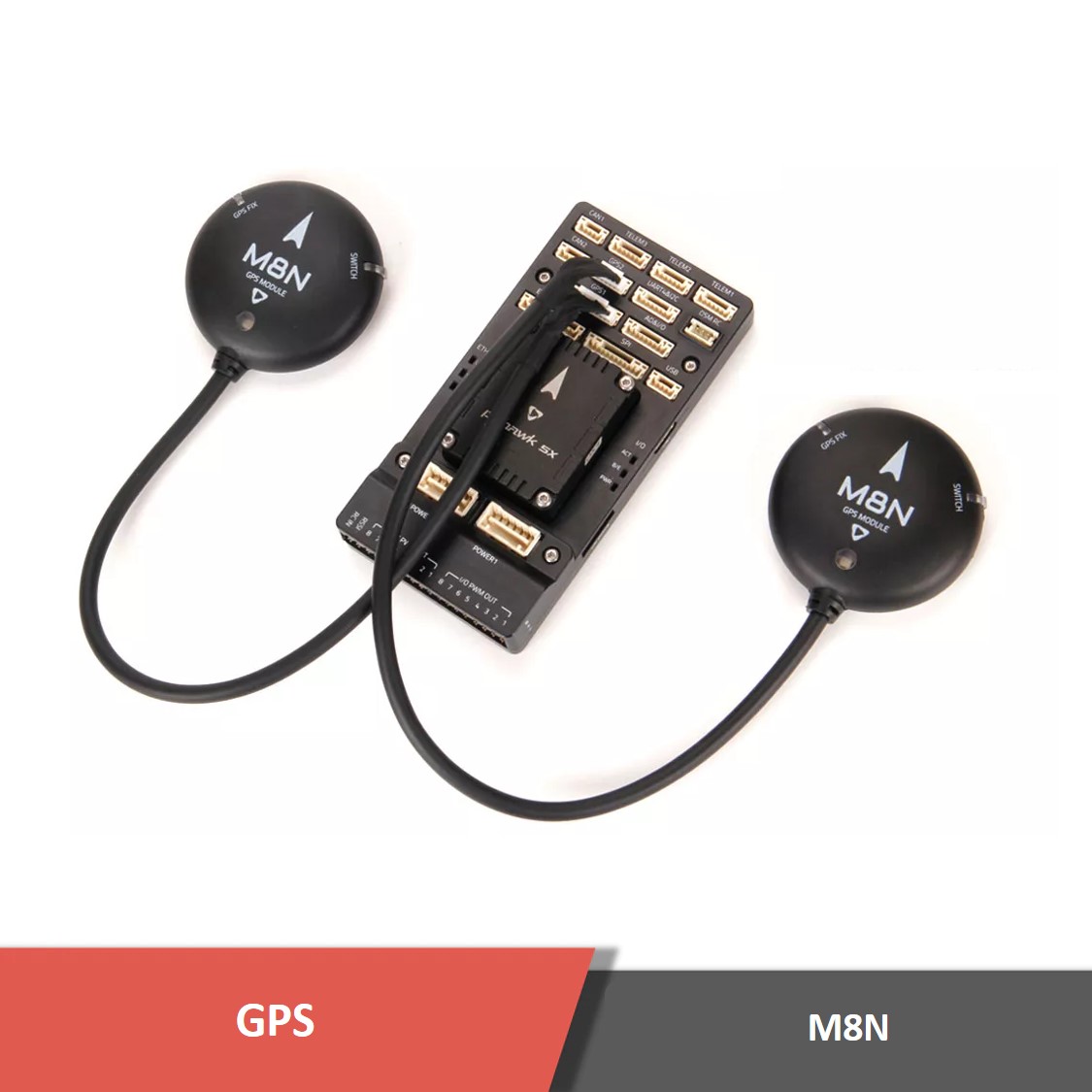

The JST GH 6Pin connector can be used as the secondary GPS of the Pixhawk Standard Flight Controller via the 6-pin “UART & I2C” or “GPS2” input port. In addition to this GPS, it is also compatible with the GPS2 port on the Cube Flight Controller.

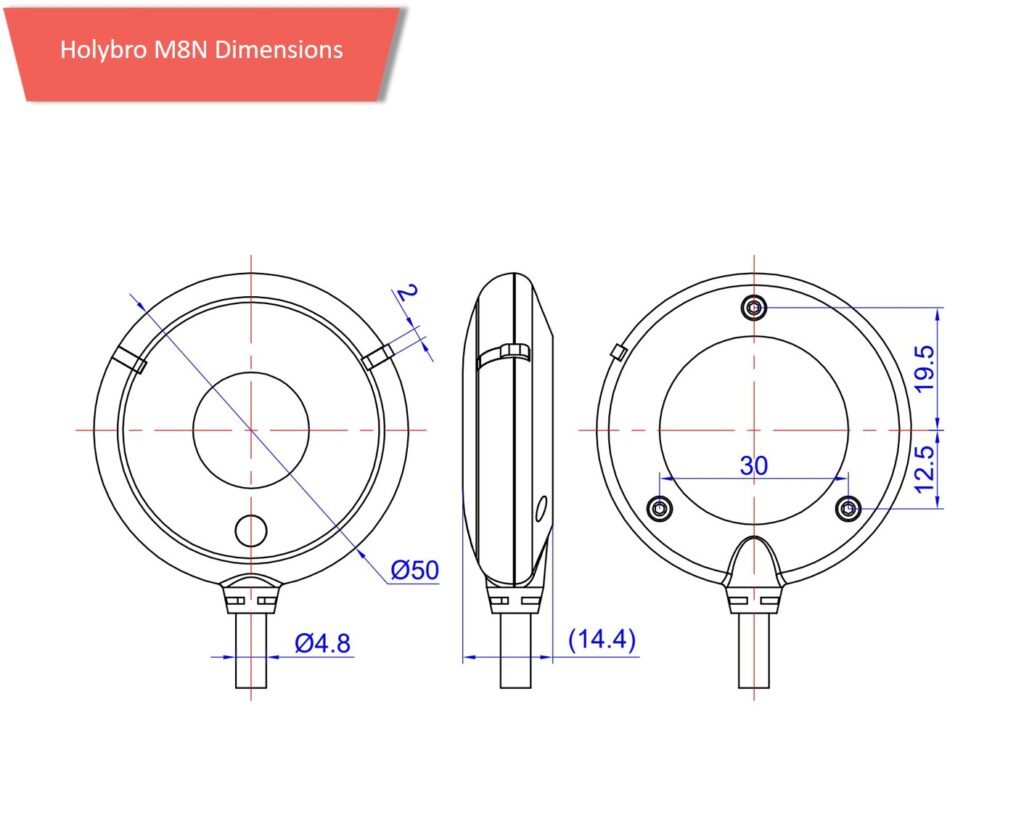

Dimensions (in mm)
If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.
|Dimensions||2.5 × 2.5 × 0.4 cm|
|Current consumption||less than 150mA @ 5|
|navigation sensitivity||–167 dBm|
|patch antenna||25 x 25 x 4 mm ceramic|
|regulator||Low noise 3.3V|
|LED||Fix indicator LED|
|Diameter||50mm total size, 32 grams with case|
NEO-M8 with compass module x1
‘X’ type folding pedestal mount x1
Carbon rod 70mm & 140mm x1
