CUAV NEO V2 PRO GPS – GNSS Positioning

147.65 $

Out of stock

PayPal
Visa
Master

Description

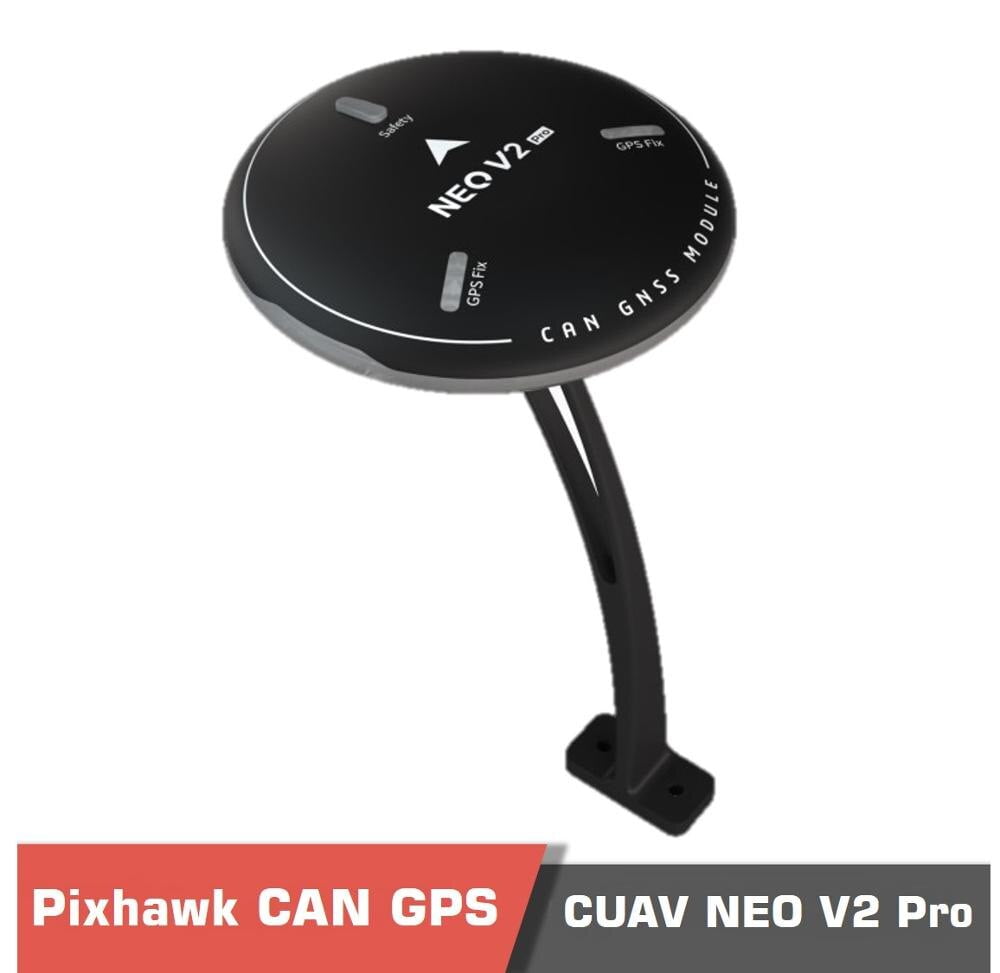

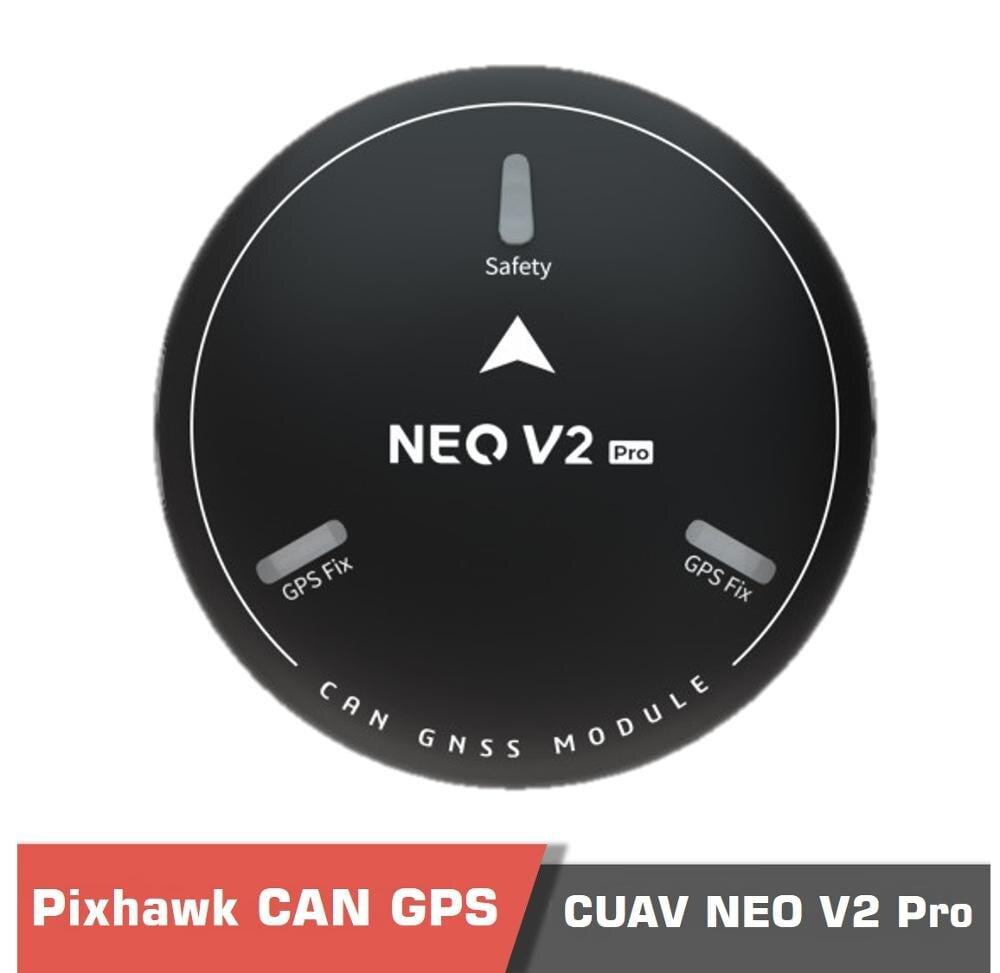

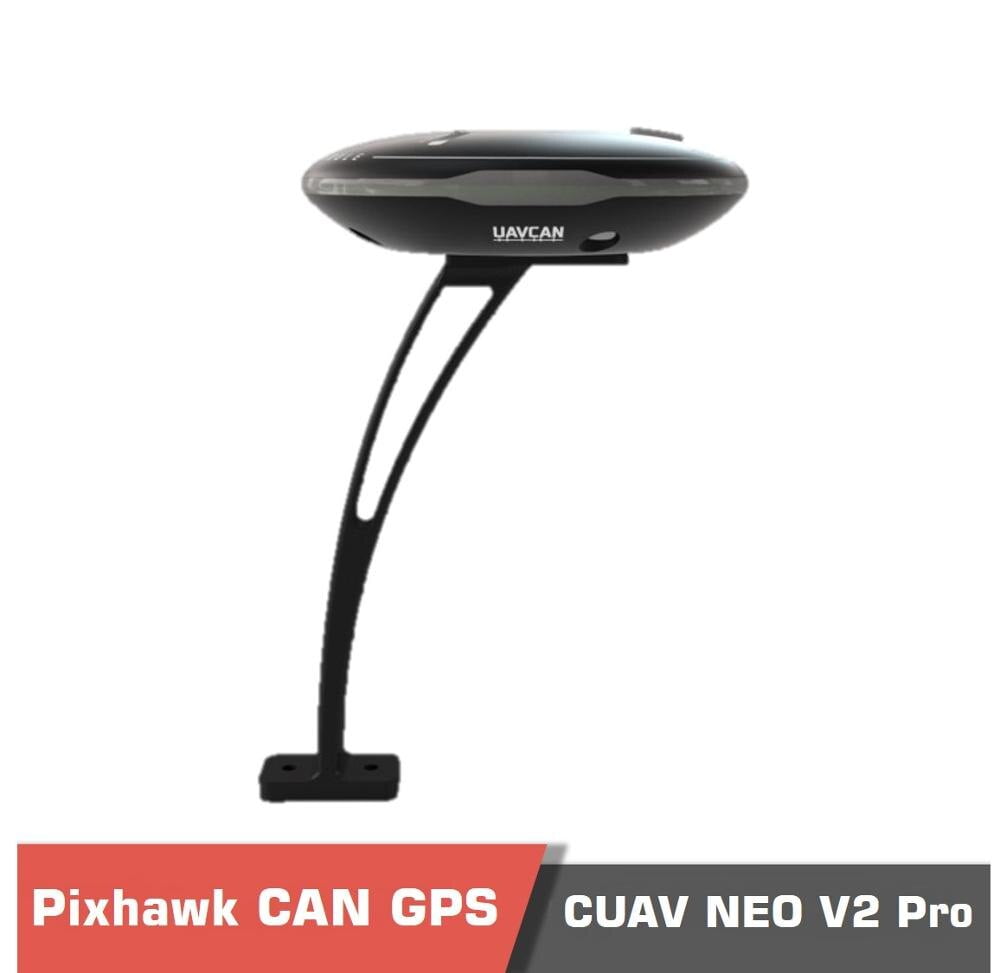

CUAV NEO V2 PRO GPS Overview

There are several GNSS positioning systems available for the CUAV NEO V2 Pro, all of which are based on the UAVCAN protocol. This unit is equipped with a compass, barometer, flight controller, status light, buzzer, and safety switch, all integrated into one unit, and it has the characteristics of a high level of security and strong anti-interference protection. The UAVCAN standard protocol has the advantage of providing high real-time performance as well as strong anti-interference characteristics. There is also an integrated high precision barometer that is designed to meet the needs of different application scenarios in the device. The sensor RM3100 is a high-quality industrial-grade sensor that provides better anti-interference protection. In order to improve GPS positioning accuracy, the NEO V2 Pro uses a double filtering design to minimize the impact of remote control, digital transmission, and 4G signals. In addition to that, it supports custom programs as well as open-source programs.

NEO V2 Pro adopts SAW + LNA + SAW dual filtering design, which effectively avoids the influence of remote control, digital transmission, and 4G signals on GPS positioning reception.

NEO V2 Pro GPS UAV sensor is compatible with different kinds of Pixhawk autopilots that have a CAN port. Using UAVCAN protocol enables drone users to establish a safer connection and better performance in UAV positioning.

NEO GPS V2 1 min - CUAV NEO V2 Pro GPS,V2 PRO,GNSS Positioning,pixhawk,gps uav - MotioNew - 4 NEO GPS V2 2 min - CUAV NEO V2 Pro GPS,V2 PRO,GNSS Positioning,pixhawk,gps uav - MotioNew - 5 NEO GPS V2 3 min - CUAV NEO V2 Pro GPS,V2 PRO,GNSS Positioning,pixhawk,gps uav - MotioNew - 6

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Additional information

Weight 0.1 kg
Dimensions 10 × 10 × 10 cm

Specifications

  • Weight: 48g
  • Dimension: 60*15.8mm
  • Operating temperature: -20 ~ 85°C
  • Size: 60x60x16mm(without stand)
  • Weight: 33g(without stand)
  • Hardware parameters
  • Processor: STM32F417M
  • Compass: RM3100
  • Barometer: MS5611
  • GNSS receiver: UBLOX M8N
  • Concurrently: GPS/QZSS L1 C/A,
  • Glonass L10F,
  • BeiDou B1I,
  • Galileo E1B/C,
  • SBAS L1 C/A:
  • WAAS, EGNOS, MSAS, GAGAN
  • Navigation update rate: 10HZ (Max)
  • Position accuracy: 2M
  • Acquisition: Cold start 26S
  • Hot start 1S
  • Aided start 2S
  • Sensitivity: Tracking and nav. -167dBM
  • Cold start, Hot start -148dBM
  • Reacquisition -160dBM
  • Communication protocol: UAVCAN
  • Firmware upgrade: Support
  • Flight controller support: Ardupilot/PX4*
  • Interface Type: GHR-04V-S
  • Input voltage: 4.7~5.2V
  • Operating temperature: -10~70℃

Product contents

1xNEO V2 Pro Module

1XGPS Stand

1XCAN Connect cable

Documents

CUAV NEO V2 PRO GPS User manual

How to enable the CAN GPS in Mission Planner

Enable

you need to set flight control parameters to enable Neo V2 pro; there are different setting methods according to the flight control firmware.

ArduPilot firmware

Set the following parameters in all parameter tables of the Mission planner and restart after writing

  • CAN_P1_DRIVER set to 1.
  • CAN_P2_DRIVER set to 1.
  • NTF_LED_TYPES set to 231.
  • GPS_TYPE set to 9.

fc set - CUAV NEO V2 Pro GPS,V2 PRO,GNSS Positioning,pixhawk,gps uav - MotioNew - 7
