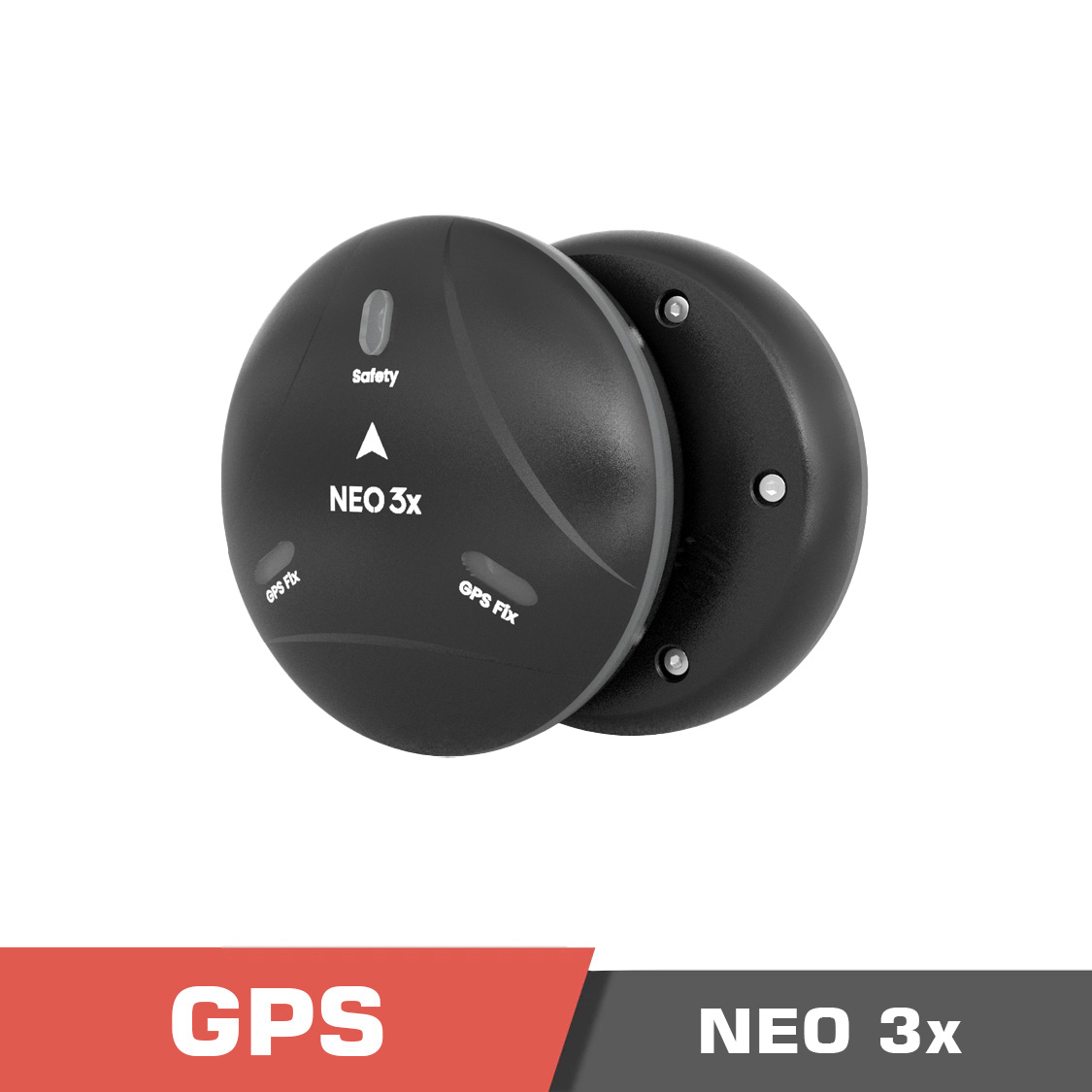

CUAV NEO 3x GNSS, High Precision GPS Sensor

Original price was: 139.00 $.Current price is: 129.00 $.

PayPal
Visa
Master

Description

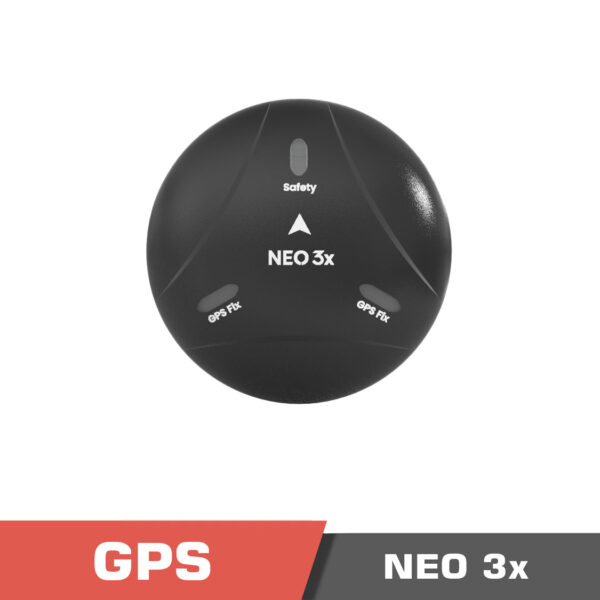

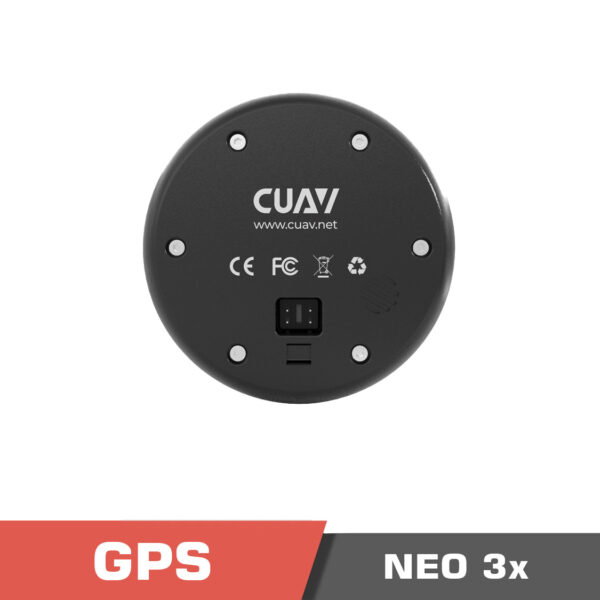

CUAV NEO 3x GNSS, High Precision GPS Sensor

Equipped with a cutting-edge M9N receiver, the CUAV NEO 3x offers simultaneous reception of four GNSS signals, ensuring reliable performance in diverse and challenging environments. Designed to meet IP66 standards, it boasts robust protection against dust and rain, guaranteeing uninterrupted operation even in adverse weather conditions.

Powered by an STM32F4 series processor, complemented by an ICP2100 barometer, ublox M9N module, and RM3100 industrial compass, the NEO 3x delivers unparalleled accuracy and stability. It supports CAN bus communication based on DroneCAN protocol, and the farthest communication distance between the module and the flight controller can reach 1.5m.

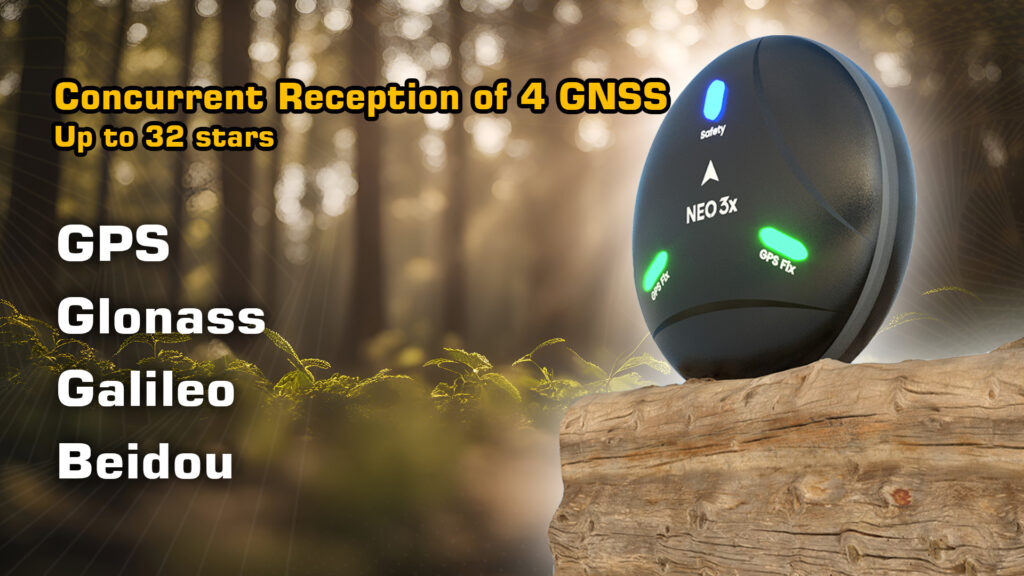

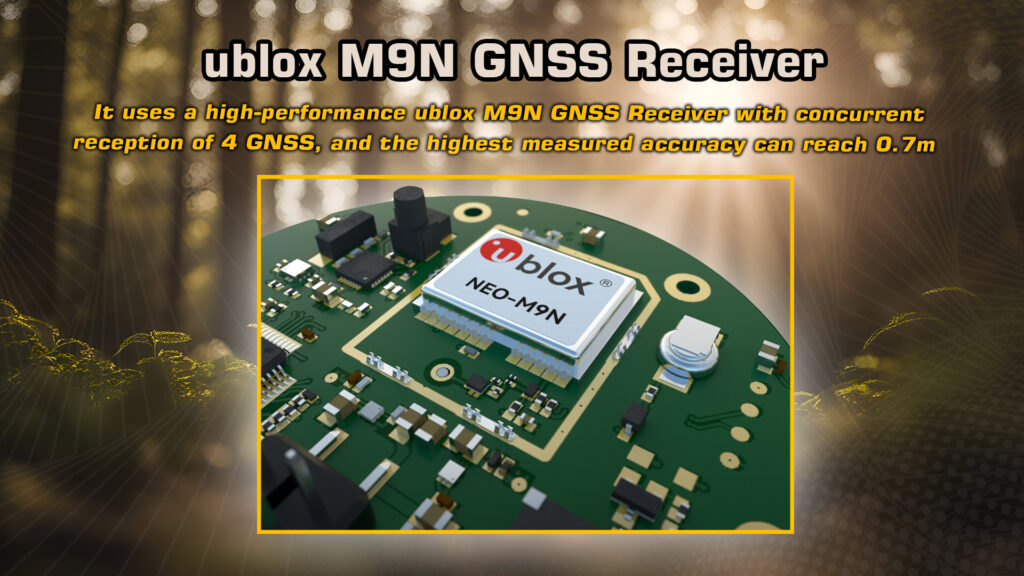

Featuring the high-performance ublox M9N GNSS receiver, the NEO 3x achieves remarkable positioning accuracy, with measurements as precise as 0.7 meters. Its unique capability for concurrent reception of Beidou, Galileo, Glonass, and GPS satellite systems ensures optimal positioning, even in challenging terrain, leveraging up to 32 satellites for maximum coverage.

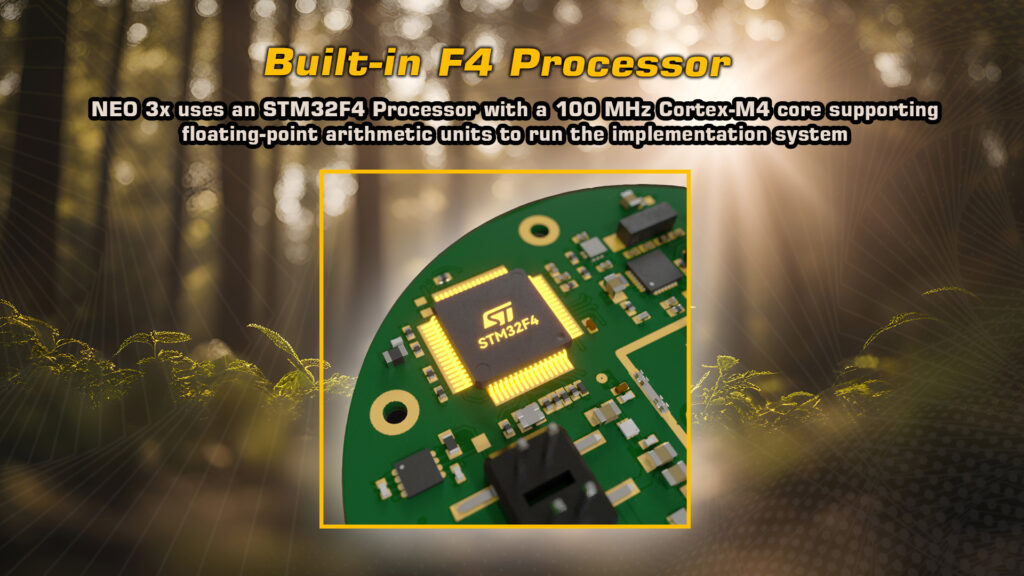

Driven by an STM32F4 processor, the NEO 3x employs a 100 MHz Cortex®-M4 core, equipped with floating-point arithmetic units, to execute advanced navigation algorithms with exceptional efficiency and speed.

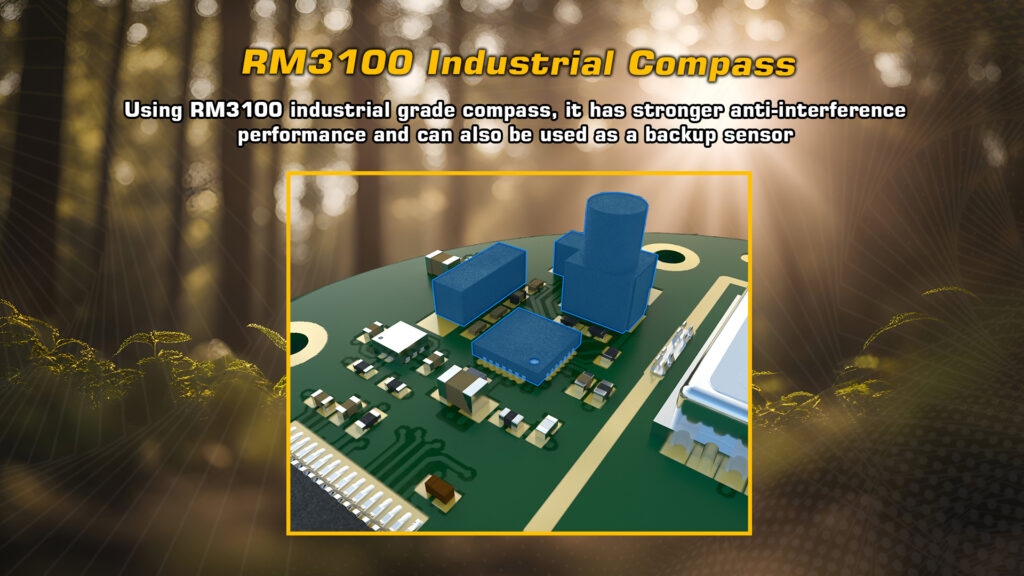

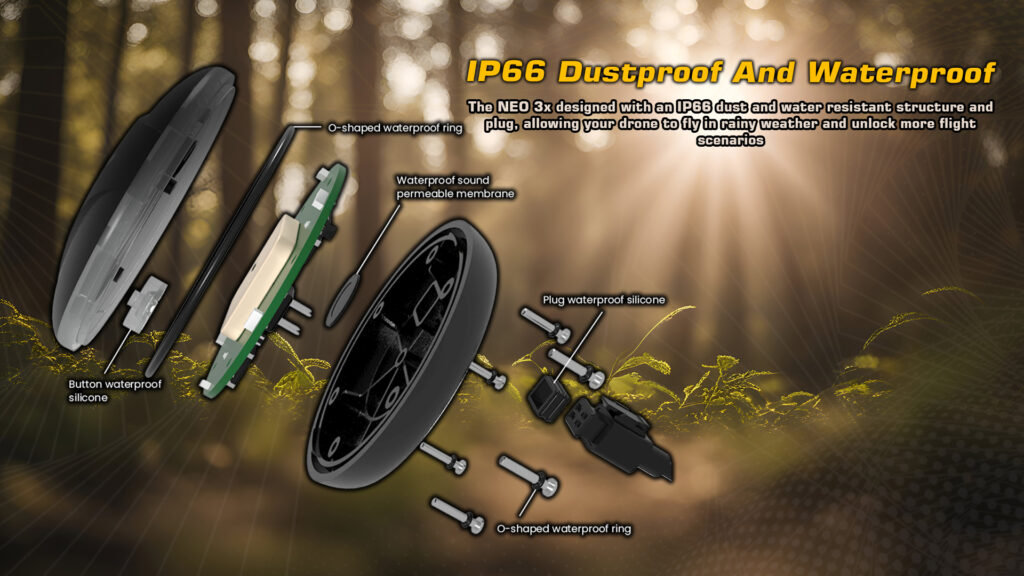

With its IP66-rated protection level, the NEO 3x is built to withstand the rigors of outdoor use, allowing drones to operate seamlessly in rainy conditions and unlocking a myriad of flight scenarios. The inclusion of the RM3100 industrial compass further enhances reliability, offering robust anti-interference performance and serving as a dependable backup sensor.

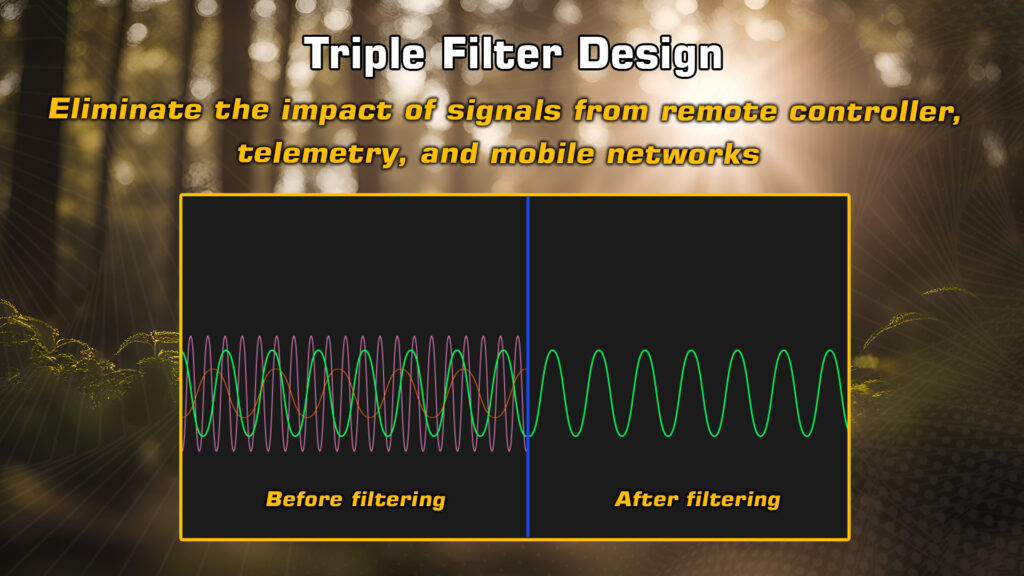

Incorporating a triple filter design comprising SAW+LNA+SAW filters, the NEO 3x effectively mitigates signal interference from external sources, ensuring reliable GNSS positioning even in crowded electromagnetic environments.

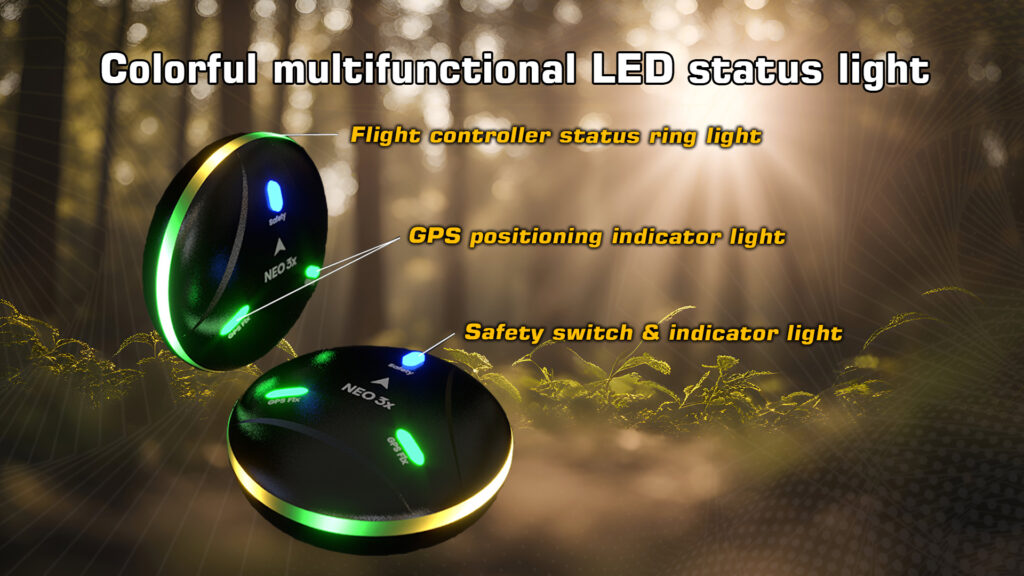

Additionally, the NEO 3x features a vibrant RGB LED status light, seamlessly integrated with the GPS and flight controller, providing real-time visual feedback on the drone’s operational status. Designed with translucent material, the LED emits a colorful glow, enabling easy monitoring of the drone’s status at a glance.

Discover the power of precision navigation with the NEO 3x, setting new standards for drone positioning and reliability in any environment.

Cuav neo 3x Neo 3x gps. 2 - cuav neo 3x - motionew - 5 Neo 3x gps. 3 - cuav neo 3x - motionew - 6 Neo 3x gps. 4 - cuav neo 3x - motionew - 7 Neo 3x gps. 5 - cuav neo 3x - motionew - 8 Neo 3x gps. 6 - cuav neo 3x - motionew - 9 Neo 3x gps. 7 - cuav neo 3x - motionew - 10 Neo 3x gps. 8 - cuav neo 3x - motionew - 11 Neo 3x gps. 9 - cuav neo 3x - motionew - 12 Neo 3x gps. 10 - cuav neo 3x - motionew - 13 Neo 3x gps. 11 - cuav neo 3x - motionew - 14





If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Additional information

Weight 0.3 kg
Dimensions 10 × 10 × 6 cm

Specifications



Processor STM32F412
Protocol DroneCAN
Compass RM3100
Barometer ICP-20100
GNSS Receiver ublox M9N
Frequency band


GPS: L1C/A
GLONASS: L10F
Beidou: B1I
Galileo: E1B/C
Concurrent GNSS 4
Positioning accuracy 1.5m
Search star quantity 32+
Capture speed


Cold start: 24S
Hot start: 2S
Aided start: 2s
Nav. update rate 5Hz (default), 25Hz (MAX)
Sensitivity


Tracking and nav: -167dBm
Cold start Hot start: -148dBm
Reacquisition: -160dBm
Protection level IP66
Operating Voltage 4.7~5.2V
Operating temperature -10~70℃

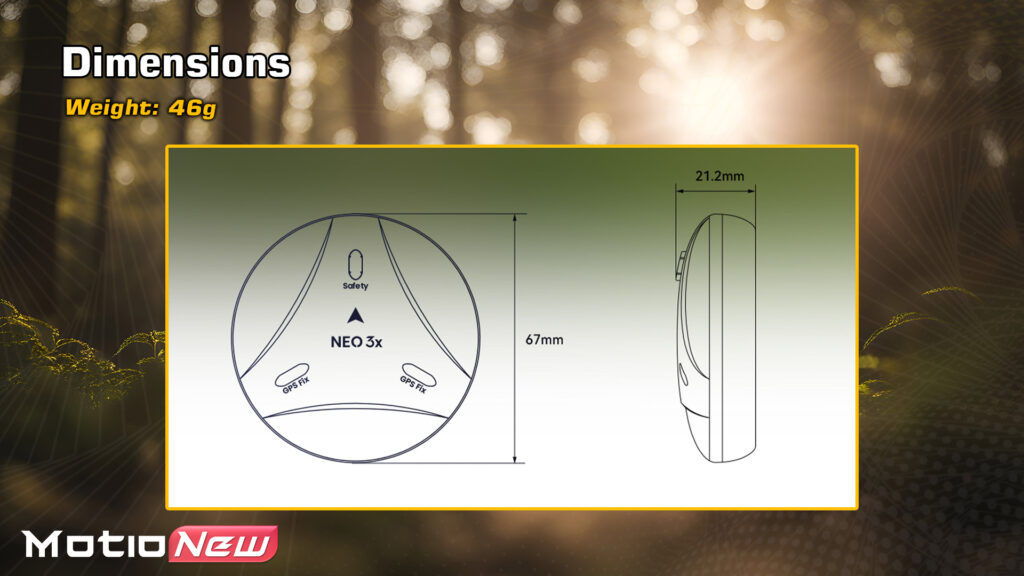

Search 67x67x21.2mm
Weight 46g (Cable exclude)

Product contents

1x NEO3x GPS Module

1x CAN waterproof cable 40cm

2x 3M double-sided tape

2x Hole positioning sticker

Neo 3x gps. 11. 1 - cuav neo 3x - motionew - 15

Documents

Please contact us for more information.
