Beitian BT-208 miniaturization four-star full-frequency satellite navigation antenna high gain high sensitivity high reliability

86.00 $ – 111.00 $

PayPal
Visa
Master

Description

Beitian BT-208 miniaturization four-star full-frequency satellite navigation antenna high gain high sensitivity high reliability

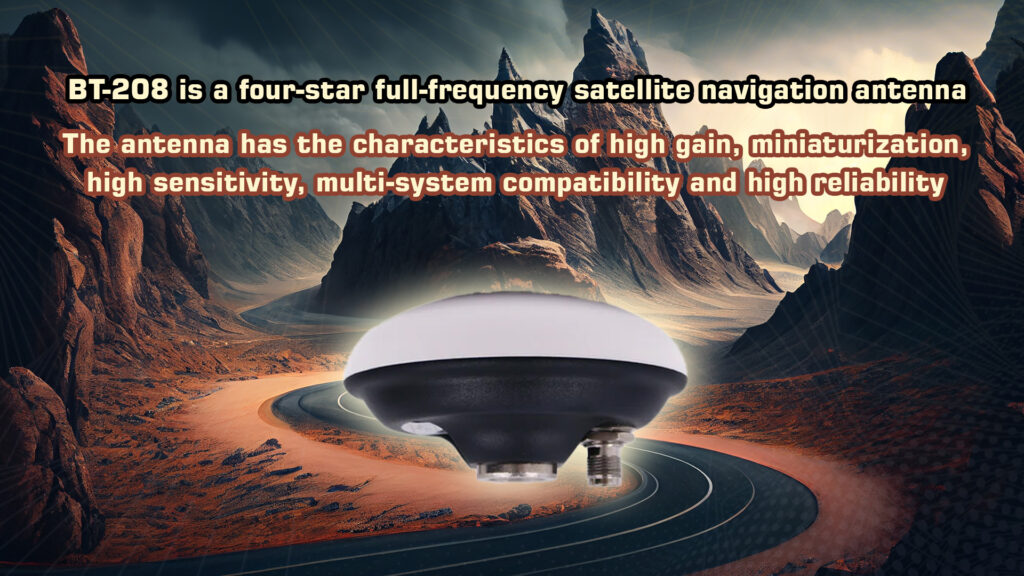

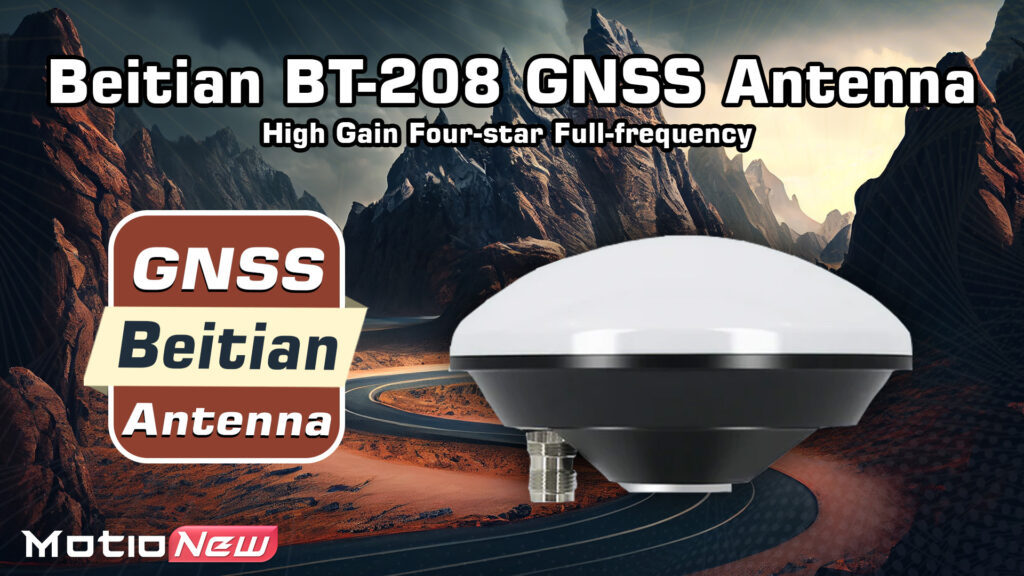

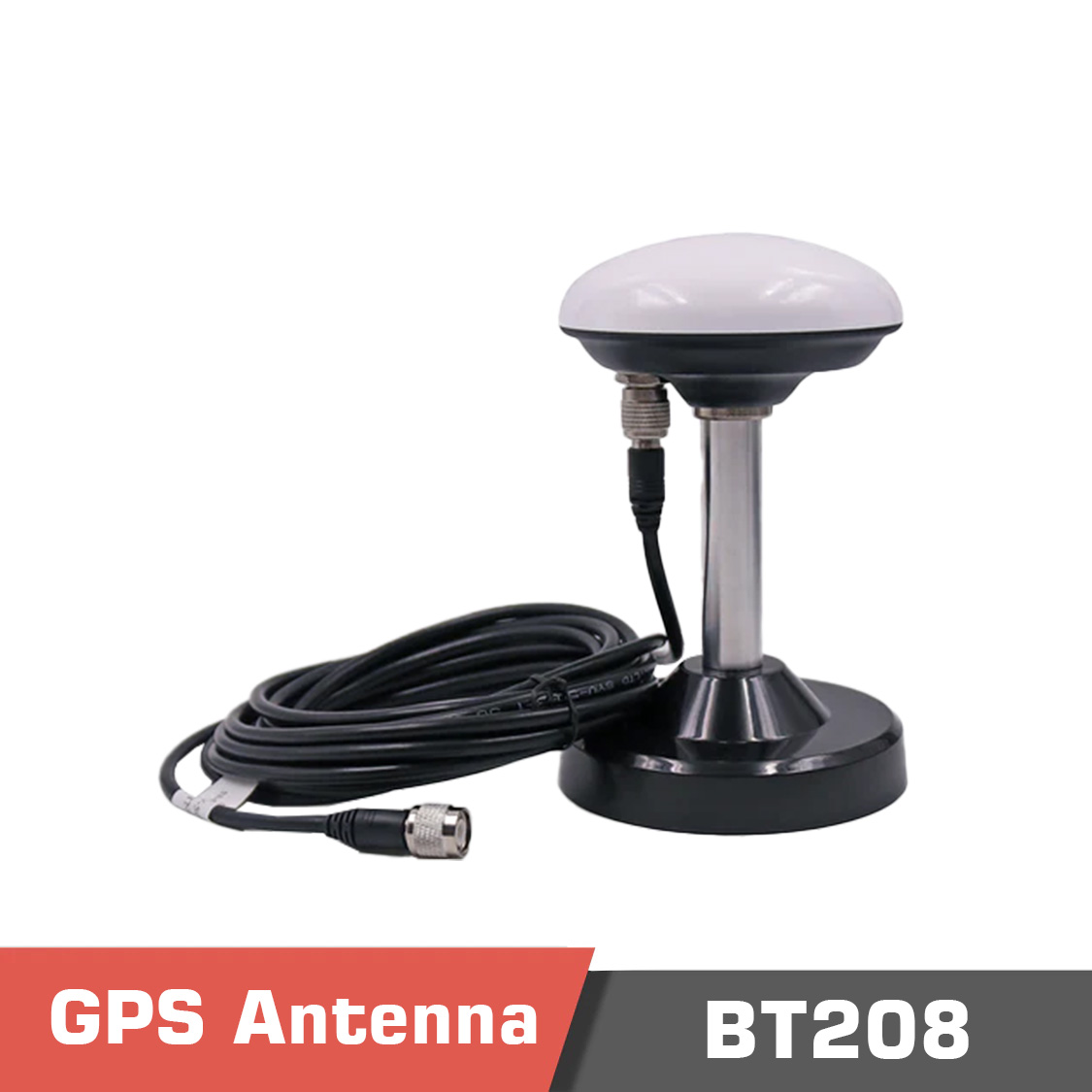

Beitian BT-208 covers the four-star full-frequency external UFO antenna, meeting the current GNSS measurement equipment The system is compatible with the needs of high-precision users. It can be used with a variety of satellite navigation receivers. It is widely used in geodesy mapping, waterway surveying, precision agriculture, and marine surveying.

Beitian GPS Antenna BT208.1 - Beitian BT-208,GPS Antenna,GNSS positioning,gps uav,NEO 3x GNSS receiver,Drone navigation system,M9N receiver technology,CUAV,GNSS receiver - MotioNew - 7 Beitian GPS Antenna BT208.2 - Beitian BT-208,GPS Antenna,GNSS positioning,gps uav,NEO 3x GNSS receiver,Drone navigation system,M9N receiver technology,CUAV,GNSS receiver - MotioNew - 8 Beitian GPS Antenna BT208.3 - Beitian BT-208,GPS Antenna,GNSS positioning,gps uav,NEO 3x GNSS receiver,Drone navigation system,M9N receiver technology,CUAV,GNSS receiver - MotioNew - 9 Beitian GPS Antenna BT208.4 - Beitian BT-208,GPS Antenna,GNSS positioning,gps uav,NEO 3x GNSS receiver,Drone navigation system,M9N receiver technology,CUAV,GNSS receiver - MotioNew - 10 Beitian GPS Antenna BT208.5 - Beitian BT-208,GPS Antenna,GNSS positioning,gps uav,NEO 3x GNSS receiver,Drone navigation system,M9N receiver technology,CUAV,GNSS receiver - MotioNew - 11 Beitian GPS Antenna BT208.6 - Beitian BT-208,GPS Antenna,GNSS positioning,gps uav,NEO 3x GNSS receiver,Drone navigation system,M9N receiver technology,CUAV,GNSS receiver - MotioNew - 12

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Additional information

Weight 1 kg
Dimensions 11 × 11 × 6 cm
bundle

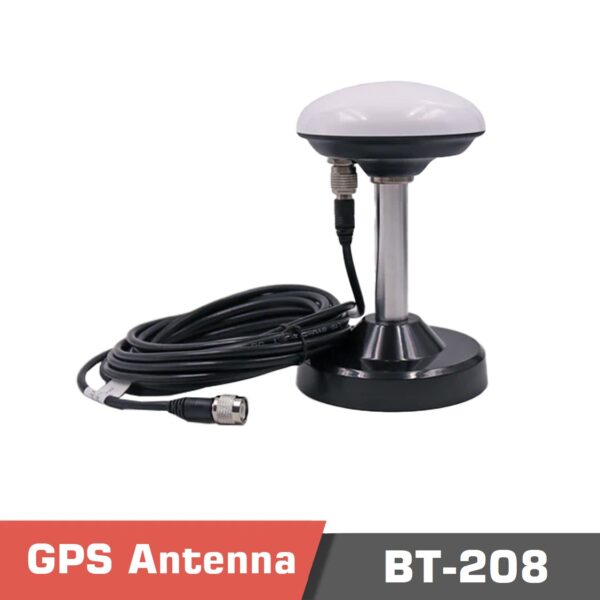

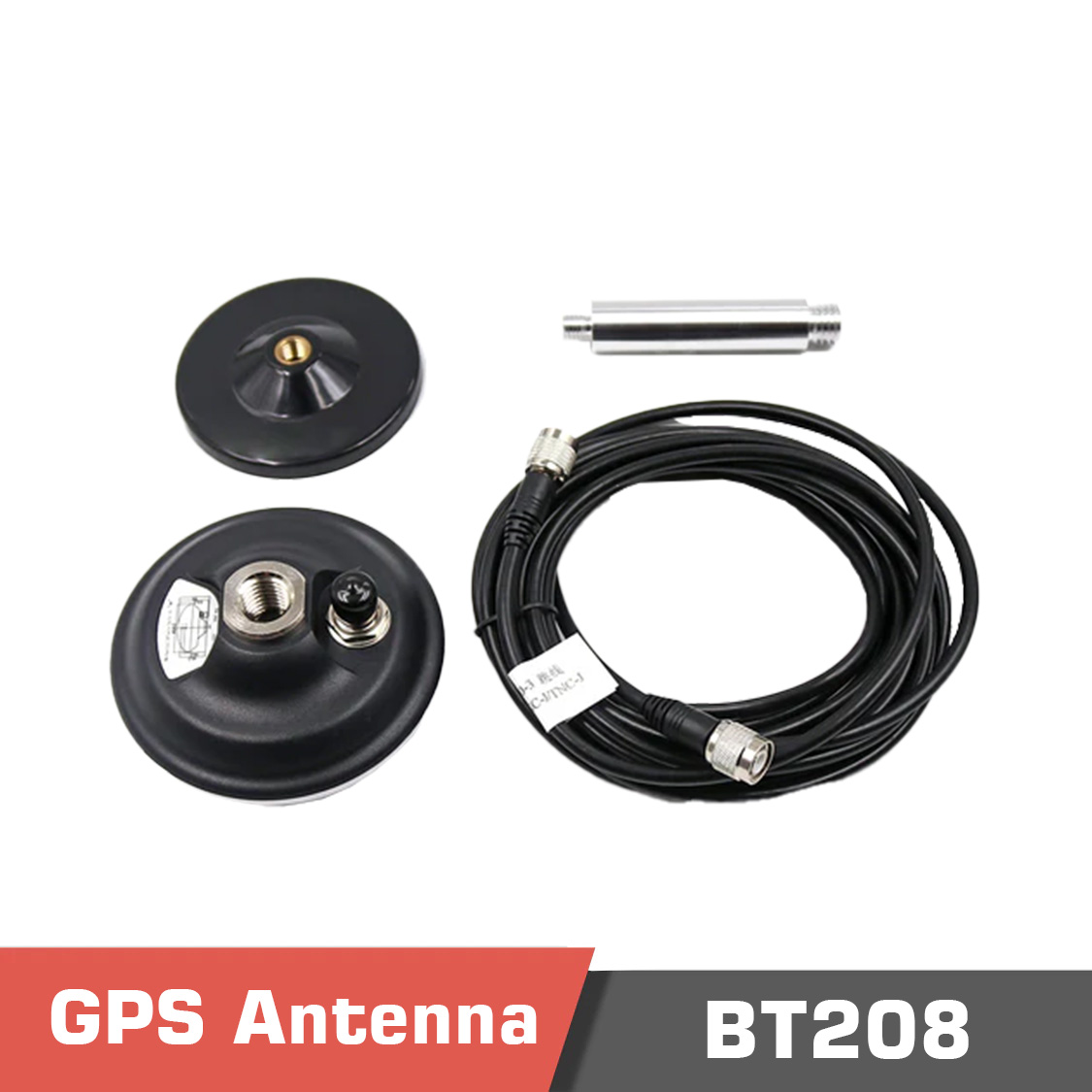

BT-M110SLD (SMA), BT-M110SLD (TNC), BT-M90SD (SMA), BT-M90SD (TNC), BT-M110SLB (SMA), BT-M110SLB (TNC), no base (SMA), no base (TNC), no cable BT-208

Specifications

Antenna Specifications
Frequency Range(MHz) GPS L1/L2/L5

BDS B1I/B2I/B3I/B1C/B2a/B2b

GLONASS L1/L2/L3

GALILEO E1/E5a/E5b/E6

SBAS L1/L5

QZSS L1/L2/L5/L6

IRNSS L5

L-Band
Gain (dB) 5.5
Antenna AR (dB) ≤3.0
VSWR ≤2.0
Phase center error (mm) ±2
Polarization Right-hand circular polarization
Port Impedance 50Ω
Horizontal coverage angle 360º



Electrical Specifications
LNA Gain (dB) 38±2
Noise figure (dB) ≤2.0
Passband fluctuation (dB) ±2
VSWR ≤2.0
Operating voltage (V) 3.0-12.0
Operating current (mA) ≤45
Differential propagation delay (ns) ≤5



Structural Characteristics

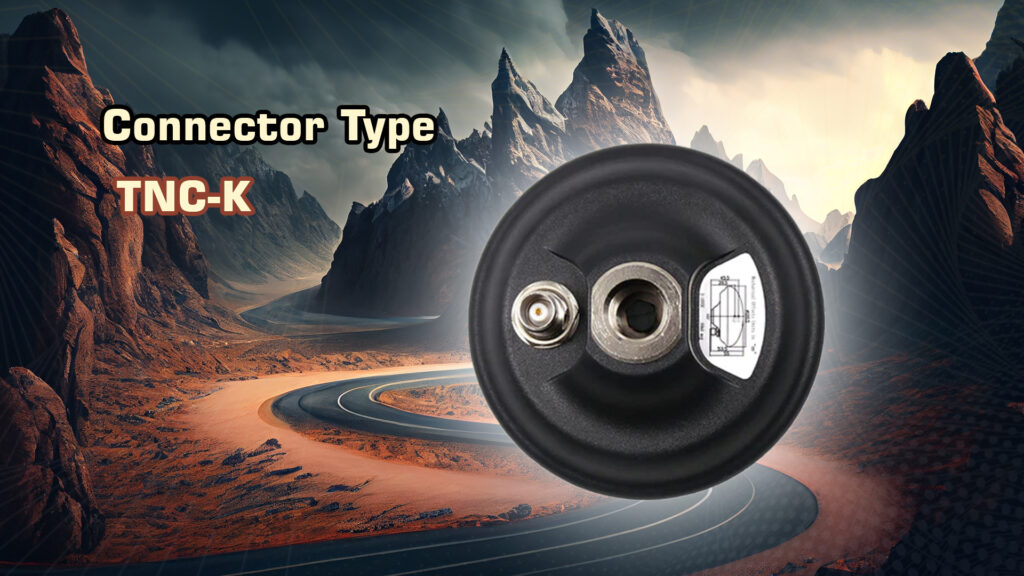

Connector type TNC-K
Radome Material ABS

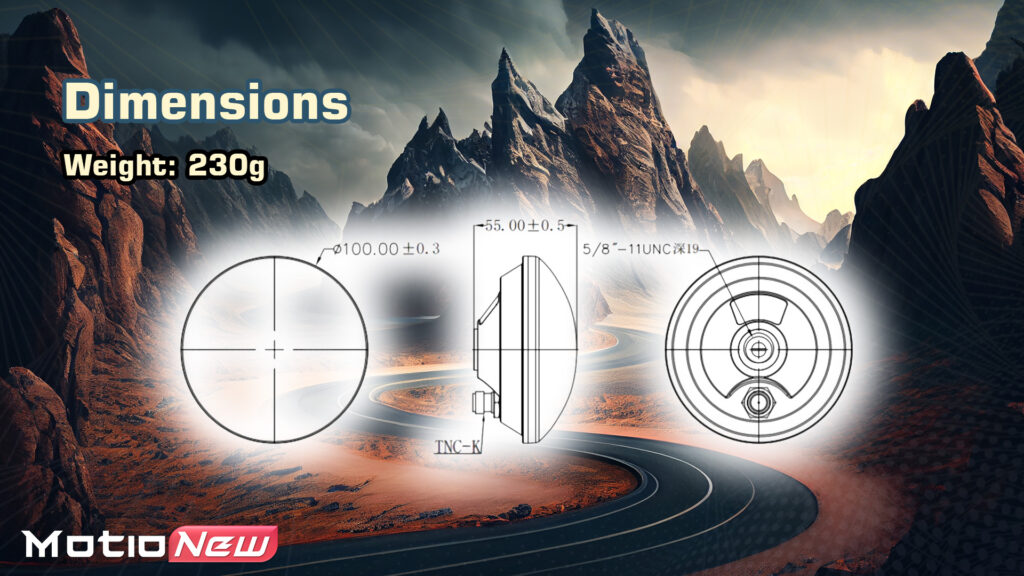

Antenna size (mm) Φ100×55
Weight (g) 230
Mounting Method spiral



Working Environment
Operating temperature (°C) -40~+85
Relative Humidity Up to 95%
Waterproof grade IP67
Environmentally Friendly ROHS
