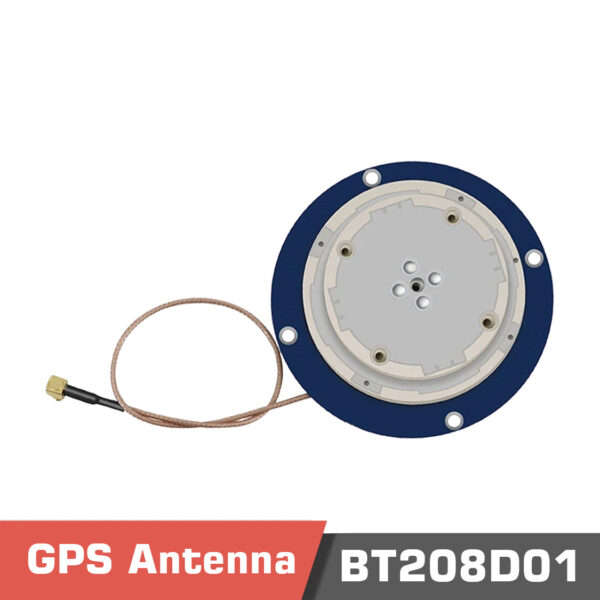

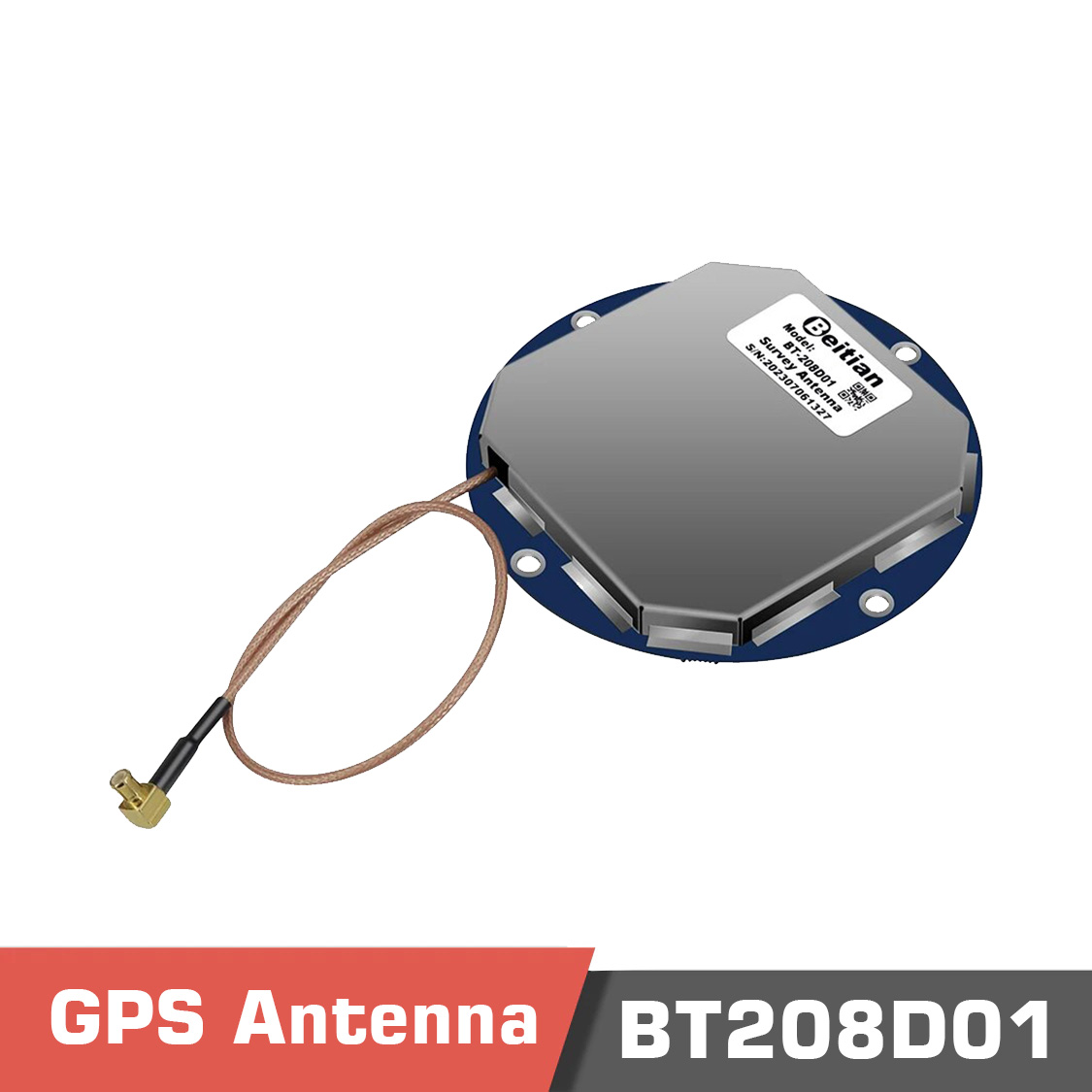

Beitian BT-208D01 miniaturization four-star full-frequency satellite navigation antenna high gain high sensitivity high reliability

Bt208d01. Temp. 1 - beitian bt-208d01,gps antenna,gnss positioning,gps uav,neo 3x gnss receiver,drone navigation system,m9n receiver technology,cuav,gnss receiver - motionew - 2
Bt208d01. Temp. 2 - beitian bt-208d01,gps antenna,gnss positioning,gps uav,neo 3x gnss receiver,drone navigation system,m9n receiver technology,cuav,gnss receiver - motionew - 3

Beitian BT-208D01 miniaturization four-star full-frequency satellite navigation antenna high gain high sensitivity high reliability

69.00 $

Description

Beitian BT-208D01 miniaturization four-star full-frequency satellite navigation antenna high gain high sensitivity high reliability

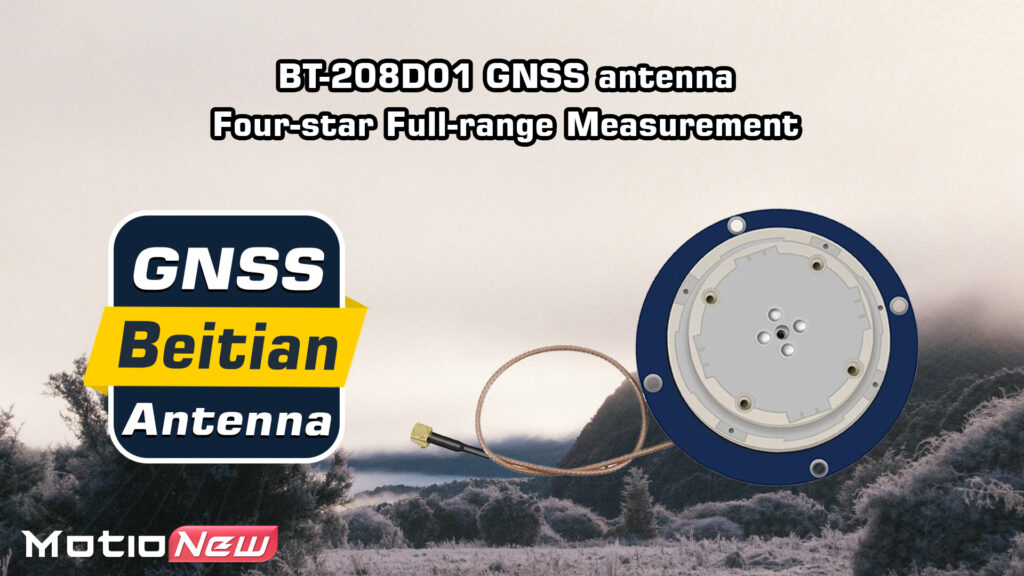

Beitian BT-208D01 covers the four-star full-frequency external UFO antenna, meeting the current GNSS measurement equipment. The system is compatible with the needs of high-precision users. It can be used with a variety of satellite navigation receivers. It is widely used in geodesy mapping, waterway surveying, precision agriculture, and marine surveying.

Beitian gps antenna bt208d01. 1 - beitian bt-208d01,gps antenna,gnss positioning,gps uav,neo 3x gnss receiver,drone navigation system,m9n receiver technology,cuav,gnss receiver - motionew - 4 Beitian gps antenna bt208d01. 2 - beitian bt-208d01,gps antenna,gnss positioning,gps uav,neo 3x gnss receiver,drone navigation system,m9n receiver technology,cuav,gnss receiver - motionew - 5 Beitian gps antenna bt208d01. 3 - beitian bt-208d01,gps antenna,gnss positioning,gps uav,neo 3x gnss receiver,drone navigation system,m9n receiver technology,cuav,gnss receiver - motionew - 6 Beitian gps antenna bt208d01. 4 - beitian bt-208d01,gps antenna,gnss positioning,gps uav,neo 3x gnss receiver,drone navigation system,m9n receiver technology,cuav,gnss receiver - motionew - 7 Beitian gps antenna bt208d01. 5 - beitian bt-208d01,gps antenna,gnss positioning,gps uav,neo 3x gnss receiver,drone navigation system,m9n receiver technology,cuav,gnss receiver - motionew - 8 Beitian gps antenna bt208d01. 6 - beitian bt-208d01,gps antenna,gnss positioning,gps uav,neo 3x gnss receiver,drone navigation system,m9n receiver technology,cuav,gnss receiver - motionew - 9

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Additional information

Weight 1 kg
Dimensions 11 × 11 × 6 cm
bundle

BT-M110SLD (SMA), BT-M110SLD (TNC), BT-M90SD (SMA), BT-M90SD (TNC), BT-M110SLB (SMA), BT-M110SLB (TNC), no base (SMA), no base (TNC), no cable BT-208

Specifications

Antenna Specifications
Frequency Range(MHz) GPS L1/L2/L5

BDS B1I/B2I/B3I/B1C/B2a/B2b

GLONASS L1/L2/L3

GALILEO E1/E5a/E5b/E6

SBAS L1/L5

QZSS L1/L2/L5/L6

IRNSS L5

L-Band
Gain (dB) ≥4
Antenna AR (dB) ≤3.0
VSWR ≤1.5
Phase center error (mm) ±2
Polarization Right-hand circular polarization
Port Impedance 50Ω
Horizontal coverage angle 360º





Electrical Specifications
LNA Gain (dB) 38±2
Noise figure (dB) ≤2.0
Passband fluctuation (dB) ±1.5
VSWR ≤2.0
Operating voltage (V) 3.6012.0
Operating current (mA) ≤45

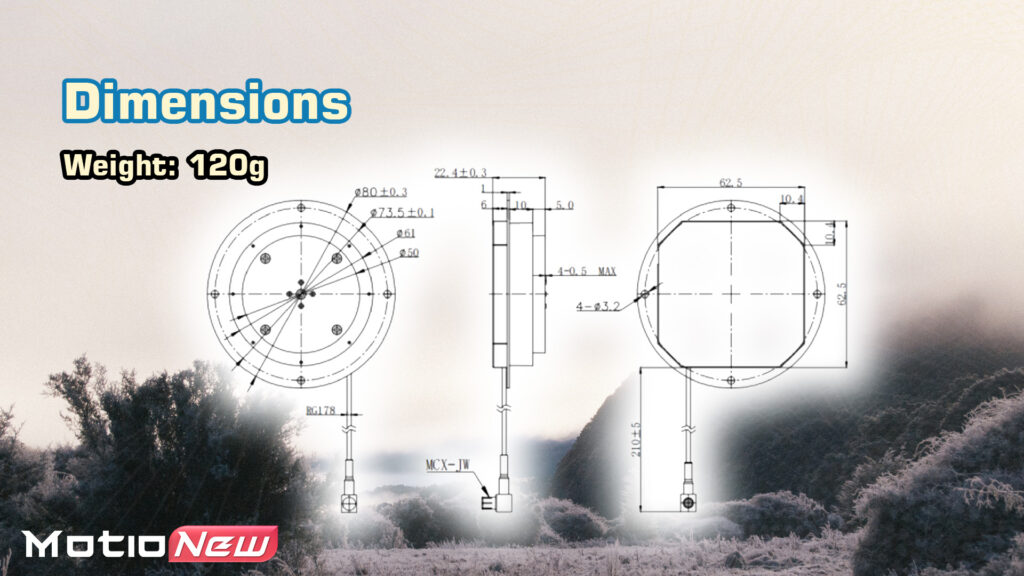

Structural Characteristics
Connector type MCX-JW
Antenna size (mm) Φ80×22.4
Weight (g) 120
Cable RG178
Length 21cm



Working Environment
Operating temperature (°C) -40~+85
Relative Humidity Up to 95%

Product contents

Please contact us for more information.

Documents

Please contact us for more information.
