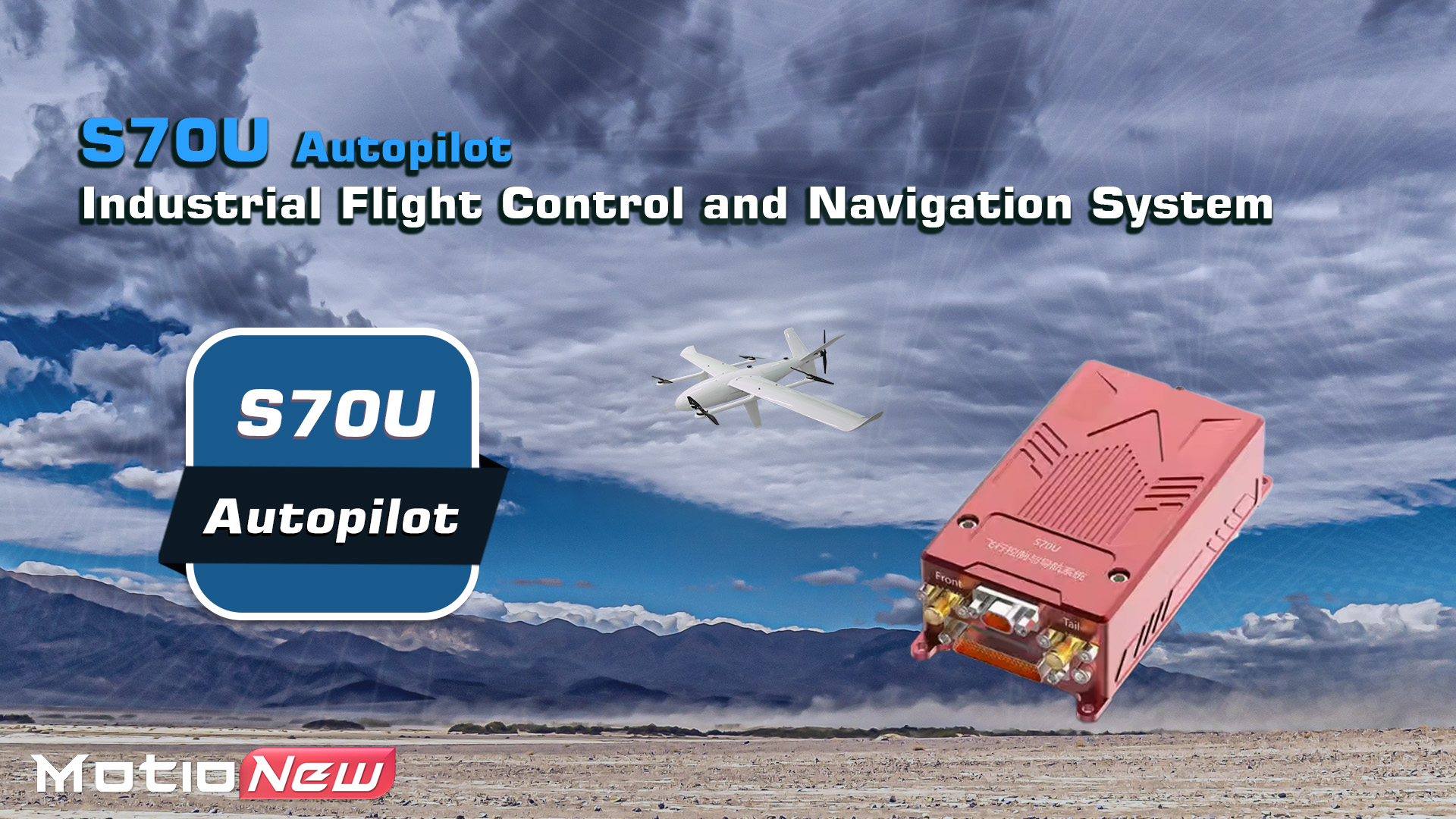

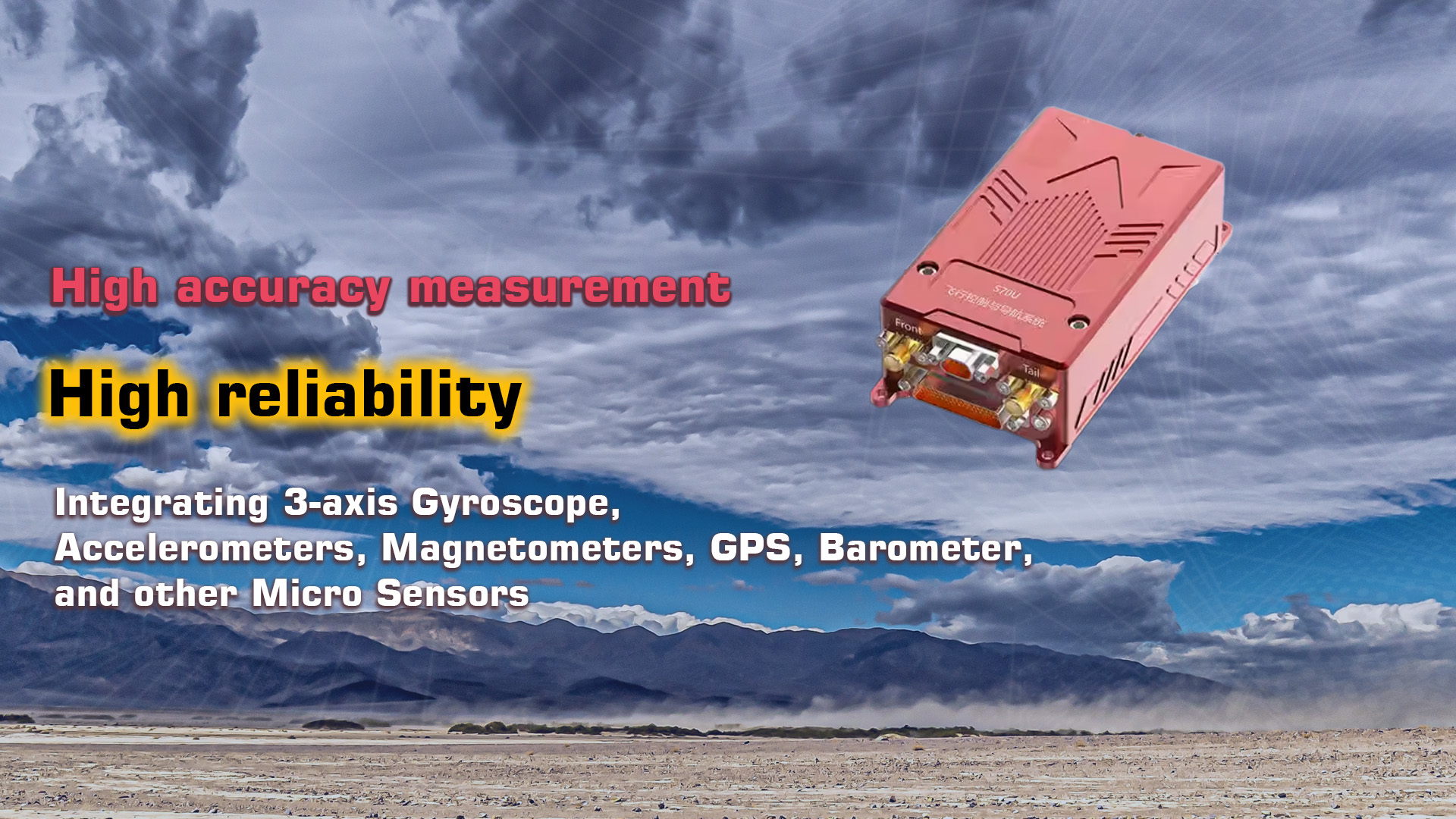

S70U Flight controller, Hybrid UAV Flight Control and Navigation System

Original price was: 21610.00 $.Current price is: 19900.00 $.

PayPal
Visa
Master

Description

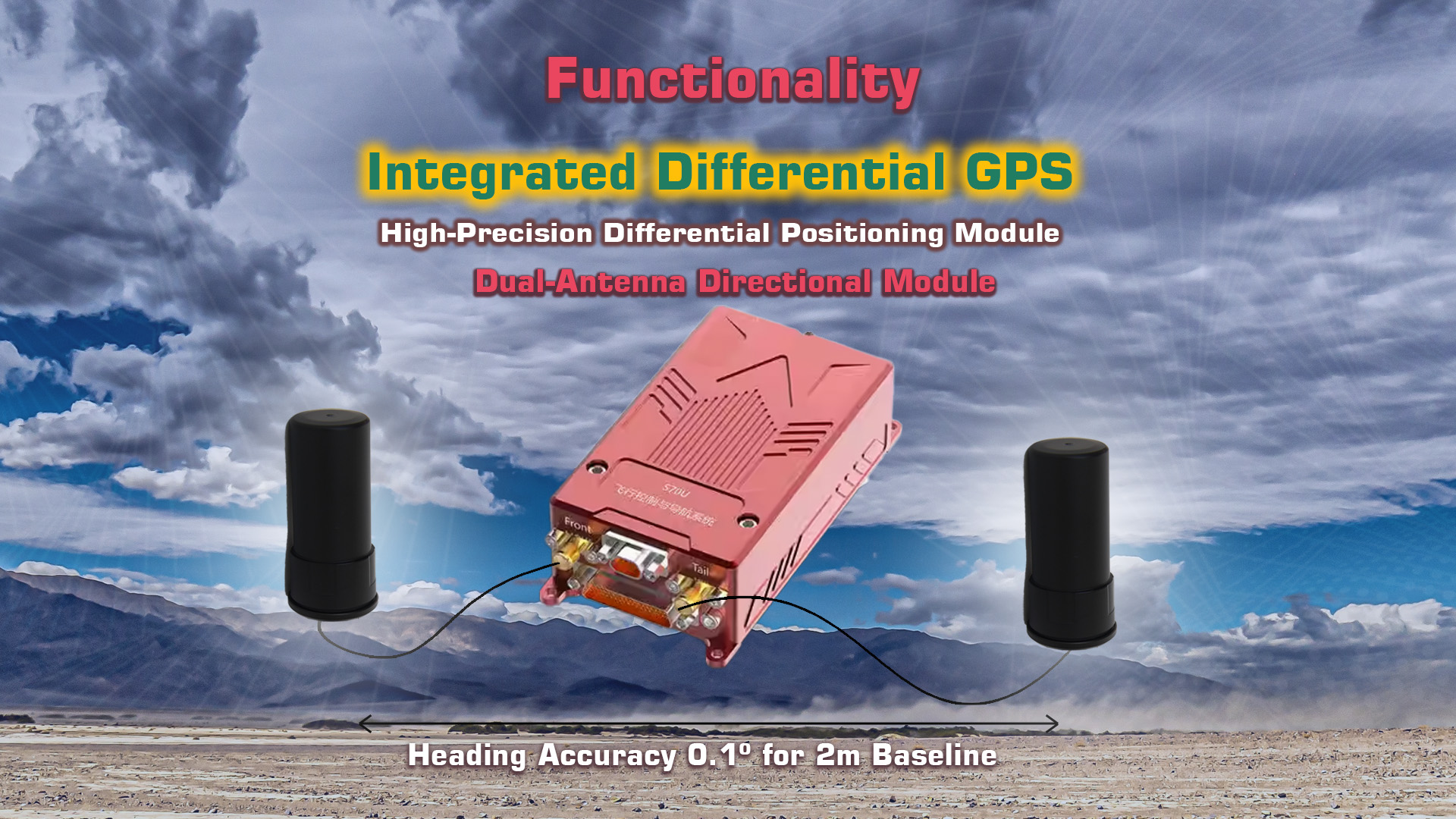

The S70U flight controller and navigation system integrates a multi-redundant high-precision integrated navigation system (dynamic attitude accuracy 0.1ยฐ), a high-precision differential positioning module and a dual-antenna directional module (heading accuracy 0.1ยฐ/2m baseline), and has the characteristics of high integration, high accuracy, multiple redundancy, small size, light weight, and support for user-deep customization. The S70U is suitable for conventional fixed-wing, vertical take-off and landing fixed-wing, multi-rotor, helicopter and other layout aircraft with various fully autonomous take-off and landing requirements.

Up to 100 emergency landing points can be preset, and in case of emergency protection, it will automatically land at the nearest location. The system provides 8 user routes, each route can add 800 waypoints, automatically generates circling routes, circling center, and circling radius, and the number of circling circles can be set

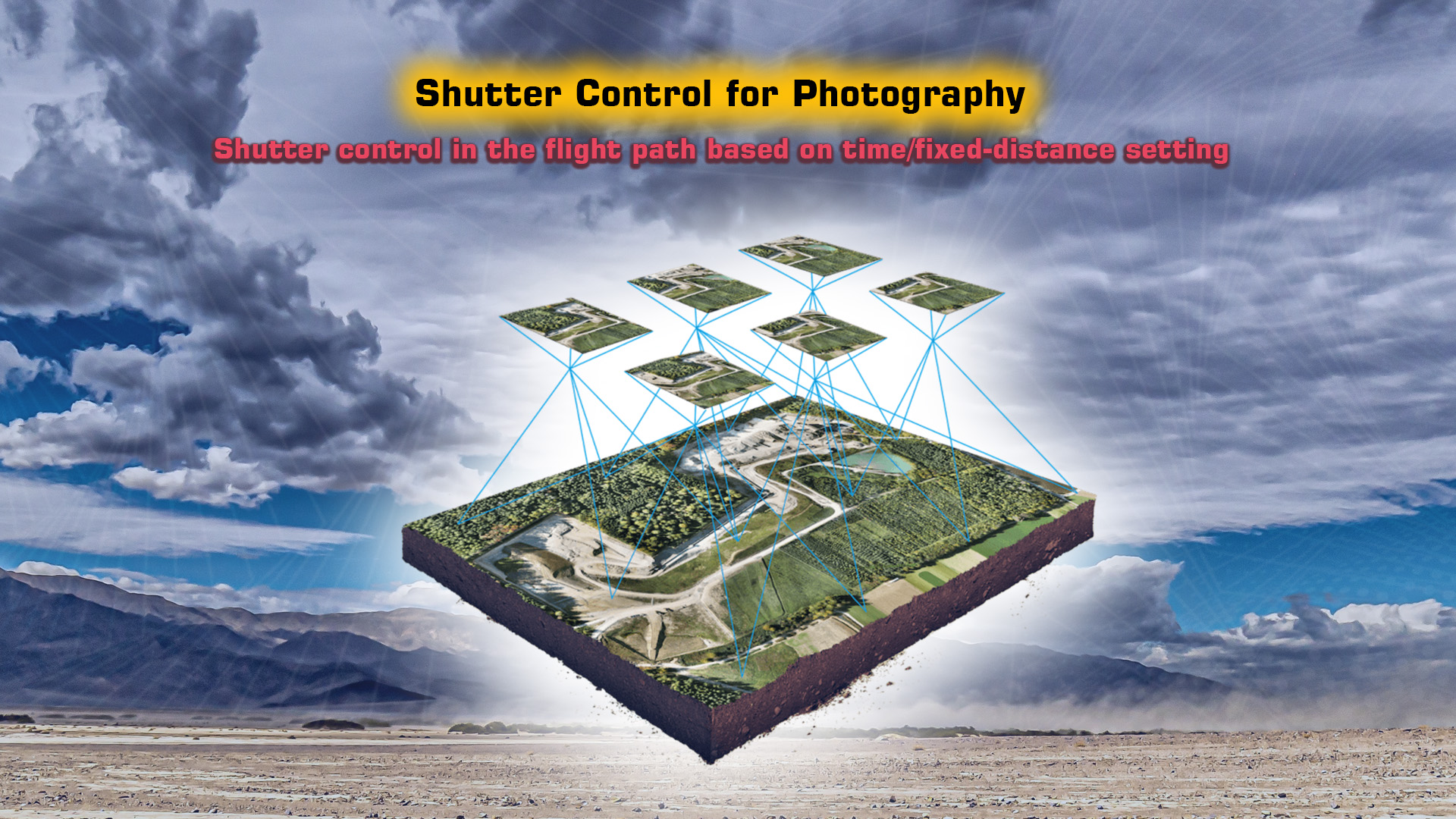

S70U provides photo capturing (shutter control) tasks during the flight paths, and the timing/distance can be set. It also supports typical photoelectric pod, pan/tilt gimbals, and special surveying and mapping cameras. Flight information and mission information are recorded and downloaded separately. The flight information recording time is up to 9 hours.

A ground measurement and control software supports online maps and irregular multi-measurement area automatic surveying and mapping route planning, supports automatic planning of oil, electric power, and other patrol routes, and can alert users to complete pre-flight planning examinations.

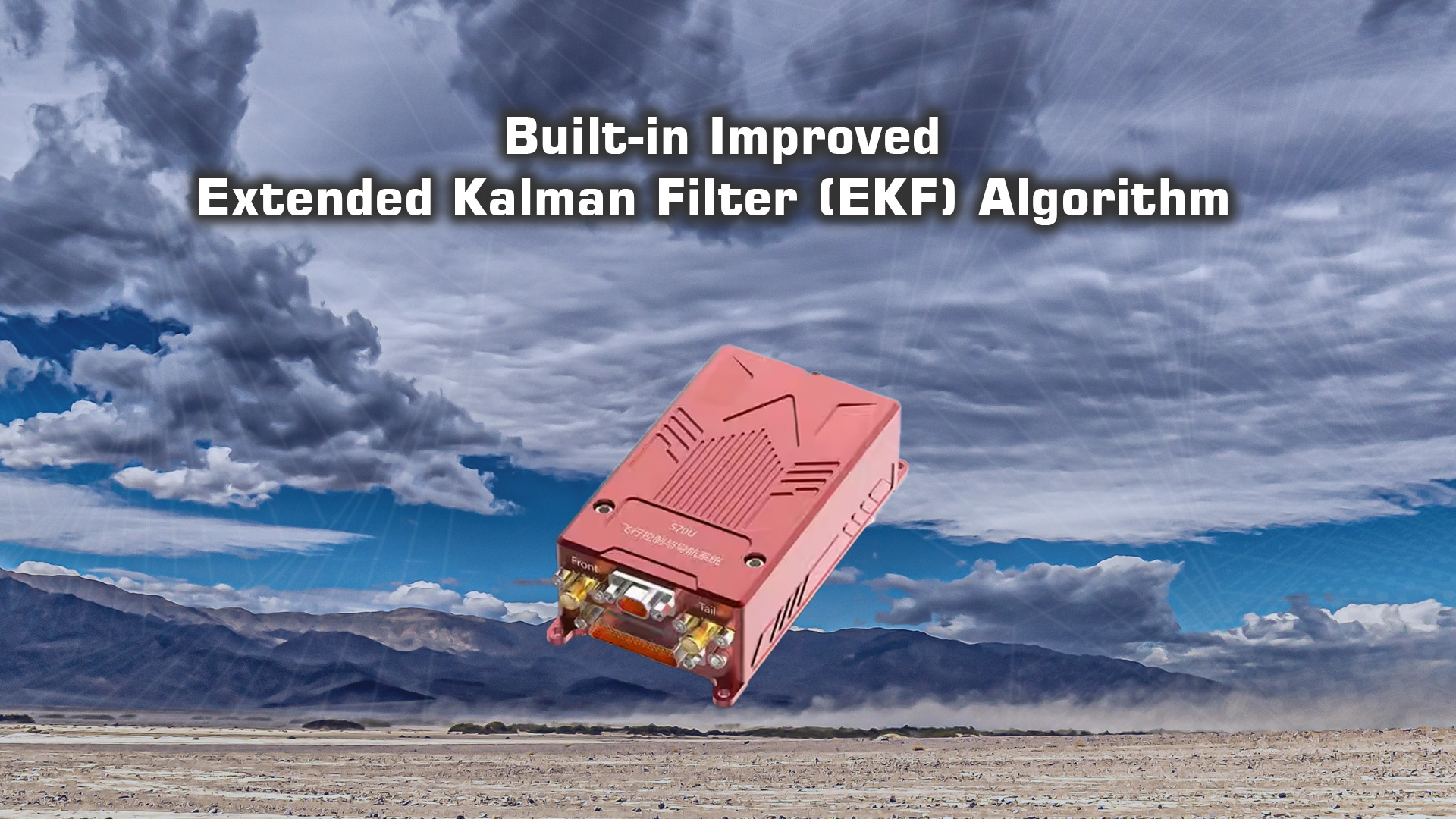

S70u autopilot S70u autopilot specification S70u autopilot accuracy S70u autopilot functionality S70u autopilot parts S70u autopilot ekf S70u autopilot shutter control S70u. 8 - s70u flight controller - motionew - 4 S70u autopilot dimensions

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Attitude accuracy 0.1ยฐ
Heading accuracy 0.1ยฐ
RTK Positioning accuracy 5cm+1ppm
Speed accuracy 0.1m/s
Angular velocity measurement range ยฑ500ยฐ/s
Acceleration measurement range ยฑ8g
Height measuring range 10000m
Voltage monitoring range 0~52v
Servo update frequency 50Hz~200Hz
Engine speed monitoring range 0~20000rpm

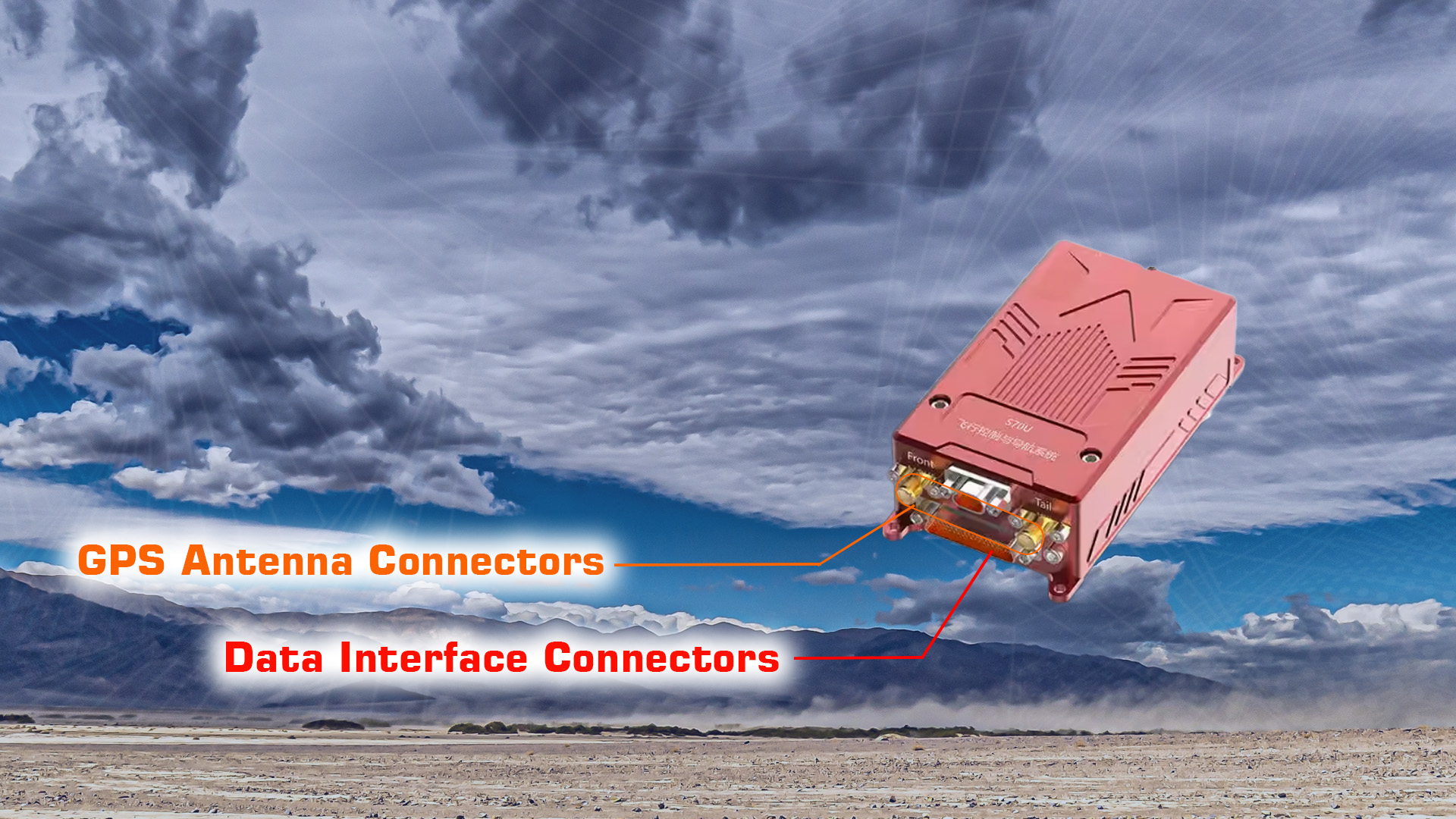

Communication Interface 4x RS-232, 2x RS422
Voltage monitoring channel 2
Engine rotation monitoring channel 2
PWM control channel 11
Digital output channel 3 (can be configured as PWM)
CAN interface 2
Extended serial port 2
SBUS input channel 1 input, 1 output
Number of routes 8 routes (800 waypoints per route)
Built-in data logger 9 hours
Position Points for taking pictures 10000
Emergency landing point 100
Supply voltage 4.5 v- 9v
Power Consumption < 3W
Weight 165g

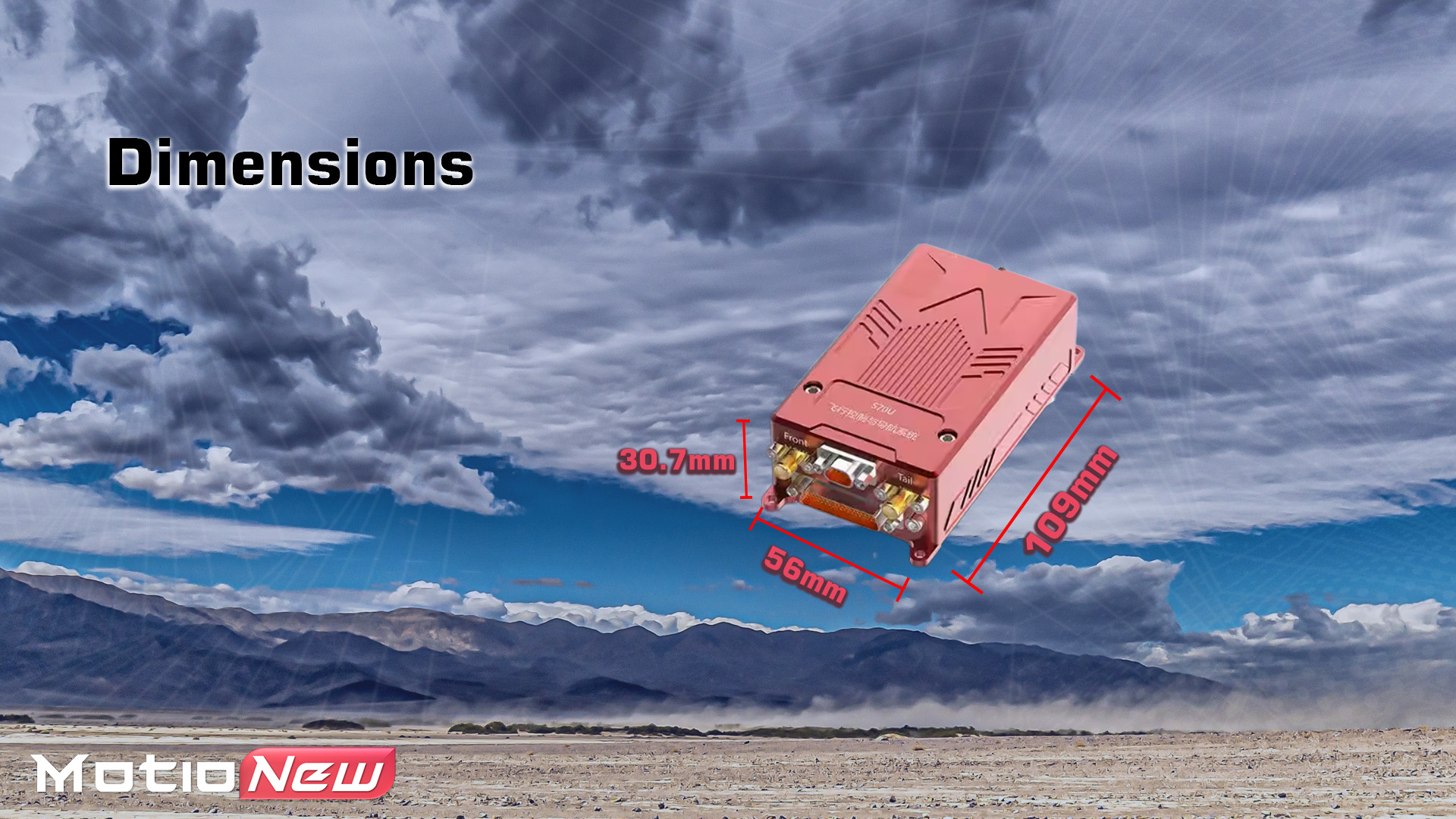

Dimensions 109x56x30.7mm
Operating Temperature -40ยฐC~85ยฐC
Storage Temperature -40ยฐC~85ยฐC
