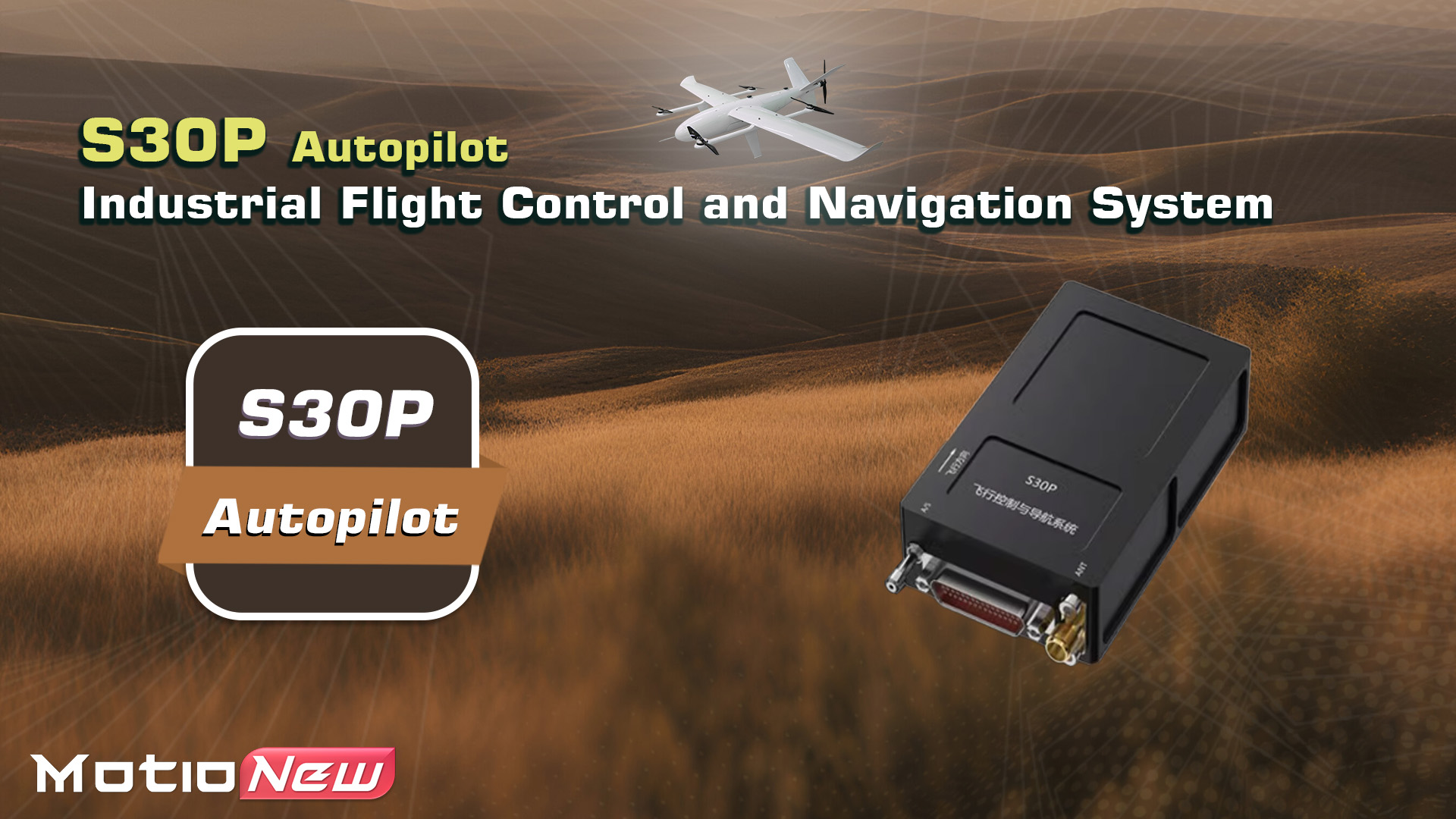

S30P Flight controller, Hybrid UAV Flight Control and Navigation System

PayPal
Visa
Master

Description

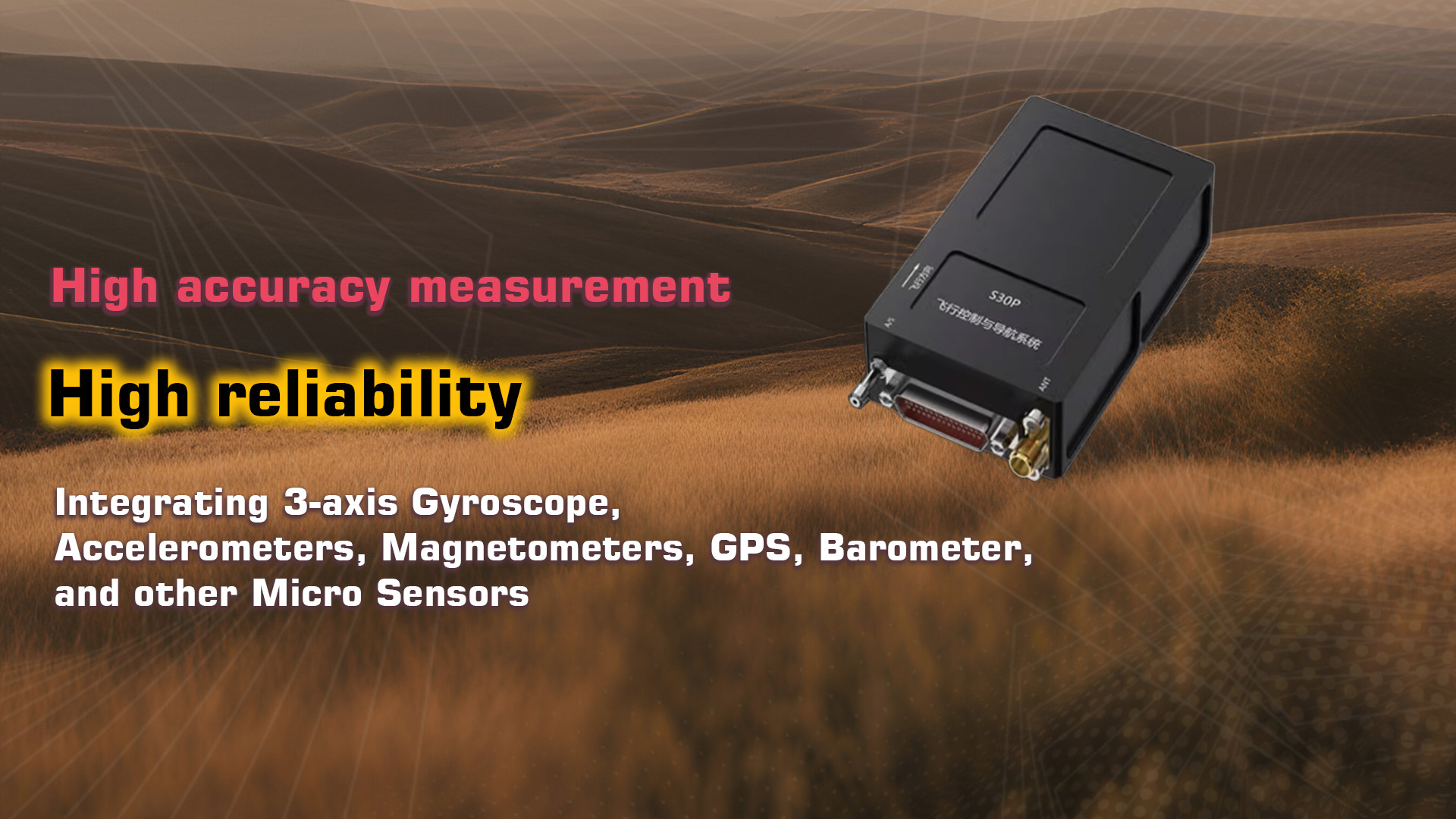

The S30P flight controller (high cost-effectiveness) and navigation system, which is a flight control for drone suits small conventional fixed-wing, vertical take-off and landing fixed-wing, and tilt-rotor layout aircraft. It integrates a flight control computer and a micro-integrated navigation system (GPS/MINS) to achieve One-click automatic takeoff, landing, hovering, circling, return, altitude setting, parachute deployment, and various forms of autonomous cruising along predetermined routes. It also provides comprehensive flight status monitoring and alarm functions and a complete emergency protection mechanism to ensure the safe operation of the system.

S30P supports four layouts of UAVs (including the conventional tail, V-tail, and flying wing): electric and hydraulic (vertical takeoff and landing fixed wing), conventional fixed-wing, tilt-rotor.ย

The complete emergency protection mechanism can protect against low voltage, low fuel volume, low rotational speed, abnormal attitude, abnormal altitude, low GPS positioning accuracy, navigation system failure, exceeding the safety fence, exceeding the control radius, remote control failure, and more.

The system provides 8 user routes, each route can add 800 waypoints, automatically generates circling routes, circling center, and circling radius, and the number of circling circles can be set

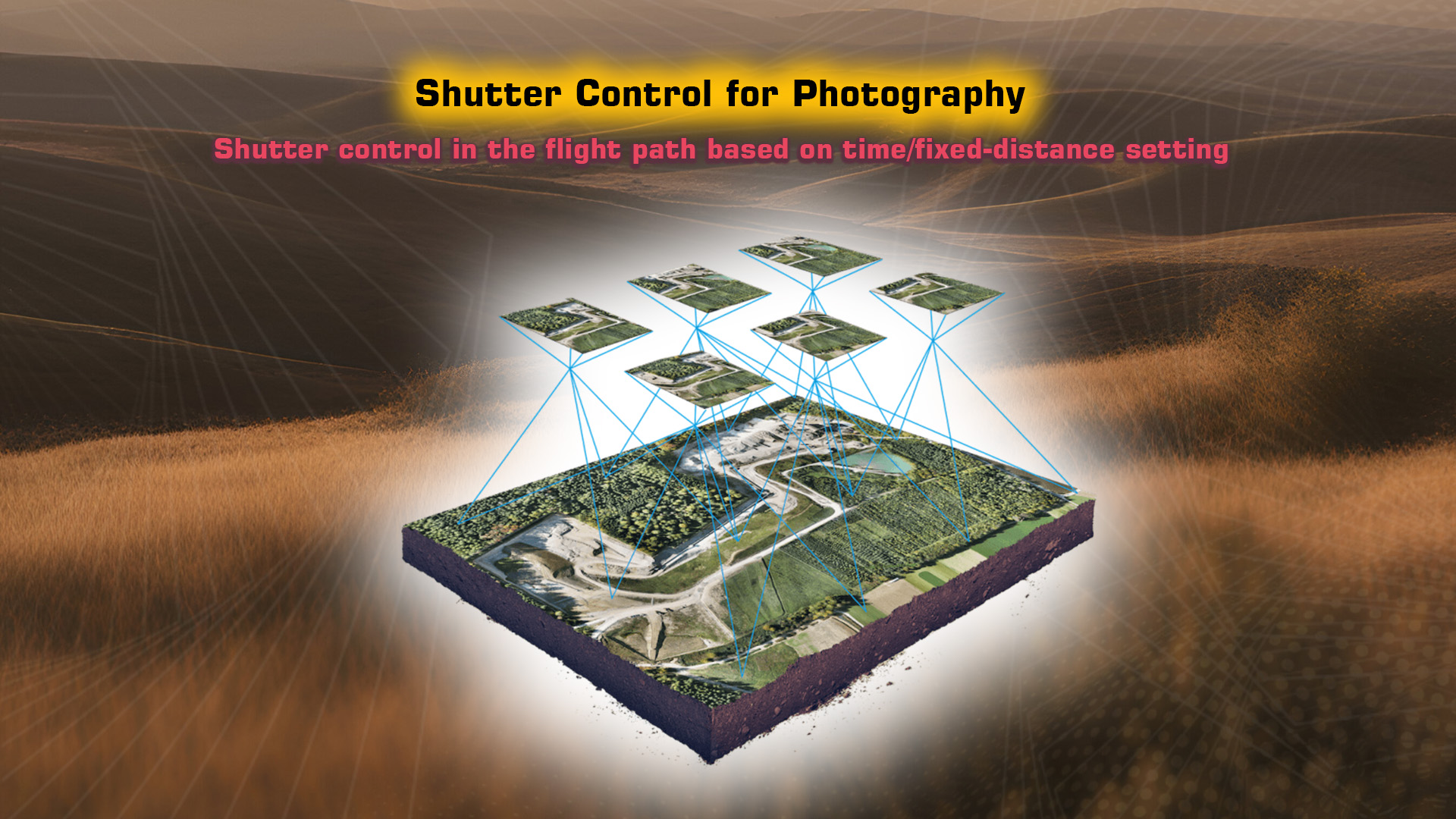

S430P provides photo capturing (shutter control) tasks during the flight paths, and the timing/distance can be set. It also supports typical photoelectric pod, pan/tilt gimbals, and special surveying and mapping cameras. Flight information and mission information are recorded and downloaded separately. The flight information recording time is up to 9 hours.

A ground measurement and control software supports online maps and irregular multi-measurement area automatic surveying and mapping route planning, supports automatic planning of oil, electric power, and other patrol routes, and can alert users to complete pre-flight planning examinations.

S30p autopilot S30p autopilot specification S30p autopilot accuracy S30p autopilot functionality S30p autopilot parts S30p autopilot ekf S30p autopilot shutter control S30p. 8 - s30p flight controller - motionew - 4 S30p autopilot dimensions

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Attitude accuracy 0.3ยฐ
Heading accuracy 0.3ยฐ

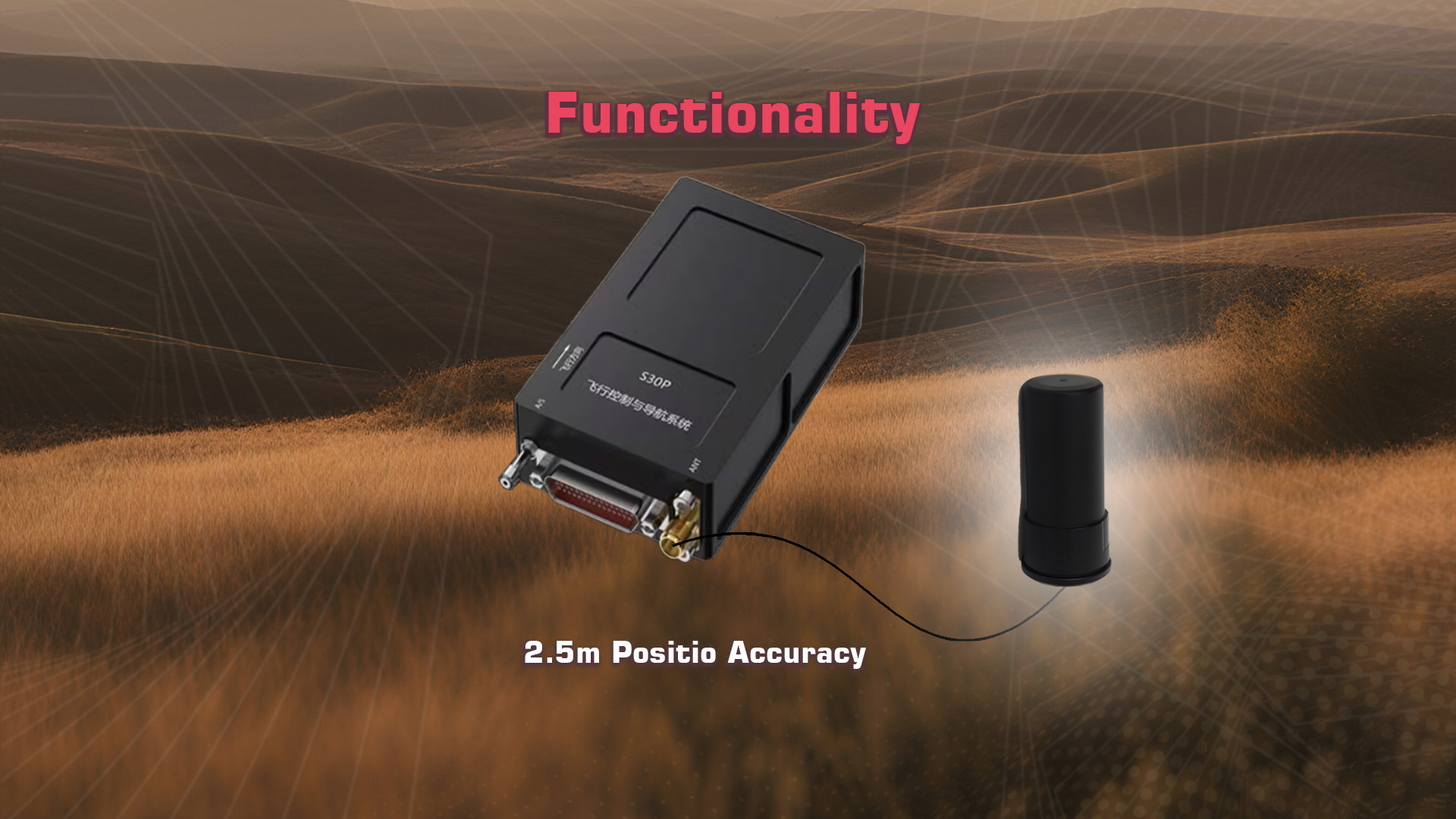

Positioning accuracy 2.5m
Height measuring range 10000m
Voltage monitoring range 0~52v
Voltage monitoring channel 2
PWM control channel 9
Digital output channel 3
serial port 3
SBUS input channel 1
Number of routes 8 routes (800 waypoints per route)
Built-in data logger 9 hours
Position Points for taking pictures 10000
Emergency landing point 100
Supply voltage 4.5 v- 9v
Power Consumption < 2W
Weight 90g

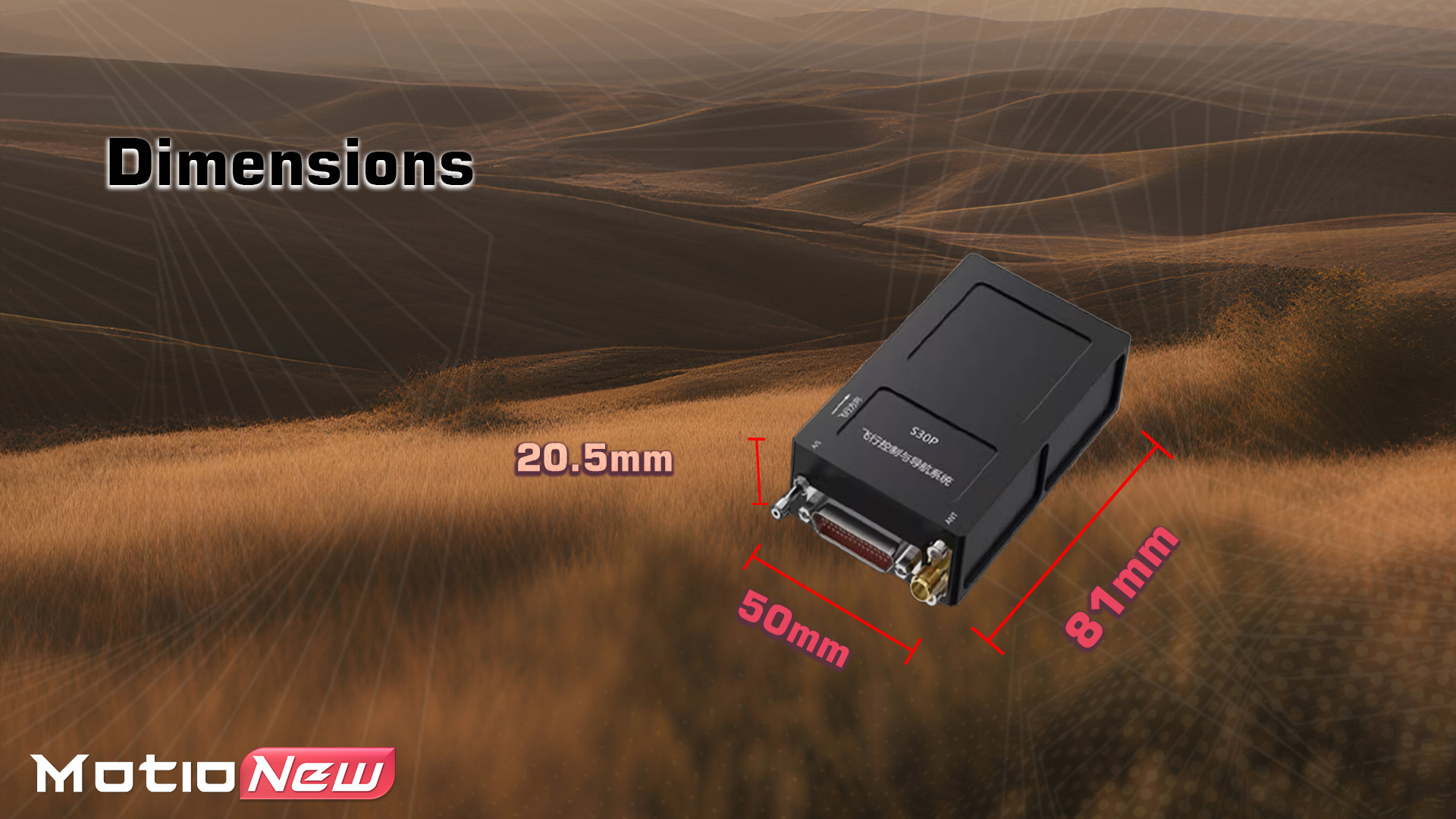

Dimensions 81x50x20.5mm
Operating Temperature -20ยฐC~55ยฐC
Storage Temperature -40ยฐC~85ยฐC

Product contents

Pleaseย contact usย for more information.

Documents



Pleaseย contact usย for more information.
