S40P Flight controller, Hybrid UAV Flight Control and Navigation System

PayPal
Visa
Master

Description

The S40P flight controller (high cost-effectiveness) and navigation system, which is a flight control for drone suits small conventional fixed-wing, vertical take-off and landing fixed-wing, and tilt-rotor layout aircraft. It integrates a flight control computer and a micro-integrated navigation system (GPS/MINS) to achieve One-click automatic takeoff, landing, hovering, circling, return, altitude setting, parachute deployment, and various forms of autonomous cruising along predetermined routes. It also provides comprehensive flight status monitoring and alarm functions and a complete emergency protection mechanism to ensure the safe operation of the system.

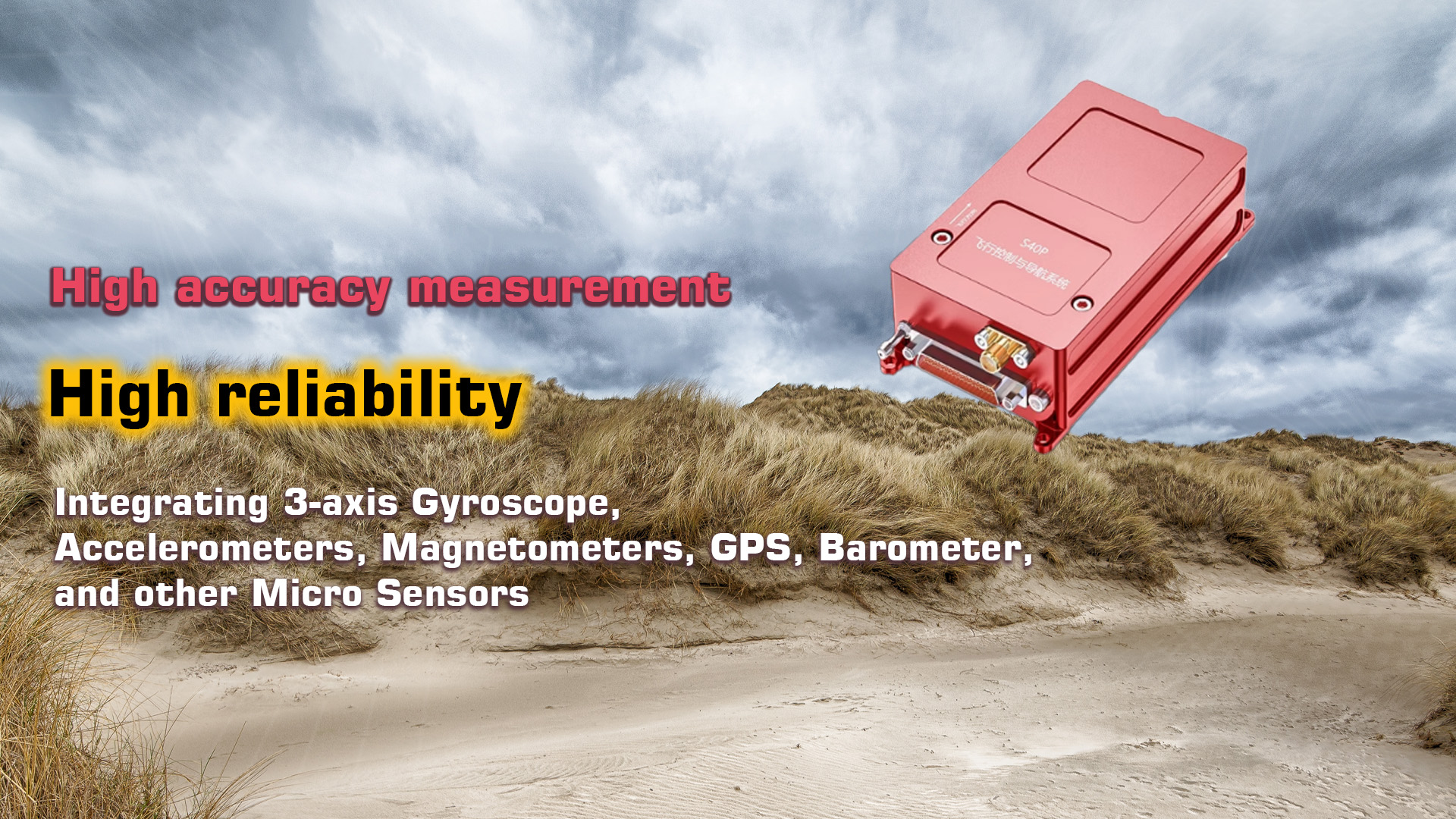

S40P supports four layouts of UAVs (including the conventional tail, V-tail, and flying wing): electric and hydraulic (vertical takeoff and landing fixed wing), conventional fixed-wing, tilt-rotor, and multi-rotor. There is also an integrated micro GPS/MINS navigation system, barometric altimeter, differential pressure airspeed meter, 2-channel speed measurement, and 1-channel fuel quantity measurement.

The autopilot supports external differential GPS (RTK/PPK, where the dual-antenna directional function is optional), which is complementary to the internal single-point positioning GPS module. The system automatically selects and uses the one with better positioning status. It also supports an external compass, allowing users to choose an area with less magnetic interference for installation to improve heading measurement accuracy.

Automatic ignition function after the aircraft with a fuel engine takes off. This reduces the vibrations of the fuel engine and improves the flight performance. The complete emergency protection mechanism can protect against low voltage, low fuel volume, low rotational speed, abnormal attitude, abnormal altitude, low GPS positioning accuracy, navigation system failure, exceeding the safety fence, exceeding the control radius, remote control failure, and more.

Up to 100 emergency landing points can be preset, and in case of emergency protection, it will automatically land at the nearest location. The system provides 8 user routes, each route can add 800 waypoints, automatically generates circling routes, circling center, and circling radius, and the number of circling circles can be set

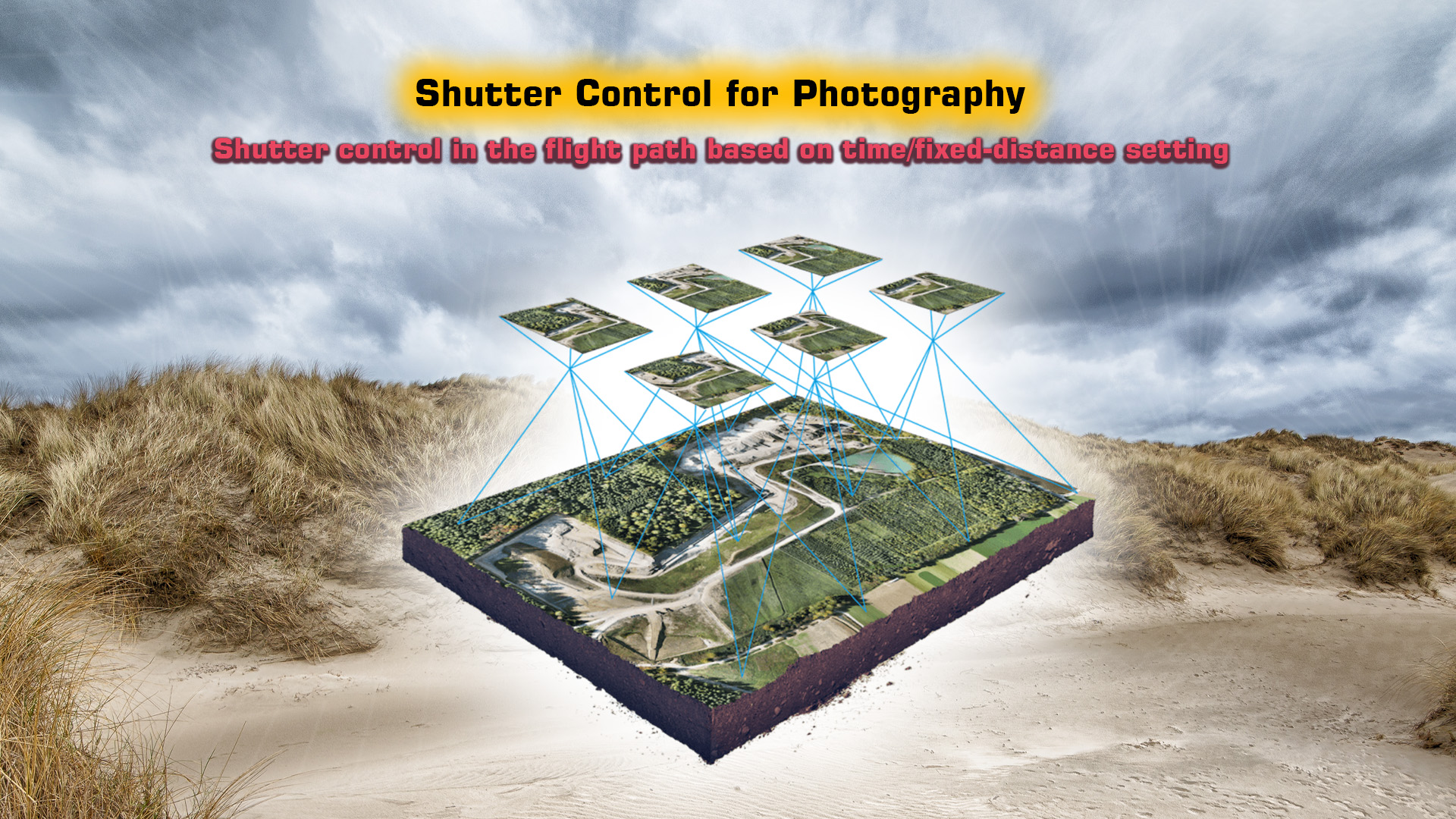

S40P provides photo capturing (shutter control) tasks during the flight paths, and the timing/distance can be set. It also supports typical photoelectric pod, pan/tilt gimbals, and special surveying and mapping cameras. Flight information and mission information are recorded and downloaded separately. The flight information recording time is up to 9 hours.

A ground measurement and control software supports online maps and irregular multi-measurement area automatic surveying and mapping route planning, supports automatic planning of oil, electric power, and other patrol routes, and can alert users to complete pre-flight planning examinations.

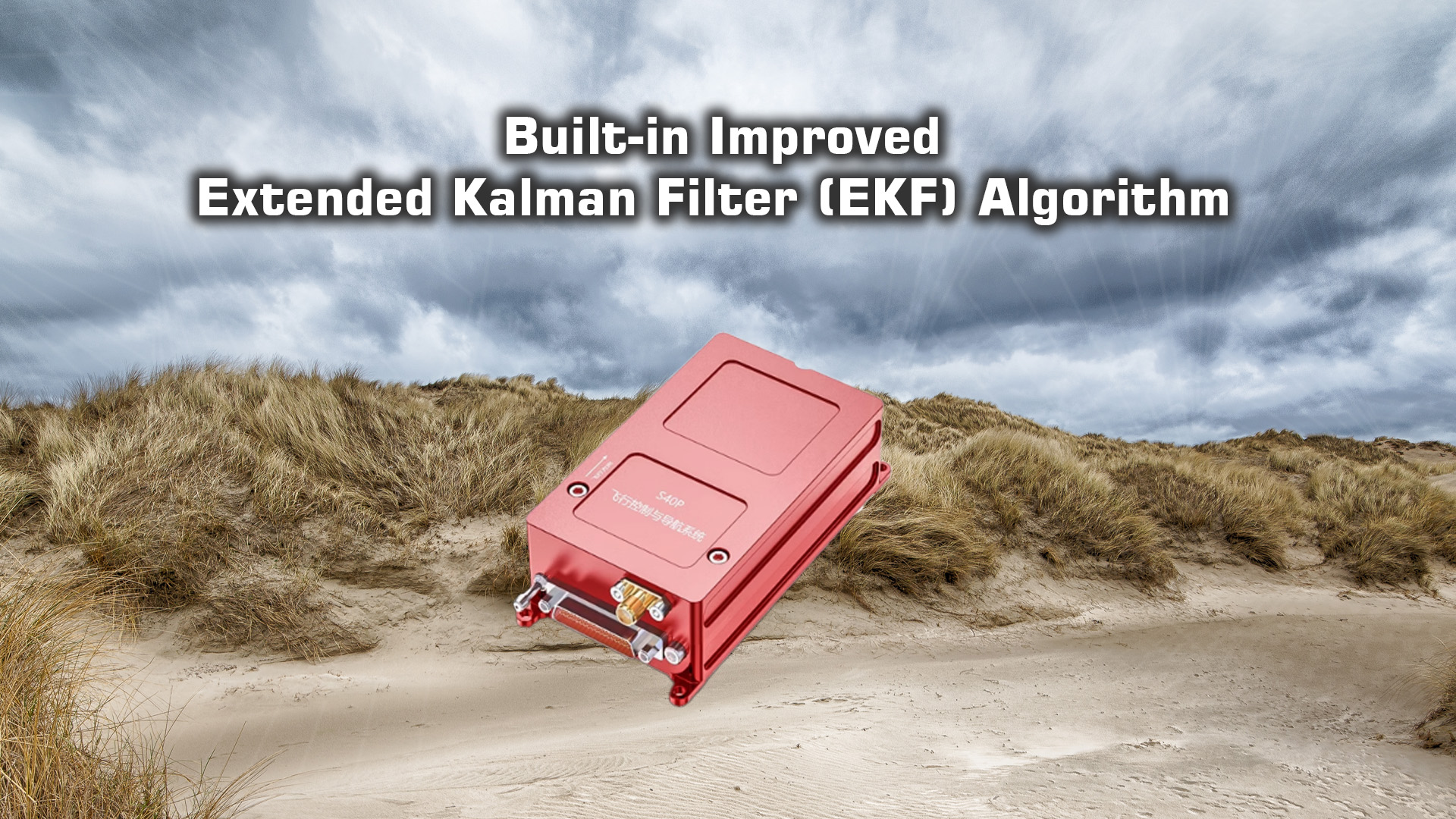

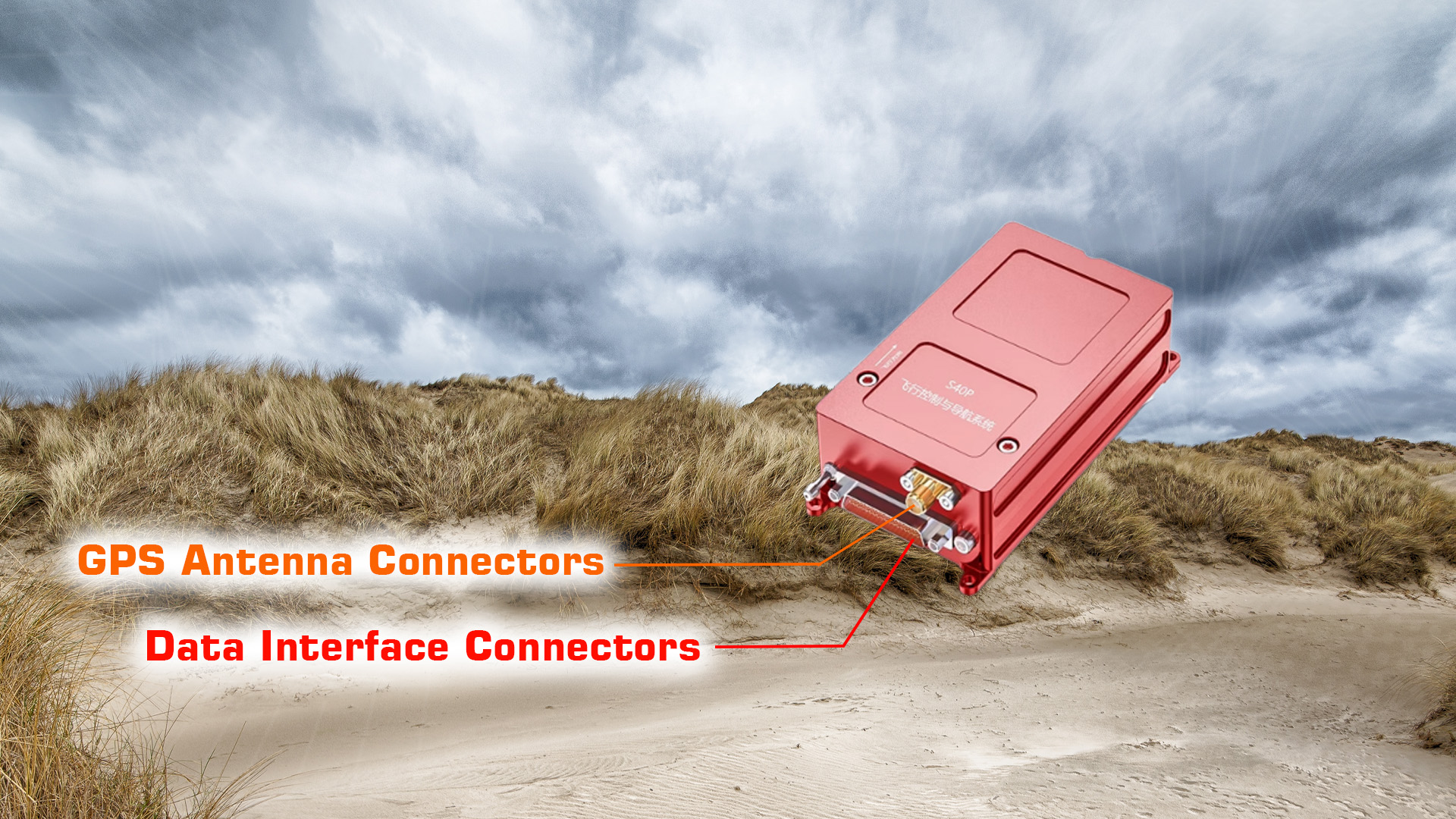

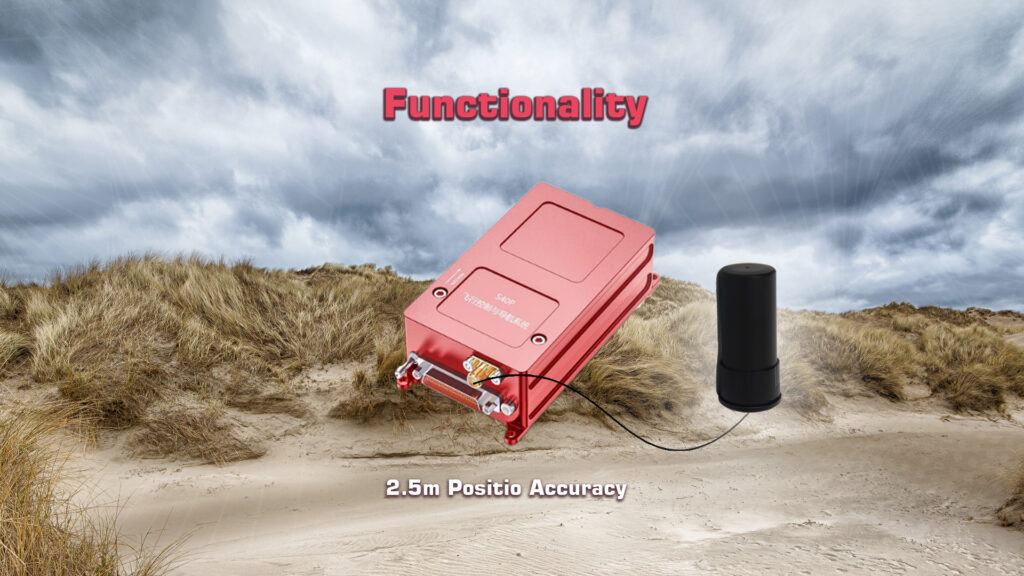

S40p autopilot navigation S40p autopilot specification S40p autopilot accuracy S40p autopilot functionality S40p autopilot parts S40p autopilot ekf S40p. 7 - s40p flight controller - motionew - 4 S40p. 8 - s40p flight controller - motionew - 5 S40p autopilot dimensions

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Attitude accuracy 0.3ยฐ
Heading accuracy 0.3ยฐ (single antenna, needs maneuvering)

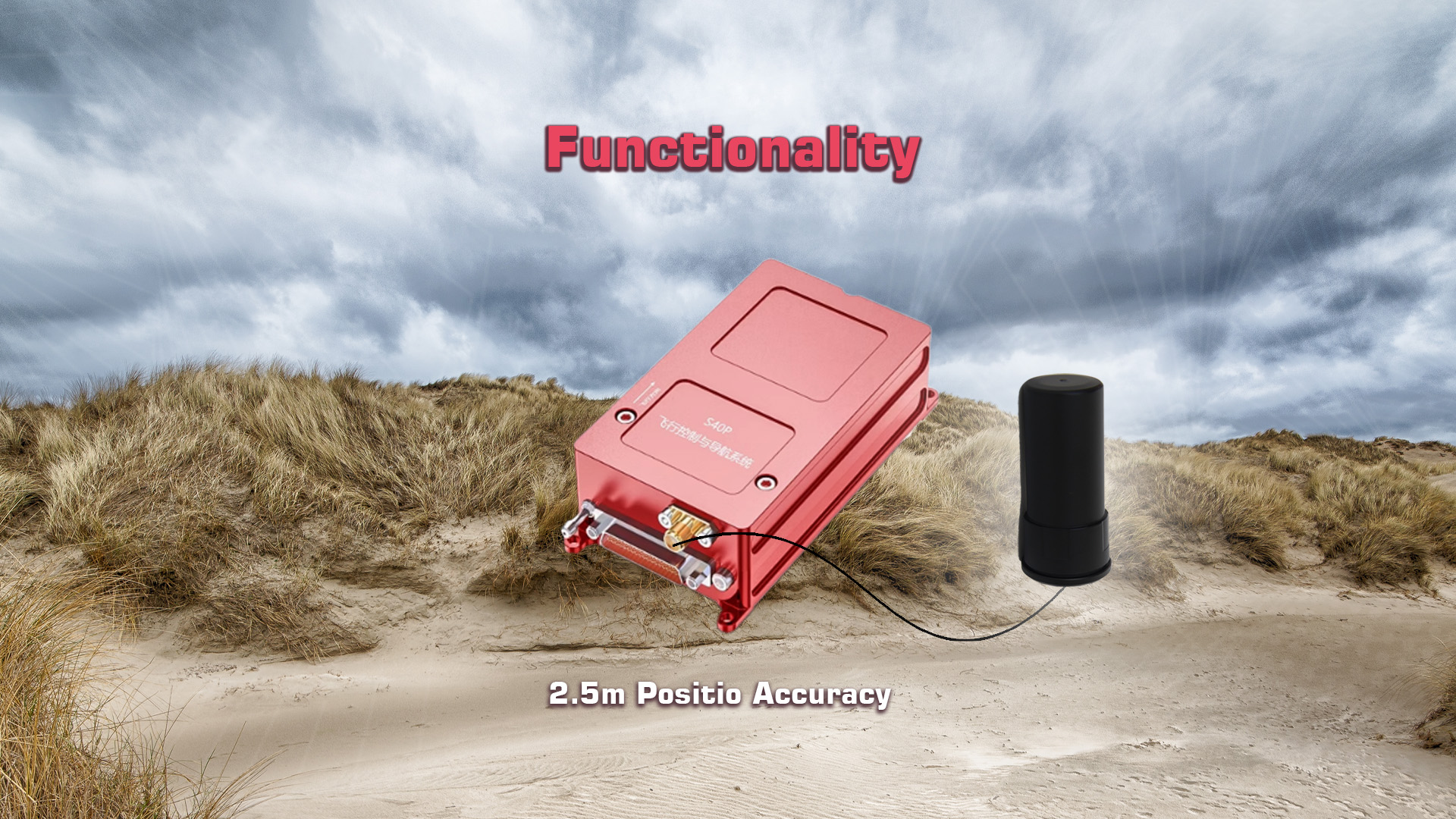

Positioning accuracy 2.5m
Angular velocity measurement range ยฑ500ยฐ/s
Acceleration measurement range ยฑ8g
airspeed measurement range 0~100m/s
Height measuring range 10000m
Voltage monitoring range 0~52v
Servo update frequency 50Hz
Engine speed monitoring range 0~20000rpm
Communication Interface RS-232C
Voltage monitoring channel 2
Engine rotation monitoring channel 2
PWM control channel 9
Digital output channel 3 (configurable as PWM)
Extended serial port 3 (can be connected to RTK, payload, etc.)
SBUS input channel 1
CAN communication interface 1

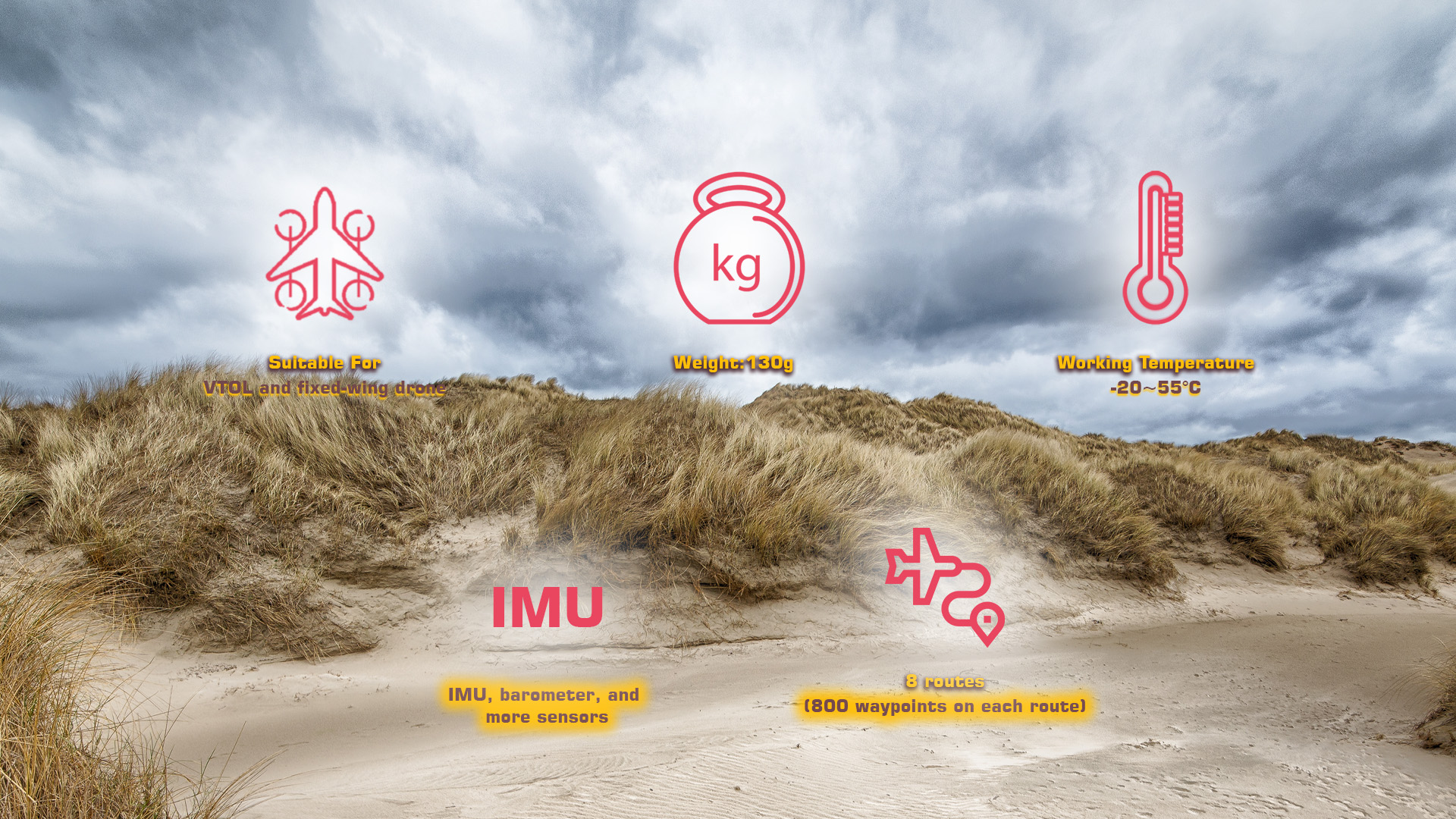

Number of routes 8 routes (800 waypoints per route)

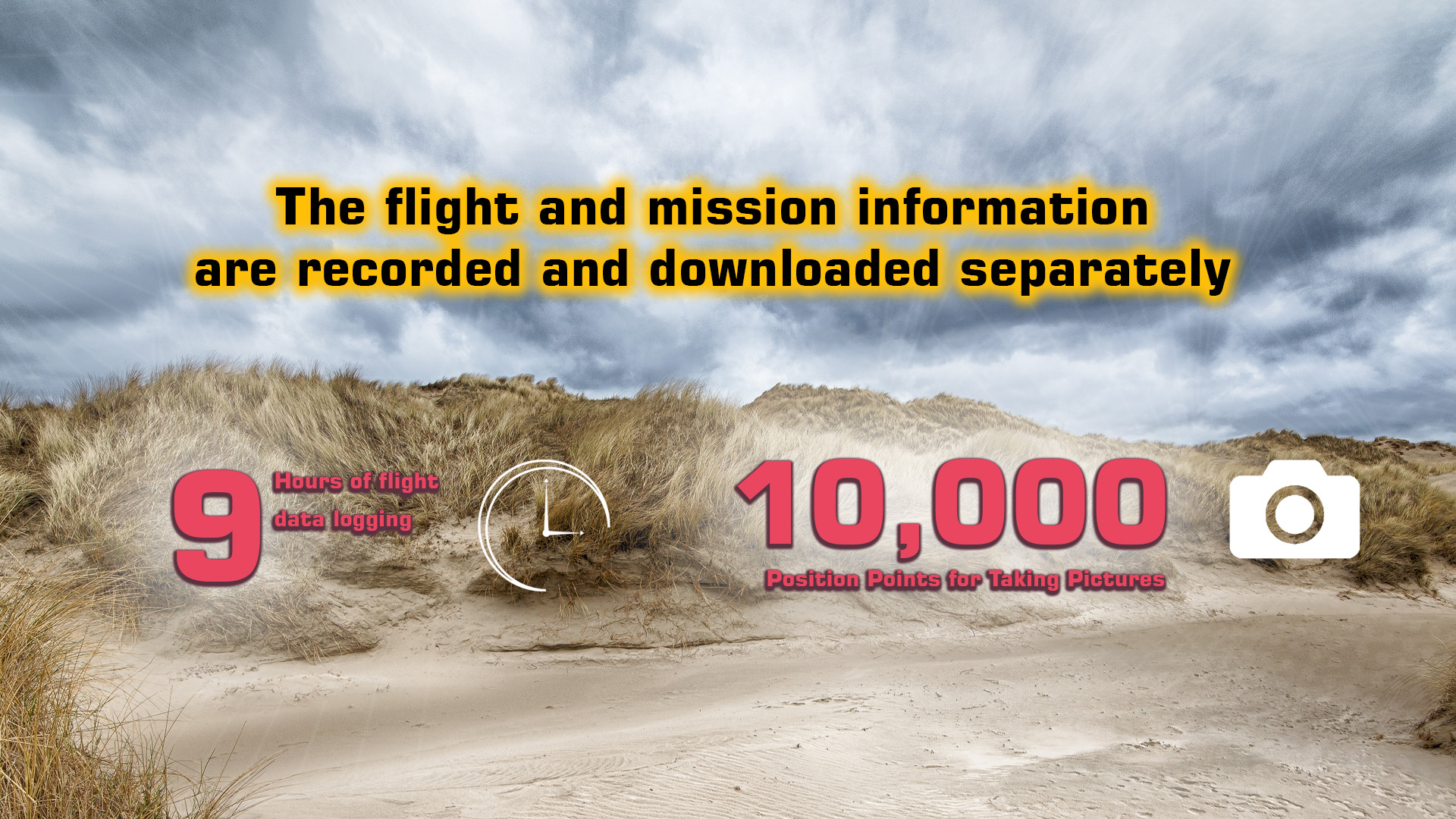

Built-in data logger 9 hours
Position Points for taking pictures 10000
Emergency landing point 100
Supply voltage 4.5 v- 9v
Power Consumption < 3W
Weight 130g

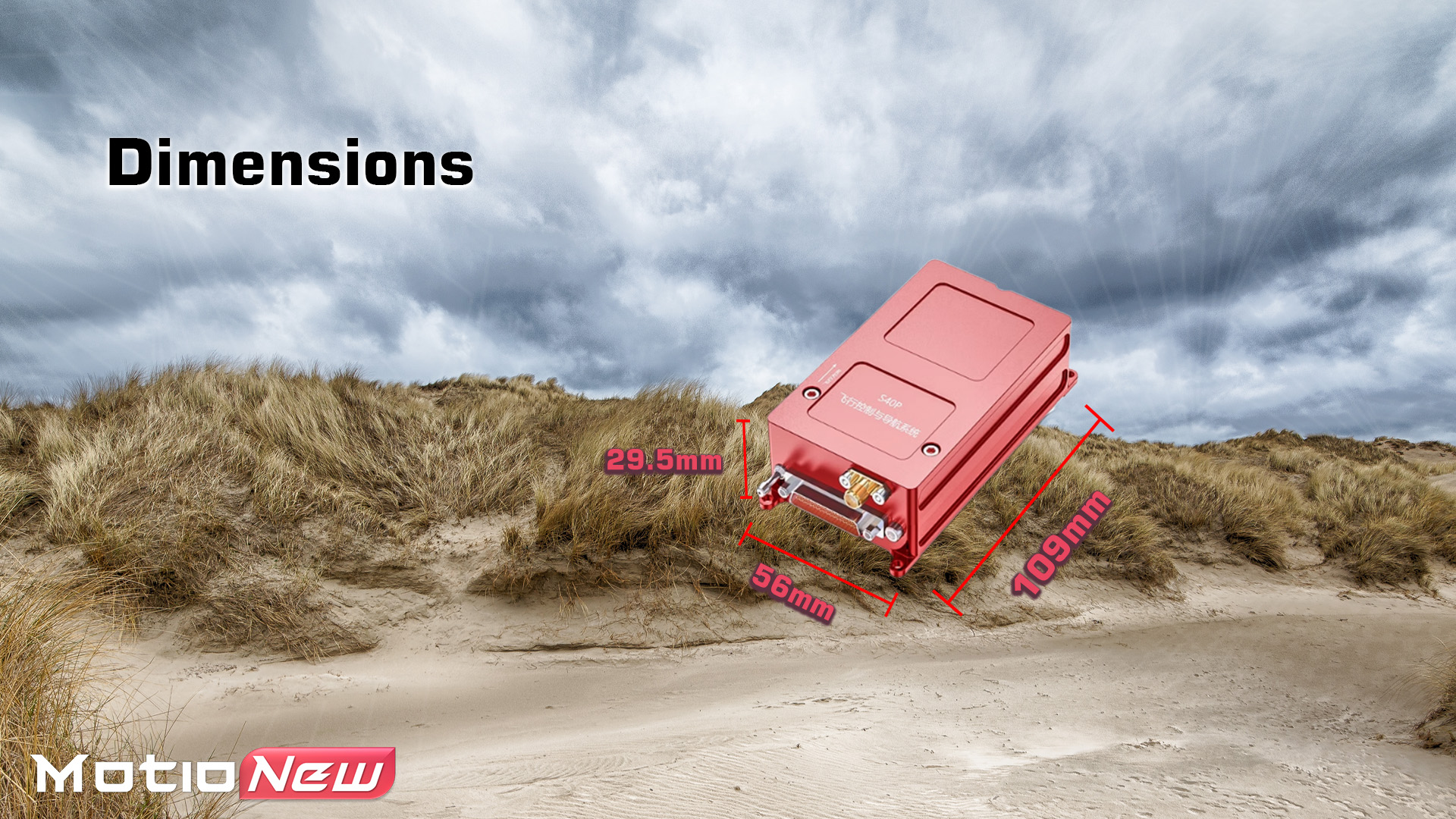

Dimensions 109x56x29.5mm
