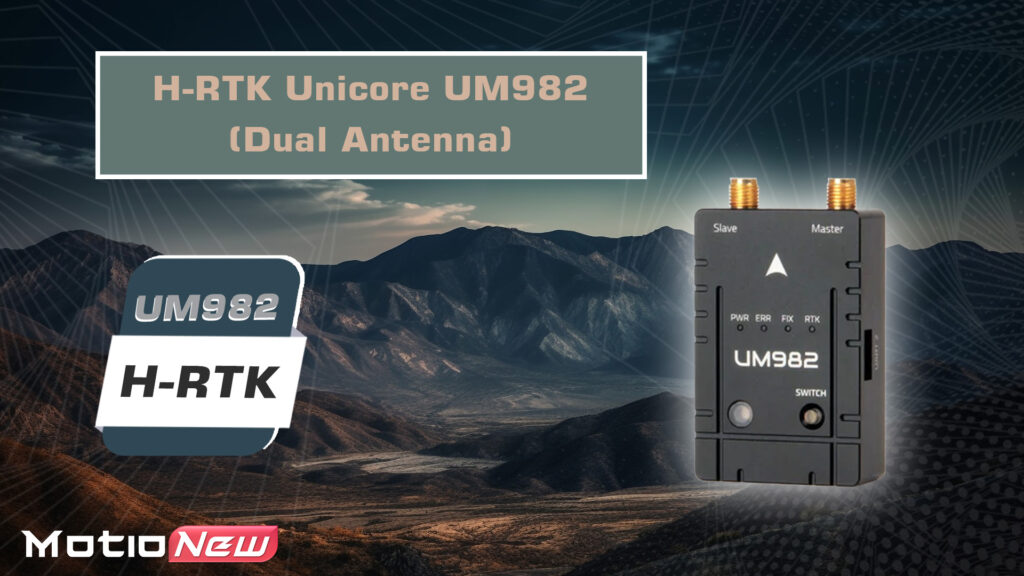

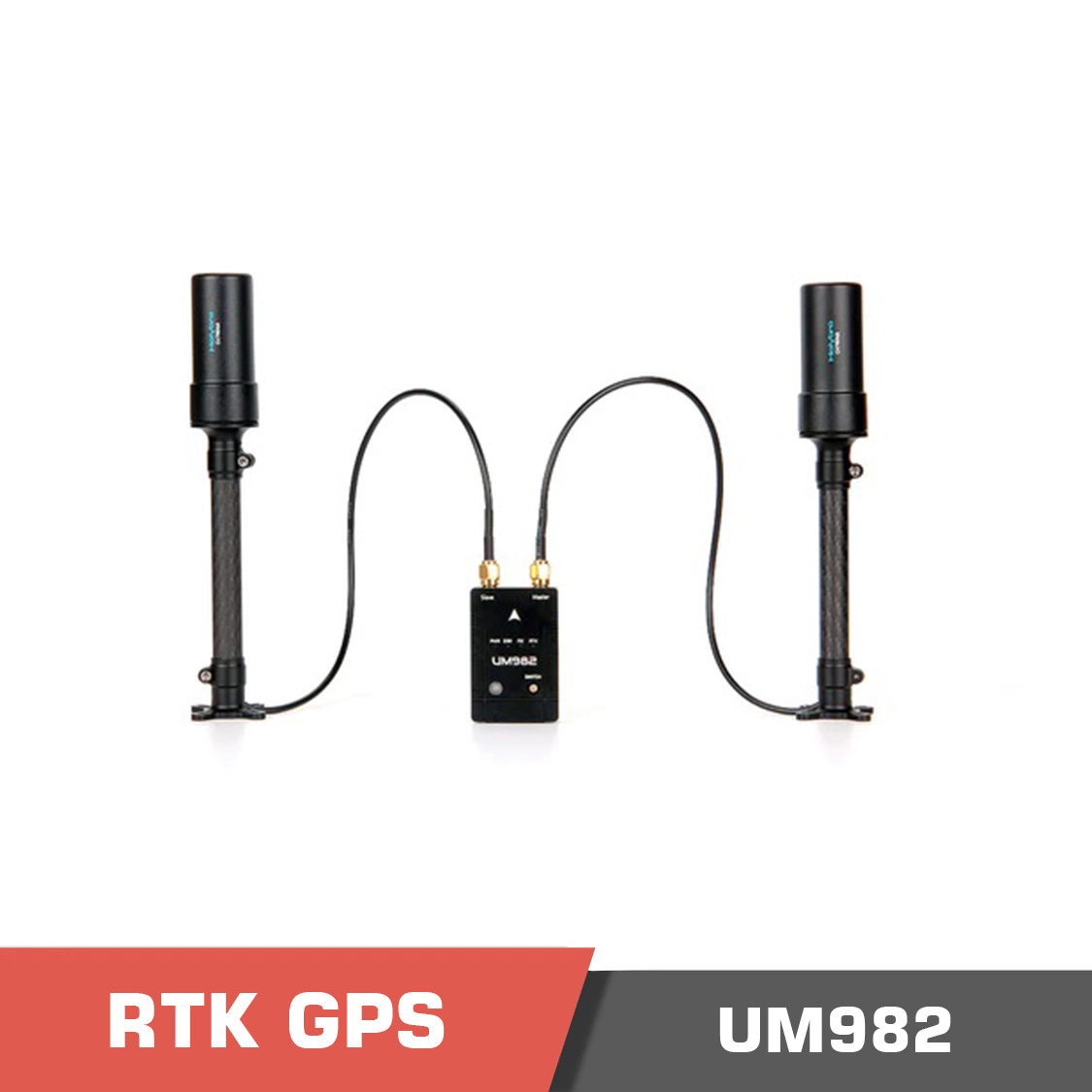

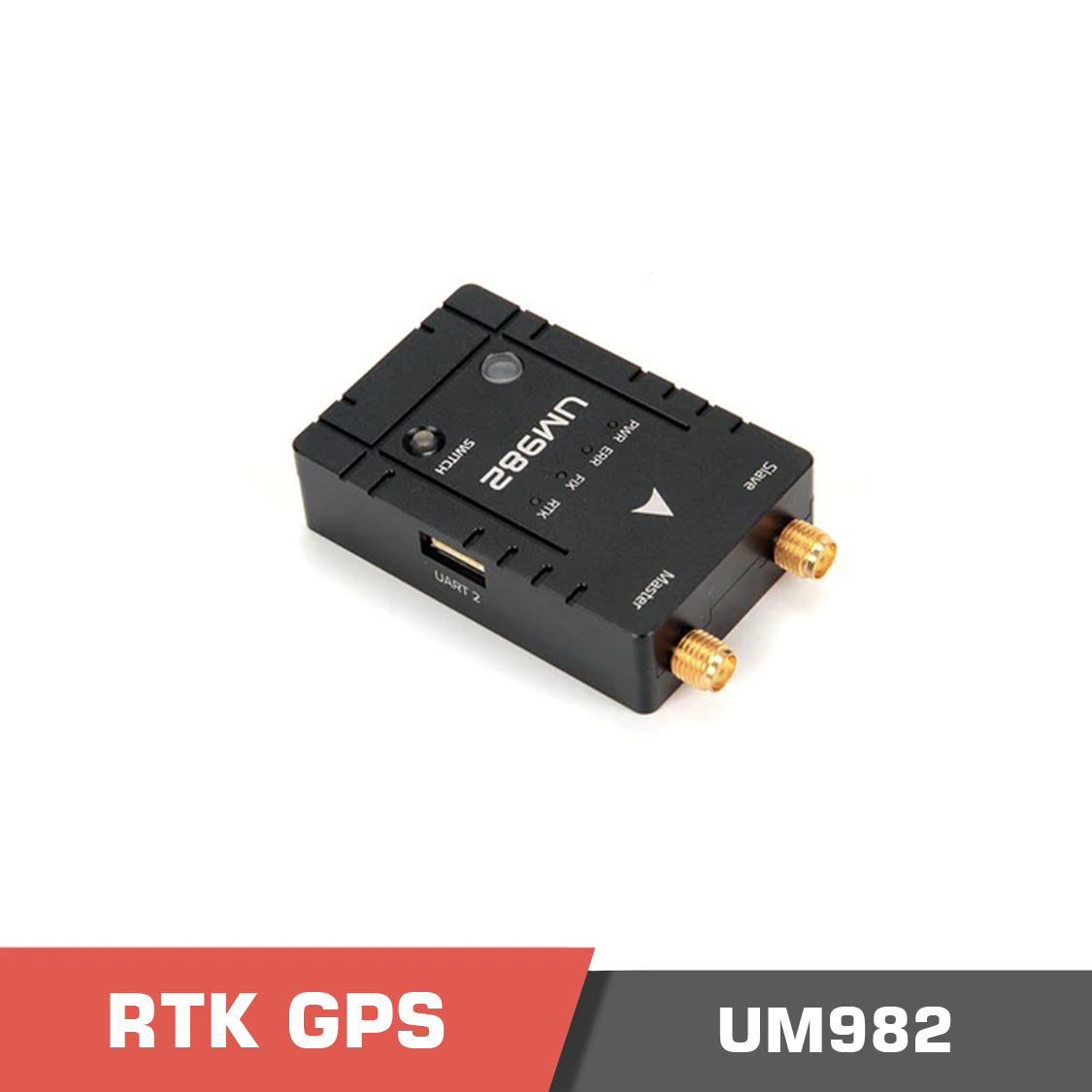

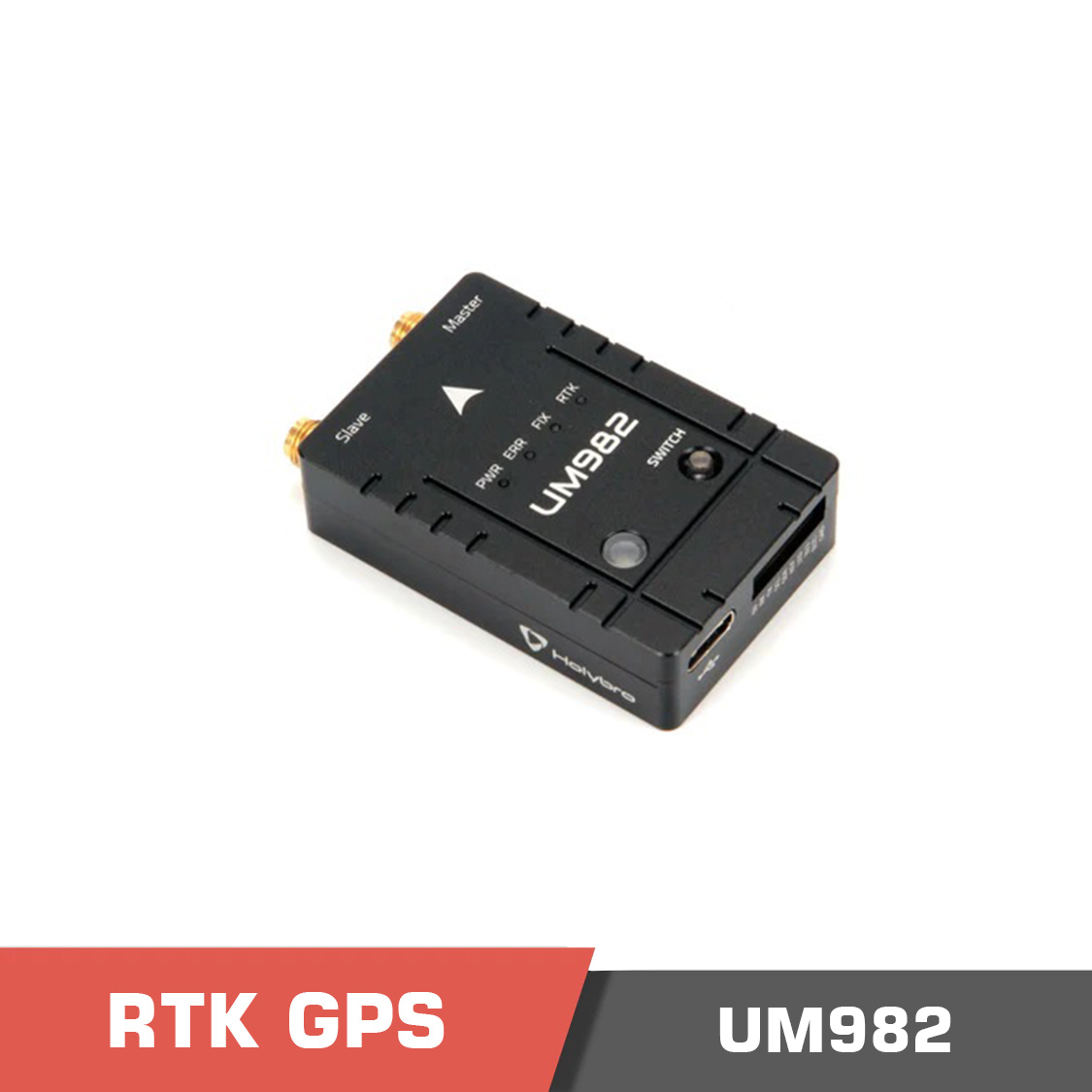

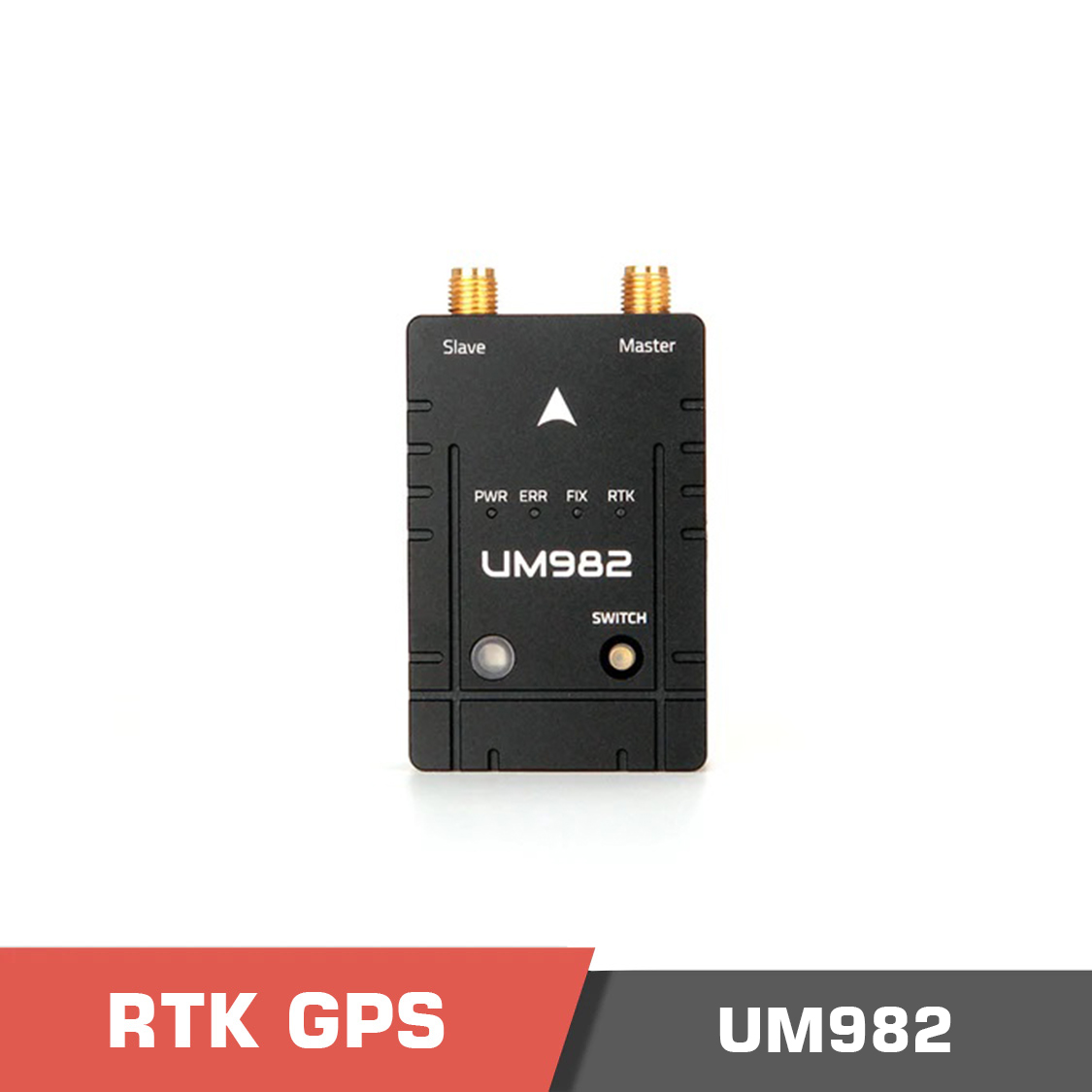

H-RTK Unicore UM982 (Dual Antenna)

299.00 $

PayPal
Visa
Master

Description

H-RTK Unicore UM982’s Advanced Dual Antenna RTK GPS Technology

The H-RTK Unicore UM982 is a dual Antenna RTK GPS that provides high-precision positioning information and is capable of generating non-magnetometer moving baseline yaw determinations for autopilots with one single GPS module.

Enhancing Autopilot Accuracy

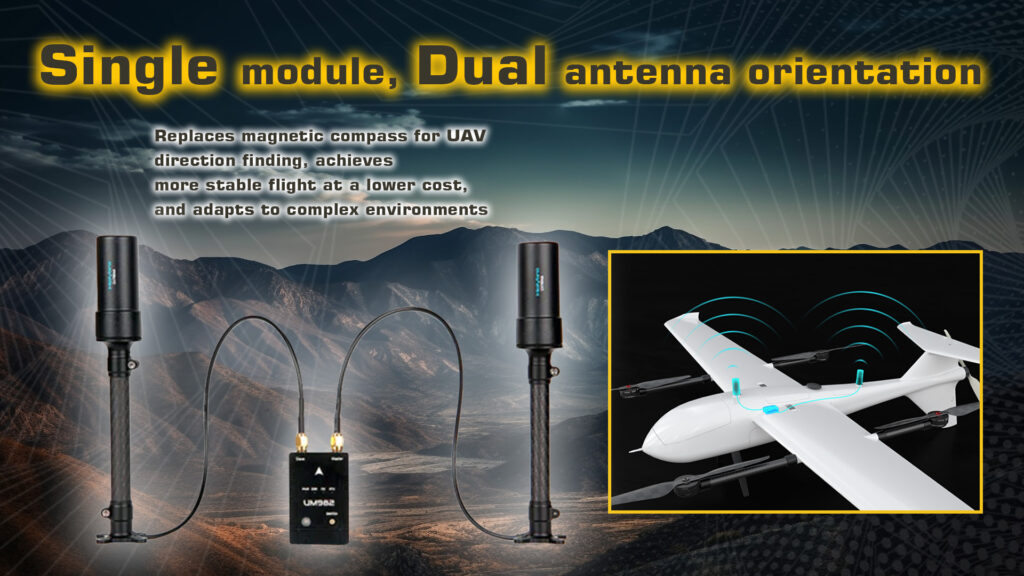

One of the best applications of this GPS is to provide compass-less YAW information to the autopilot (commonly called GPS Heading or Moving Baseline Yaw). Using this GPS as a yaw source prevents magnetic interference from the vehicle motors and electrical systems and any environmental interference sources, such as metallic structures or equipment, from causing incorrect yaw reports to the autopilot.

H-RTK Unicore UM982’s Advanced GNSS Module for Accurate Navigation Without RTCM Data

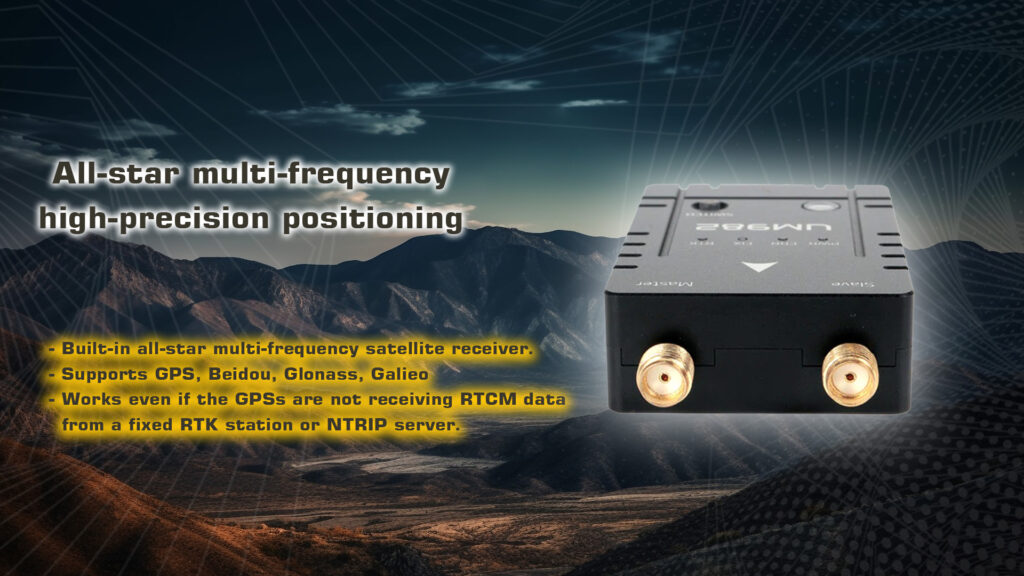

This works even if the GPSs are not receiving RTCM data from a fixed RTK station or NTRIP server. The device is based on the Unicore UM982 NMEA GNSS module and supports RTK positioning adjustment for centimeter-level accuracy, GPS/GLONASS, Beidou, Galileo, and QZSS global positioning systems.

Versatile Navigation Solutions

It also includes a magnetometer, LED, and safety switch button. It also serves as an RTK-corrected vehicle GPS, with or without moving baseline yaw determination, and as a base station GPS for sending RTCM data to a ground control station to provide an RTK source for the vehicle via telemetry.

H-rtk unicore um982 Um982 multifrequency Um982 gps support Um982 single module Um982 reliable backup source H- rtk um982 Um982 dimensions

If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.

Additional information

Weight 0.06 kg
Dimensions 6 × 4 × 5 cm

Specifications

Product
UM982
Application
  • Rover
  • Moving Baseline Rover
  • Base Station (Recommend using H-RTK F9P-Base as base station)

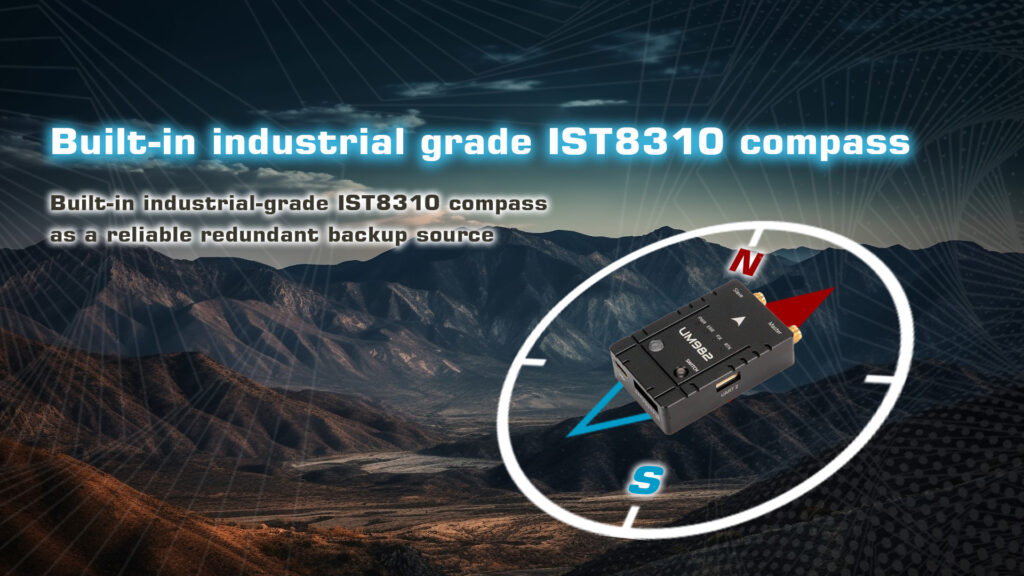

Compass IST8310
GNSS
BDS B1I/B2I/B3I
GPS L1C/A/L2P (Y)/L2C/L5
GLONASS L1/L2
Galileo E1/E5a/E5b
QZSS L1/L2/L5
Antennas Peak Gain (MAX)
2dBi
LNA Gain
(typical)
33±2dB
Time-TO-First Fix
Cold start: ≤ 30s
Hot start: ≤ 5s
RTK-SurveyIn-Time
≤5 minute @2.0mCEP
Data and Update Rate
20 Hz Positioning & Heading
20 Hz Raw Data observation
Port
Port 1: GH1.25 10-pin
Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
Cable Length
GH 10P: 150mm
GH 10P: 400mm
GH 10P to 6P: 300mm

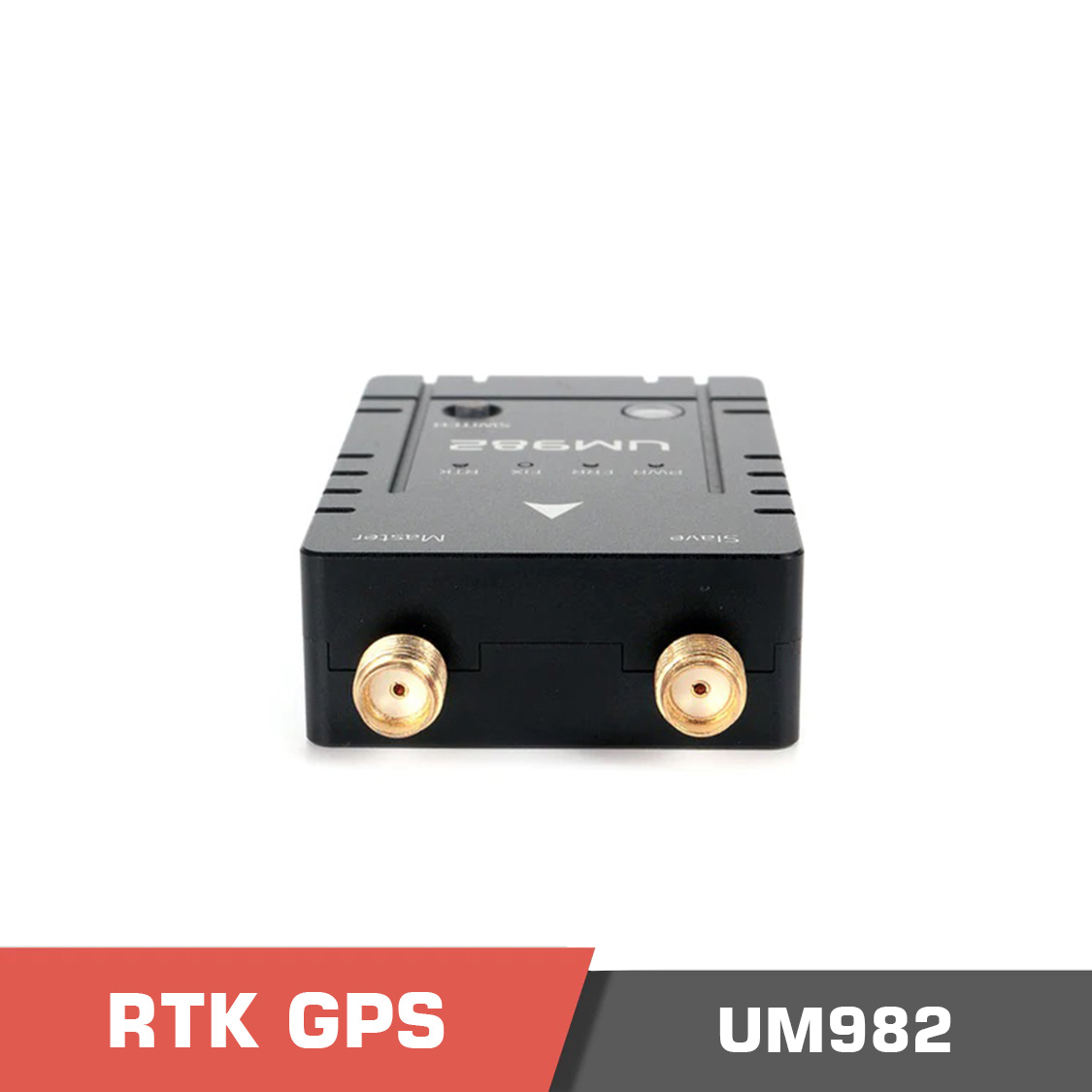

Antenna Connection Type
Board: SMA female
Antenna: SMA male
Baud rate: (Adjustable)
230400 5Hz default
Working voltage:
4.75V~5.25V
Current Consumption
~350mA

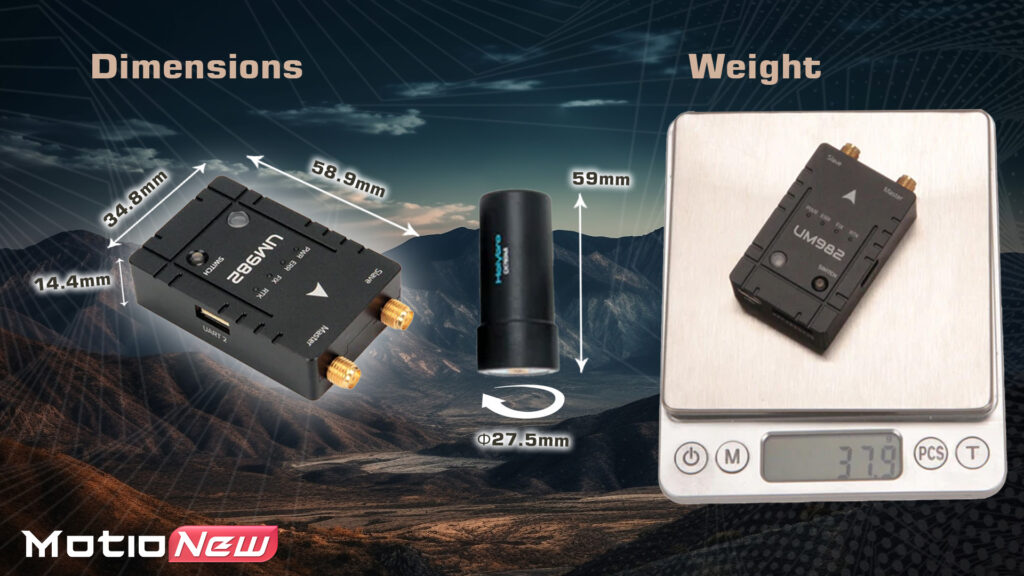

Dimensions
Board: 34.8*58.9*14.4mm
Antenna Diameter: 27.5mm
Antenna height: 59mm
Weight
37.9g (without antennas)

Documents

Please contact us for more information.

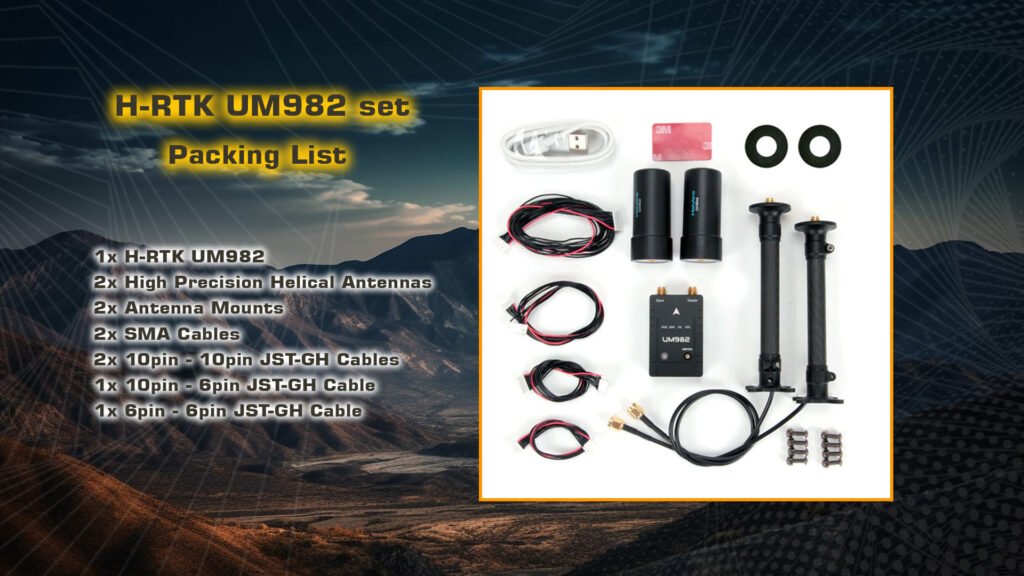

Product contents

1x H-RTK UM982

2x High Precision Helical Antenna

2x Antenna Mounts

2x SMA Cables

2x 10pin – 10pin JST-GH Cables

1x 10pin – 6pin JST-GH Cables

1x 6pin – 6pin JST-GH Cables

Um982 h rtk. 6 - h-rtk unicore um982 - motionew - 9
