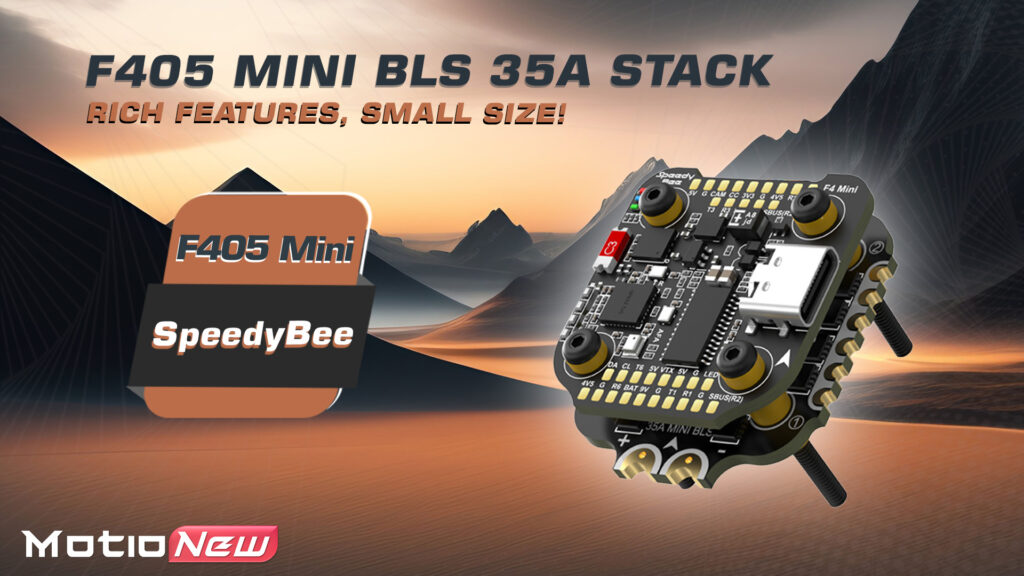

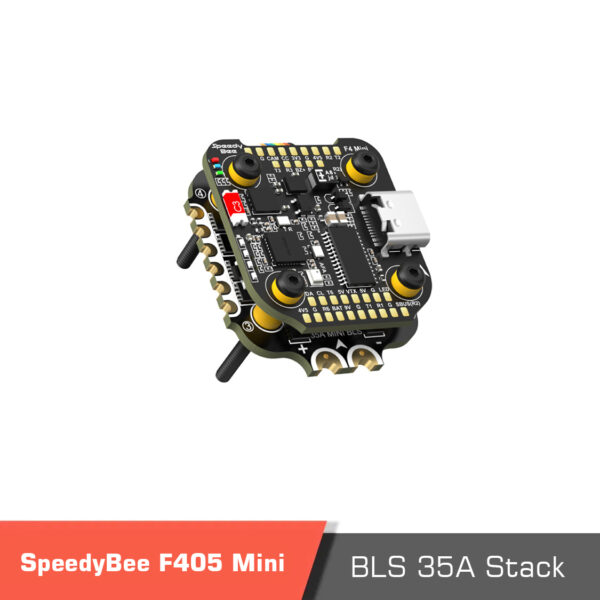

SpeedyBee F405 Mini BLS 35A 20×20 Stack

35.20 $65.98 $

PayPal
Visa
Master

Description

SpeedyBee F405 Mini Overview

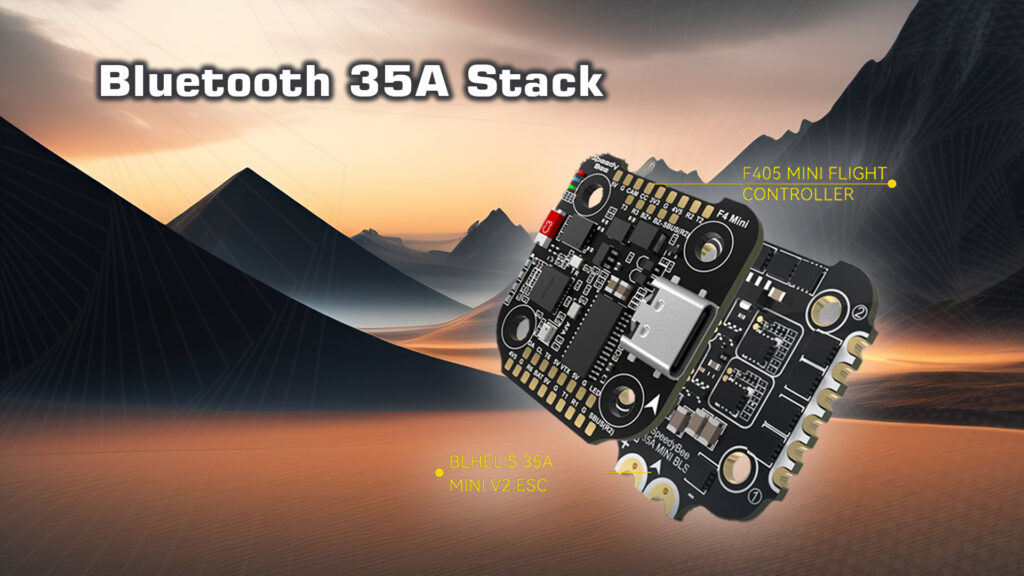

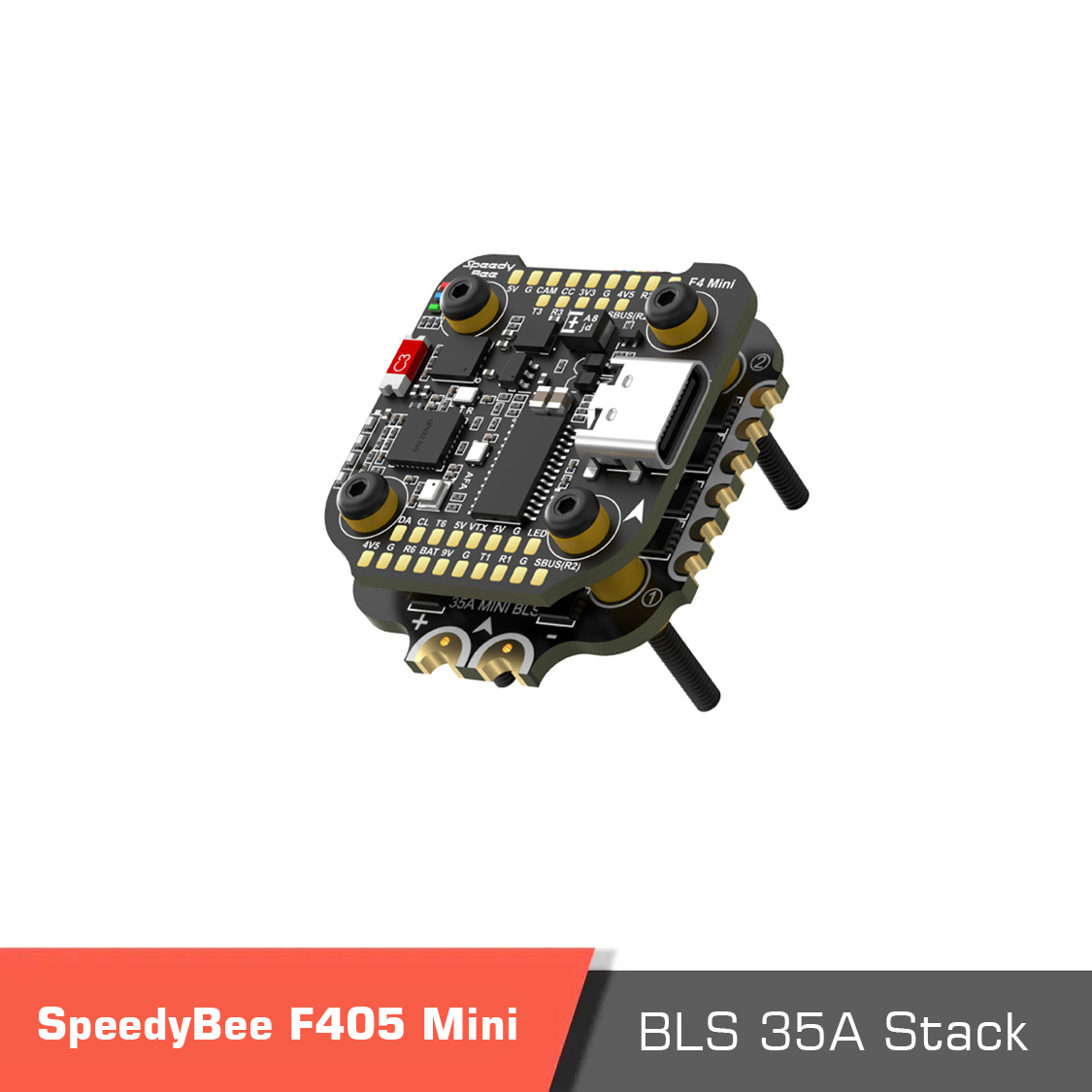

The SpeedyBee F405 Mini BLS 35A 20×20 Stack is a powerful and versatile flight controller for drone and ESC stack that is perfect for drones ranging from 2 to 5 inches. It features an upgraded F405 flight controller chip, built-in Bluetooth for wireless Betaflight tuning, and a 35A 4-in-1 ESC that can handle even the most demanding flight maneuvers.

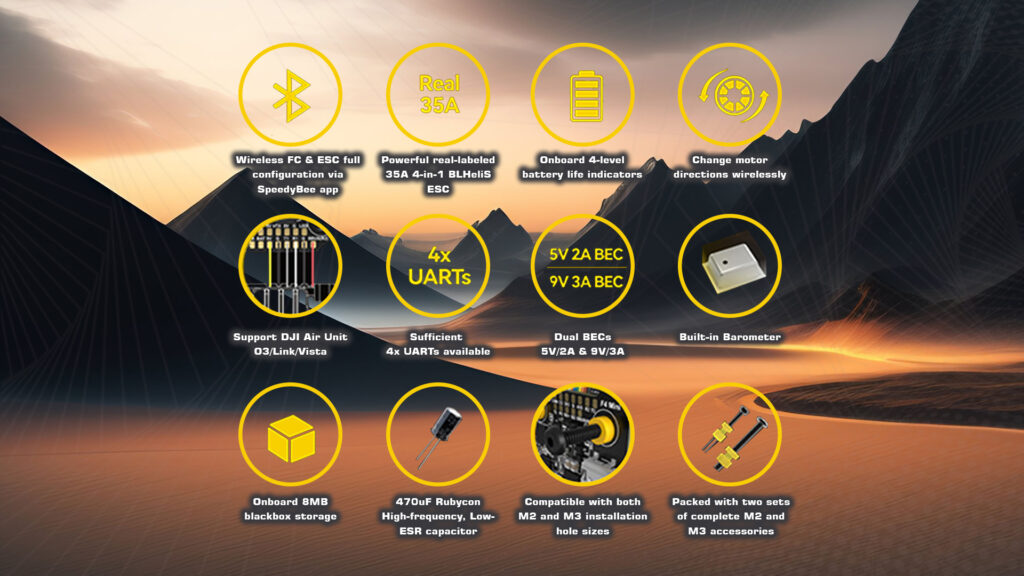

Here are just a few of the things that make the SpeedyBee F405 Mini BLS 35A 20×20 Stack the best choice for your next drone build:

  • Upgraded F405 flight controller chip for better performance

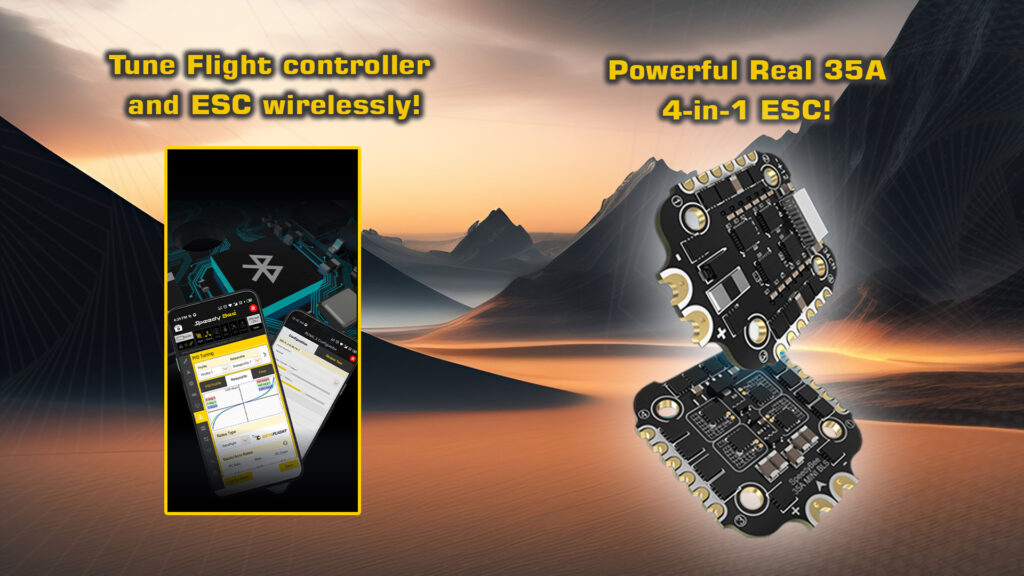

  • Built-in Bluetooth for seamless wireless Betaflight tuning

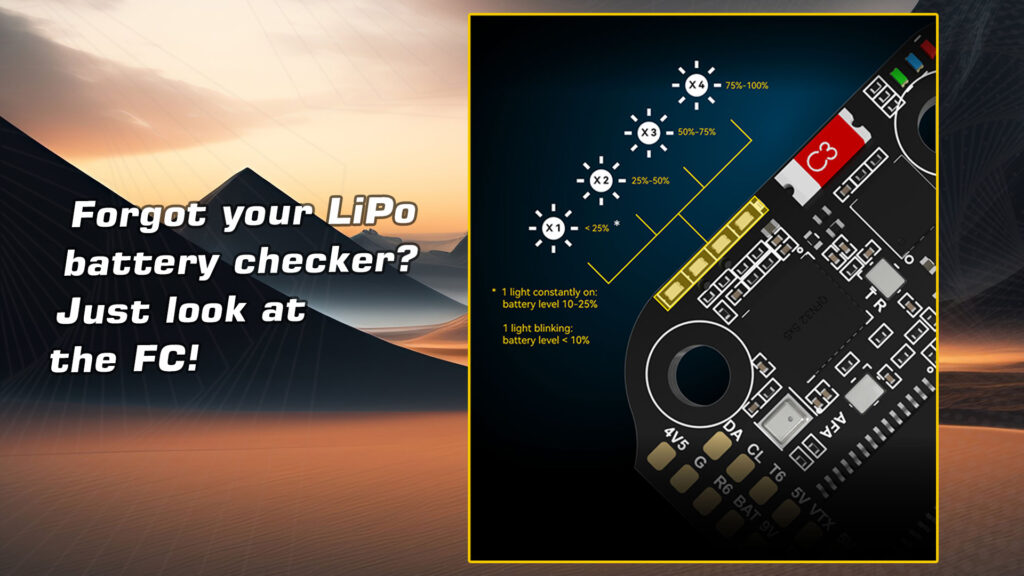

  • 4-level battery indicator for easy battery monitoring
  • 1500uF filtering capacitor for clean power delivery
  • Built-in barometer for real-time altitude sensing
  • Powerful 35A 4-in-1 ESC can handle even the most demanding flight maneuvers

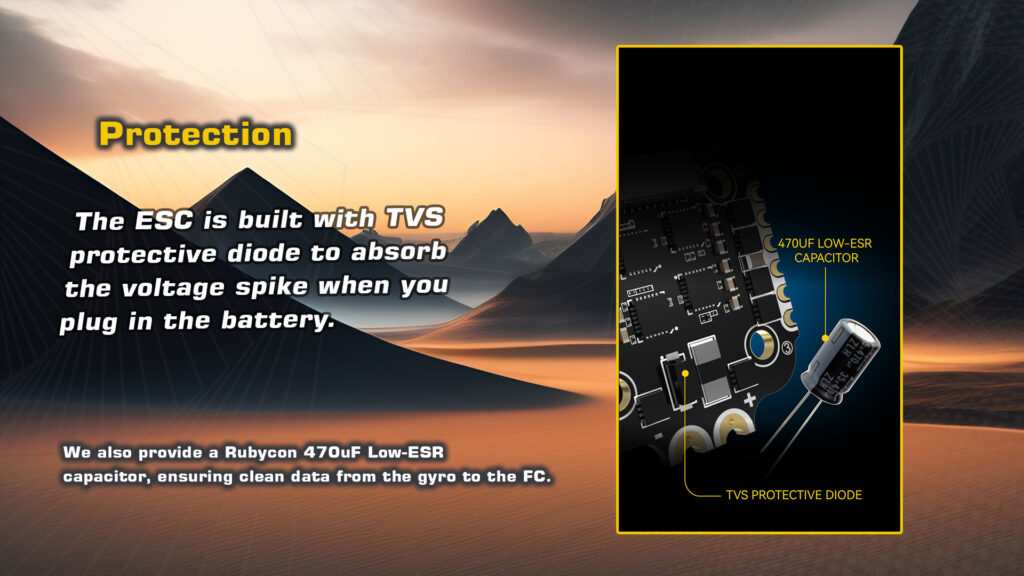

  • TVS transient suppression diode for enhanced ESC protection

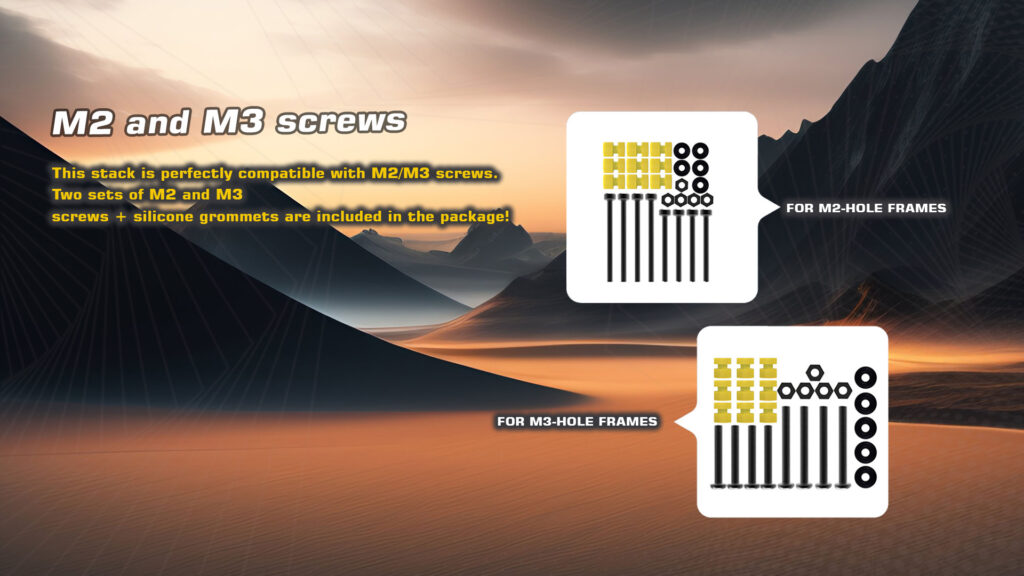

  • M2/M3 compatible mounting holes for easy installation

Plus, the SpeedyBee F405 Mini BLS 35A 20×20 Stack is packed with other useful features, such as:

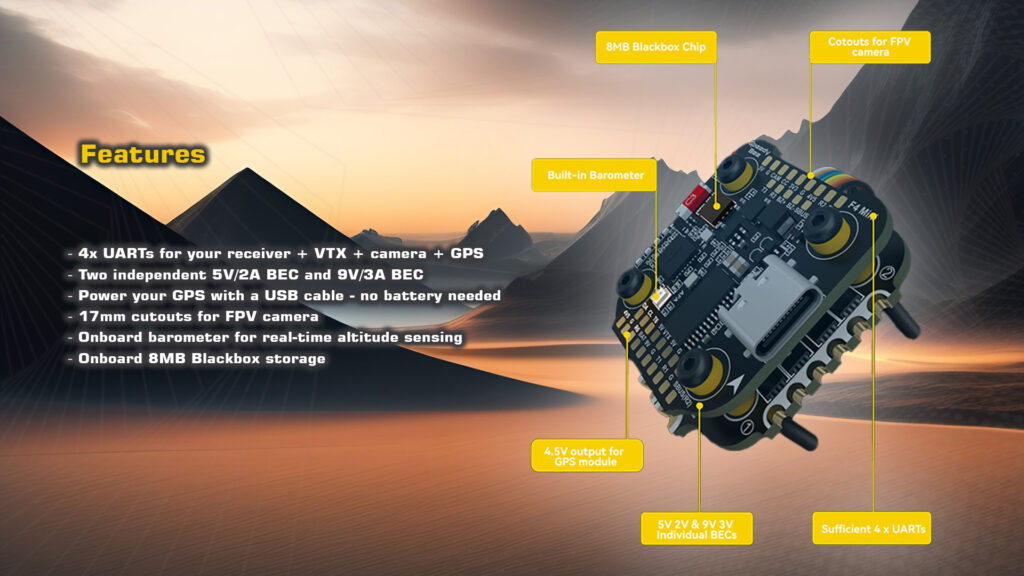

  • Sufficient 4x UARTs for your receiver, VTX, camera, and GPS
  • Two independent 5V 2A BEC and 9V 3A BEC outputs
  • USB power for GPS – no battery needed
  • 17mm cutouts for FPV camera in tight builds
  • Onboard 8MB Blackbox storage

If you are looking for a high-performance and versatile drone autopilot flight controller and ESC stack for your next drone build, the SpeedyBee F405 Mini BLS 35A 20×20 Stack is the perfect choice for you.

Order yours today and experience the difference!

Speedybee f405 mini Speedybee f405 mini. 2 - speedybee f405 mini - motionew - 9 Speedybee f405 mini. 3 - speedybee f405 mini - motionew - 10 Speedybee f405 mini. 4 - speedybee f405 mini - motionew - 11 Speedybee f405 mini. 5 - speedybee f405 mini - motionew - 12 Speedybee f405 mini. 6 - speedybee f405 mini - motionew - 13 Speedybee f405 mini. 7 - speedybee f405 mini - motionew - 14 Speedybee f405 mini. 8 - speedybee f405 mini - motionew - 15 Speedybee f405 mini. 9 - speedybee f405 mini - motionew - 16 Speedybee f405 mini. 10 - speedybee f405 mini - motionew - 17 Speedybee f405 mini. 11 - speedybee f405 mini - motionew - 18 Speedybee f405 mini. 12 - speedybee f405 mini - motionew - 19 Speedybee f405 mini. 13 - speedybee f405 mini - motionew - 20 Speedybee f405 mini. 14 - speedybee f405 mini - motionew - 21 Speedybee f405 mini. 15 - speedybee f405 mini - motionew - 22 Speedybee f405 mini. 16 - speedybee f405 mini - motionew - 23 Speedybee f405 mini. 17 - speedybee f405 mini - motionew - 24

If you have any questions regarding our products, use the contact us page to consult our engineering team.



Additional information

Weight 0.01 kg
Dimensions 4 × 4 × 1 cm
bundles

SpeedyBee F405 Mini BLS 35A 20x 20 Stack, SpeedyBee F405 Mini 20×20 Flight Controller, SpeedyBee BLS 35A Mini V2 20×20 4-in-1 ESC

Specifications

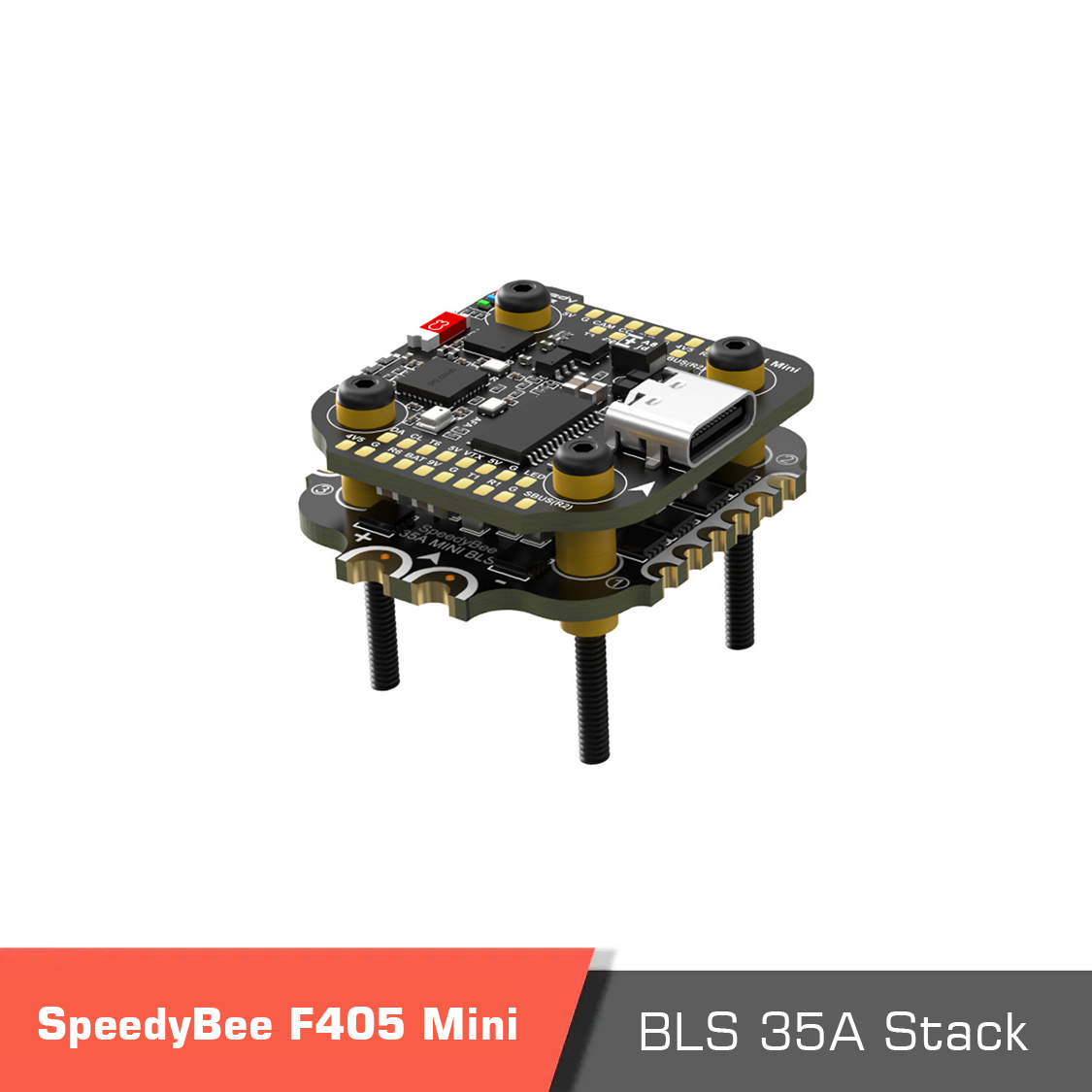

SpeedyBee F405 Mini BLS 35A 20×20 Stack

Flight Controller SpeedyBee F405 Min
ESC SpeedyBee BLS 35A Mini V2 4-in-1 ESC
Bluetooth Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.
WiFi NOT Supported
Wireless FC Firmware Flashing NOT Supported
Wireless Blackbox Dwonload & Analysis NOT Supported
Power Input 3-6S LiPo
Mounting 20 x 20mm 3.5mm hole size Compatible with M2 and M3 screws/Silicone grommets

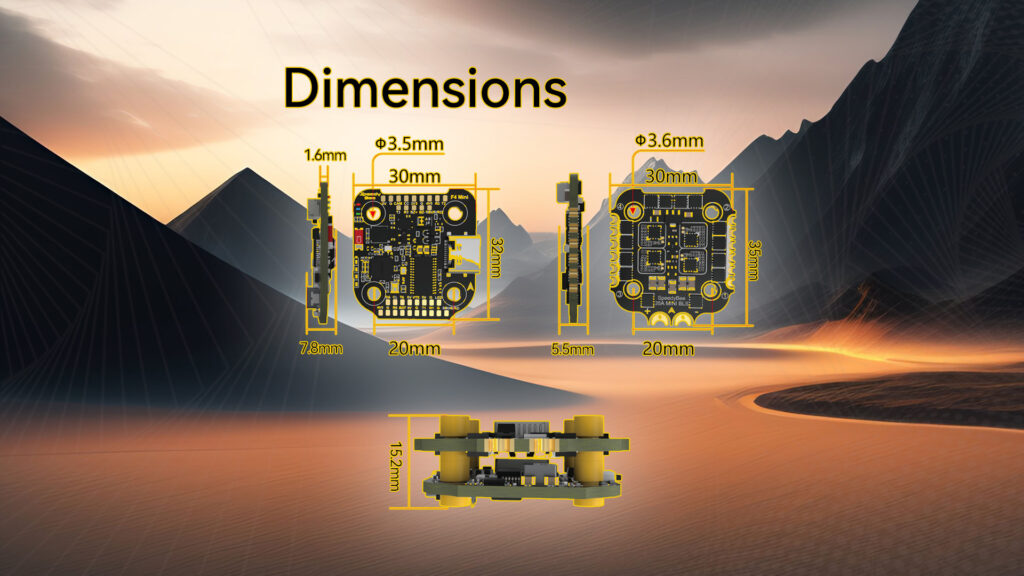

Dimension 32mm(L) x 35mm(W) x 14.2mm(H)
Weight 13.5g

SpeedyBee F405 V3 30×30 Flight Controller

MCU STM32F405
IMU(Gyro) ICM42688P
USB Port Type Type-C
Barometer Built-in
OSD Chip AT7456E chip
BLE Bluetooth Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.
Wireless FC Firmware Flashing NOT Supported. Please connect to the Betaflight configurator on the PC to do FC firmeare update
Wireless Blackbox Dwonload & Analysis NOT Supported. Please connect to the Betaflight configurator on the PC to do blackbox analysis.
WIFI Not supported
DJI Air Unit Connection Way Direct soldering

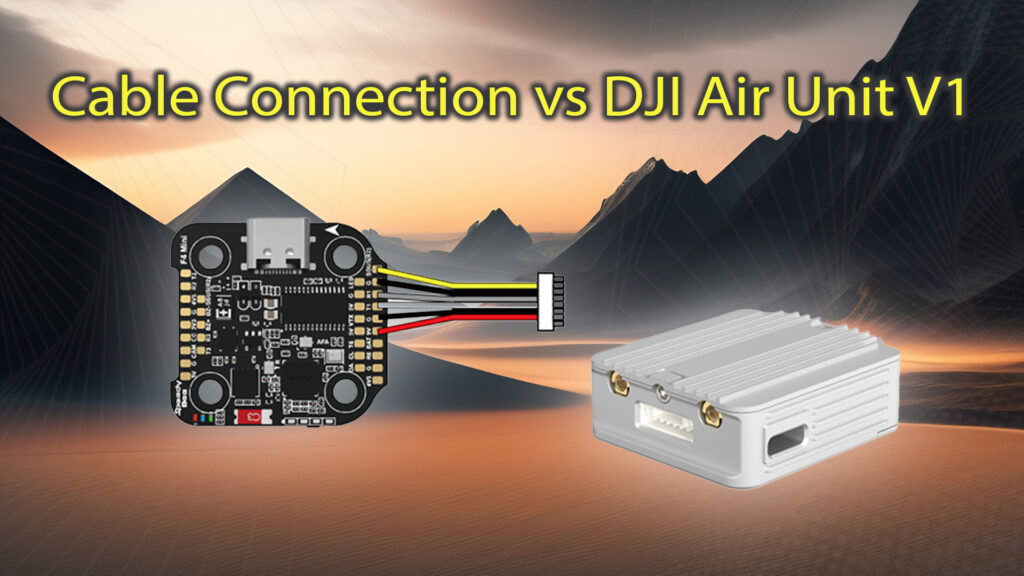

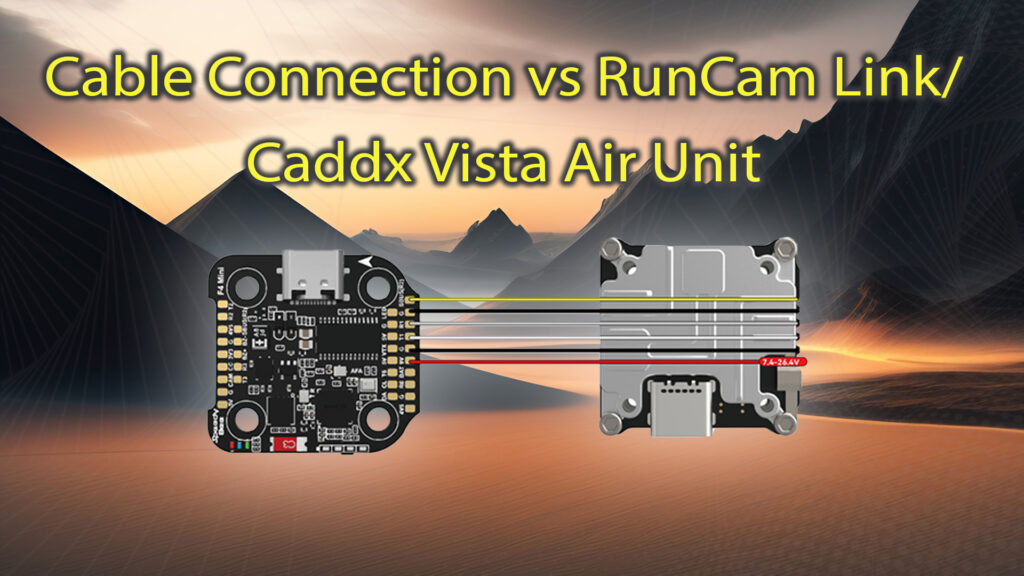

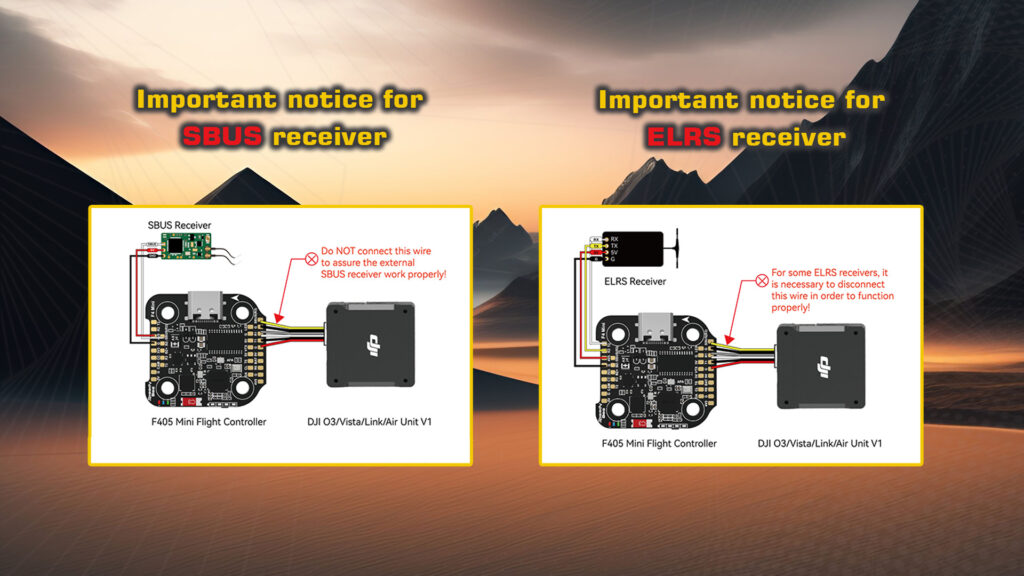

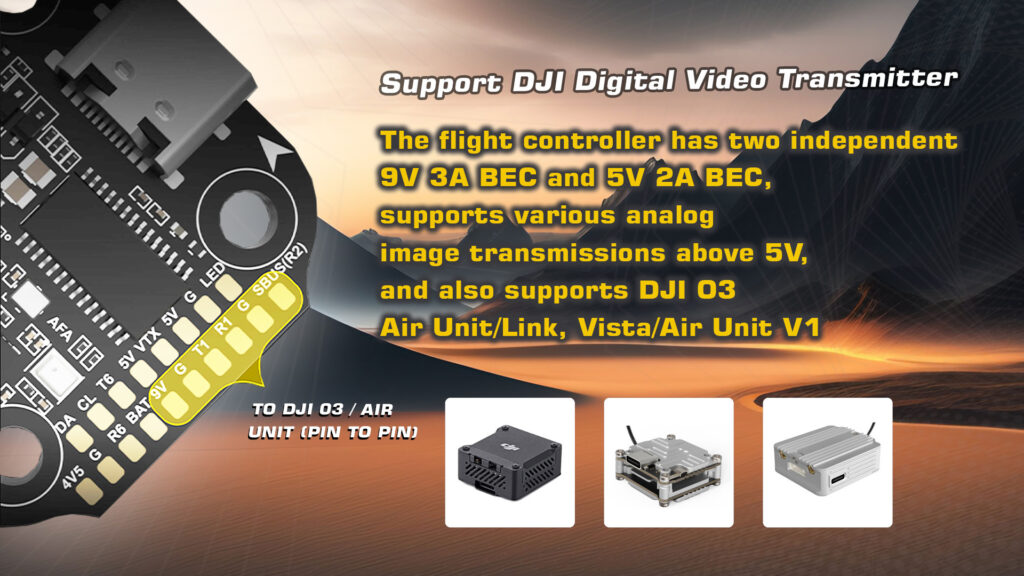

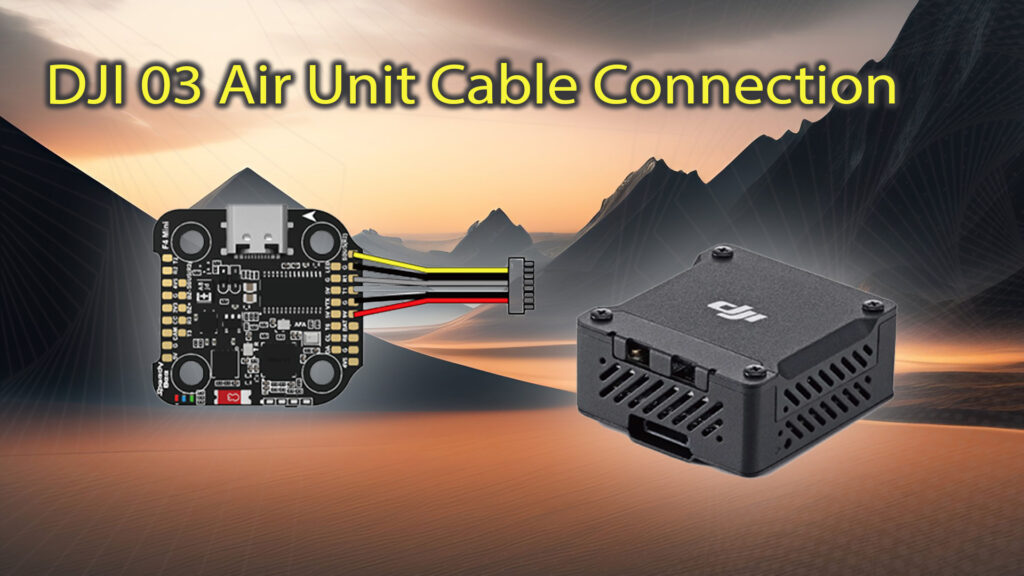

DJI Air Unit Compatibility Compatible with all DJI Air Units: DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1. Please use the solder pads < 9V, G, T1, R1, G, SUBS(R2) > on the front right corner of the flight controller to make a pin-to-pin connection with the solder pads on the DJI Air Unit. UART1(T1, R1) is used for OSD and SUBS(R2) is used for DJI Air Unit’s internal SBUS receiver signal input.
Blackbox 8MB Onboard Flash
BetaFlight Camera Control Pad Yes(CC pad on the front side)
Current Sensor Input Supported. For SpeedyBee BLS 35A V2 ESC, please set Scale=250 and Offset=-500.
Power Input 3-6S LiPo. The flight controller is powered through the G, V wires of the 8pin harness or G, V pads from the bottom side of the flight controller.
5V Output 4 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side. The total current load is 2A.
9V Output 1 group of 9V output, one +9V pad on front side. The total current load is 3A.
3.3V Output Supported. Soldering pad named ‘3V3’ on the front top of the flight controller. Designed for 3.3V input receivers. Up to 500mA current load.
4.5V Output Supported. Designed for radio receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal M1 – M4 wires or soldering pads on bottom side.
UART 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
ESC Telemetry UART R5(UART5)
I2C Supported. DA & CL pads on front side. Used for magnetometer, sonar, etc
Traditional Betaflight LED Pad Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LEDs controlled by the Betaflight firmware.
Buzzer BZ+ and BZ- pad used for 5V Buzzer

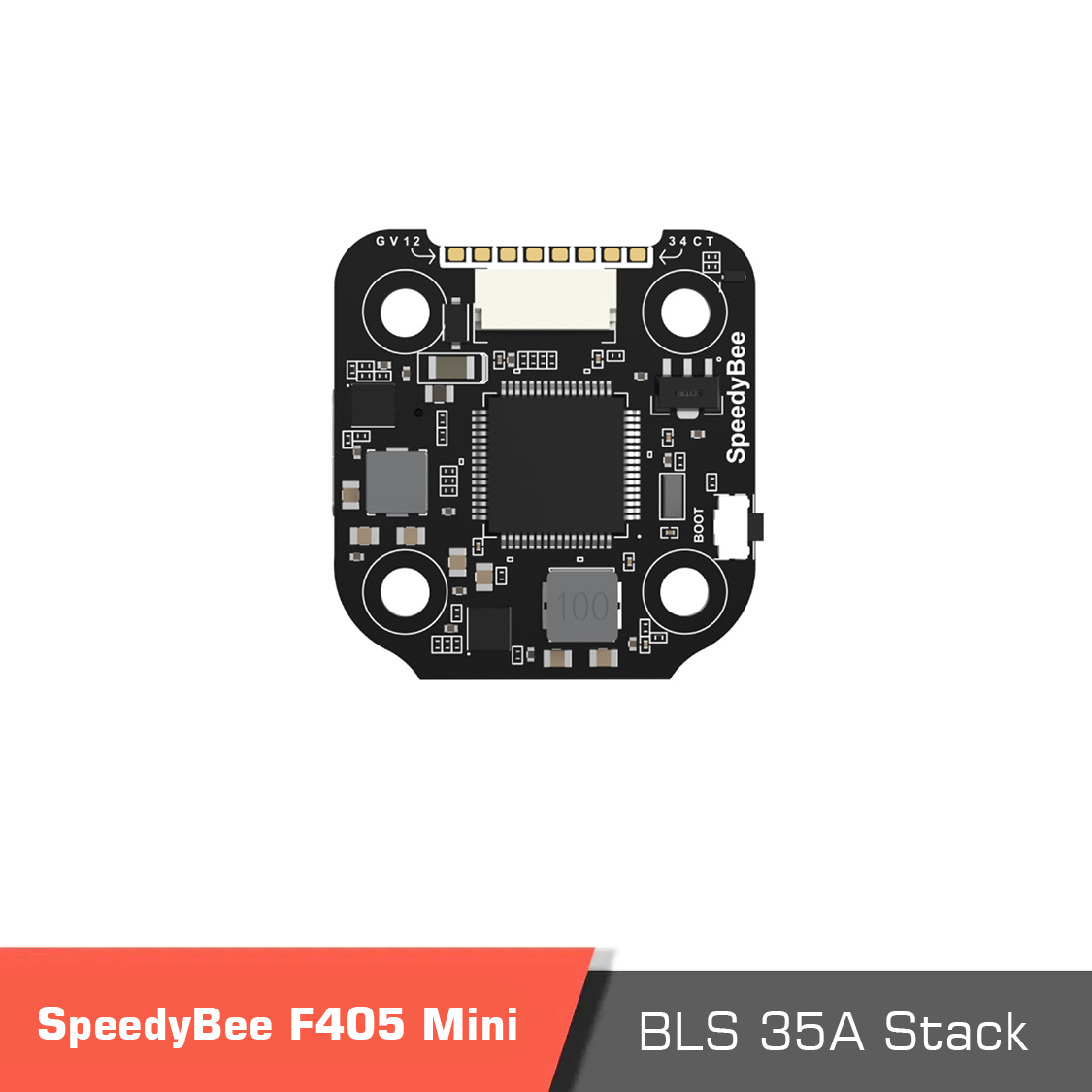

BOOT Button Supported. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
RSSI Input Not Supported
Smart Port / F.Port Not Supported
Supported Flight Controller Firmware BetaFlight(Default), INAV
Firmware Target Name SPEEDYBEEF405MINI
Mounting 20 x 20mm 3.5mm hole diameter ,Compatible with M2 and M3 screws/Silicone grommets.
Dimension 30(L) x 32(W) x 7.8(H)mm
Weight 9.6g

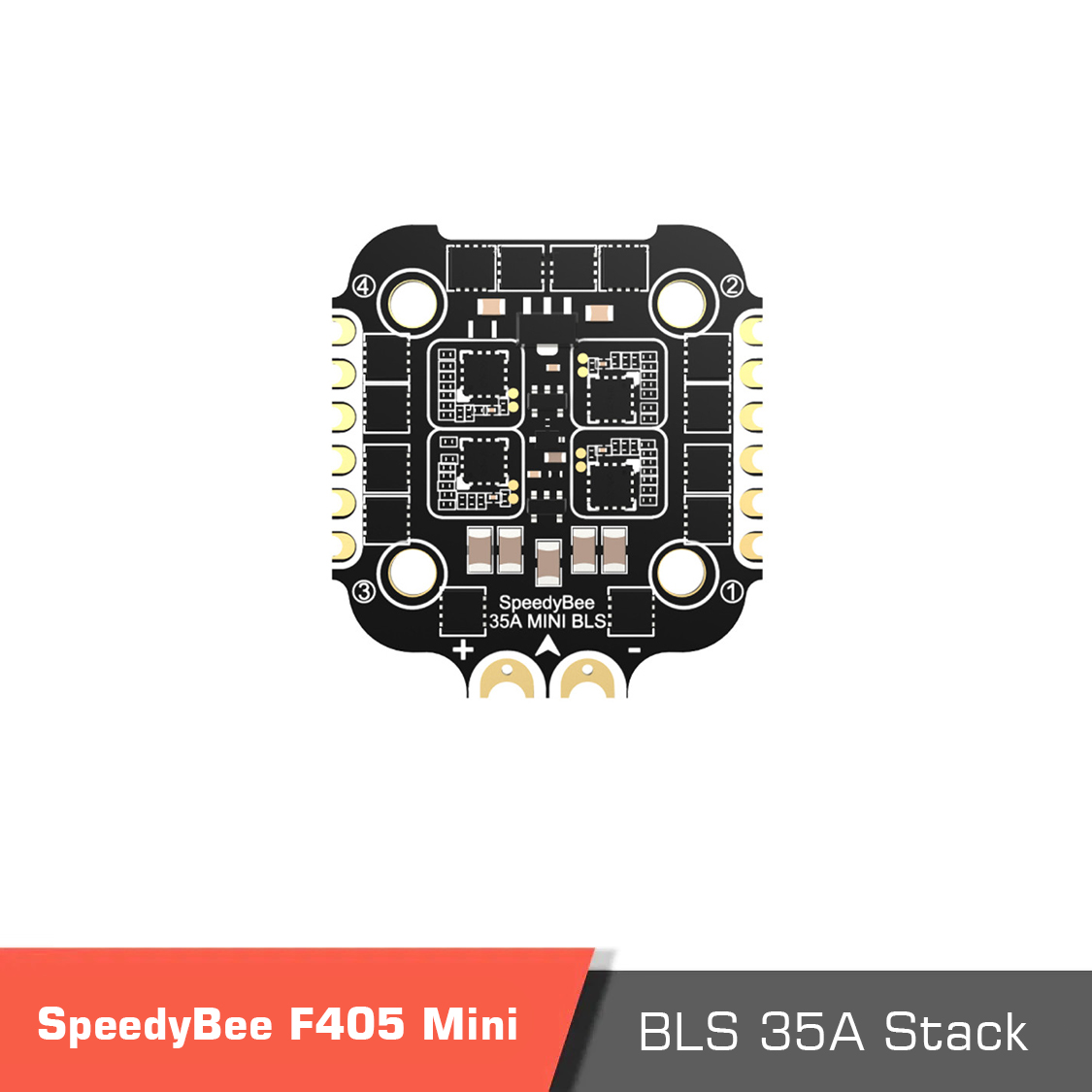

SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC

Firmware BLHeli_S J-H-40
Continuous Current 35A * 4
Burst Current 45A(5seconds)
ESC Protocol DSHOT300/600
Power Input 3-6S LiPo
Power Output VBAT(Battery voltage, used to power the flight controller)
Current Sensor Support (Scale=250 Offset=-500)
ESC Telemetry Not supported
Mounting 20 x 20mm ∅3.5mm hole size,compatible with M2 and M3 screws/Silicone grommets.
Dimension 35x35x5.5mm
Weight 7.2g

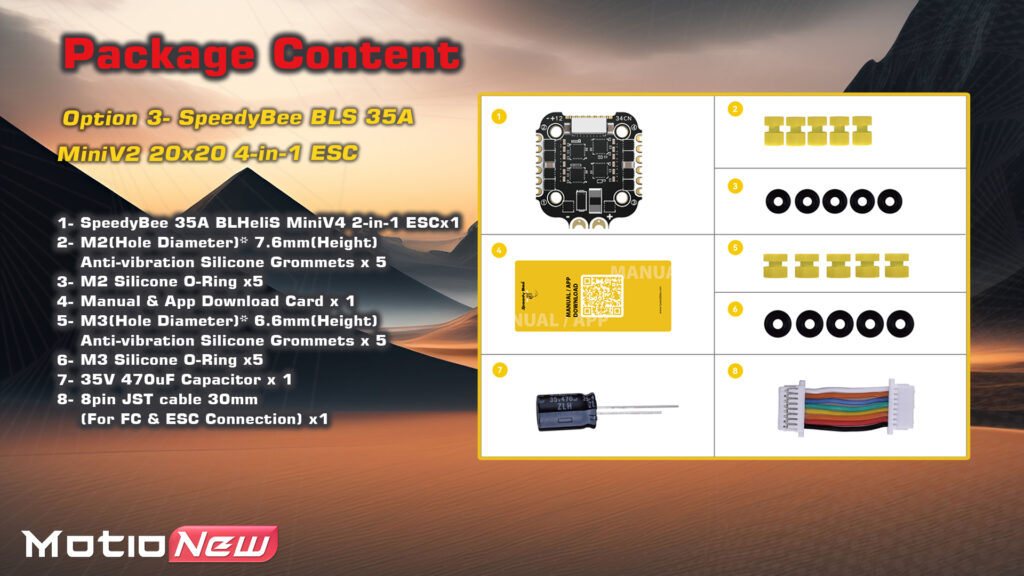

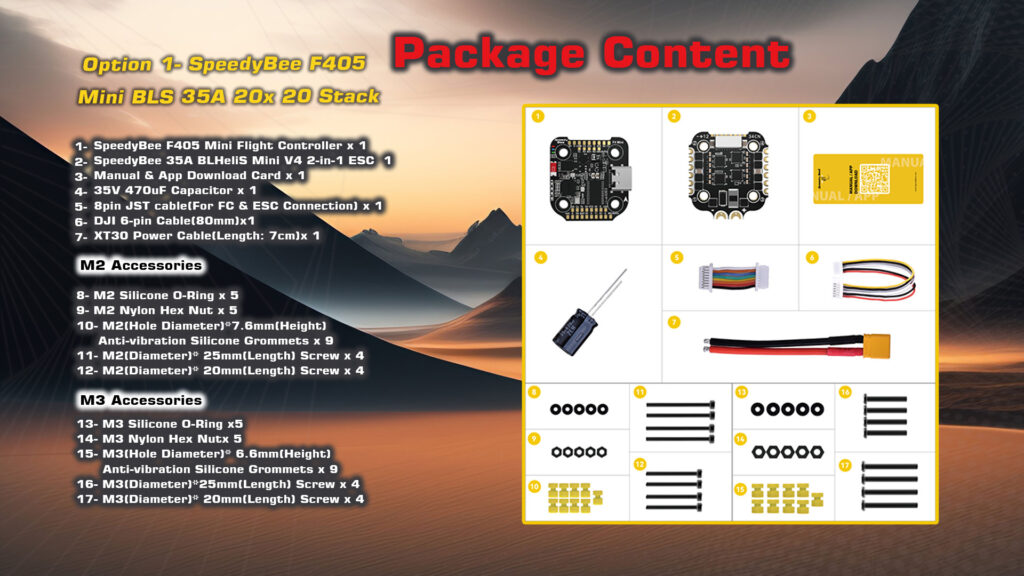

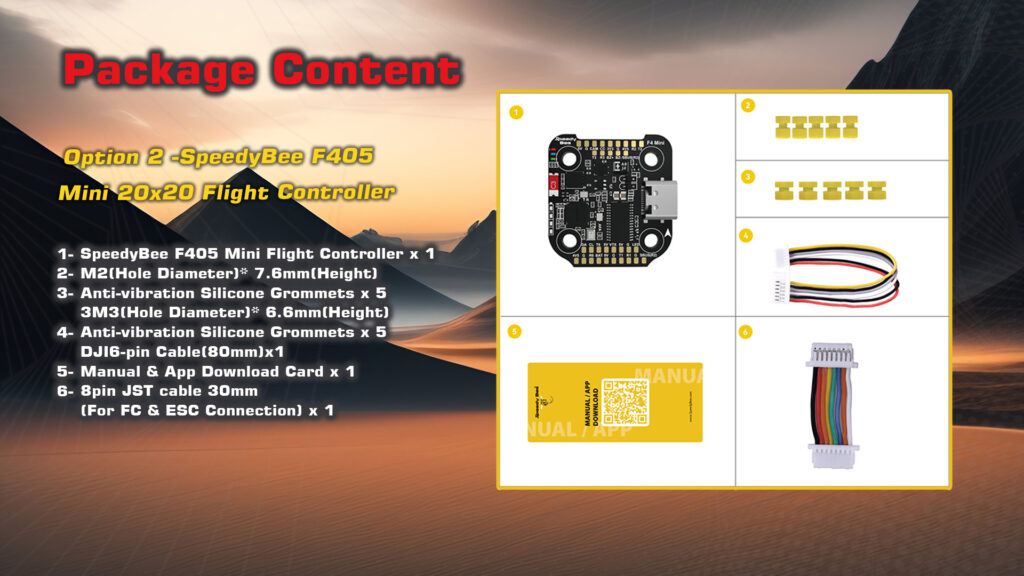

Product contents

Speedybee f405 mini. 18 - speedybee f405 mini - motionew - 25Speedybee f405 mini. 19 - speedybee f405 mini - motionew - 2620 - speedybee f405 mini - motionew - 27
