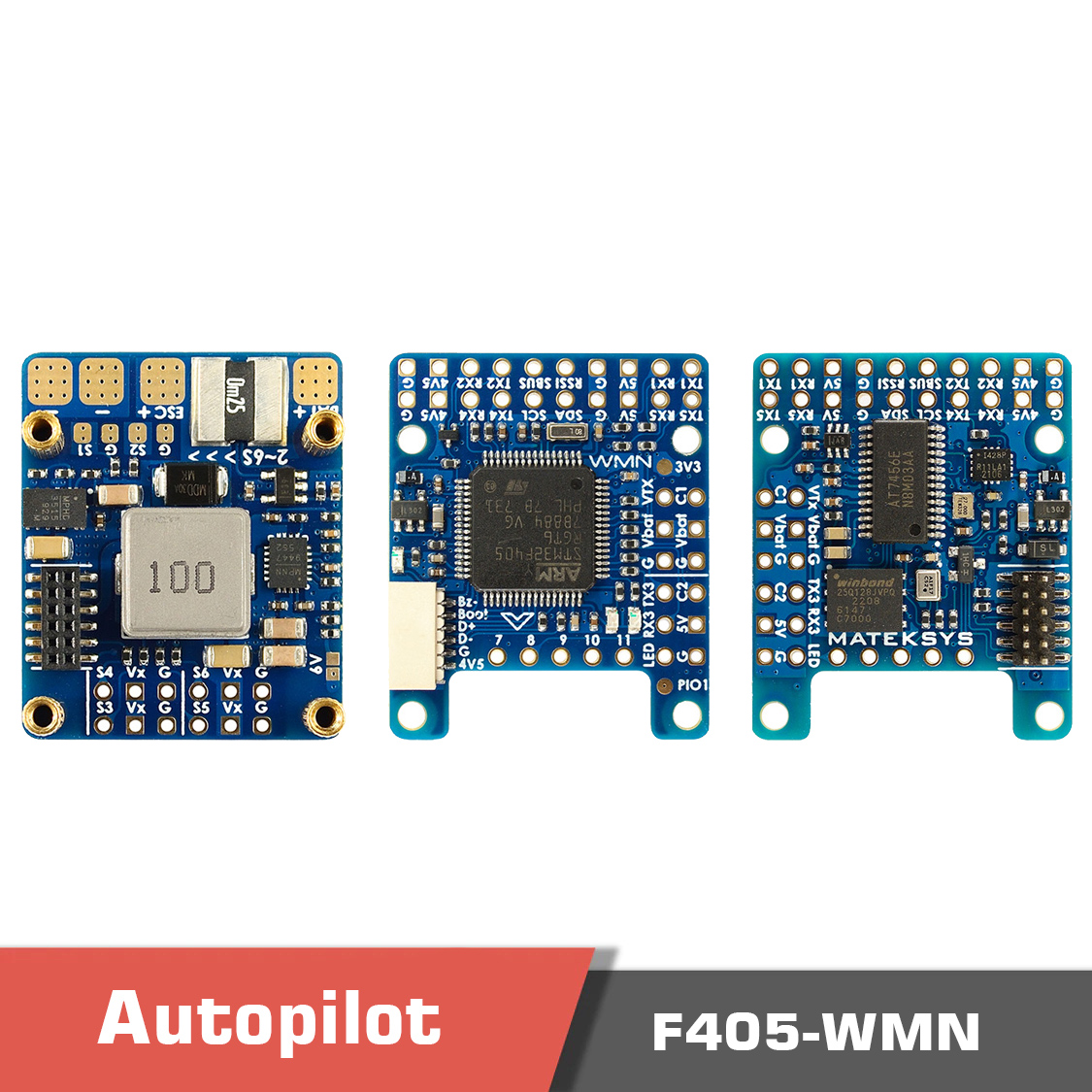

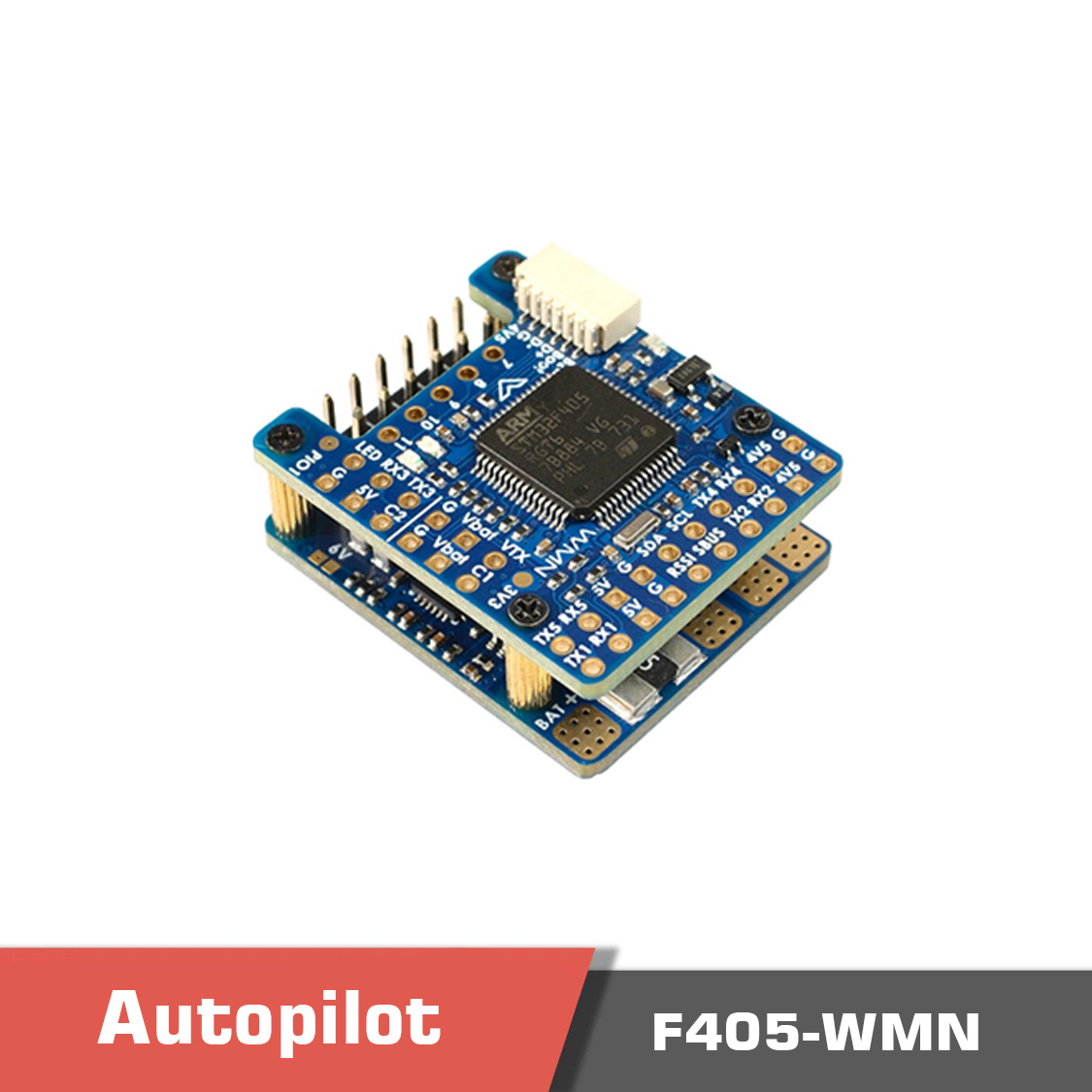

Matek F405-WMN Flight Controller
The Matek F405-WMN flight controller is a lightweight flight controller that is designed for use in different kinds of aircraft. Its small size and lightness make it ideal for airframe builds that are space-constrained. It is a powerful and versatile flight controller that offers a good balance of features and performance.

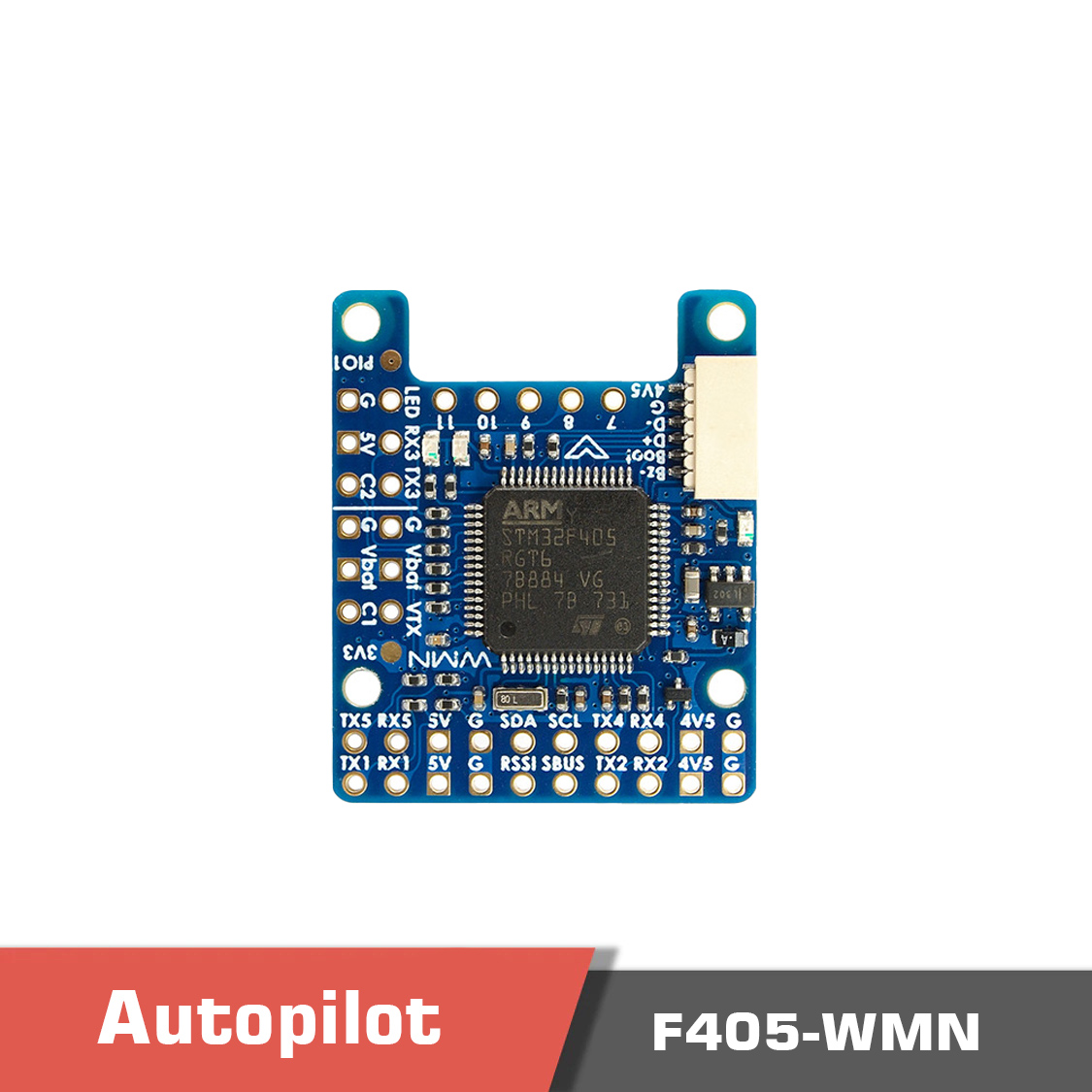

The F405-WMN features a 168MHz STM32F405RGT6 processor, an ICM42688-P IMU, a SPL06-001 baro, and an AT7456E OSD. It also has 5 UARTs, 12 PWM outputs, 1 I2C, and 3 ADCs.
The F405-WMN is compatible with a variety of flight control software, including ArduPilot, INAV, and Betaflight. It also supports a variety of features, such as DShot, OSD, and blackbox logging.
Here are some of the key features of the Matek F405-WMN:
- 168MHz STM32F405RGT6 processor
- ICM42688-P IMU
- SPL06-001 barometer
- AT7456E OSD
- 5 UARTs
- 12 PWM outputs
- 1 I2C
- 3 ADCs
- Compatible with ArduPilot, INAV, and Betaflight
- Supports DShot, OSD, and blackbox logging
- Smaller and lighter than the Matek F405
- Designed for wing aircraft
Overall, the Matek F405-WMN is a high-quality flight controller that is a good choice for a variety of wing aircraft. It is powerful, accurate, and versatile.
|Dimensions||4 × 3 × 2 cm|
|MCU||STM32F405RGT6, 168MHz , 1MB Flash|
|INAV||MATEKF405TE (INAV 5.0 or newer)|
|peripherals||5x UARTs, 1x Softserial_Tx option(INAV)
12x PWM outputs
3x ADC (VBAT, Current, RSSI)
1x spare PINIO
|other options||USB/Beep Extender with Type-C(USB2.0)
Built in inverter on UART2-RX for SBUS input
Switchable Dual Camera Inputs
|Vbat for VTX and camera|
|Dimensions||31 x 26 x 16.5 mm|
|Mounting||22 x 22mm, Φ2mm|
Please contact us for more information.
