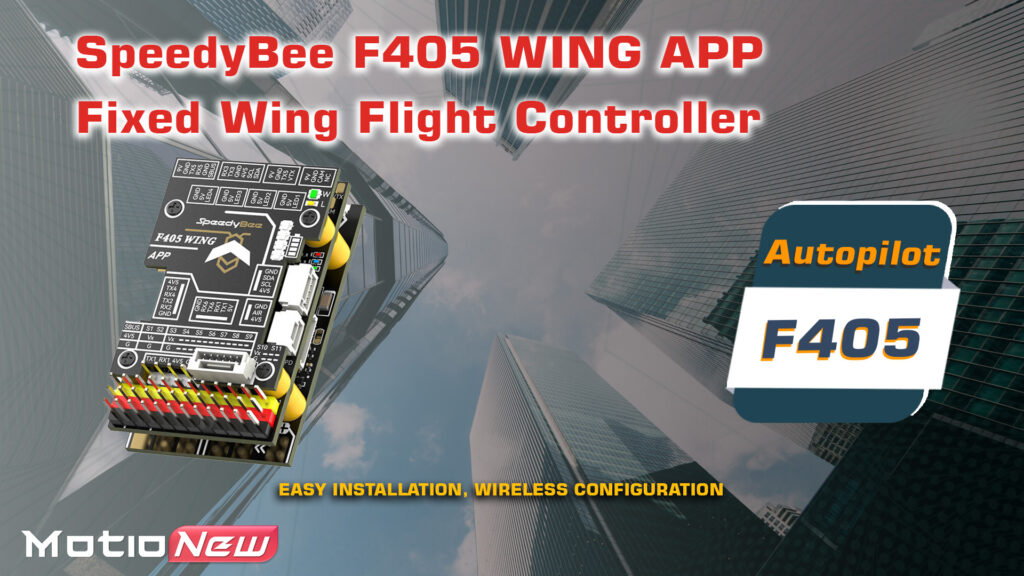

SpeedyBee F405 WING APP Fixed Wing Flight Controller

38.00 $

PayPal
Visa
Master

Description

The SpeedyBee F405 WING APP Fixed Wing Flight Controller is a powerful and versatile flight controller for drone that is designed for use in fixed-wing aircraft. It features an STM32F405 MCU, and an ICM-42688-P IMU sensor to stabilize the drone. It features multiple Input/Output ports, including 6x UARTs to connect to a variety of devices such as GPS, telemetry, and cameras. The 11x PWM outputs can be used to control the motors, servos, and other electronic accessories and actuators of the aircraft.  and 3x BEC outputs to provide power to the aircraft’s electronic accessories. It also has a built-in OSD which allows the pilot to view important flight data, such as altitude, speed, and battery voltage, on the aircraft’s video feed, 4-level battery life indicator LEDs, and a current sensor to measure the current draw of the aircraft.

The F405 WING APP UAV Autopilot can be configured and controlled using the SpeedyBee APP or QGroundcontrol. It supports a variety of flight control software, including ArduPilot, INAV, and Betaflight.

The SpeedyBee F405 WING APP is a good choice for a variety of fixed-wing aircraft, including racing wings, gliders, and long-range wings. It is a powerful and versatile flight controller that offers a good balance of features and performance.

Overall, the SpeedyBee F405 WING APP is a good value for the price. It is a powerful and versatile flight controller that can be used for a variety of fixed-wing aircraft.

Speedybee f405 wing app fixed wing flight controller Autopilot f405. 2 - speedybee f405 wing app fixed wing flight controller - motionew - 7 Autopilot f405. 3 - speedybee f405 wing app fixed wing flight controller - motionew - 8 Autopilot f405. 4 - speedybee f405 wing app fixed wing flight controller - motionew - 9 Autopilot f405. 5 - speedybee f405 wing app fixed wing flight controller - motionew - 10 Autopilot f405. 6 - speedybee f405 wing app fixed wing flight controller - motionew - 11 Autopilot f405. 7 - speedybee f405 wing app fixed wing flight controller - motionew - 12 Autopilot f405. 8 - speedybee f405 wing app fixed wing flight controller - motionew - 13 Autopilot f405. 9 - speedybee f405 wing app fixed wing flight controller - motionew - 14 Autopilot f405. 10 - speedybee f405 wing app fixed wing flight controller - motionew - 15 Autopilot f405. 11 - speedybee f405 wing app fixed wing flight controller - motionew - 16 Autopilot f405. 12 - speedybee f405 wing app fixed wing flight controller - motionew - 17 Autopilot f405. 13 - speedybee f405 wing app fixed wing flight controller - motionew - 18 Autopilot f405. 14 - speedybee f405 wing app fixed wing flight controller - motionew - 19 Autopilot f405. 15 - speedybee f405 wing app fixed wing flight controller - motionew - 20 Autopilot f405. 16 - speedybee f405 wing app fixed wing flight controller - motionew - 21

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Additional information

Weight 0.05 kg

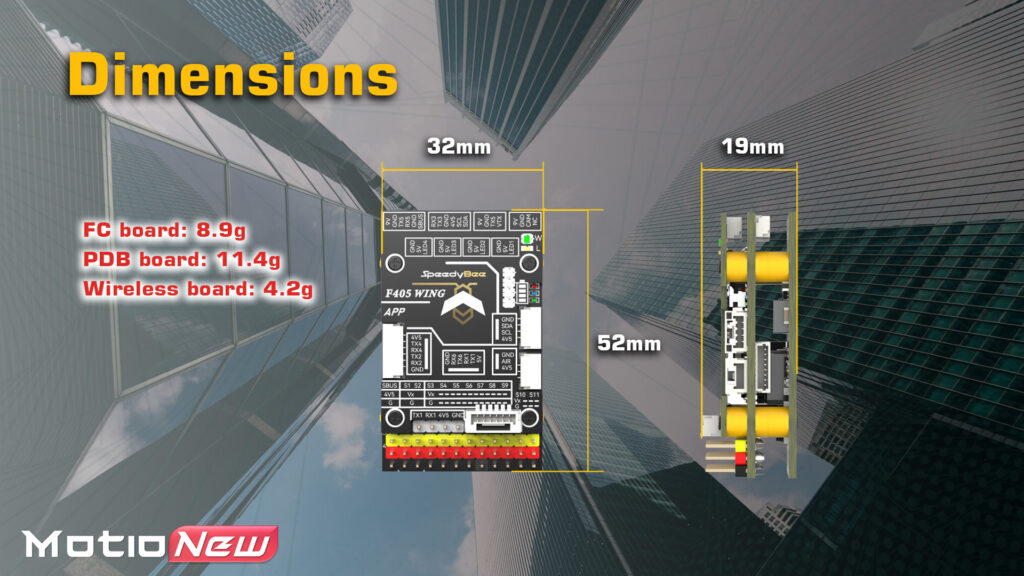

Dimensions 4 × 6 × 2 cm

Specifications

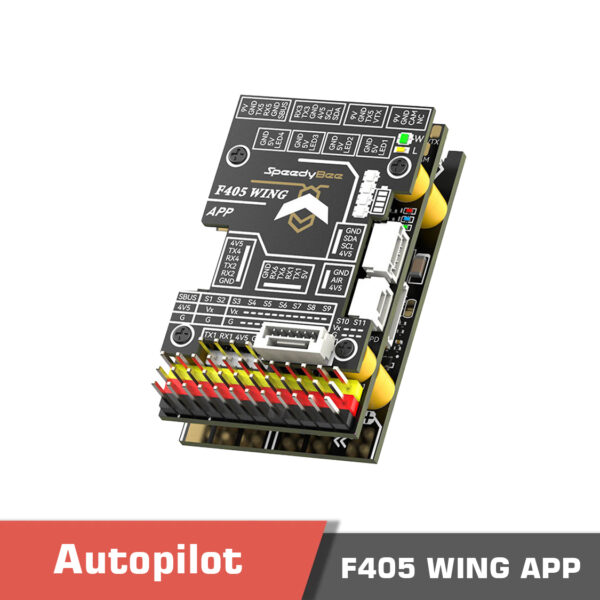

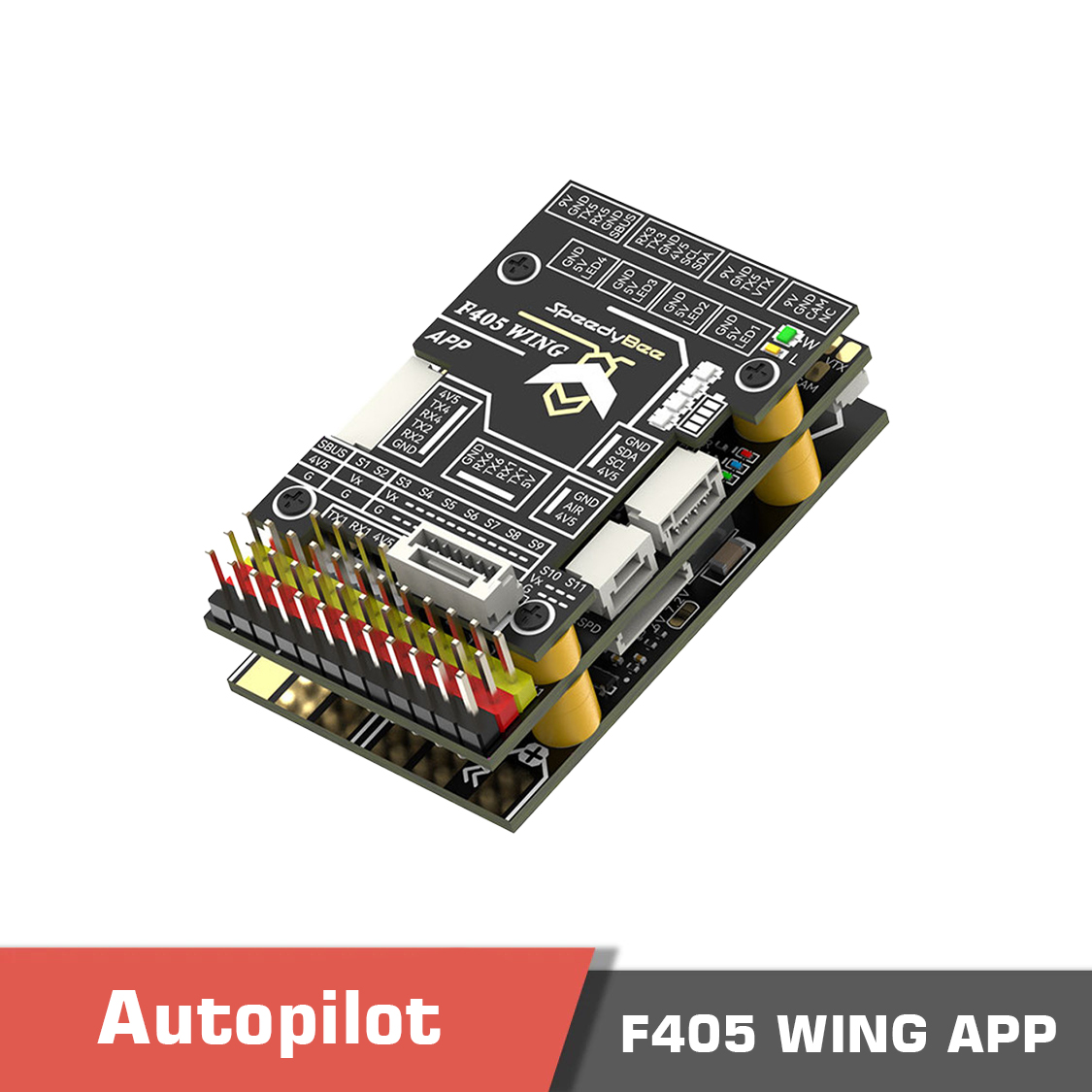

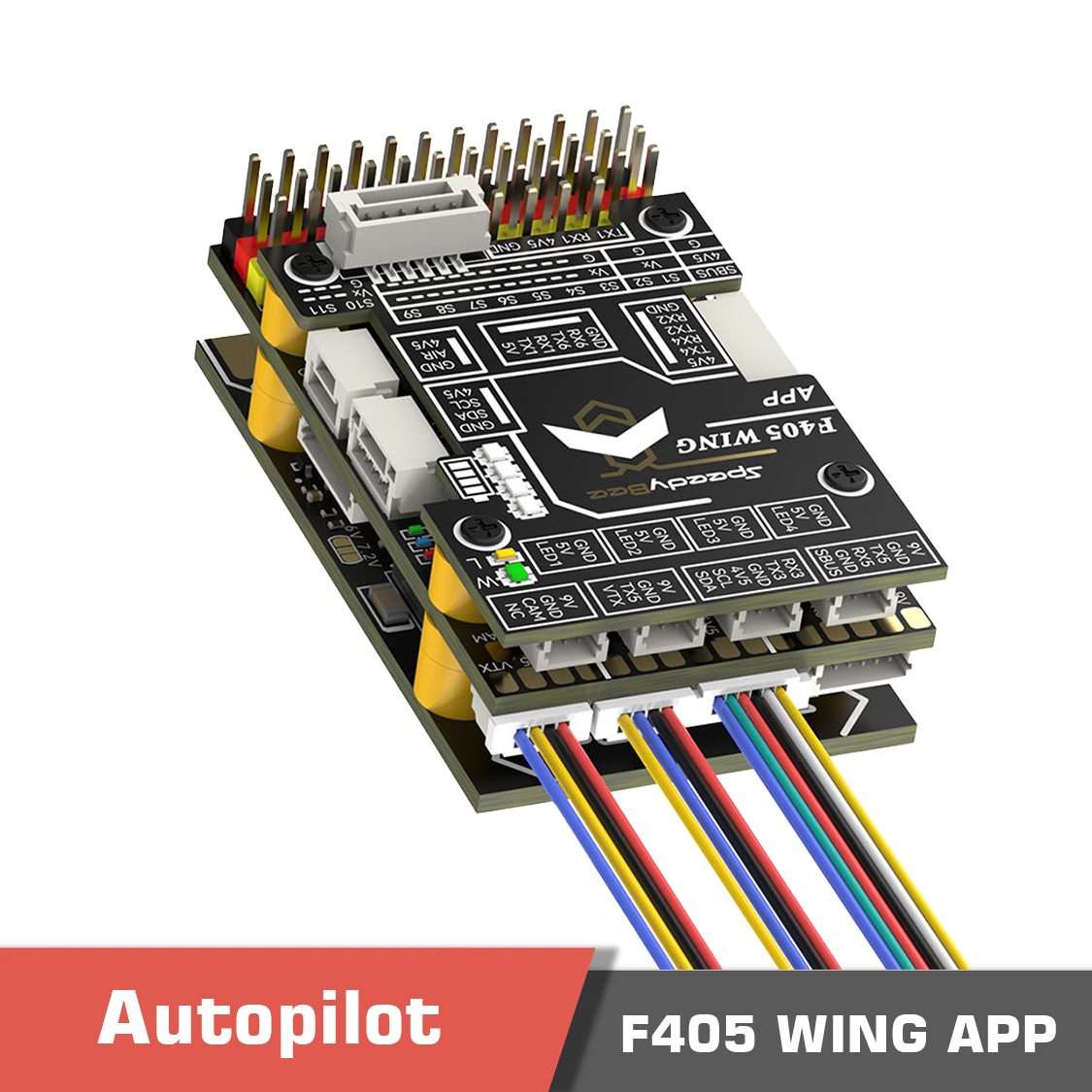

Product Name SpeedyBee F405 WING FC board
MCU STM32F405,168MHz,1MB Flash
IMU(Gyro&Accelerometer) ICM-42688-P
Barometer SPL006-001
OSD Chip AT7456E
Blackbox MicroSD Card Slot

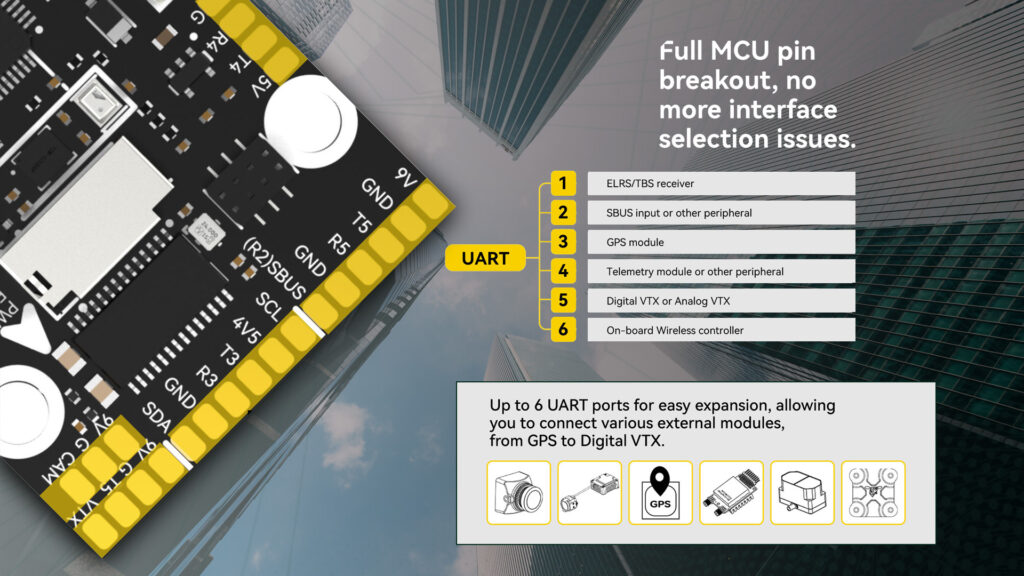

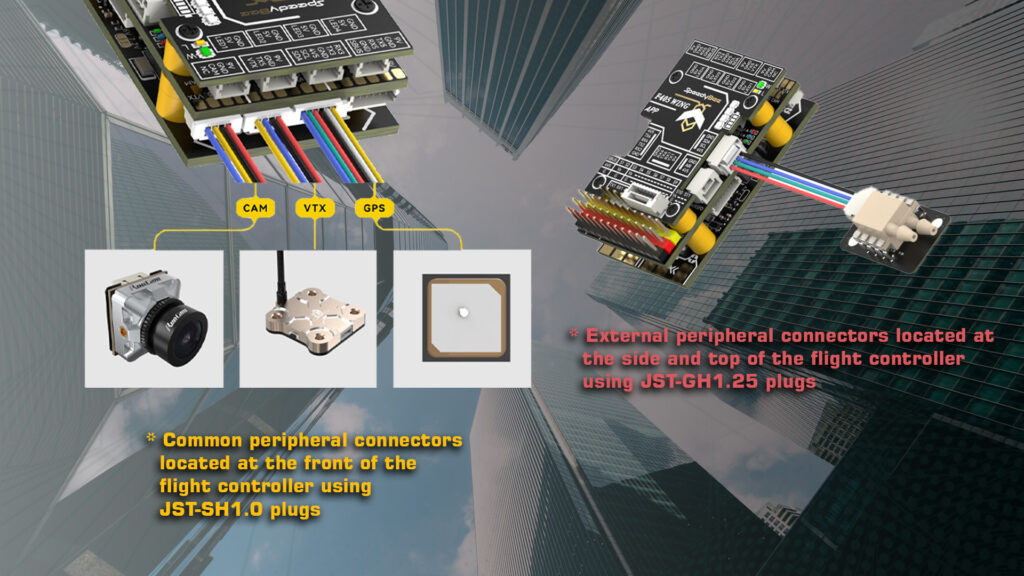

UART 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))
I2C 1x Used for magnetometer, digital airspeed sensor
ADC 4x (VBAT, Current, RSSI, Analog AirSpeed)

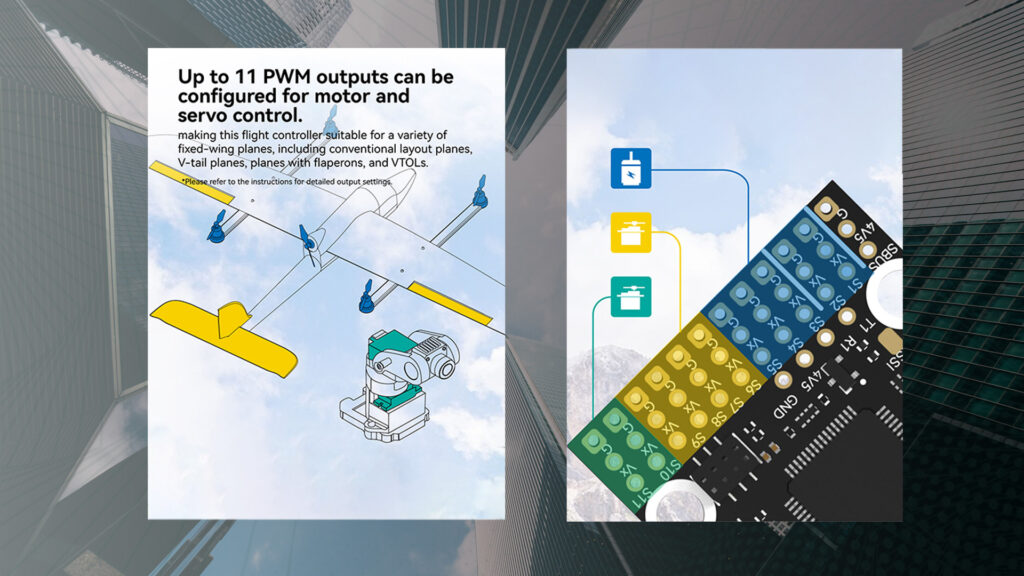

PWM 12x (11+1“LED”pad)
ELRS/CRSF receiver Supported,connected to UART1
SBUS Built in inverter for SBUS input (UART2-RX)
LED 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
RSSI Supported,Named as RS .
Supported FC Firmware INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING
Weight 8.9g

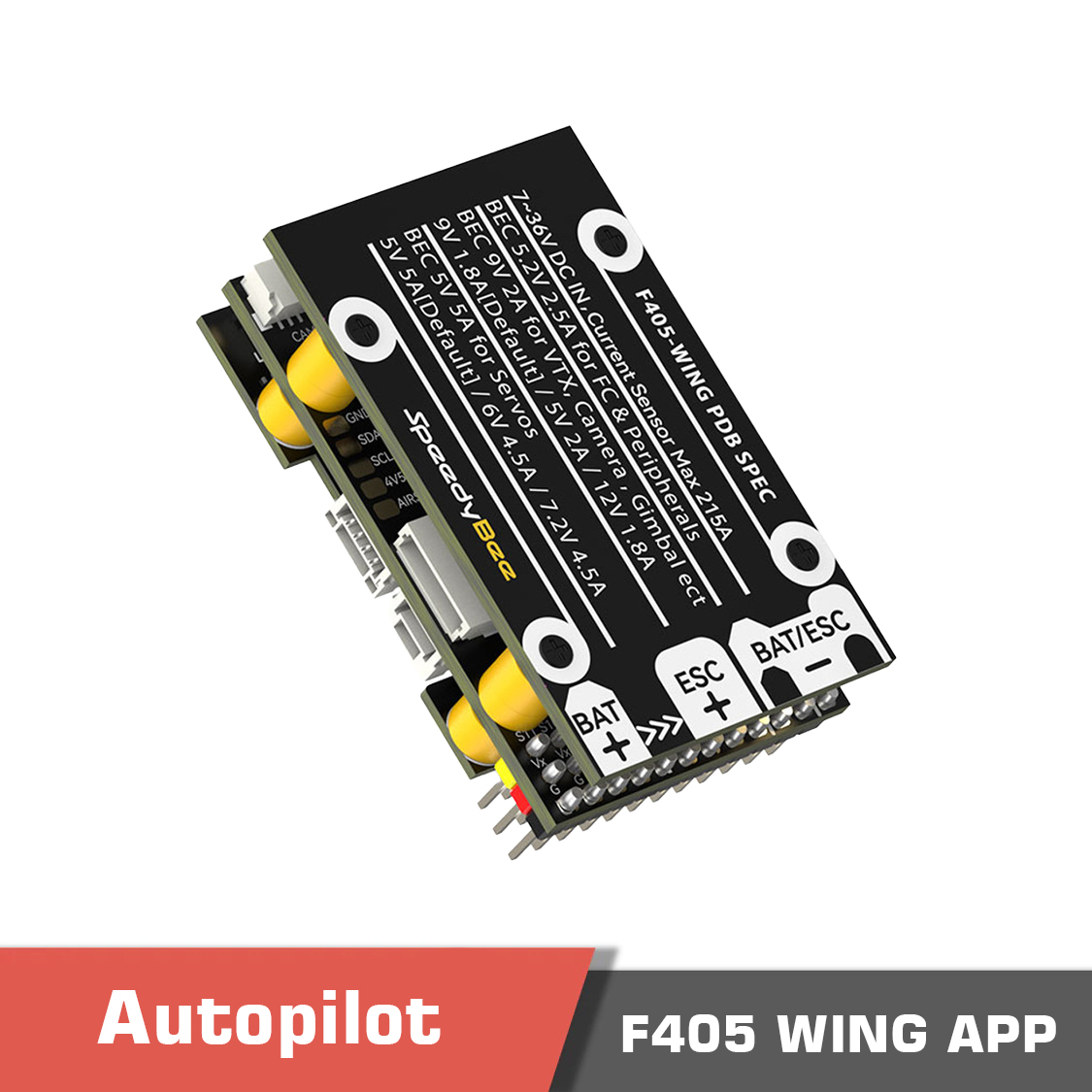

Product Name SpeedyBee F405 WING PDB board
Input voltage range 7~36V (2~6S LiPo)
Battery Voltage Sensor Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
Battery Current Sensor 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
TVS Protective diode Yes
FC BEC output Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
VTX BEC output Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
Servo BEC output Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.
Weight 11.4g
Product Name SpeedyBee F405 WING Wireless board

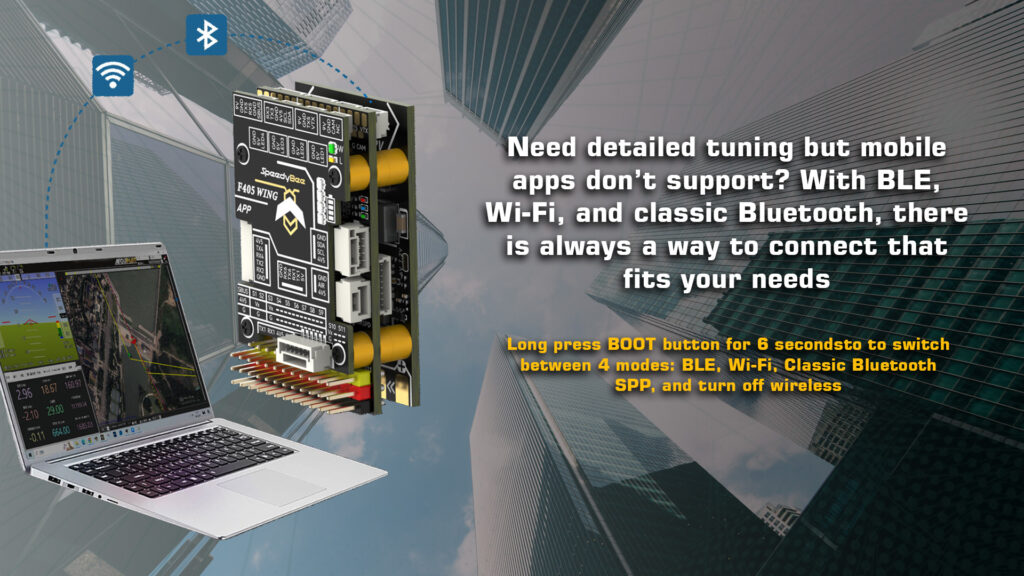

Wireless Configuration (long press BOOT button for 6 seconds to switch modes) BLE mode, connect to Speedybee APP
Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, Mission Planner, etc.
Classic Bluetooth SPP mode, connect to QGroundControl APP, Mission Planner

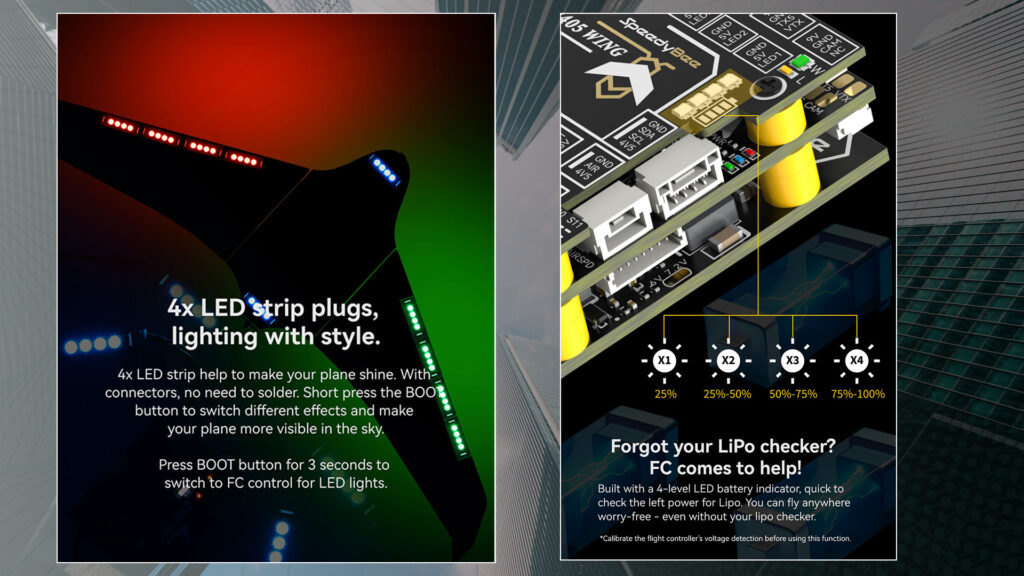

LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) 4x WS2812 LED strip connectors, adjustable colors and flashing modes
Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads
On-board battery level indicator 4x RGB indicator LED for battery level display by number of lights
Weight 4.2g

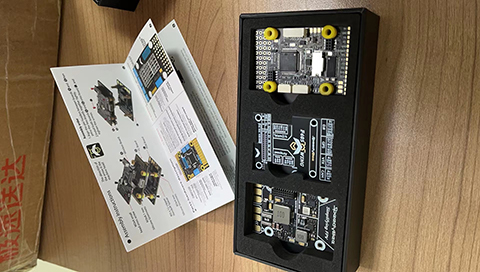

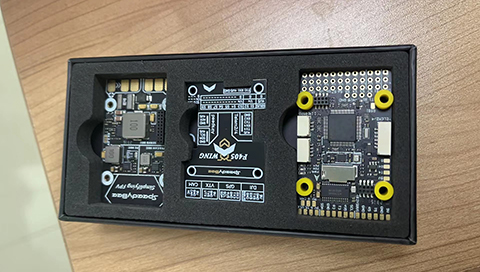

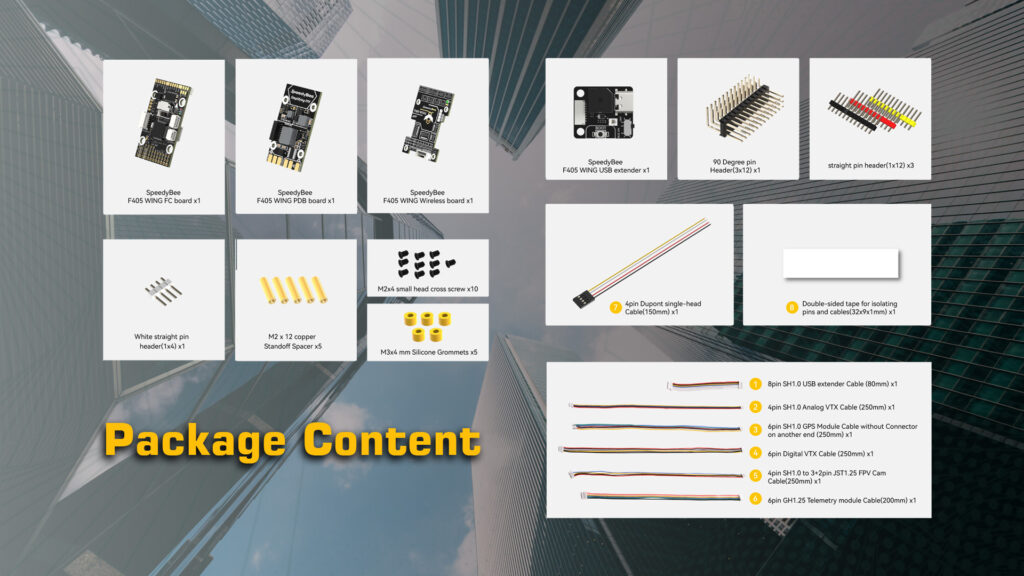

Product contents

1x SpeedyBee F405 WING FC board

1x SpeedyBee F405 WING PDB board

1x SpeedyBee F405 WING Wireless board

1x SpeedyBee F405 WING USB extender

1x 90 Degree pin Header (3×12)

3x straight pin header(1×12)

1x White straight pin header(1×4)

5x M2 x 12 copperStandoff Spacer

10x M2x4 small head cross screw

5x M3x4 mm Silicone Grommets

1x 8pin SH1.0 USB extender Cable (80mm)

1x 4pin SH1.0 Analog VTX Cable (250mm)

1x 6pin SH1.0 GPS Module Cable without Connector on another end (250mm)

1x 6pin Digital VTX Cable (250mm)

1x 4pin SH1.0 to 3+2pin JST1.25 FPV Cam Cable (250mm)

1x 6pin GH1.25 Telemetry module Cable (200mm)

1x 4pin Dupont single-head Cable (150mm)

1x Double-sided tape for isolating pins and cables (32x9x1mm)

Autopilot f405. 15 - speedybee f405 wing app fixed wing flight controller - motionew - 22



Documents

Click here to download the user manual
