Matek ASPD-DLVR Digital Airspeed Sensor

79.00 $

(1 customer review)
PayPal
Visa
Master

Description

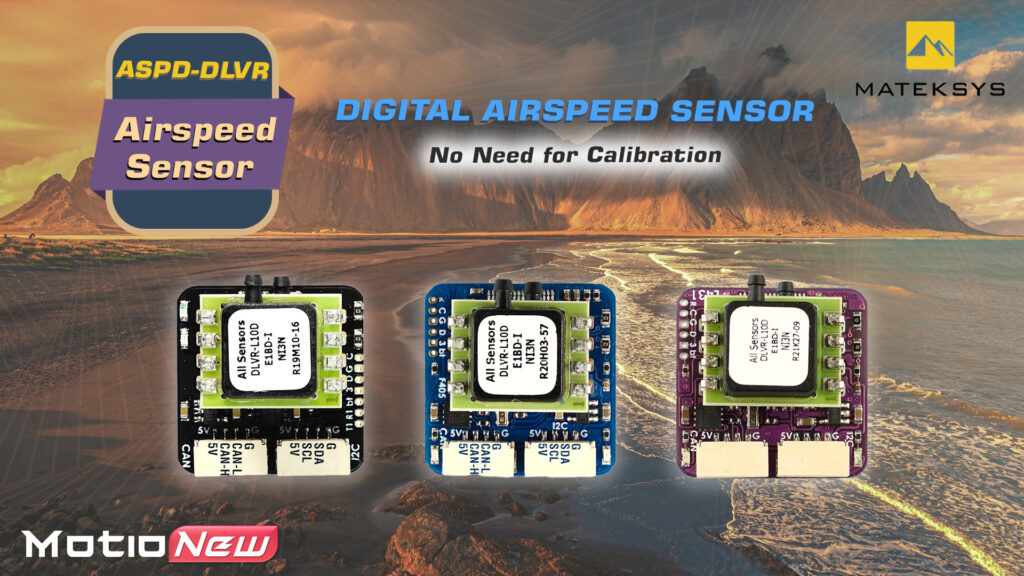

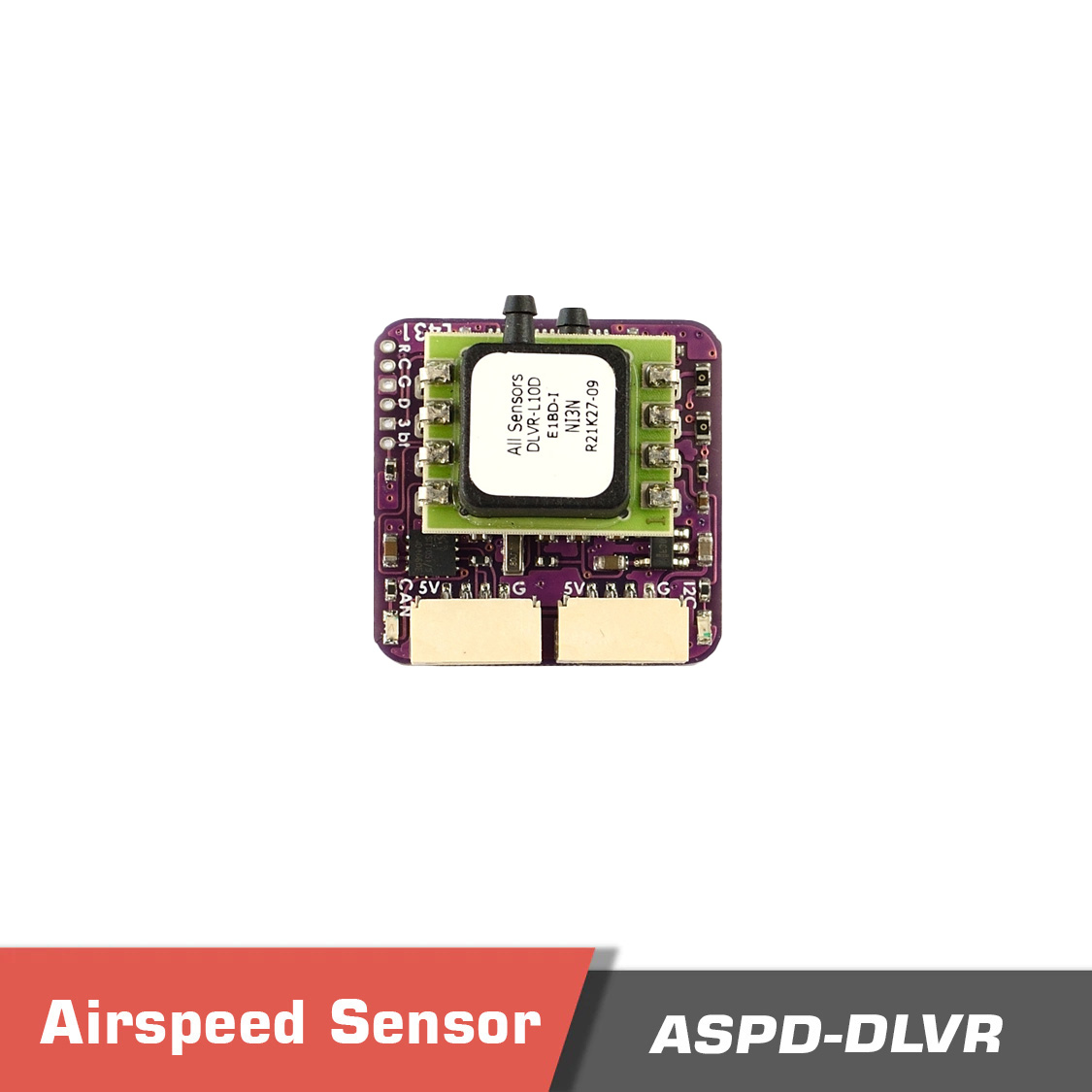

Matek ASPD-DLVR Digital Airspeed Sensor

ย Purple PCB, L431 CAN node is the latest version that will be shipped

Matek aspd-dlvr Airspeed aspd dlvr. 2 - matek aspd-dlvr - motionew - 7 Airspeed aspd dlvr. 3 - matek aspd-dlvr - motionew - 8 Airspeed aspd dlvr. 4 - matek aspd-dlvr - motionew - 9 Airspeed aspd dlvr. 5 - matek aspd-dlvr - motionew - 10Airspeed aspd dlvr. 6 6 - matek aspd-dlvr - motionew - 11

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Specifications

  • ArduPilot AP_Periph L431/F405/F303 CAN node
  • All sensors DLVR-L10D,ย  Industrial temperature range

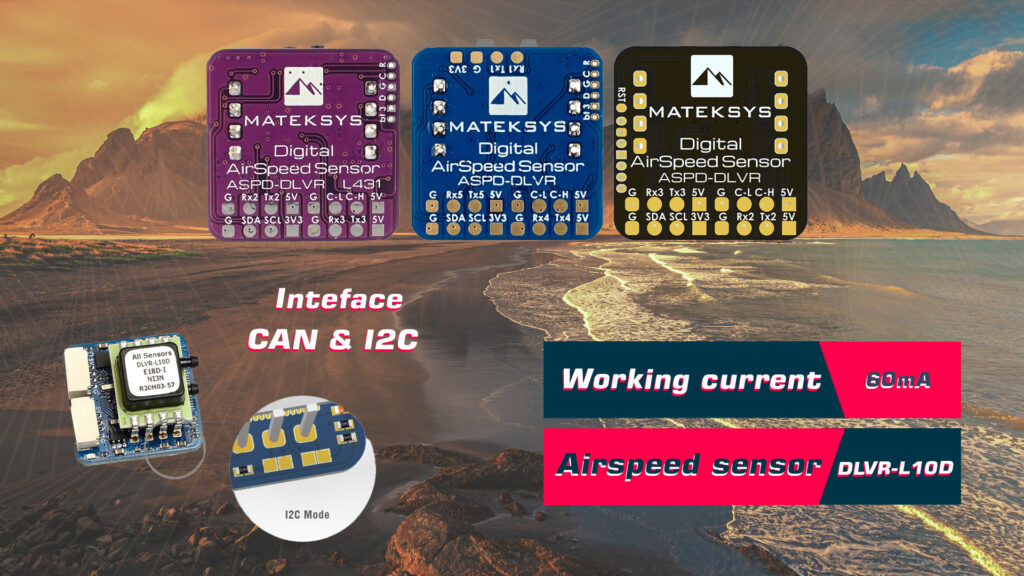

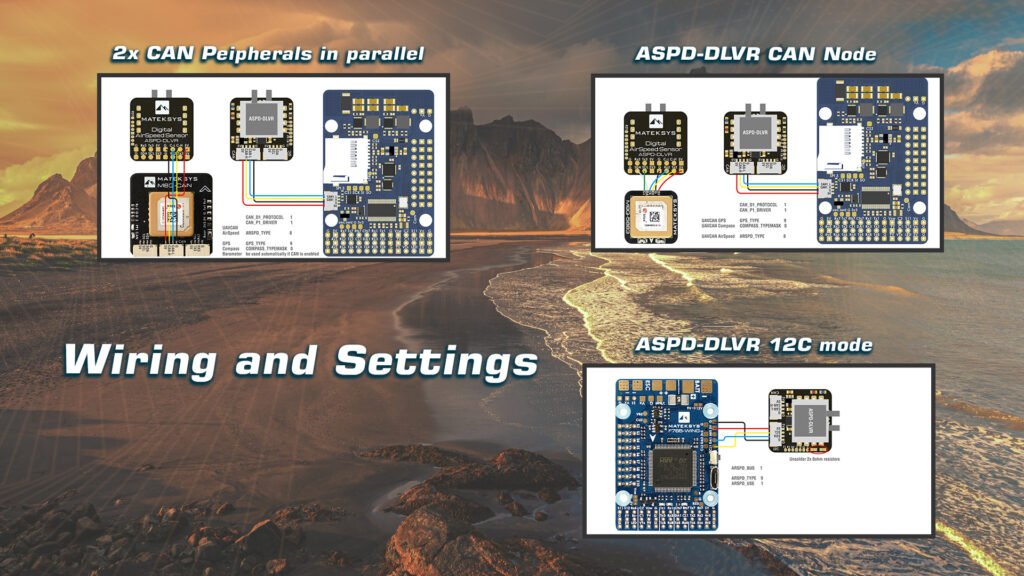

  • CANย  & I2C Interface
  • Typical Platforms: Fixed-Wing, QuadPlane, VTOL
  • CAN JST-GH connector,ย  DroneCAN Protocol
  • I2C JST-GH connector,ย  DLVR-L10D I2C mode (I2C address 0x28)

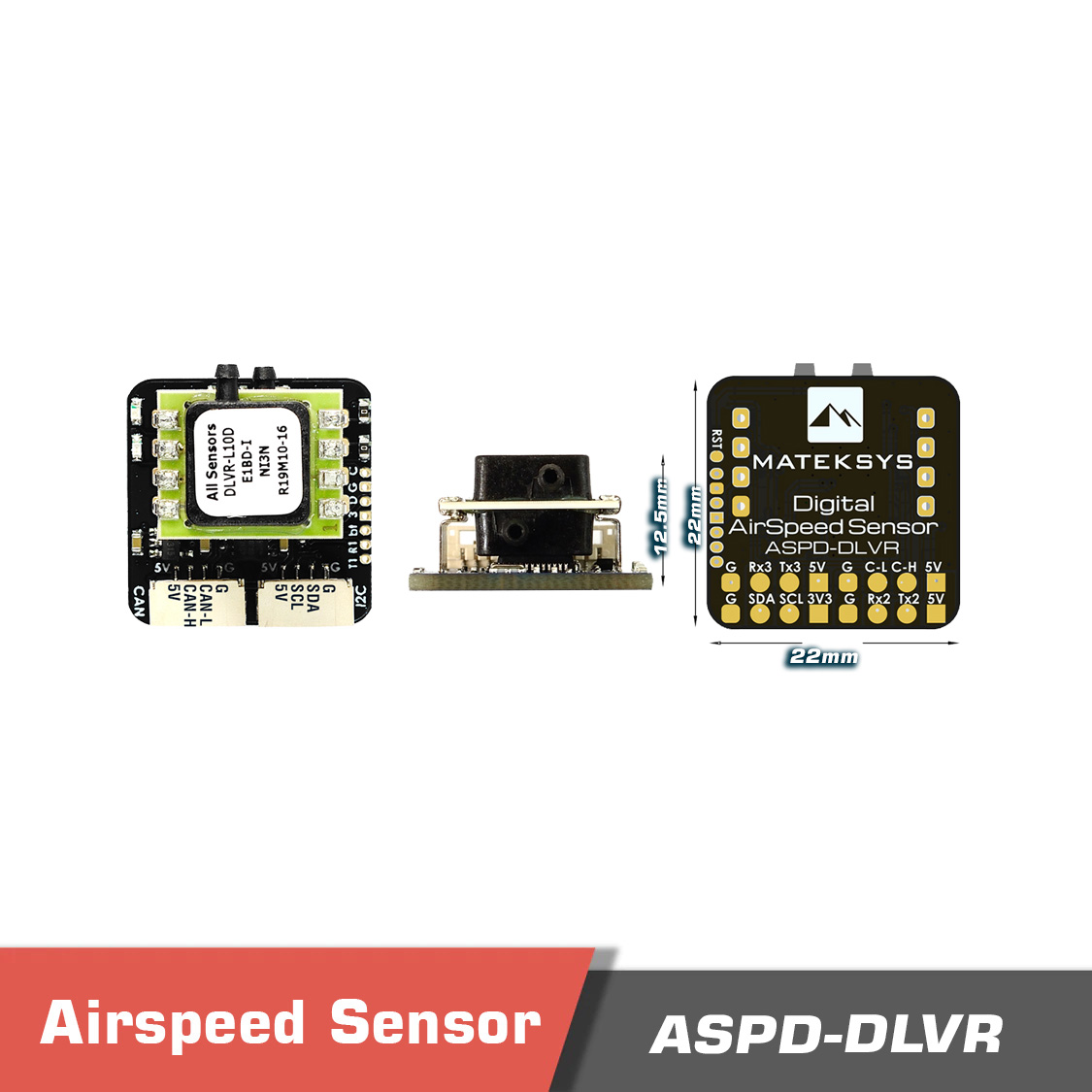

  • F303 ver. (Black PCB)
    • UART1, Firmware update
    • UART2, Spare for external GPS
  • F405 ver. (Blue PCB)
    • UART1, Firmware update
    • UART4, Spare for external GPS

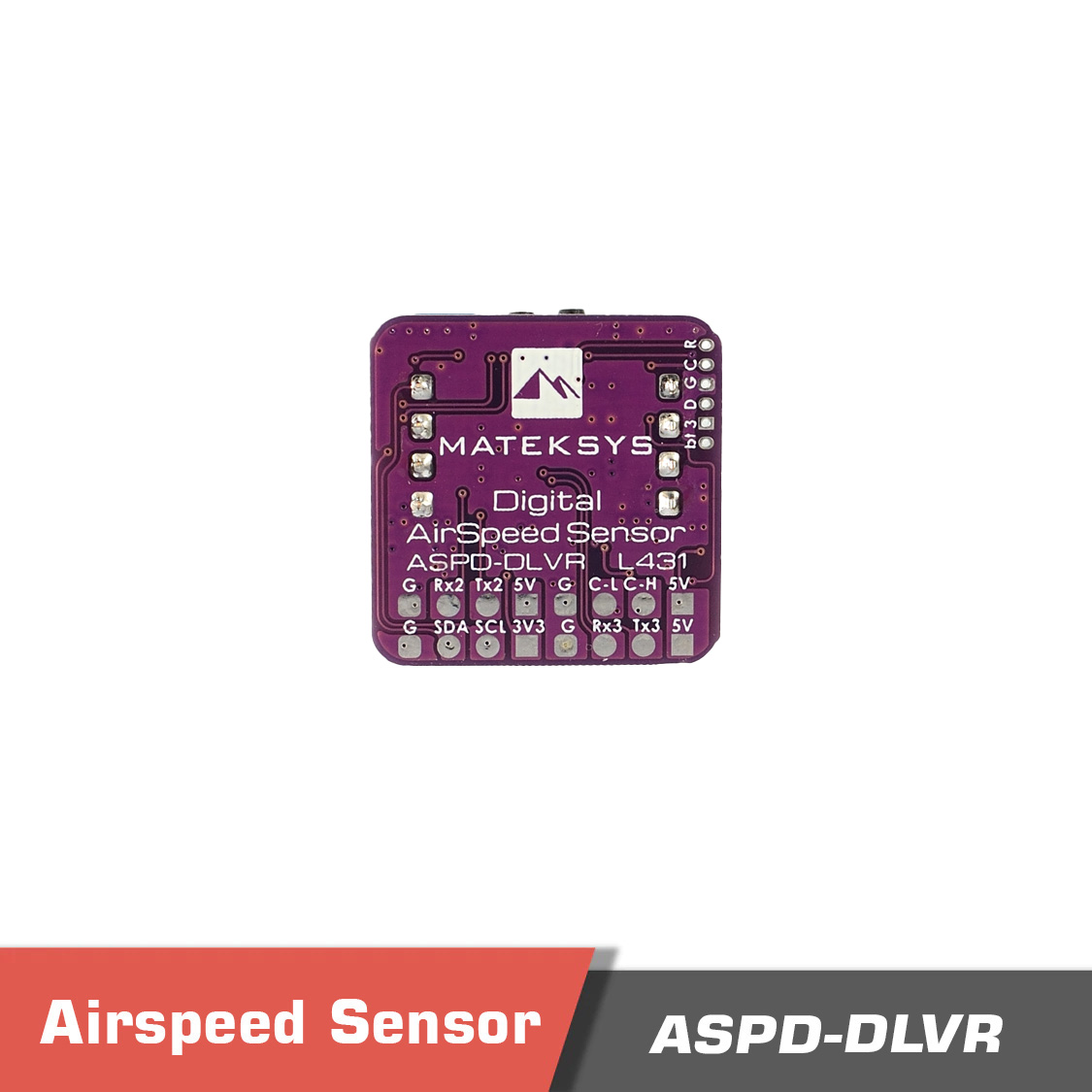

  • L431 ver. (Purple PCB)
    • UART2, Firmware update
    • UART3, Spare for external GPS
  • CAN bootloader LED, Blue
    • Fast blinking,ย  AP_Periph bootloader
    • Slow blinking, CAN Node ready
  • 3.3V Power LED, Red
  • Input voltage range: 4.5~5.5V
  • Power consumption: 60mA
  • Operating Temperatures: -20ยฐC to 85ยฐC
  • Pressure Range: ย 2500Pa (ยฑ 10 inH2O)
  • Burst Pressure: 75kPa
  • Speed Range: ยฑ250 km/h

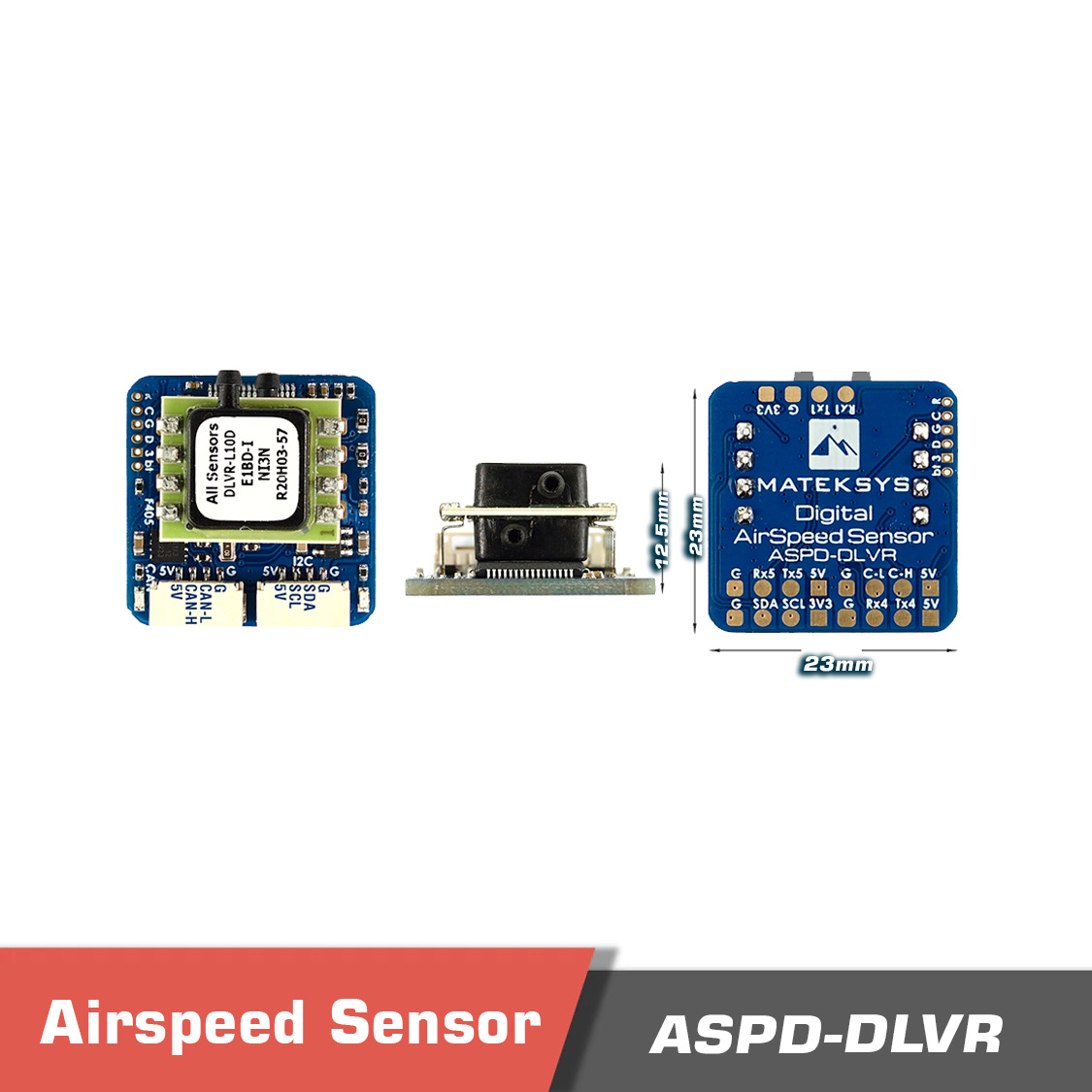

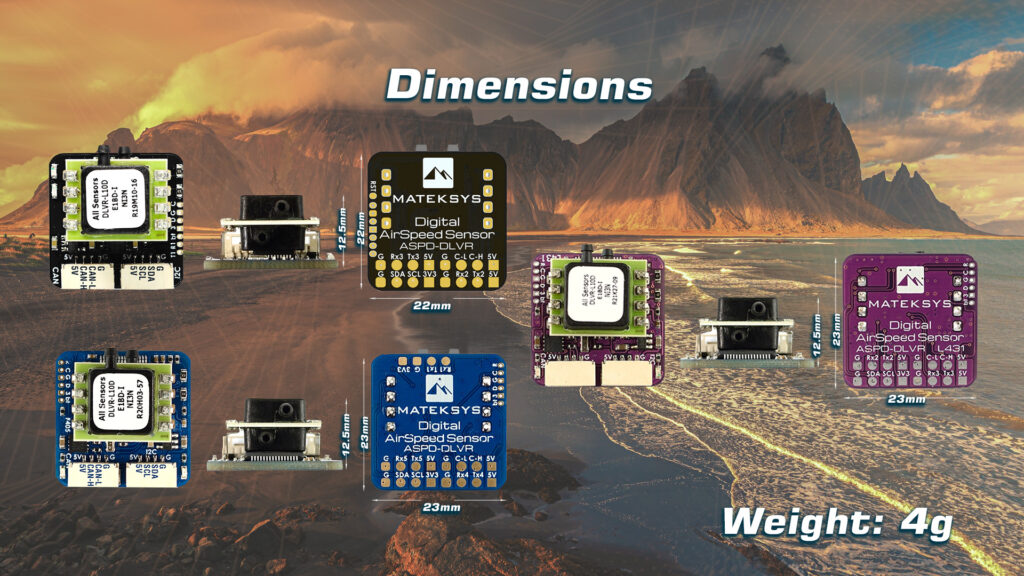

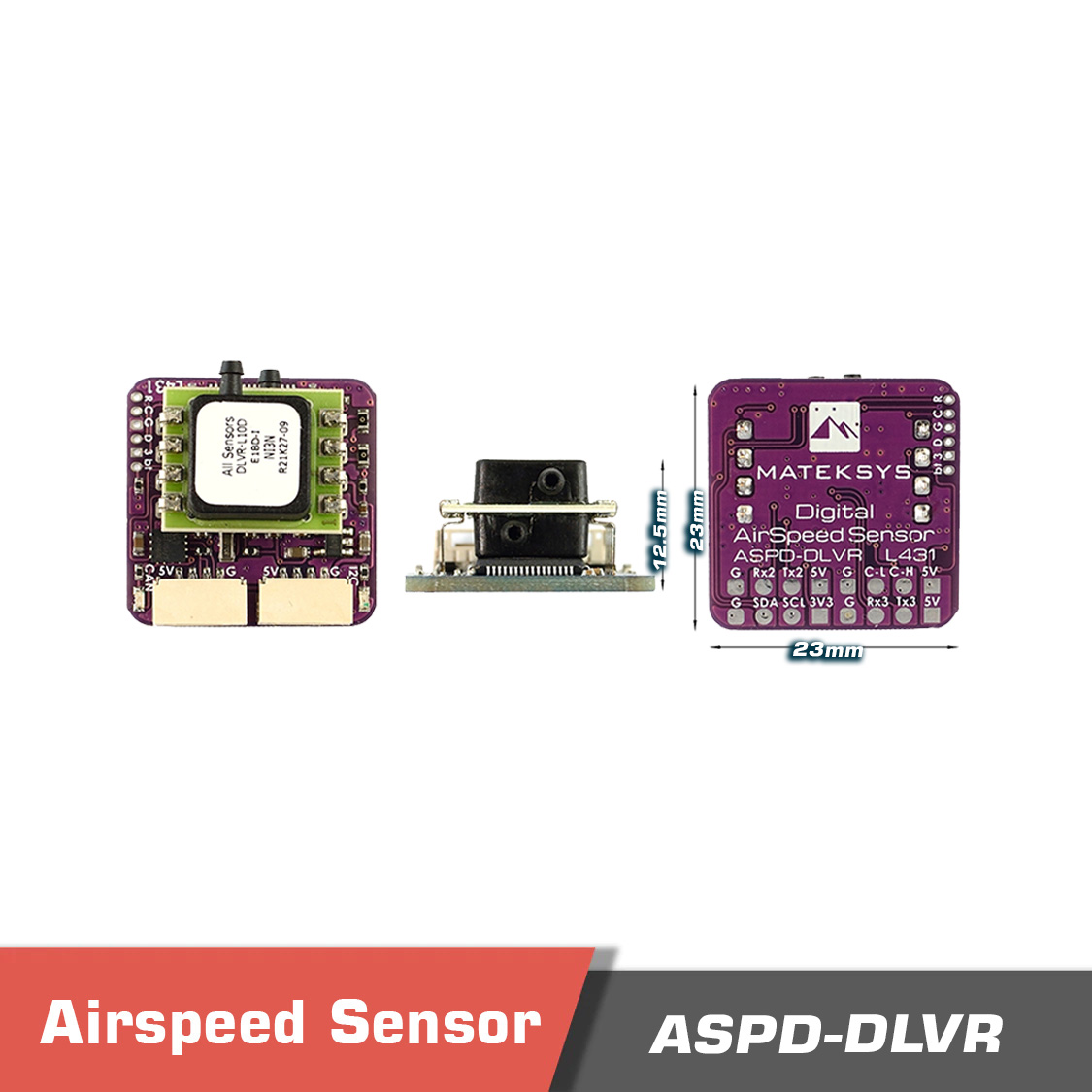

  • Dimensions:
  • 22mm*22mm*12.5mm (F303 ver.)
  • 23mm*23mm*12.5mm (F405 ver.)
  • Weight: 4g

Product contents

* The current Version is Purple PCB, L431 CAN node.

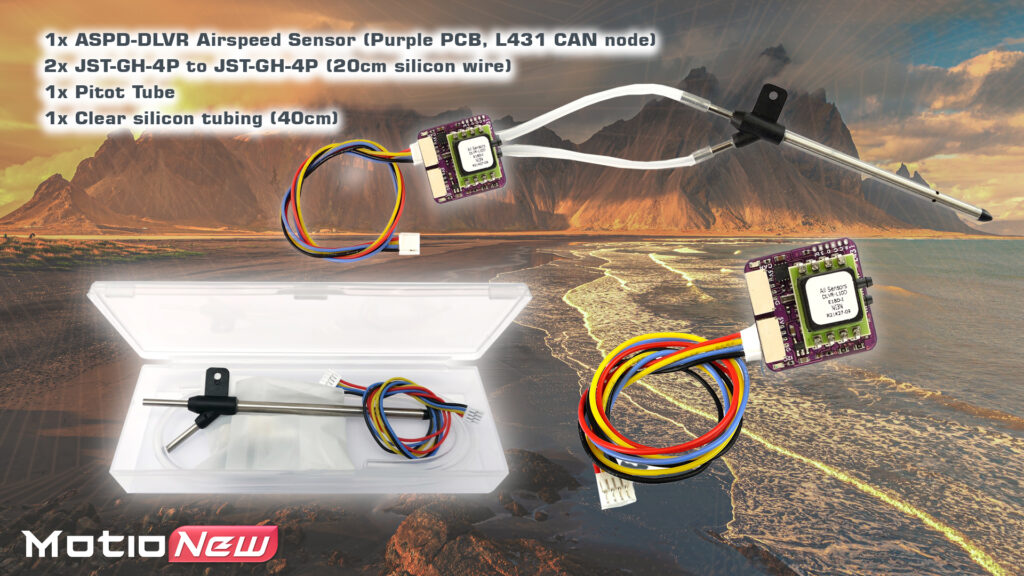

Package Contents:

1x ASPD-DLVR Airspeed Sensor

2x JST-GH-4P to JST-GH-4P (20cm silicon wire)

1x Pitot Tube

1x Clear silicon tube (40cm)

Airspeed aspd dlvr. 6 6 - matek aspd-dlvr - motionew - 12

Documents

Pleaseย contact usย for more information.
