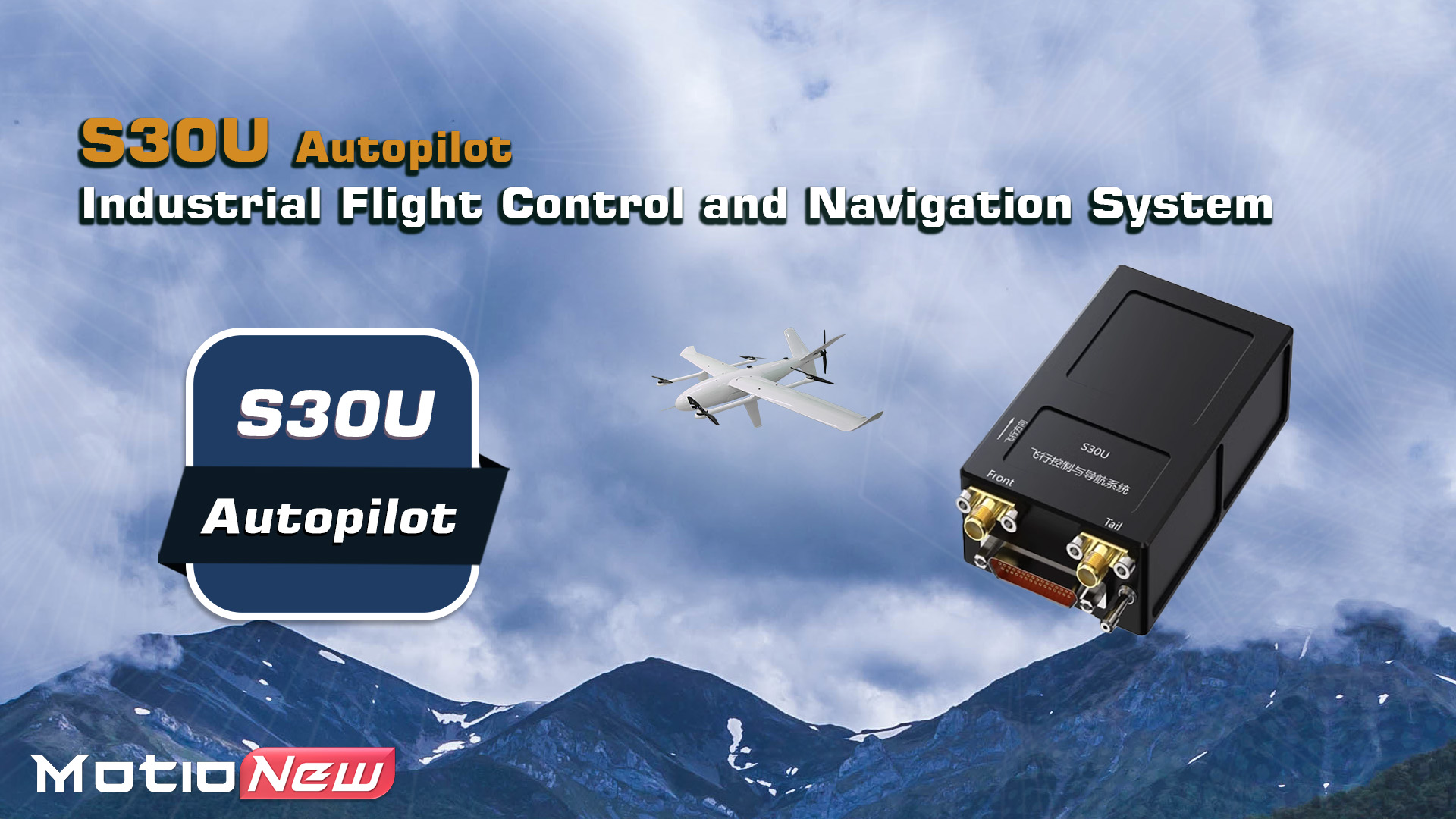

S30U Flight controller, Hybrid UAV Flight Control and Navigation System

3195.00 $

PayPal
Visa
Master

Description

The S30U flight controller and navigation system is suitable for small electric conventional fixed-wing, vertical take-off and landing fixed-wing, multi-rotor and other layout aircraft. It integratesย flight control for drone computers and high-precision, high-dynamic micro-combined navigation systems (BD/GPS/MINS, built-in domestic satellite navigation board, support BD2/BD3 priority), and weighs โ‰ค 100g. It supports RTK high-precision positioning and dual-antenna high-precision direction finding and can realize one-key automatic take-off, landing, hovering, circling, returning, setting altitude, parachute opening and various forms of autonomous cruising according to the predetermined route.

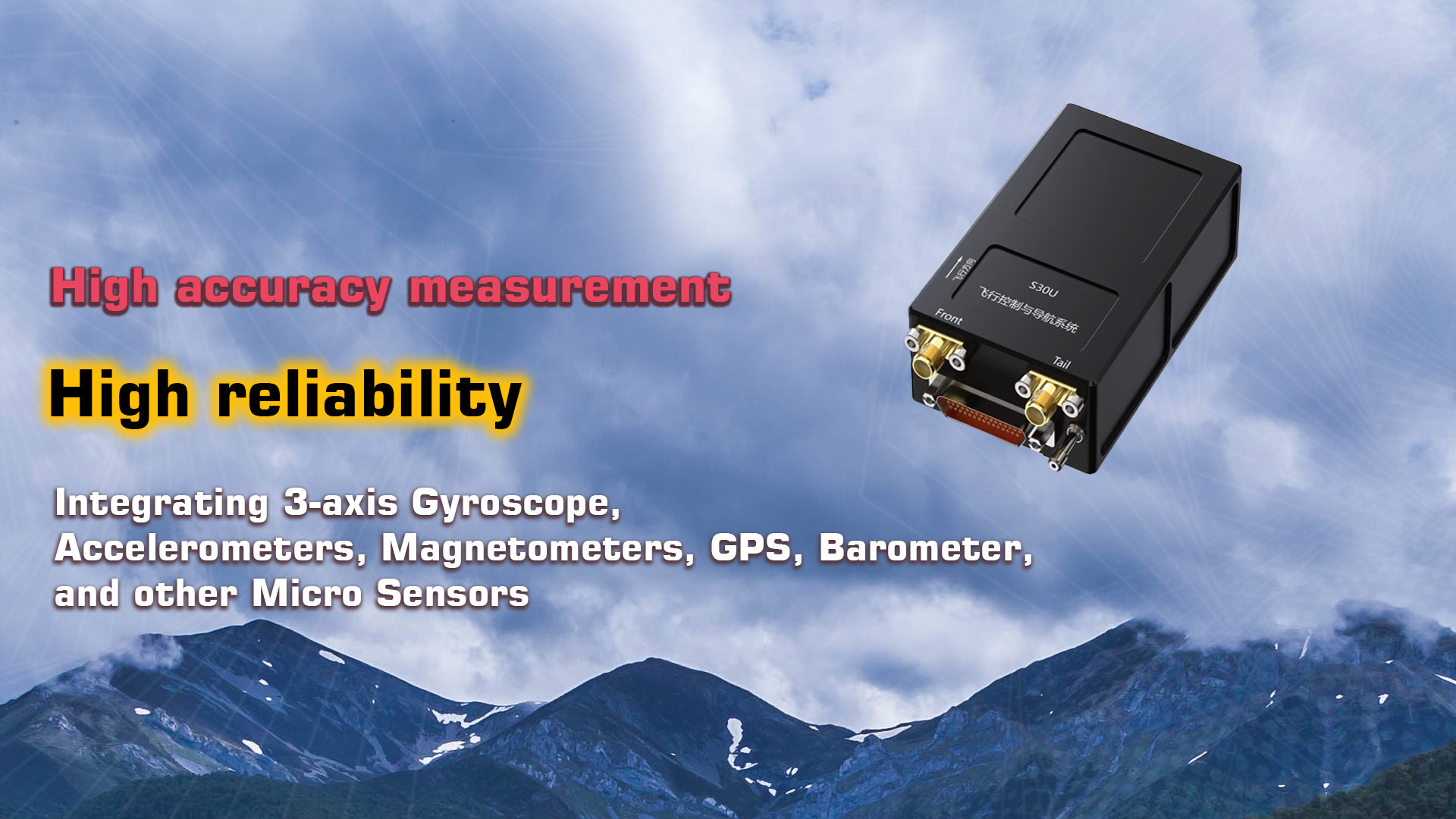

S30U supports four layouts of UAVs (including the conventional tail, V-tail, and flying wing): electric and hydraulic (vertical takeoff and landing fixed wing), conventional fixed-wing, tilt-rotor, and multi-rotor. There is also an integrated micro GPS/MINS navigation system, barometric altimeter, differential pressure airspeed meter, 2-channel speed measurement, and 1-channel fuel quantity measurement.

Up to 100 emergency landing points can be preset, and in case of emergency protection, it will automatically land at the nearest location. The system provides 8 user routes, each route can add 800 waypoints, automatically generates circling routes, circling center, and circling radius, and the number of circling circles can be set

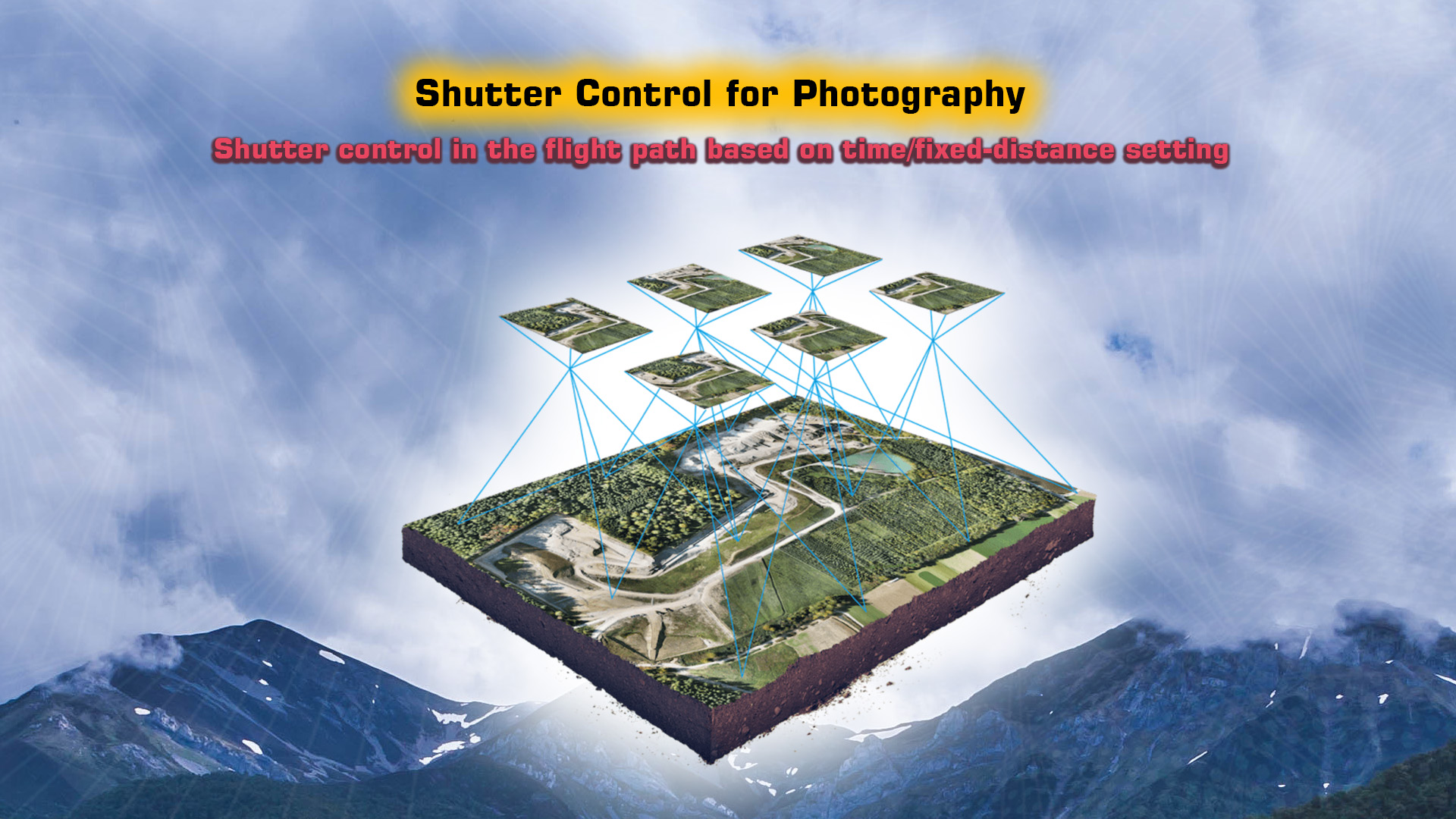

S40 provides photo capturing (shutter control) tasks during the flight paths, and the timing/distance can be set. It also supports typical photoelectric pod, pan/tilt gimbals, and special surveying and mapping cameras. Flight information and mission information are recorded and downloaded separately. The flight information recording time is up to 9 hours.

A ground measurement and control software supports online maps and irregular multi-measurement area automatic surveying and mapping route planning, supports automatic planning of oil, electric power, and other patrol routes, and can alert users to complete pre-flight planning examinations.



S30u autopilot navigation S30u autopilot specification S30u autopilot accuracy S30u autopilot functionality S30u autopilot parts S30u autopilot ekf S30u. 7 - s30u flight controller - motionew - 4 S30u. 8 - s30u flight controller - motionew - 5 S30u autopilot dimensions

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Attitude accuracy 0.3ยฐ

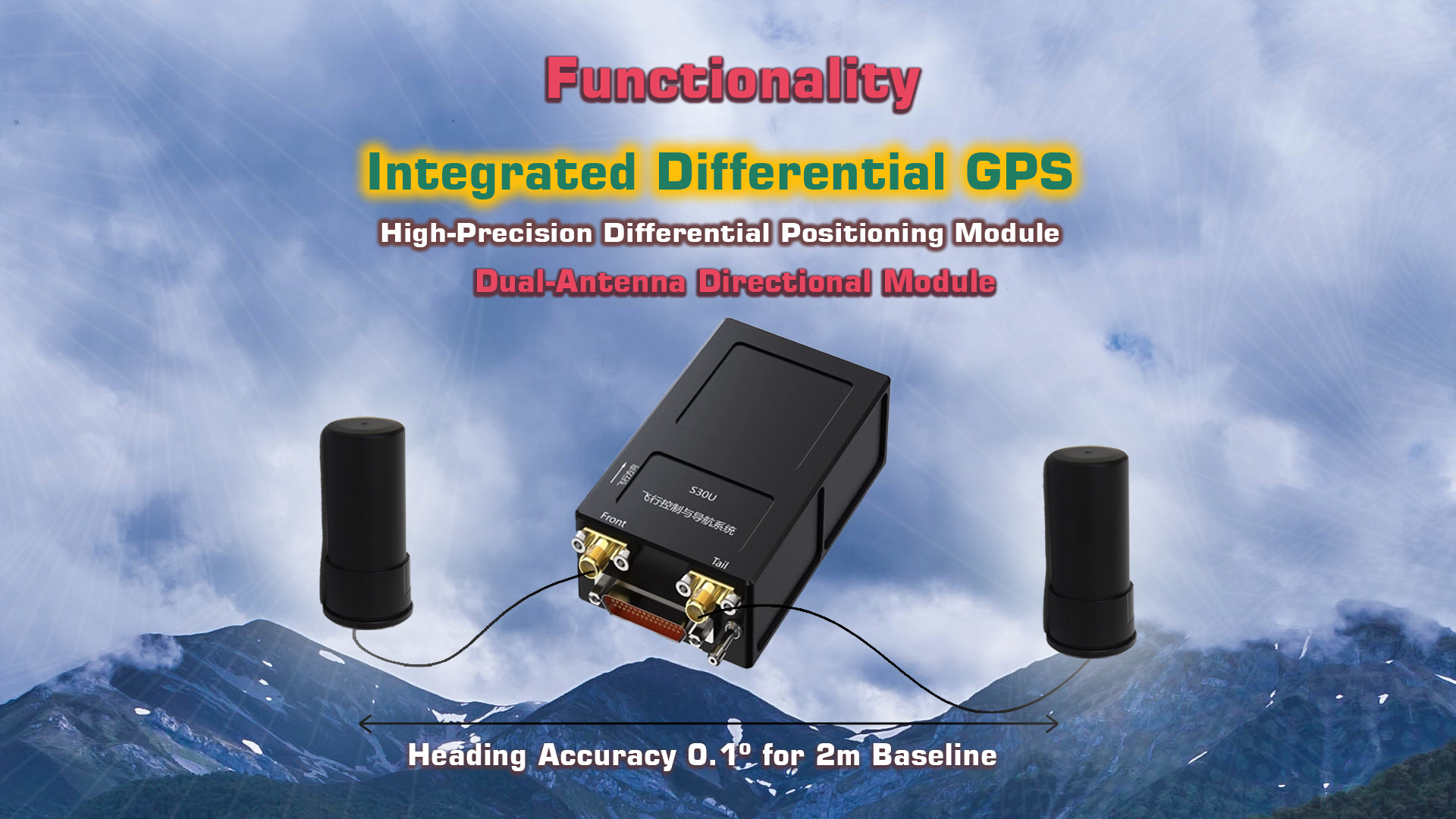

Heading accuracy
0.1ยฐ (dual antenna, 2m baseline)
0.2ยฐ (1m baseline)
0.3ยฐ (single antenna, needs to be maneuvered)
Positioning accuracy
1.5m
RTK: 0.8cm
Angular velocity measurement range ยฑ500ยฐ/s
Acceleration measurement range ยฑ8g
Height measuring range 10000m
Airspeed measurement range 0~100m/s
Voltage monitoring range 0~52v
Voltage monitoring channel 2
PWM control channel 9
Digital output channel 3
Extended serial port 3
SBUS input channel 1
Number of routes 8 routes (800 waypoints per route)
Built-in data logger 9 hours
Position Points for taking pictures 10000
Emergency landing point 100
Supply voltage 4.5 v- 9v
Power Consumption < 3W
Weight 100g

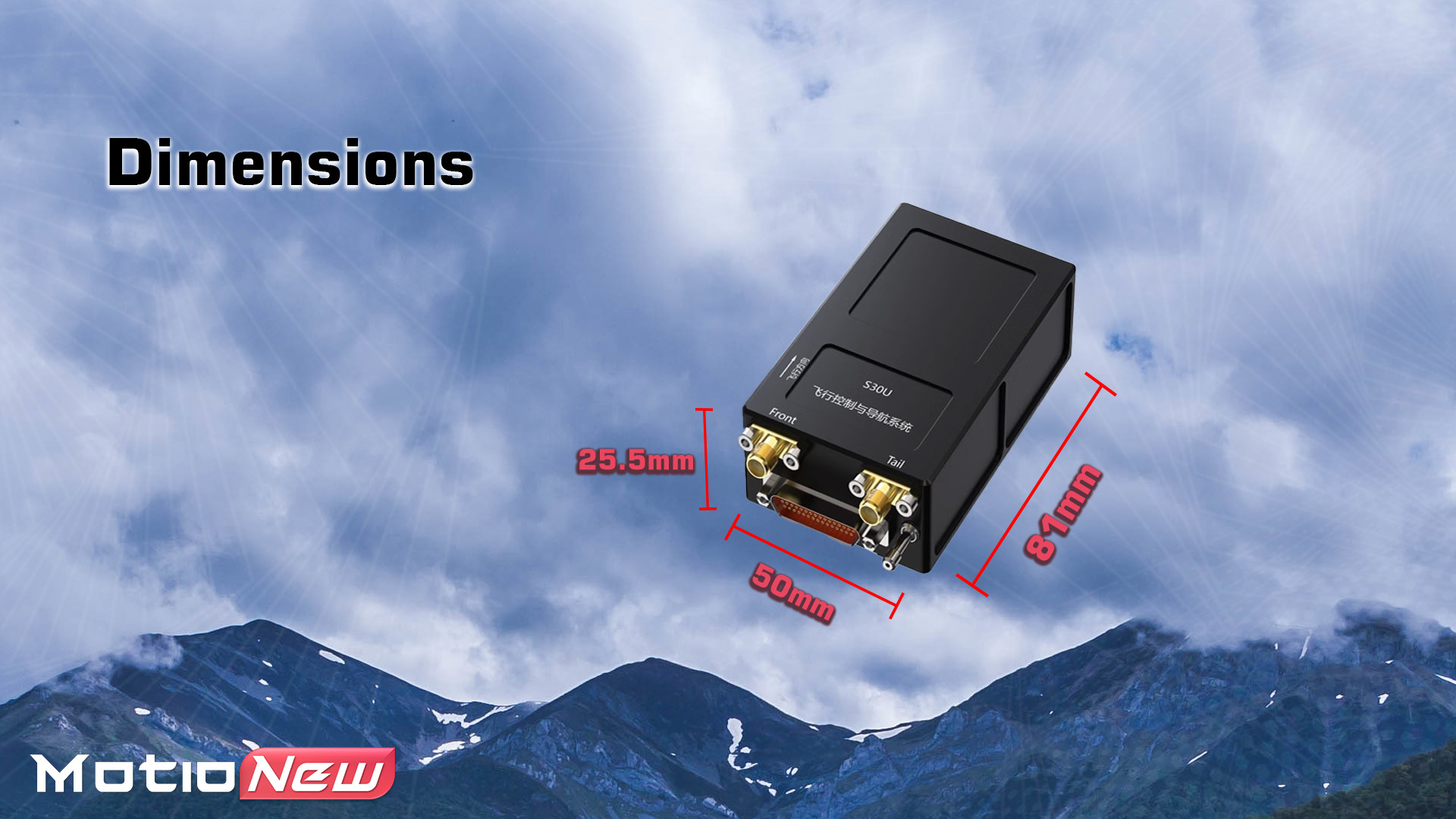

Dimensions 81x50x25.5mm
Operating Temperature -20ยฐC~55ยฐC
Storage Temperature -40ยฐC~85ยฐC

Product contents

Pleaseย contact usย for more information.

Documents

Pleaseย contact usย for more information.
