Matek h743 Flight Controller

90.00 $

(1 customer review)
PayPal
Visa
Master

Description

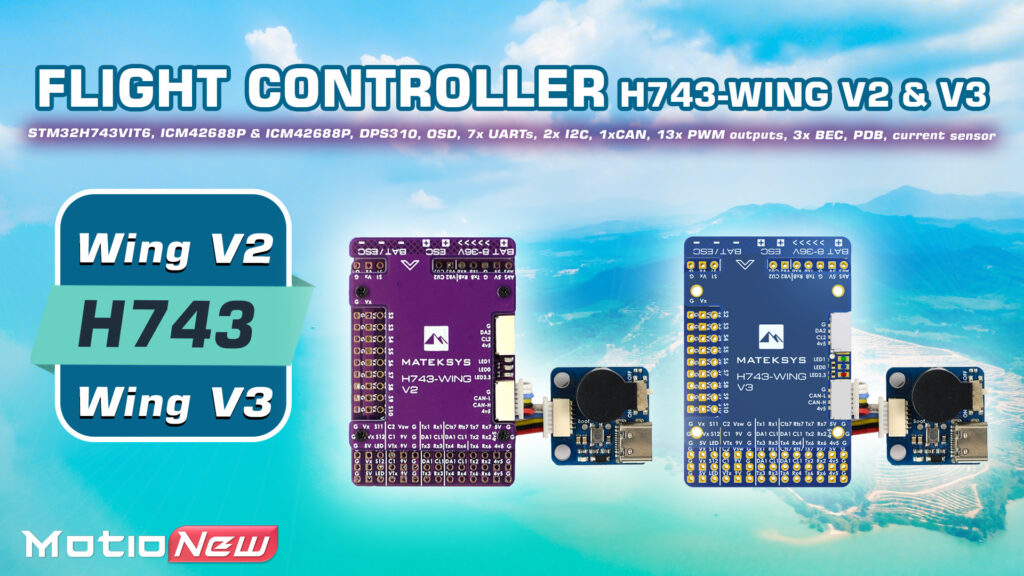

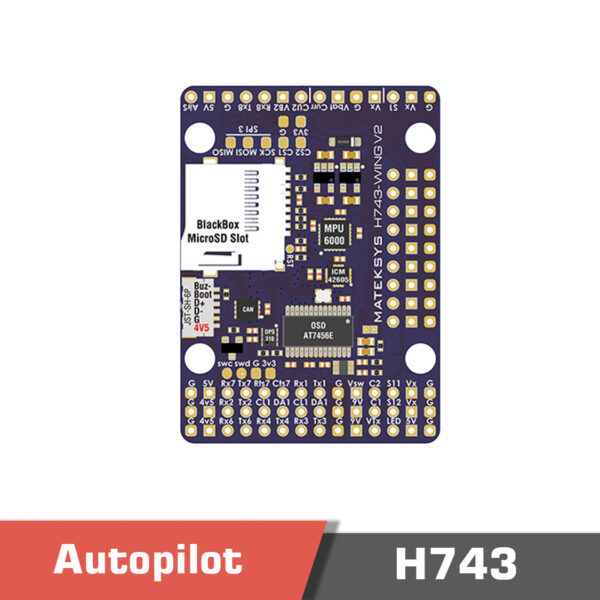

Matek h743 Flight Controller

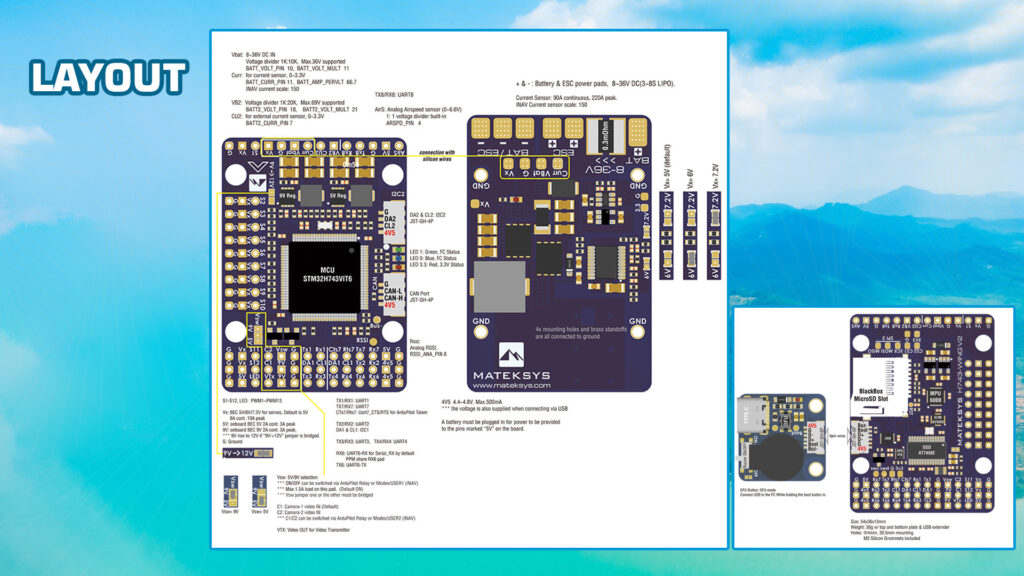

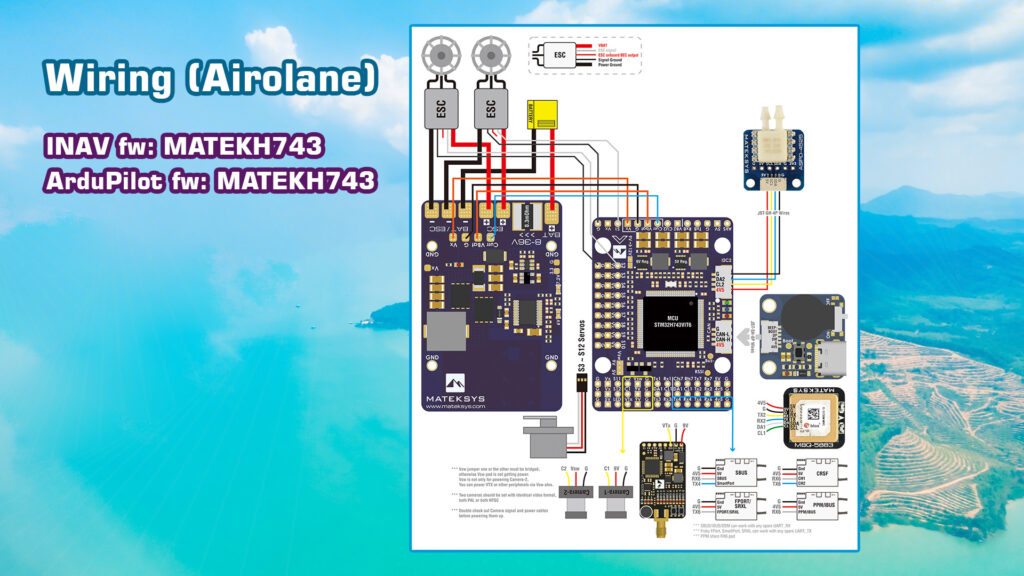

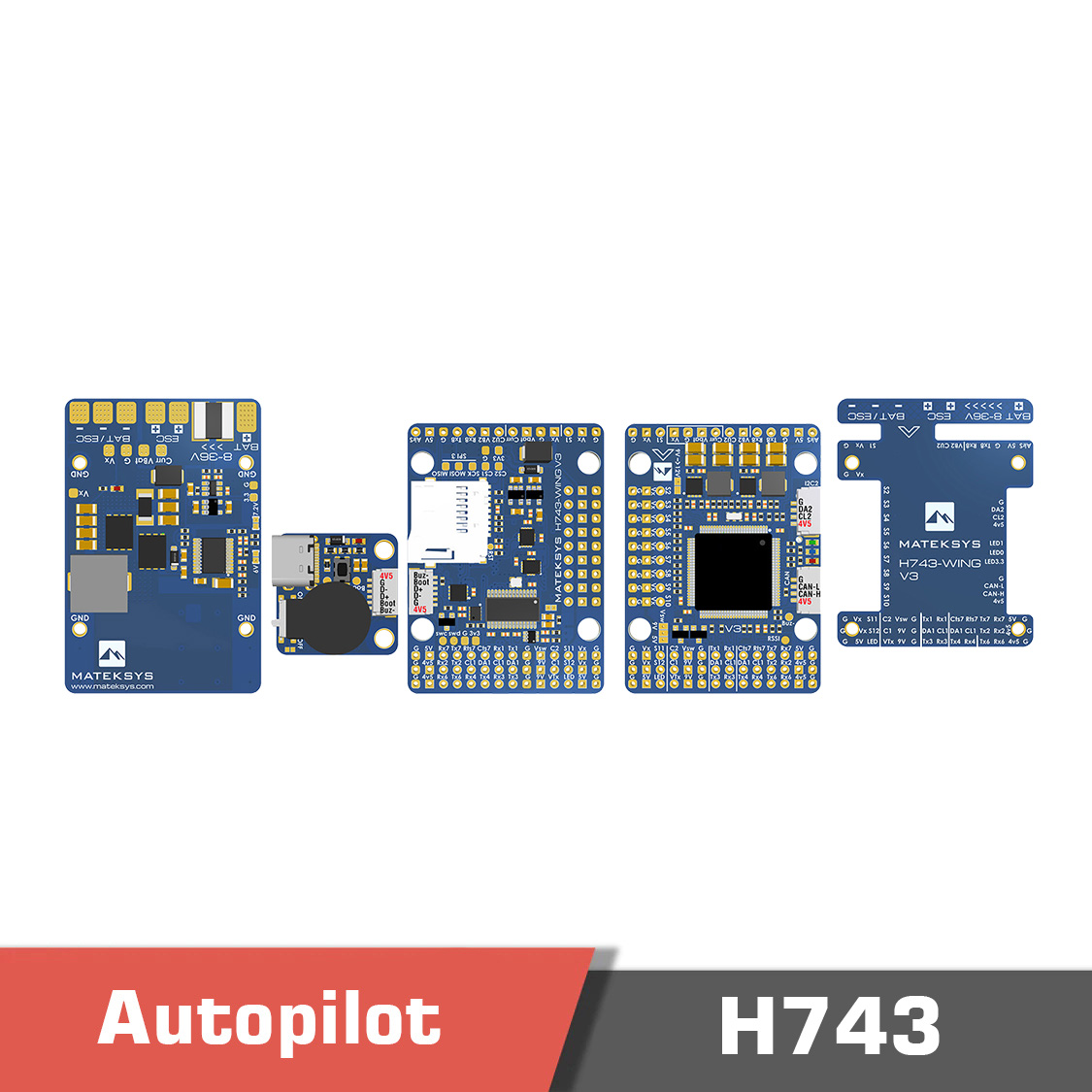

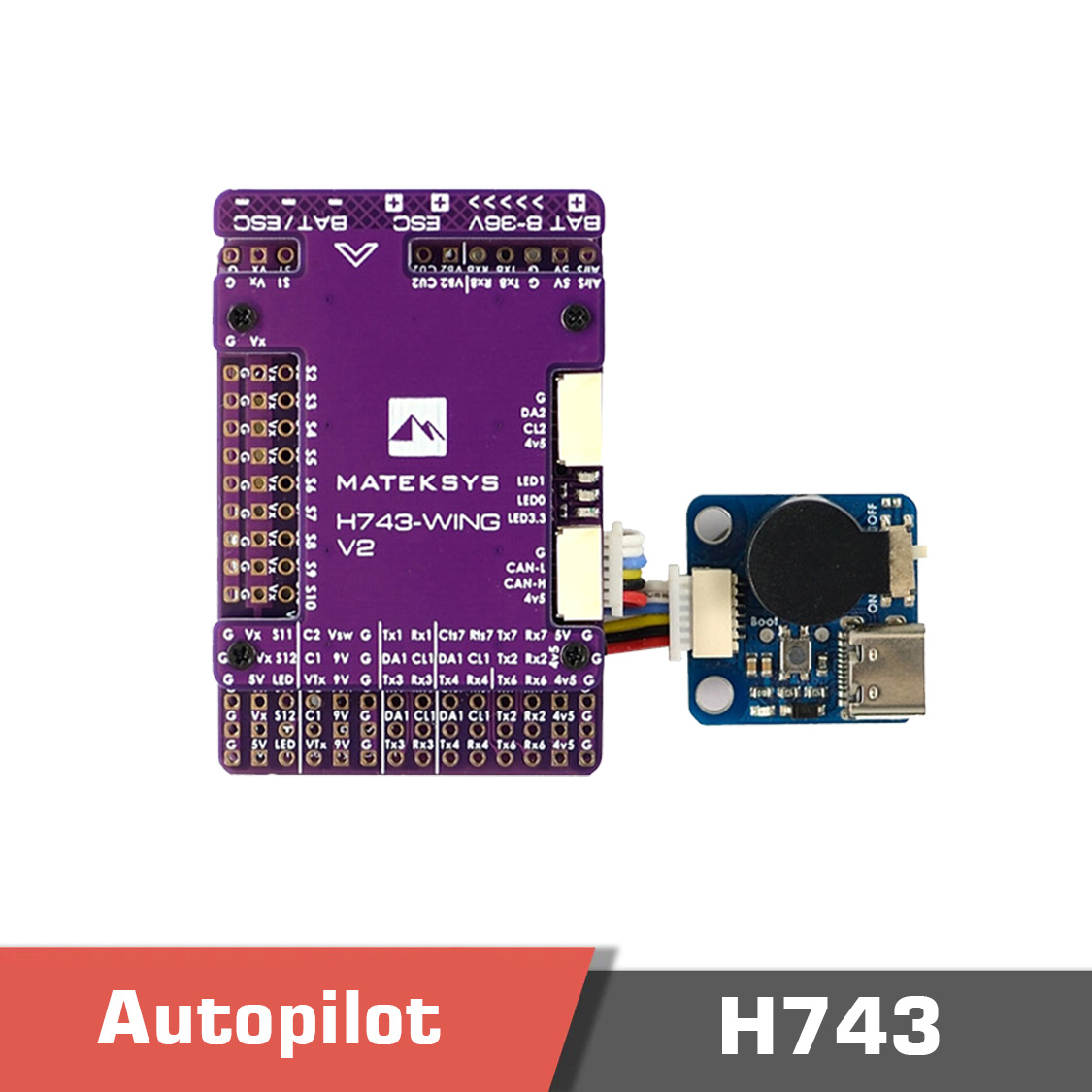

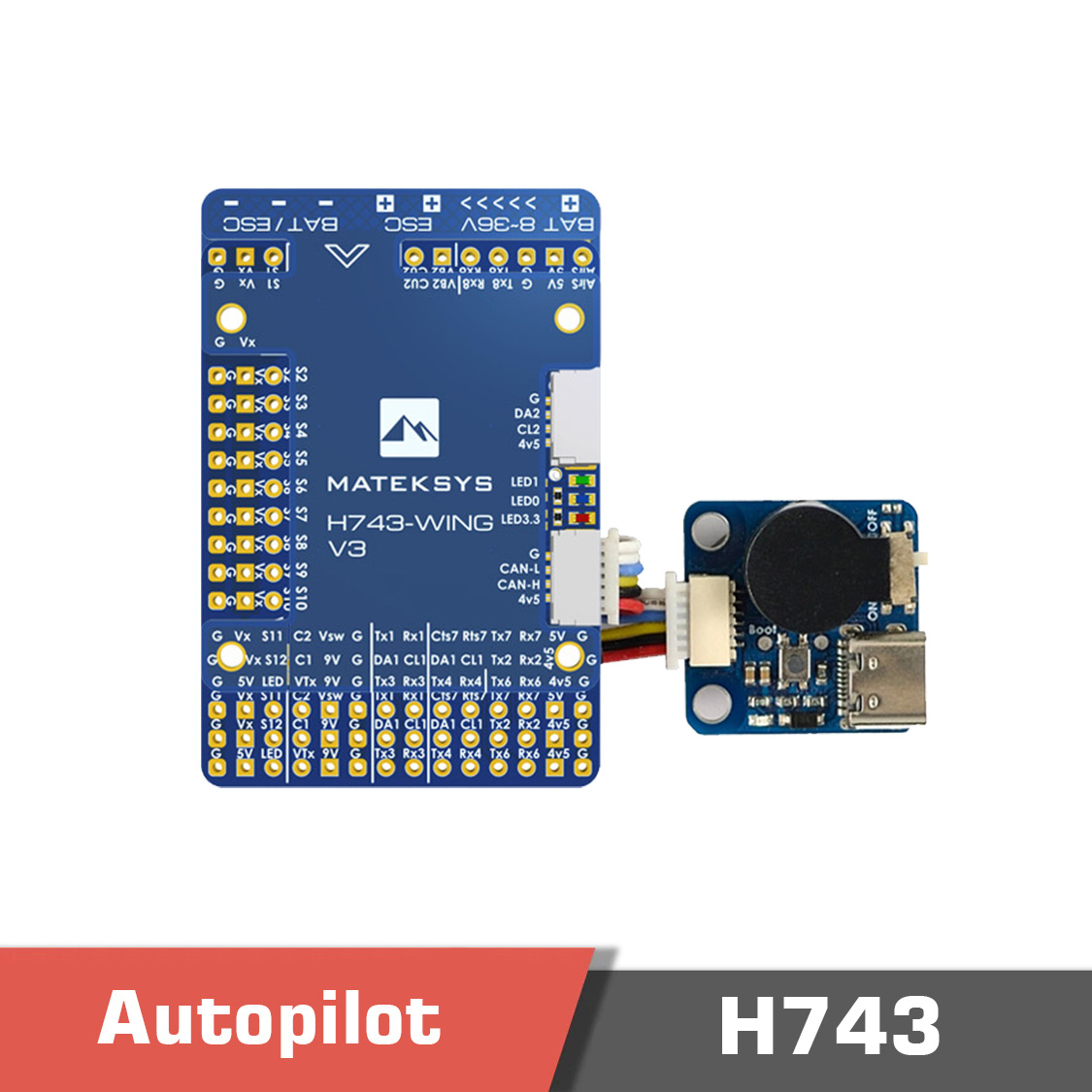

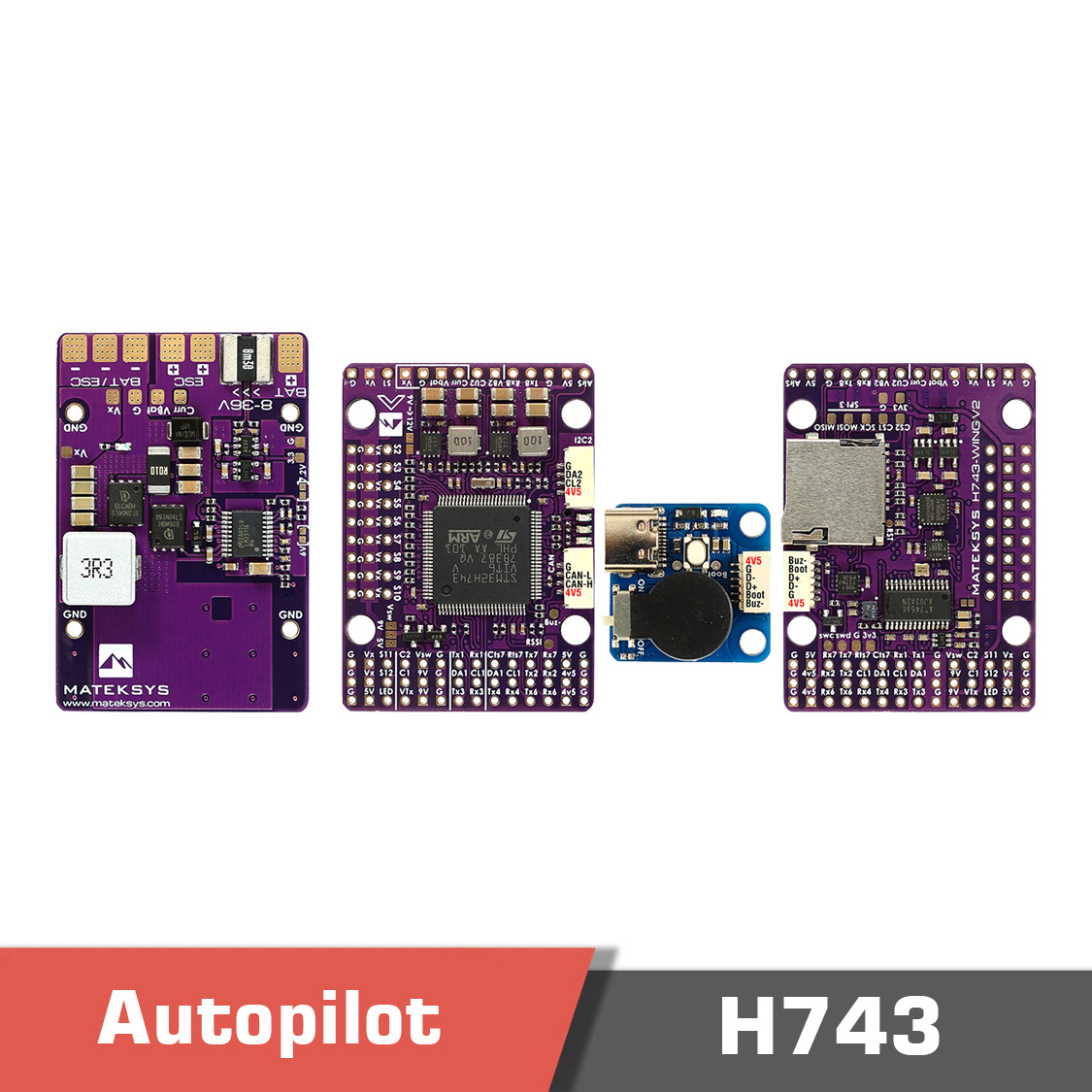

Matek h743 Dual imu sensors matek h743 Flight controller h743. 3 - matek h743 - motionew - 8 Matek h743 layout Matek h743 wiring Matek h743 dimensions
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

FC Specifications

MCU STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash

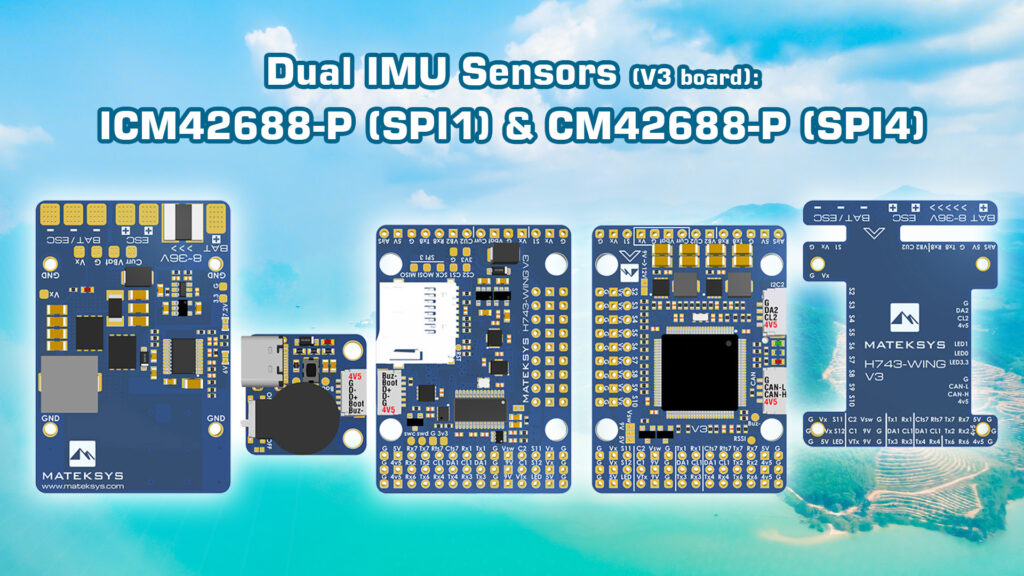

IMU V3:ICM42688-P(SPI1) & ICM42688-P(SPI4)

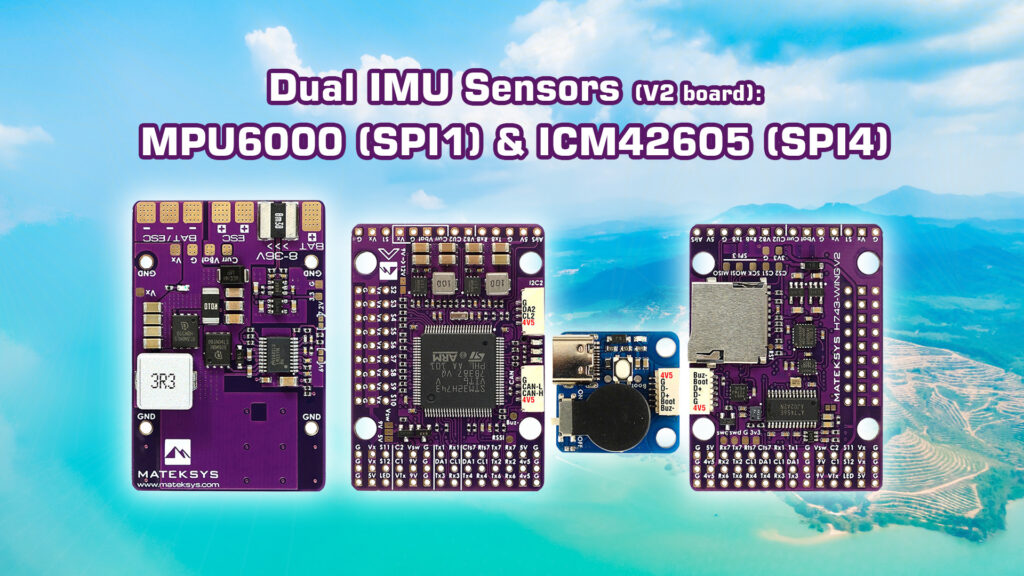

V2:MPU6000(SPI1) & ICM42605(SPI4)
Baro Infineon DPS310 (I2C2)
OSD  AT7456E(SPI2)
Blackbox  MicroSD card slot (SDIO)

FC Firmware

ArduPilot MATEKH743
INAV MATEKH743
peripherals 7x UARTs (1,2,3,4,6,7,8) with built-in inversion

13x PWM outputs (including “LED” pad)

2x I2C

1x CAN

6x ADC (VBAT, , Current, RSSI, Analog AirSpeed, VB2, CU2)

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

1x SPI3 breakout

other options USB/Beep Extender with Type-C(USB2.0)

Dual Camera Inputs switch

5V/9V(12V) for Camera/VTX power switch

High-precision Current Sense (90A continuous, 220A peak)

Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)

ADC VB2 voltage divider: 1K:20K

Static power 160mA@5V

Power

input voltage 8~36V DC IN (3~8S LiPo)
Current Sense? 132A (INAV Scale 250, ArduPilot 40A/V)
PDB/Current sense resistor? 90A continuous, 132A burst
BEC 5V 2A for FC & Peripherals
BEC Vx 8A for servos, 5V/ 6V option
LDO 3.3V 200mA
Battery Voltage Sensor 1k:20k

Physical

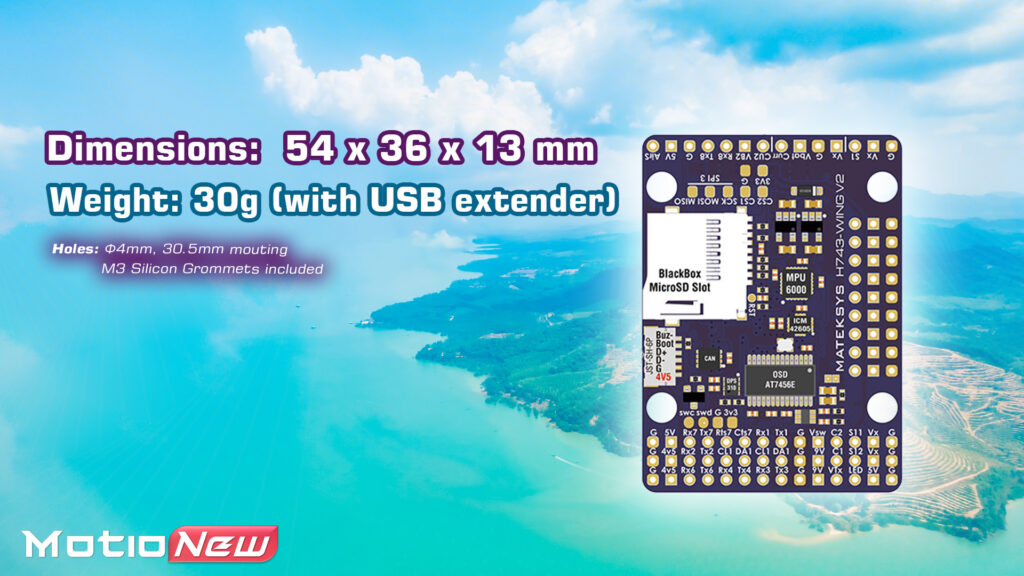

Dimensions 54 x 36 x 13 mm
Mounting Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Weight 30g with USB extender

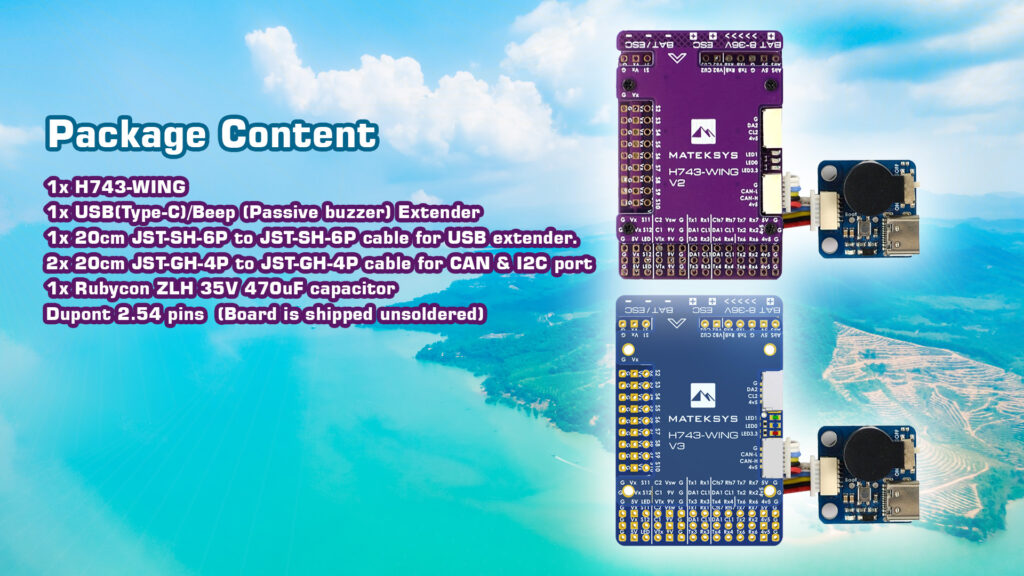

Product contents
