DJI Fpv Goggle V2 Experience Combo

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Price range: 678.35 $ through 1,150.00 $

Cable length

Clear

Message on WhatsApp

Add to compare

Add to wishlist

Payment Methods:

Description

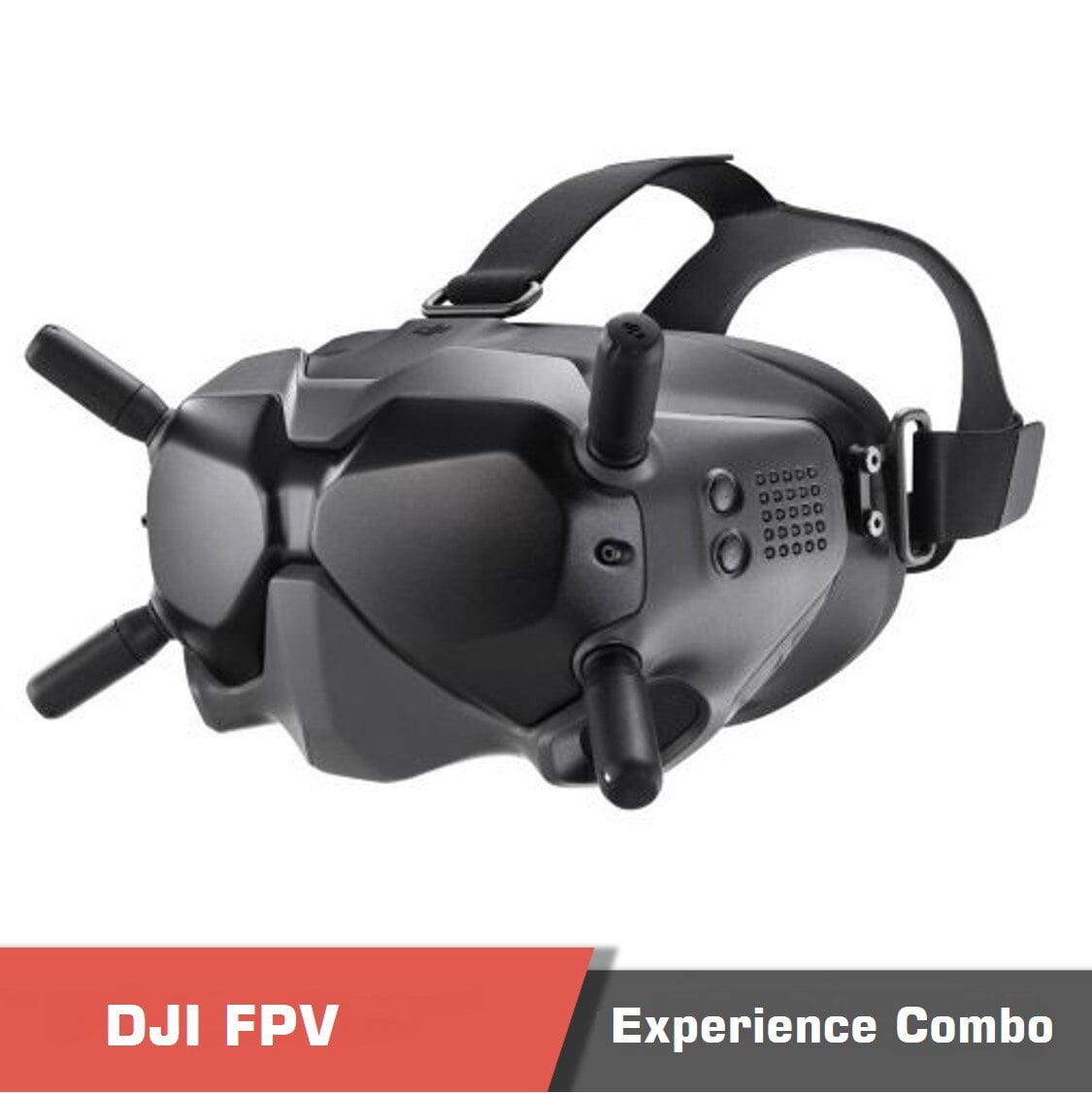

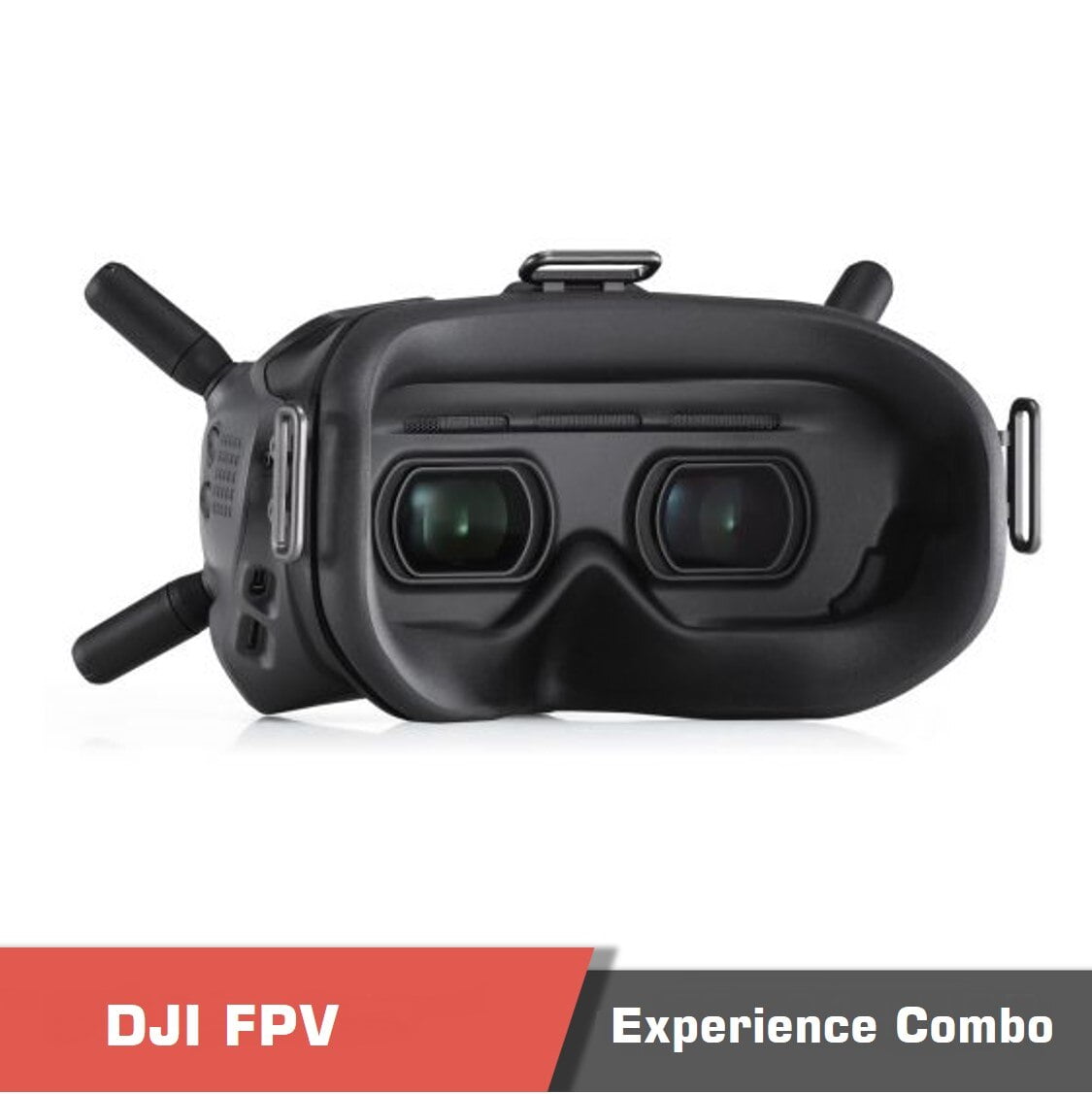

Overview of Fpv Goggle

DJI FPV Goggles Digital HD from DJI are truly one of a kind, both in terms of performance and design. There is no doubt that this goggle has been developed and honed to satisfy the demands of drone pilots (not an easy task). A drone pilot who wants to perform fast movements with the highest level of accuracy needs a system that will respond quickly, have the lowest latency, and show a clear video when using their FPV system. It was a good idea to use analog video for low latency and fast response, but the video did not appear to be very clear during the usage. As contrast, the video was crystal clear and crisp with digital, but there was a noticeable delay that many drone pilots could not live with – plus, the digital HD systems were bulky and cumbersome to attach to the drone and did not solve the problem as well. All of that is changed with DJI’s entry to Digital HD. Crystal clear 720p 120fps video directly to your goggles, with the lowest latency ever before on a digital HD system (28ms)! In addition to that, you will be able to receive maximum transmission distances of up to 4 km thanks to the built-in receiver! No need to spend additional money on an external receiver module. Consult Motionew Online Shop to see the full range of our products.

Tips

It is recommended that you do not expose the goggles to direct sunlight. It is important to note that if you are using these Goggles and the Remote Controller at the same time, you will have to link the air unit and the goggles first, and then link the remote controller to the air unit.

Compatibility

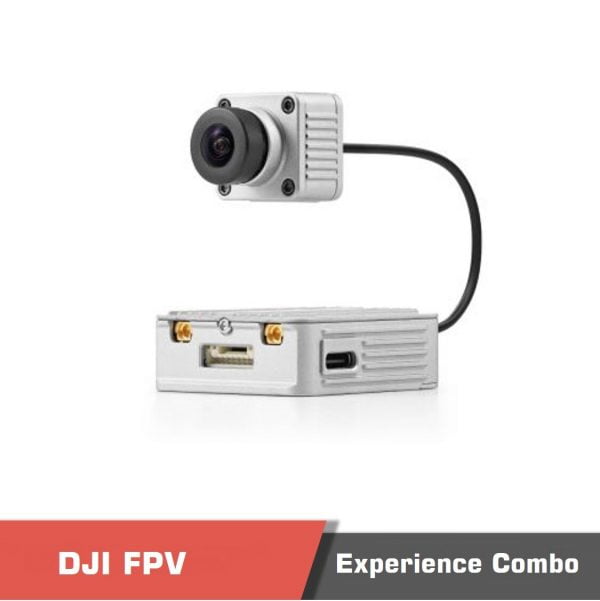

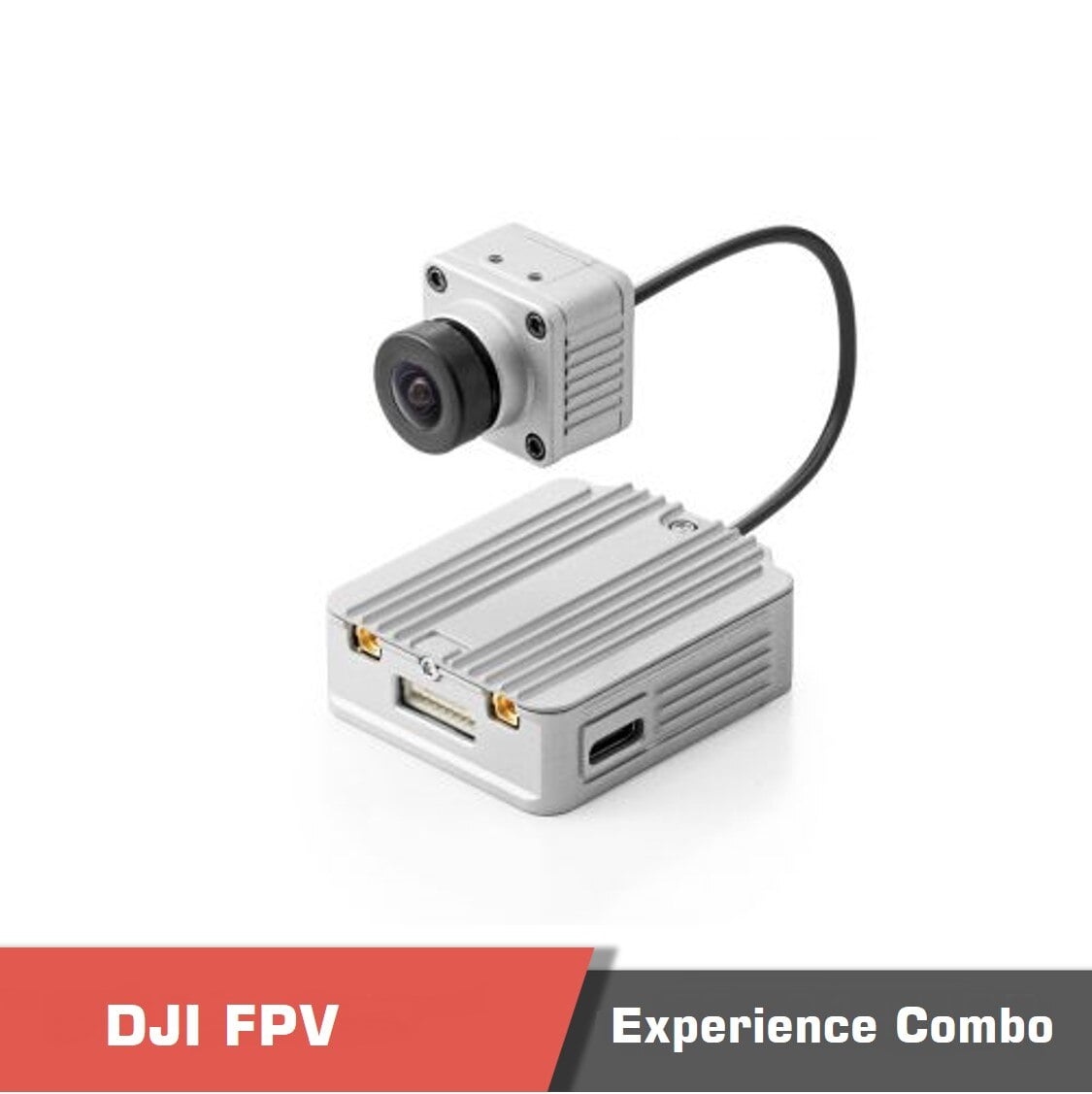

– FPV Air Unit
-FPV Remote Controller

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

FAQ – DJI FPV Goggles V2 Experience Combo

1. What are the key technical features of the DJI FPV Goggles V2?
The goggles include dual 2-inch micro displays with 1440×810 resolution per eye and refresh rates up to 144 Hz. They support both low-latency (810p/120 fps) and high-quality (810p/60 fps) video modes, ensuring smooth and detailed real-time transmission for FPV flying.

2. What are the connectivity and compatibility options?
They operate on 2.4 GHz and 5.8 GHz dual-band frequencies and are compatible with DJI FPV Air Units and Digital FPV Systems. HDMI output and USB-C ports allow video output and firmware updates. They also support analog input with an external module.

3. What are the power and physical specifications?
The unit weighs about 420 g including antennas and headband. It operates with a 7.4 V (2S) 1800 mAh LiPo battery that provides approximately 110 minutes of use. Interpupillary distance is adjustable between 58–70 mm for comfortable viewing.

4. How are the goggles shipped and what are delivery times?
Motionew offers international shipping via DHL, FedEx, and UPS. Orders are typically processed within 2–3 business days, with delivery ranging from 5–10 business days based on stock and location.

5. Is OEM or bulk purchasing available?
Yes. For commercial or enterprise customers, OEM or bulk ordering is available, including options for fleet procurement, integration with customized drone systems, or branded packaging.

6. What documentation and payment options are available?
Each unit includes a user manual, quick start guide, and compliance documentation (CE/FCC). Firmware updates and configuration guides are available digitally. Payment options include PayPal, bank transfer (T/T), and major credit cards.

Specifications

Size: 202 x 126 x 110 mm (antennas included)
Model Number: FPV Experience Combo
Item Type: Communication Converter
Screen Size: 2-inch x 2
Screen Resolution (Single Screen): 1440 x 810
Power Input: 7.4-17.6 V
Weight: Approx. 420 g (headband and antennas included)
Dimensions: 202×126×110 mm (antennas included), 184×122×110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen): 1440 × 810
Screen Renew Rate: 144 Hz
Communication Frequency: 2.400 – 2.4835 GHz*; 5.725-5.850 GHz
*Only supports 5.8Ghz when used with DJI FPV Air Unit
Transmitter Power (EIRP): 2.400 – 2.4835 GHz
FCC/MIC: ≤28.5 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm5.725-5.850 GHz
FCC/MIC: ≤31.5 dBm; CE: ≤14 dBm; SRRC: ≤19 dBm
Live View Mode: Low-Latency Mode (810p 120fps); High-Quality Mode (810p 60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3
Operating Temperature: 32° to 104° F (0° to 40° C)
FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillar Distance Range: 58 -70 mm
Supported Storage Card: microSD cards with storage capacities of up to 256GB.DJI FPV Goggles Battery
Capacity: 1800 mAh
Voltage: 9 V Max
Type: LiPo 2S
Charging Temperature: 0℃ to 45℃
Energy: 18 Wh
Max Charging Power: 10 W
Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)
*Only supports 5.8Ghz when used with DJI FPV Air Unit

Product contents

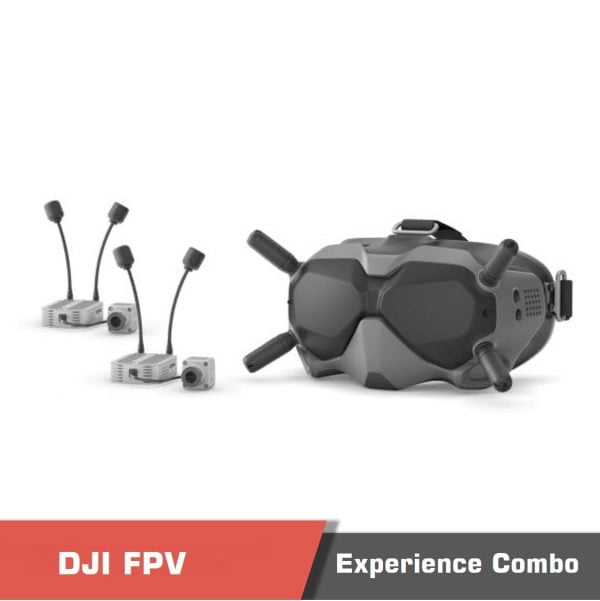

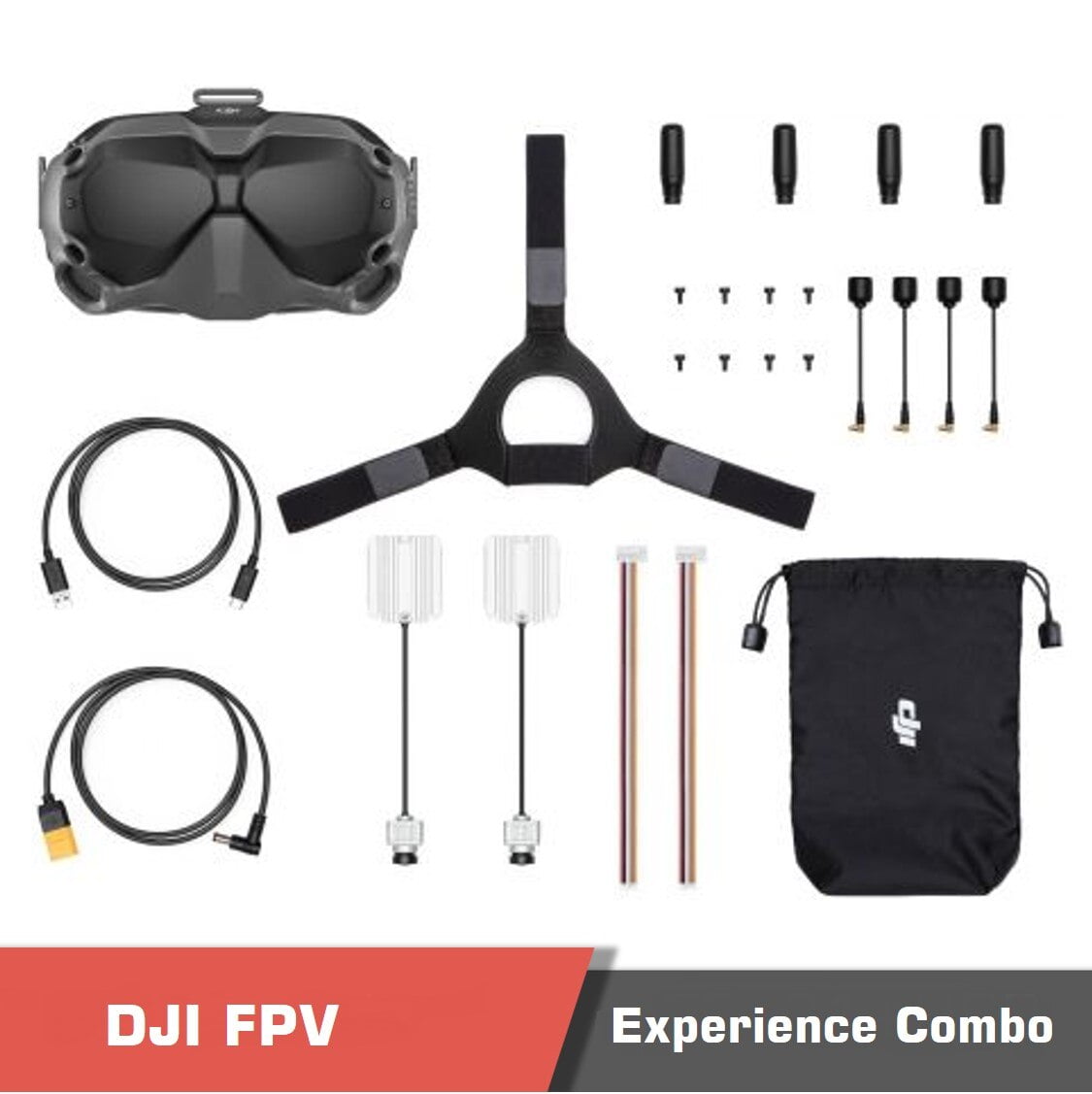

FPV Combo bundle:
Goggles (foam padding included)x 1
Antennas x 4
USB-C Cable x 1
Headband x 1
Sleeve x 1
Power Cable x 1
Air Unit (camera included) x 2
Antenna (MMCX elbow) x 4
3-in-1 Cable x 2
M2.0 Screw x 8

Goggle V2 Only Bundle:

DJI FPV Goggles V2 (inc. foam padding) × 1
DJI FPV Goggles Battery × 1
DJI FPV Goggles Power Cable (USB-C) × 1
DJI FPV Goggles Antenna (Dual Band) × 4
Headband × 1
USB-C cable × 1
Sleeve × 1
