DJI Fpv Goggle V2 Experience Combo

678.35 $1150.00 $



Overview of Fpv Goggle

DJI FPV Goggles Digital HD from DJI are truly one of a kind, both in terms of performance and design. There is no doubt that this goggle has been developed and honed to satisfy the demands of drone pilots (not an easy task). A drone pilot who wants to perform fast movements with the highest level of accuracy needs a system that will respond quickly, have the lowest latency, and show a clear video when using their FPV system. It was a good idea to use analog video for low latency and fast response, but the video did not appear to be very clear during the usage. As contrast, the video was crystal clear and crisp with digital, but there was a noticeable delay that many drone pilots could not live with – plus, the digital HD systems were bulky and cumbersome to attach to the drone and did not solve the problem as well. All of that is changed with DJI’s entry to Digital HD. Crystal clear 720p 120fps video directly to your goggles, with the lowest latency ever before on a digital HD system (28ms)! In addition to that, you will be able to receive maximum transmission distances of up to 4 km thanks to the built-in receiver! No need to spend additional money on an external receiver module. Consult Motionew Online Shop to see the full range of our products.


It is recommended that you do not expose the goggles to direct sunlight. It is important to note that if you are using these Goggles and the Remote Controller at the same time, you will have to link the air unit and the goggles first, and then link the remote controller to the air unit.

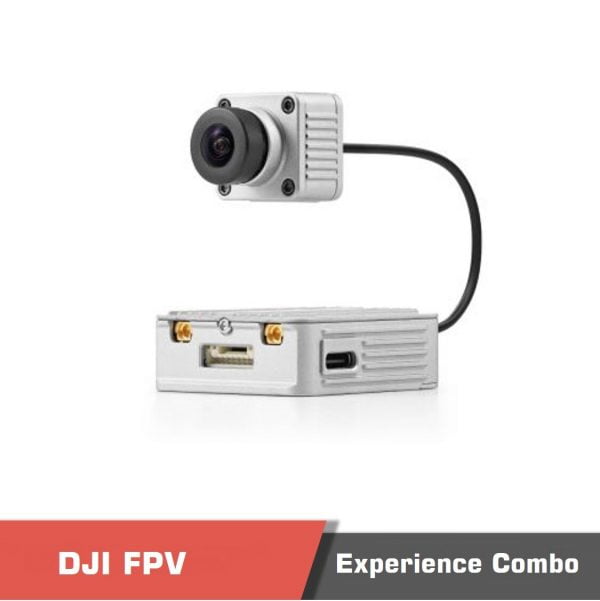

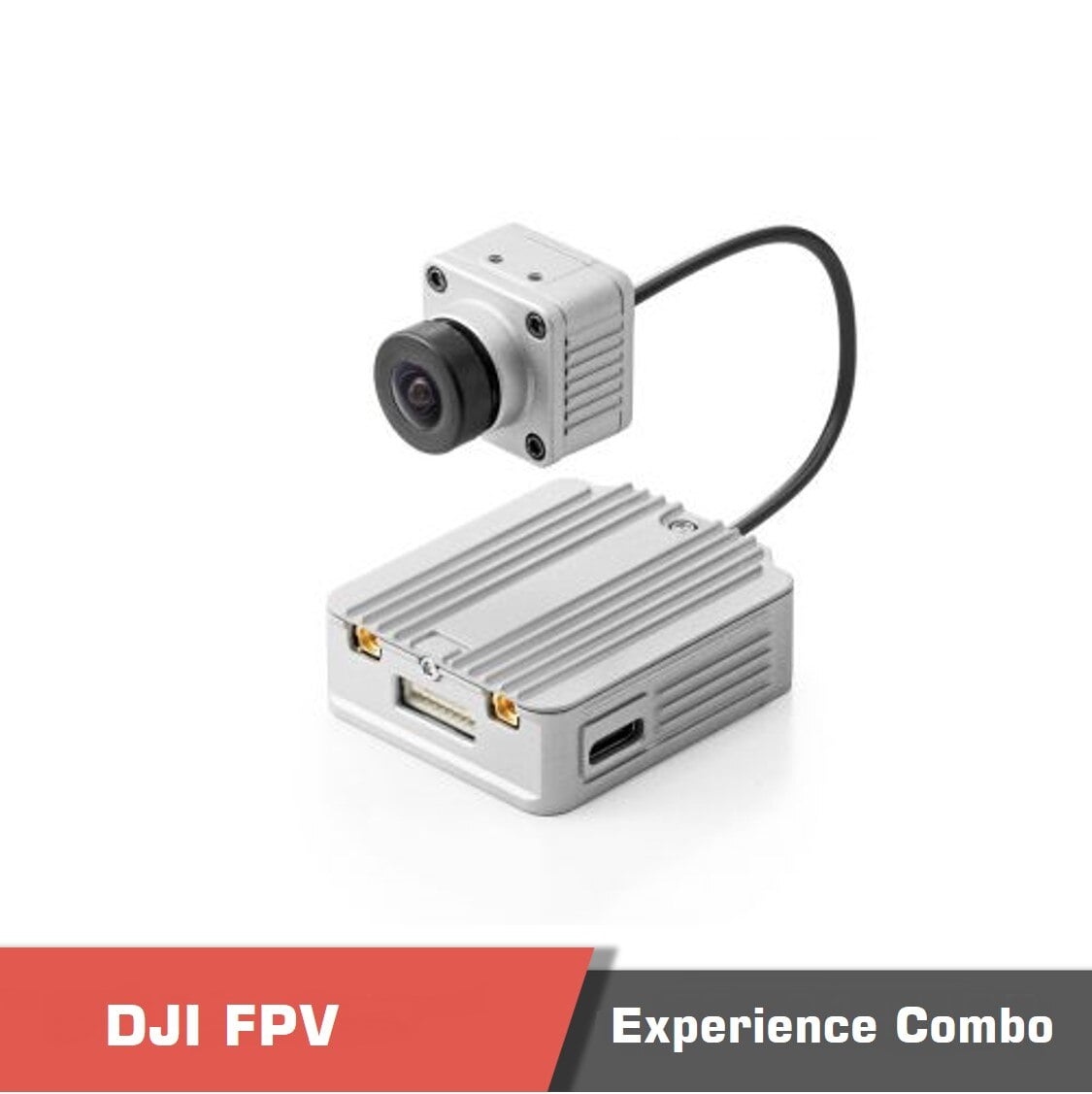

– FPV Air Unit
-FPV Remote Controller


If you have any questions regarding our products, use the Motionew team of experts page to consult our engineering team.

Additional information

Weight 0.5 kg


  • Size: 202 x 126 x 110 mm (antennas included)
  • Model Number: FPV Experience Combo
  • Item Type: Communication Converter
  • Screen Size: 2-inch x 2
  • Screen Resolution (Single Screen): 1440 x 810
  • Power Input: 7.4-17.6 V
  • Weight: Approx. 420 g (headband and antennas included)
  • Dimensions: 202×126×110 mm (antennas included), 184×122×110 mm (antennas excluded)
  • Screen Size: 2-inch × 2
  • Screen Resolution (Single Screen): 1440 × 810
  • Screen Renew Rate: 144 Hz
  • Communication Frequency: 2.400 – 2.4835 GHz*; 5.725-5.850 GHz
  • *Only supports 5.8Ghz when used with DJI FPV Air Unit
  • Transmitter Power (EIRP): 2.400 – 2.4835 GHz
  • FCC/MIC: ≤28.5 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm5.725-5.850 GHz
  • FCC/MIC: ≤31.5 dBm; CE: ≤14 dBm; SRRC: ≤19 dBm
  • Live View Mode: Low-Latency Mode (810p 120fps); High-Quality Mode (810p 60fps)
  • Video Format: MP4 (Video format: H.264)
  • Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3
  • Operating Temperature: 32° to 104° F (0° to 40° C)
  • FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
  • Interpupillar Distance Range: 58 -70 mm
  • Supported Storage Card: microSD cards with storage capacities of up to 256GB.DJI FPV Goggles Battery
  • Capacity: 1800 mAh
  • Voltage: 9 V Max
  • Type: LiPo 2S
  • Charging Temperature: 0℃ to 45℃
  • Energy: 18 Wh
  • Max Charging Power: 10 W
  • Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)
  • *Only supports 5.8Ghz when used with DJI FPV Air Unit

Product contents

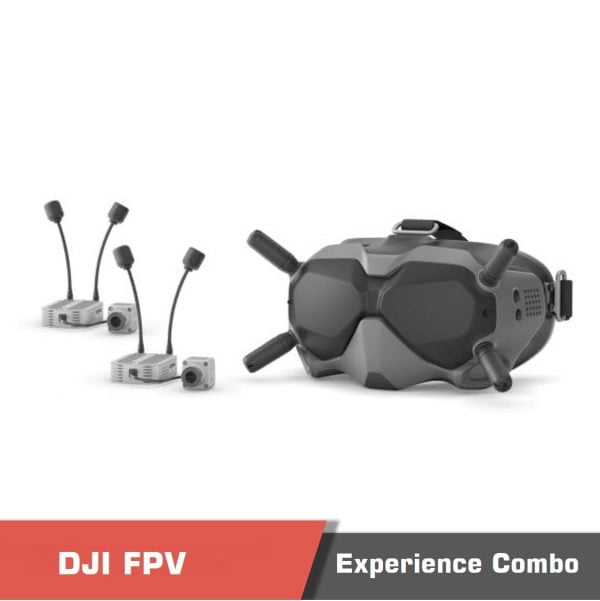

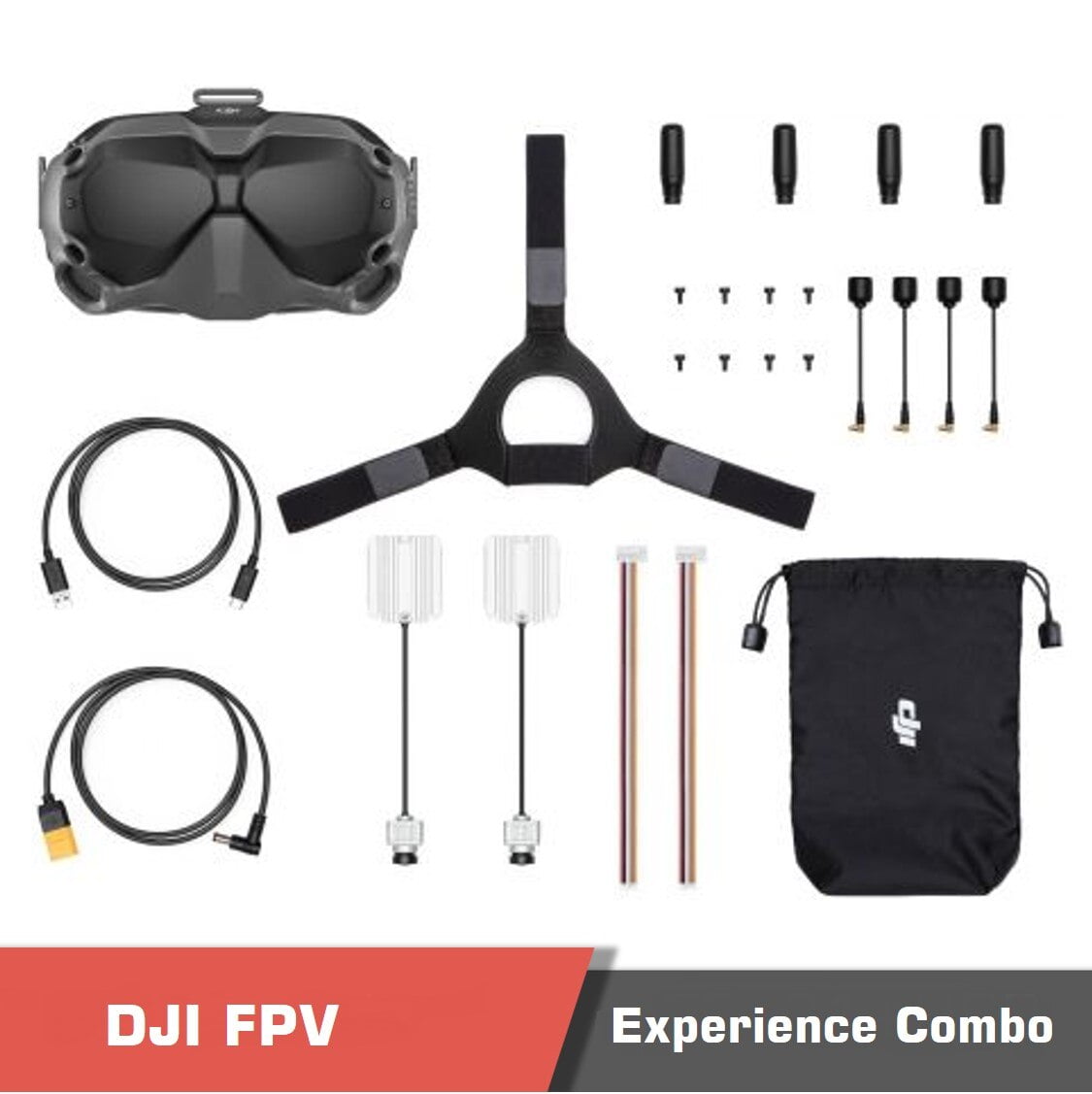

FPV Combo bundle:
Goggles (foam padding included)x 1
Antennas x 4
USB-C Cable x 1
Headband x 1
Sleeve x 1
Power Cable x 1
Air Unit (camera included) x 2
Antenna (MMCX elbow) x 4
3-in-1 Cable x 2
M2.0 Screw x 8

Goggle V2 Only Bundle:

DJI FPV Goggles V2 (inc. foam padding) × 1
DJI FPV Goggles Battery × 1
DJI FPV Goggles Power Cable (USB-C) × 1
DJI FPV Goggles Antenna (Dual Band) × 4
Headband × 1
USB-C cable × 1
Sleeve × 1


Please contact us for more information.
