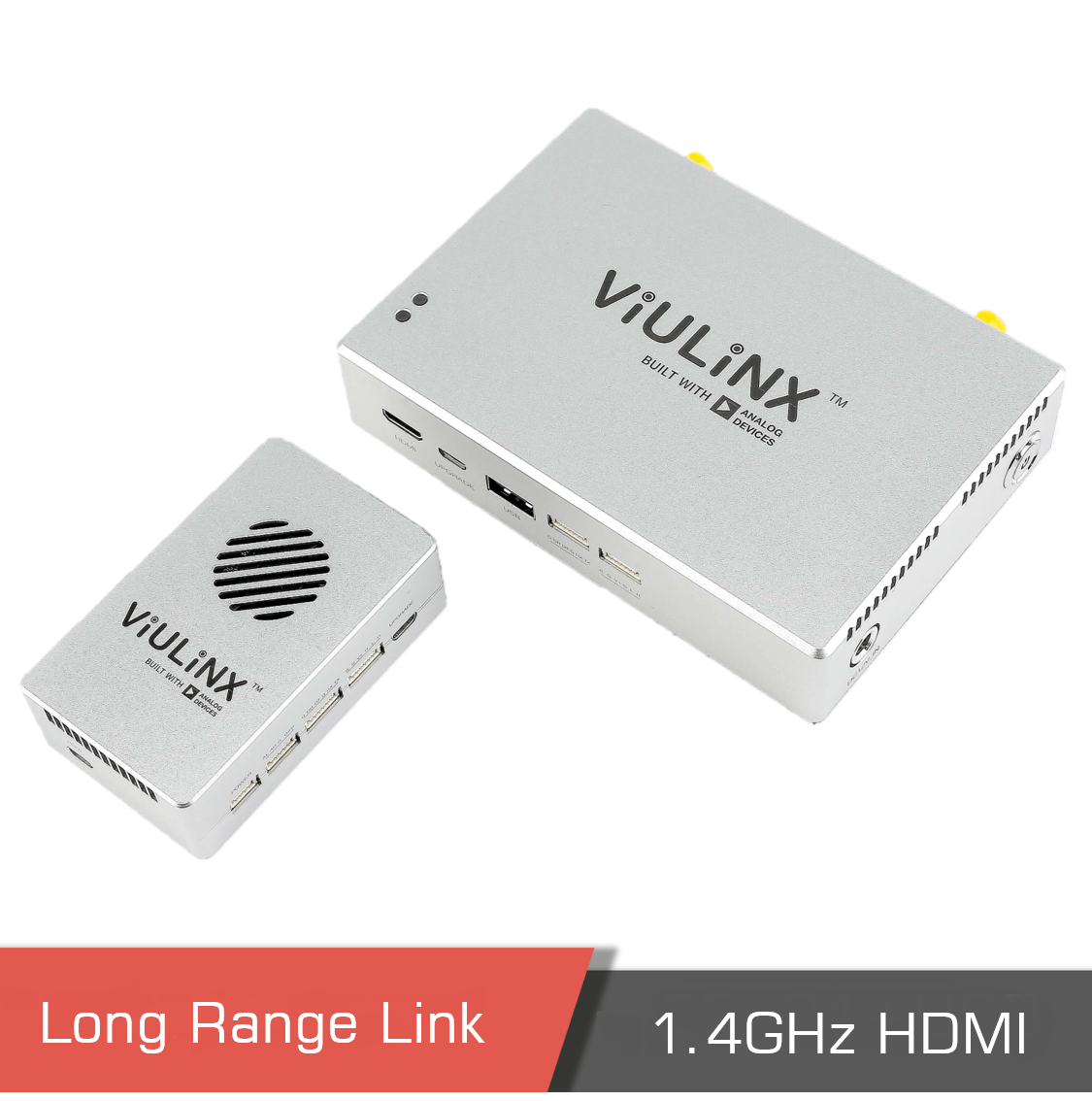

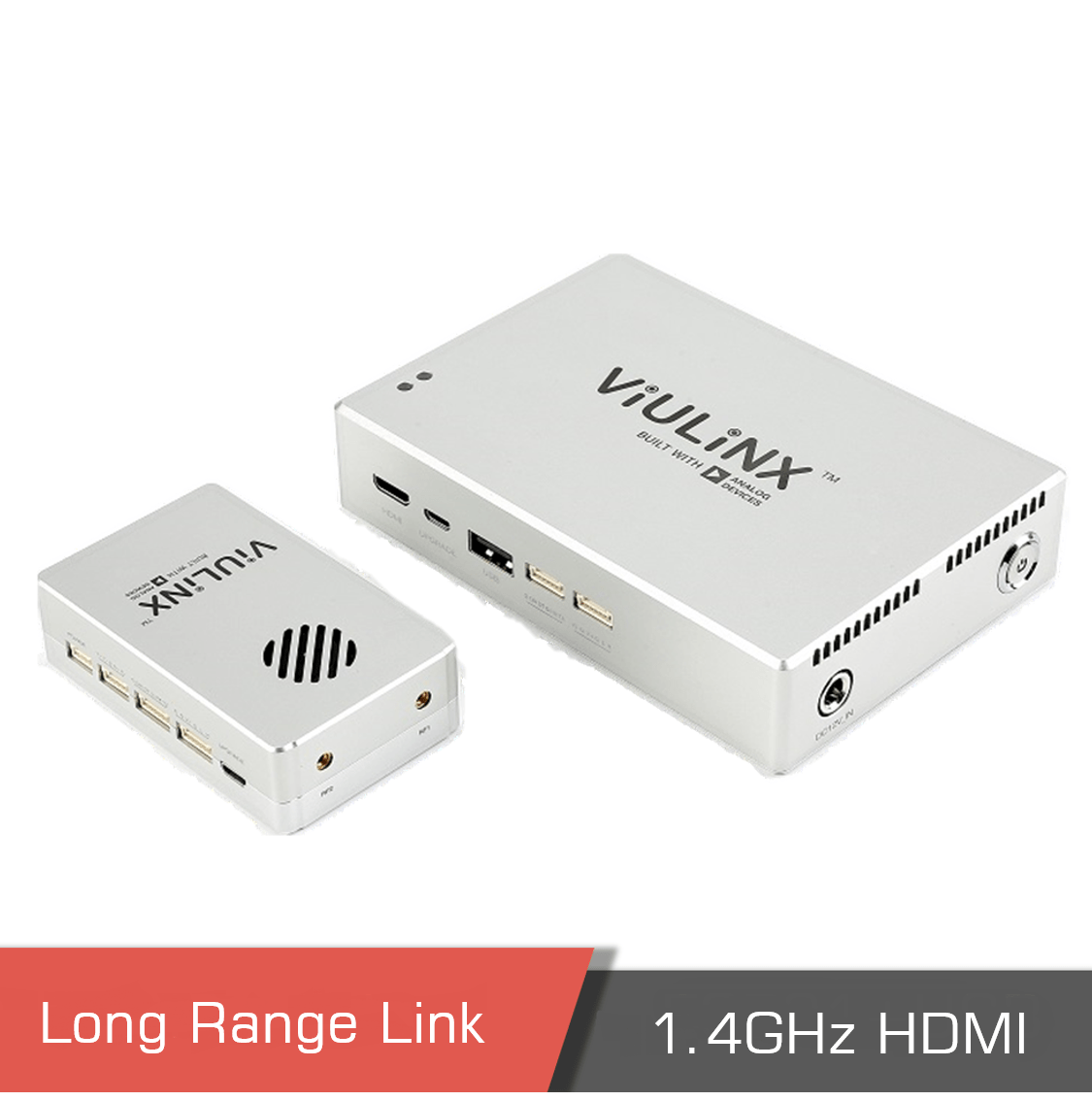

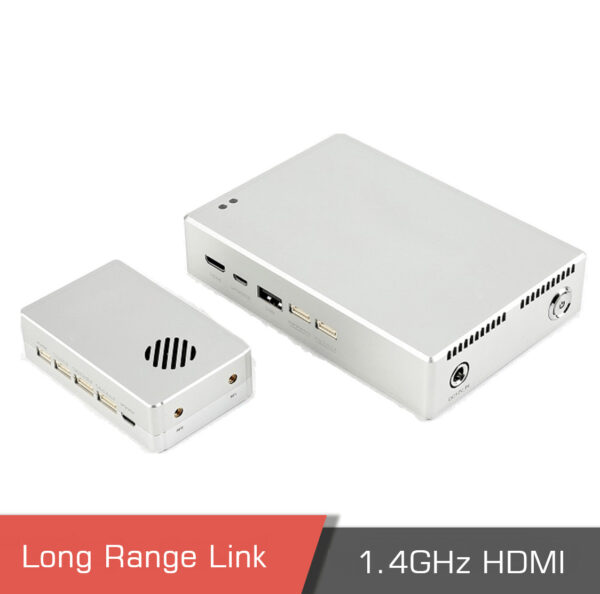

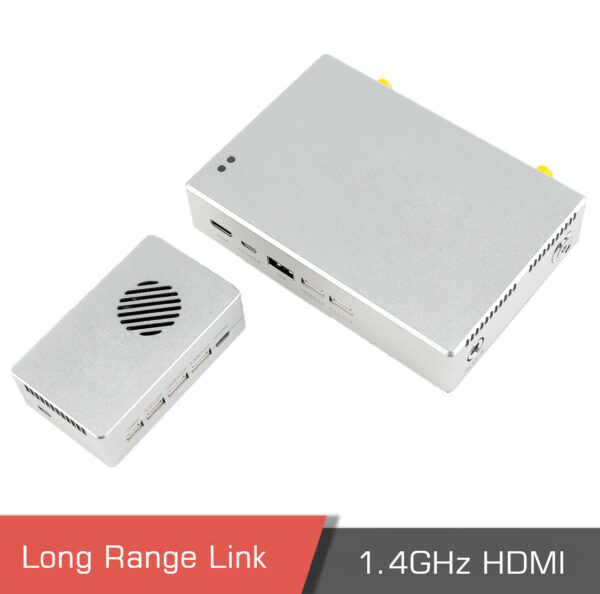

ViuLinx 1.4GHz Long Range HD Digital Wireless Link

3000.98 $

PayPal
Visa
Master

Description

Overview of ViuLinx 1.4GHz (Long Range Data Link)

As a result of its design and development, the Viulinx Digital HD data and video transmission system is based using the Xilinx FPGA series as well as the Analog Device transceiver model AD936x which has a long range line of sight for a set-up of 3G at 1.4GHz @ 26dBm power coupled with no interference. There are a number of opportunities for both datalink drone users and the drone itself to have live video and data streaming at high quality and the controllable downlink uplink throughput is 2.3Mbps*15.3Mbps (10MHz bandwidth) and the uplink throughput is 115200bps (2.5MHz bandwidth). If you want to have access to the video being sent from the air unit, you can either connect it via HDMI port on the ground unit or connect it directly to a monitor to have live streaming of video. It is possible to capture any data coming from the air unit (both video and telemetry), and this can be done using the ground station software that is available on the market, including QGroundControl and MissionPlanner. You can expand the range of your radio controller long range by connecting the SBUS or PPM output to it. Though it’s really dependent on your input video device, ViuLinx adds less than 200ms, which is one of the best options available.

This fpv video transmitter is designed to be compact and reliable, and it is based on the chips manufactured by Analog Devices and Xilinx, two of the major chip manufacturers in the industry. Everything is packed inside a compact package of size 77.8*47.3*23.5mm on your drone and weighs no more than 97g, which is excellent. Meanwhile, this small package includes all of the features that come with flying your drone: Telemetry, Image, and Radio Control. There are many opensource flight controllers compatible with it, such as Pixhawk, APM, BetaFlight, etc. The air and ground units can be powered on using a 12V DC input (or equivalently a 3-cell Li-Po or Li-ion battery). Using a micro HDMI connector, you can feed your camera’s input video to the air unit. You can connect your flight controller directly to the Telemetry and RC ports.

It is possible to receive data on the ground in a number of ways. It is recommended that you use a mini HDMI port for video and a telemetry port for data (which should be connected to your PCP using a USB to TTL converter if you have a very large ground station system). It is so convenient and portable if you don’t want a heavy setup. By connecting the ground unit to your tablet via the USB port, and installing QGroundControl, you will be able to stream Video and Telemetry data to your tablet. You can now control and monitor your drone with ease. Consult Motionew Online Shop to see the full range of our products. Moreover, if you are interested in long range wireless video link you can visit the video and data link page.

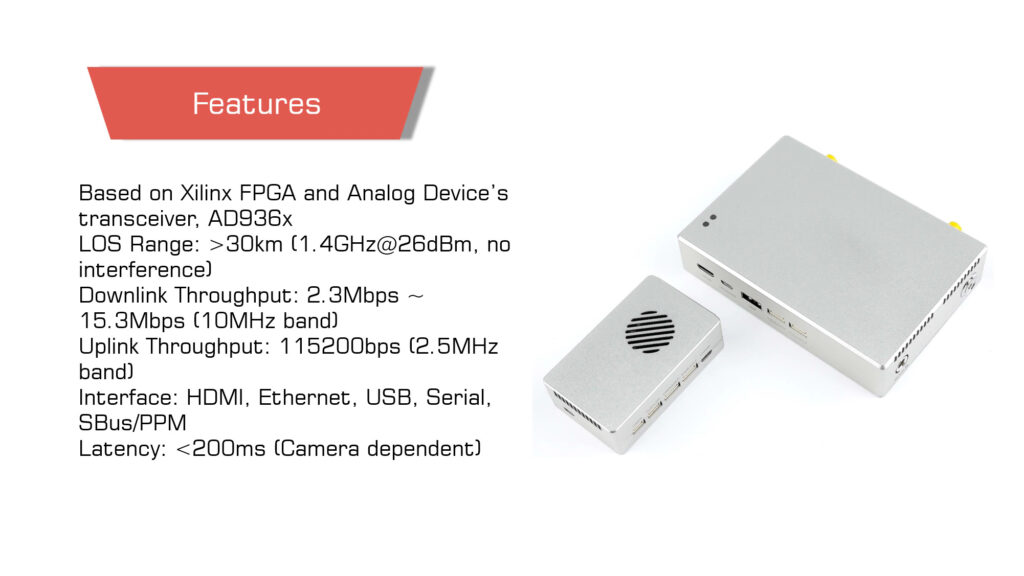

ViuLinx 1.4GHz Features



Viulinx digital hd wireless lr5 - viulinx - motionew - 6 Viulinx 1. 4ghz long range 30km

ViuLinx 1.4GHz Connections

Viulinx 1. 4ghz long range 30km

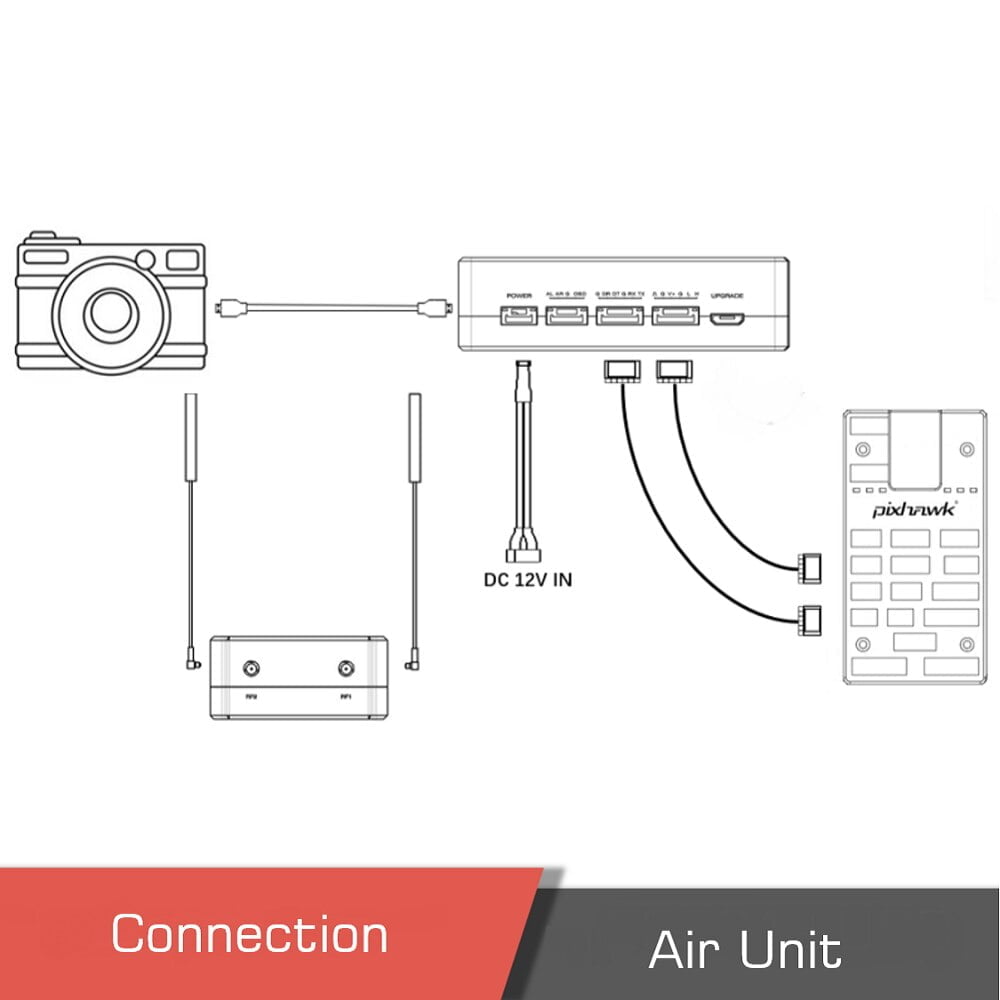

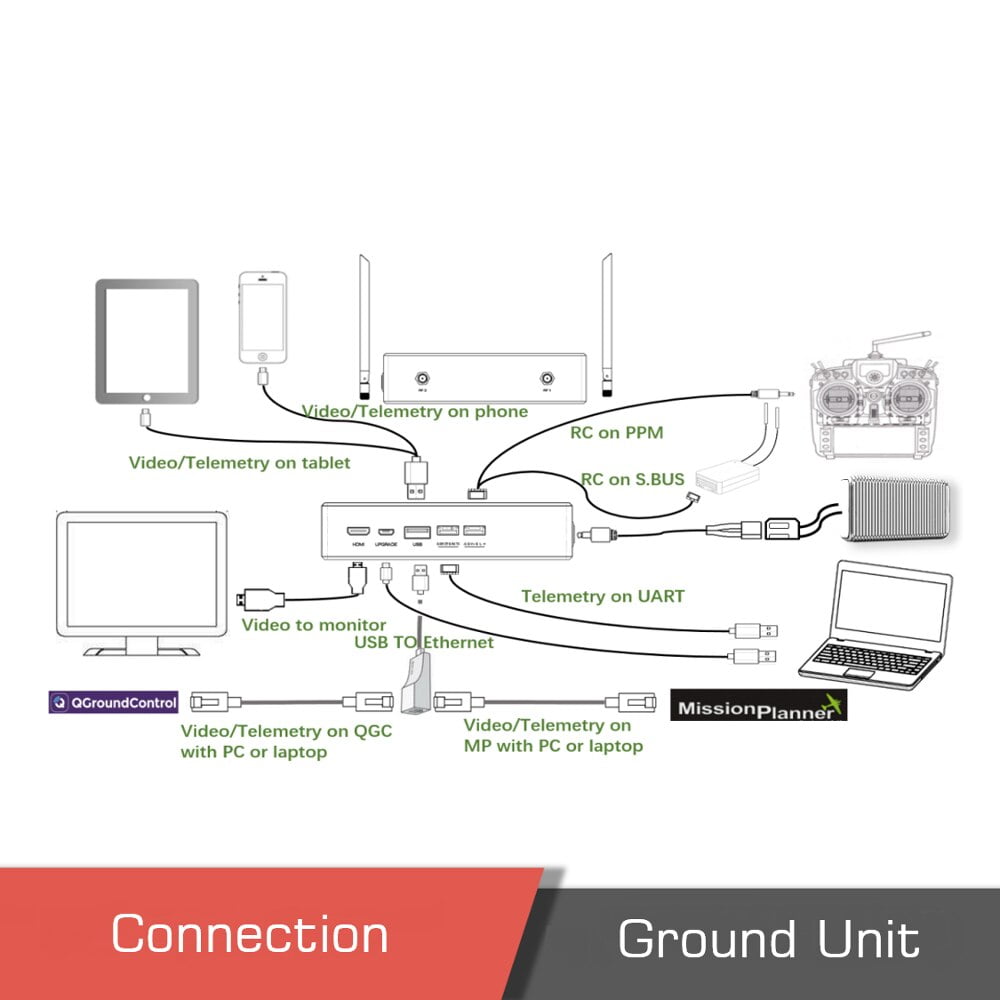

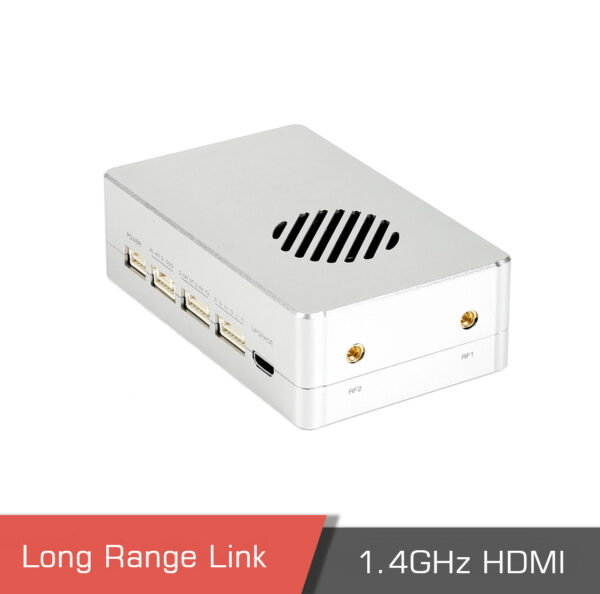

ViuLinx 1.4GHz Air Unit Connections

Viulinx 1. 4ghz long range 30km

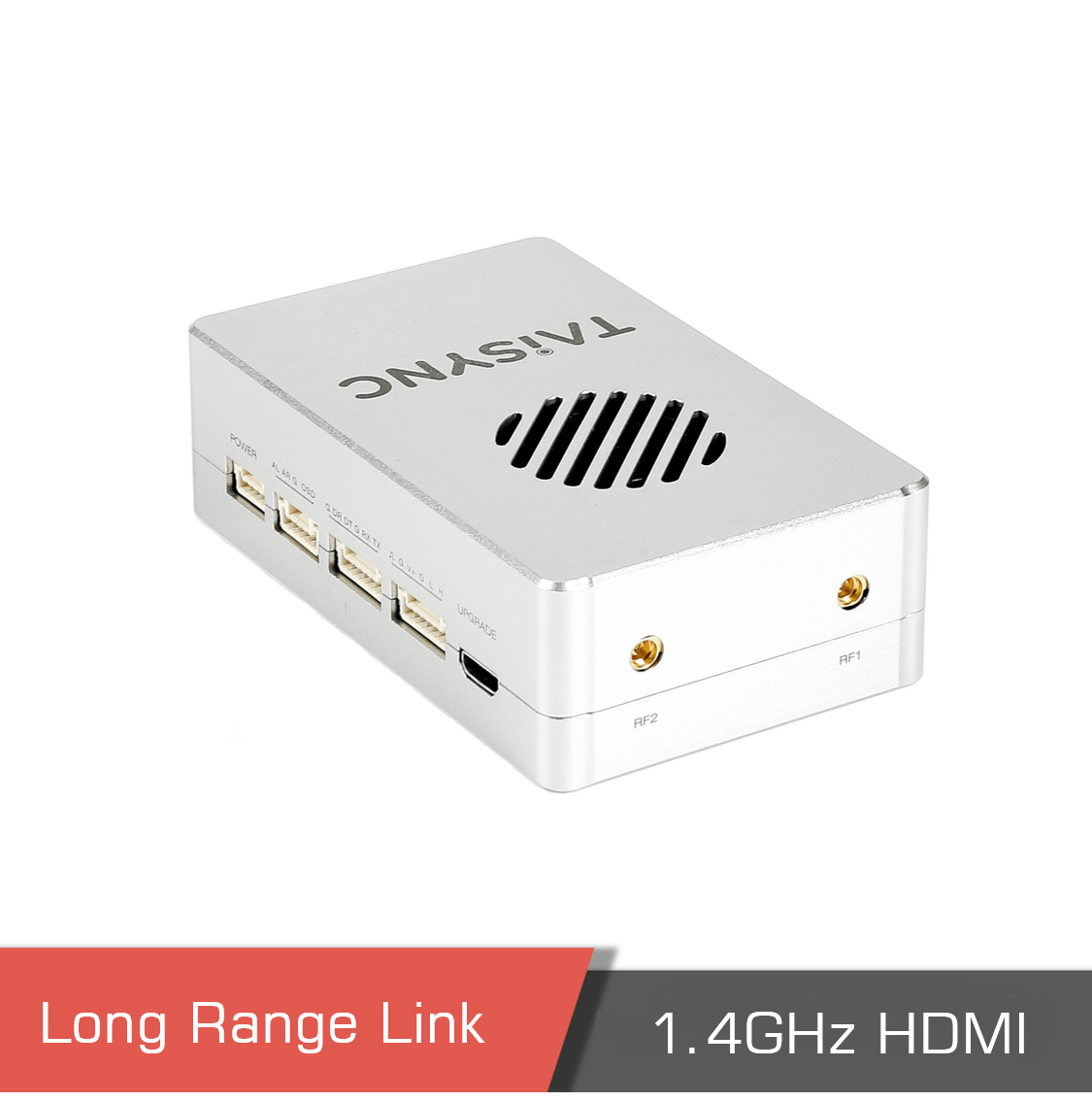

Taisync Viulinx Features

Viulinx 1. 4ghz long range 30km

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 10 kg
Dimensions 100 × 50 × 10 cm

Specifications

Air Unit Weight 97g
Air Unit Dimension 77.8×47.3×23.5mm
Ground Unit Dimension 130x90x28.5mm
Viulinx is build on Xilinx FPGA and Analog Device’s transceiver, AD936x
Frequency 1.4GHz
Bandwidth 2.5MHz (uplink), 10MHz(downlink)
Max. Tx Power 27dBm (FCC), 20dBm (CE)
Video Compression H.264/H.265
Video Format HDMI(480P@60fps 720P@50fps 720P@60fps 1080P@50fps 1080P@60fps)
Modulation OFDM
Constellation BPSK, QPSK, 16QAM
FEC LDPC (1/2, 2/3, 3/4,5/6)
Duplex TDD
Downlink Throughput 2.3Mbps ~ 12Mbps
Uplink Throughput 115kbps
Interface HDMI, USB, Serial, SBus/PPM
Latency <300ms (Camera dependent)
Operation Voltage 7V~16V
Certification FCC/CE/GITEKI
Dimension 130X90X28.5mm (Ground unit) , 77.8X47.3X23.5mm (Air unit)
Weight 97g(air unit)
Rated voltage/current DC12V/1.2A (or 3S lithium battery)
Working temperature -30°C ~55°C
