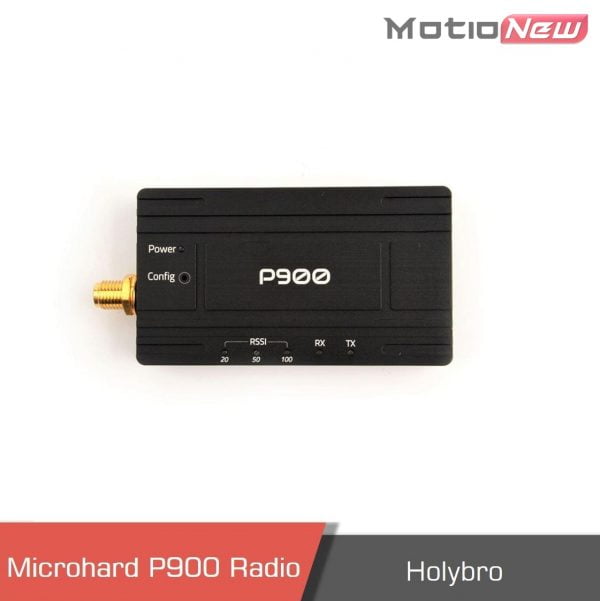

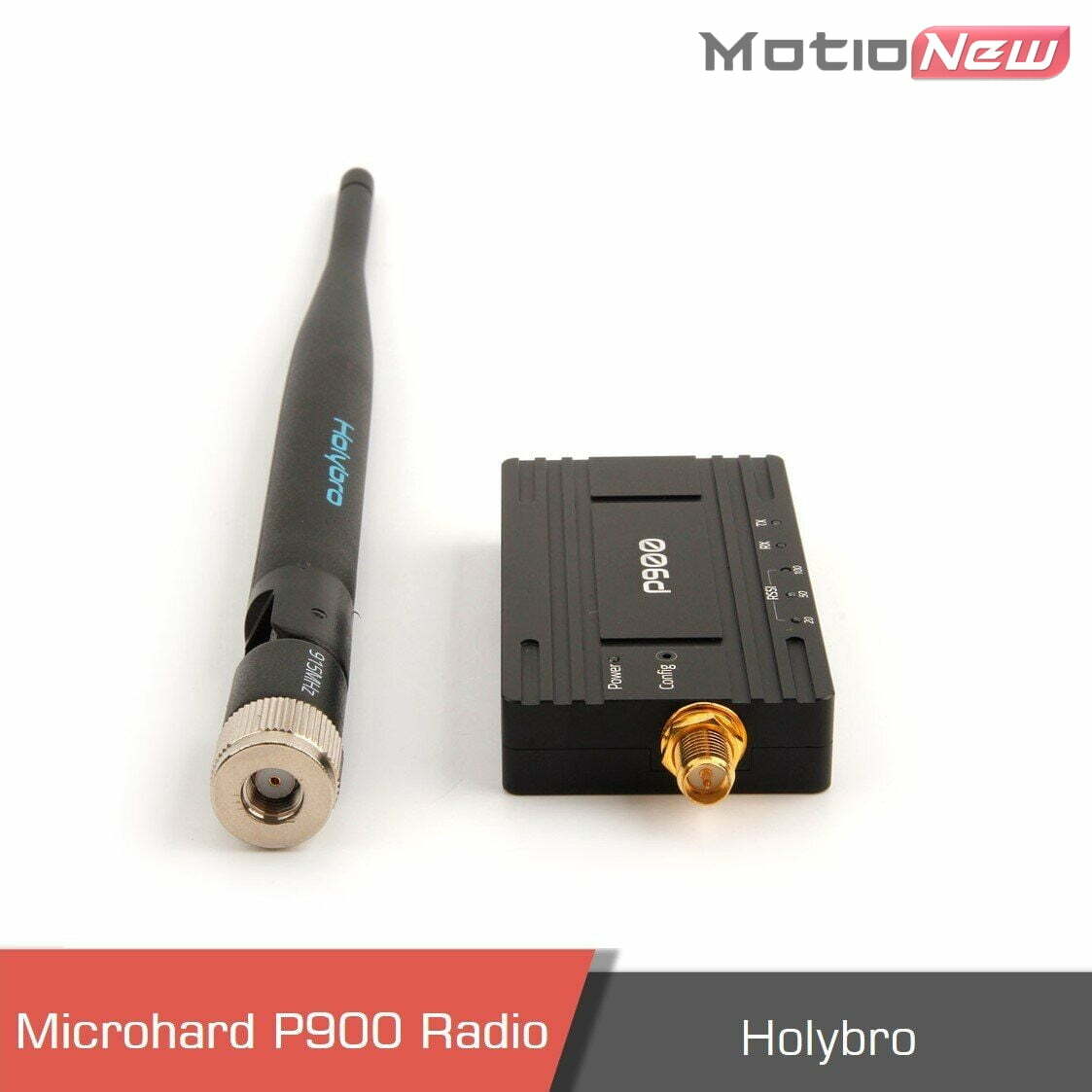

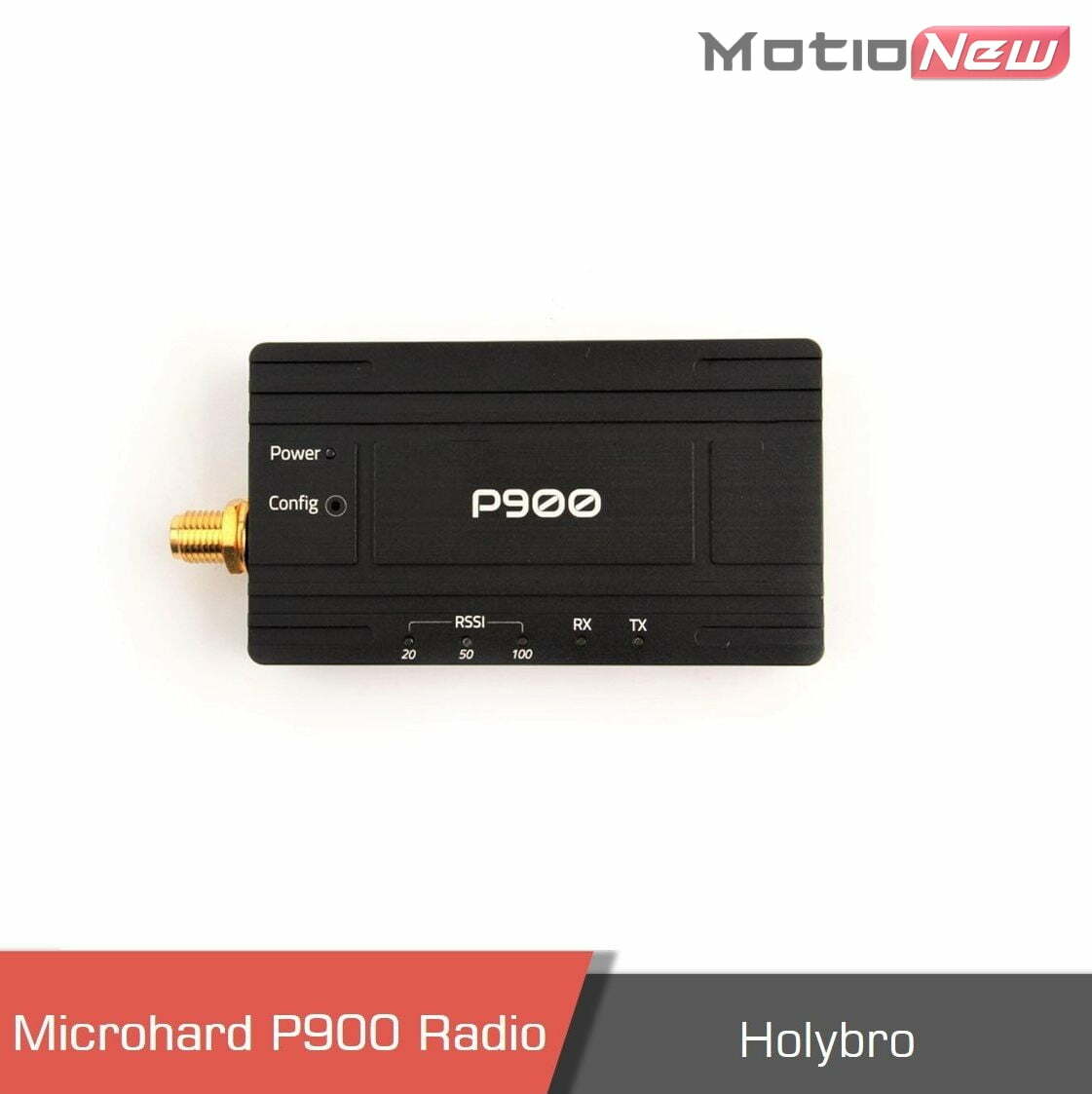

Holybro P900 Radio Module 900MHz

Holybro P900 Radio integrates microhard Pico Series P900 RF module which is capable of delivering high-performance wireless serial communications in robust and secure Mesh, Point to Point or Point to Multipoint topologies. P900 Radio operate within the 902-928 MHz ISM frequency band, using frequency hopping spread spectrum (FHSS) technology, providing reliable wireless asynchronous data transfer between most equipment types which employ a serial interface. P900 Radio may be configured as a Primary Coordinator, Secondary Coordinator, Standby Coordinator or Remote in a Mesh Topology, or a Master, Repeater or Remote in a PP or PMP Topology. This versatility is very convenient for the user. P900 Radio is configured using AT commands through the Data port or using PicoConfig application through the Diagnostic Port. Consult Motionew Online Shop to see the full range of our products.

Features

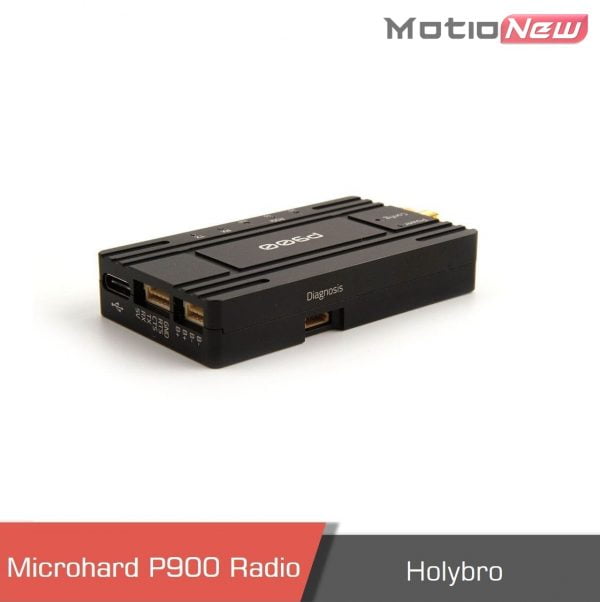

–USB Type-C port, integrated USB to UART converter
–6-position JST-GH connector, can be directly connected to the TELEM port on various flight controller such as the pixhawk 4
–High voltage BEC onboard, Support DC7~35V voltage supply
–UART transmission LED indicator
–Three-stage RSSI LED indicator
–Transmission within a public, license-exempt band of the radio spectrum
–Transparent, low latency link rates up to 276 kbps
–Supports a robust true Mesh operation with auto-routing
–32 bits of CRC, selectable retransmission and forward error correction

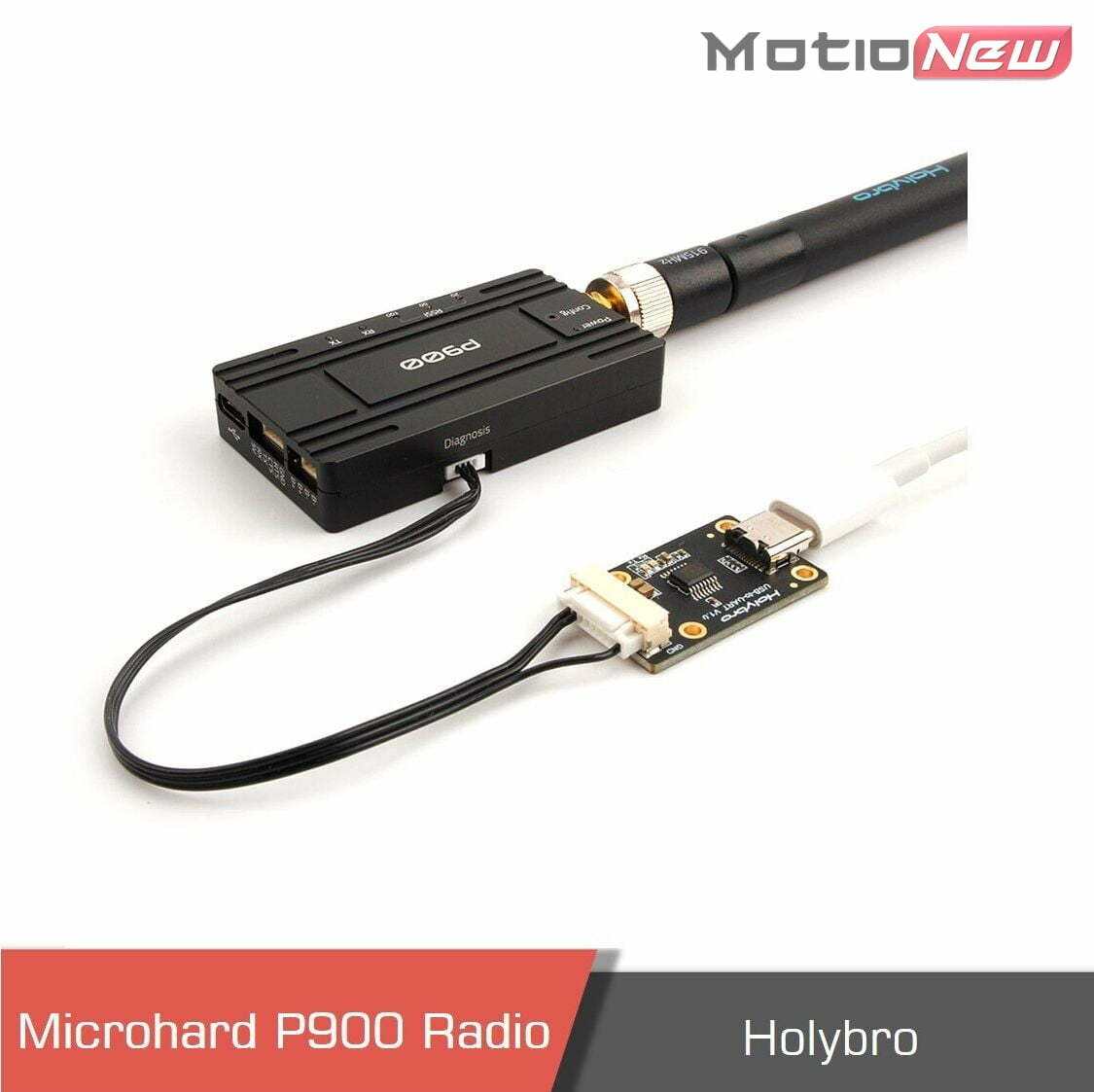

–Separate diagnostics port, transparent remote diagnostics and online network control

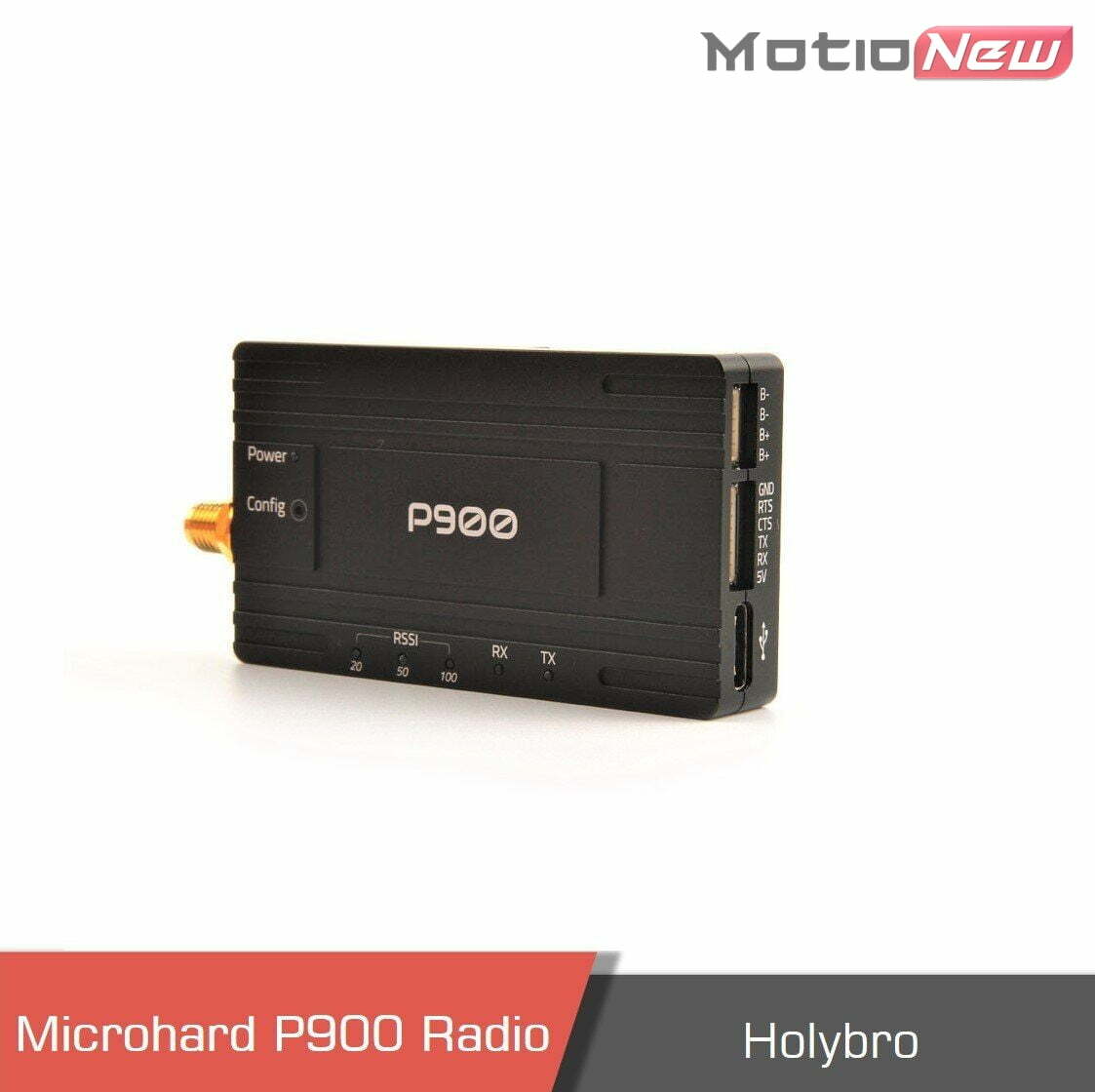

PIN MAP

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

FAQ – Holybro P900 Radio Module 900MHz 1W (Microhard-Based)

1. What are the main specifications of the Holybro P900 module?
The Holybro P900 is a 900MHz long-range telemetry radio based on the Microhard Pico Series chip. It provides 1W (30dBm) transmission power, supports data rates up to 230 kbps, and offers line-of-sight communication up to 60 km, depending on antenna configuration.

2. What communication technologies and protocols does it support?
The module features Frequency Hopping Spread Spectrum (FHSS), AES-128 encryption, and error correction algorithms to ensure secure, interference-resistant communication. It is compatible with MavLink, transparent serial, and IP data protocols.

3. What hardware and interface configurations are available?
The P900 supports UART (TTL/RS232) connections and includes SMA antenna connectors. It is compatible with Pixhawk, CubePilot, ArduPilot, and PaparazziUAV platforms. It can be configured using Microhard’s PicoConfig utility.

4. What payment methods are accepted for purchasing the Holybro P900?
Motionew accepts credit/debit cards, PayPal, and wire transfers. Proforma invoices can be arranged for corporate or OEM clients.

5. Is OEM customization available?
Yes. Motionew offers OEM customization, including frequency tuning, enclosure branding, connector modification, and firmware integration. Contact the sales department for MOQ and delivery schedule information.

6. Are datasheets and integration manuals available?
Yes. Motionew provides datasheets, wiring diagrams, and setup manuals. Additional engineering support is available for UAV telemetry configuration and range optimization.
