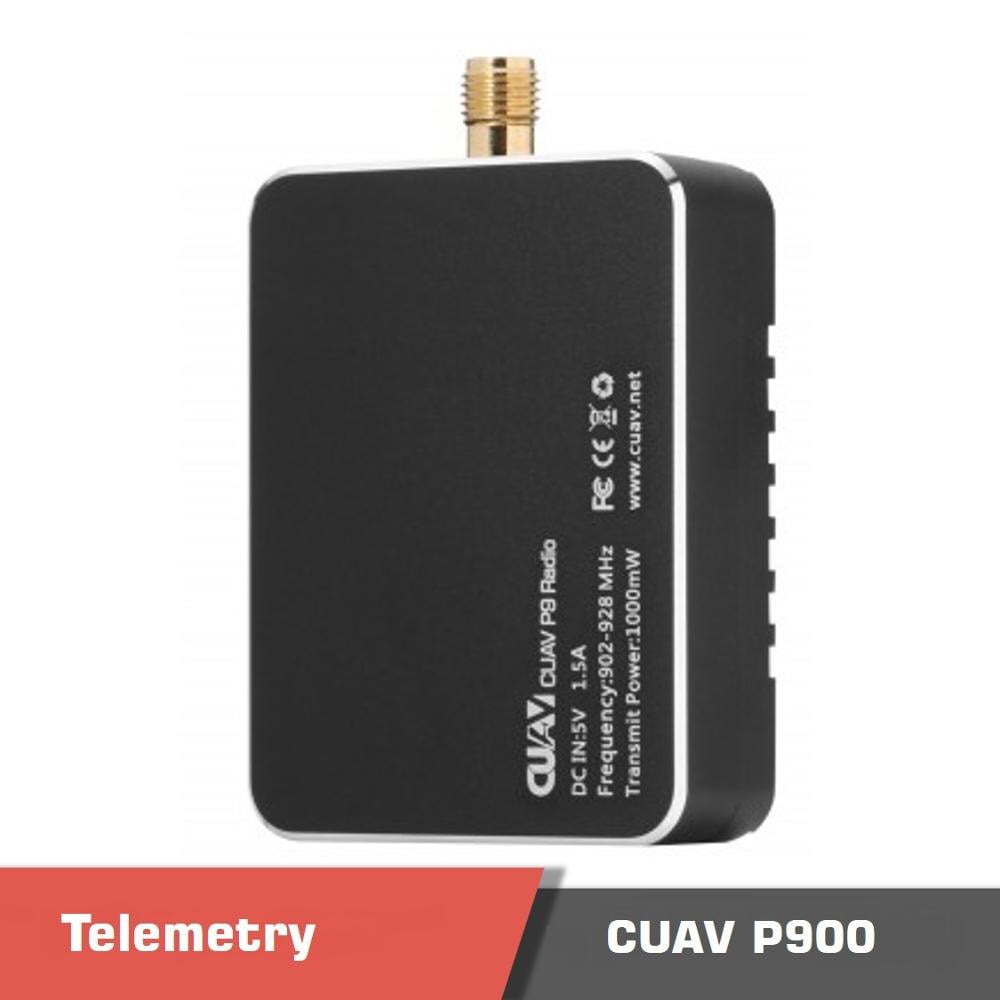

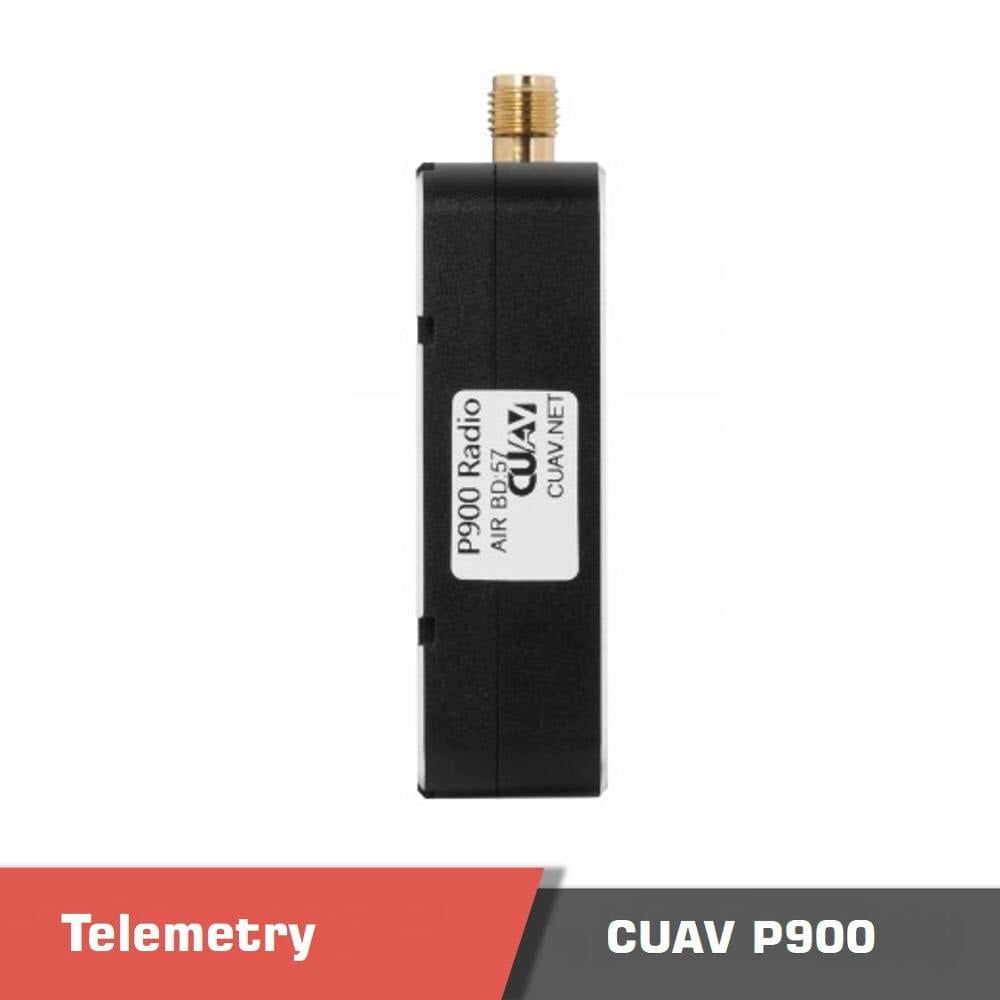

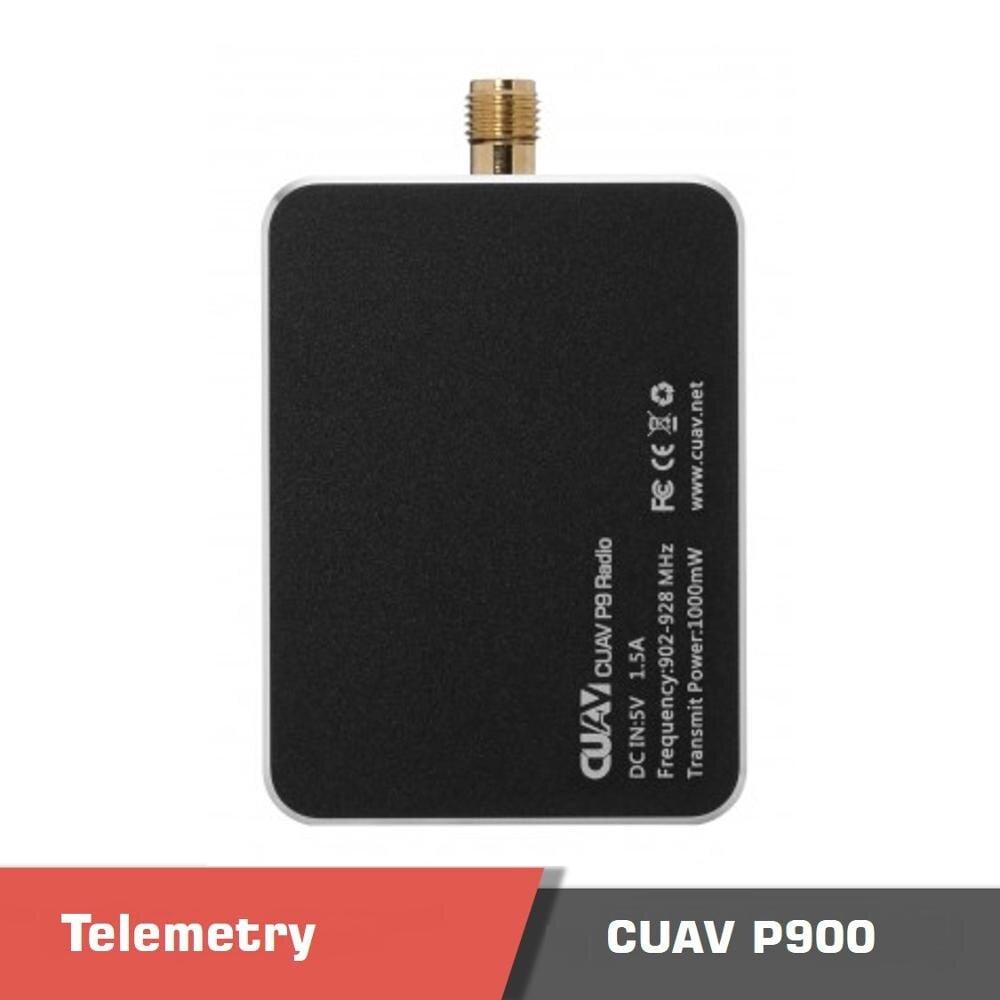

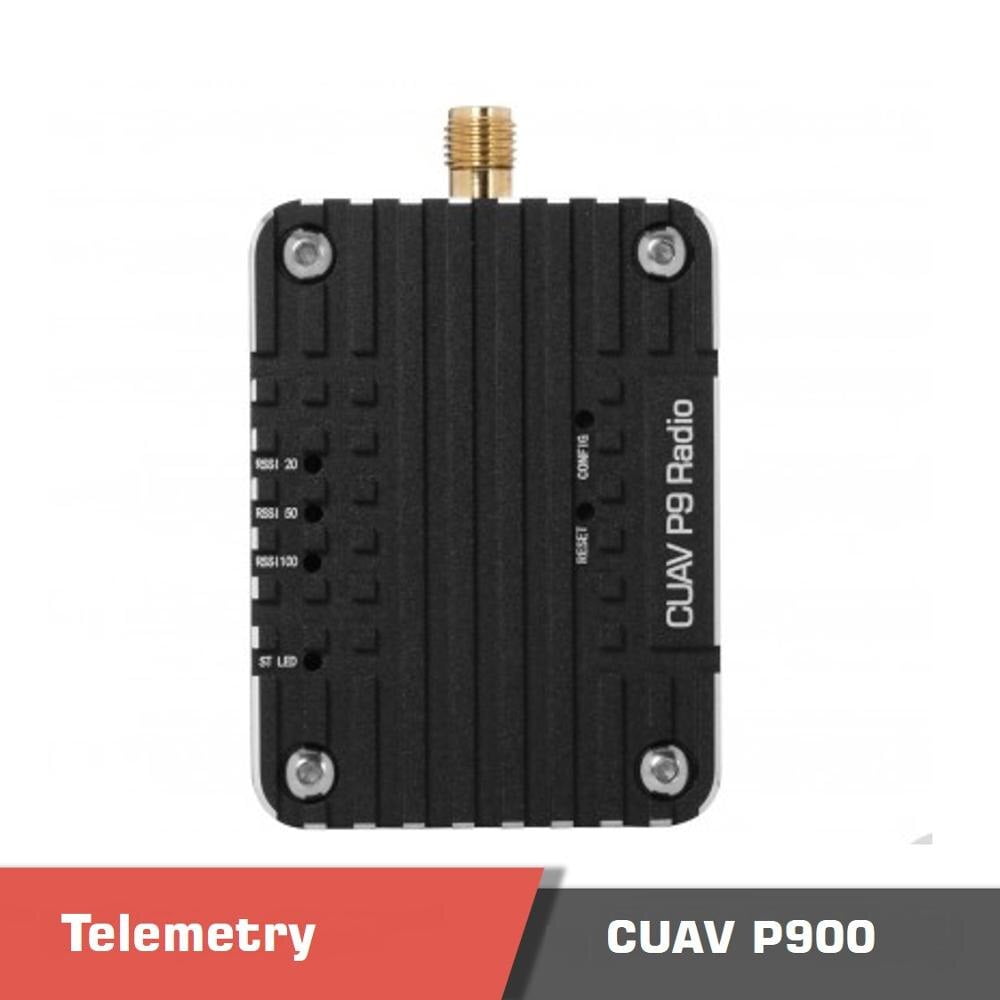

CUAV P900 Radio Telemetry Module 900MHz
Description
Overview of CUAV P900 Radio Telemetry
CUAV P900 Radio Telemetry Module is a 900MHz, 1W, 60Km line-of-sight datalink drone communication module based on Microhard Chip Long Range for Pixhawk, APM, and PaparazziUAV. It features high power, high speed, and high receiver sensitivity, making it ideal for use in drone communications systems. Consult Motionew Online Shop to see the full range of our products.

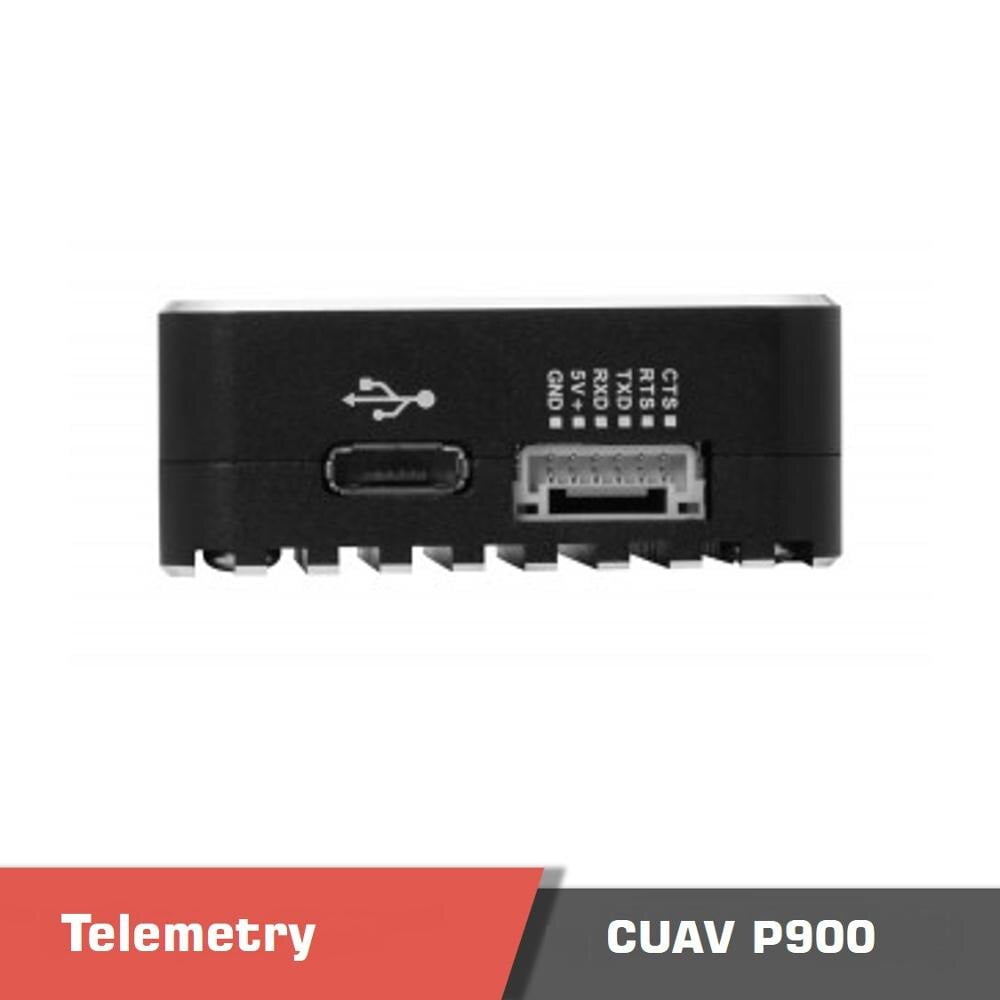

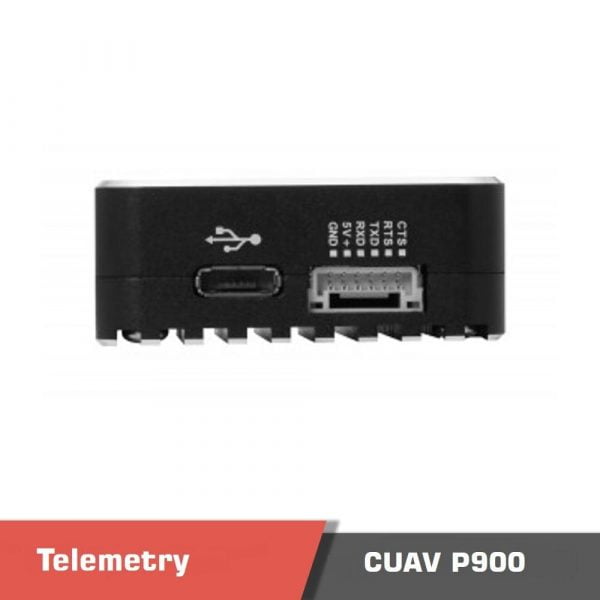

The P900 Radio is an incredibly long unit of data telemetry used in numerous applications. This device uses the frequency band of 902-928MHz for communication purposes. It supports a transmission distance of 60km and a link rate of 276kbps. P9 Radio has a wide voltage input range of 3-12s. In addition to supporting point-to-multiple and relay communication, it also meets the communication requirements in a wide range of applications. A Dual End Switchover P9 is equipped with TTL and USB ports, making it possible to switch between the air terminal and the ground terminal at any time. In the event that there is damage, the module can be paired with another module in order to reduce the cost of using it.
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.
FAQ – CUAV P900 900 MHz Radio Telemetry Module
1. What is the operating frequency and communication range of the CUAV P900 module?
The CUAV P900 operates in the 900 MHz ISM band, providing long-range, low-latency telemetry communication. In open environments, it can achieve a range of up to 40 km depending on antenna configuration and transmission power.
2. What are the module’s main specifications?
It supports transparent serial data transmission, adjustable transmit power up to 1 W, and data rates between 9.6 kbps and 230 kbps. The module uses advanced spread-spectrum and error-correction algorithms to enhance link stability and anti-interference performance.
3. What interfaces and protocols are supported?
The P900 supports UART communication, making it compatible with flight controllers such as Pixhawk and Ardupilot systems. It’s plug-and-play with CUAV ecosystem hardware and supports full-duplex data transmission.
4. How are the units shipped and how long is delivery?
Motionew ships internationally through major couriers including DHL, UPS, and FedEx. Standard delivery takes approximately 5–10 business days after order confirmation. Tracking details are provided upon dispatch.
5. Is OEM or bulk customization available?
Yes. Bulk purchasers can request OEM customization, including labeling, packaging, and firmware settings tailored to specific integration needs.
6. What documentation and payment methods are available?
Each package includes the user manual, configuration guide, and technical datasheet. CE and FCC certificates can be provided on request. Payment options include PayPal, bank transfer (T/T), and major credit cards.
Specifications
Specifications
| Working frequency | 902-928 MHz |
| Transmission technology | frequency hopping |
| Forwarding error detection | Hamming /BCH/Golay/Reed-Solomon |
| error detecting | Error Detection 32 bits of CRC, ARQ |
| encrypt | Optional (see –AES option) |
| range | 40 mile ( s ) (60 km) |
| sensitivity | -110 dBm @ 115.2 kbps |
| -108 dBm @ 172.8 kbps | |
| -107 dBm @ 230.4 kbps | |
| output power | 100mW – 1W (20-30dBm) |
| serial interface | 3.3V CMOS TTL |
| Baud rate | 57600（Changeable） |
| Airspeed | 115 – 276 kbps |
| operator schema | Mesh, Auto Routing, Store and Forward,Self Healing, Packet Routing Modes |
| Blocking | ± 1 MHz > 55 dBc |
| ± 2.5 MHz > 60 dBc | |
| ± 5 MHz > 65 dBc | |
| > 930 MHz > 70 dBc | |
| < 890 MHz > 70 dBc | |
| Remote Diagnostics | Battery Voltage, Temperature, RSSI,Packet Statistics |
| Service voltage | 5.0V + -0.25V |
| Interface current | Sleep < 1mA |
| Idle 3.5mA | |
| Rx: 35mA to 80mA | |
| Tx : 800mA to 1200mA |
| Connectors | |
| Antenna interface | SMA |
| Interface | GH1.25-6P&USB |
| Environmental | -55℃ ~ +85℃ |
| Weight | 51.2MM*38.2MM*15.5MM |
| Order Option S | |
| -AES | 128-bit AES Encryption (requires permit for export outside of Canada and USA.) |
| -ENC | Enclosed Model |

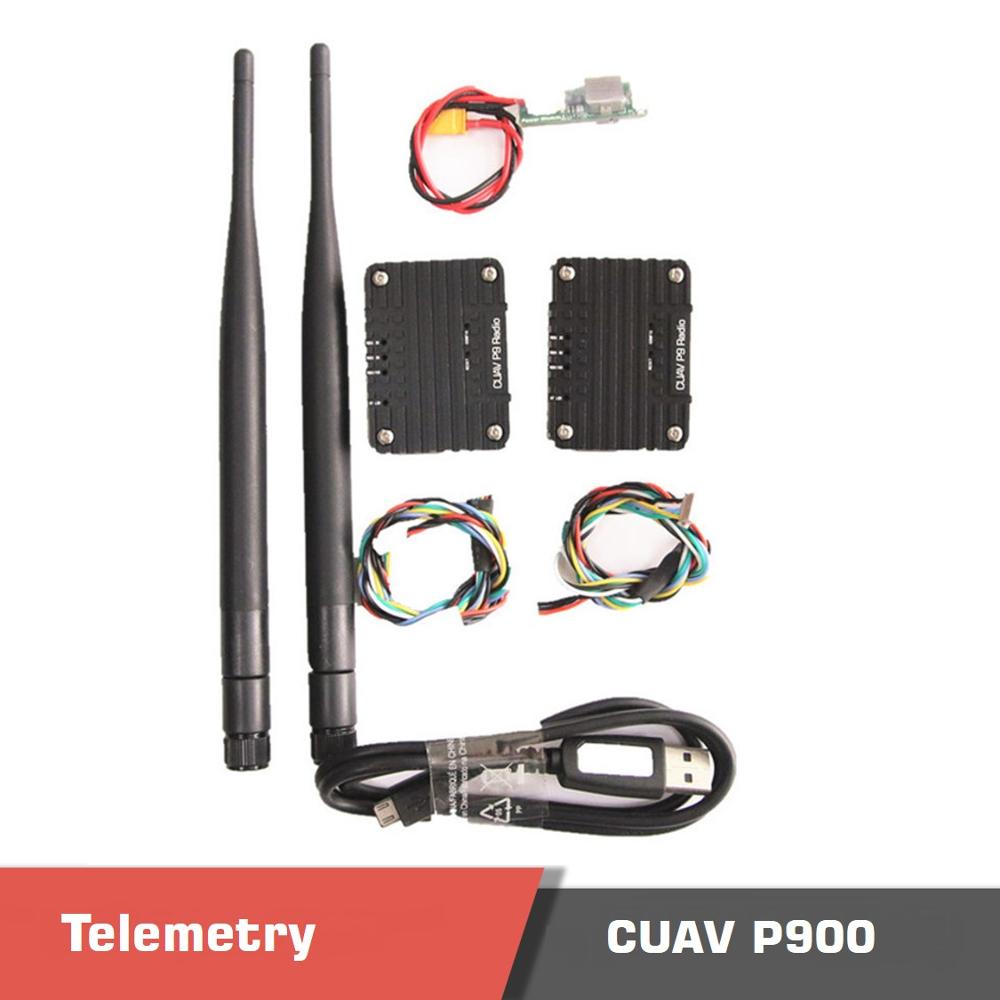

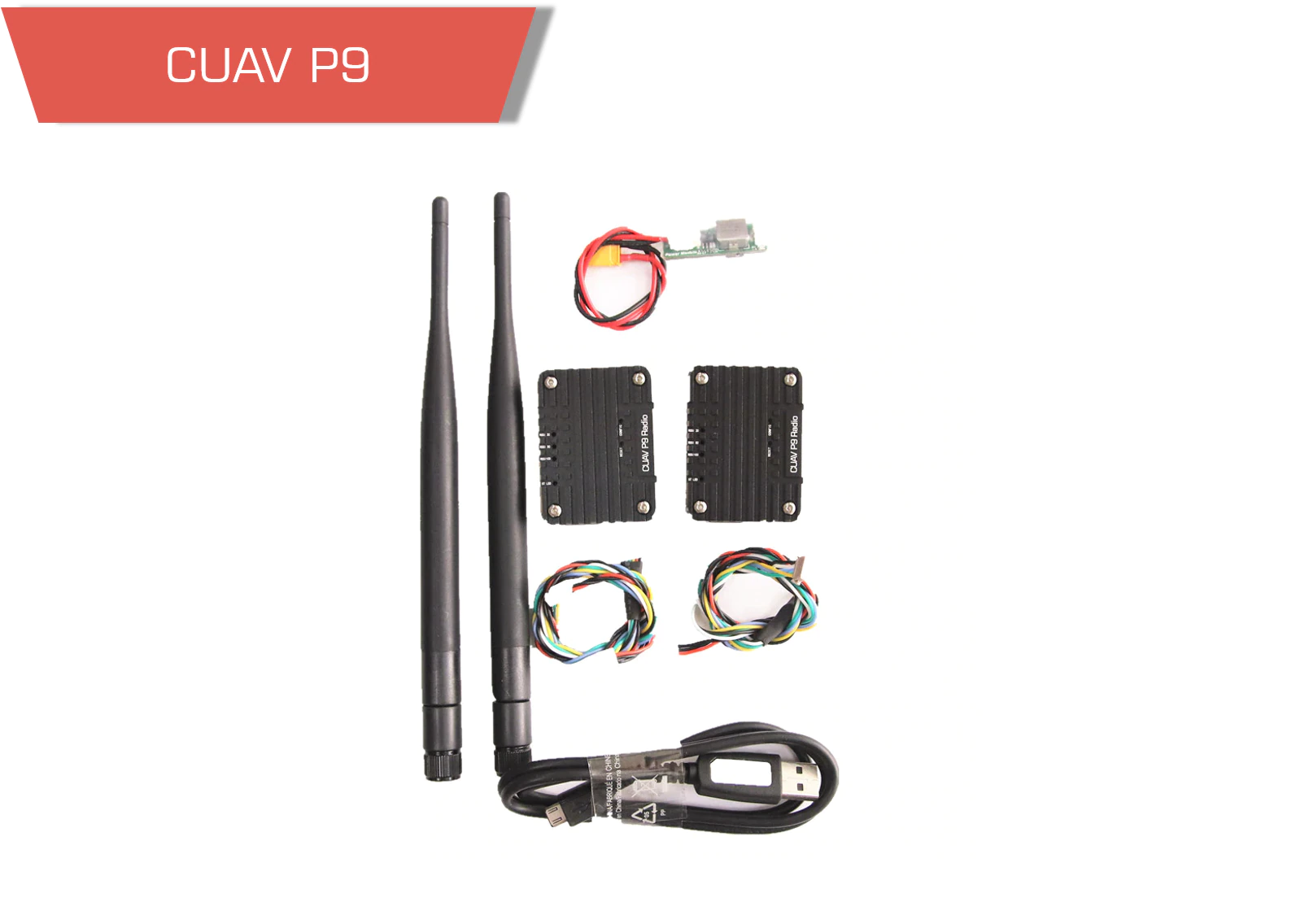

Product contents
Product contents
Product contents
