T900 Mini Datalink, 900MHz 1W Digital Datalink Module

T900 Mini Datalink Overview

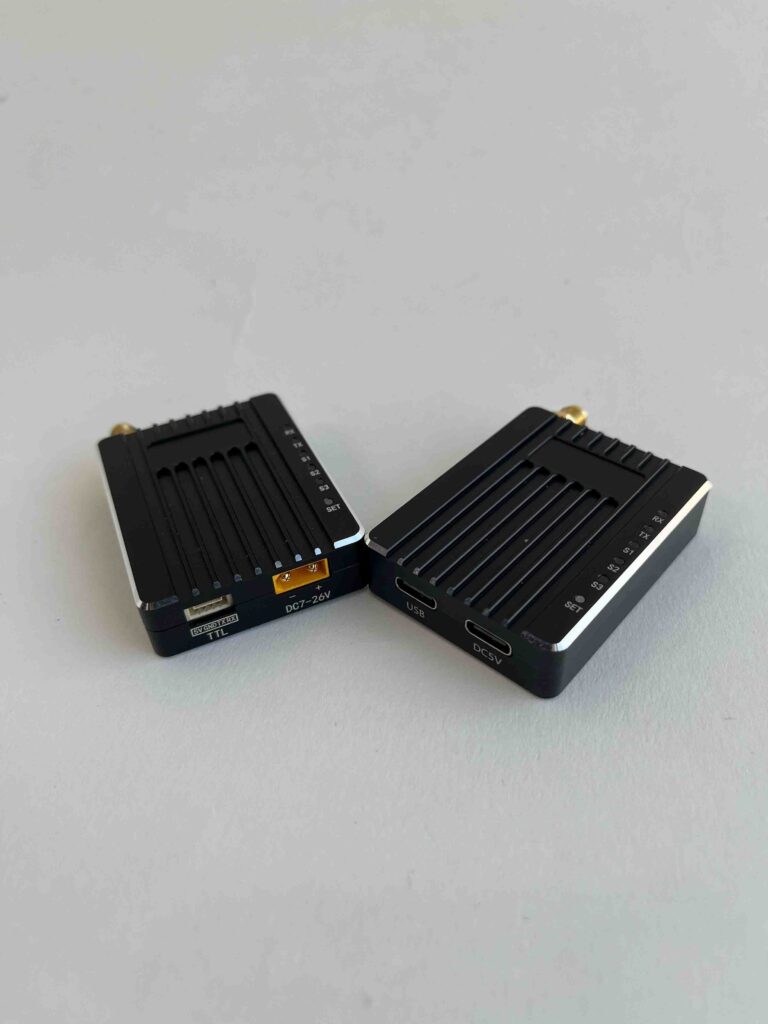

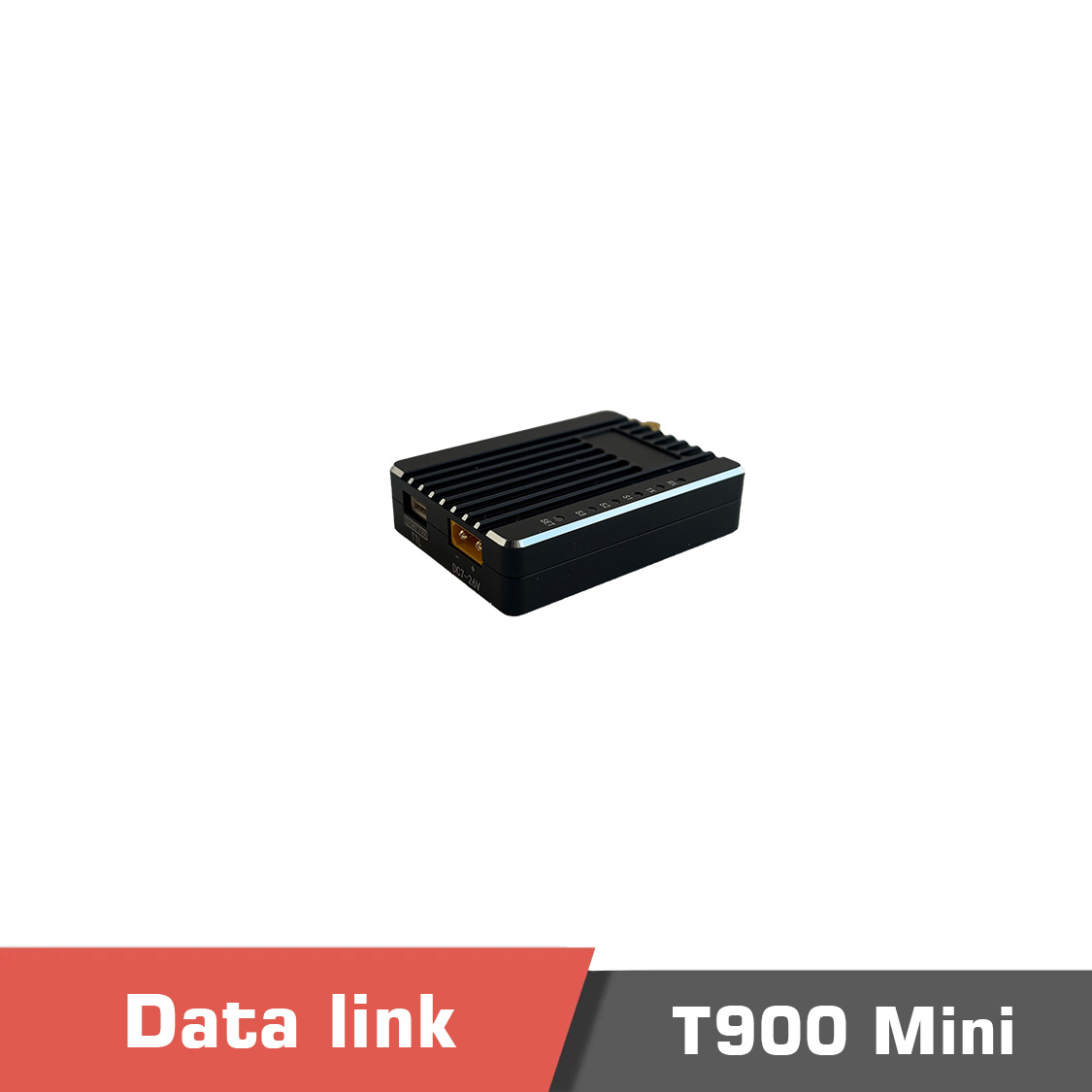

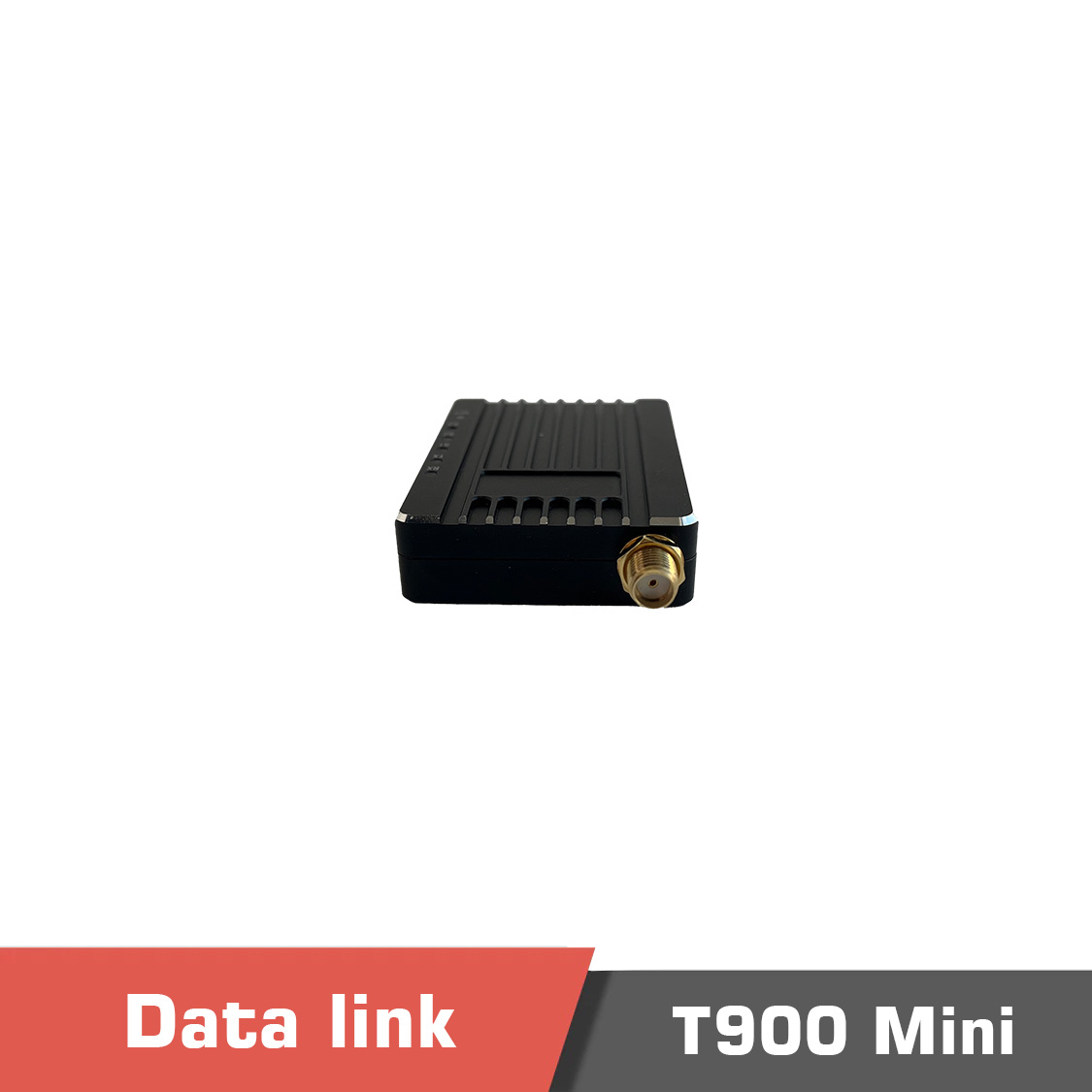

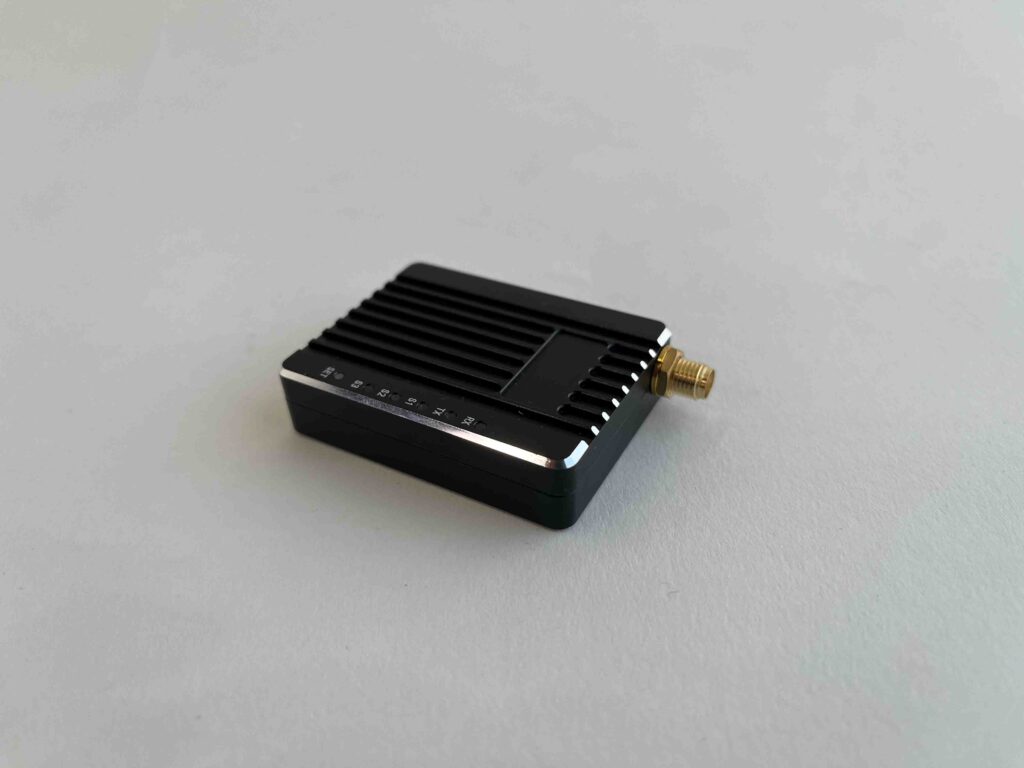

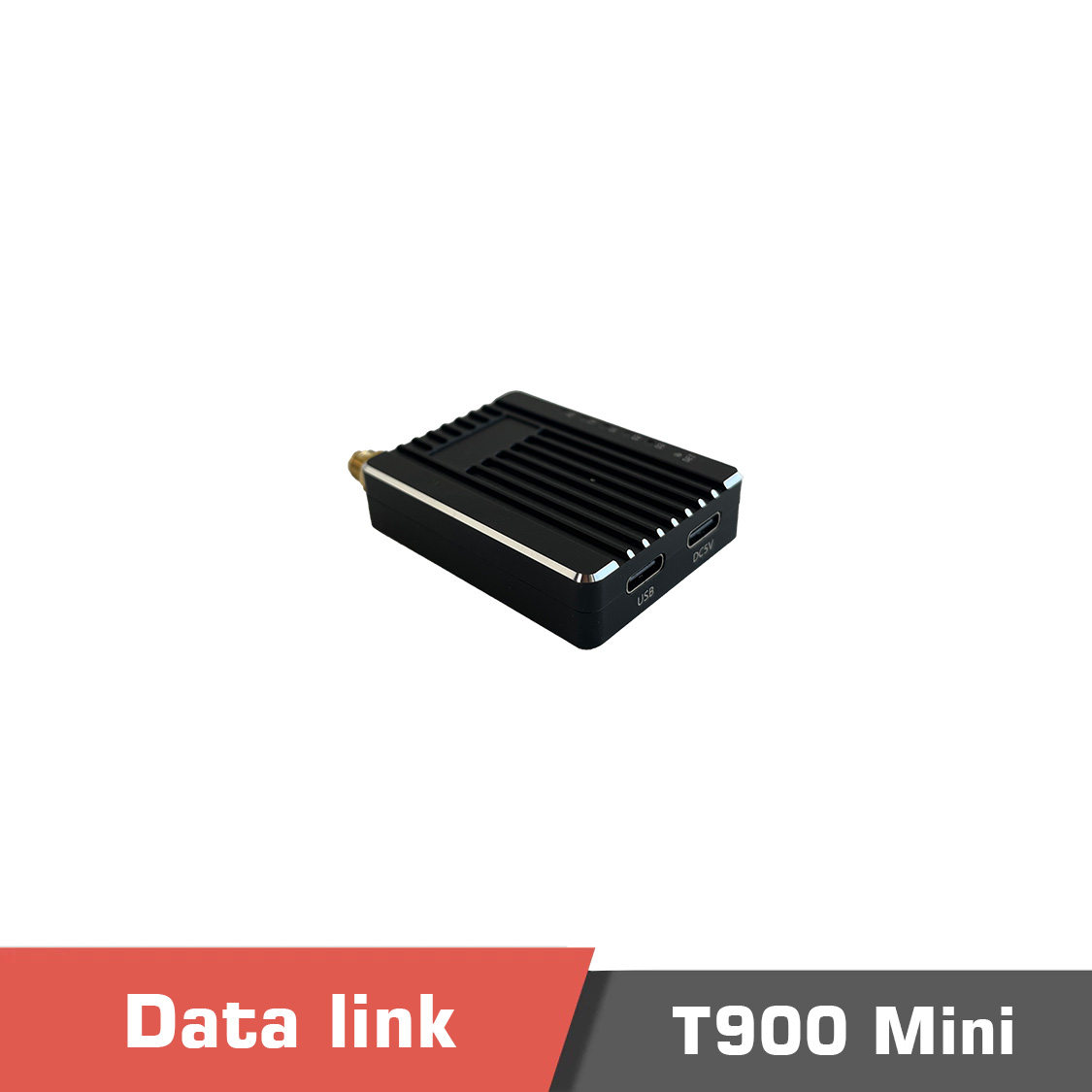

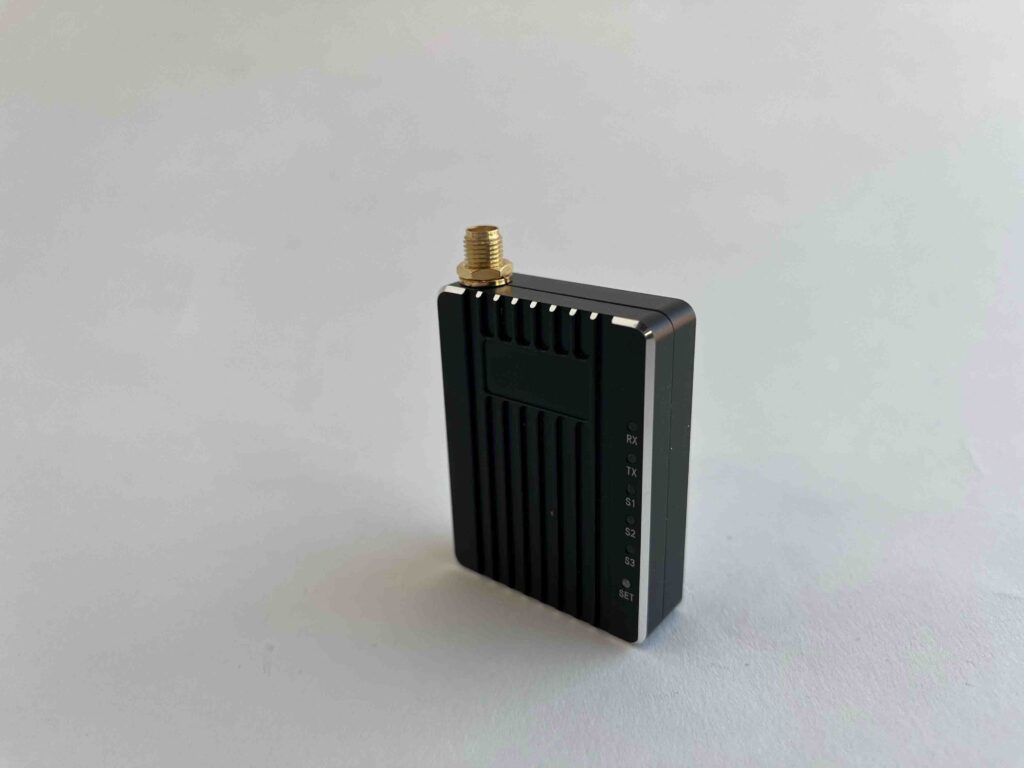

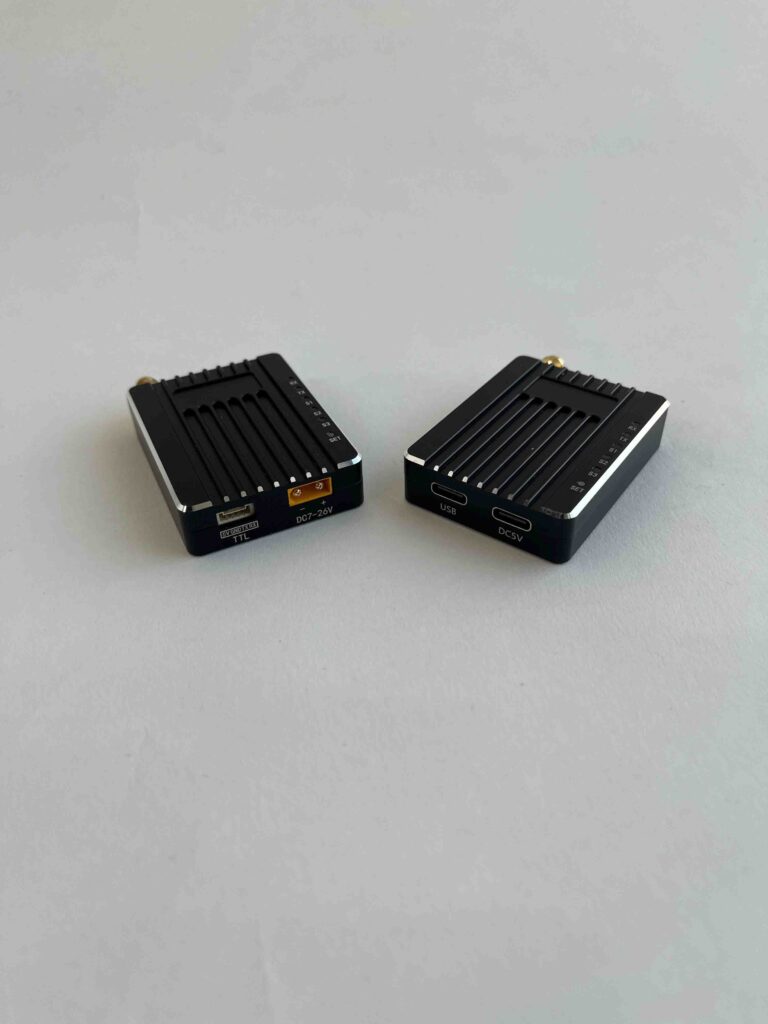

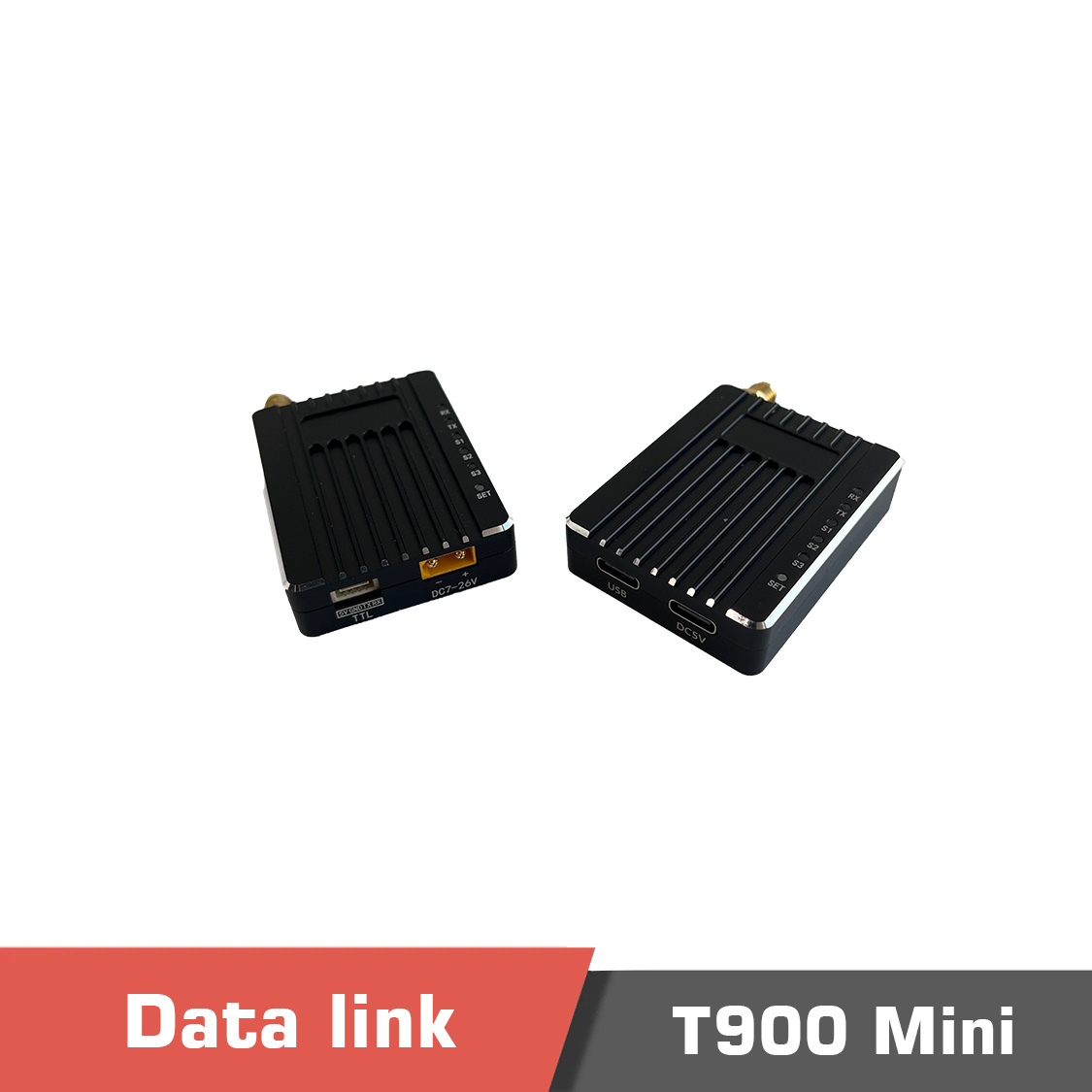

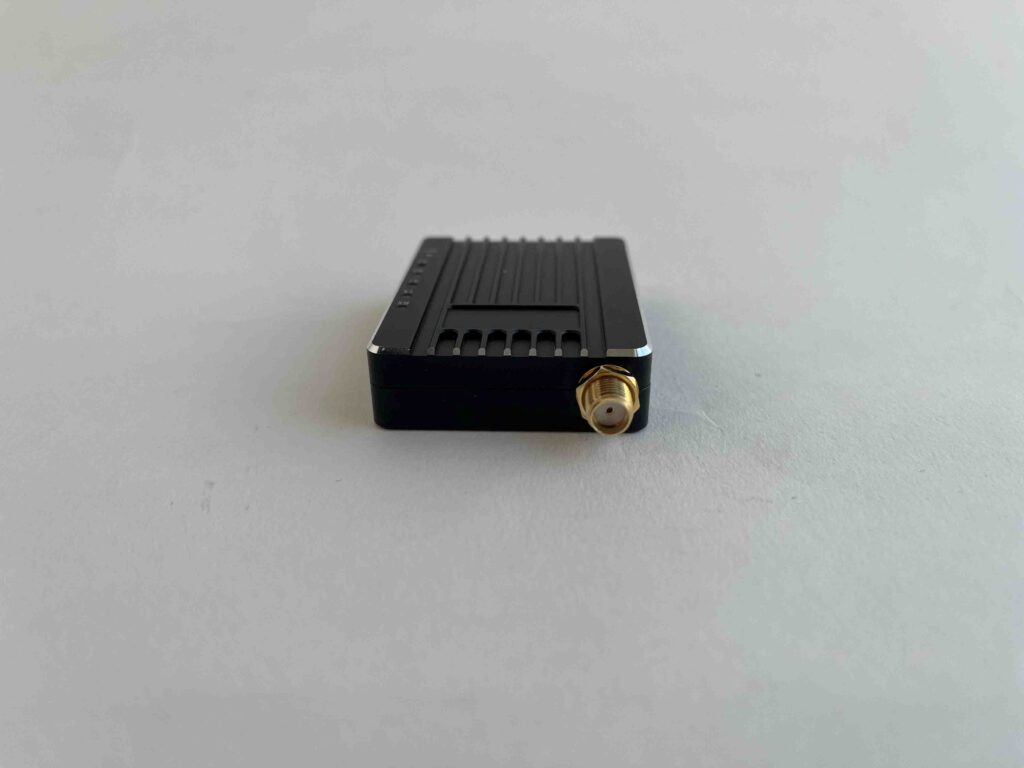

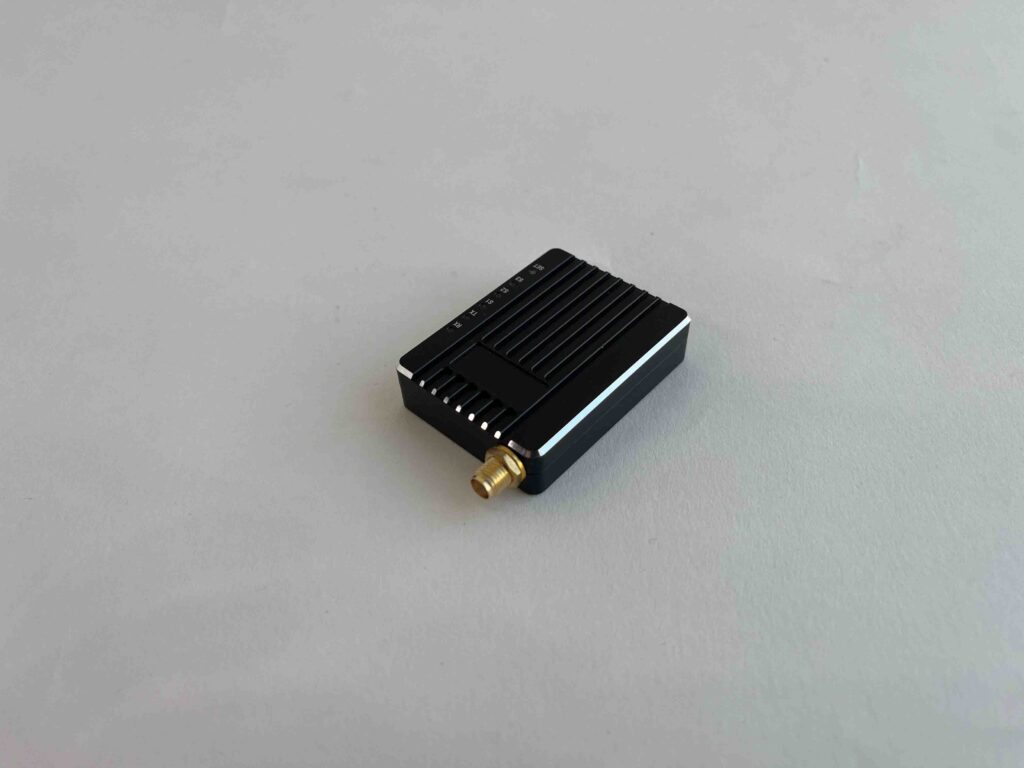

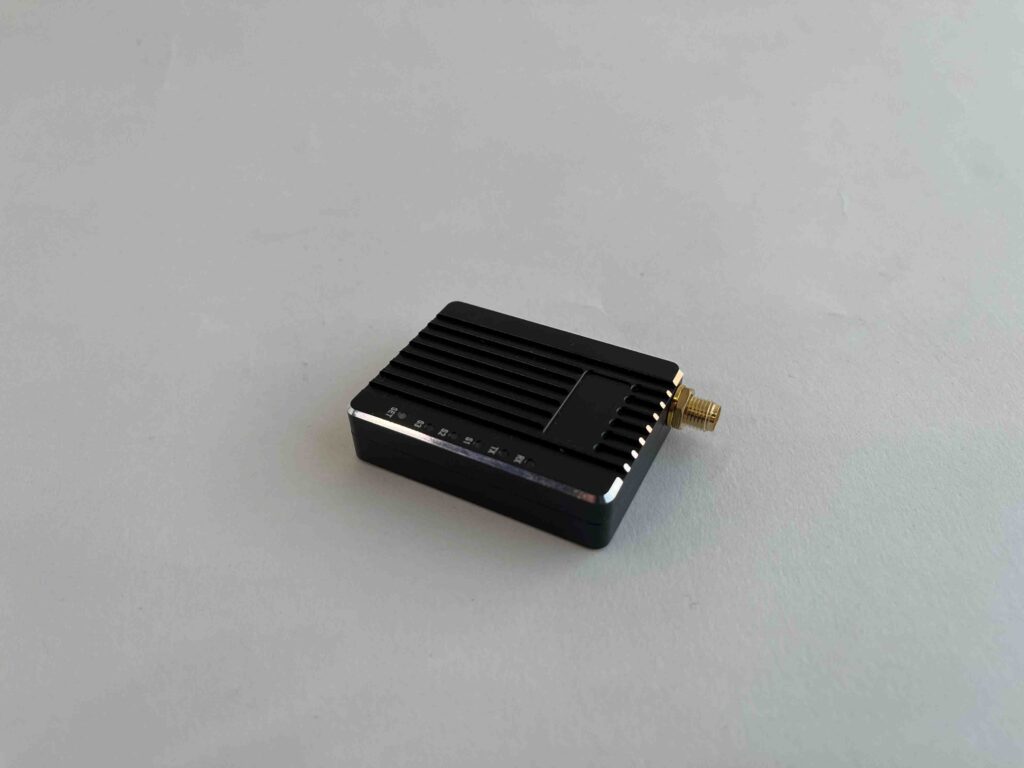

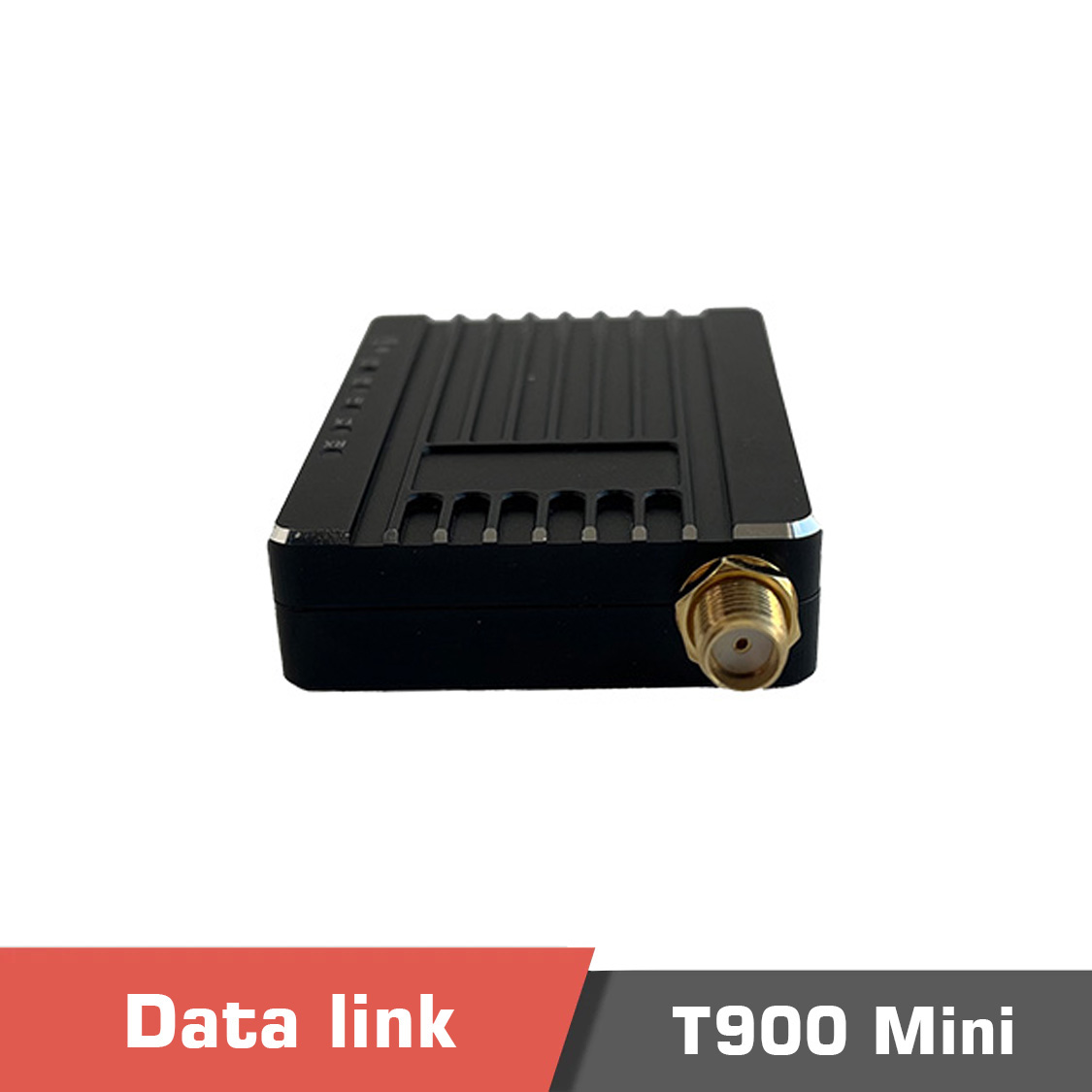

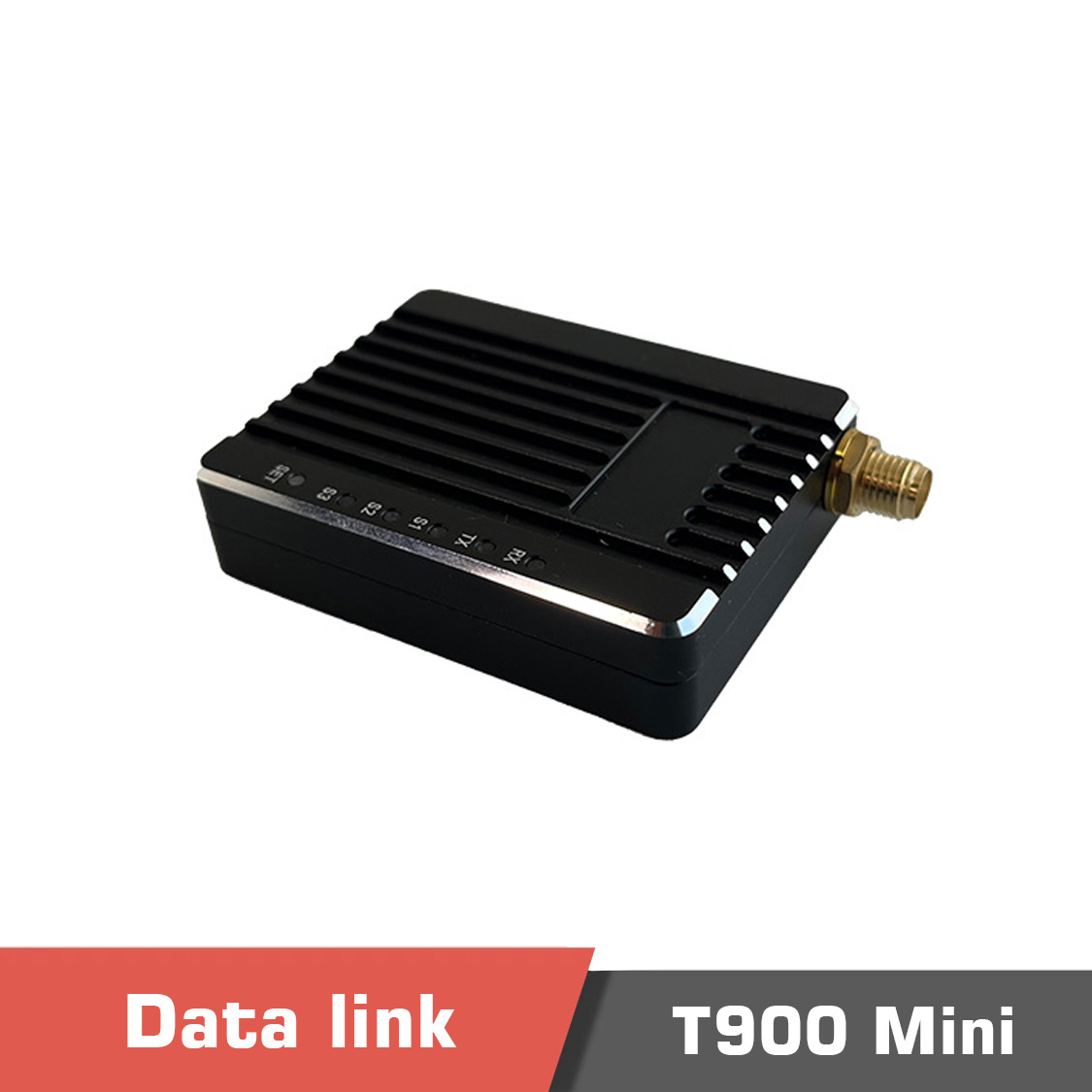

The T900 Mini Datalink drone series is a miniaturized digital radio of the T900 series. The T900 Mini mainly includes separate Air and Ground models. The only difference between the two is the interface. The air model is mainly used for the UAV end, while the ground model uses the Type C interface for the ground end. Both of the ground and air units have an SMA Female RF connector to connect the antenna.

T900 Mini Datalink Interfaces

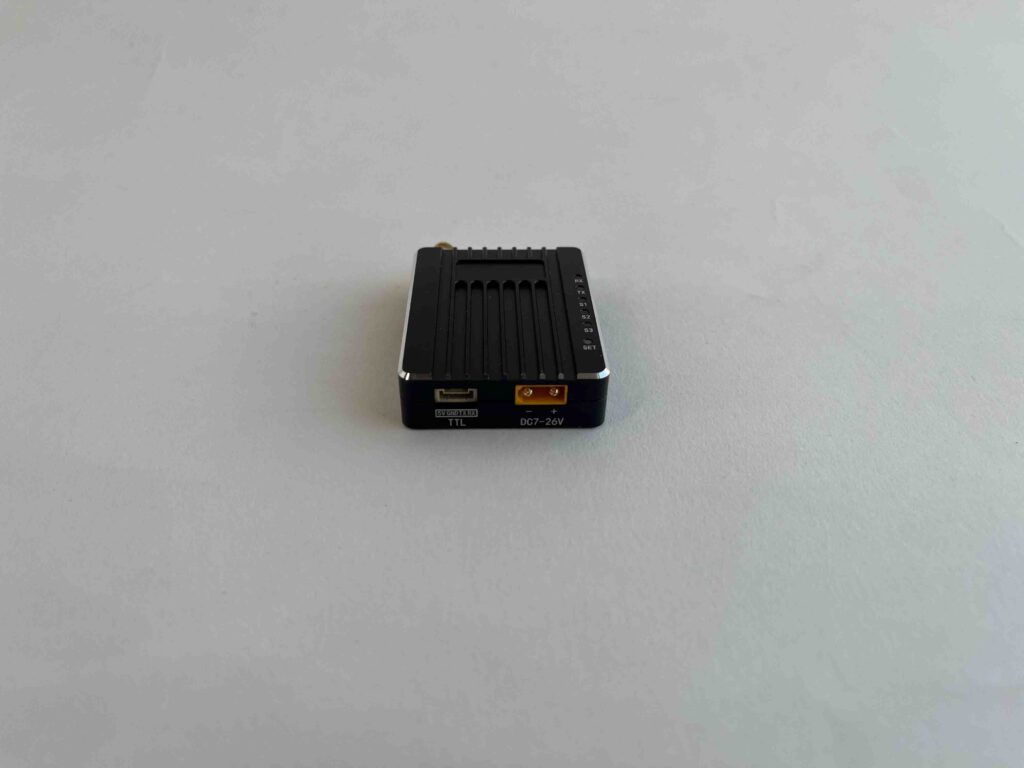

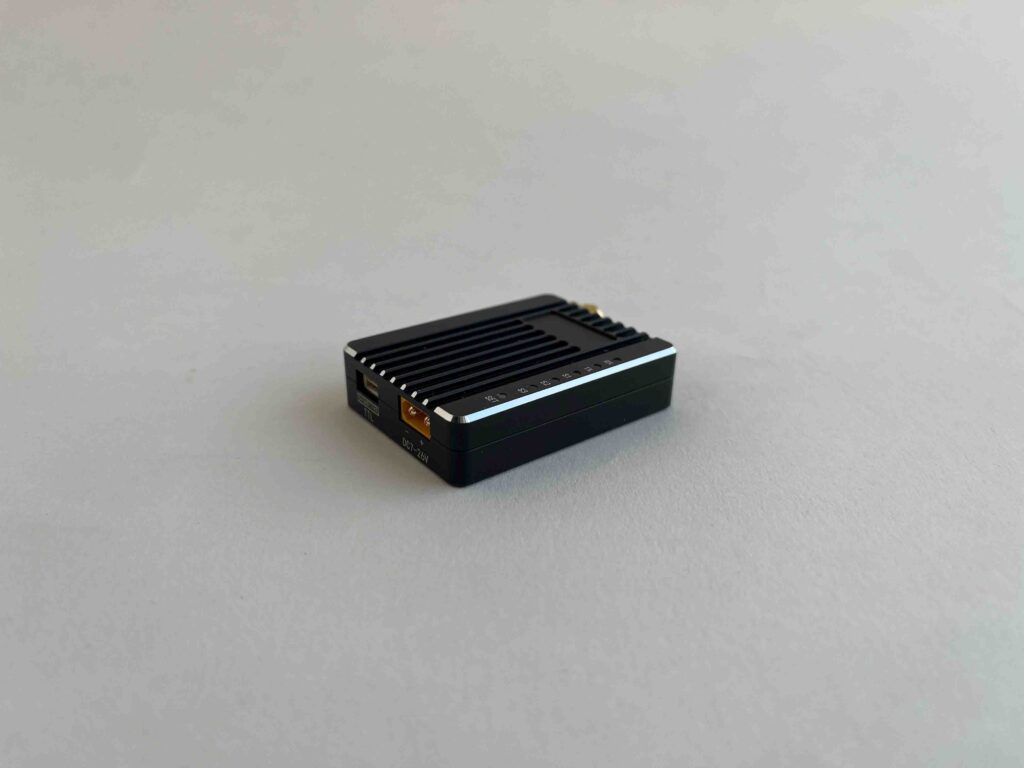

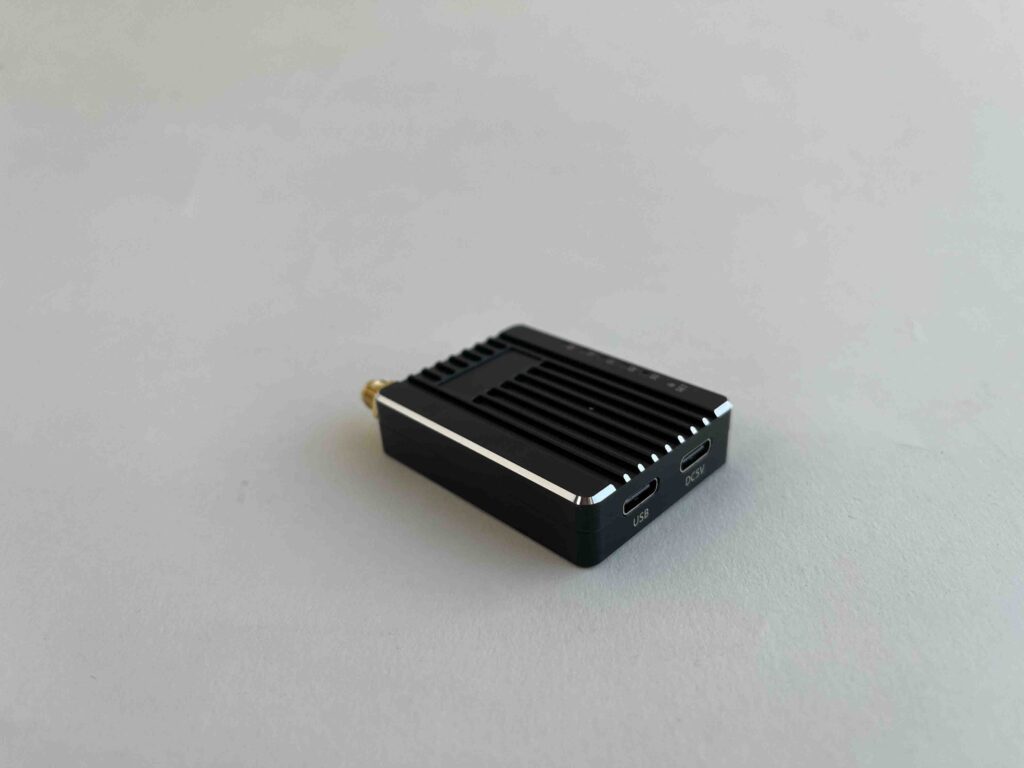

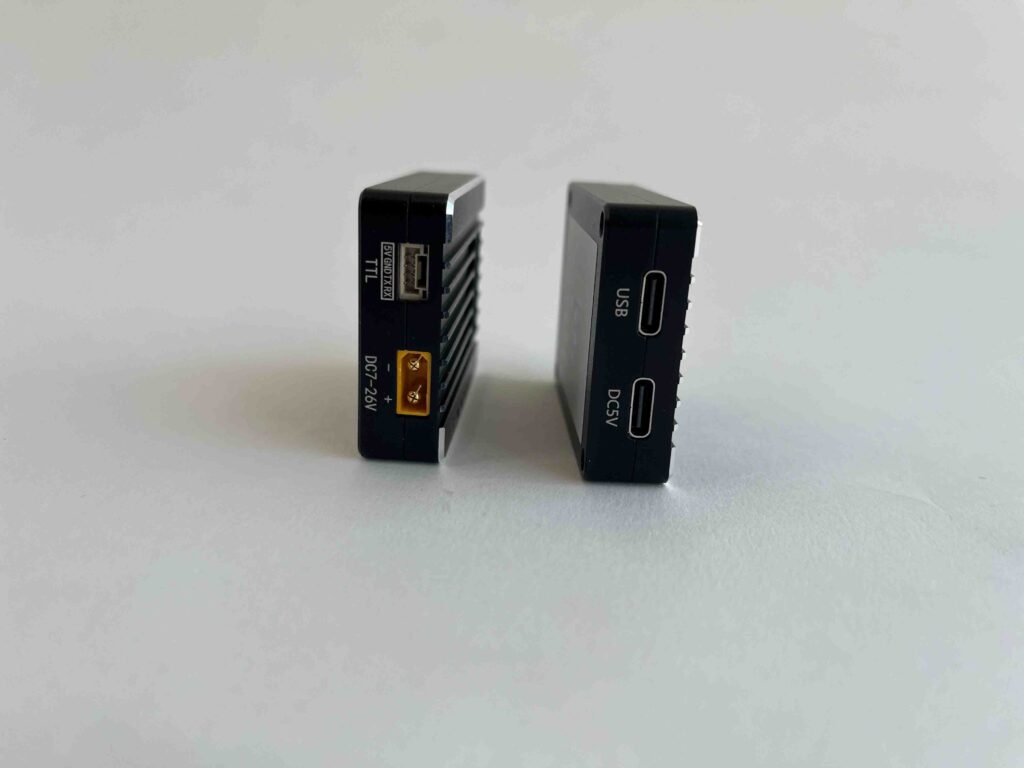

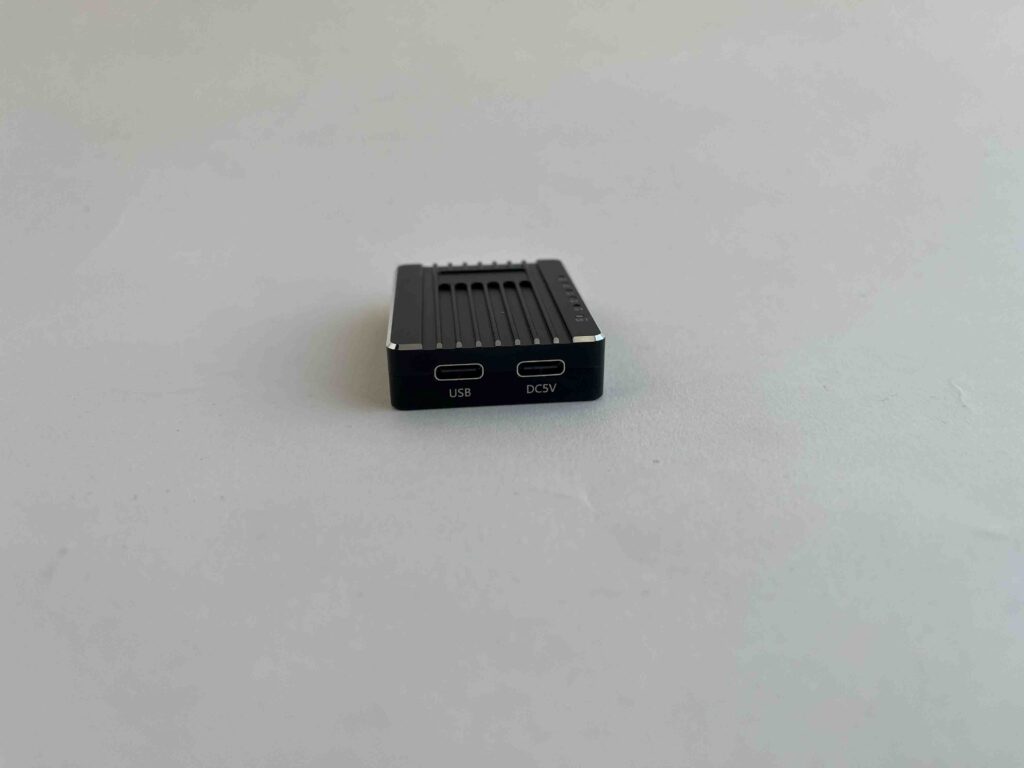

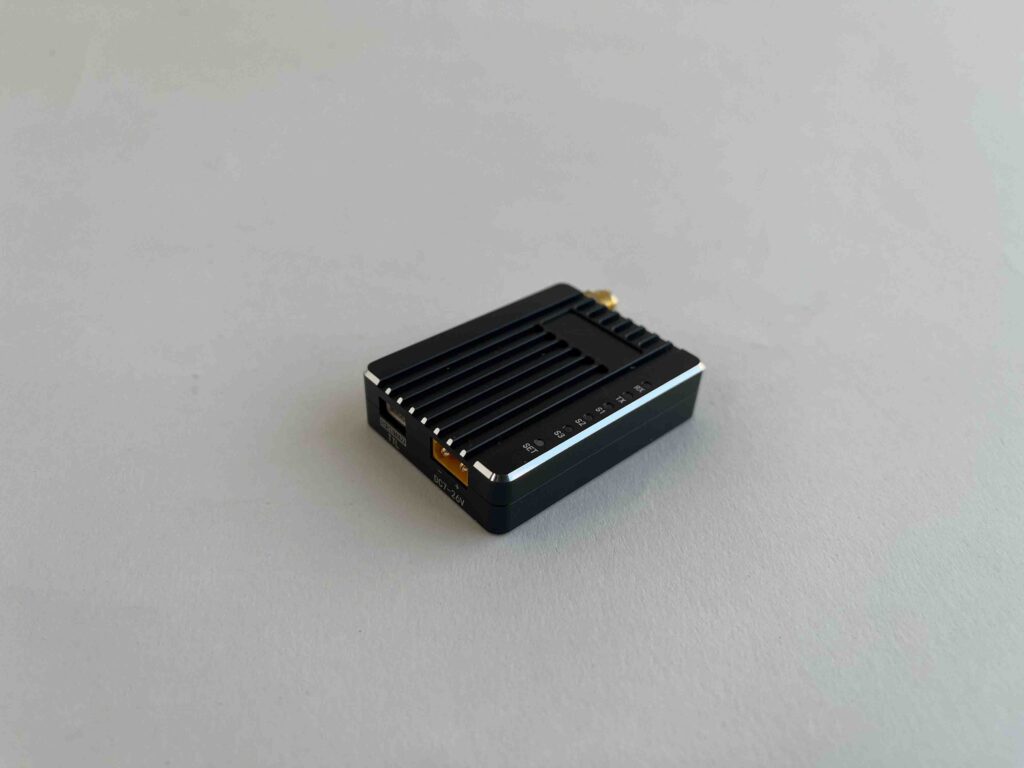

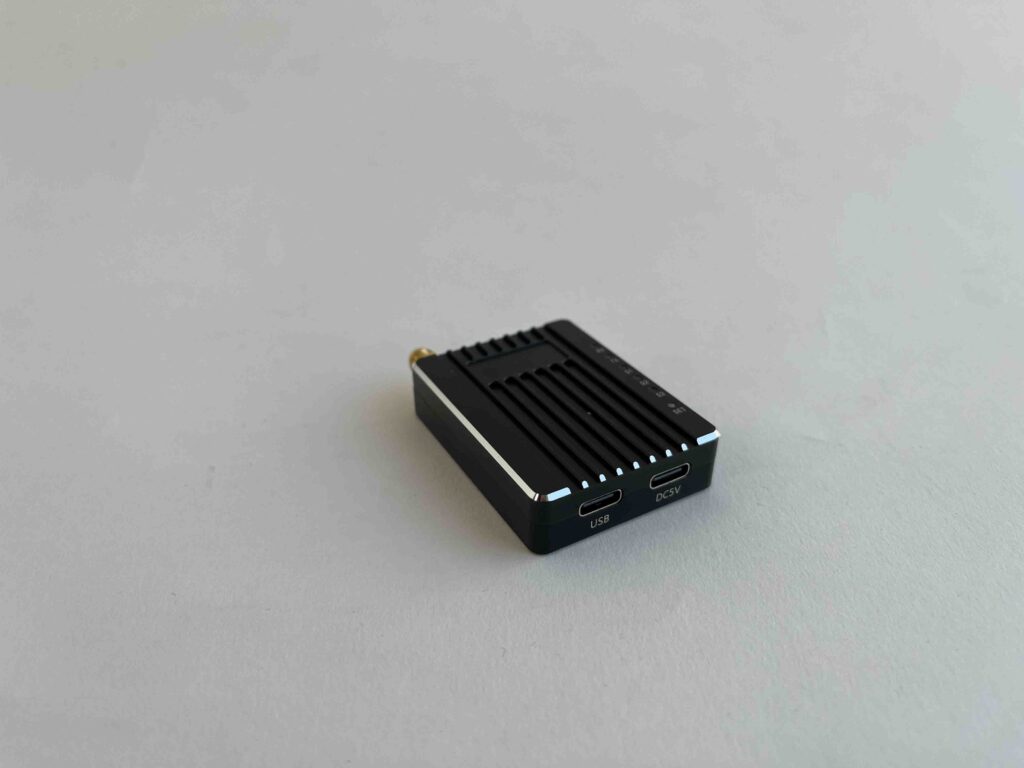

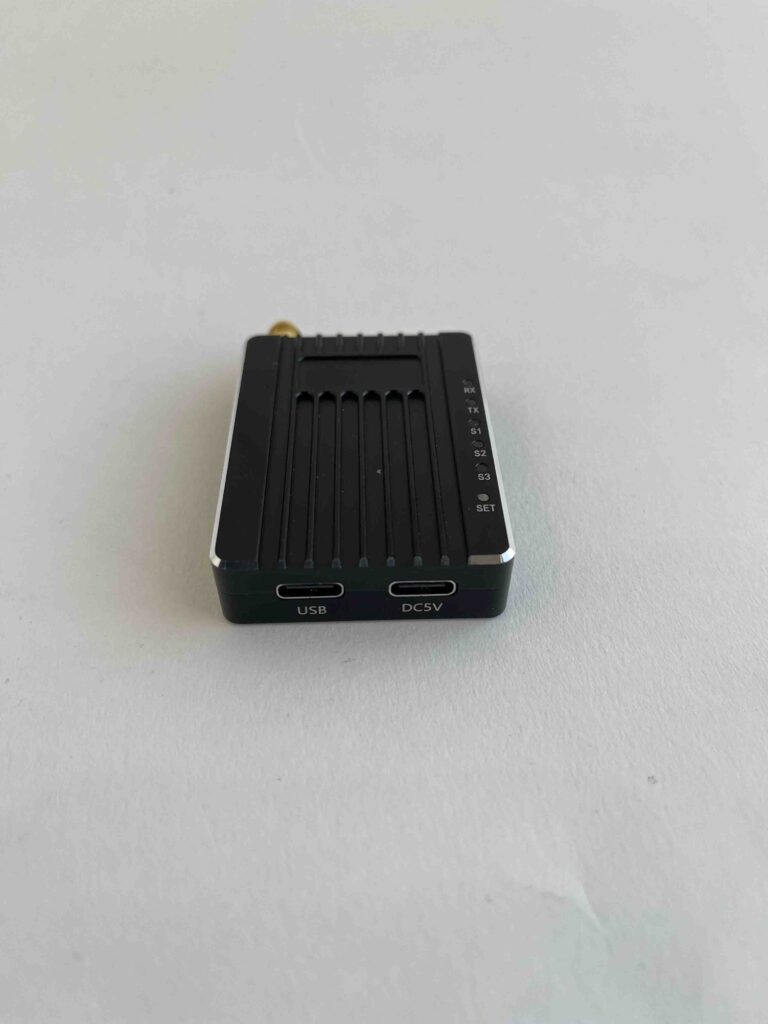

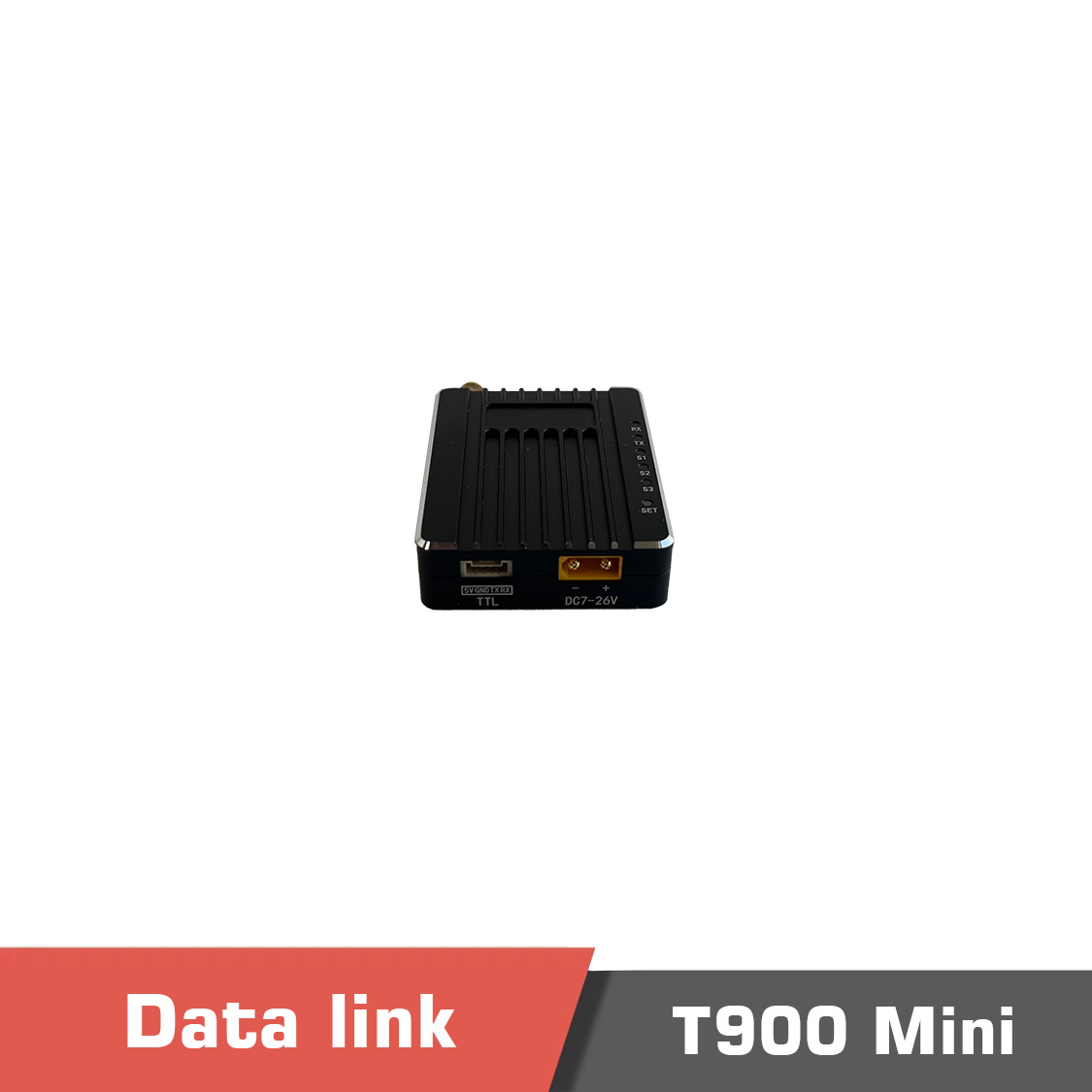

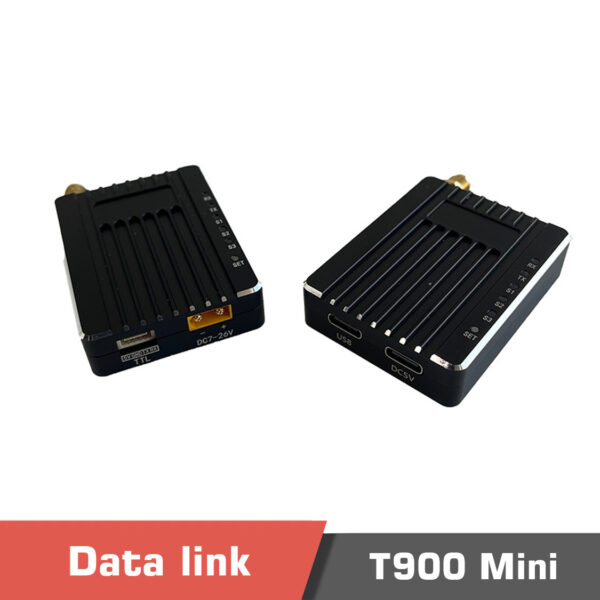

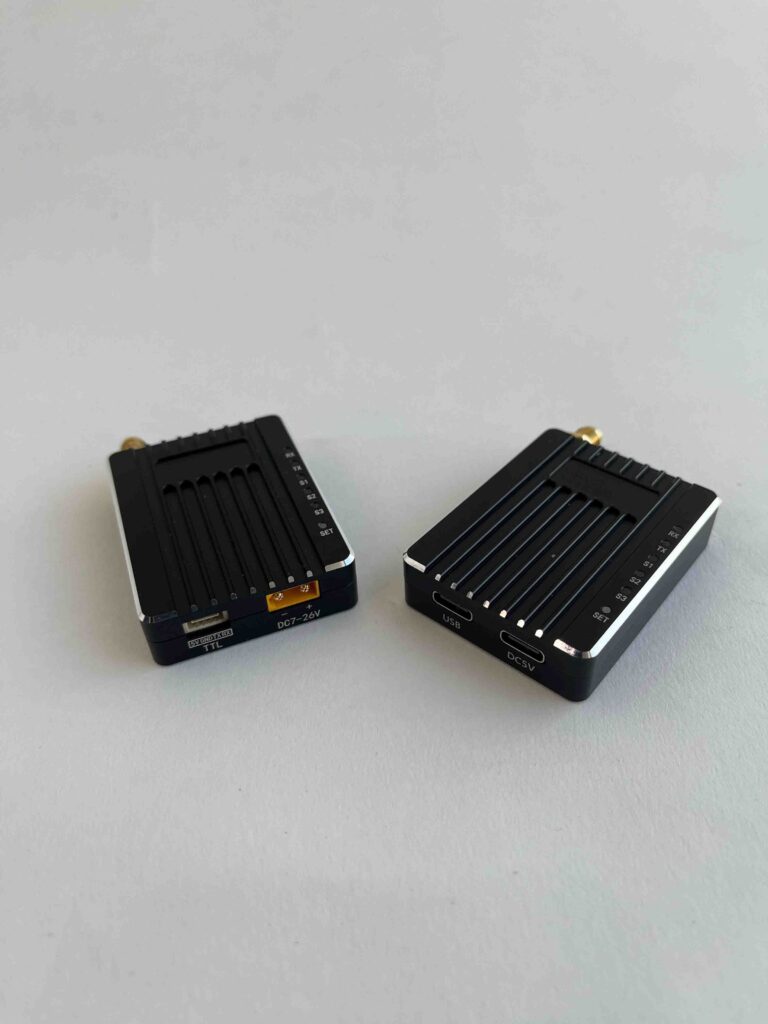

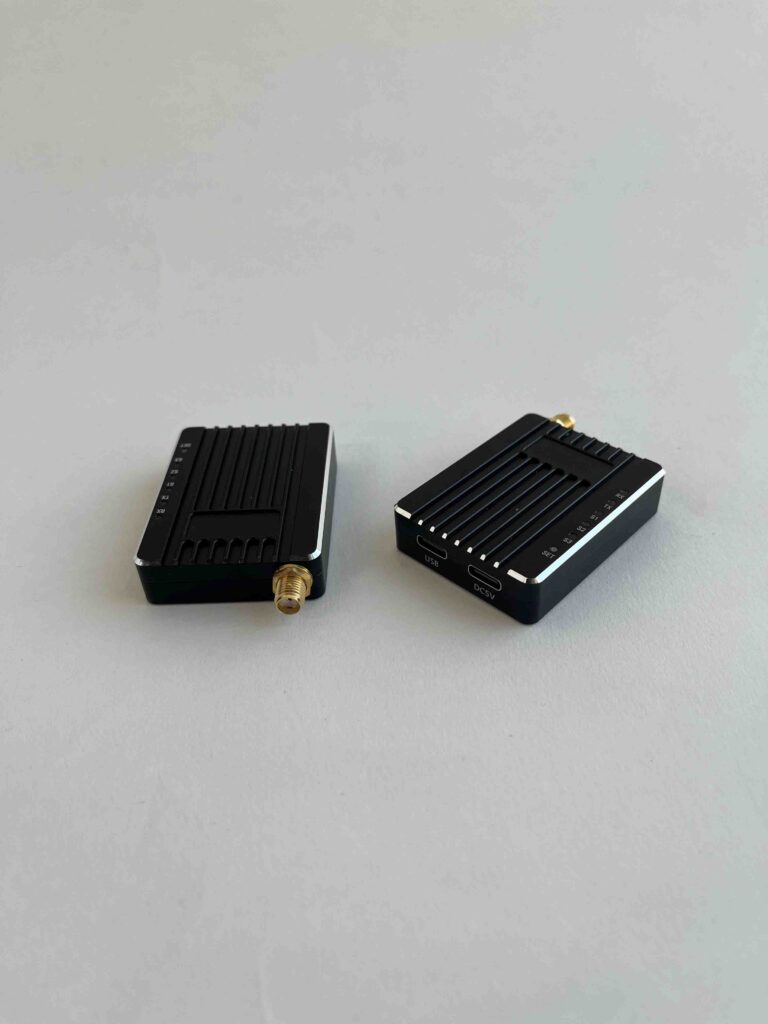

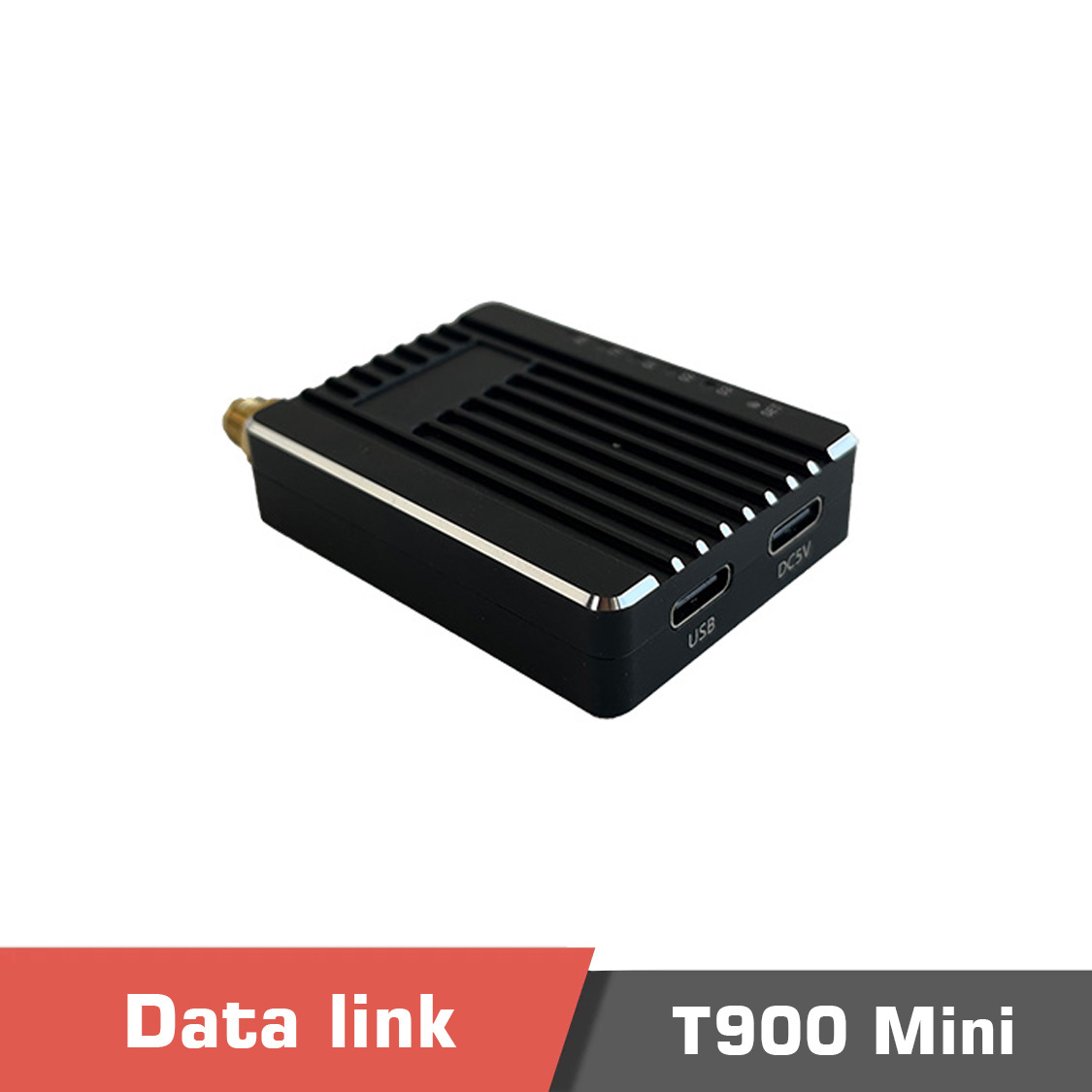

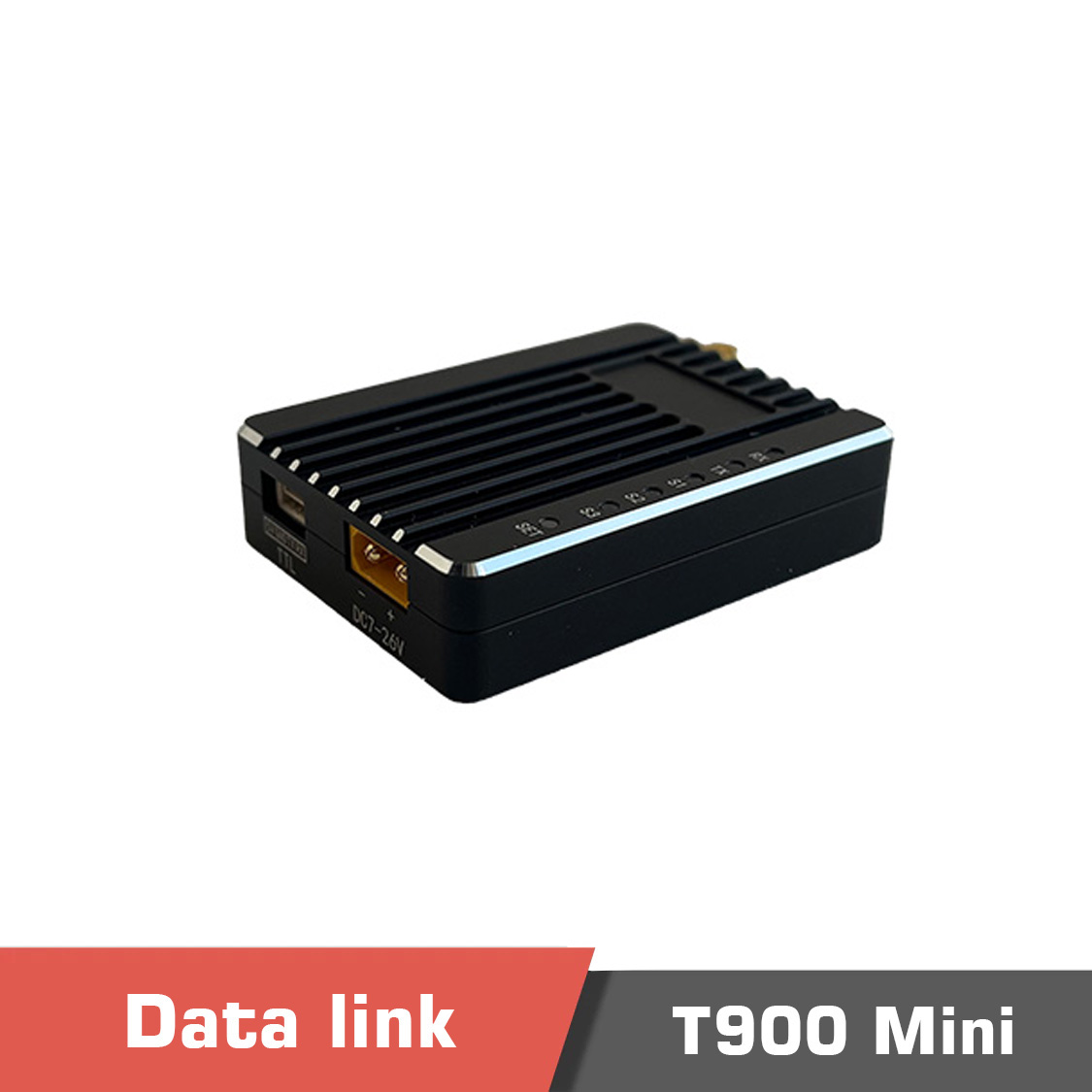

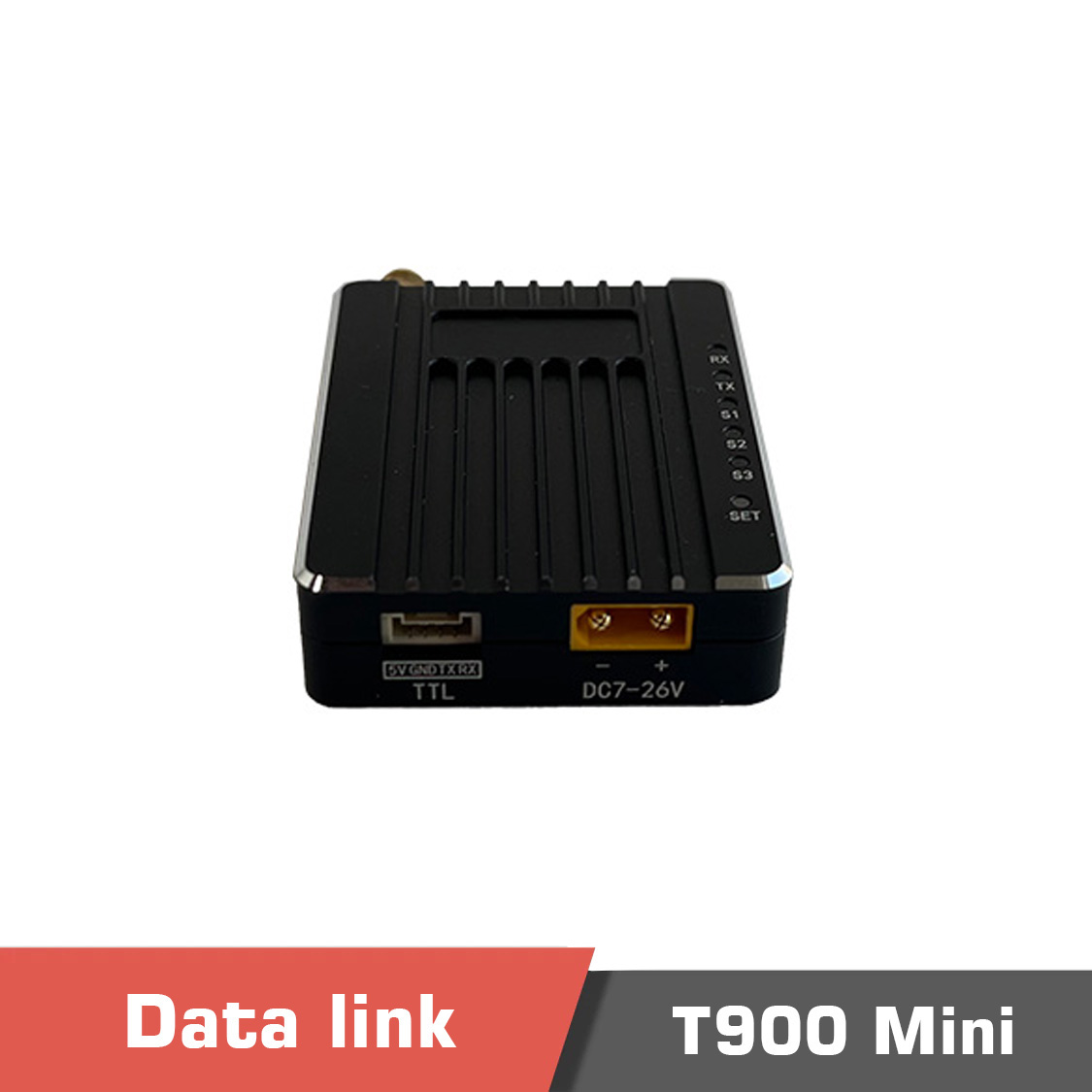

The ground model has 2x USB C interfaces, named “USB” and “DC5V”. The former has both data and power connections, while the latter can only provide power. On the Air model, an XT30 connector is provided to power the module using a 7-26v source of power, and a 4pin JST-GH connector for the data communication interface. The pins on the JST-GH connector are RX, TX, GND, and VCC, the VCC pin providing 5v@1A output power to use for other external accessories.

900MHz 1W Digital Datalink Module

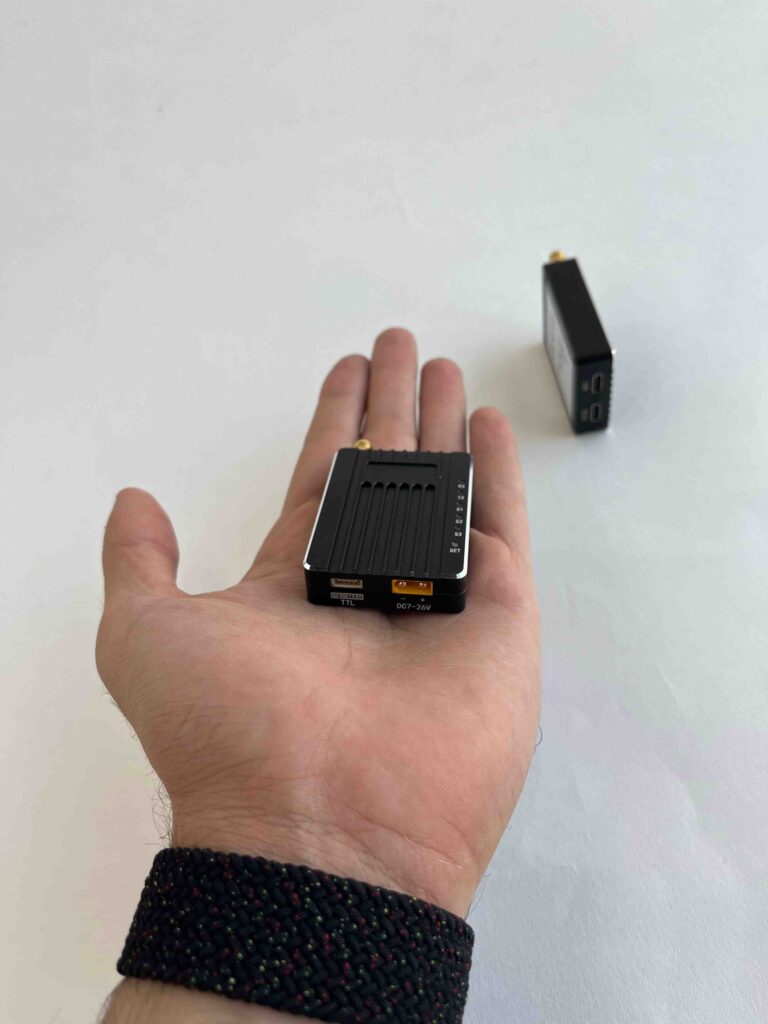

Both of them have the characteristics of small size, good integration, and high sensitivity. T900 Mini works in the frequency band of 902~928MHz and has 1W transmission power. In a good environment, the maximum transmission distance can reach up to 60km.

For a comprehensive reading of related products, please visit the Motionew website.

FAQ – T900 Mini Datalink 900MHz 1W

1. What are the key specifications of the T900 Mini Datalink?
The T900 is a 1W digital long-range datalink module operating at 900MHz, designed for UAV and ground control applications. It offers bi-directional communication, low latency, and robust anti-interference performance with up to 40 km range (LOS).

2. What technology ensures stable and reliable transmission?
The T900 uses Frequency Hopping Spread Spectrum (FHSS) and Forward Error Correction (FEC) for high link stability. It supports AES encryption to secure telemetry and control data.

3. What interfaces and configurations are supported?
It supports UART/RS232 data interfaces and can directly connect to Pixhawk, CubePilot, and other UAV flight controllers. The compact design allows easy integration into air and ground units.

4. What payment methods are accepted for purchasing the T900 Datalink?
Motionew accepts credit/debit cards, PayPal, and bank wire transfers. Proforma invoices are available for OEM and enterprise customers.

5. Is OEM or customization available?
Yes. Motionew provides OEM customization, including frequency tuning, power adjustment, branding, and connector configuration. Contact the sales department for MOQ and lead-time details.

6. Are datasheets and setup guides available?
Yes. Motionew provides datasheets, wiring diagrams, and integration manuals. Engineering support is available for UAV integration, antenna configuration, and telemetry optimization.
