CUAV P8 Radio Drone Telemetry Long Distance Transmission

239.00 $459.00 $

(1 customer review)
PayPal
Visa
Master

Description

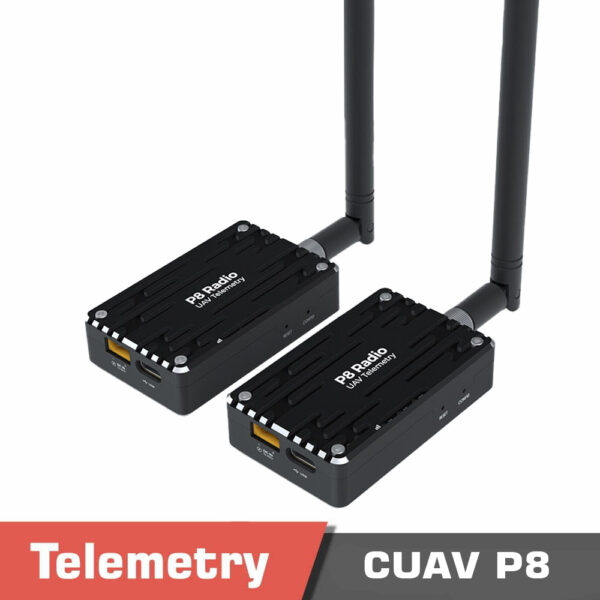

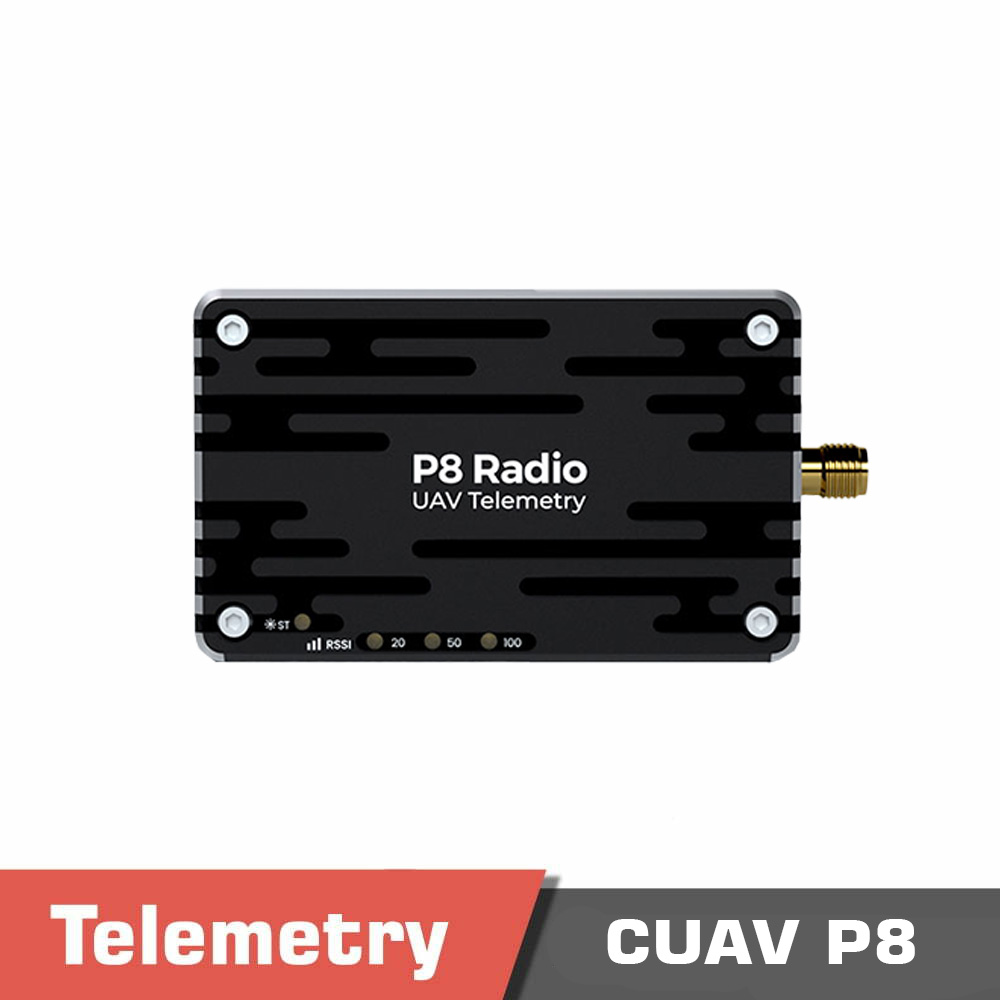

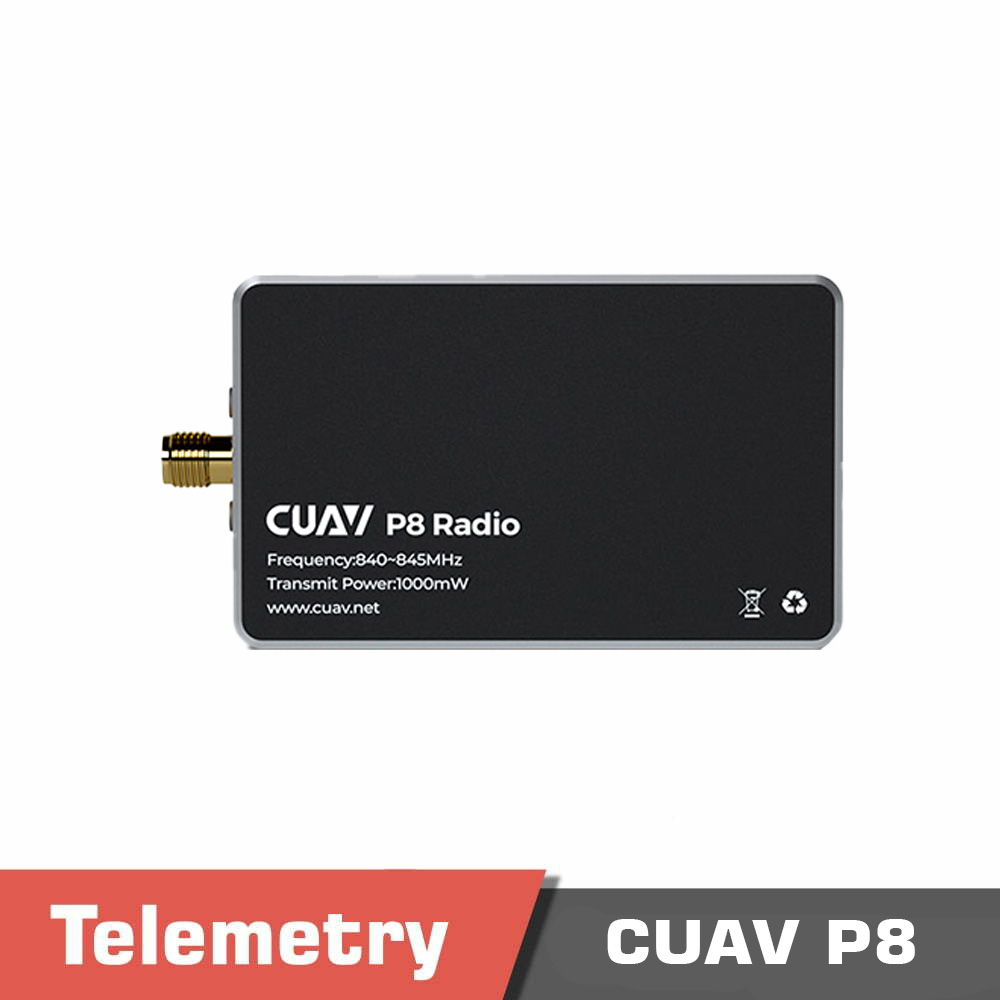

CUAV P8 Radio Drone Telemetry Overview

CUAV P8 Radio Drone Telemetry is a long range wireless datalink drone module. It is suitable for communication from a UAV to the ground control station (GCS) due to its high sensitivity and high power. This module can stream data up to 40km line of sight range and supports multiple modes of communication including point-to-point, point-to-multipoint, and relay communication.

General Specifications CUAV P8

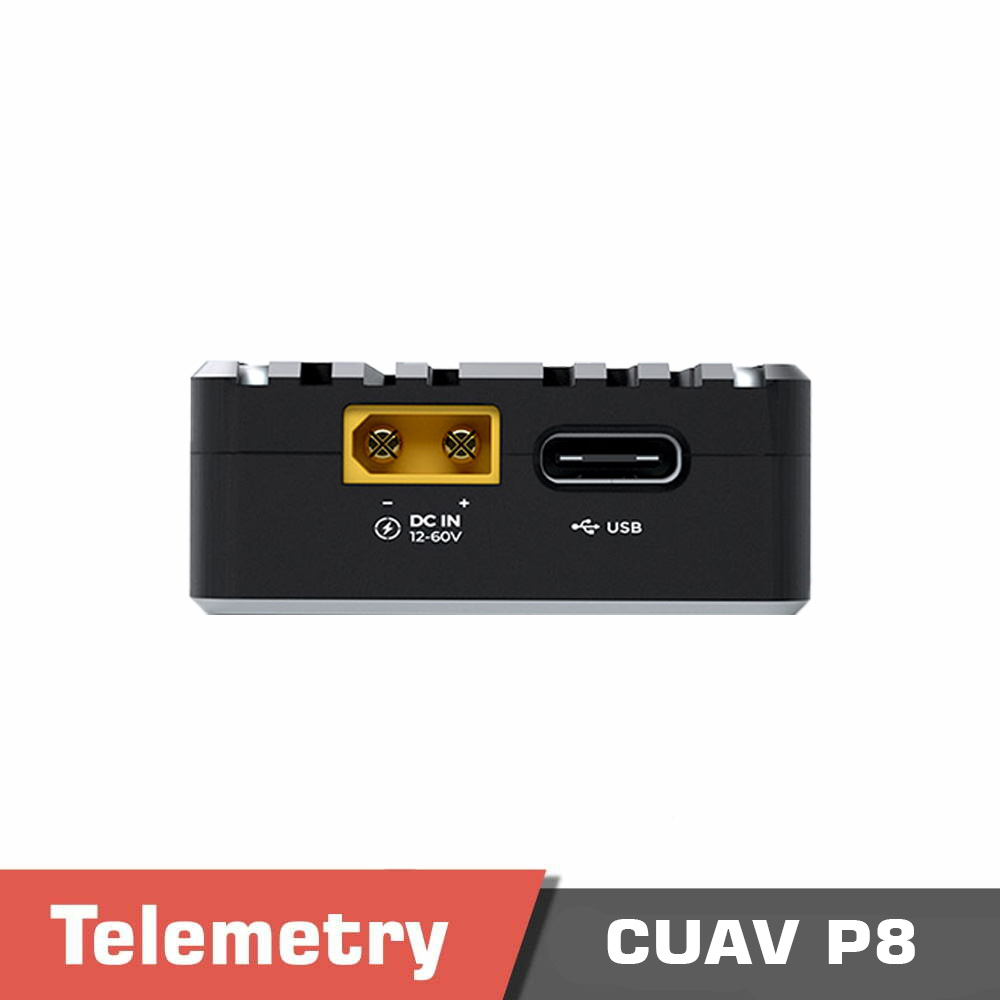

You can power the module using 3~12S battery supplies, and the internal circuits provide the desired working voltage for the module. The aluminum shell design creates a nice look while protecting the device from harsh environments and environmental interferences. The working frequency of the module is 840MHz-845MHz.

Transparent Communication Interfaces

CUAV P8 is a transparent communication link, which means you can connect with whatever device you want, no matter the protocol that the device uses. Just provide the input data in the supported format of your device, and you will receive the same frames on the other side.

The module is connected to your flight controller (installed on the drone) with the serial interface (GHR-06V-S connector), and the other side connects to the Ground Control Station (GCS) with the USB cable. The module operates by default on 1W power for the maximum range, but you can optionally change the output power using the USB port.

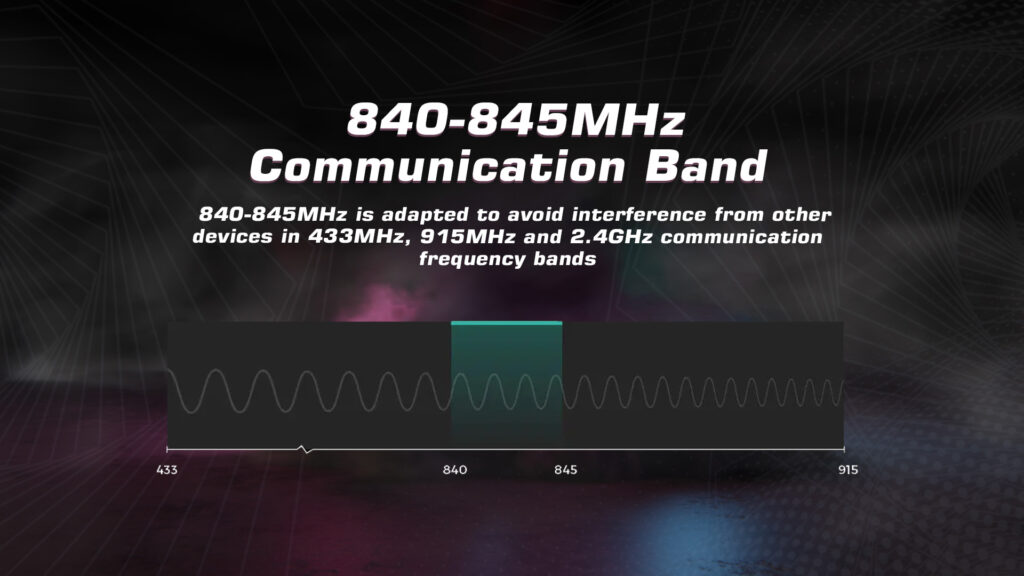

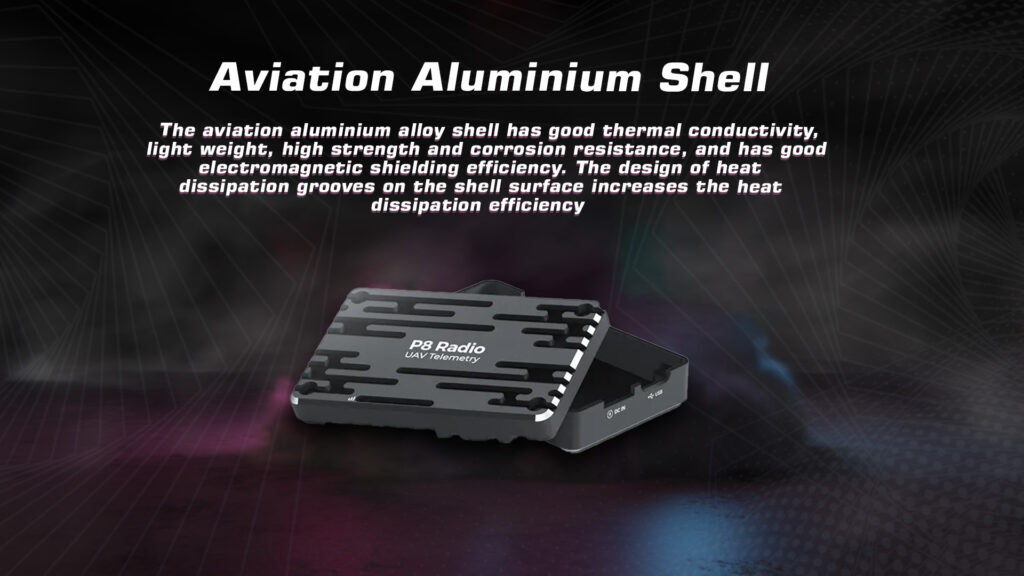

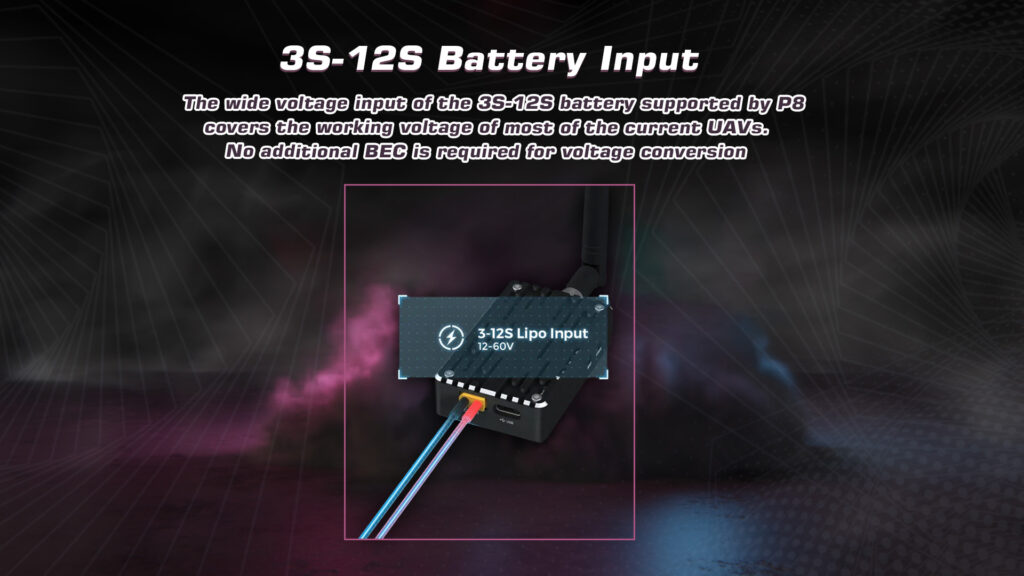

Cuav p8 radio drone telemetry Communication band cuav p8 radio drone telemetry Cuav p8 dual-end switchover Cuav p8 battery input Aviation aluminium shell of cuav p8



If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Specifications

Specifications
Working Frequency 840-845MHz
Transmission technology Frequency Hopping / Fixed Frequency, GMSK, 2GFSK, 4GFSK, QPSK
Forwarding error detection Hamming /BCH/Golay/Reed-Solomo/Viterbi
Error detecting Error Detection 32 bits of CRC, ARQ
Range – Limit distance: 60km (high-gain antenna + unobstructed seaside)
– Reference distance: 40km(The transmission distance is different under different environments/configurations, please refer to actual use)
Sensitivity -109 dBm @ 115.2 kbps
-108 dBm @ 172.8 kbps
-106 dBm @ 230.4 kbps
Output power 100mW – 1W (20-30dBm) / (Default๏ผš1W)
Serial interface 3.3V CMOS TTL
Antenna gain 3dBi
Baud rate 300bps to 230kbps(57600)
Link Rate 345kbps Max
Operating Modes Point-to-Point, Point-to-Multipoint, Repeat Mode
Input Voltage 12V-60V
Input Current >2.5A
Power consumption Sleep < 1mA
Idle < 20mA
RX : 45mA ~ 98mA
TX(peak) : 2A
Interface Serial: GHR-06V-S
Antenna: SMA inner needle
USB: TYPE-C
Power: TX30PW-M
Operating temperature -40โ„ƒ ~ +85โ„ƒ
Weight P8 module: 55g(No antenna) / Antenna:31g
Size 65x40x16.5mm



Product contents

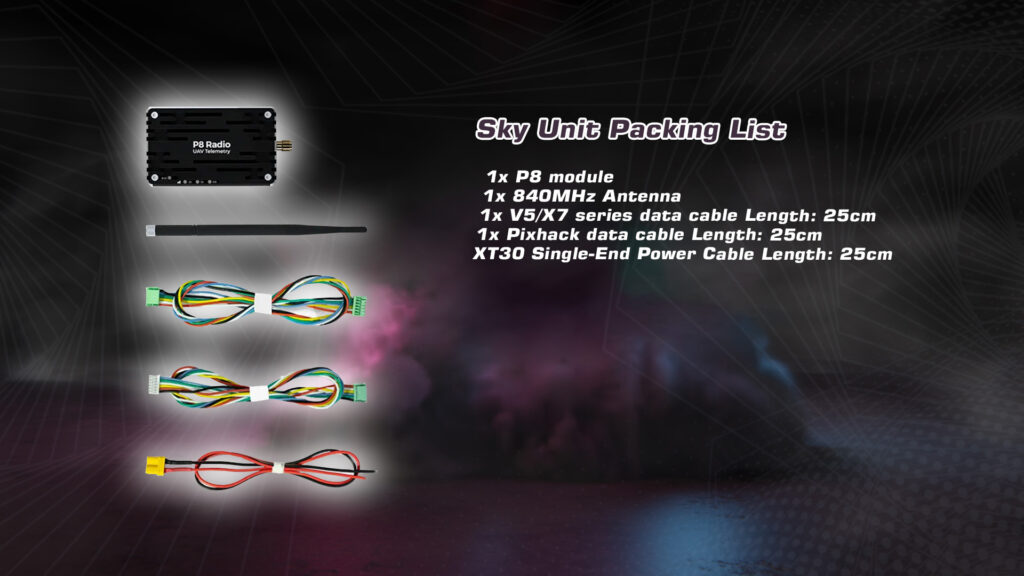

Sky Unit Packing List

1x P8 module

1x 840MHz Antenna

1x V5/X7 series data cable Length: 25cm

1x Pixhawk data cable Length : 25cm

XT30ย  Single-End Power Cable Length: 25cm

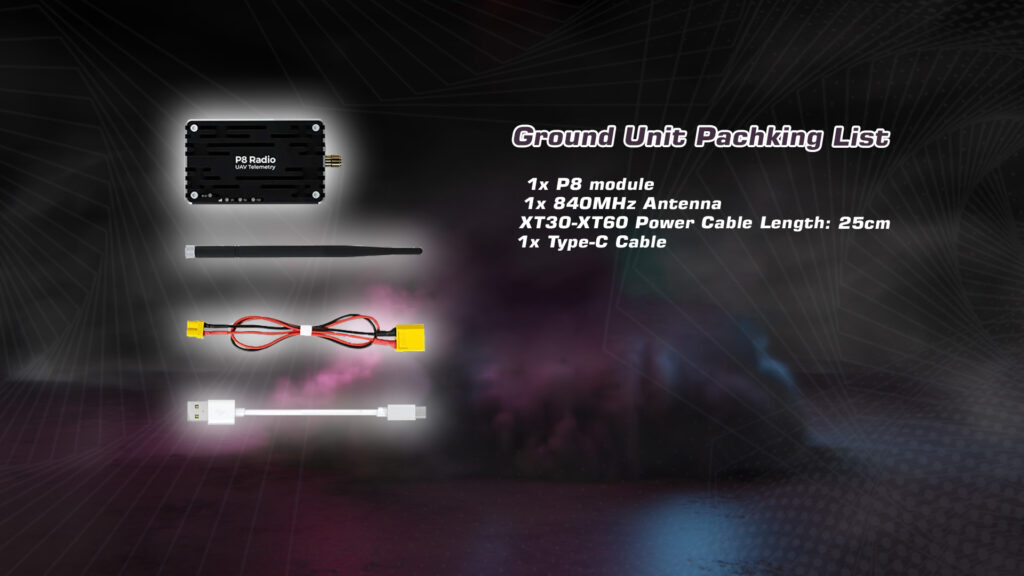

Ground Unit Packing List

1x P8 module

1x 840MHz Antenna

XT30/XT60 Power Cable Length: 25cm

1x Type-C Cable

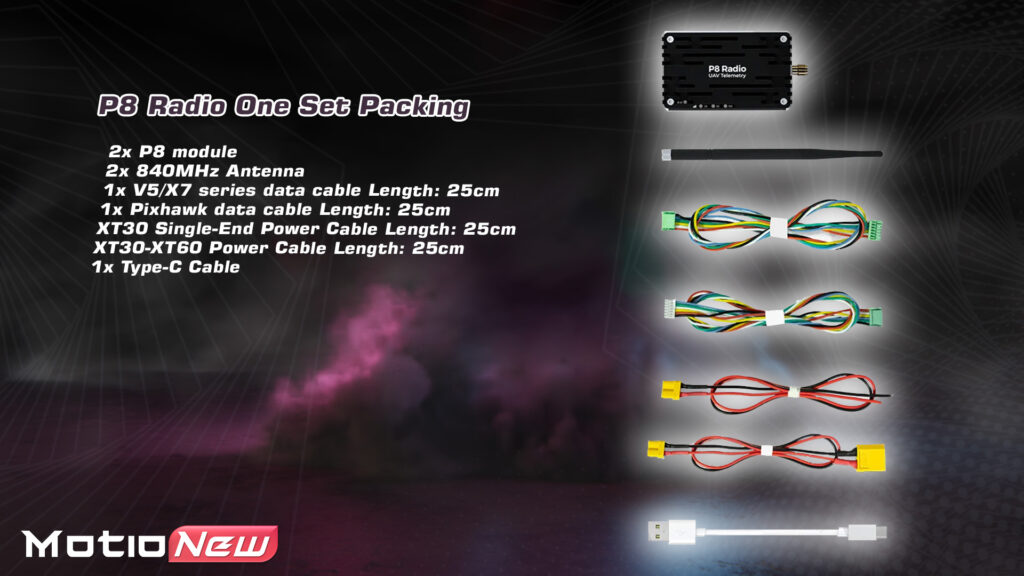

P8 Radio One Set Packing

2x P8 Modules

2x 840MHz antenna

1x V5/X7 series data cables

1x Pixhawk data cables Length: 25cm

1x XT30 Single-End Power Cable Length: 25cm

1x XT30-XT60 Power Cable Length: 25cm

1x Type-C Cable

Cuav p8. 6 1 - cuav p8 - motionew - 21 Cuav p8. 7 1 - cuav p8 - motionew - 22 Cuav p8. 8 1 - cuav p8 - motionew - 23



Documents

Pleaseย contact usย for more information.

1 review for CUAV P8 Radio Drone Telemetry Long Distance Transmission

    Oscar
    September 14, 2024
    Servicio rรกpido y producto genial!
