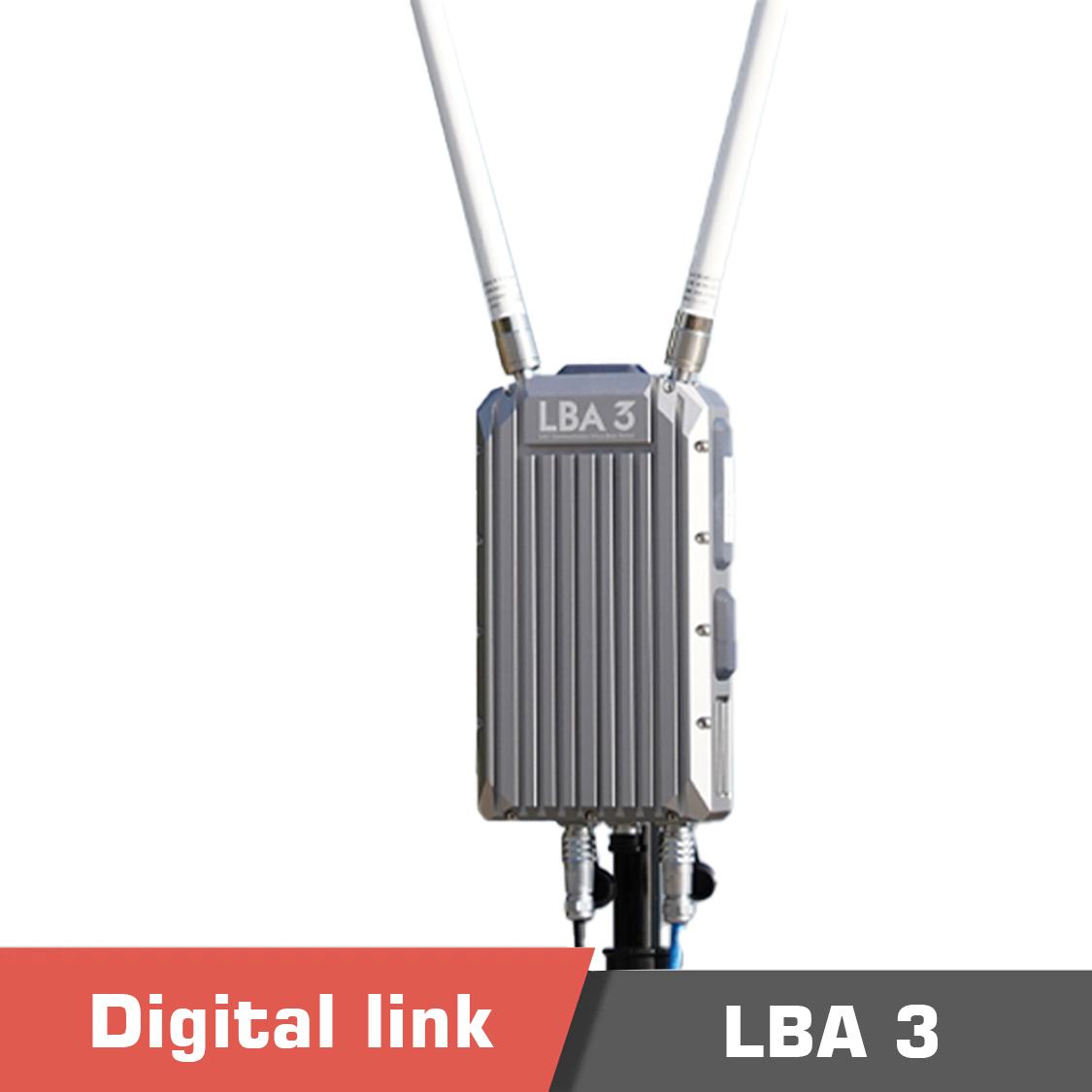

Digital link lba3. Tem1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 3

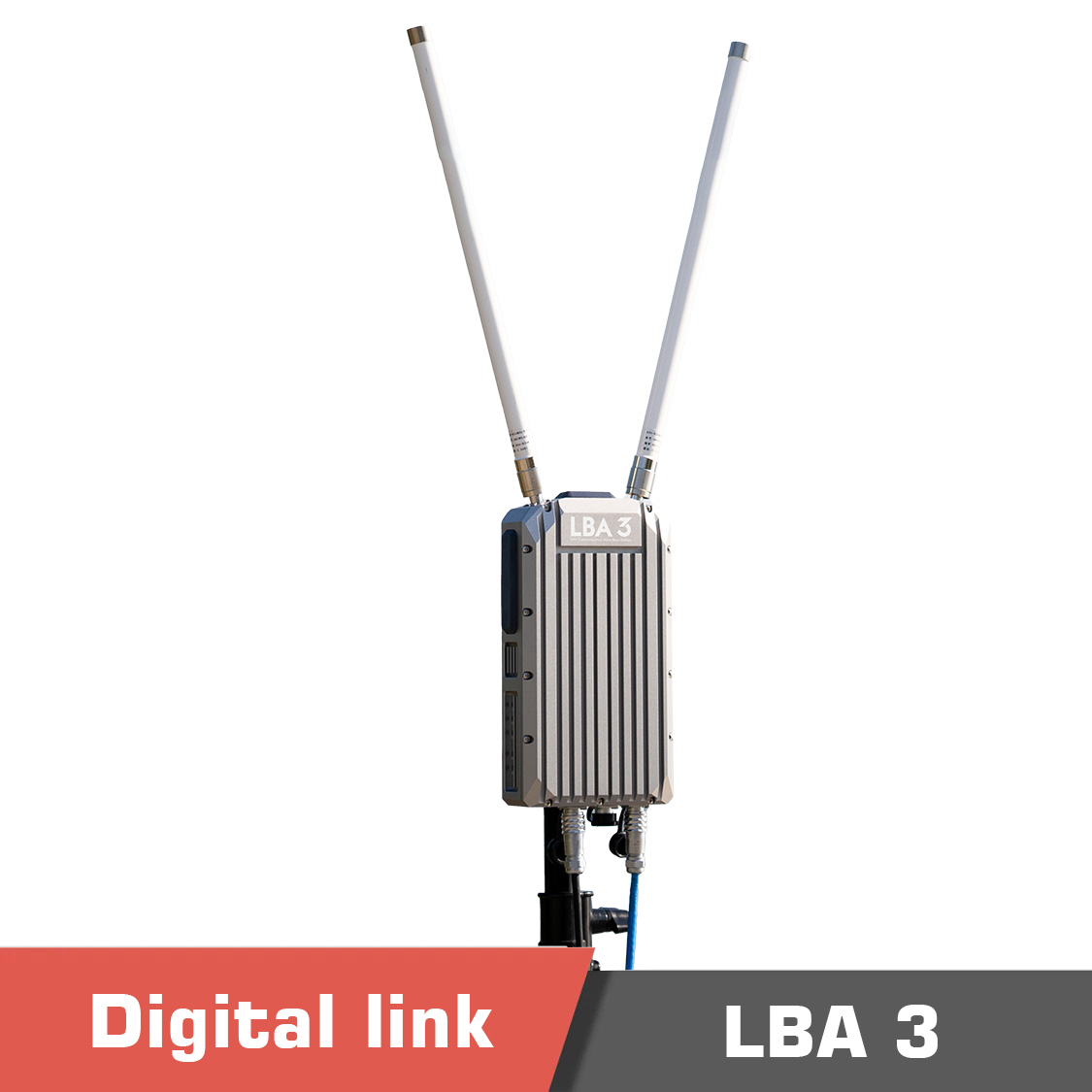

Digital link lba3. Tem2 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 4

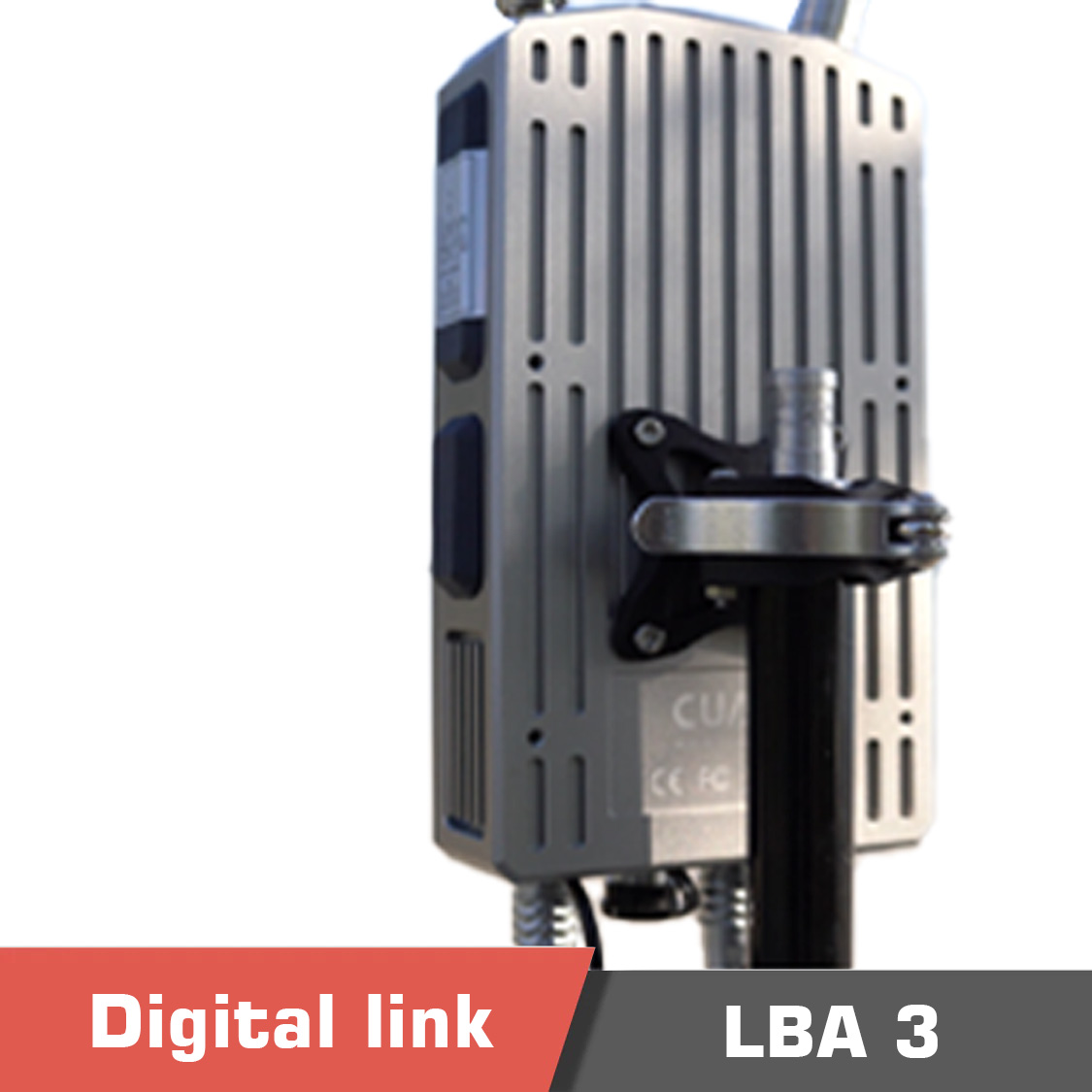

Digital link lba3. Tem3 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 5

CUAV LBA 3 Digital Link, Industrial Micro Private Network 4G 5G Large Bandwidth Hybrid One To Multiple Communication Base Station

3589.00 $ – 5189.00 $

Description

CUAV LBA 3 Digital Link, Industrial Micro Private Network 4G 5G Large Bandwidth Hybrid One To Multiple Communication Base Station

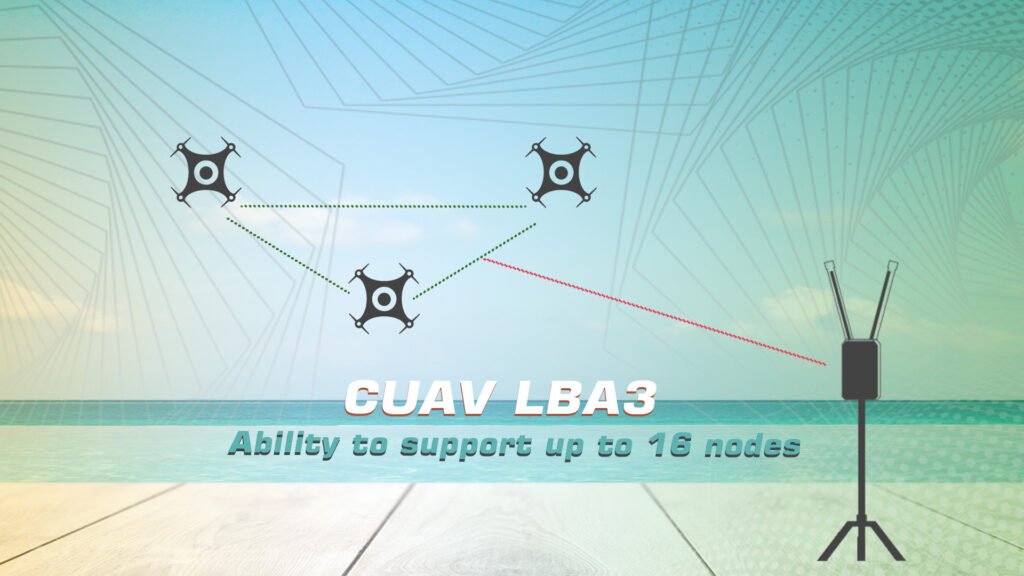

CUAV LBA 3 digital link is a micro base station equipment for medium-range and long-distance networking control and monitoring of UAVs. It has a 54km coverage area, and a large communication bandwidth of 30Mbps, with support of multi-unit network arrangements of up to 16 nodes in a star network. All nodes can communicate with each other with a minimum delay of less than 100ms. Supporting multiple nodes makes the system suitable for the formation flight of multiple UAVs.

CUAV digital datalink supports both 1.4GHz and 800MHz frequencies. A maximum of 5W RF power and AES256 encryption are other features of it. LBA 3 has an industrial protection design (IP67), to meet outdoor operations situations. All the plugs are waterproof aviation types, and the module has three layers airtight design.

The module works with LTE 4G/5G network. Moreover, it has a hybrid communication configuration to cover LTE network blind spots. LTE station antennas are usually inclined downward. As a result, stable LTE communication is not obtained at altitudes above 300m. Hybrid mode allows the network to cover the LTE blind spots to obtain reliable communication.



Cuav lba 3 digital linkLba3 cuav. 4 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 6Lba3 cuav. 3 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 7 Lba3 cuav. 2 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 8   Lba3 cuav. 5 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 9 Lba3 cuav. 6 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 10 Lba3 cuav. 7 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 11 Lba3 cuav. 8 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 12 Lba3 cuav. 9 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 13 Lba3 cuav. 10 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 14 Lba3 cuav. 11 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 15Lba3gif 1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 16

Additional information

Weight 3 kg
Dimensions 7 × 2 × 2 cm

Specifications

LBA 3 Specification
Coverage Area 1.4 GHz 54km / 800MHz 54km
Anti-interference Dynamic frequency hopping, intelligent frequency hopping in the
frequency band
Frequency band 1420-1448MHz / 806~826MHz
RF Power 5W max
Communication bandwidth Starter version: 30 Mbps / Advanced version: 100Mbps
Network node A starter version: 2~16 个 / advanced version: 2~64
Network type point-to-point/one-to-multiple
Encryption AES265
Modulation Support QPSK, 16 QAM, 64 QAM modulation
Delay slave node-central node transmission delay <=150ms
Operation interface WEB
LTE network type All Netcom TD-LTE/FDD LTE/TD-SCDMA/WCDM
Power IN BaseStation：Support 20V~60V input（Standard power
consumption 24V 1.5A）/POE 90W Support
Air Unit：Support 20V~60V input (Standard power consumption 24V
1A)
Operating Temperature -15~65c
Weight Base Station：1.65kg Air Unit：155g
Interfaces Air Unit: SMA Antenna interface×2，XT30 Power connector×1，RJ45
data interface ×1，USB ×1，TTL serial port×1

N female antenna interface ×2，SMA antenna interface ×2，XT30
power interface×1，POE Network Interface×1
Protection Level Base Station IP67 Air Unit IP20
AG Module Specification
Main Specification
Frequency&Power 5.8G 20dbm
CPU 580MHz
RAM 265MB
FLASH 32MB
Size 64×38×16.5mm
Voltage Range 5V+-0.2V 450mA
Network Parameter
WEB Management IP 192.168.10.100 Account ：root Password：none
Network Segment 192.168.10.x
WIFI Name CUAV AG_XXXX
WIFI Password 12345678
Environmental Parameter
Operating Temperature -15±60°c
Storage Temperature -20±65°C
Connector Type
LAN Interface ×3 (GH1.25 4P)
UART Interface ×2 (GH1.25 6P+GH1.25 4P)
USB Interface ×1 (GH1.25 4P)



Documents

Please contact us for more information.

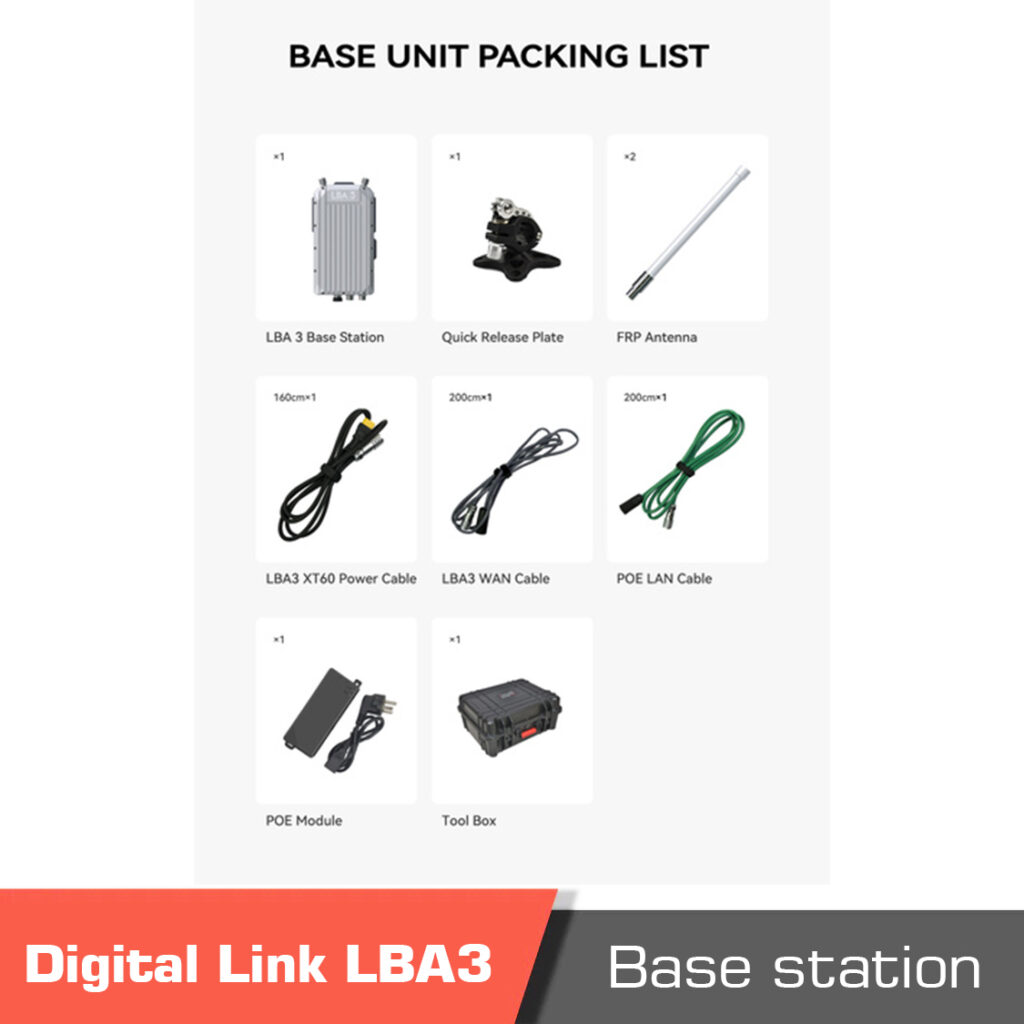

Product contents

Base Station

1x LBA 3

1x Quick loading plate

1x Antenna

1x POE Module

1x LBA3 WAN cable

1x POE cable

1x POE Power cable

1x XT60 Power cable

1x POE WAN cable

1x Toolbox

Base1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 17

Sky Unit

1x LW800/LW140 Sky Unit

1x AG module

1x XT30 Power cable

1x GH1.25 USB cable

2x LAN cable

1x Ethernet cable

2x AG-FC UART cable

1x LW-FC UART cable

2x Network cable pair

3x Antenna extension cable

2x Rod antenna

Sky1 - cuav lba 3 digital link,industrial micro private network,micro base station,long-distance networking,large bandwidth,formation flight,waterproof,digital link equipment,long range,lte communication technolgy,16 nodes star network,star networking,aes encryption protection,point to point,point to multiple point,coastal inspection,aerial mapping,pipeline inspection,fire application,disaster rescue,delivery application,5w datalink - motionew - 18
