HM30 FULL HD DIGITAL IMAGE TRANSMISSION SYSTEM-USER MANUAL

324.99 $949.99 $

(1 customer review)
PayPal
Visa
Master

Description

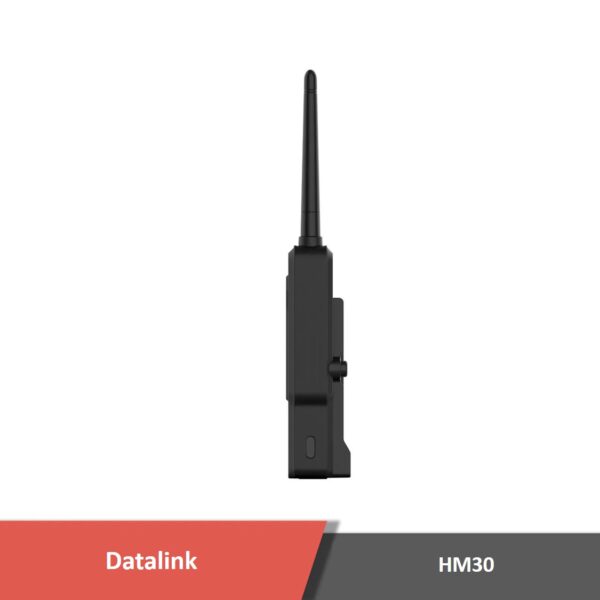

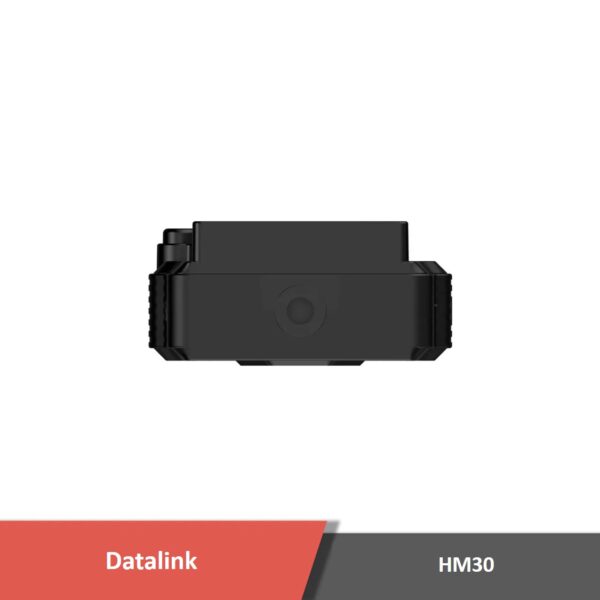

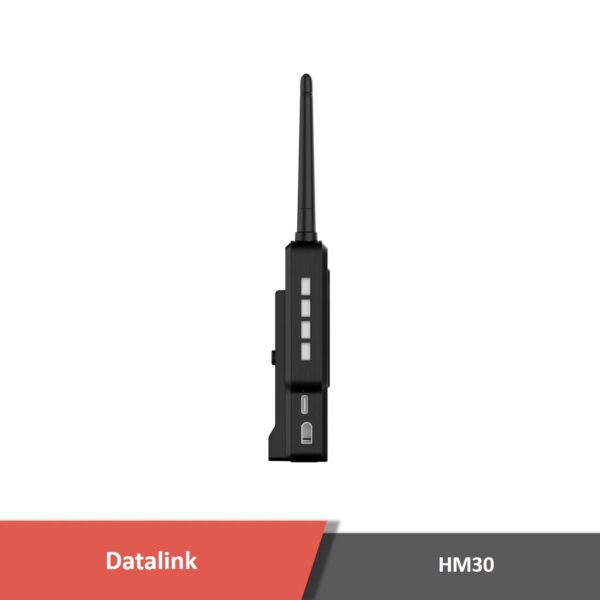

HM30 Full HD digital data link and video link

HM30 digital link is a long-range, low latency datalink drone and video link. It can reach 30KM communication distance while streaming full HD 1080p video. The video streaming latency is as low as 150ms. It is suitable for installation as an FPV video transmitter on small drones, commercial manned and unmanned aerial vehicles and boats, and other types of robots.

Incorporating high-end image transmission technology, the HM30 digital link is capable of 60fps video streaming with Full HD resolution. A smart adaptation algorithm adapts transmission to the frequency bands with the least environmental interference.

You can reach a communication range of 15km with standard omnidirectional antennas. If you need more range, use a high gain antenna and reach up to 30km real-time control and stream of data and video.

In new future, a new feature will be released to support the DUAL RC function, allowing you to bind two transmitters with one receiver and control the vehicle at the same time. Furthermore, the RC relay function helps expand the control and data stream range of HM30.

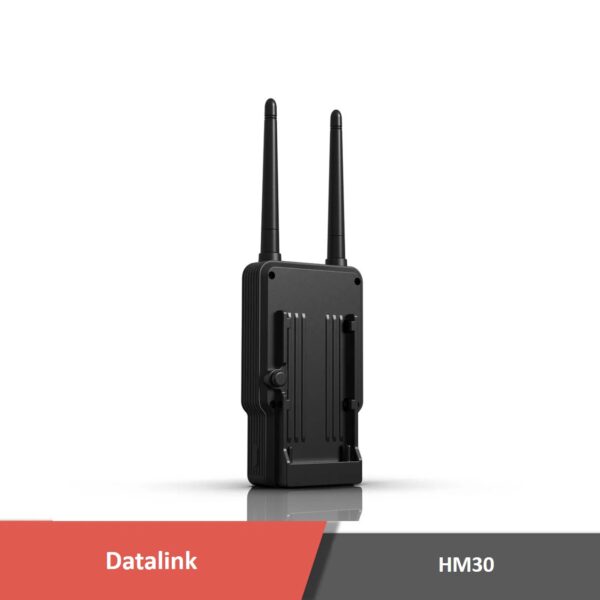

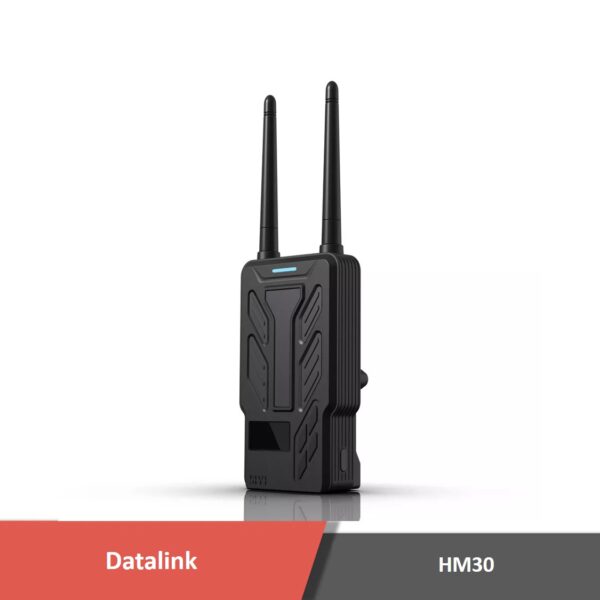

There is an OLED screen with a touchscreen installed on the transmitter to show the link status. It also gives some features for fast parameter configuration.

Popular quick-release mechanisms of batteries such as NP-F550/750/950 are used for easy and fast setup. A 30W PD fast charger can be used to charge the batteries through the transmitter. Alternatively, use an external source of 7~20v with an XT30 connector.

Consult Motionew Online Shop to see the full range of our products. Moreover, if you are interested in the long-range wireless video you can visit the video and data link page.

Hm30 full hd digital image transmission system

Hm30

Long range data link

Hm30 desc 3 - hm30 full hd digital image transmission system - motionew - 18

Hm30 desc 4 - hm30 full hd digital image transmission system - motionew - 19

Hm30 desc 5 - hm30 full hd digital image transmission system - motionew - 20

Hm30 desc 6 - hm30 full hd digital image transmission system - motionew - 21

Hm30 desc 7 - hm30 full hd digital image transmission system - motionew - 22

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Specifications

Overall
Datalink Stream supported FC (Mavlink) Pixhawk, APM,
SN+, SN-NAVI,
MATEK H743/F405,
or any other flight controllers with UART output

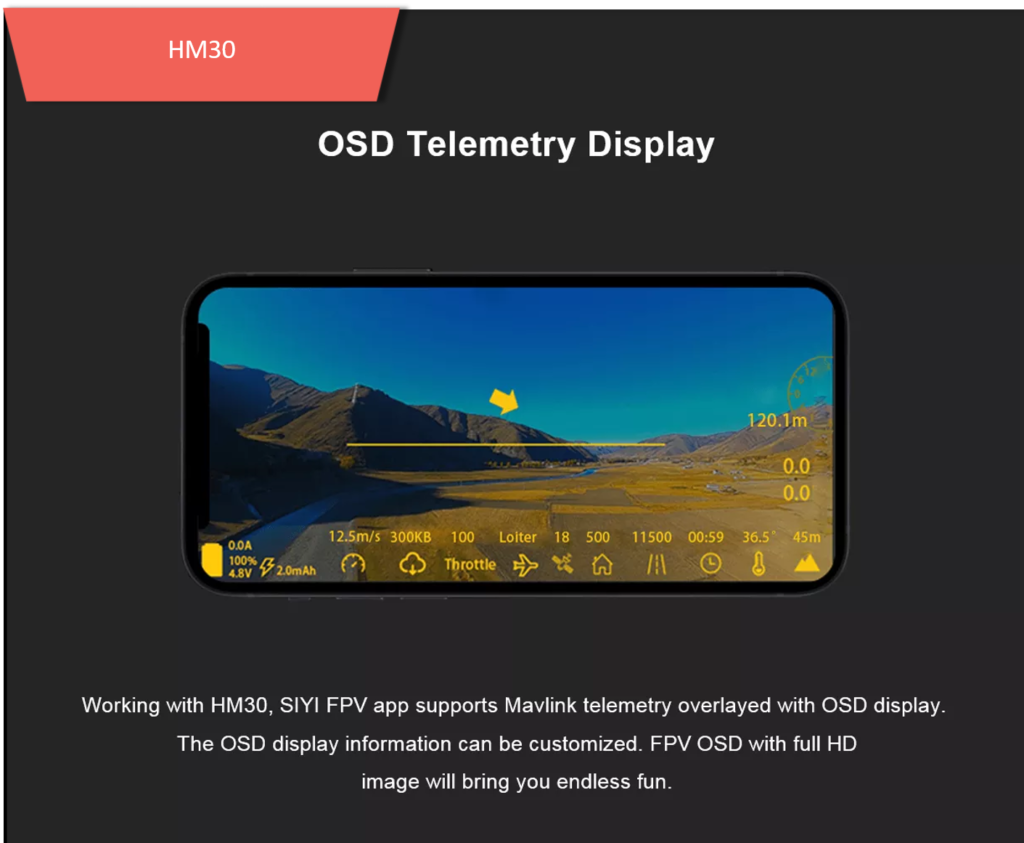

Video Stream supported GCS (RTSP) QGroundControl, SIYI FPV

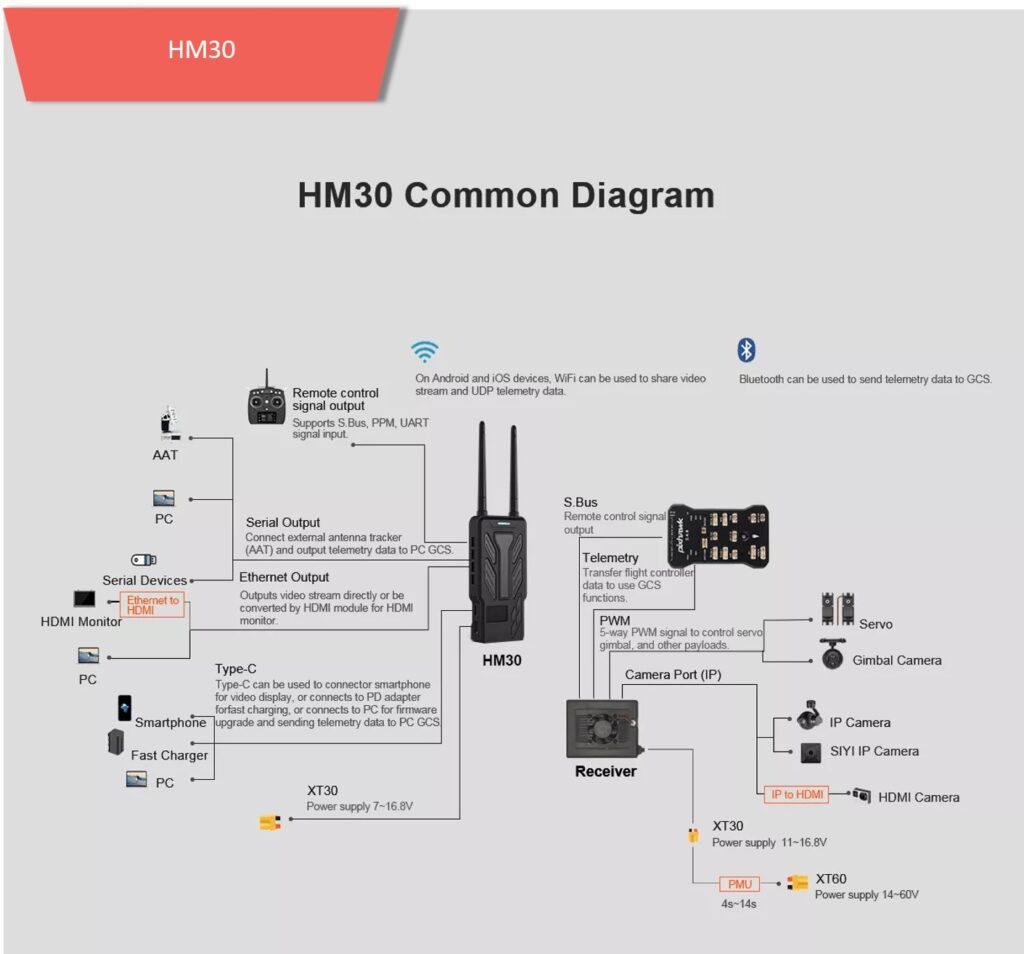

Functional Interface RC: Remote control signal input
UART: Datalink output
LAN: Ethernet port
VCC: Power output
Type-C: USB video stream output, PD fast charging, PC firmware update, USB WiFi
XT30 VCC: Power input
1/4” Screw Hole: Tripod connector
Maximum FPV range 30km





Ground Unit
Monitor 0.96” OLED Screen
Dimension (antenna and battery excluded) 109 x 61 x 28 mm
Item Weight (antenna and battery excluded) 132 g
Working Temperature -10 ~ 50 ℃
Supported Battery NP-F970 / F750 / F550 / F770 / F950 quick-release battery
*HM30 Fly More Combo comes with NP-F750 battery
Charging  PD 30 W fast charging
Antenna Gain Omni Antenna: 5 dBi
Long Range Antenna: 11 dBi
Power Consumption 5W
Waterproof Level IP53





Air Unit
Signal Output 16 CH S.Bus, 5 CH PWM
Functional Interface S.Bus: Remote control signal output
UART: Datalink output to FC
PWM: PWM signal output (CH 1 to 5)
Ethernet: Video stream input
Type-C: Firmware update
Dimension (antenna excluded, fan included) 70 x 55 x 24 mm
Item Weight (antenna excluded, fan included) 74 g
Antenna Gain 5dBi
Working Voltage 11 ~ 16.8 V
*Expandable to 14 ~ 58.8 V with BEC.
Telemetry Voltage 15 – 50 V
Working Temperature: -10 to 50 ℃



FPV Camera
Camera Angle FOV 120°
Max Resolution 1080 p @ 30 fps
Dimension 42 x 42 x 25 mm
Item Weight 23 g
Working Temperature: -10 to 50 ℃

Documents

User manual



Product contents

Hm30 desc 9 - hm30 full hd digital image transmission system - motionew - 23
