CUAV P9 Radio Telemetry

499.00 $

Description

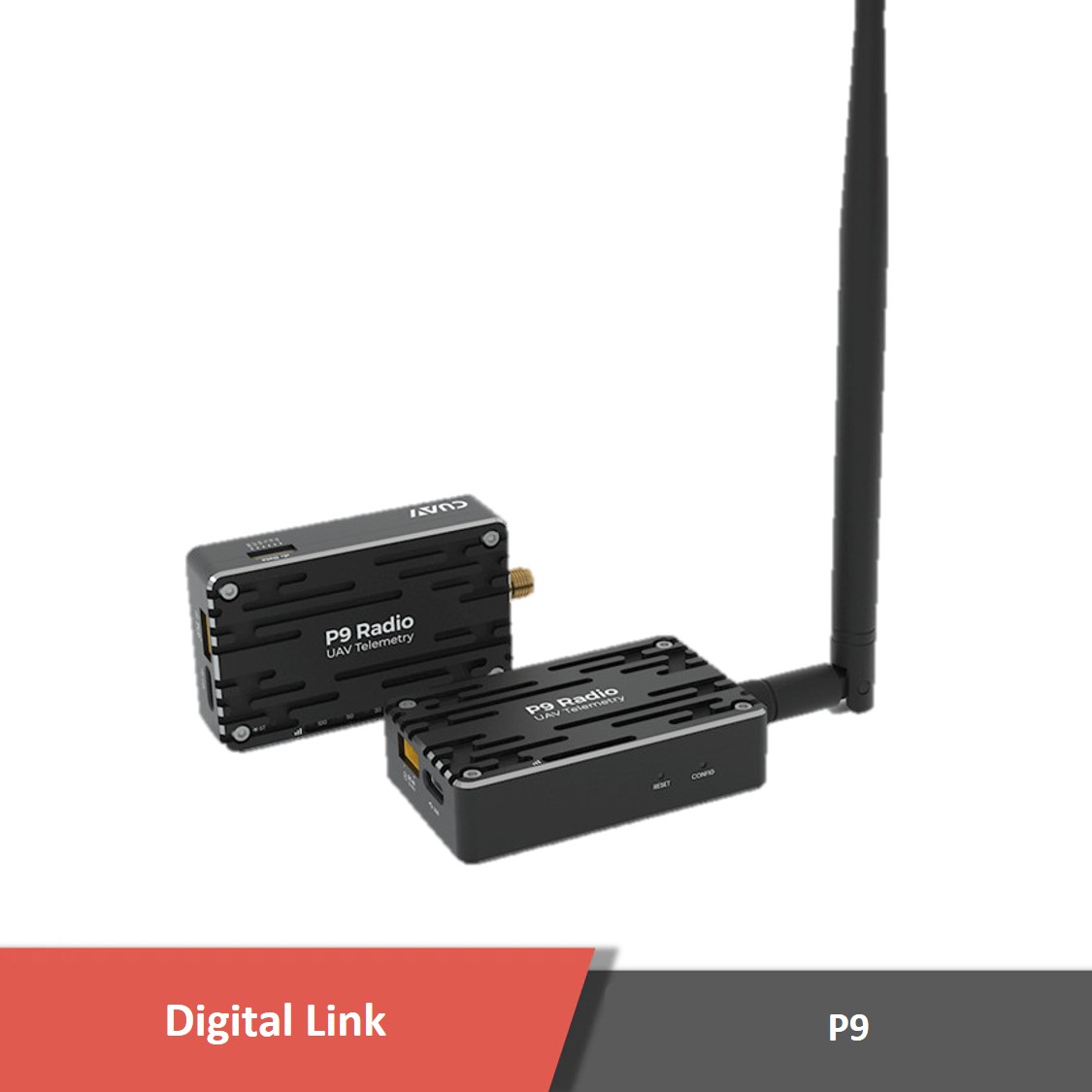

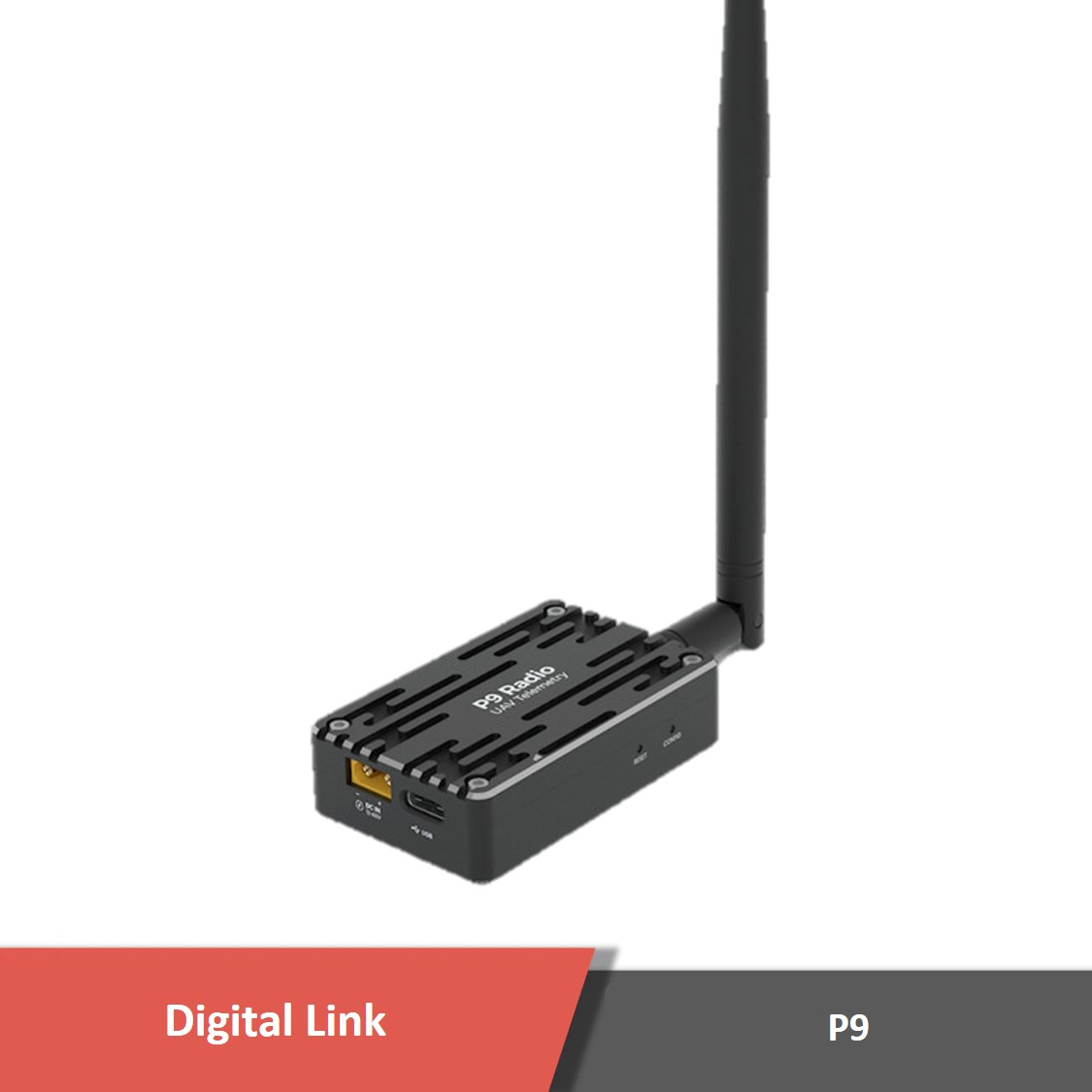

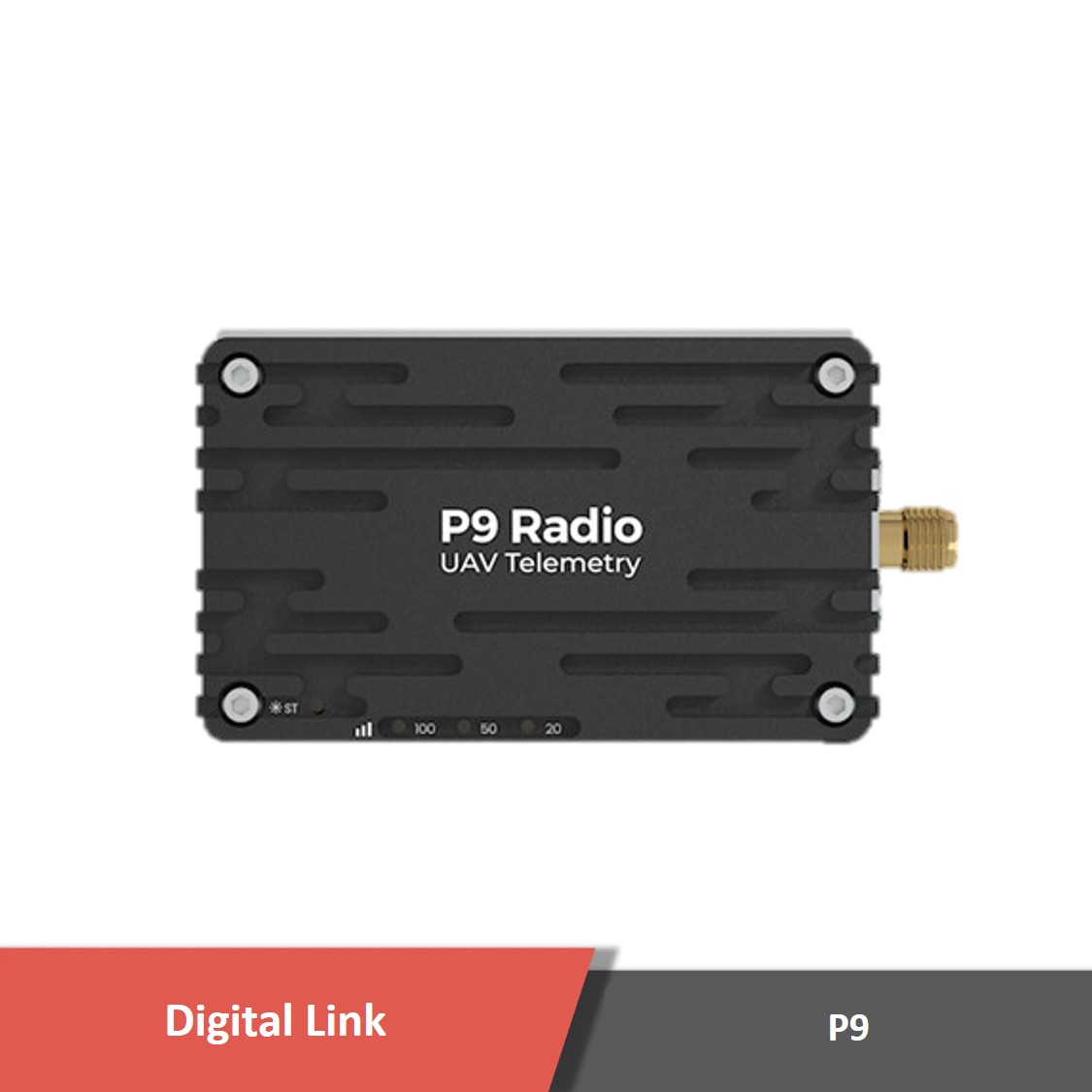

CUAV P9 Radio Telemetry

P9 radio telemetry is a long range datalink module. It is suitable for communication from a UAV to the ground control station (GCS) due to its high sensitivity and high power. This module can stream data up to 60km line of sight range and supports multiple modes of communication including point-to-point, point-to-multipoint, and relay communication.

You can power the module using 3~12S battery supplies, and the internal circuits provide the desired working voltage for the module. The aluminum shell design creates a nice look while protecting the device from harsh environments and environmental interferences. The working frequency of the module is 902MHz-928MHz.

P9 is a transparent communication link, which means you can connect with whatever device you want, no matter the protocol that the device uses. Just provide the input data in the supported format of your device, and you will receive the same frames on the other side.

The module is connected to your flight controller (installed on the drone) with the serial interface (GHR-06V-S connector), and the other side connects to the Ground Control Station (GCS) with the USB cable. The module operates by default on 1W power for the maximum range, but you can optionally change the output power using the USB port.

Long range datalink module - p9 radio telemetry Digital radio module

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 2 kg
Dimensions 30 × 20 × 10 cm

Specifications

Specifications
Working Frequency 902-928MHz
Transmission technology Frequency Hopping
Transfer Protocol Transparent transmission
Forwarding error detection Hamming /BCH/Golay/Reed-Solomo
Error detecting Error Detection 32 bits of CRC, ARQ
Encrypt Optional (see –AES option)
Range – Limit distance: 60km (high-gain antenna + unobstructed seaside)
– Reference distance: 40km(The transmission distance is different under different environments/configurations, please refer to actual use)
Sensitivity -110 dBm @ 115.2 kbps
-108 dBm @ 172.8 kbps
-107 dBm @ 230.4 kbps
Output power 100mW – 1W (20-30dBm) / (Default:1W)
Serial interface 3.3V CMOS TTL
Antenna gain 5dBi
Baud rate UP to 230.4kbps; 57600(Default)
Link Rate 115 – 276 kbps
Operating Modes Auto Routing, Store and Forward, Self Healing, Packet Routing Modes
Operating Voltage 12V-60V
Power consumption Sleep < 1mA
Idle < 3.5mA
RX : 35mA ~ 80mA
TX :800mA ~ 1200mA

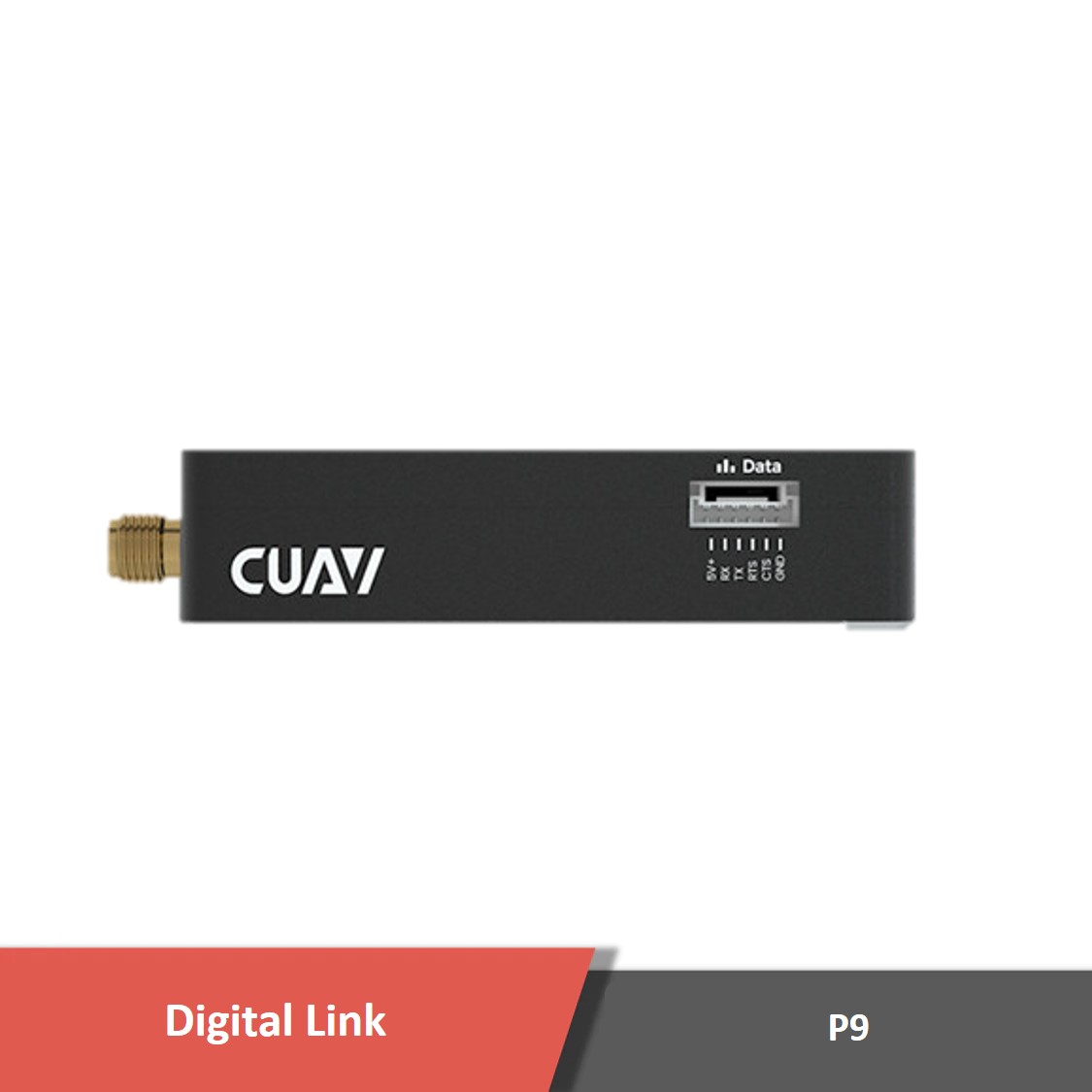

Interface Serial: GHR-06V-S
Antenna: SMA inner needle
USB: TYPE-C
Power: TX30PW-M
Operating temperature -40℃ ~ +85℃
Humidity 5% ~ 95%(Non-condensing)
Weight 5g(No antenna) / Antenna:31g
Size 65x40x16.5mm



Product contents

2x P9 Modules

2x 915MHz antenna

1x V5/X7 series data cables

1x Pixhack data cables

1x XT-30 single-end power cable

1x XT-30 to XT-60 power cable

1x USB type-c cable

P9 7 - p9 radio telemetry,long range datalink,digital tlemetry,digital datalink,digital radio module,digital link - motionew - 6
