CUAV LTE SE, Digital LTE Link

939.00 $

Description

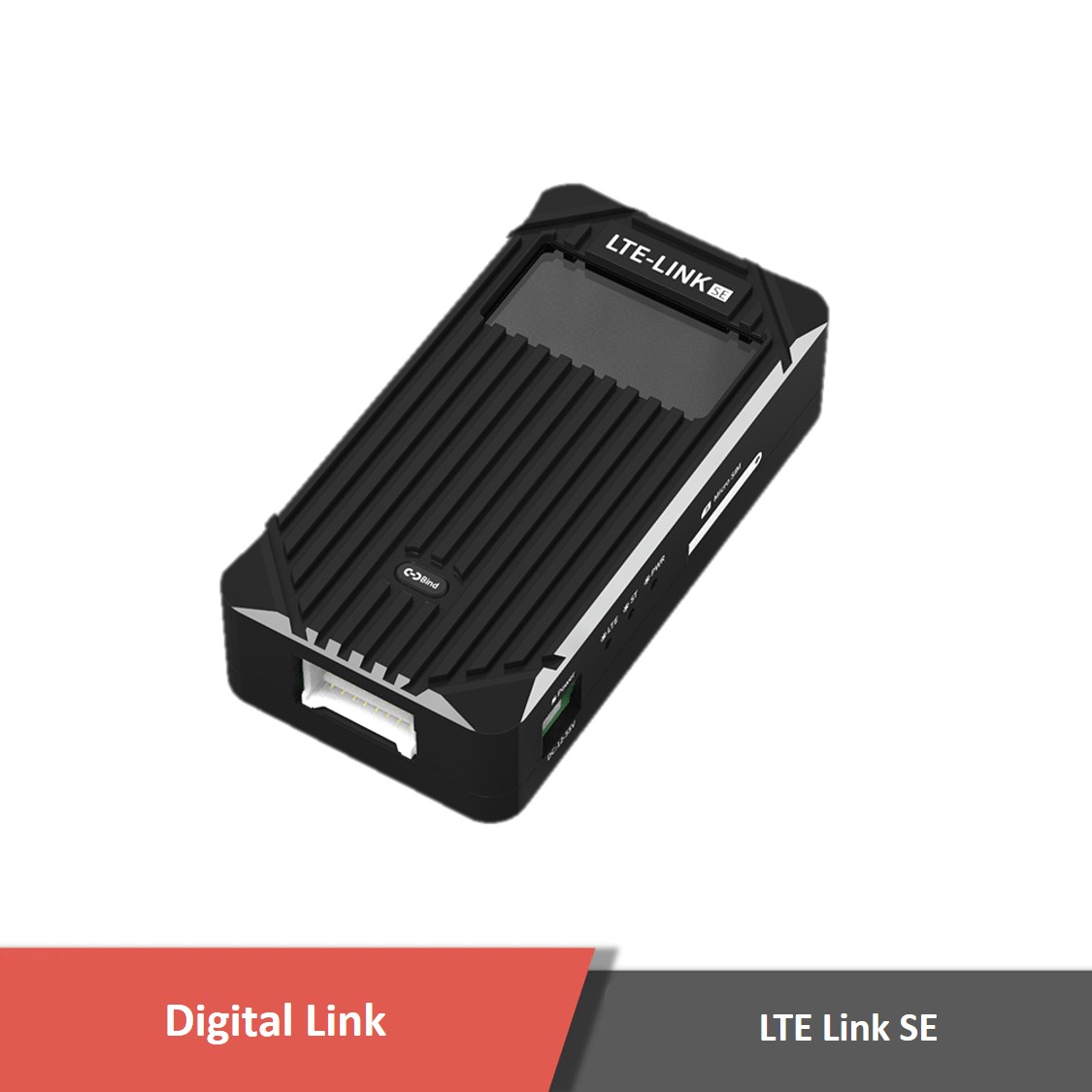

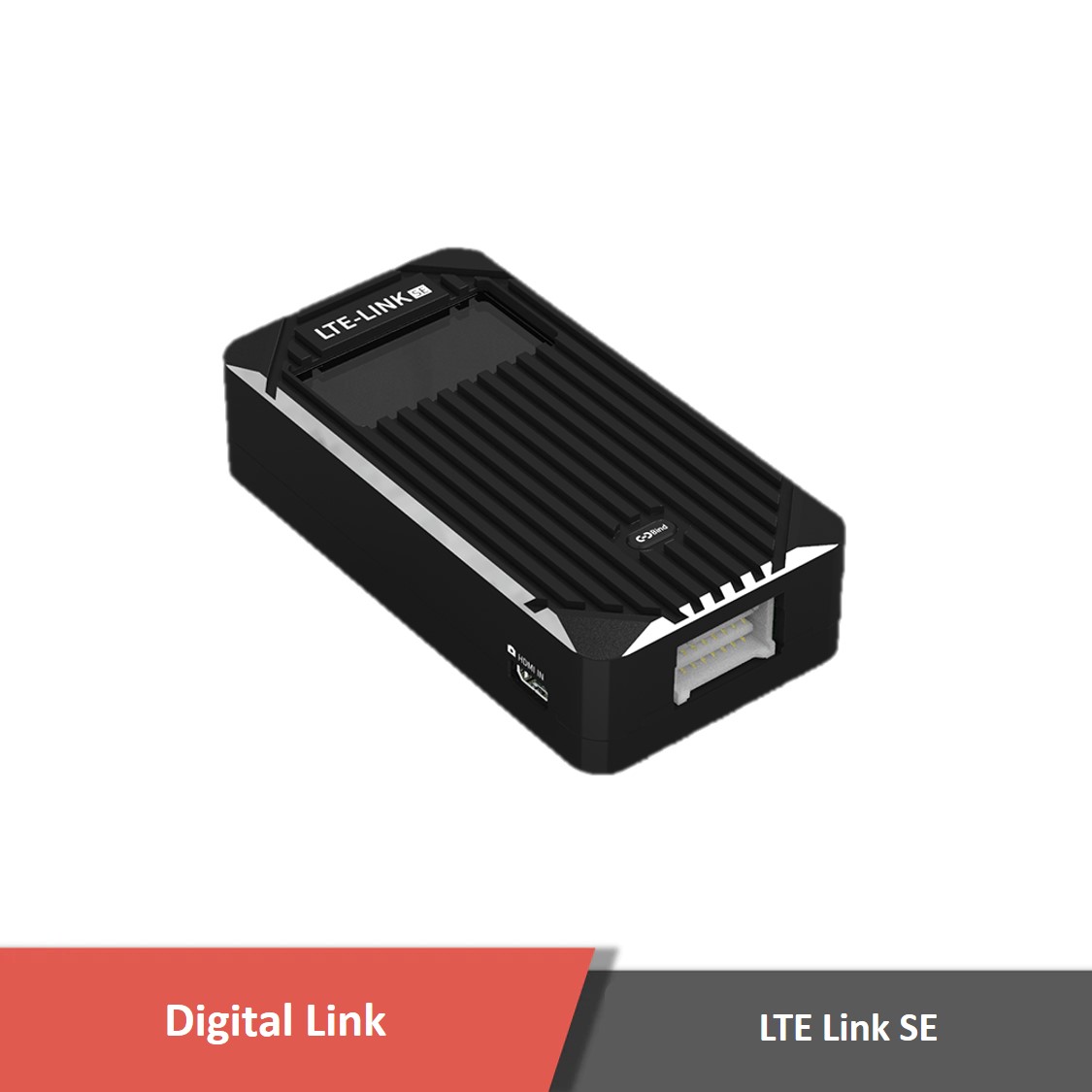

CUAV LTE SE, Digital LTE Link

Using LTE links, the video and data of the drone are transmitted through LTE (4G) networks. Currently, most drones use a point-to-point communication mode or point-to-multipoint. This way, the operable range of drones is unlimited theoretically, and there is no reduction in the quality of service at longer ranges. LTE link supports HD 1080p image transmission with low latency of around 250ms.

LTE network provides high bandwidth for a simultaneous stream of data and video. With H265 encoding of video, real-time transmission of HD video is possible. Using an onboard microSD card, all data can be recorded. You need to insert a SIM card into the device to operate (micro and nano sizes are supported).

Data communication between the link, server, and client is fully encrypted with double keys.

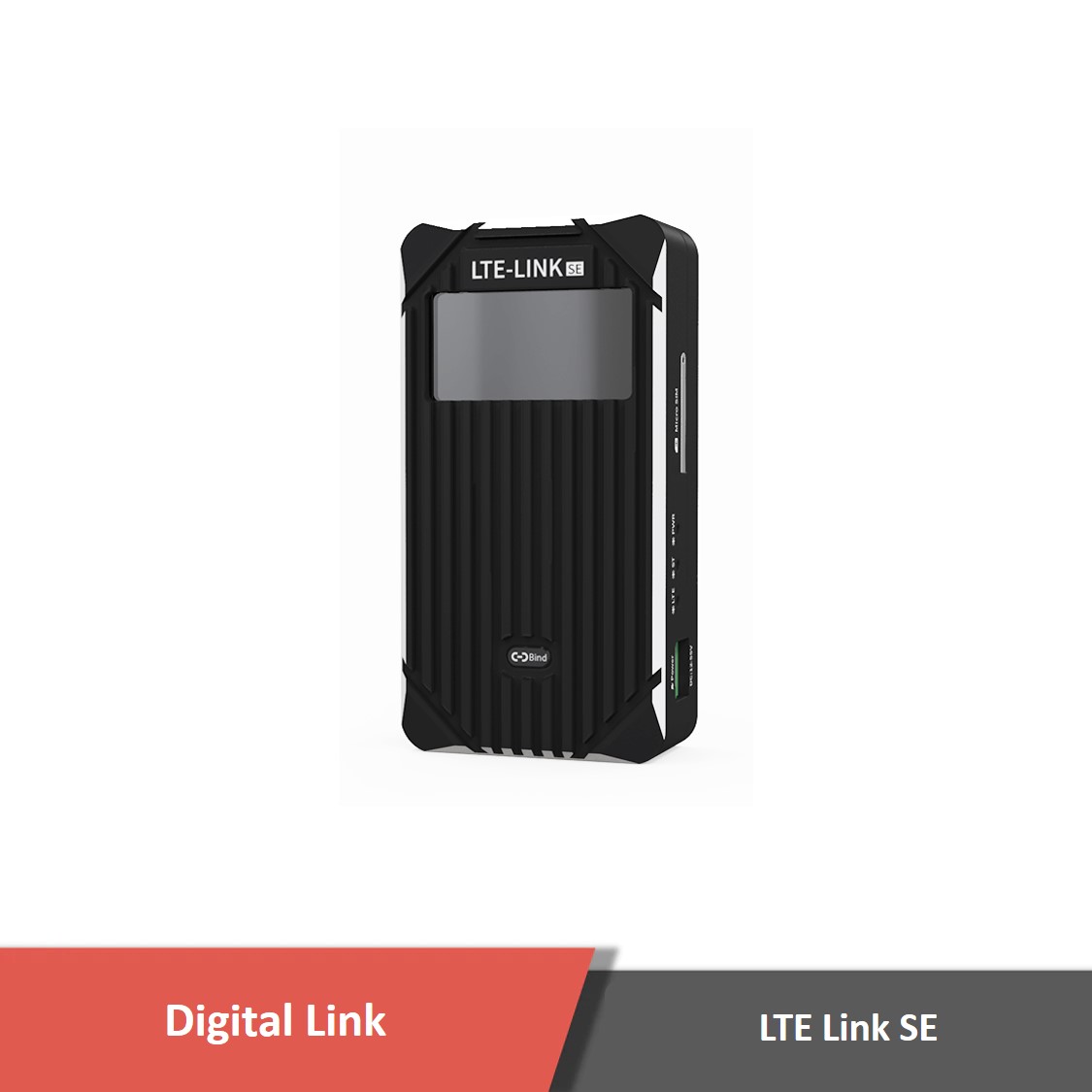

A small OLED screen shows the status of the LTE SE link. You can see 1. Server connection status (communication status between the device and the cloud server), 2. Video transmission Status, 3. Network Status, 4. SD card successfully initialized or not, 5. Whether there is input from the video ports, 6. Device status (initialization, dialing, wait time, connecting to server, network communication status, client status, etc.), 7. UART input status from the drone (if the data is MAVlink 1 or MAVlink2).



Lte link Lte link



If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 1 kg
Dimensions 30 × 20 × 10 cm

Specifications

Specifications
processor HI3516
Network card ME909S
Network frequency band LTE(FDD): B1, B3, B8
LTE(TDD): B38, B39, B40, B41
DC-HSPA+/HSPA+/HSPA/UMTS: B1, B9, B5, B8, B9
TD-SCDMA: B34, B39
EDGE/GPRS/GSM: 900/1800MHz
Network speed DC-HSPA+: download 42Mbps / Upload:5.76Mbps
LTE TDD: download 112Mbps / Upload:10Mbps
LTE FDD: download 150Mbps / Upload:50Mbps
Flight control type CUAV series, Pixhawk series
Data protocol MAVLINK1, MAVLINK2
Video definition 1080P(HD), 720P(FD)
Video encoding H265
Network extension not support
Video storage auto start (default), save to SD card
GCS FeiGong Transmission: Windowes7 Or higher;
CUAV GS: Android5.0 Or higher;
Third-Party Ground Station requires feigong transmission
Working conditions and hardware parameters
Operating Voltage 10-55V
Working current 12V/1.5A
Operating temperature -10°~ +60°
size 75.3×39.2x 19 mm
shell material 6063 Aviation Aluminum

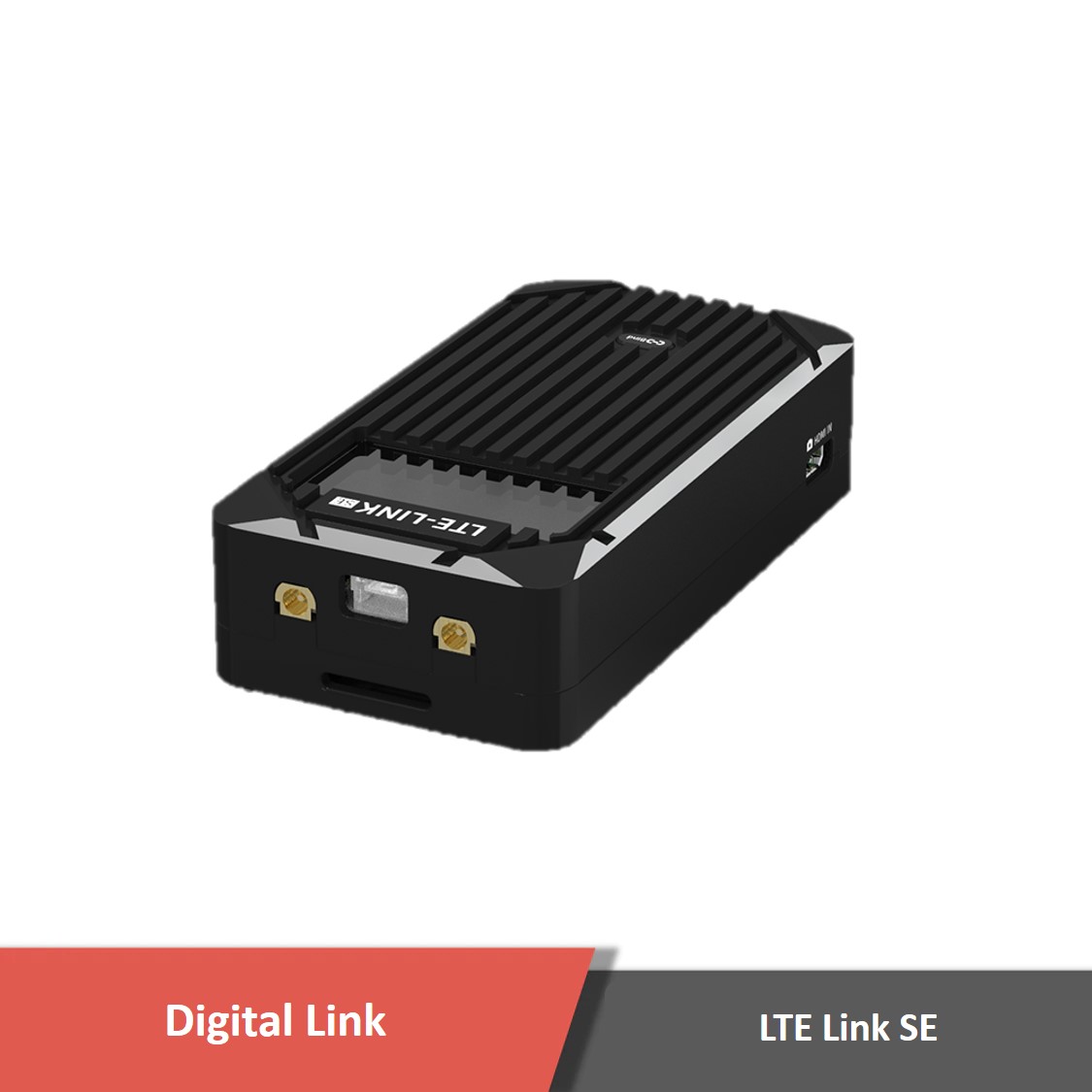

Antenna interface type SMA inner hole
Display OLED Resolution: 128×64
Interfaces
SIM MICRO/nano SIM
Video HDMI
Extension ports UART*1,TYPE-C USB*1,Antenna*3,HDMI IN*1

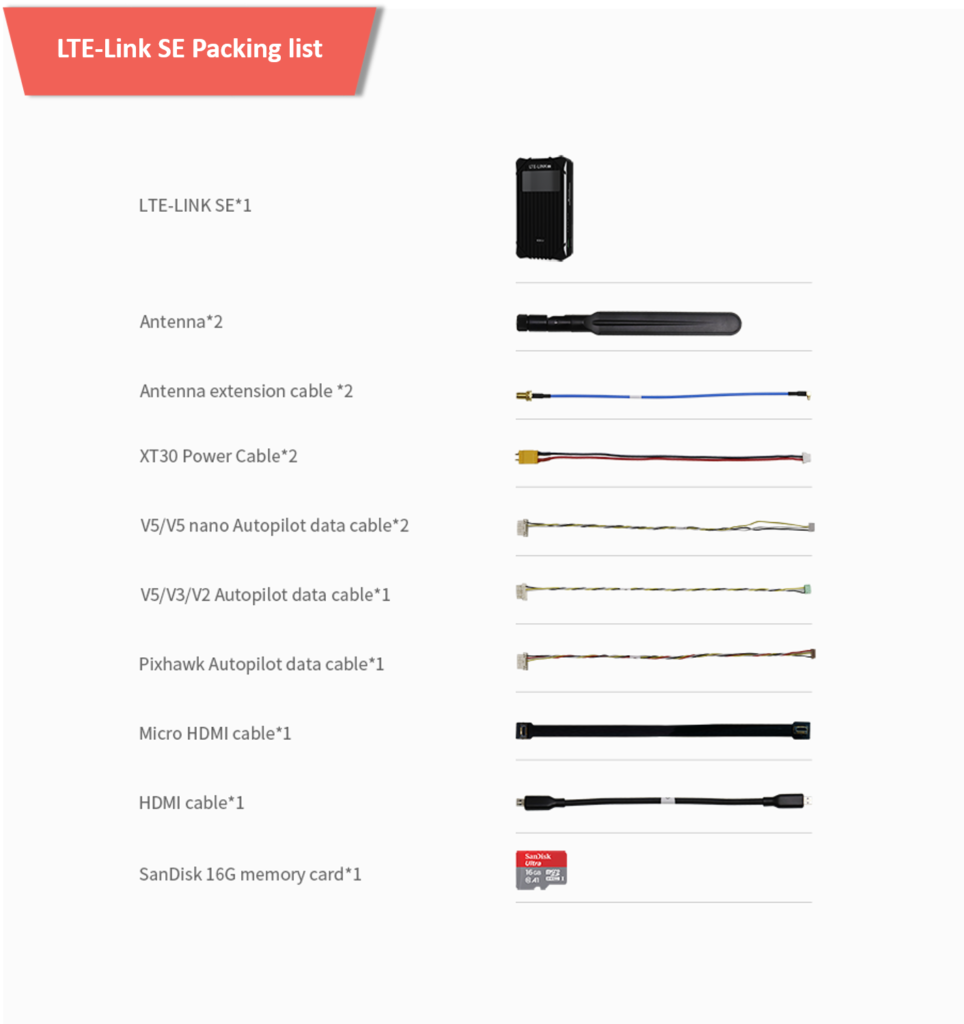

Product contents

1x LTE Link SE

2x Antenna

2x Antenna extension cable

2x XT30 power cable

2x V5/V5 nano autopilot data cable

1x V5/V3/V2 datacable

1x Pixhawk autopilot data cable

1x microHDMI cable

1x HDMI cable

1x 16GB memory card

Lte link

Documents

Documents

User Guide

Quick Start
