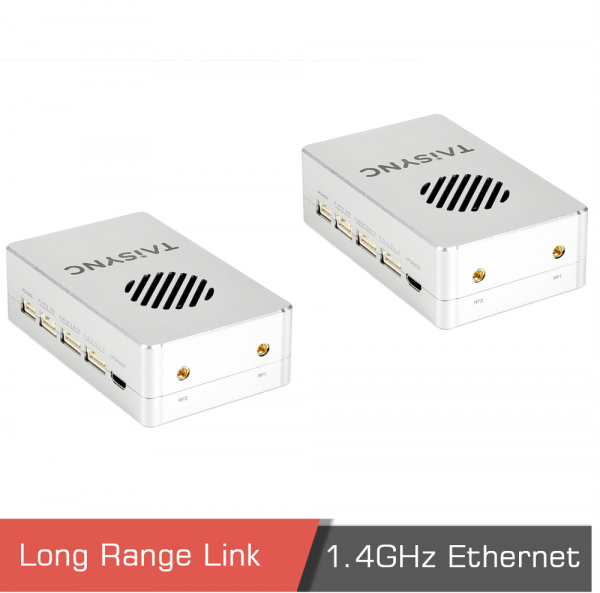

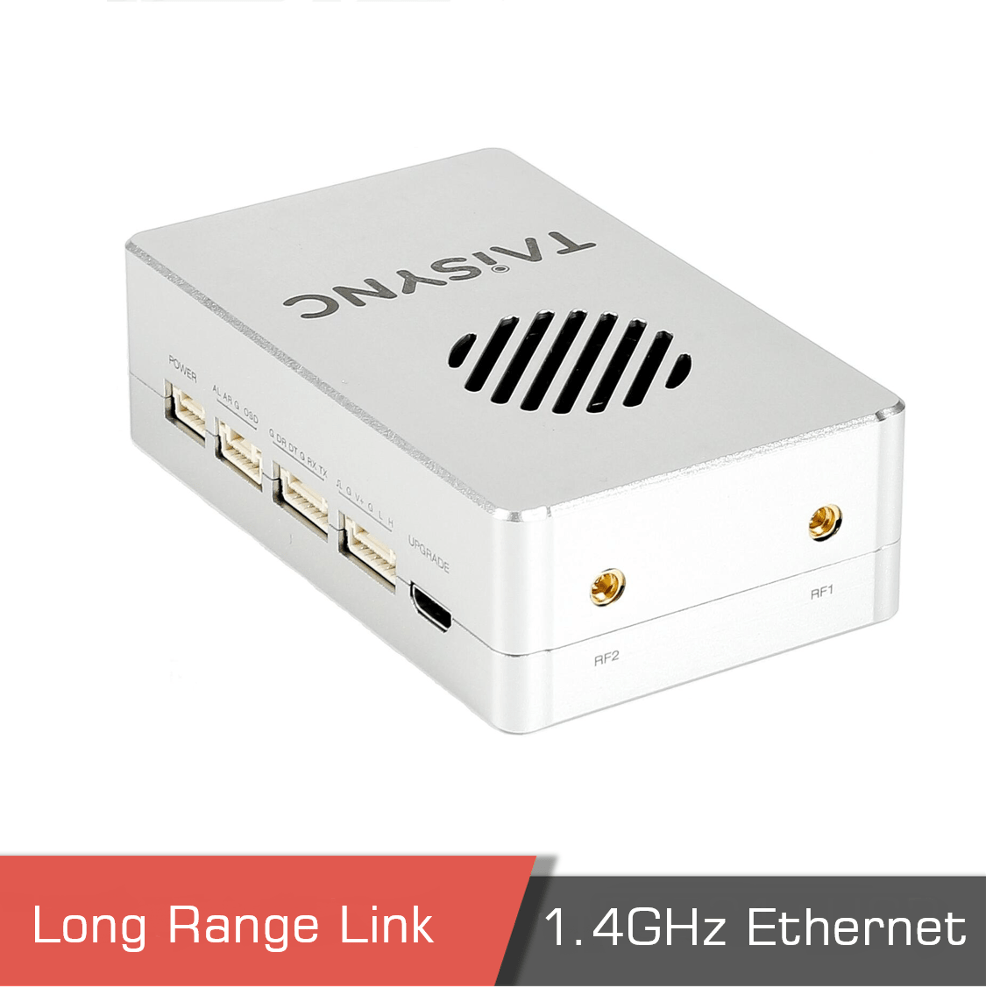

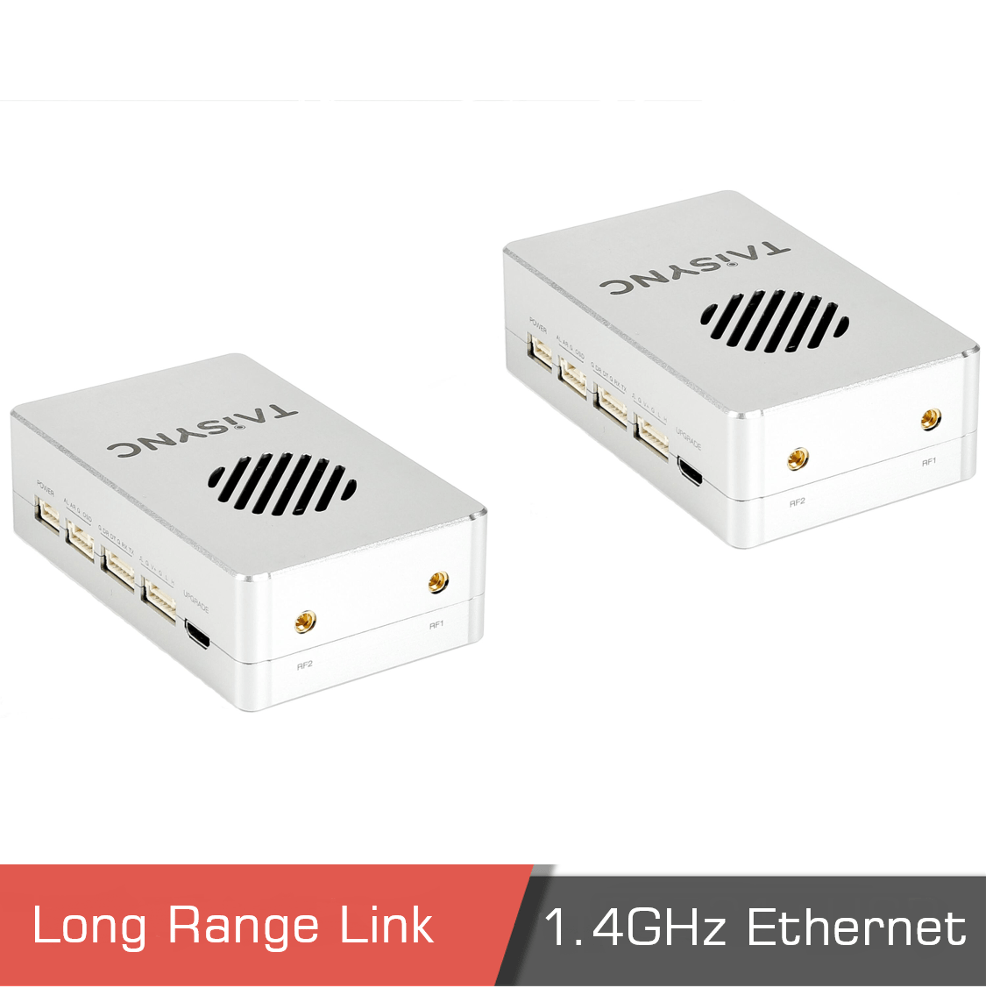

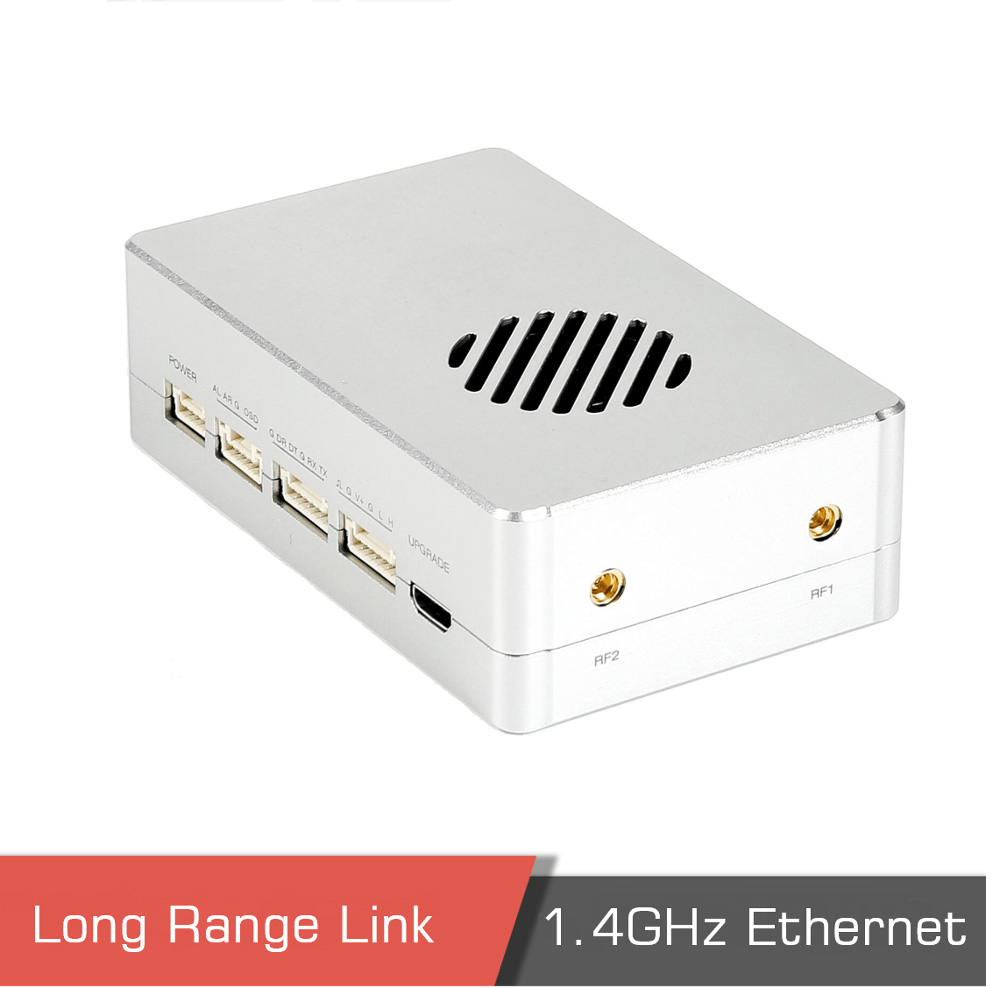

ViULinx Ethernet 1.4GHz Long Range Digital Link, 30dBm

3099.99 $

Description

Overview of ViULinx 1.4GHz

With Viulinx Digital HD data and video transmission system, the Xilinx FPGA series and Analog Device transceiver model AD936x offer long distance of line of sight at 1.4GHz@26dBm power with no interference. It is the best choice for using it for live video and data streaming with a downlink throughput of 2.3Mbps*15.3Mbps (10MHz bandwidth) and an uplink throughput of 115200bps (2.5MHz bandwidth). For live streaming of video coming from the air unit, you can connect it to a monitor through the HDMI port on the ground unit. QGroundControl and MissionPlanner can be used to capture all video and telemetry data from the air unit through the USB port. You can extend the range of your radio controller by connecting the SBUS or PPM output. Even though its latency is dependent on your input video device, the ViuLinx system adds less than 200ms, which is among the best.

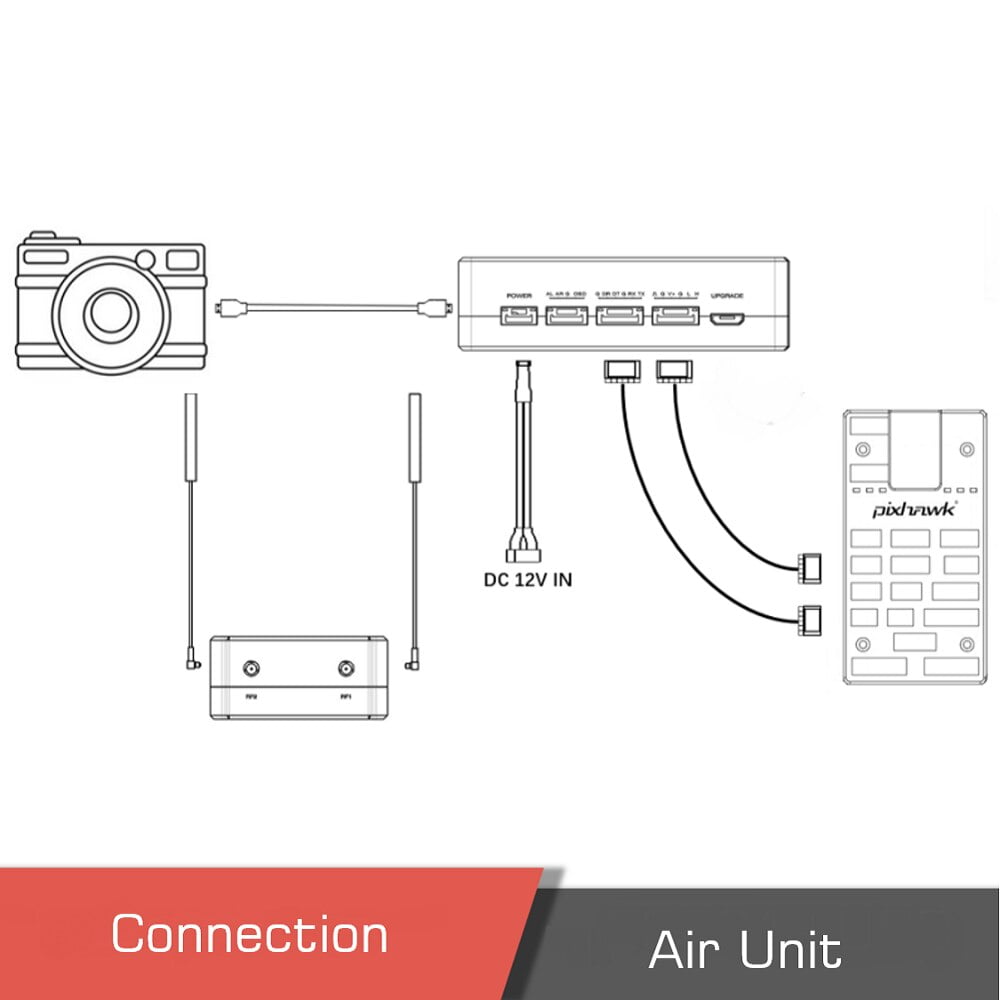

Xilinx and Analog Devices are two of the best chip manufacturers in the industry for long range digital video telemetry. In contrast to the compact All-in-One design, everything is packed in a just 77.8*47.3*23.5mm package, and the total weight is just 97g.  As well as telemetry transmission, image transmission, and radio control, this package includes everything you need to fly your drone. A great feature of the program is that it is compatible with many open source flight controllers, like Pixhawk, APM, BetaFlight, etc. It is very convenient to power both air and ground units with a 12V DC input (or equivalently, a 3-cell Li-Po or Li-ion battery). You can feed video input from your camera via Ethernet on the air unit. Your flight controller can be connected directly to the Telemetry and RC ports.

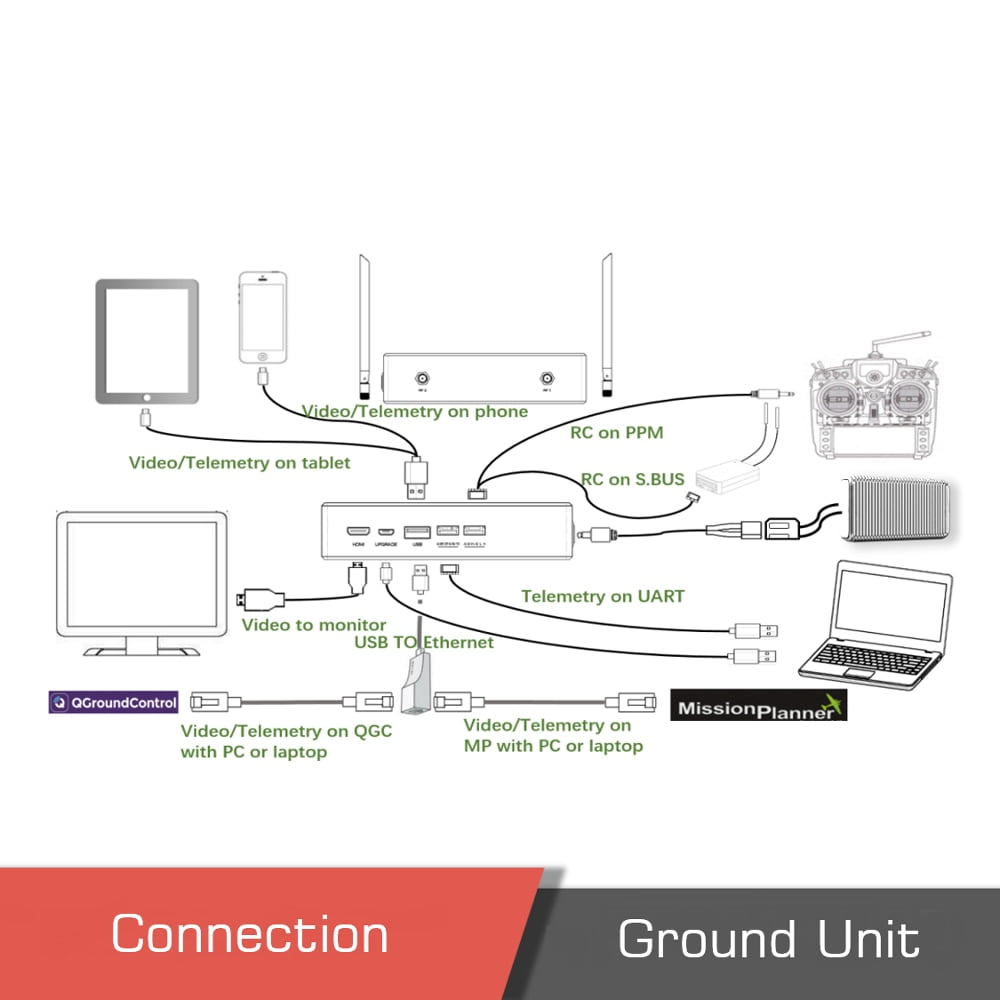

To receive the data on the ground side, you have many options. If you have a really big ground station system, use mini HDMI port for video, and Telemetry port for data (which should be connected to your PCP using a USB to TTL convertor). If you like to be portable and do not want a really heavy setup, you are so in luck. Simply connect the USB port of the ground unit to your Tablet, and by installing QGroundControl, you can have both Video and Telemetry data streamed to your tablet and displayed on QGroundControl. Now you can easily monitor and control your drone. Consult Motionew Online Shop to see the full range of our products. Moreover, if you are interested in long range wireless video you can visit the video and data link page.

Long Range Digital Link Features



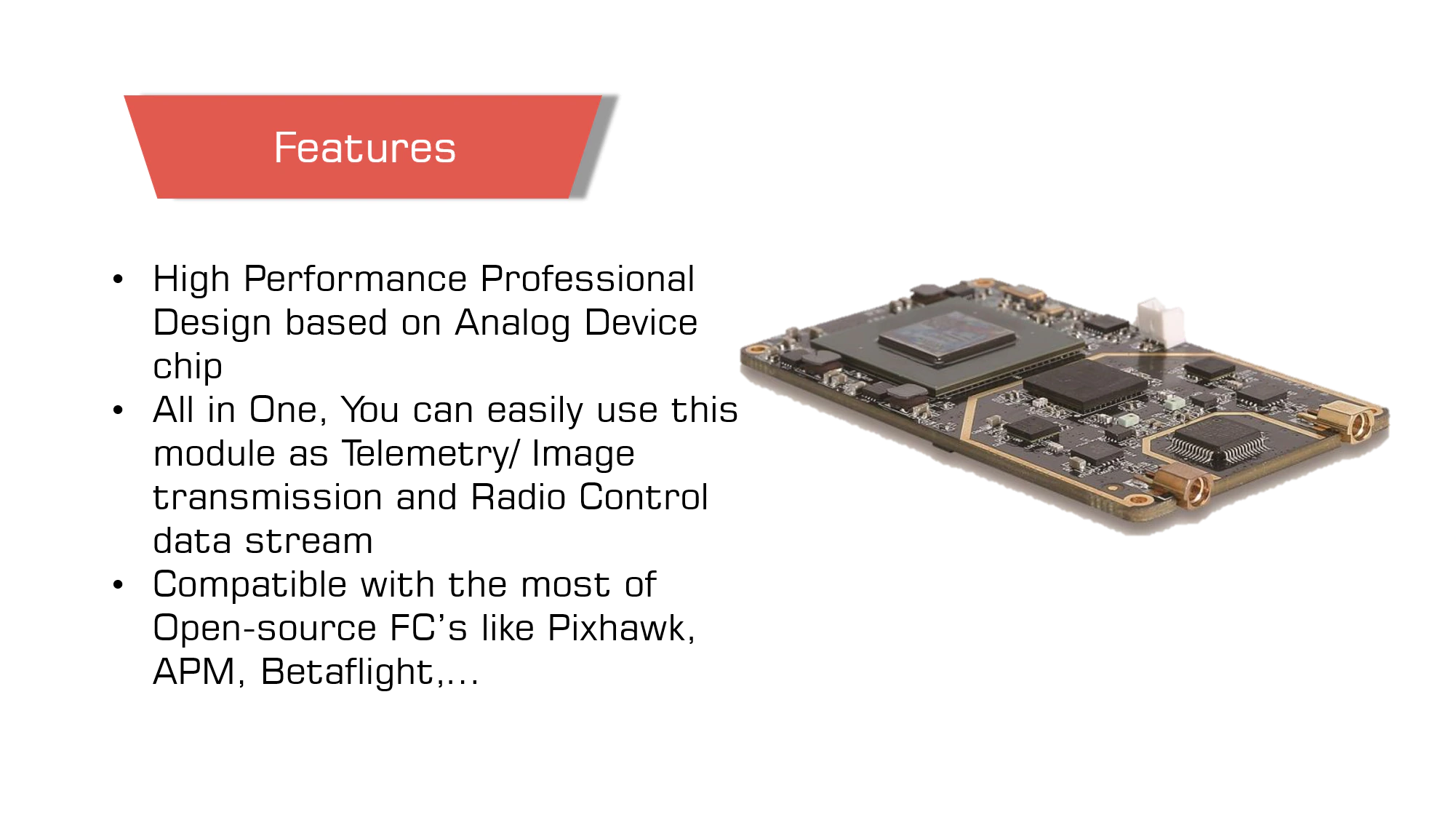

U897dd4fe234b4268b3557b7f3f3d700d7 - viulinx, viulinx 1. 4ghz, long range digital video telemetry, digital video telemetry, fpv video transmitter, video and data link, long range rc controller, long range control, long range data link, drone wireless link - motionew - 6 Ue1585bdcee9a41d0aedcffb2bee10941z - viulinx, viulinx 1. 4ghz, long range digital video telemetry, digital video telemetry, fpv video transmitter, video and data link, long range rc controller, long range control, long range data link, drone wireless link - motionew - 7 U371160b55cef4153a3df7deefb21c87d0 - viulinx, viulinx 1. 4ghz, long range digital video telemetry, digital video telemetry, fpv video transmitter, video and data link, long range rc controller, long range control, long range data link, drone wireless link - motionew - 8 U59dc4054a7e441548ecbc28c2dbec9998 - viulinx, viulinx 1. 4ghz, long range digital video telemetry, digital video telemetry, fpv video transmitter, video and data link, long range rc controller, long range control, long range data link, drone wireless link - motionew - 9

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 10 kg
Dimensions 100 × 50 × 10 cm

Specifications

Each Unit Weight 97g
Each Unit Dimension 77.8×47.3×23.5mm
Viulinx is build on Xilinx FPGA and Analog Device’s transceiver, AD936x
Frequency 1.4GHz
Bandwidth 2.5MHz (uplink), 10MHz(downlink)
Max. Tx Power 30dBm (FCC), 20dBm (CE)
Video Compression H.264/H.265
Modulation OFDM
Constellation BPSK, QPSK, 16QAM
FEC LDPC (1/2, 2/3, 3/4,5/6)
Duplex TDD
Downlink Throughput 2.3Mbps ~ 12Mbps
Uplink Throughput 115.2kbps
Interface Ethernet, Serial, SBus/PPM
Latency <300ms (Camera dependent)
Operation Voltage 7V~16V
Certification FCC/CE/GITEKI
Dimension 122.7X52.3X25.1 (Ground unit) , 77.8X47.3X23.5mm (Air unit)
Weight 97g(air unit)
Rated voltage/current DC12V/1.2A (or 3S lithium battery)
Working temperature -30°C ~55°C





Documents

User manual

Configuration Software

Product contents

1x air unit, 1x ground unit, 1 set of air antennas, 1 set of ground antennas, set of cables
