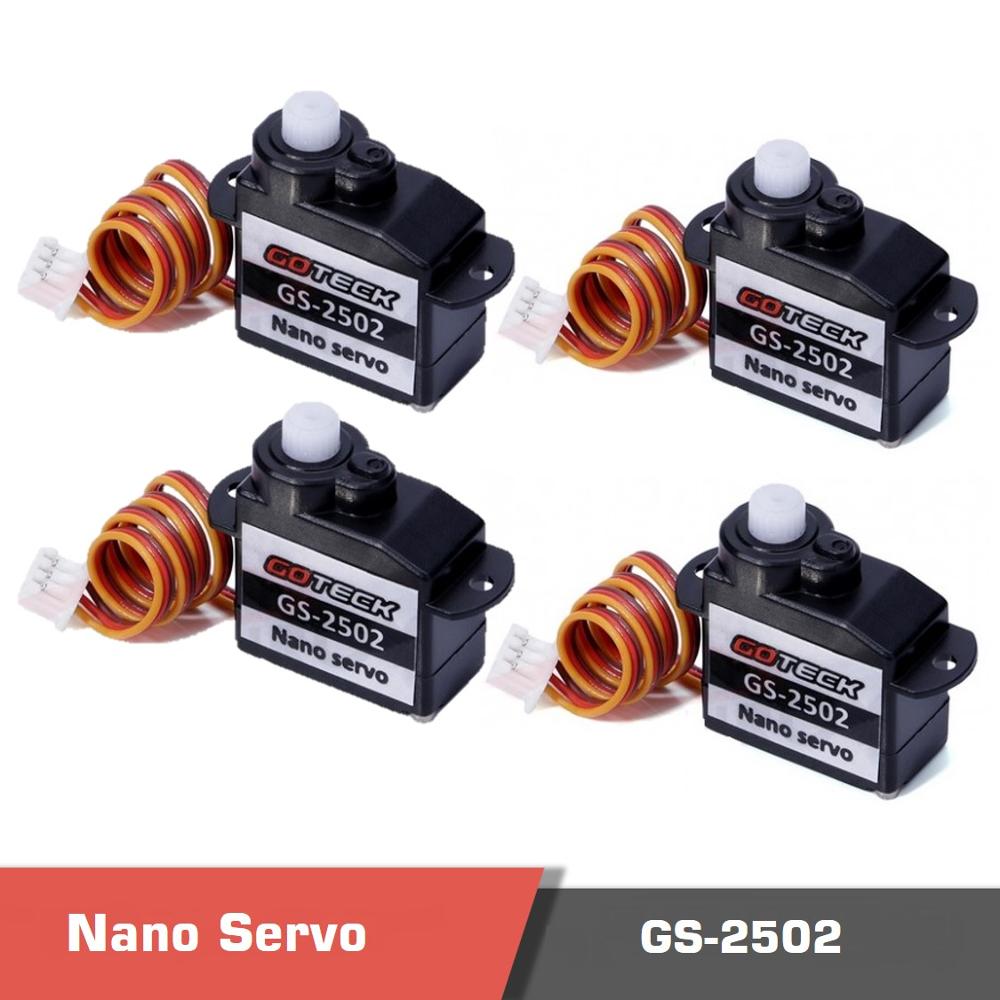

GoTECK Micro Servo Motor DC GS-2502 Nano Servomotor

27.86 $

Description

Overview

GoTECK GS-2502 Nano Servomotor is a 2.2kg servo motor capable of providing a torque of 0.2kg/0.09s at 6V. GoTECK GS-2502 features compact design, light weight, and high torque. Goteck Micro Servo Motor DC GS-2502 Nano Servomotor is suitable for RC Aircrafts, Robots, Boats, and Steering Cars. Consult Motionew Online Shop for the full range of our products.

U4c47e14b2b21459b94a33c178cc36bdfj - servo - motionew - 3

Suitable Environmental Conditions

Storage Temperature Range: -20℃~60℃
Operating Temperature Range:-10℃~50℃
Operating Voltage Range:4.5V~6V

Operating speed (at no load): 0.08 sec/60°
Running current (at no load): 35 mA
Stall torque (at locked): 0.20 kg-cm
Stall current (at locked): 160 mA
Idle current (at stopped): 4 mA
Limit angle : 180°± 10°
Weight: 2.5g ± 1 g
Connector wire gauge: #32 PVC
Connector wire length: 100 ± 5 mm
Horn gear spline: 20T/ψ3.85
Horn type: Cross, bar –type
Reduction ratio: 1/448
Amplifier type: Analog controller
Operating travel: 70° (1000→2000 μsec)
Neutral position:1500 μsec
Dead band width: 10 μsec
Rotating direction: Clockwise (1500→2000 μsec)
Pulse width range: 700→2300 μsec
Maximum travel: About 145°(800→2200 μsec

If you have any questions regarding our products, use the Motionew team of experts page to consult our engineering team.

Additional information

Weight .02 kg
Dimensions 2 × 1 × 2 cm

Specifications

Size(mm) 16.0*8.0*20.0
Torque 0.2 kg/ 0.09sec @ 6V
Weight 2.2g
Speed 0.11-0.09 sec/ 60°



U3ae56d326a4642bb87efa6a48e159344c - servo - motionew - 4

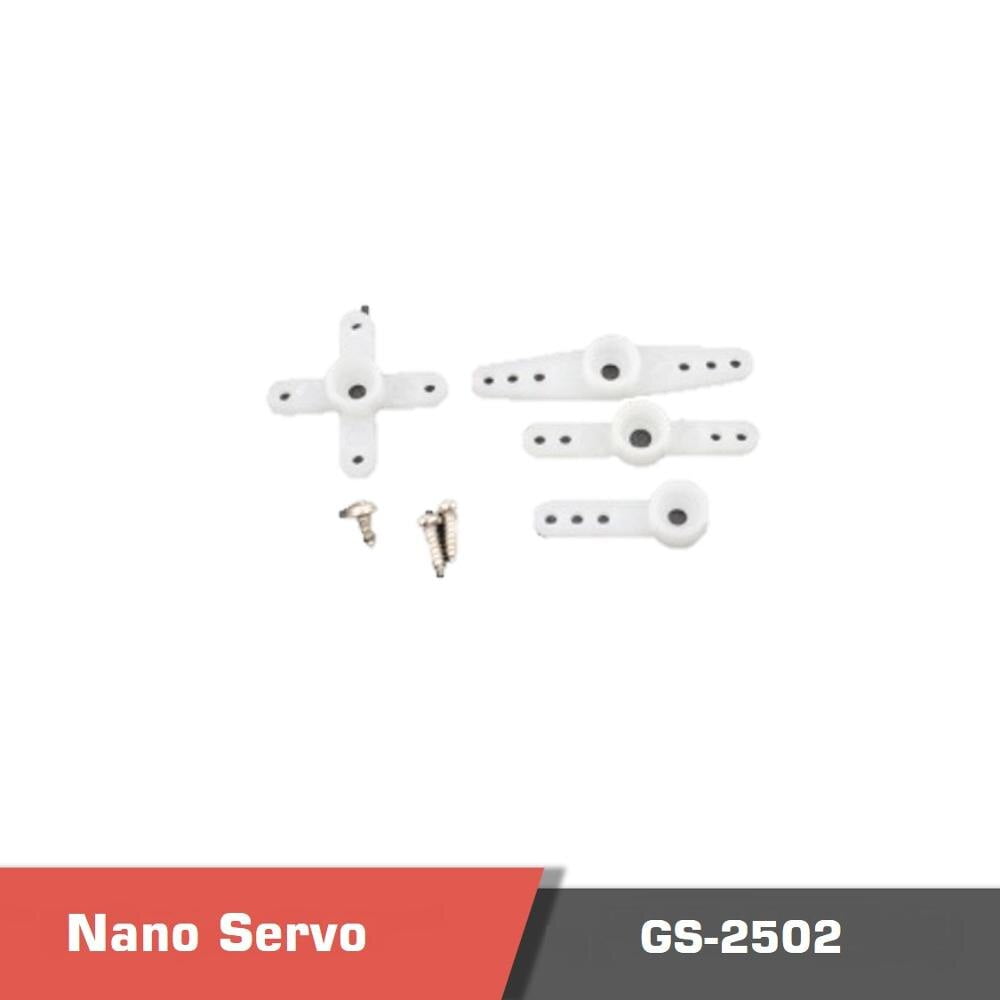

Product contents

Product contents

Documents

Please contact us for more information.
