Raspberry Pi 4 Official Original Model B Dev Board

153.62 $180.55 $

Description

Raspberry Pi 4 Model B Overview

Raspberry Pi 4 Model B is a feature-rich product in the popular Raspberry Pi range of single-board computers developed by the Raspberry Pi Foundation. Compared to the previous generations of Raspberry Pi minicomputers, this version offers ground-breaking acceleration (up to 10X) in processor speed, memory, connectivity, and multimedia performance, perfect for super-speed wired networking and connecting fast peripherals like SSDs and flash drives. You can enjoy 4K video using Raspberry Pi 4 as it comes with a video performance boost. A PC-like level of performance, comparable to entry-level x86 PC systems, is expected for the end-users. Whether you’re editing documents, browsing the web with many tabs open, juggling spreadsheets, or drafting a presentation, you’ll find the experience smooth — but on a smaller, more energy-efficient, and much more cost-effective machine. You may purchase Raspberry Pi 4 Model B plus essential accessories and Argon M.2 case

Key Features

The key features of this Raspberry Pi model include a high-performance 1.5 GHz 64-bit quad-core ARM Cortex-A72 processor, on-board 802.11ac Wi-Fi, Bluetooth 5, gigabit Ethernet, two USB 2.0 ports, two USB 3.0 ports, 2–8 GB of RAM, and dual-display support at resolutions up to 4K via a pair of micro-HDMI ports (HDMI Type D). The Pi 4 is powered via a USB-C port. The operating temperature range is 0 – 50 degrees C ambient.

Please visit Smart Robots, for information on related products.

Consult our Online Shop to see the full range of our products.

Getting Started with Raspberry Pi 4

Find help installing Raspberry Pi OS on your Raspberry Pi in the official online Getting started guide. In short, you’ll put a blank microSD card into your PC or Mac and use Raspberry Pi Imager to ‘burn’ a disk image of Raspberry Pi OS onto it. Then, you can put the microSD card into the Raspberry Pi, turn it on and follow the setup process in Raspberry Pi OS.

Sample Projects

A wide range of DIY and professional projects can be designed by employing Raspberry Pi 4 magical minicomputer. Example projects include but are not limited to a weather station, home automation system, virtual jukebox, social media bot, and AI motor controller.



U9488e2243f9c4c22b3509ba671a03850h - raspberry pi 4, raspberry pi 4 model b, raspberry pi 4 kit - motionew - 6 U14bf96aa6ccc4439b25df265413af9f5i - raspberry pi 4, raspberry pi 4 model b, raspberry pi 4 kit - motionew - 7 U93d8a9532652430399ecb163139acf5cg - raspberry pi 4, raspberry pi 4 model b, raspberry pi 4 kit - motionew - 8 Ue9f389751cf043cc96ba49575ab074f8r - raspberry pi 4, raspberry pi 4 model b, raspberry pi 4 kit - motionew - 9

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 0.05 kg
Dimensions 9 × 6 × 5 cm

Specifications

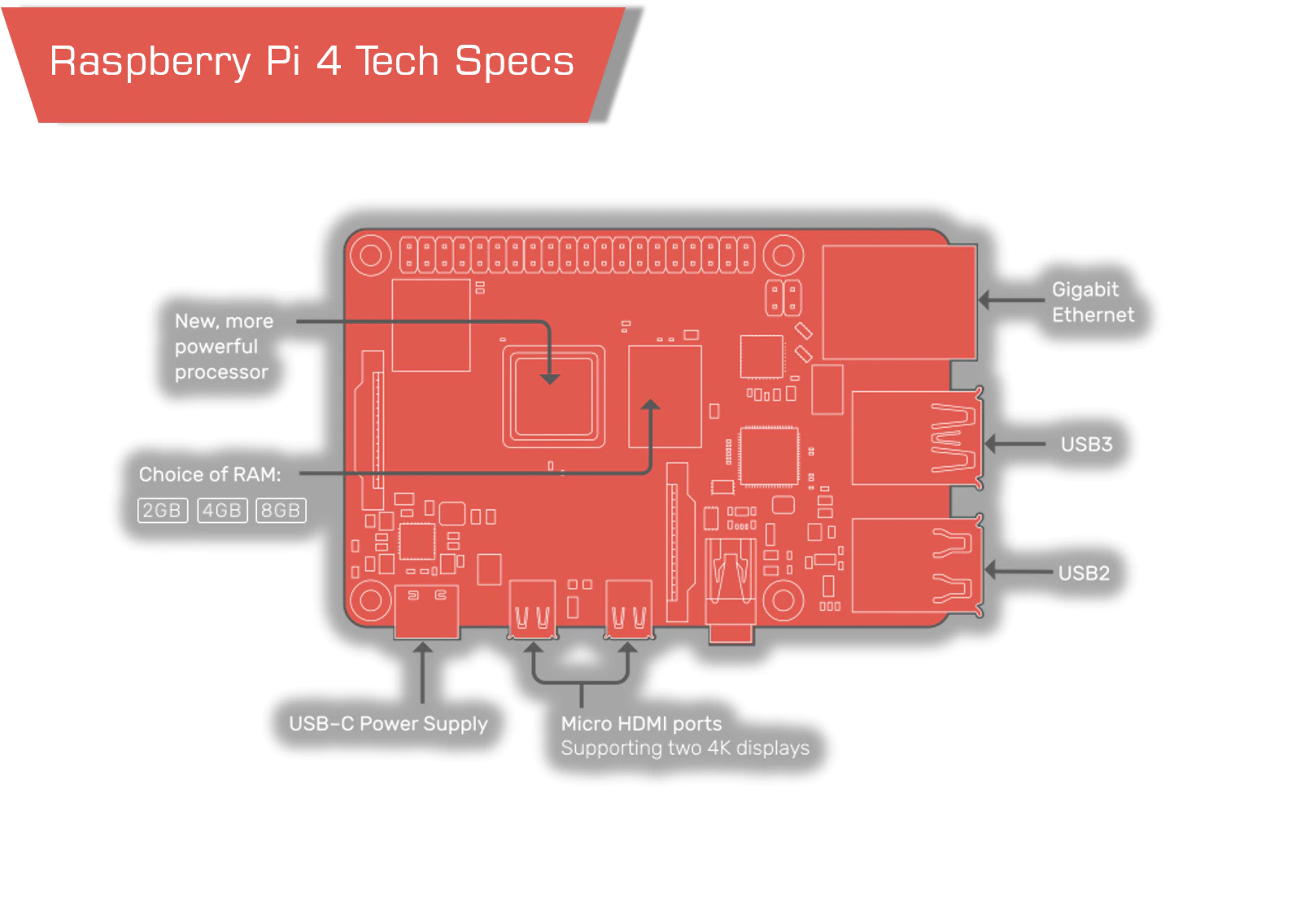

Detailed specifications of the Raspberry Pi 4 Model B

Ram depending on the model (2/4/8 GB)
CPU Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Video & Sound 2 × micro HDMI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
Multimedia H.265 (4Kp60 decode)
H.264 (1080p60 decode, 1080p30 encode)
OpenGL ES, 3.0 graphics
Input power 5V DC via USB-C connector (minimum 3A)
5V DC via GPIO header (minimum 3A)
Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
Bluetooth 5.0 BLE
WI-FI 2.4 GHz and 5.0 GHz IEEE 802.11ac
Card Slot Micro-SD
USB-C connector 5V DC
GPIO header 5V DC (Standard 40-pin GPIO header (fully backward-compatible with previous boards)
Operating Temperature 0 to 50 degrees
Interface HDMI-compatible/RCA Output
Integrated Feature 10/100/1000Mbps
Operating temperature 0 – 50 degrees C ambient
* A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.
Dimensions 85 X 58 X 19.5mm
Weight 46g
Connectivity 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE
Gigabit Ethernet
2 USB 3.0 ports
2 USB 2.0 ports

Differences between the Pi 3 Model B+ and the Pi 4 Model B

Pi Model 3 B+ Pi 4 Model B
Processor Broadcom BCM2837B0, Quad-core Cortex-A53 64-bit SoC@ 1.4GHz Broadcom 2711, Quad-core Cortex-A72 64-bit SoC @ 1.5GHz
Memory 1GB LPDDR2 SDRAM 2GB or 4GB LPDDR4 SDRAM
Connectivity 2.4GHz / 5.0GHz IEEE 802.11.b/g/n/ac wireless LAN
Bluetooth 4.2, BLE
4 x USB 2.0 ports
Gigabit Ethernet over USB2.0 (max. 300Mbps)
2.4GHz / 5.0GHz IEEE 802.11.b/g/n/ac wireless LAN
Bluetooth 5.0, BLE
2 x USB 2.0 / 2 x USB 3.0 ports
True Gigabit Ethernet
Video 1 x full size HDMI 2 x micro HDMI, 4K video
Multimedia H.264, MPEG-4 decode (1080p30)
H.264 encode (1080p30)
OpenGL ES 1.1, 2.0 graphics
H.265 decode (4kp60)
H.264 decode (1080p60)
H.264 encode(1080p30)
OpenGL ES 1.1, 2.0, 3.0 graphics
Input Power 5V/2.5A DC via micro USB connector 5V/3A DC via USB type C connector

Documents

Check out this perfect step-by-step guide:

How to set up your Raspberry Pi 4 for the first time

Take it further:

You will also need:

  • A 15W USB-C power supply – we recommend the official Raspberry Pi USB-C Power Supply
  • Micro SD card with Raspberry Pi OS installed (buy a pre-loaded SD card along with your Raspberry Pi or install Raspberry Pi OS using Raspberry Pi imager)
  • A keyboard and mouse
  • Cables to connect to one or two displays via Raspberry Pi 4’s micro HDMI ports

Design files:

Product contents

1x Raspberry Pi 2G or 4G or 8G
