Apex Xavier AI-powered Autonomous Computing Solution

5800.00 $

Description

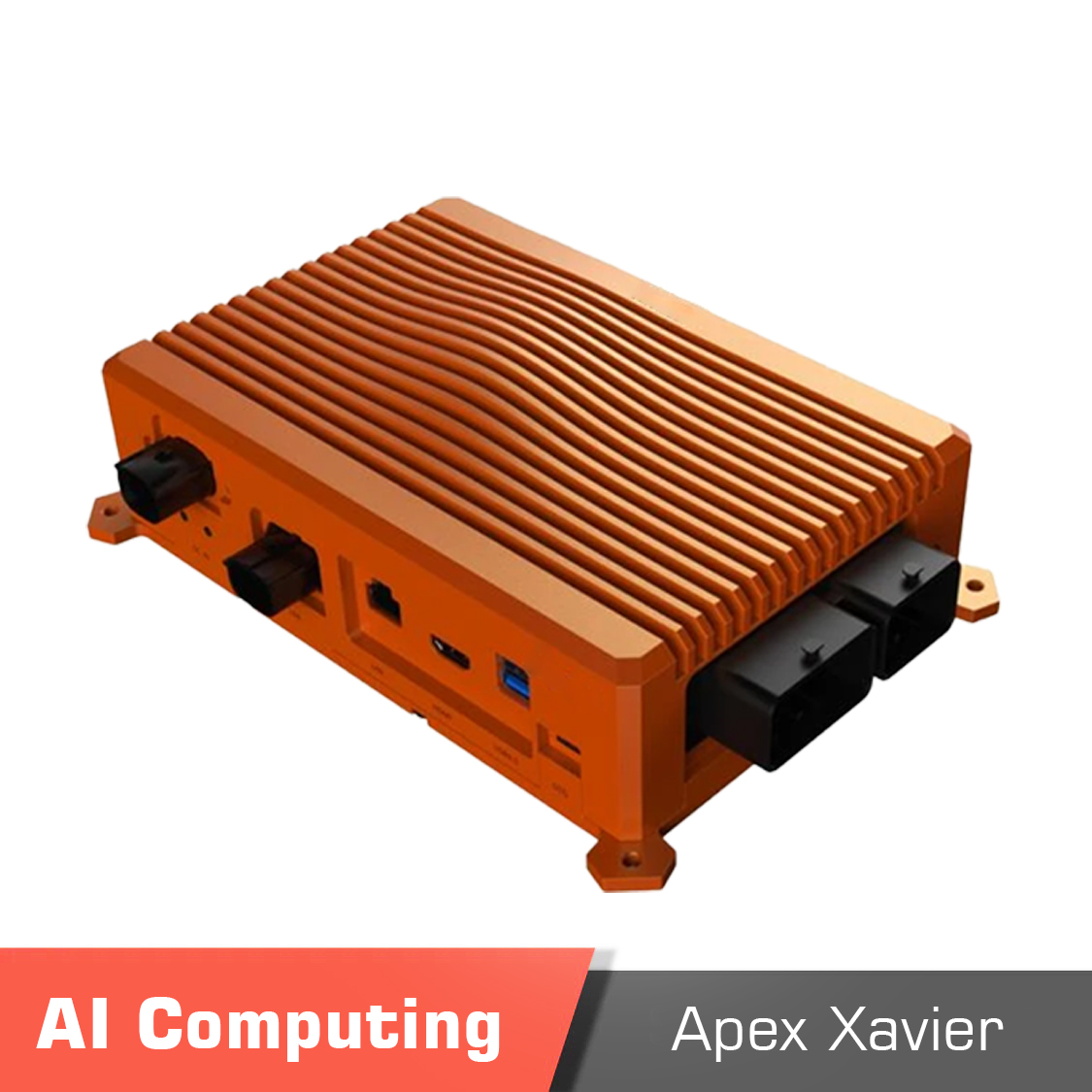

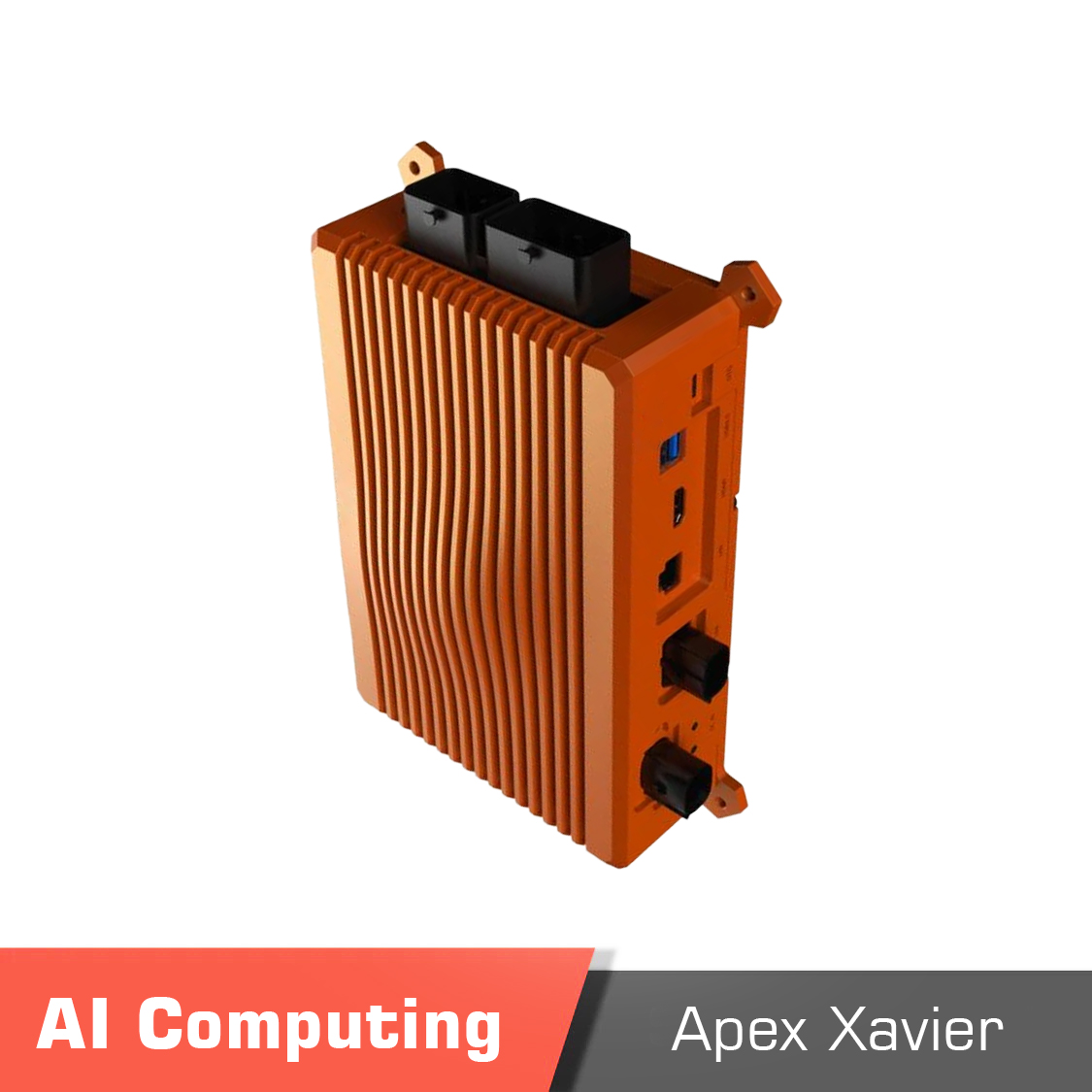

Apex Xavier AI-powered Autonomous Computing Solution

Apex Xavier is an embedded computing platform equipped with a core module designed by NVIDIA, which makes AI-powered autonomous machines possible, running in as little as 30W and delivering up to 32 TOPs. With IP67 waterproof and shockproof connectors, APEX satisfies the needs for working in humid environments such as mine or sea. The computer vision processing capability makes it a powerful tool for AI applications such as environmental monitoring, railway inspection, posture recognition, vehicle detection, etc. It can be applied in logistics, traffic, railway, security, medicine, and mining. APEX possesses various multi-sensor data fusion and clock synchronization algorithms, acceleration algorithms for mainstream applications such as YoloV3, etc.

Features:

  • IP67 Waterproof and High Shockproof Connectors

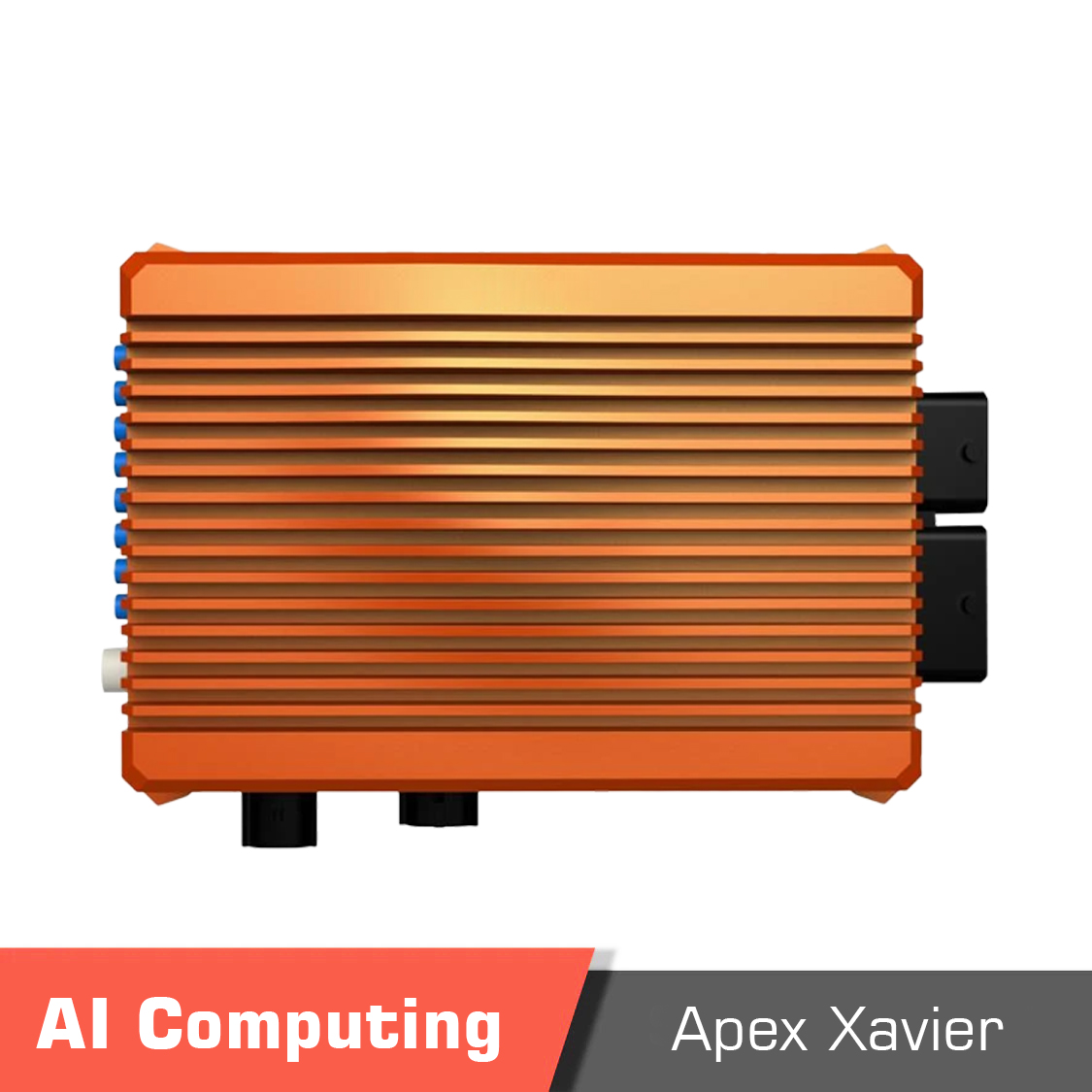

  • High-Performance Passive Cooling System

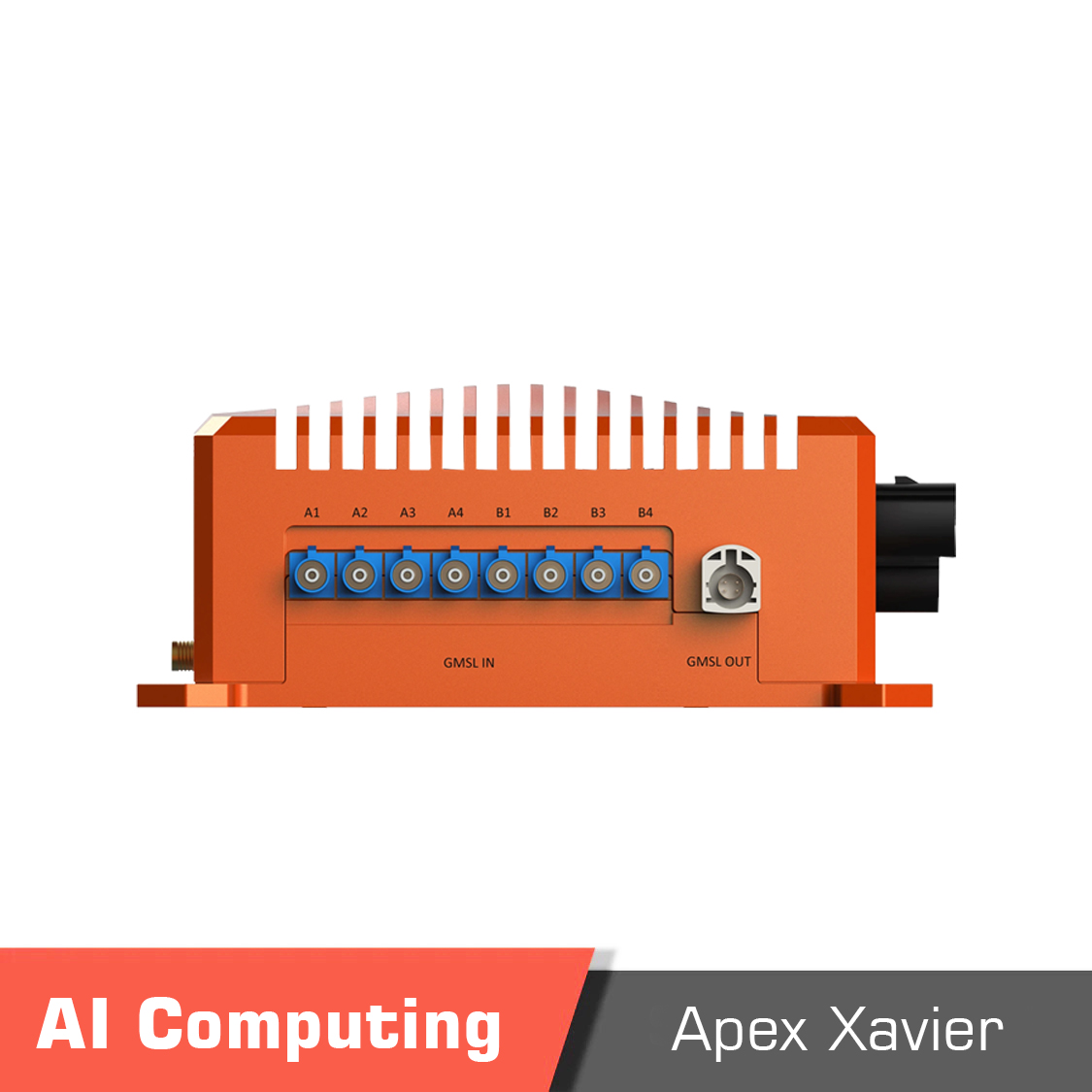

  • 8×GMSL Port for Video Input
  • 20℃-60℃ Working Temperature
  • Complete BSP Support

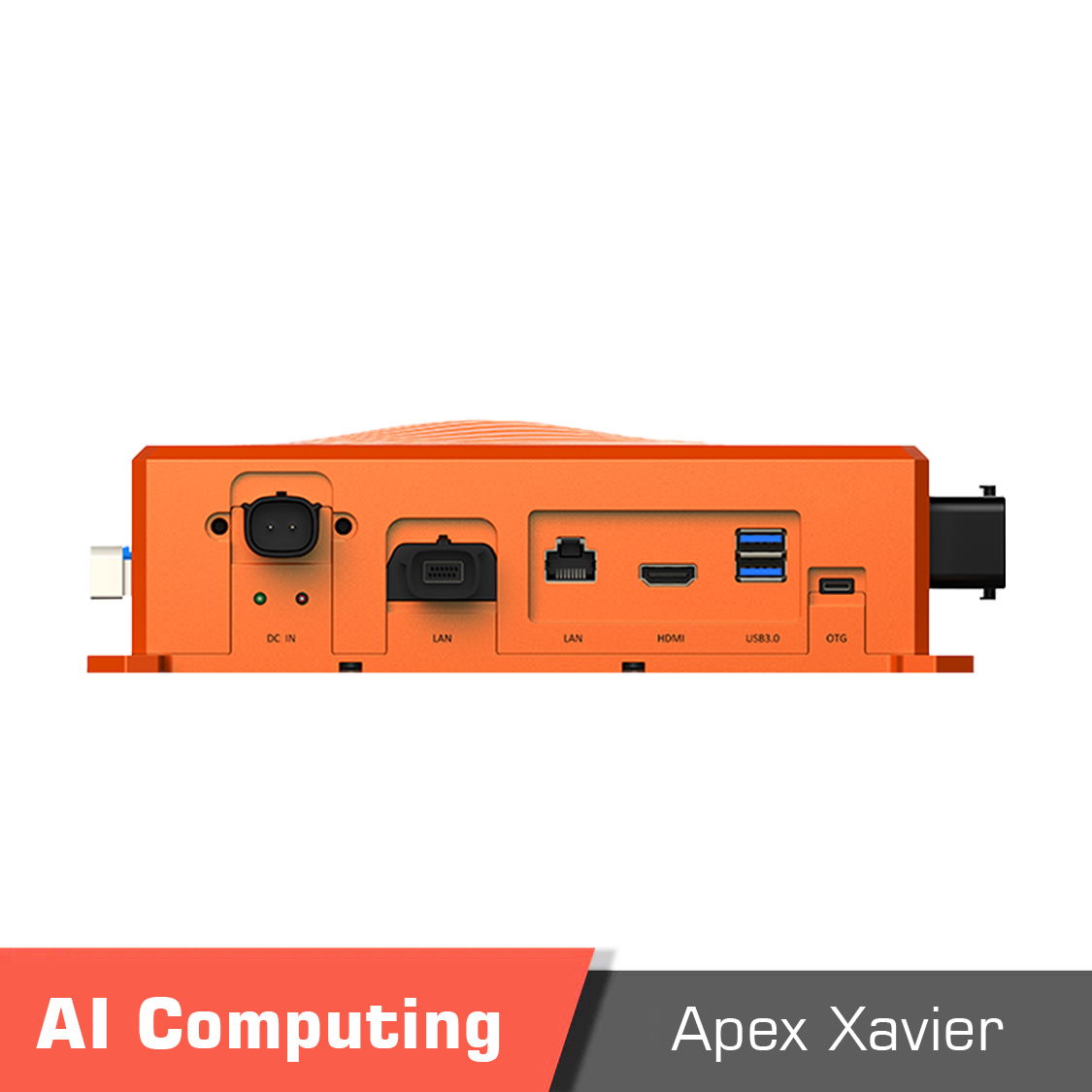

  • DC 12-50V Wide Voltage Adaptation

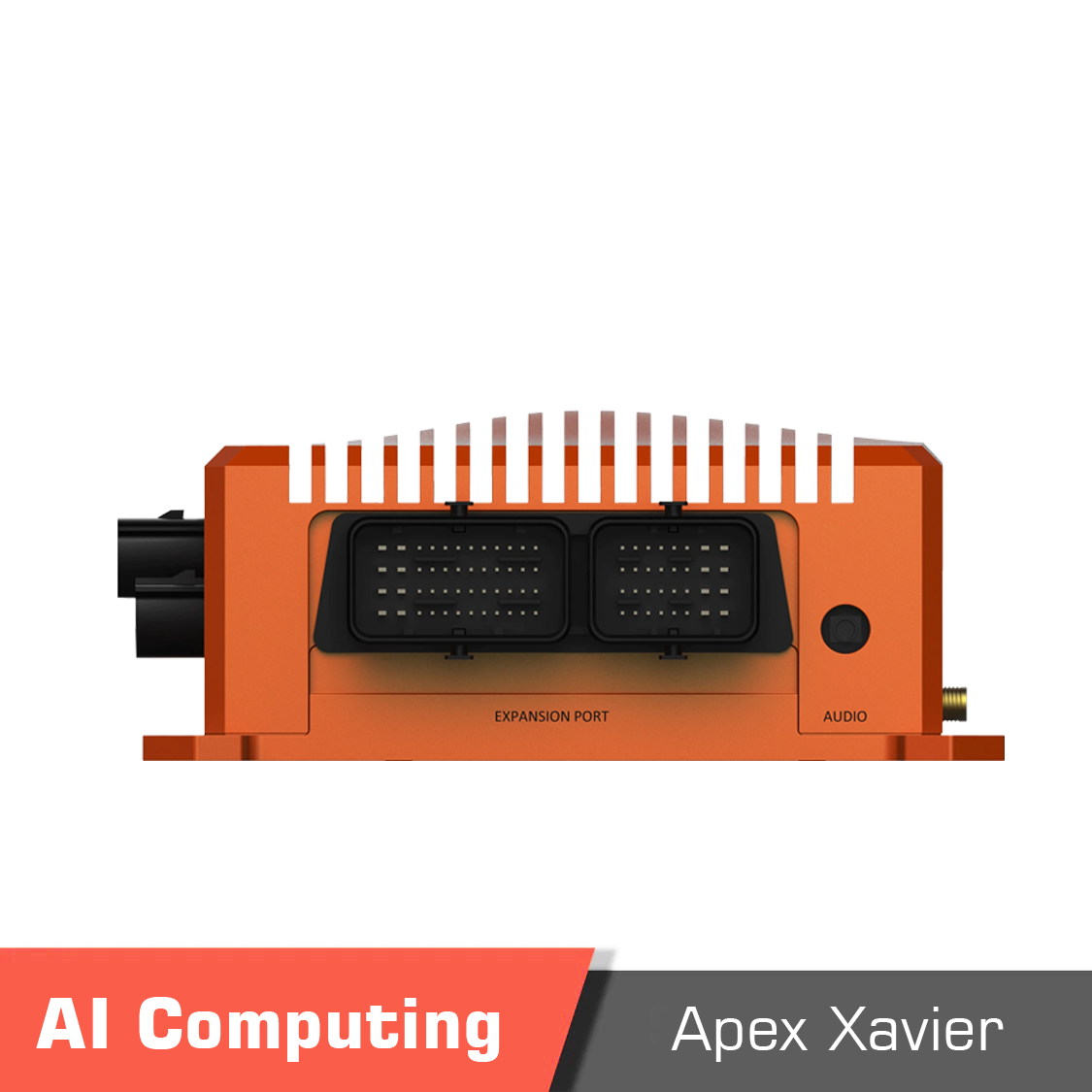

  • 2x M.2 Expansion Port



Software Function:

1. 8-channel GMSL video input and 1 video output; image data and timestamp synchronized by Linux and ROS terminals

2. Supports laser radar, GMSL camera, IMU, and other sensors; comes pre-installed with a variety of sensor drivers, eliminating the need for driver development

3. Supports Real-Time Operating System (RTOS)

4. PPS, SYNC IN, SYNC OUT three mainstream sensor clock synchronization

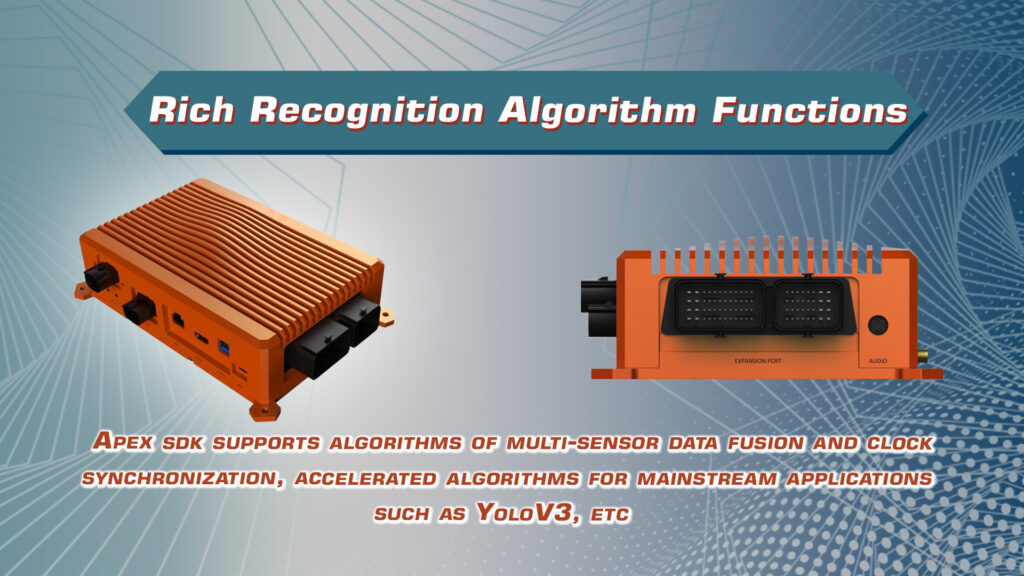

5. Provides acceleration SDK based on open source algorithm YOLOV3 and API ports

6. Provides open-source SLAM algorithm installation support

7. Provides support in ROS robot system installation

8. Provides instructions on software framework installation

9. Provides installation support in Jetson platform development tools



Xavier apex. 1 1 - apex xavier,ai-powered autonomous computing solution,designed by nvidia,autonomous machines,embedded artificial intelligence computer,embedded artificial - motionew - 9Xavier apex. 2 - apex xavier,ai-powered autonomous computing solution,designed by nvidia,autonomous machines,embedded artificial intelligence computer,embedded artificial - motionew - 10 Xavier apex. 3 - apex xavier,ai-powered autonomous computing solution,designed by nvidia,autonomous machines,embedded artificial intelligence computer,embedded artificial - motionew - 11 Xavier apex. 4 - apex xavier,ai-powered autonomous computing solution,designed by nvidia,autonomous machines,embedded artificial intelligence computer,embedded artificial - motionew - 12 Xavier apex. 5 - apex xavier,ai-powered autonomous computing solution,designed by nvidia,autonomous machines,embedded artificial intelligence computer,embedded artificial - motionew - 13

Additional information

Weight 4 kg
Dimensions 26 × 8 × 19 cm

Specifications

Processor system

Processor module NVIDIA Jetson AGX Xavier
os Ubuntu 18.04, Jetpack 4.2.2
CPU 8-core ARM v8.2 64-bit CPU
Memory 16GB 256-Bit LPDDR4
DL Accelerator 2xNV DLA Engines
Storage 32GB eMMC 5.1
GPU 512-core Volta GPU



Power supply

Power Requirements
Power type DC
Power input voltage Wide range input12-50v
Power adapter Input:AC 100-240v

output:DC19v/3.42A

Power consumption
 Typical 30w



Mechanical

Mechanical

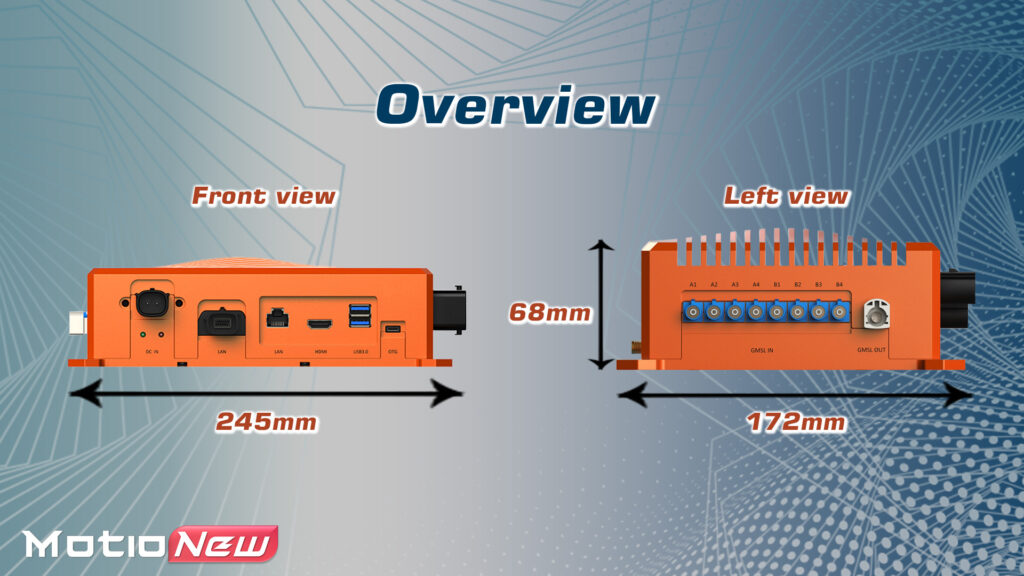

Dimension 245x68x172mm
weight 2.2kg



Environment Requirement

Environment
Operating Temperature -20~60°c
Storage Temperature -25-80°c
Relative Humidity 10-90% non-condensing
IP rating IP67



Documents

Download the user manual

Product contents

1x Apex Xavier

1x I/O Cable Assemblies

1x Power Supply with AC Cord

2x 4G Antenna

2x WIFI Antenna
