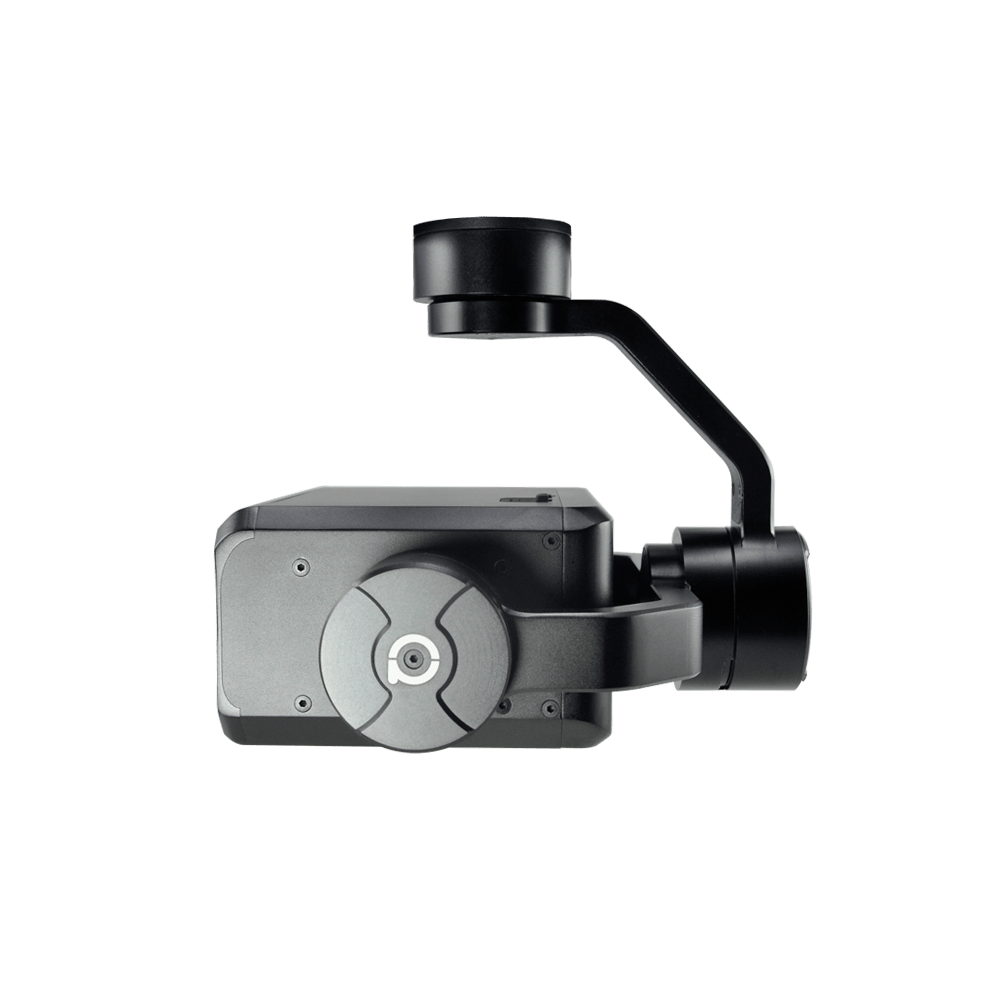

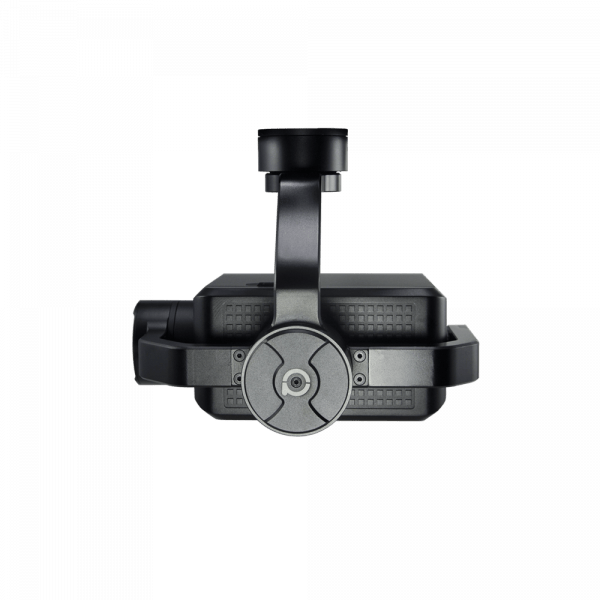

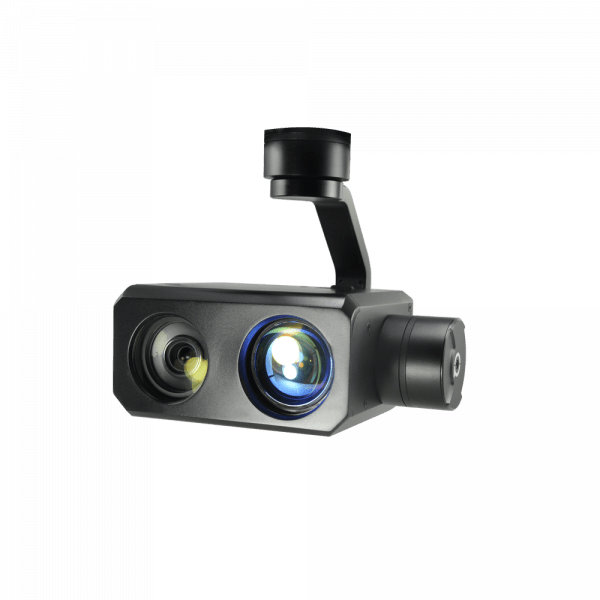

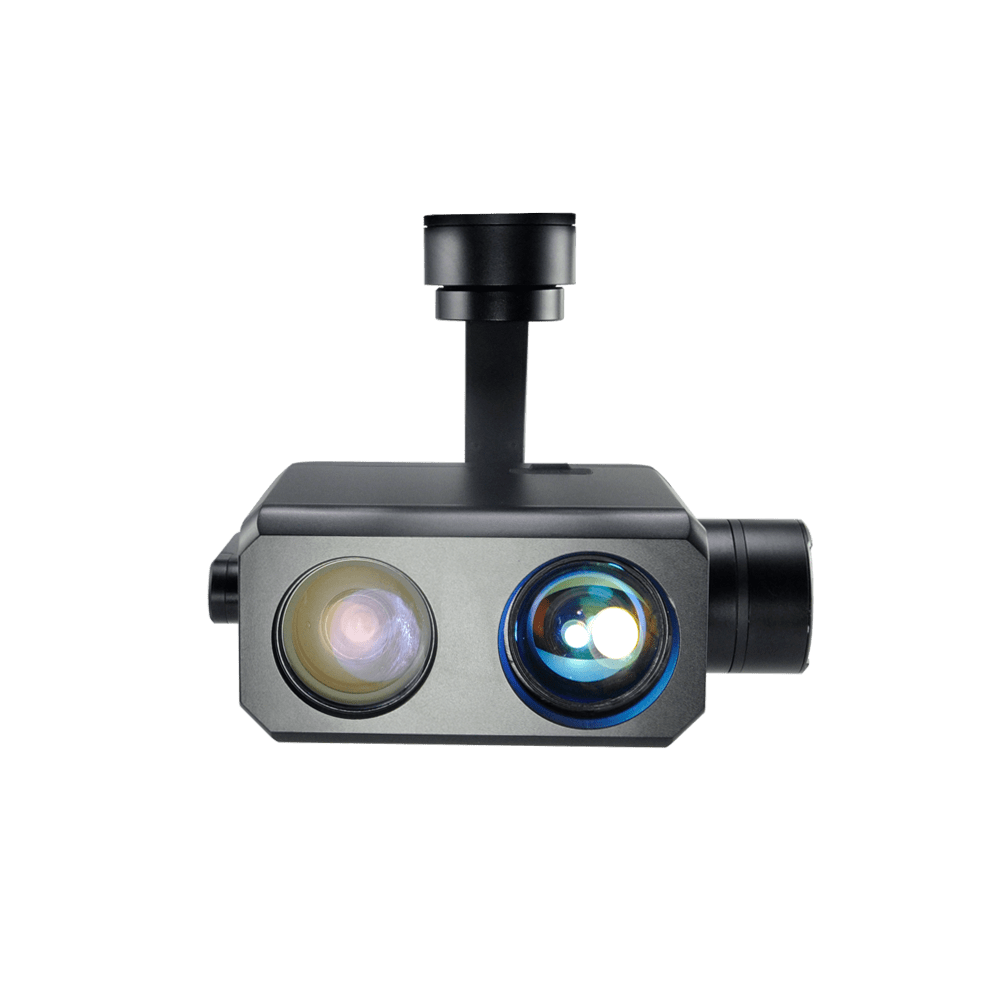

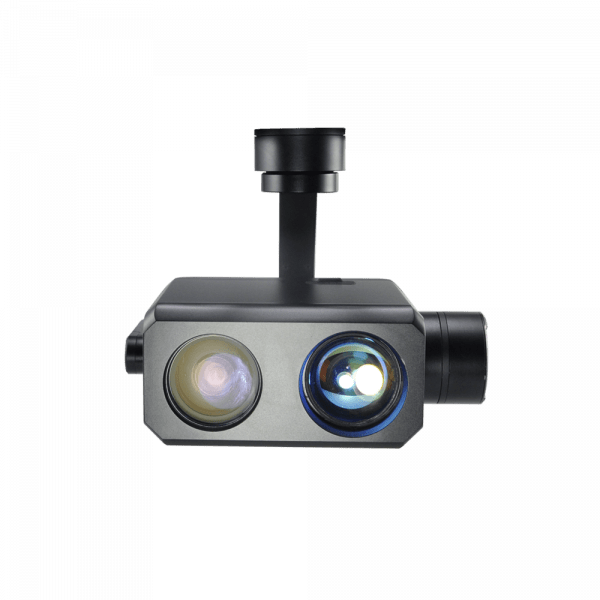

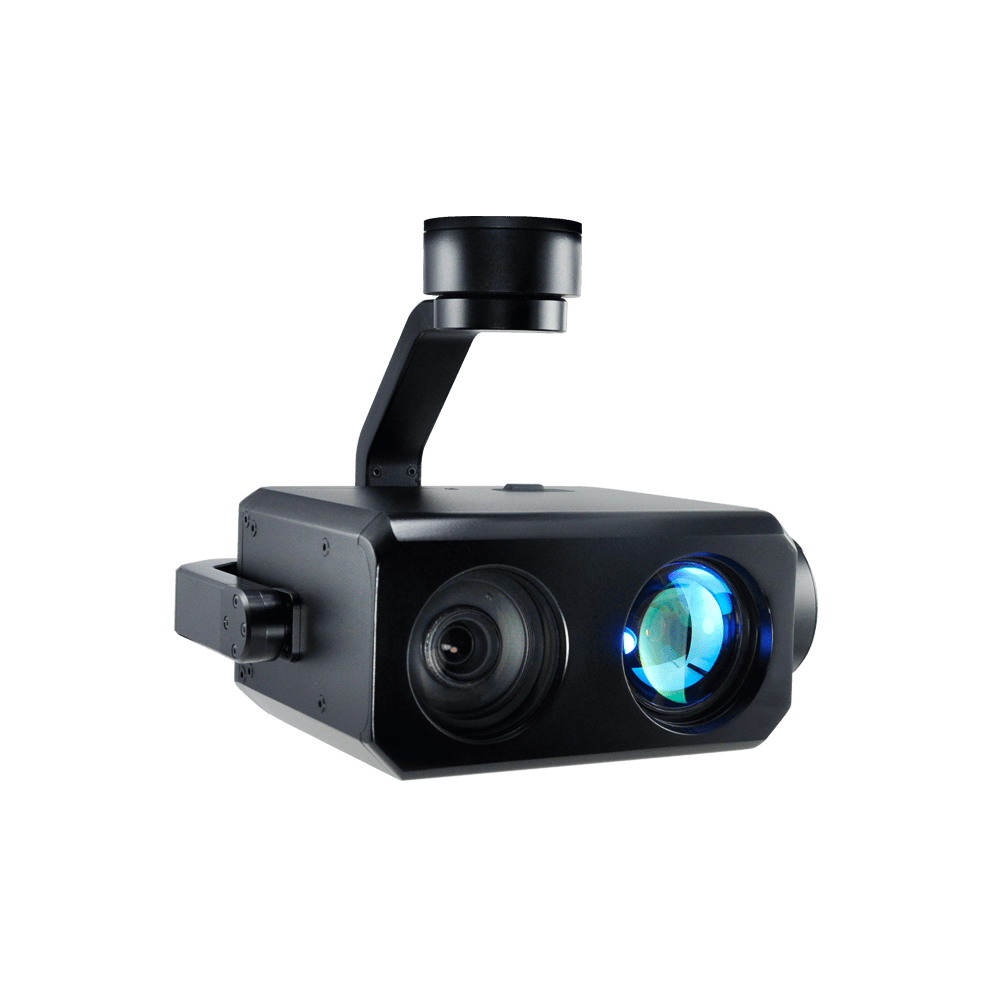

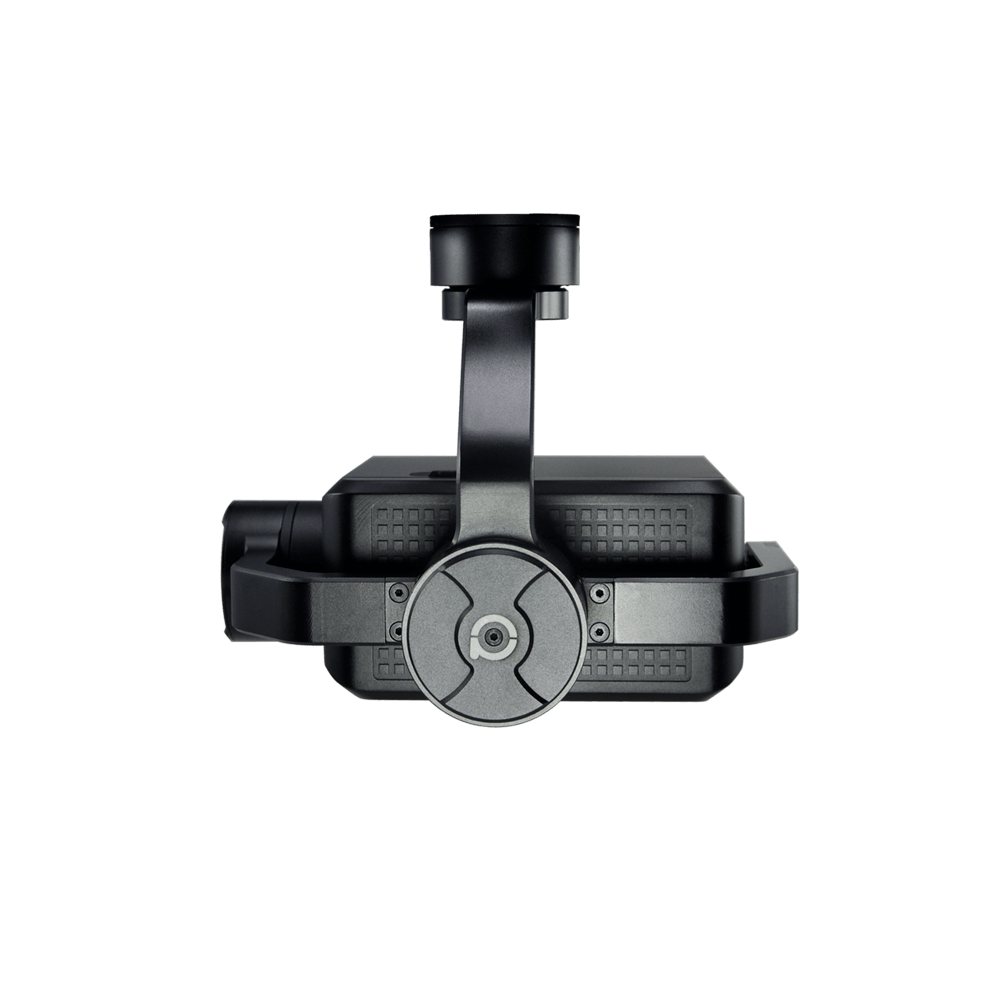

Gimbal Z30TL Night Vision 30x Zoom

Description

Professional 3-axis High-precise FOC program in Gimbal Z30TL

Stabilizing the Gimbal Z30TL is a highly optimized 3-axis UAV gimbal camera drone with pinpoint-precise motor rotation with a control accuracy of ±0.02℃ powered by a dedicated processor. Z30TL uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 300° rotation remains possible through gimbal rotation. Stable, smooth footage images can be captured even when flying at high speed light.

SONY 30x Zoom thermal camera, 500 meters Laser Light

Powered by SONY 1/2.8 Exmor R CMOS module, with [email protected] starlight level min illumination, Z30TL can still clearly display image features in an utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with powerful 30x optical zoom technology, the observation range is up to 6.5Km.

500m IR Illumination

500 meters illumination supplement combined with 30x optical zoom, the observation range for X30TL is up to 500 meters in a pitch black environment, which can meet the application requirements of various domains such as night vision surveillance, research&rescue, obtain evidence…

Built-in Object Tracking in Gimbal Z30TL

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

Multi Output Methods Optional in Gimbal Z30TL

This gimbal support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

Multi Control Methods in Gimbal Z30TL

Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

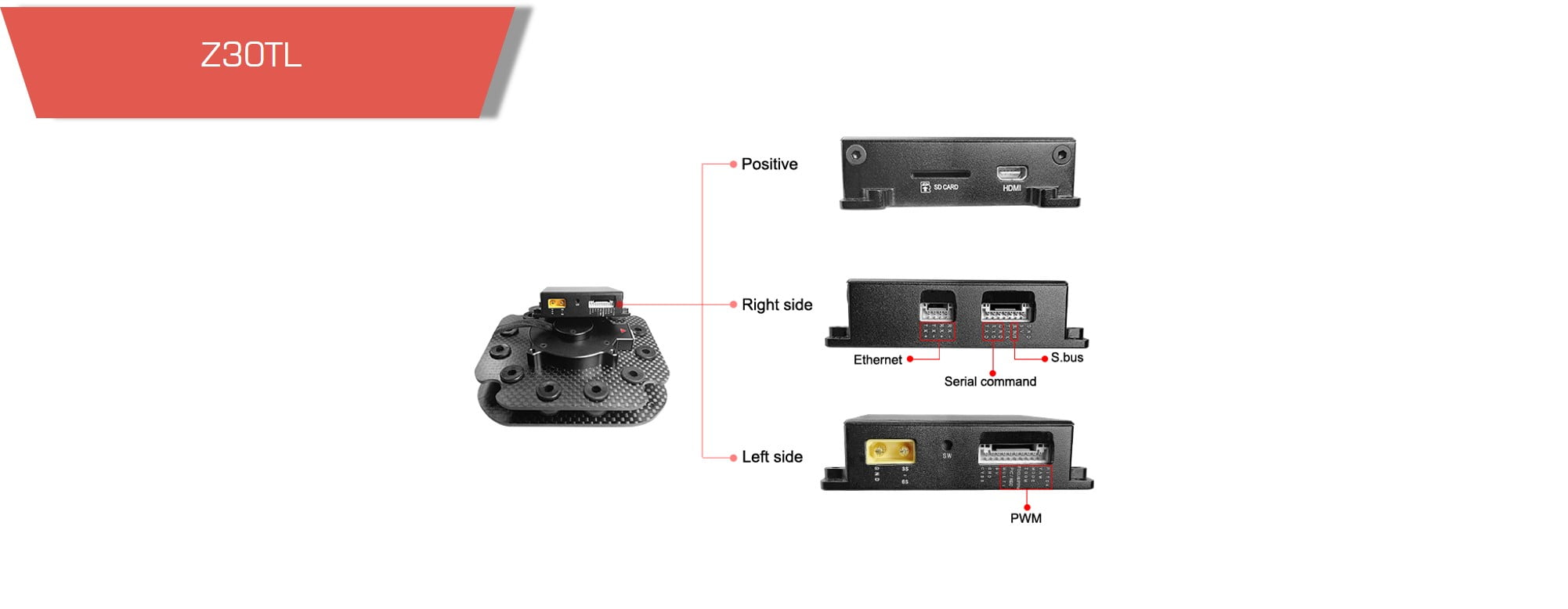

Control box signal interfaces of this IR camera:

Compatible with Viewport

Z30TL is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Signal interfaces of Viewport control box:

Application of  Z30TL

Mainly supply in military and fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties

Dimensions of this uav camera
