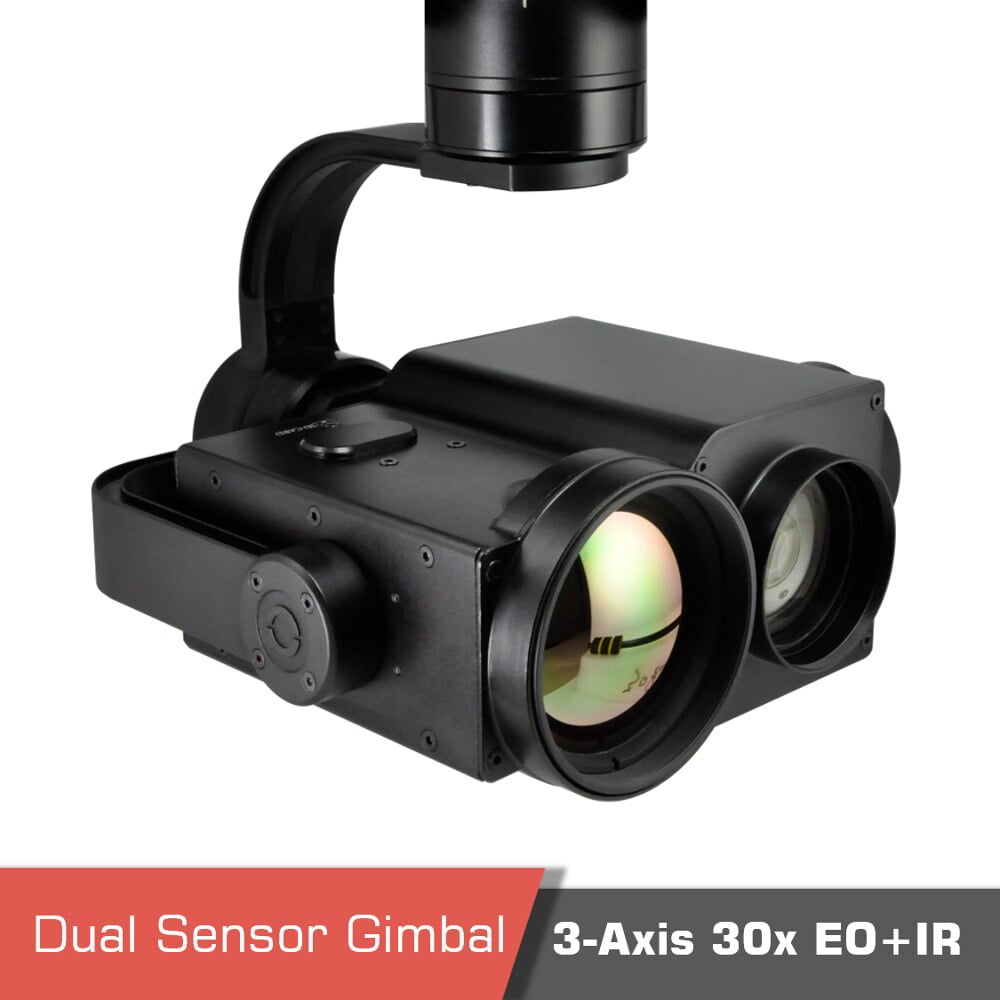

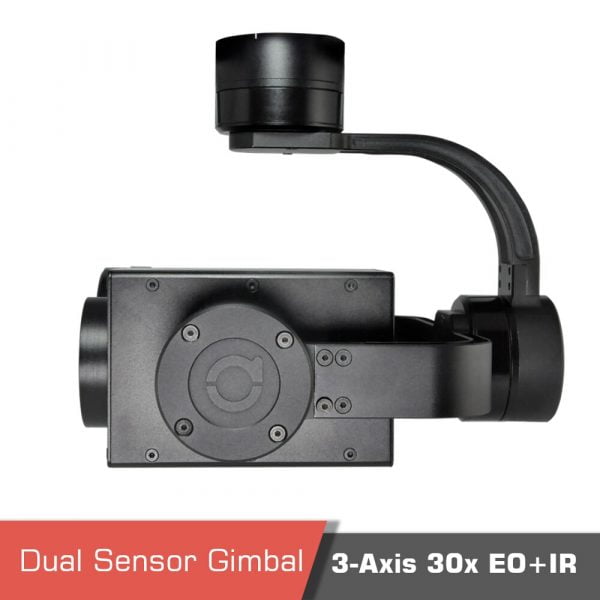

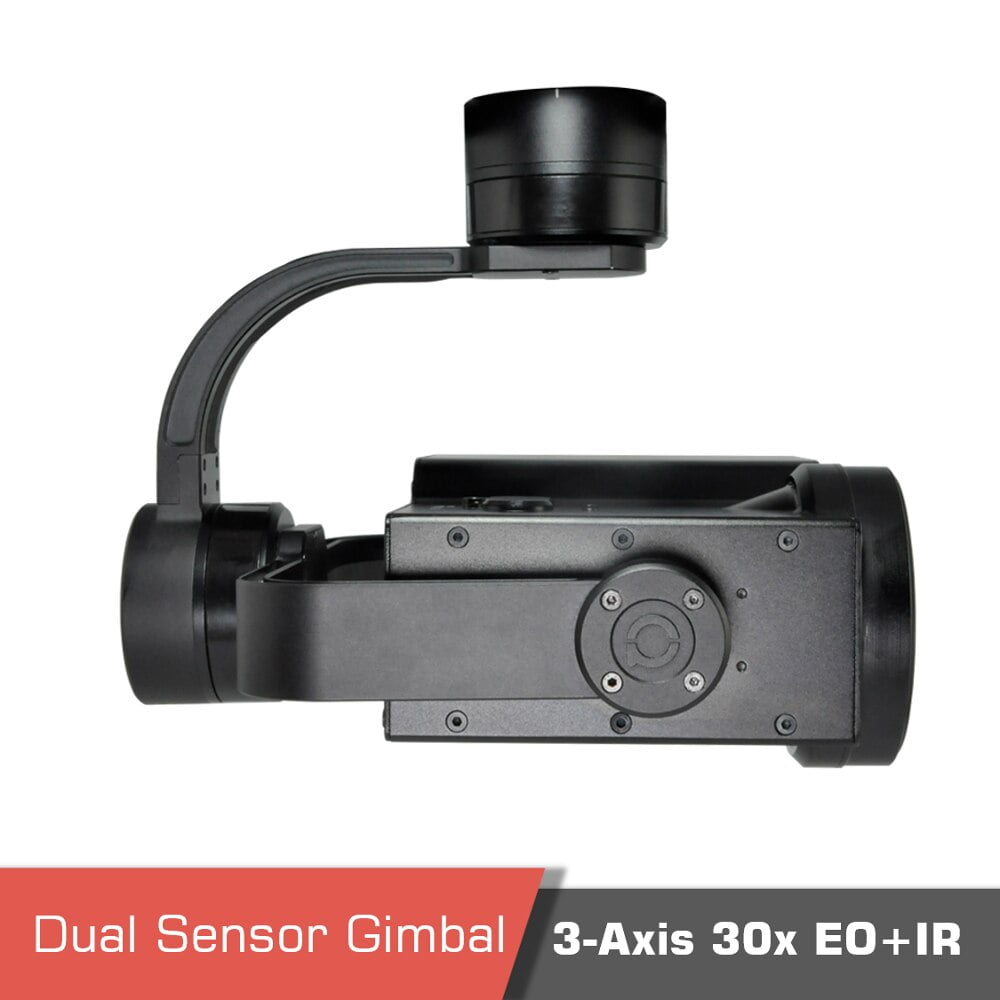

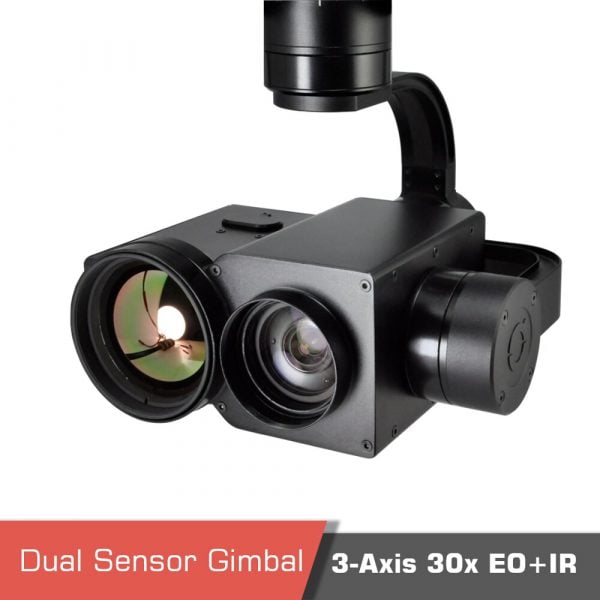

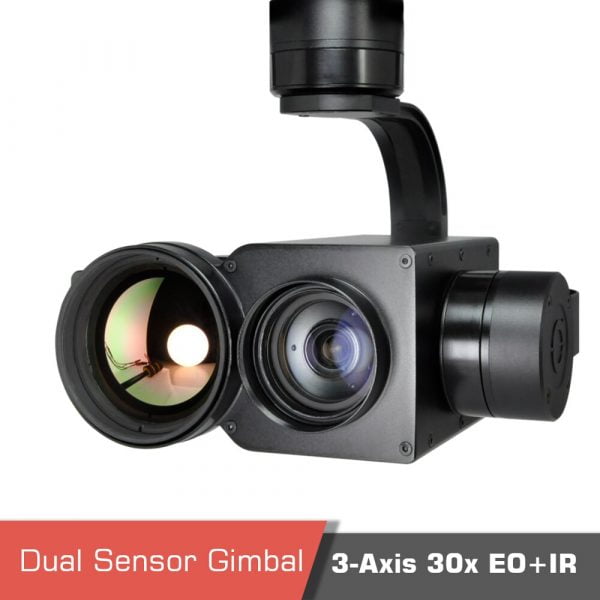

Dual Sensor Tracking Camera Gimbal Z30TIR50 / Night Vision

28747.93 $

(1 customer review)
PayPal
Visa
Master

Description

Overview Camera Gimbal Z30TIR50

Professional 3-axis High-precise FOC Program

Stabilizing the Gimbal Z30TIR is a highly optimized 3-axis UAV gimbal camera with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Z30TIR uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.



SONY 30x Zoom Starlight Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with [email protected] starlight level min illumination, Z30TIR can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

Gimbal z30tir50



Professional Thermal Imager in Gimbal Z30TIR50



Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Z30TIR can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

Z30tir 4 - gimbal z30tir50 - motionew - 5



Visible Light and Thermal Imager Dual Sensors Object Tracking

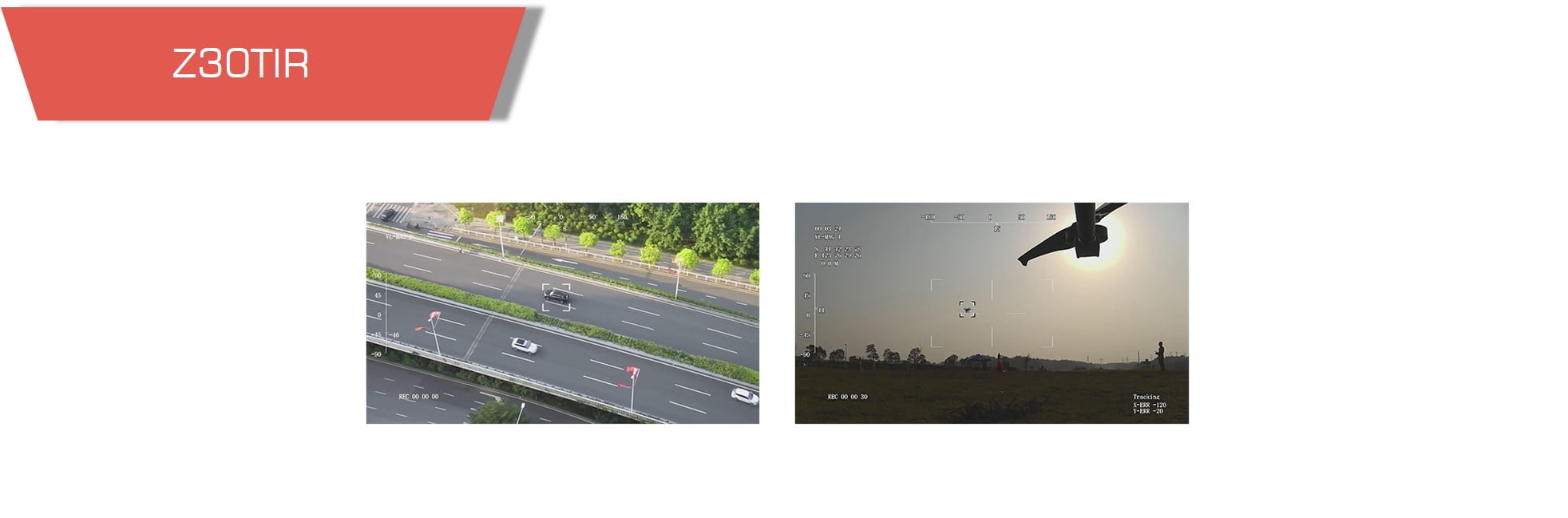

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.



Z30tir 9 - gimbal z30tir50 - motionew - 6



Multi Output Methods Optional in Gimbal Z30TIR50

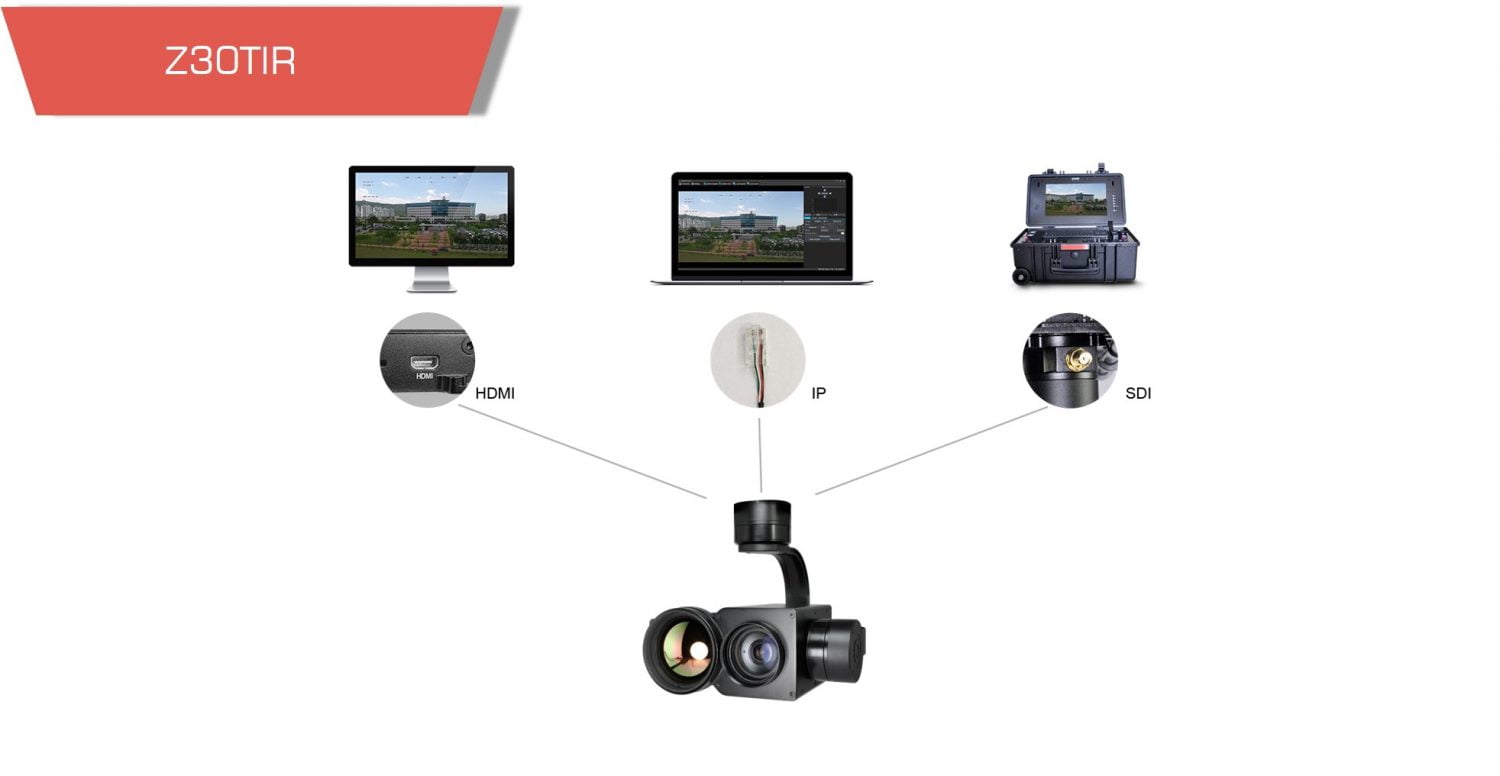

Night vision camera Z30TIR supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

Z30tir 5 - gimbal z30tir50 - motionew - 7

Multi Control Methods



Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Z30tir 6 - gimbal z30tir50 - motionew - 8

Control box signal interfaces:

Z30tir 8 - gimbal z30tir50 - motionew - 9

Compatible with Viewport



Z30TIR is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.



Z30tir 7 - gimbal z30tir50 - motionew - 10



Application

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.



Z30tir - gimbal z30tir50 - motionew - 11

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 3S ~ 4S
Output voltage 5V (connect with PWM)
Dynamic current 500mA @ 12V
Idle current 400mA @ 12V
Power consumption ≤ 6W
Working environment temp. -20℃ ~ +60℃
Output micro HDMI(HD output 1080P 60fps) / IP / SDI
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS



Gimbal Spec
Pitch/Tilt ±90°
Roll ±85°
Yaw/Pan ±170°(HDMI output)/ ±360°*N (IP/SDI output)
Vibration angle Pitch/Roll: ±0.01°, Yaw:±0.01°
One-key to center



Camera Spec
Imager Sensor SONY 1/2.8″ “Exmor R” CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Video format MP4
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color [email protected]
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Fotoformate JPEG
Videoformate MP4



Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <15ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel



Thermal Imager Spec
Lens size 50mm
Horizontal FOV(°) 12.4
Vertical FOV(°) 9.3
Diagonal FOV(°) 15.5
Detective Distance (Man: 1.8×0.5m) 1471 meters
Recognize Distance (Man: 1.8×0.5m) 368 meters
Verified Distance (Man: 1.8×0.5m) 184 meters
Detective Distance (Car: 4.2×1.8m) 4510 meters
Recognize Distance (Car: 4.2×1.8m) 1127 meters
Verified Distance (Car: 4.2×1.8m) 564 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x, 3x (max 6x optional)
Sync correct time Yes
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0℃~100℃



Thermal Object Tracking
Update rate of deviation pixel 25Hz
Output delay of deviation pixel <3ms
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)



Packing Information
N.W. 1220g
Product meas. 162.5*164.2*146.5mm
Accessories 1pc gimbal camera device, 16pcs screws,  4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion



Product contents

Product contents

Documents

Please contact us for more information.
