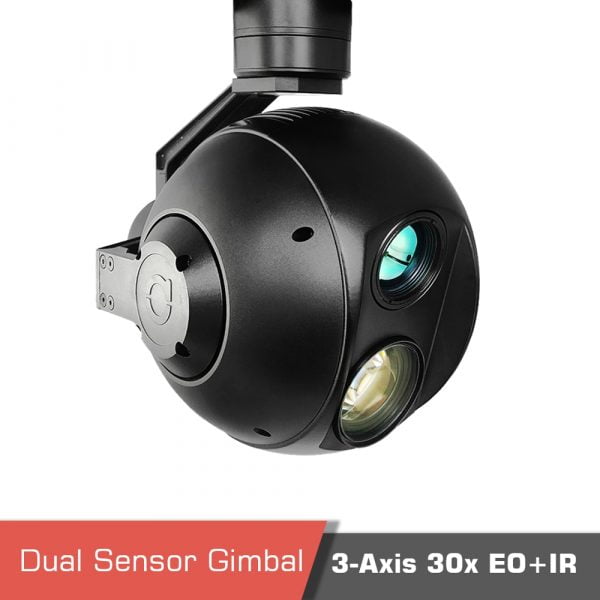

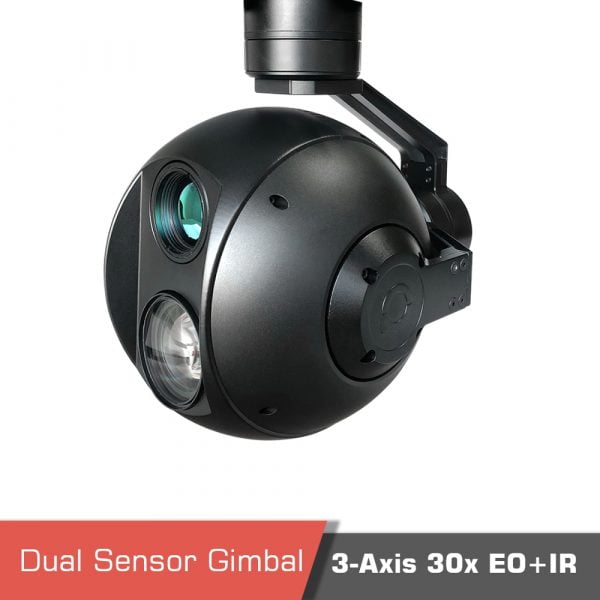

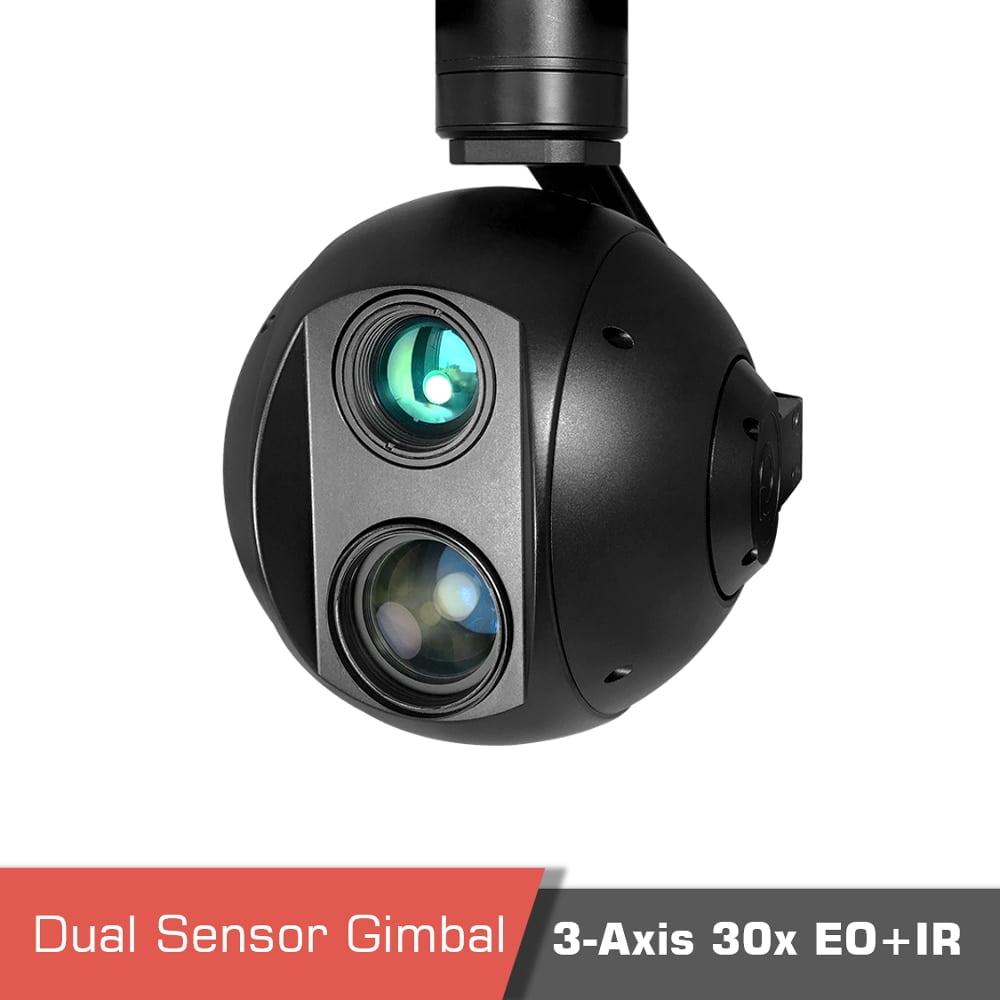

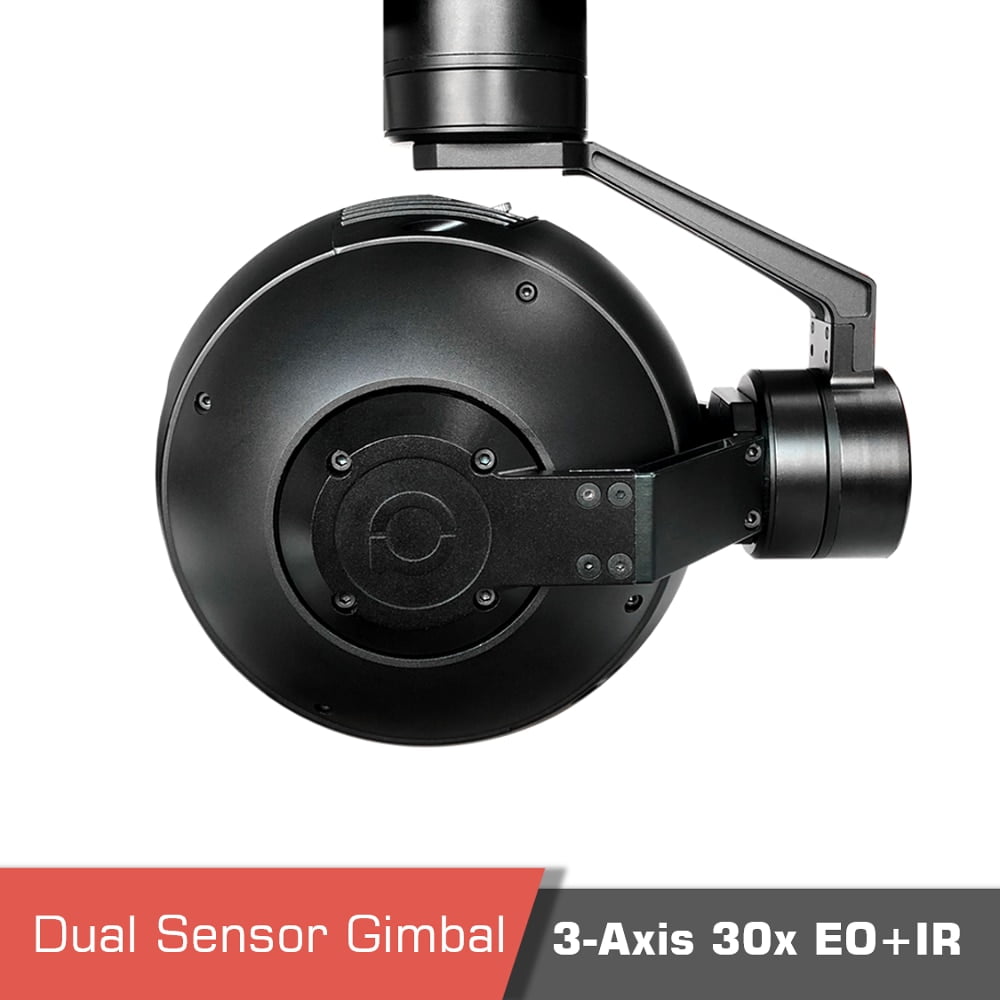

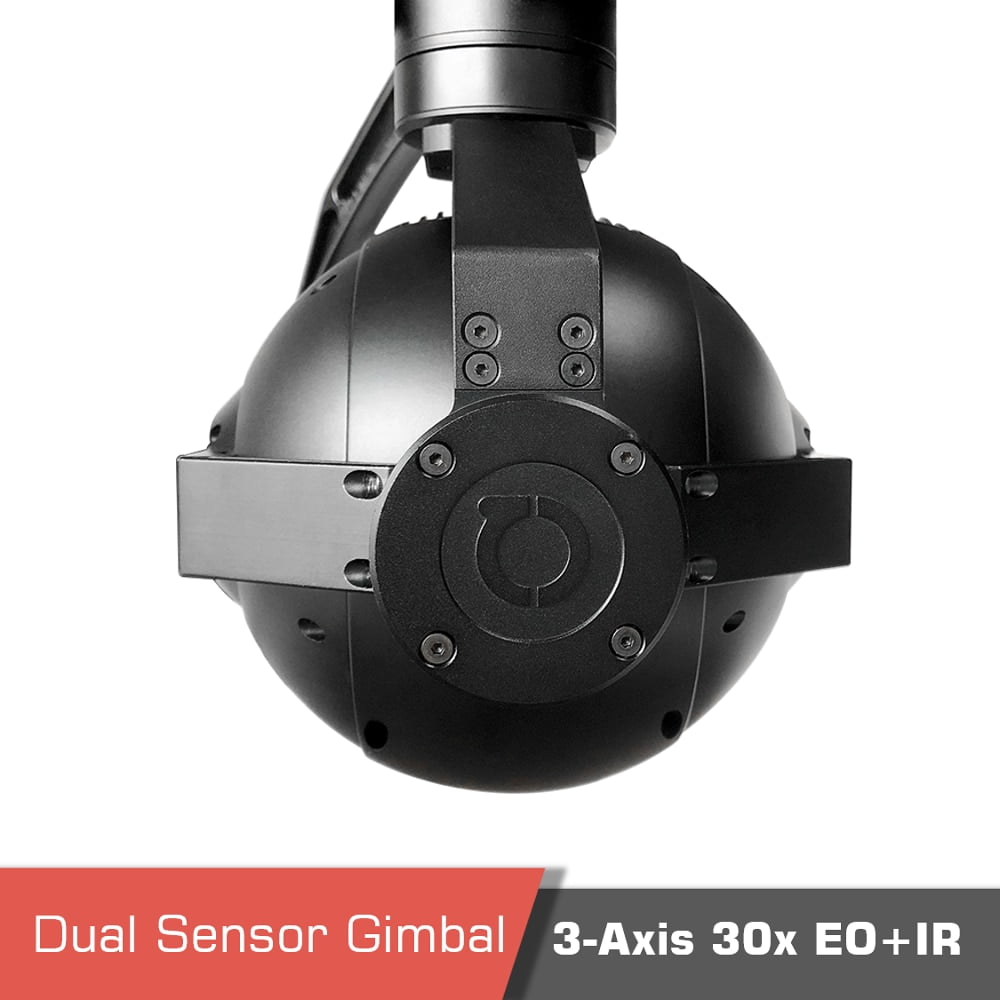

Dual Sensor Gimbal Tracking UAV Thermal Camera Q30TIR

20204.35 $

Description

Dual Sensor Gimbal — Professional 3-axis High-precision

Stabilized the Q30TIR is a highly optimized 3-axis dual sensor gimbal payload with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Q30TIR uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.

SONY 30x Zoom Starlight Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with [email protected] starlight level min illumination, Q30TIR can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p FHD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 3000 meters, which can meet the application requirements of various domains.

Advanced IR Thermal Imager

Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Q30TIR can record and transmit thermal image and visible images at the same time in PIP format. With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between -30℃~300℃ to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.

*Temp bar: Indicates gradually variation temperature with corresponding colors.
*Temp measurement: Display average, highest, and lowest temperatures in real time.
*Temp alarm: Don’t miss a thing when object temperatures exceed pre-set alert values.

Visible Light and Thermal Imager Dual Sensors Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16×16 pixel to 160×160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.



U42e84c9800a44c219a0b282b6cb7cfd2h - dual sensor gimbal,uav thermal camera,dual sensor camera,gimbal,object tracking,30x zoom,3-axis gimbal - motionew - 5

Ue43a0174d0eb4f07a8e43f6c2be8e319d - dual sensor gimbal,uav thermal camera,dual sensor camera,gimbal,object tracking,30x zoom,3-axis gimbal - motionew - 6
Ub48c61a7bf374c61ad430590594aed31z - dual sensor gimbal,uav thermal camera,dual sensor camera,gimbal,object tracking,30x zoom,3-axis gimbal - motionew - 7
Dual sensor gimbal



Additional information

Weight 1.300 kg

Specifications

Hardware Parameters
Working voltage 12V ~ 16V
Input voltage 3S ~ 4S
Output voltage 5V (connect with PWM)
Dynamic current 500mA @ 12V
Idle current 400mA @ 12V
Power consumption ≤ 6W
Working environment temp. -20℃ ~ +60℃
Output  micro HDMI(HD output 1080P 60fps) / IP / SDI
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS



Gimbal Spec
Pitch/Tilt ±90°
Roll ±85°
Yaw/Pan ±170° / ±360°*N (IP / SDI output)
Vibration angle Pitch/Roll: ±0.01°, Yaw:±0.01°
One-key to center Yes



EO Camera Specifications
Imager Sensor SONY 1/2.8″ “Exmor R” CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color [email protected]
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 step/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Photo format JPEG
Video format MP4



EO Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <15ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel



IR Thermal Imager Spec
Lens  25mm
Horizontal FOV 24.6°
Vertical FOV 18.5°
Diagonal FOV 30.4°
Detective Distance (Man: 1.8×0.5m) 735 meters
Recognize Distance (Man: 1.8×0.5m) 184 meters
Verified Distance (Man: 1.8×0.5m) 92 meters
Detective Distance (Car: 4.2×1.8m) 2255 meters
Recognize Distance (Car: 4.2×1.8m) 564 meters
Verified Distance (Car: 4.2×1.8m) 282 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x (up to 6x)
Sync correct time Yes
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0℃~100℃



IR Thermal Imager Object Tracking
Update rate of deviation pixel 25Hz
Output delay of deviation pixel <3ms
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)



Packing Information
N.W. 1230g / 1276g(SDI output)
Product meas. 127.6*164.5*173.5mm



Documents

Please contact us for more information.

Product contents

1x gimbal camera device

16x screws

4x copper cylinders

12x damping balls

4x damping boards

1x USB to TTL cable / Hight quality plastic box with foam cushion
