Overview of CPU Cooling Fan

The ICE Tower Cooler from 52Pi is a great way to provide the Raspberry Pi with active cooling as a naturally cooling device. There is a fan on the heatsink that winds continuously air over the heatsink so that it can keep it cool. Due to this, it is possible to keep the Raspberry Pi at a cooler temperature than if it had a standard cooling block installed (see images below). In addition to the built-in RGB LED, the fan also has an auto-changing color sensor (color LED). The white version and the black version are the two versions available. Consult Motionew Online Shop for the full range of our products.

Features of this thermal pad

  • Suitable for: Raspberry Pi 3B, 3B+ and 4B
  • Supply voltage: 5V
  • Current: ~80mA

Cooler For Raspberry pi

In accordance with Moore’s law, the design of high-speed and high-density printed circuit boards (PCBs) is becoming more and more complex as time goes on. As the processing speed increases, more heat will be generated. The super CPU Cooling Fan for Raspberry Pi is designed to solve the problem of heat dissipation for the Raspberry Pi! Among its many features are a tower structure, 5mm copper pipes, multi-layer heat sinks, and a powerful fan with seven blades. When the Raspberry Pi is overclocked, it can reduce its temperature from 80°C to 40°C.

The best thing about this fan is that it supports both the Raspberry Pi 3B+ and the new Raspberry Pi 4B. As soon as the fan turns up, you will see the color of the fan.

There are 7 different color LEDs on the cooling fan that change automatically, which makes the fan more interesting and stylish. With only 0.4W power consumption, Ice tower is the suitable active cooling choice for your raspberry pi board. Ice tower has small dimension and is easy to assemble and use.

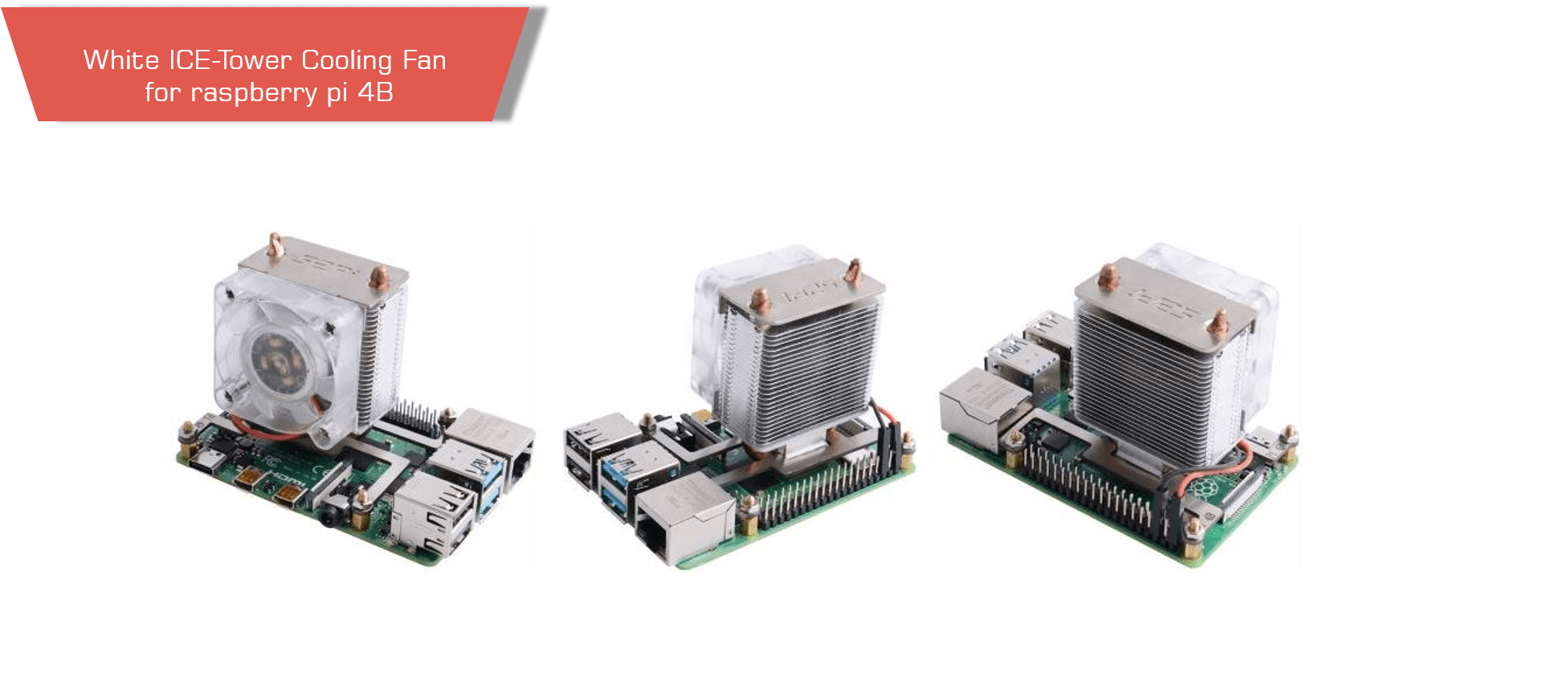

ICE-Tower CPU Cooling Fan for Raspberry Pi 4B/3B/B White/Black p1 MotioNew

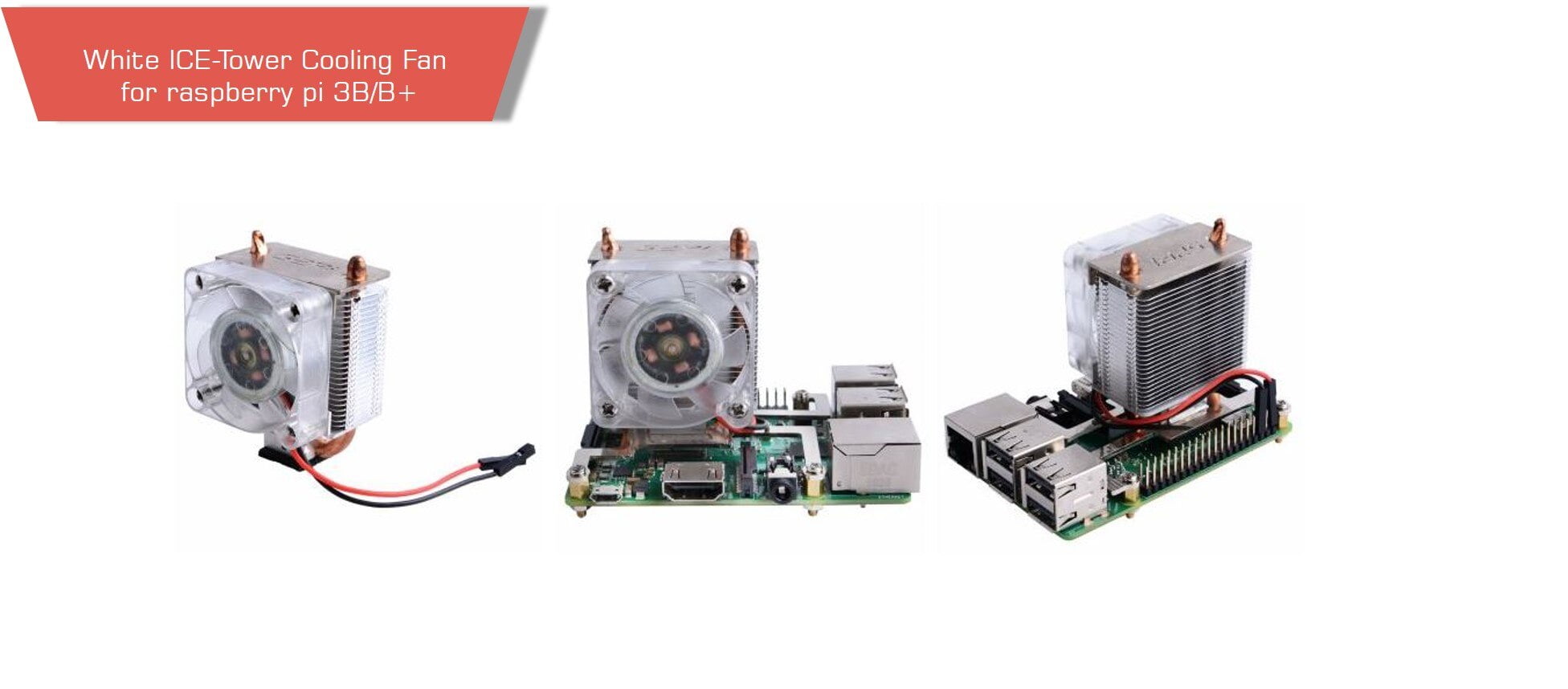

ICE-Tower CPU Cooling Fan for Raspberry Pi 4B/3B/B White/Black p2 MotioNew

PS: Product does not contain thermal silicone grease, but if you have thermal silicone the dispassion effect will be better.

Cooler For Raspberry pi/black

This Cooling Fan black is burned for solving heat dissipation problem too!
5mm copper tube, multi-layer heat sinks, 7 blades powerful fan, all the above combinations make this super radiator for Raspberry Pi.
In the case of overclocking, it can reduce the temperature of the Raspberry Pi from 80℃ to 40℃.
Best of all, this super cooling fan support both Raspberry Pi 3B+ and the new Raspberry Pi 4B.
The fan has 7 different color LEDs that change automatically, making your fan more beautiful and personalized.

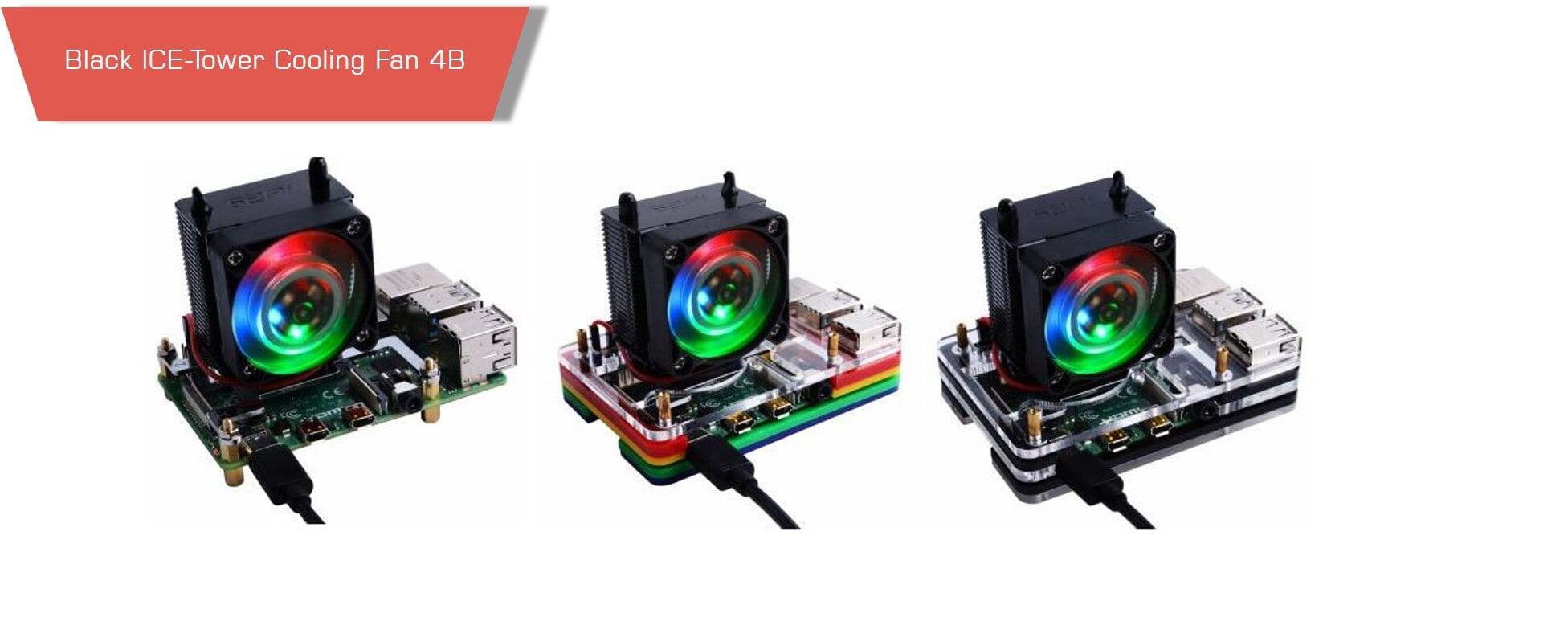

ICE-Tower CPU Cooling Fan for Raspberry Pi 4B/3B/B White/Black p5 MotioNew

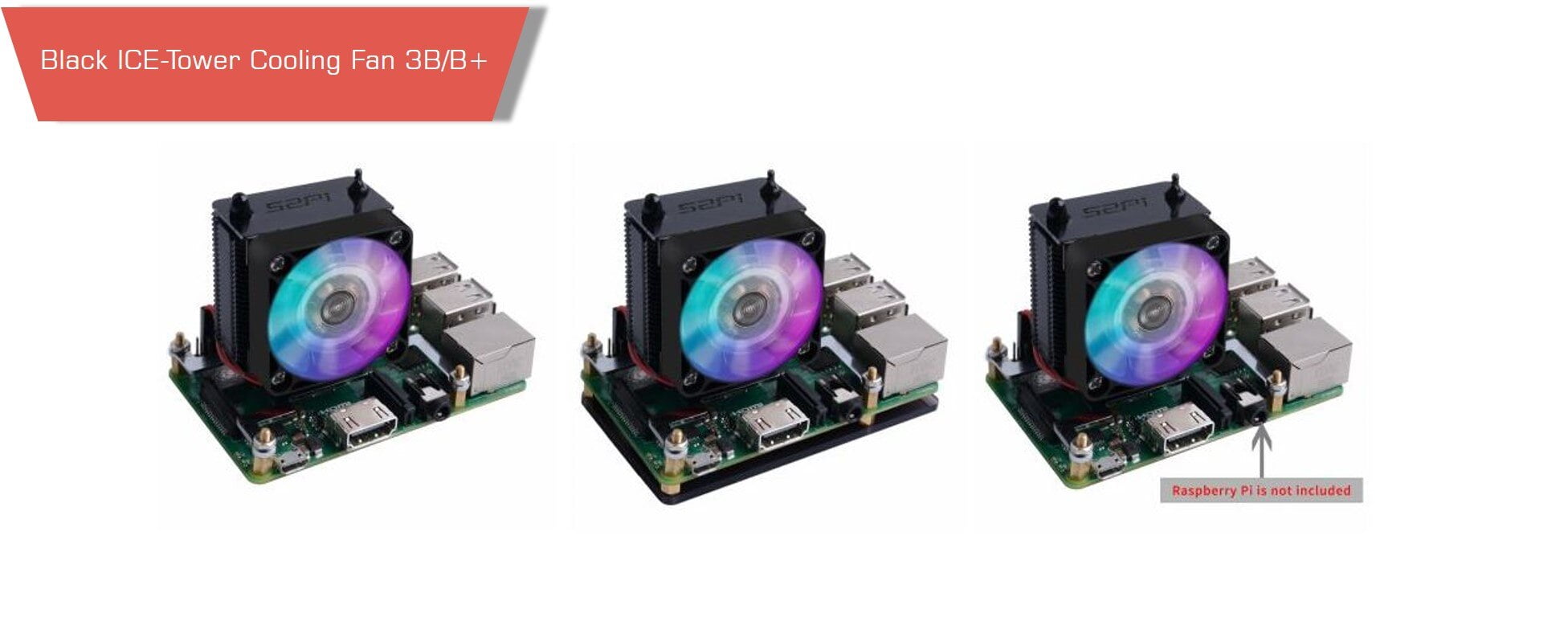

ICE-Tower CPU Cooling Fan for Raspberry Pi 4B/3B/B White/Black p6 MotioNew



If you have any questions regarding our products, use the Motionew team of experts page to consult our engineering team.

Specifications

Features

  • DC 5V Power in (Can be powered by the Raspberry Pi)
  • Ice Tower Structure
  • 5mm copper tube
  • Super heat dissipation
  • Rated power 0.4W @5V, 0.08A
  • Super Cool fan background light (7 Colors)
  • Easy to setup
  • Compatible with Raspberry Pi 3B+/4B
  • Plug and play

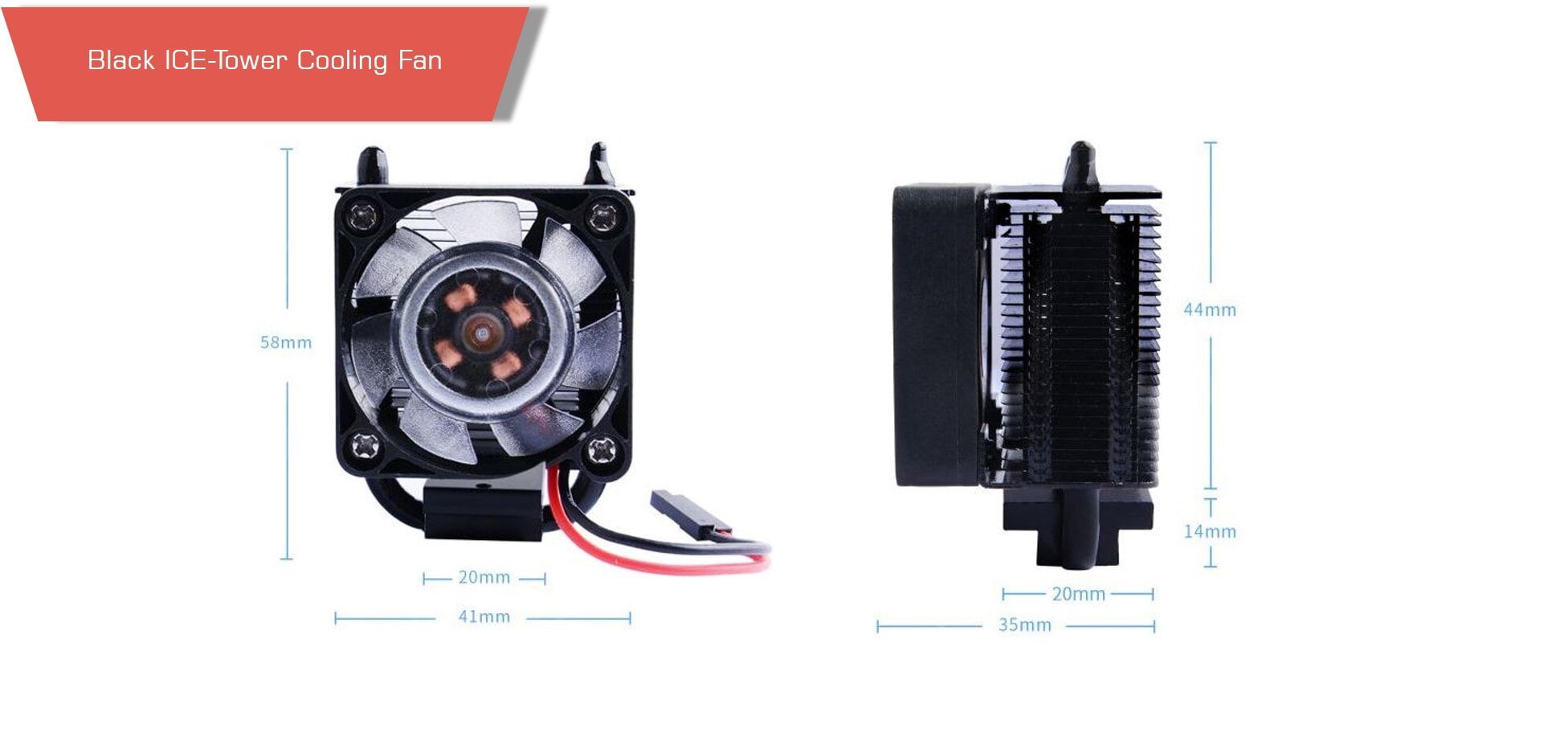

ICE Tower CPUCoolingFanforRaspberryPi p7 - ICE Tower, CPU Cooling Fan, Raspberry Pi 4B, thermal pad, color LED, heatsink, active cooling - MotioNew - 2

Product contents

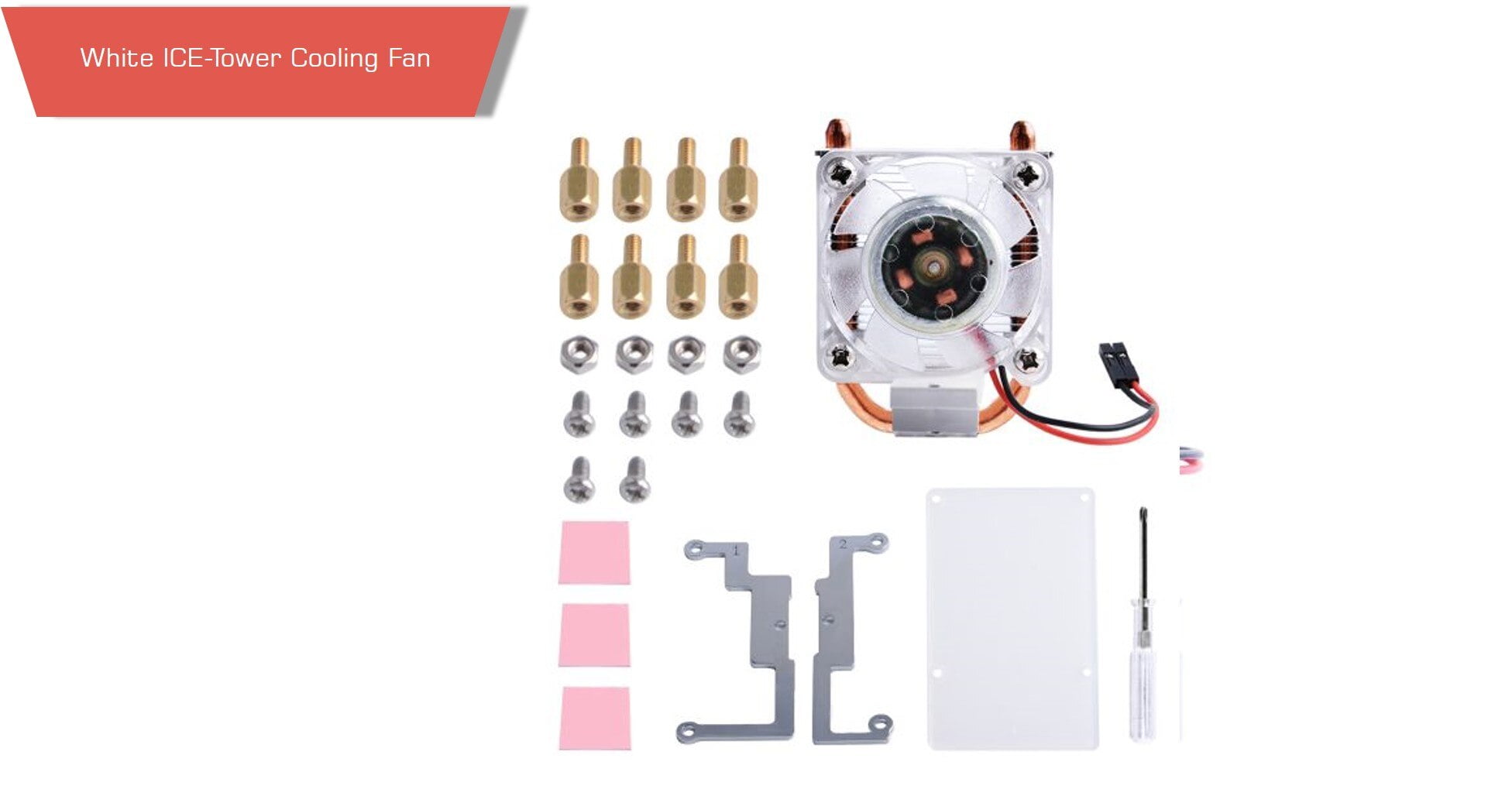

Package Includes

1 x Ice Tower radiator and Fan

2 x Steel Mounting brackets

8 x M2.5×6 Copper sticks

4 x M2.5 Nuts

6 x M2.5×4 screws

3 x Thermal Tape

1 x Screw Driver

1 x Protective Acrylic Panel



ICE-Tower CPU Cooling Fan for Raspberry Pi 4B/3B/B White/Black p4 MotioNew

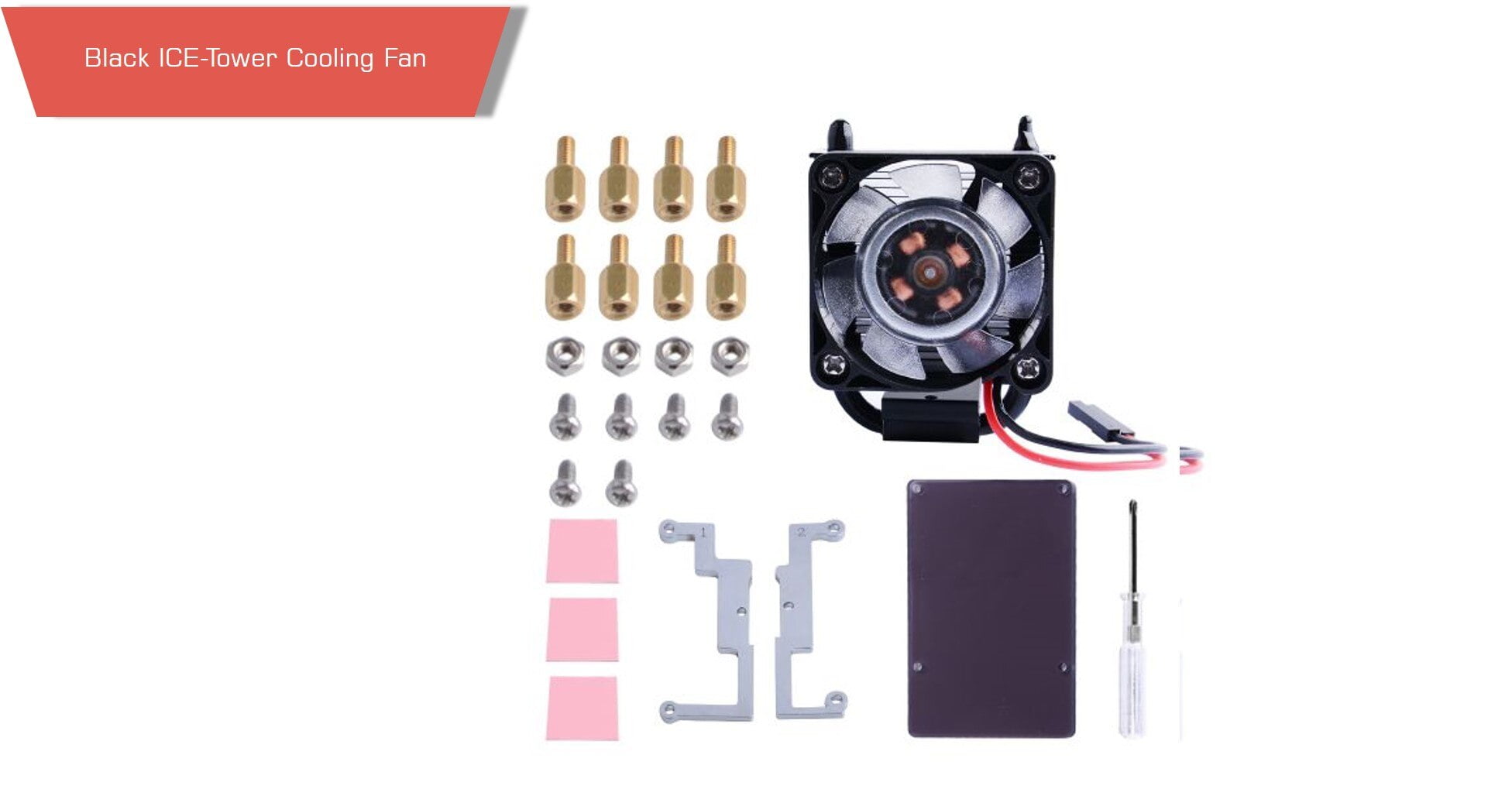

ICE-Tower CPU Cooling Fan for Raspberry Pi 4B/3B/B White/Black p8 MotioNew



Documents



How to assemble

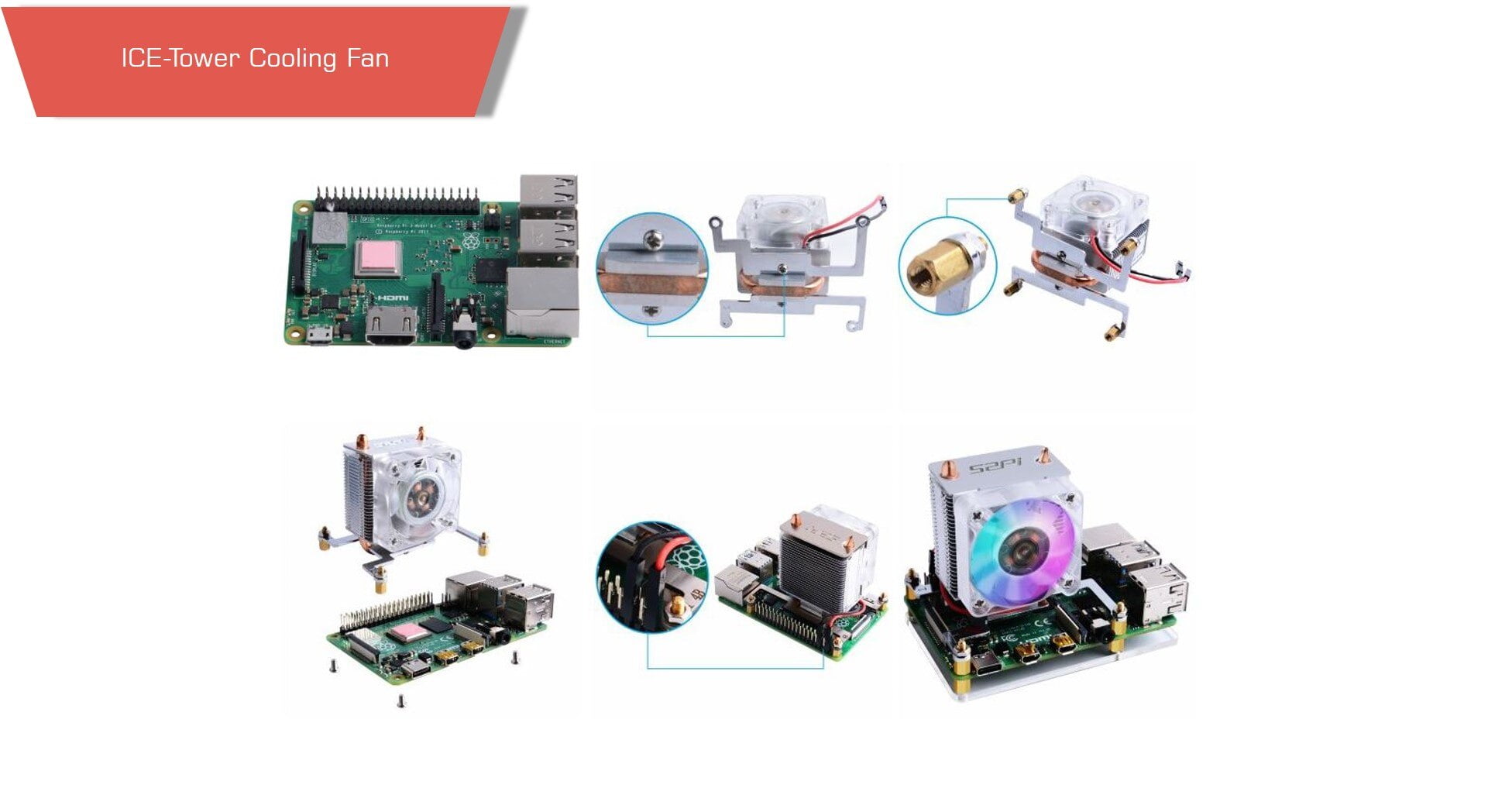

ICE-Tower CPU Cooling Fan for Raspberry Pi 4B/3B/B White/Black p9 MotioNew

Raspberry Pi 3B+

1.Fixed the steel mounting fixer to radiator’s heat dissipation cube with M2.0Mscrews

2.Fixed the steel mounting fixer to Raspberry Pi 3B+’s mounting hole with M2.5 copper stick, and please make sure the heat dissipation is contact to CPU shield properly.

  1. Fixed the copper stick to Raspberry Pi with M2.5 nuts.
  2. Connect the red wire to GPIO 5V pin and black wire to GPIO GND pin.

Raspberry Pi 4B

  1. Fixed the steel mounting fixer to radiator’s heat dissipation cube with M2.0 screws
  2. Fixed the steel mounting fixer to Raspberry Pi 4B’s mounting hole with M2.5 copper stick, and please make sure the heat dissipation is contact to CPU shield properly.
  3. Fixed the copper stick to Raspberry Pi with M2.5 nuts.
  4. Connect the red wire to GPIO 5V pin and black wire to GPIO GND pin.
