High Torque GXServo motor

570.00 $1540.00 $

PayPal
Visa
Master

Description

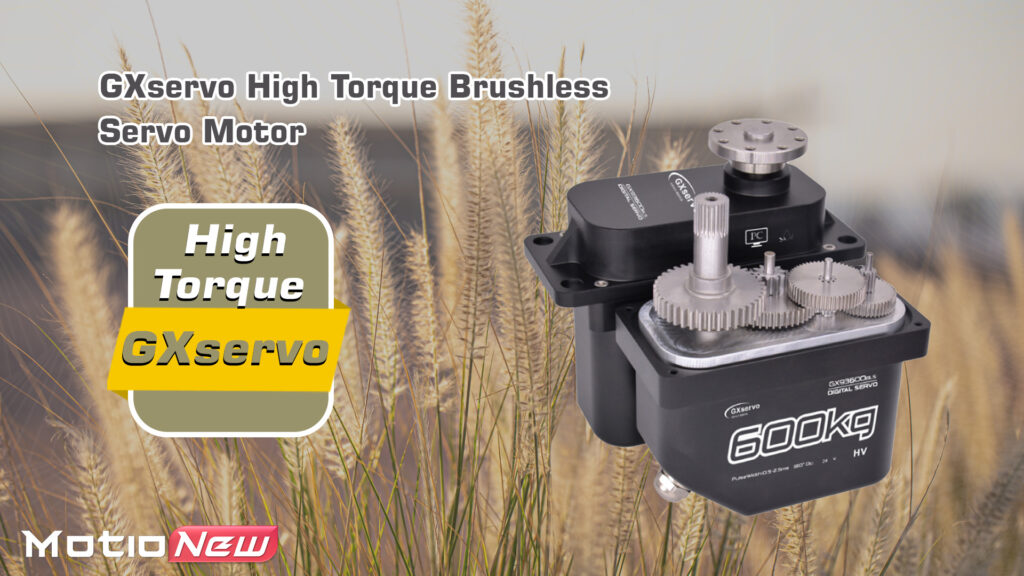

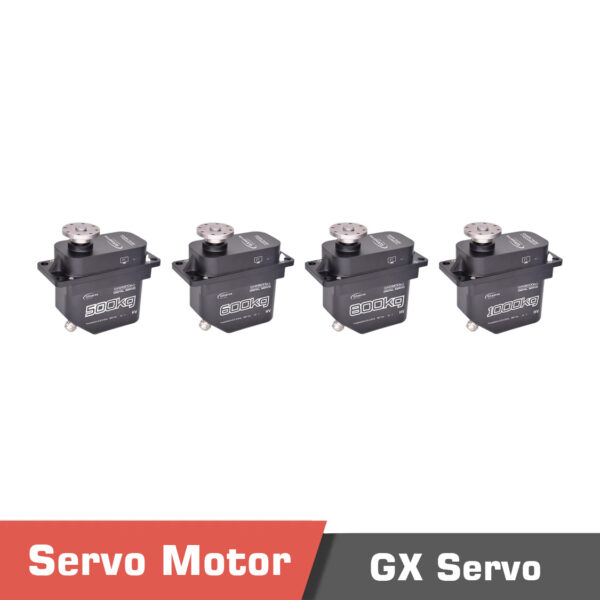

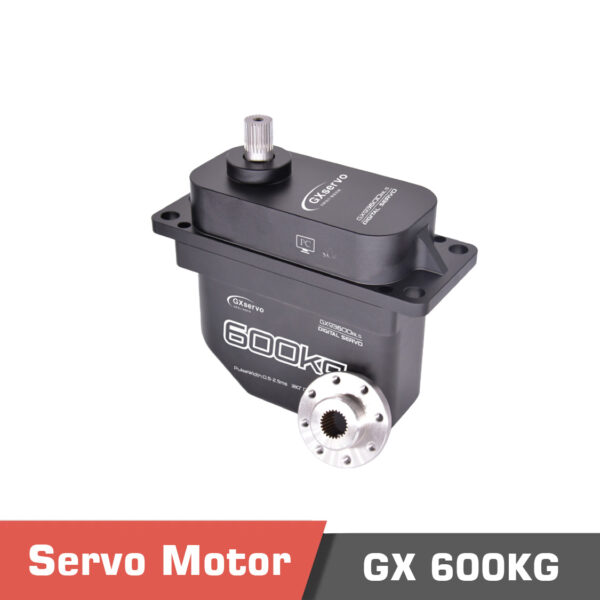

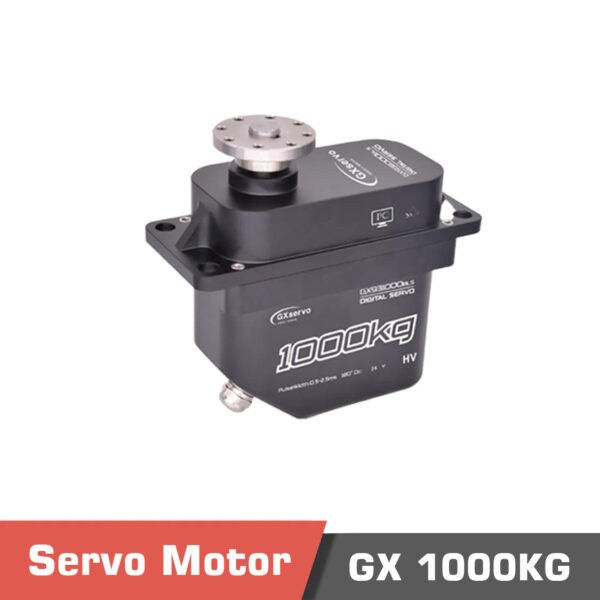

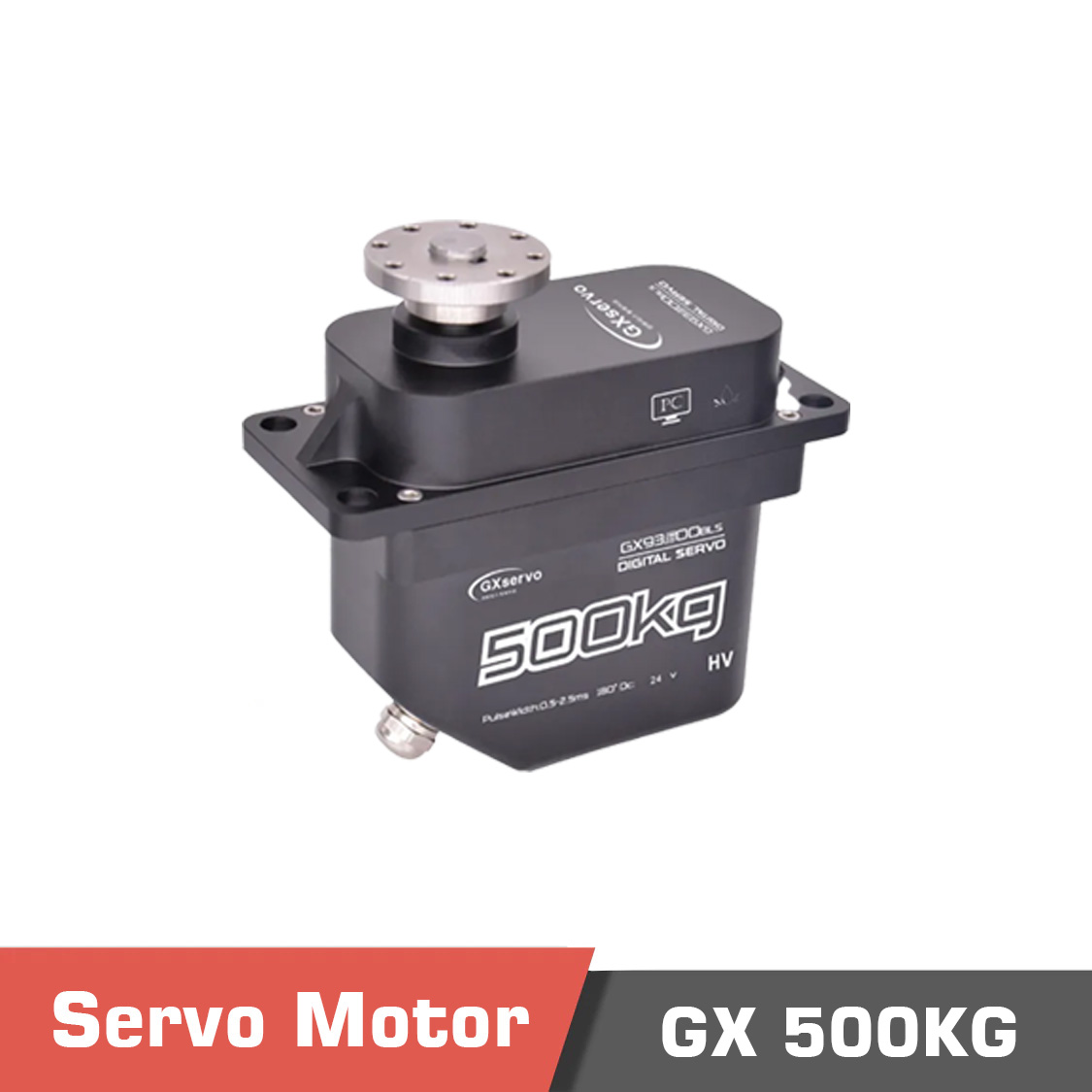

GXServo Motor series are high torque servo motors that are able to provide more than 500kg.cm torque. They are fully metal and can be customized to work with Customizable PWM, RS-485 , TTL, or CAN Protocols. Their maximum torque is provided when powered on with 24V. Weighing around 1.07kg, they are available in GXServo 500kg (500kg.cm Torque), GXServo 600kg (600kg.cm Torque), GXServo 800kg (800kg.cm Torque), and GXServo 1000kg (1000kg.cm Torque). The rotation speed varies from 0.3s/60° to 0.55s/60°.

Gxservo motor High torque gxservo. 2 - gxservo,gxservo motor,servo,high torque servo,large torque servo,gxservo 600kg,gxservo 500kg,gxservo 800kg,gxservo 1000kg - motionew - 10 High torque gxservo. 3 - gxservo,gxservo motor,servo,high torque servo,large torque servo,gxservo 600kg,gxservo 500kg,gxservo 800kg,gxservo 1000kg - motionew - 11 High torque gxservo. 4 - gxservo,gxservo motor,servo,high torque servo,large torque servo,gxservo 600kg,gxservo 500kg,gxservo 800kg,gxservo 1000kg - motionew - 12

If you have any questions regarding our products, use the contact us page to consult our engineering team.



Additional information

Weight .1 kg
Dimensions 5 × 5 × 5 cm

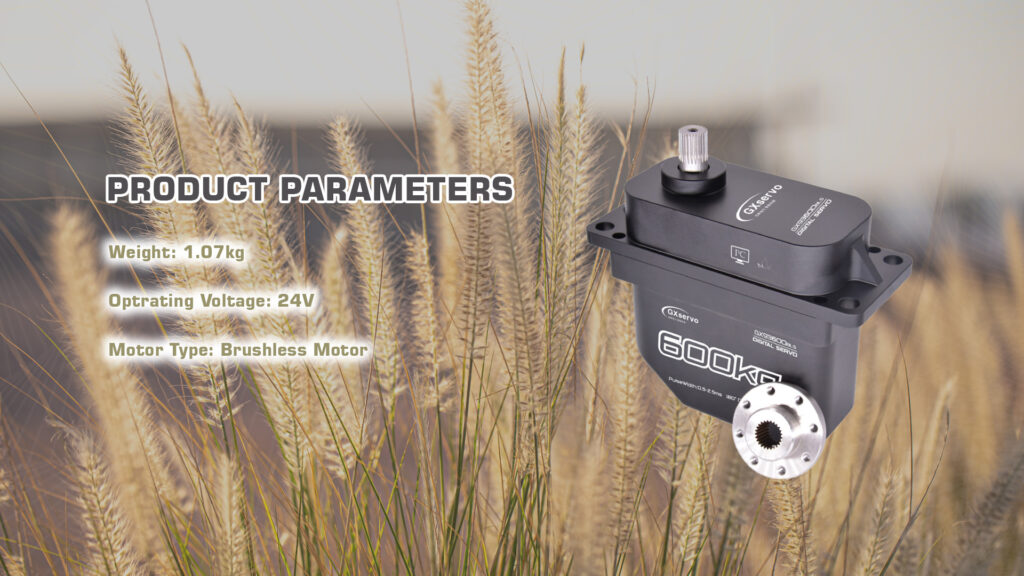

Specifications



General Specifications

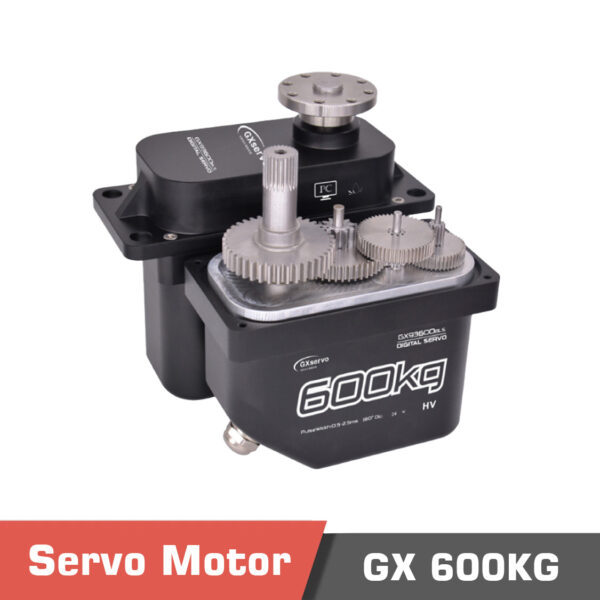

Gear Type Steel
Motor Brushless motor
Ball Bearing 2BB
Working Frequence 1520μs/330hz

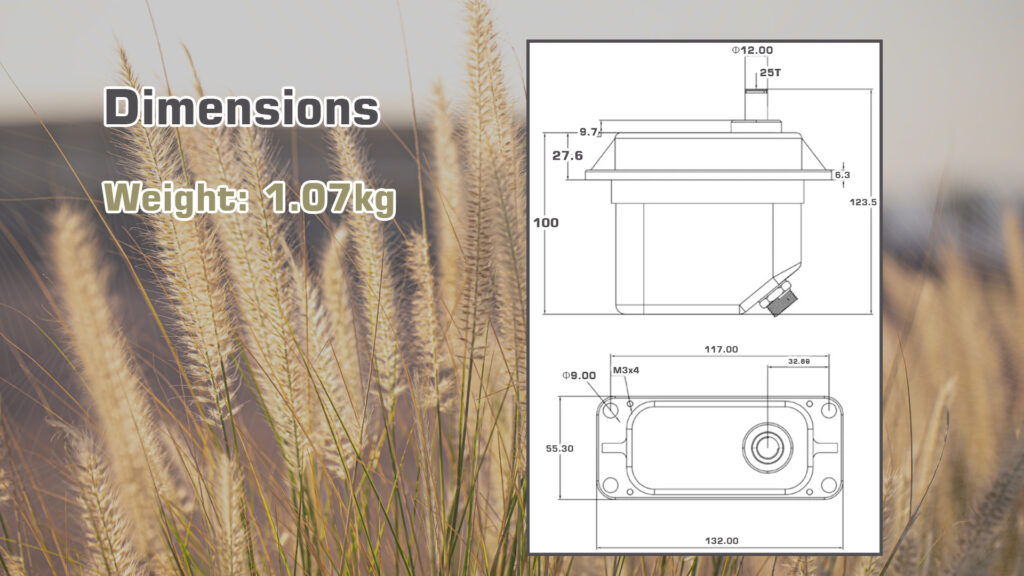

Dimensions  132*55.3*100mm
Shell Materal  CNC aviation aluminium alloy
spline tooth 25T
Control System Customizable(PWM,RS485 ,TTL,CAN)
Weight 1.07kg

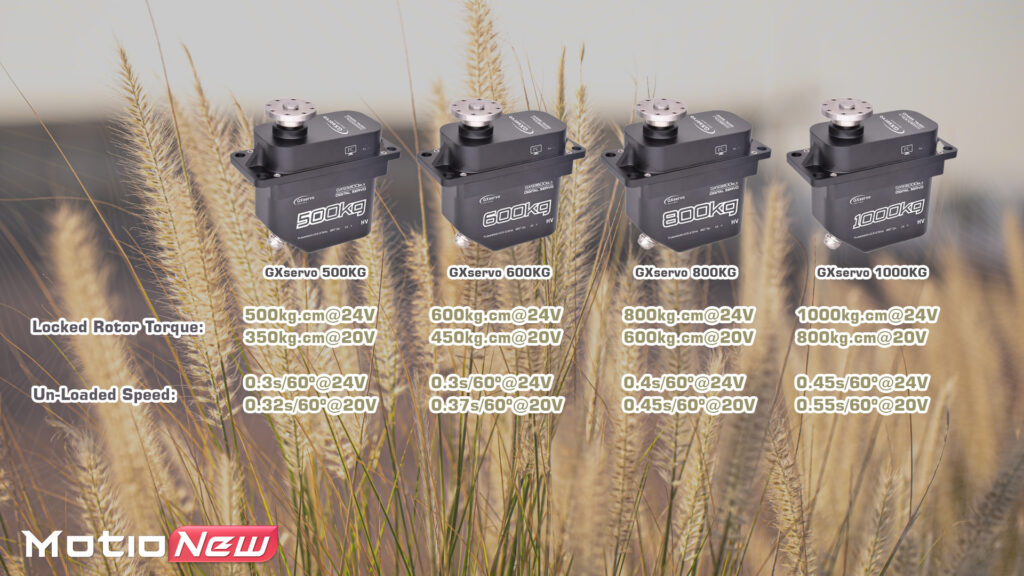

500kg 600kg 800kg 1000kg
Operating Speed 0.32/sec60°  (20V) 0.37sec60° (20V) 0.45sec60° (20V) 0.55sec60° (20V)
0.3sec/60° (24V) 0.3sec60° (24V) 0.40sec60° (24V) 0.45sec60° (24V)
Stall Torque 350kg.cm (20v) 450kg.cm (20V) 600kg.cm (20V) 800kg.cm (20V)
500kg.cm (24v) 600kg.cm (24V) 800kg.cm (24V) 1000kg.cm (24V)



Product contents

Please contact us for more information.

Documents

Please contact us for more information.
