GDW HV DS1906A DS1906B Servo Motor

29.00 $

Description

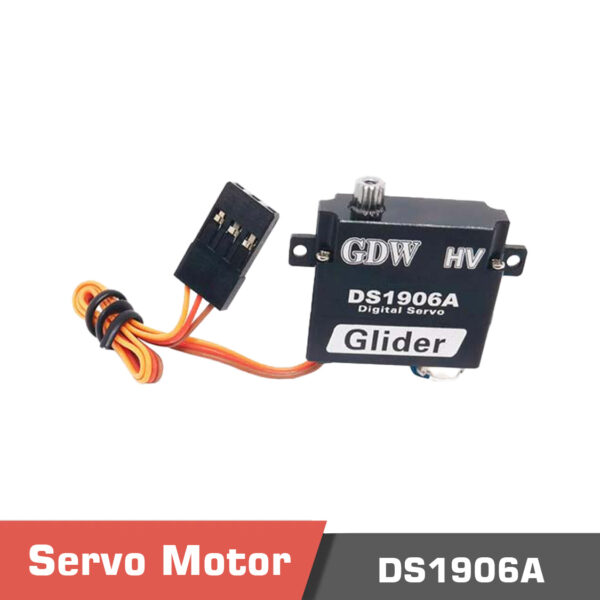

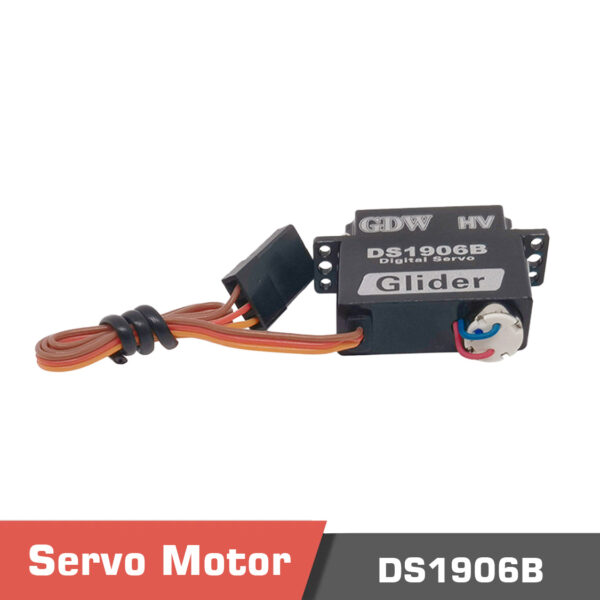

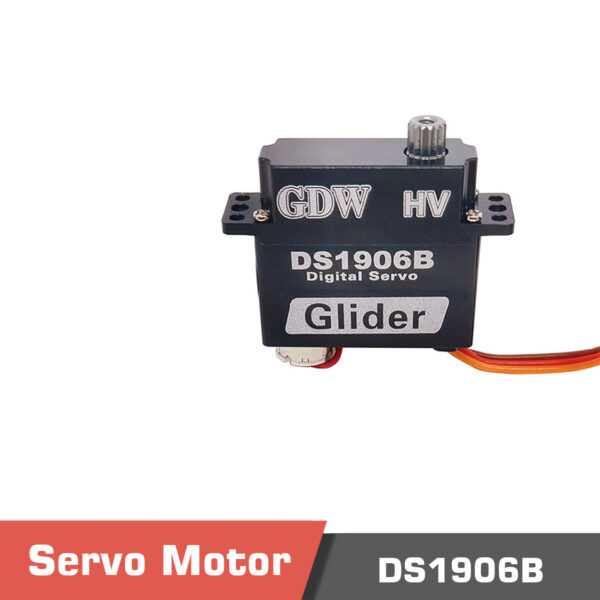

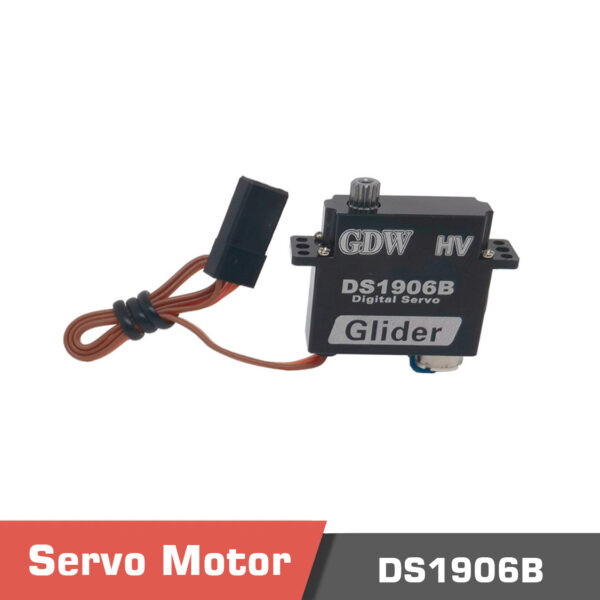

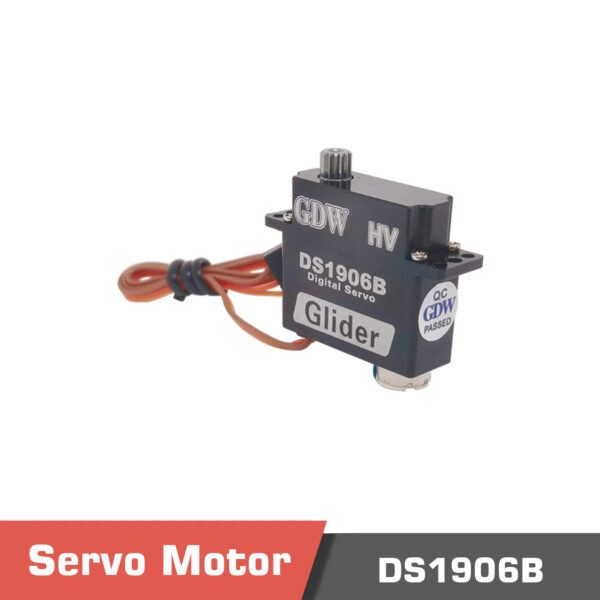

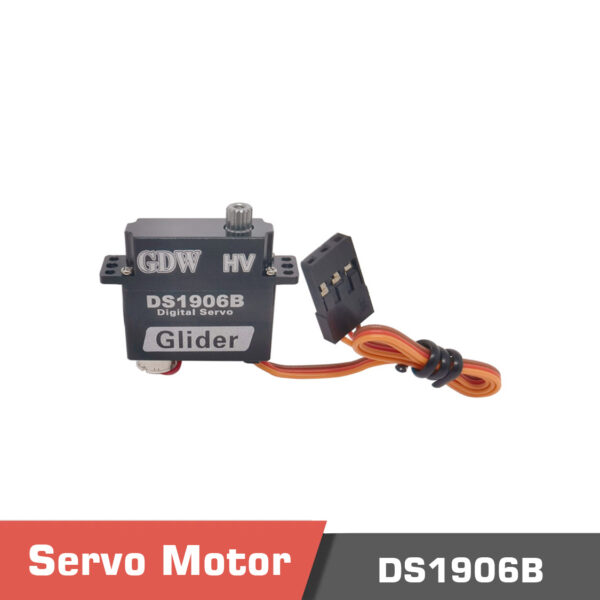

GDW HV DS1906A and DS1906B are high-voltage servo motors suitable for different applications including being used as the actuator in fixed-wing and VTOL drones. Based on your application, you can choose between the side mount model (DS1906A) and the top mount model (DS1906B). They have metal gear which gives them better quality and higher strength compared to plastic gear servo motors. Powering them with 8.4v gives you 2.2kg.cm torque and 0.10sec/60° speed.

If you have any questions regarding our products, use the contact us page to consult our engineering team.

Gdw hv ds1906a ds1906b servo motor Gdw hv. 2 - gdw hv ds1906a,gdw hv ds1906b,servo,servo motor,gdw hv ds1906a ds1906b servo motor,ds1906b servo motor,ds1906a servo motor,gdw servo motor,hv servo motor,high voltage servo motor,high voltage servo,hv servo,ds1906b servo,ds1906a servo - motionew - 10 Gdw hv. 3 - gdw hv ds1906a,gdw hv ds1906b,servo,servo motor,gdw hv ds1906a ds1906b servo motor,ds1906b servo motor,ds1906a servo motor,gdw servo motor,hv servo motor,high voltage servo motor,high voltage servo,hv servo,ds1906b servo,ds1906a servo - motionew - 11

Additional information

Weight 1 kg
Dimensions 5 × 5 × 5 cm
Bundle

DS1906A, DS1906B

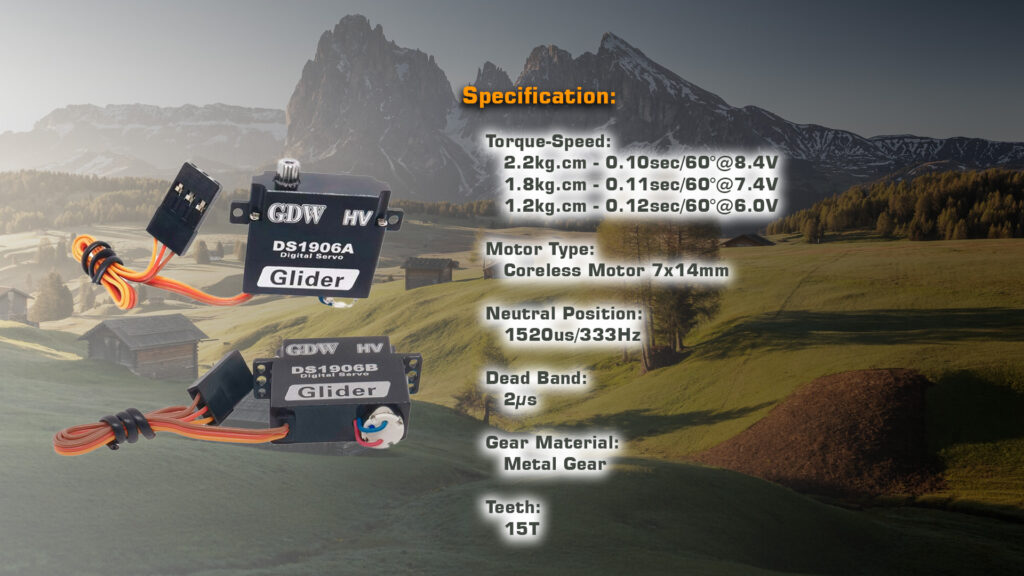

Specifications

Torque 2.2kg.cm — 0.10sec/60° @ 8.4v

1.8kg.cm — 0.11sec/60° @ 7.4v

1.2kg.cm — 0.12sec/60° @ 6v
Motor Type Coreless Motor 7x14mm
Neutral Position 1520us / 333Hz
Dead Band 2us
Gear Material Metal
Teeth 15T



Product contents

1x GDW HV DS1906A or DS1906B

Documents

Please contact us for more information.
