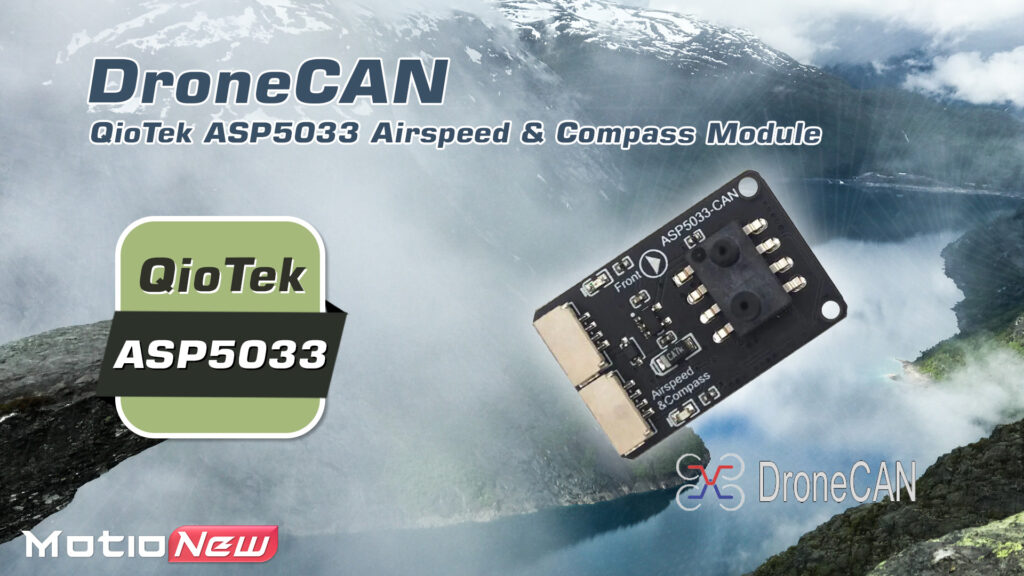

QioTek ASP5033 DroneCAN Airspeed and Compass Module

28.00 $

PayPal
Visa
Master

Description

QioTek ASP5033 DroneCAN Airspeed and Compass Module

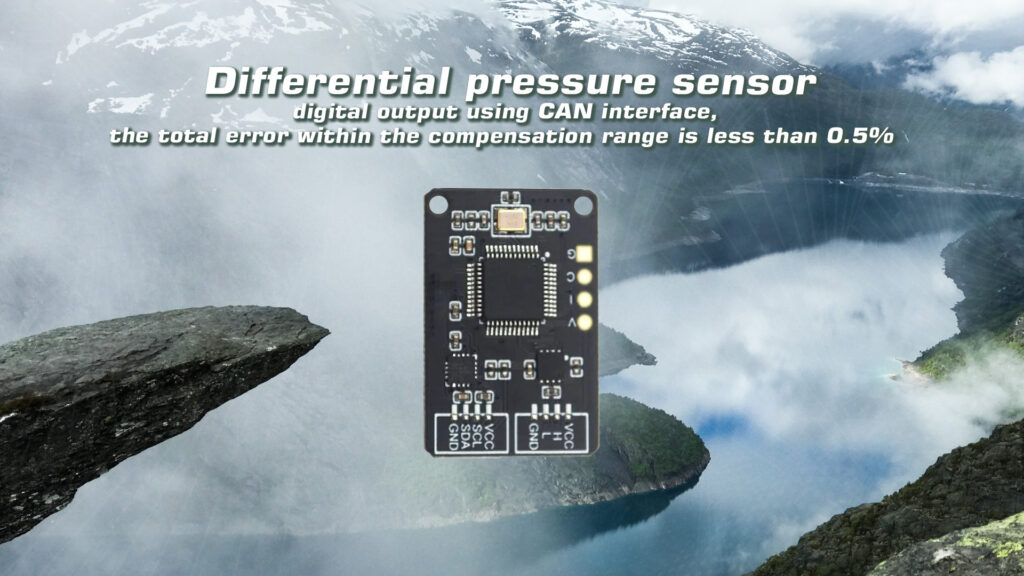

Introducing the ASP5033 Differential Pressure Sensor, a cutting-edge digital sensor designed to provide precise measurements with unmatched accuracy and reliability. Engineered with a CAN interface, this sensor ensures seamless digital output, offering superior performance for a range of applications.

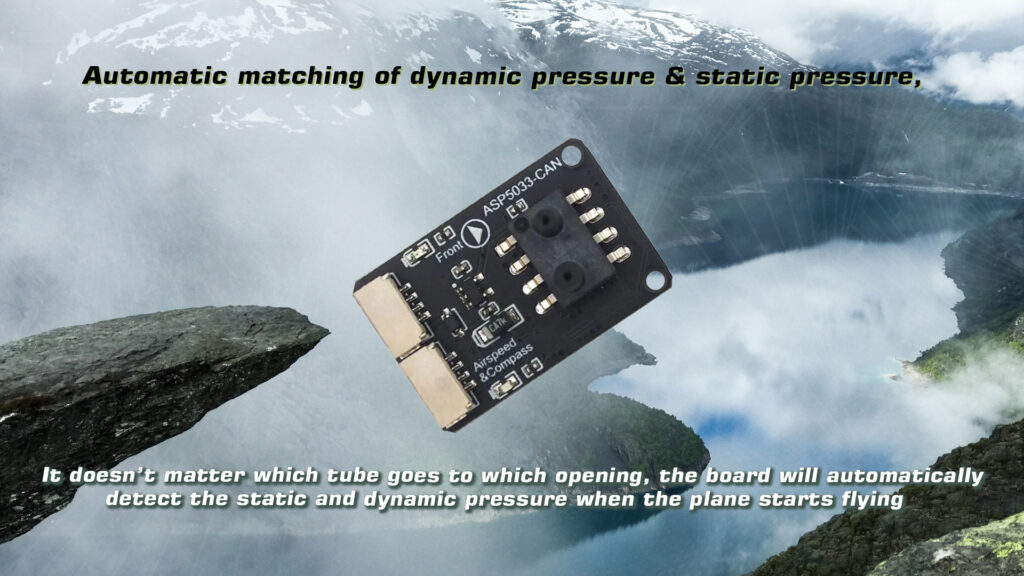

This sensor boasts remarkable capabilities, featuring automatic matching for dynamic pressure and static pressure. Designed for ease of installation, the sensor only requires the connection of the pitot tube, simplifying the setup process. The GH1.25 terminal interface facilitates direct connection to the flight control CAN port via the distribution terminal cable, ensuring hassle-free integration into your system.

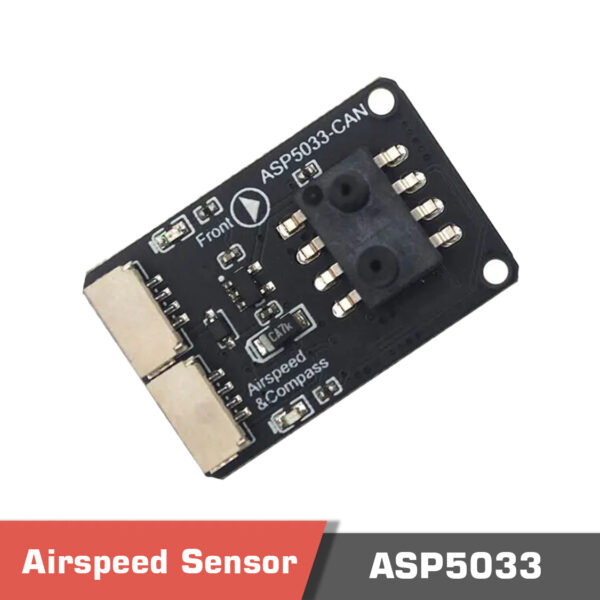

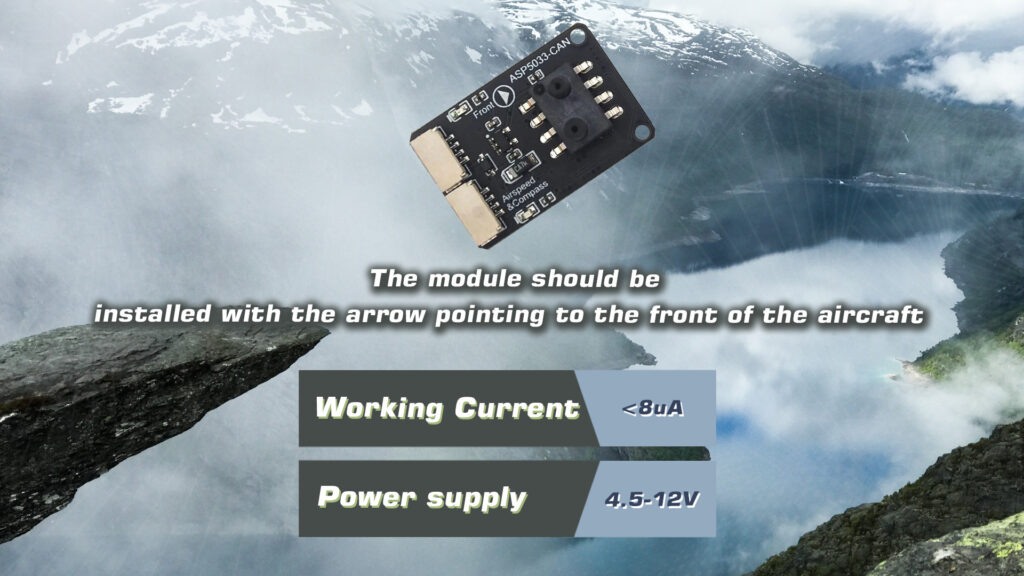

Simplifying the connection of the airspeed tube, the ASP5033 sensor only needs the pitot tube to be installed with the arrow pointing towards the front of the aircraft. Silicone tubes connect the pitot tube to the board, automatically detecting static and dynamic pressure upon flight initiation, removing the need for meticulous tube orientation.

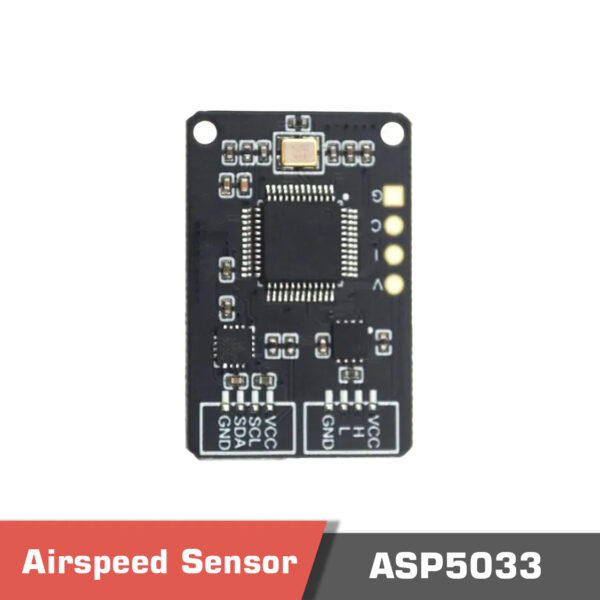

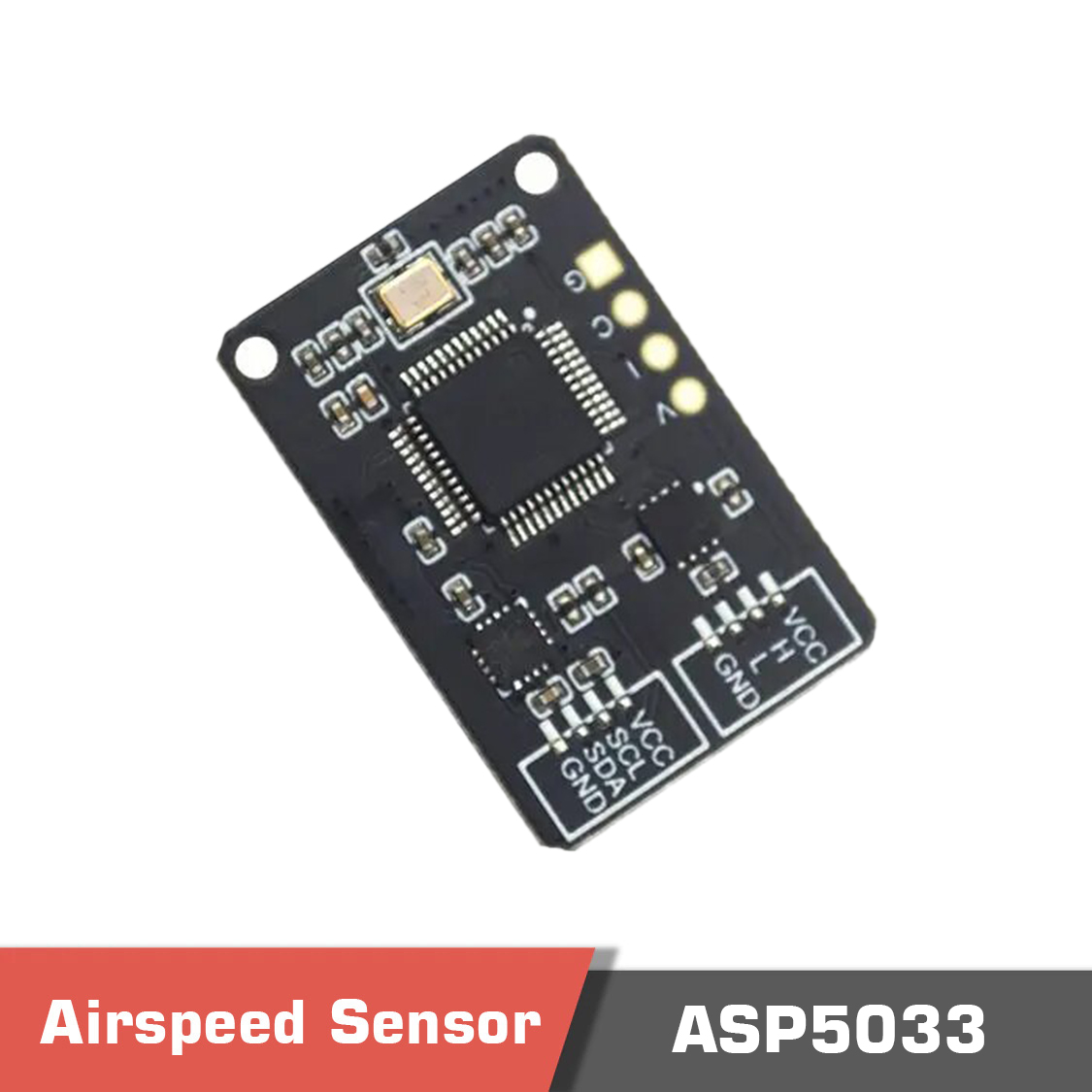

The ASP5033 Differential Pressure Sensor board is an exceptional silicon pressure sensor module that offers a digital I2C interface, enabling precise readings of differential pressure within the specified full-scale pressure span and temperature range.

This sensor is specified with ranges from -20Pa to +20kPa, providing an accuracy of ±0.2% Span and a Total Error Band (TEB) of 0.5%. With its robust build and an operating temperature range from -40°C to 125°C, it ensures accurate readings in various conditions.

The ASP5033 Differential Pressure Sensor is a reliable, high-accuracy sensor suitable for various applications requiring precise differential pressure measurements. Elevate your systems’ accuracy and reliability with this advanced sensor, delivering unparalleled performance in challenging environments.

Asp5033 Qiotekasp5033. 2 1 - asp5033,asp5033 differential pressure sensor - motionew - 6 Qiotekasp5033. 3 1 - asp5033,asp5033 differential pressure sensor - motionew - 7 Qiotekasp5033. 4 1 - asp5033,asp5033 differential pressure sensor - motionew - 8 Qiotekasp5033. 5 - asp5033,asp5033 differential pressure sensor - motionew - 9 Qiotekasp5033. 7 1 - asp5033,asp5033 differential pressure sensor - motionew - 10

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 0.5 kg
Dimensions 10 × 5 × 3 cm
bundles

GH1.25 steel pitot tube, SH1.25 steel pitot tube, GH1.25 3D printed pitot tube, SH1.25 3D printed pitot tube

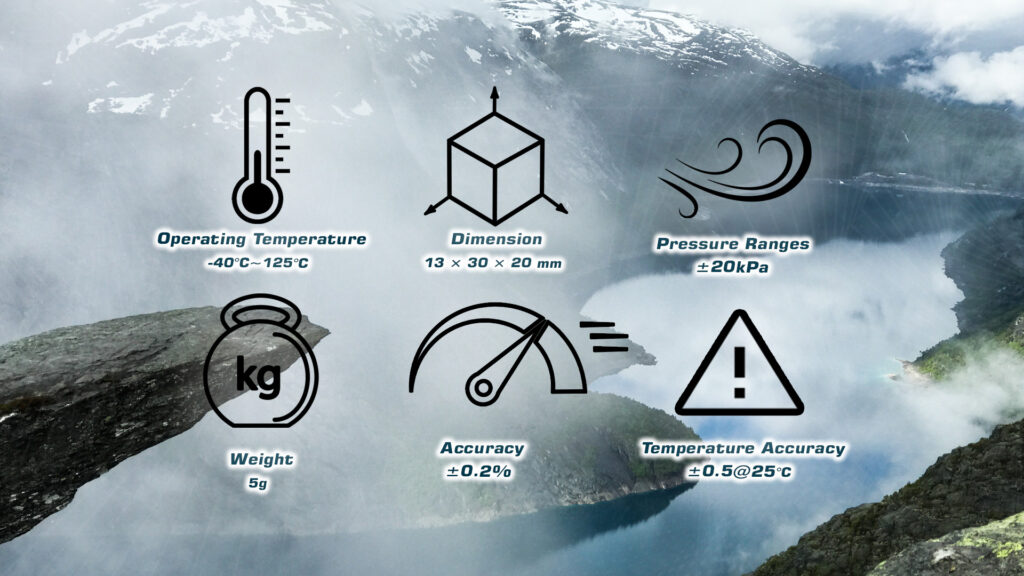

Specifications

Ranges -20Pa~+20kPa
Accuracy ∓0.2% Span
Total error band(TEB) 0.5%
Over Pressure 2X rated
Temp. Accuracy +-1℃
Power supply 4.5-12V
Current consumption <8uA (one time measurement)
Static Current <120nA (25°C)
Operating Temperature -40°C~125℃

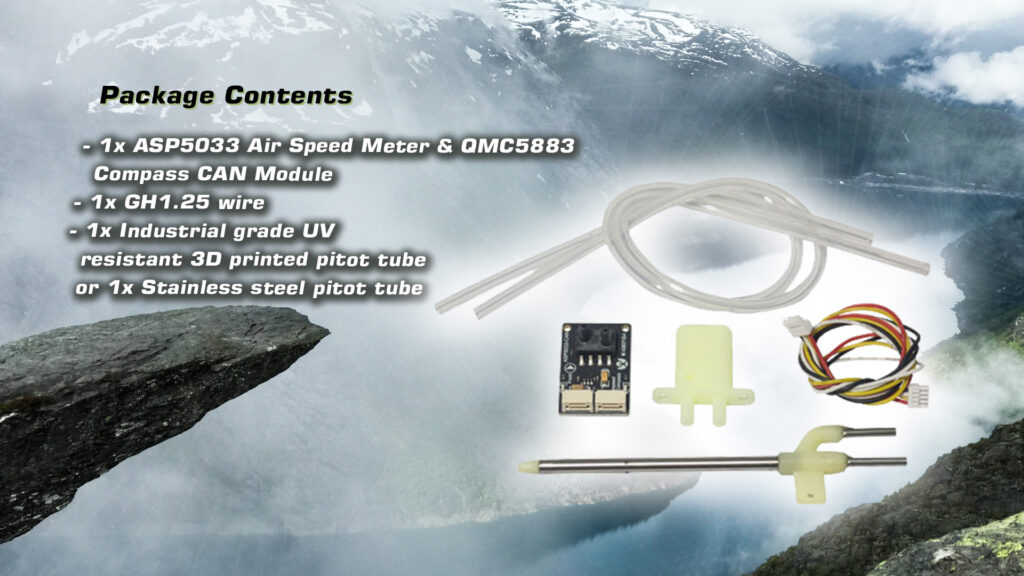

Product contents

Qiotekasp5033. 6 - asp5033,asp5033 differential pressure sensor - motionew - 11

Documents

Please contact us for more information.
