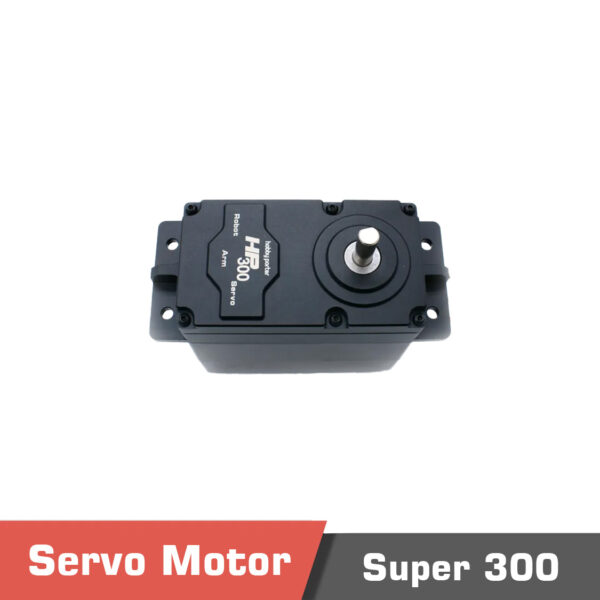

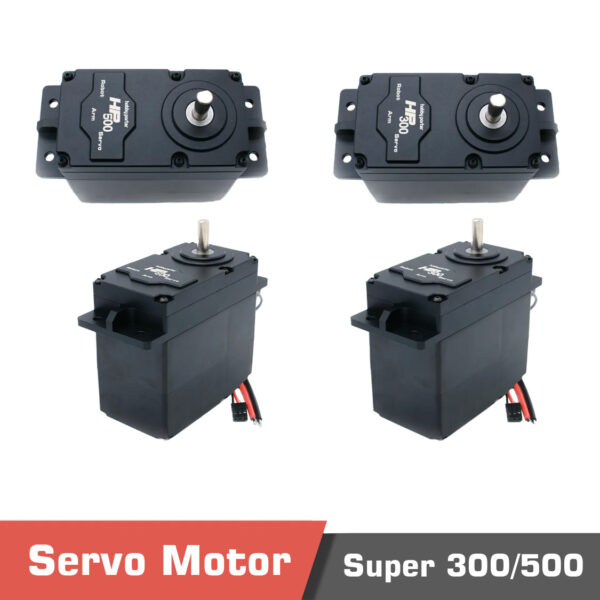

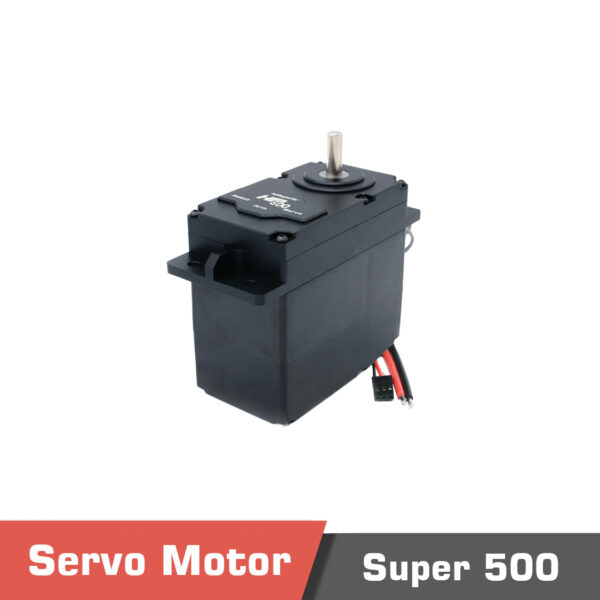

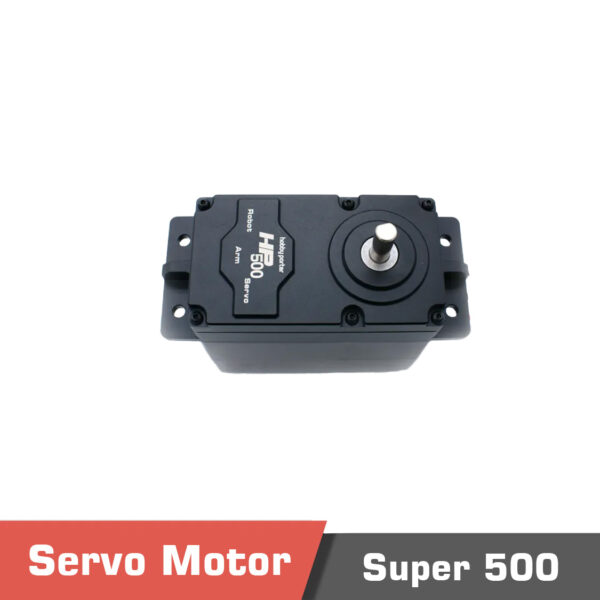

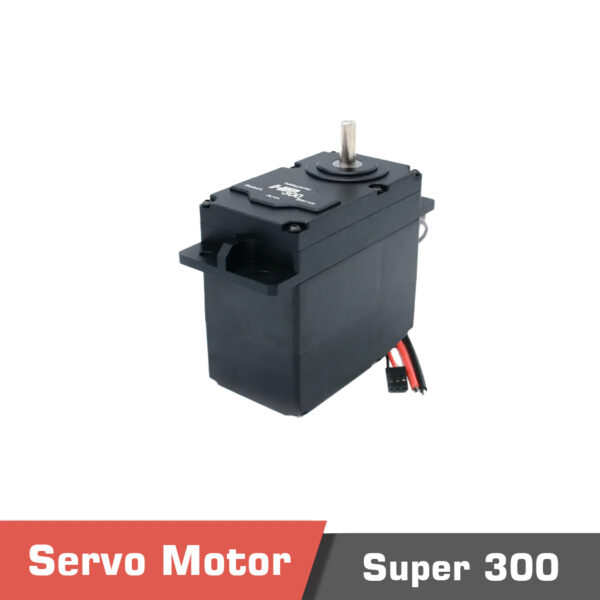

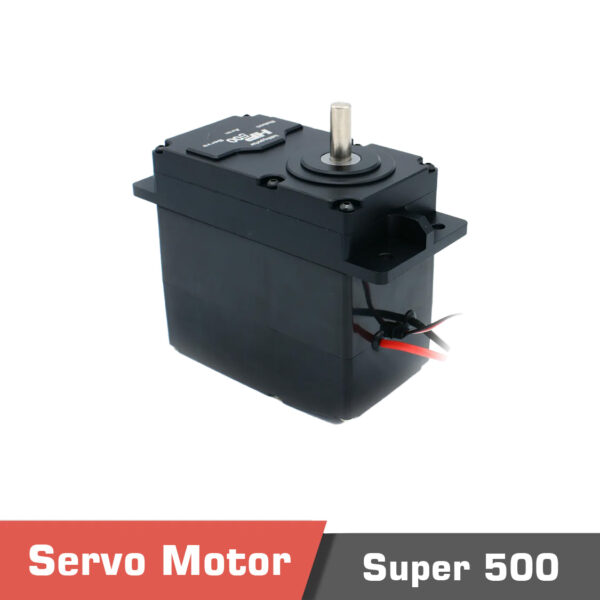

SUPER 300/ SUPER 500 High Torque Metal Servo

80.00 $87.00 $

PayPal
Visa
Master

Description

The super 300 / super 500 are high torque servo motors with 300kg.cm and 500kg.cm torque respectively. Torque ratings are measured at 1cm from the spline axis. These servos are perfectly compatible with most remote-control systems available on the market. The exclusive power stabilization technology ensures that the servos continue to work reliably. If the servos become overloaded, the overload protection will prevent damage allowing the load to be removed and the servo to continue normal operation again. This circuit can stably control the servo to work in the safe torque ranges. This servo has its own BEC 5V output and can directly supply power to the receiver.

The servo control board does away with the traditional method of detecting the position of the rotating shaft with a potentiometer and uses imported original magnetic encoders providing precision position feedback.

Non-contact position detection offers longer service life, by eliminating mechanical wear and no failures from dust or oil buildup. It supports a 1-2ms PWM pulse signal to control the servo motors, the same standard that is used to control most of the servo motors in the market. Alternatively, an analog voltage signal control in the range of 0-5V can be used to control the servo. It has an optional 360-degree working mode, in which the speed of the steering gear can be controlled.

Super 300/ super 500 high torque metal servo High torque super 500. 300. 2 - super 300,super 500,servo,high torque servo motor,metal servo,bec,pwm control,analog  control,analog servo control,pwm servo control,high torque metal servo - motionew - 9 High torque super 500. 300. 3 - super 300,super 500,servo,high torque servo motor,metal servo,bec,pwm control,analog  control,analog servo control,pwm servo control,high torque metal servo - motionew - 10 High torque super 500. 300. 4 - super 300,super 500,servo,high torque servo motor,metal servo,bec,pwm control,analog  control,analog servo control,pwm servo control,high torque metal servo - motionew - 11 High torque super 500. 300. 5 - super 300,super 500,servo,high torque servo motor,metal servo,bec,pwm control,analog  control,analog servo control,pwm servo control,high torque metal servo - motionew - 12

If you have any questions regarding our products, use the contact us page to consult our engineering team.



Additional information

Weight 0.8 kg
Dimensions 14 × 12 × 6 cm

Specifications

Parameter

Power input 12V-24V DC (V- connects with the cathode, V+ connect selectable operating modes, you can control the speed of servo speed. with the anode)
Maximum torque 500KG.CM (24V) (actual, non theoretical value)
Angular velocity 0.5S/60 degrees (60 degrees 0.5S), 24V
The rotation angle  300 degrees MAX, mean maximum stroke of 300 degrees (0 to 300 degrees adjustable electronic limit)
Input mode pulse signal (remote control, multi-channel servo controller, MCU) or analog voltage signal (potentiometer)

Control and interface description

Power input 12V-24V DC (V-connected to the negative pole, V+ connected to the positive pole)
No-load current <500MA
Maximum torque 300KG/500KG.CM (24V) (measured, not theoretically calculated)
Angular velocity 0.5S/60 ° (0.5S for 60 degrees), rotation angle for 24V: 300° MAX, meaning maximum travel 300 degrees (0 to 300° electronic limit adjustable)
Operating Speed 24V 0.5 Sec/60° at no-load
Rotation Angle CW 150°CCW 150°

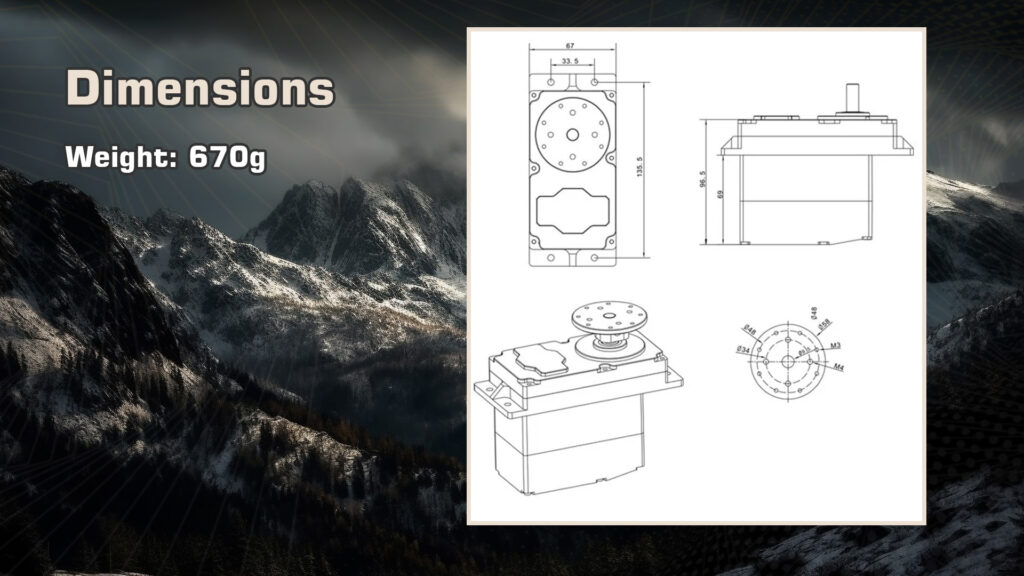

Dimension 132x117x57
Weight 670g
No-load current <500ma Stall torque: 24V  300Kgf/500Kgf.cm

Product contents

1 x SUPER500 servo
1 x metal servo plate

Documents

Please contact us for more information.
