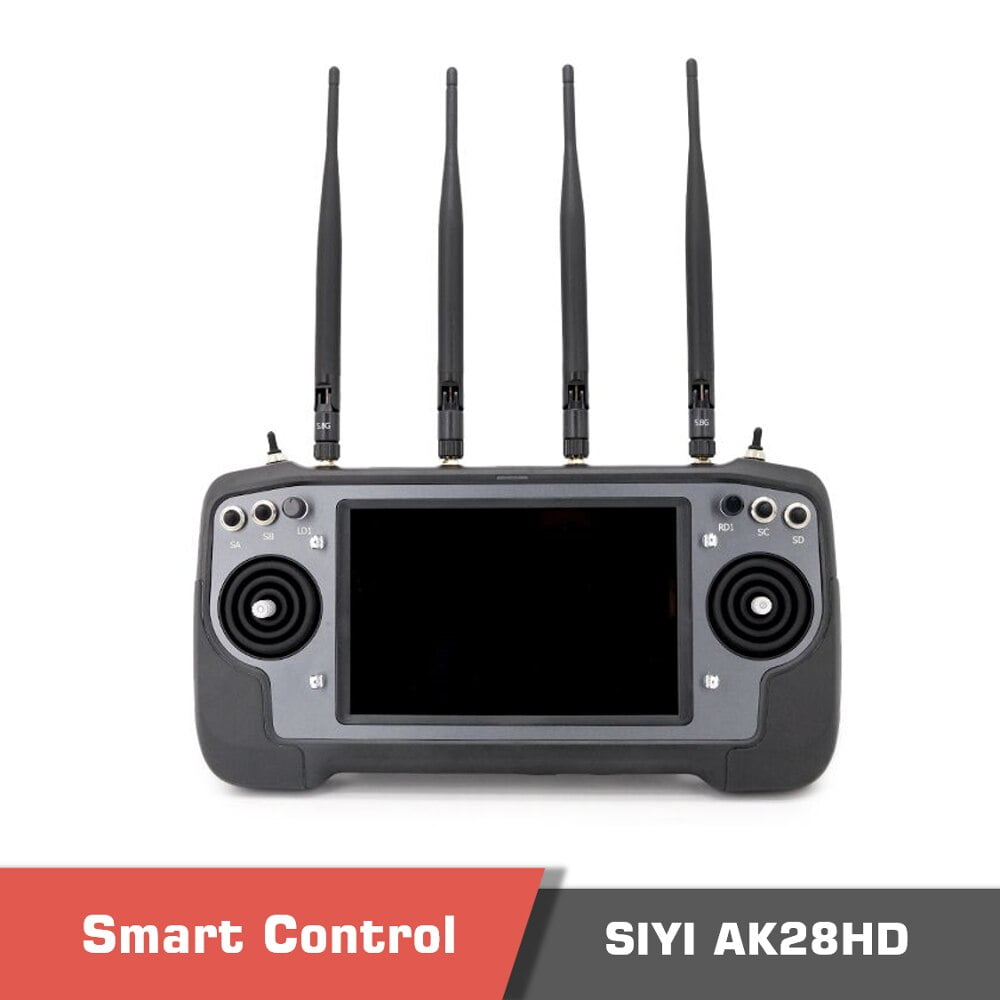

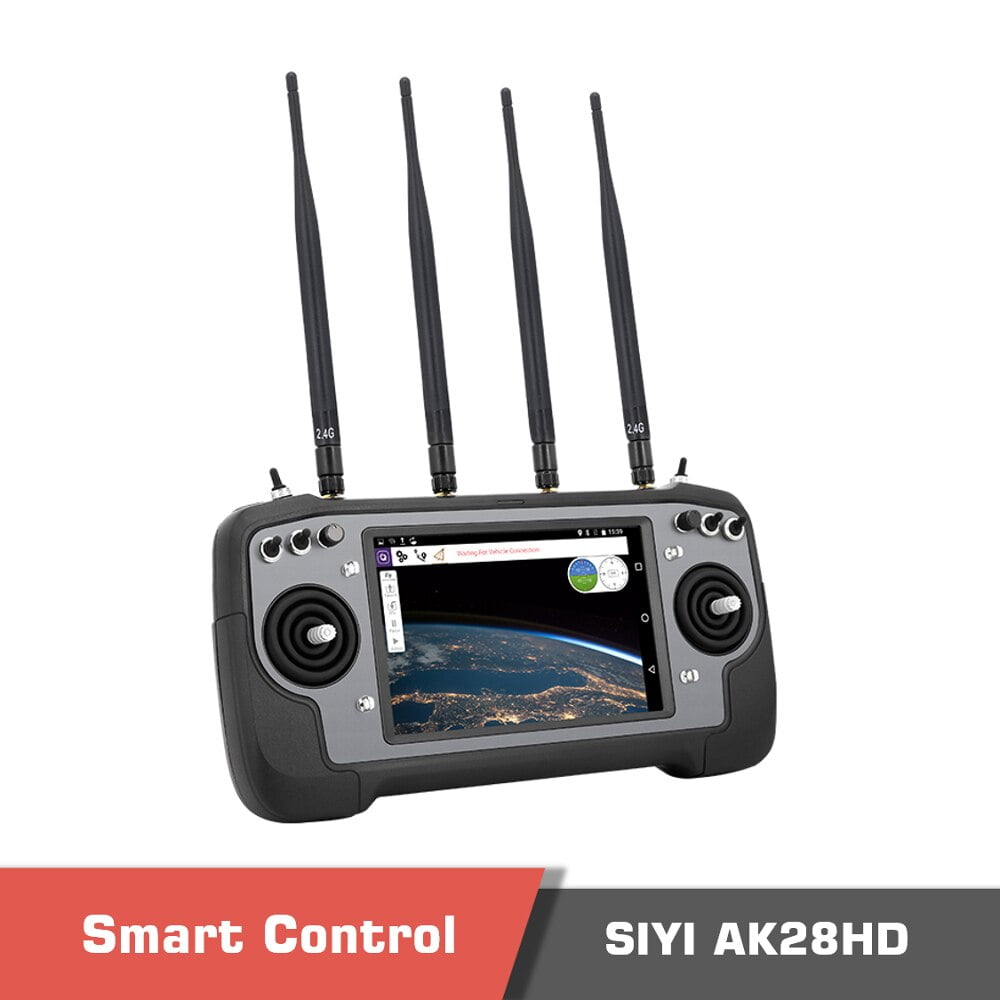

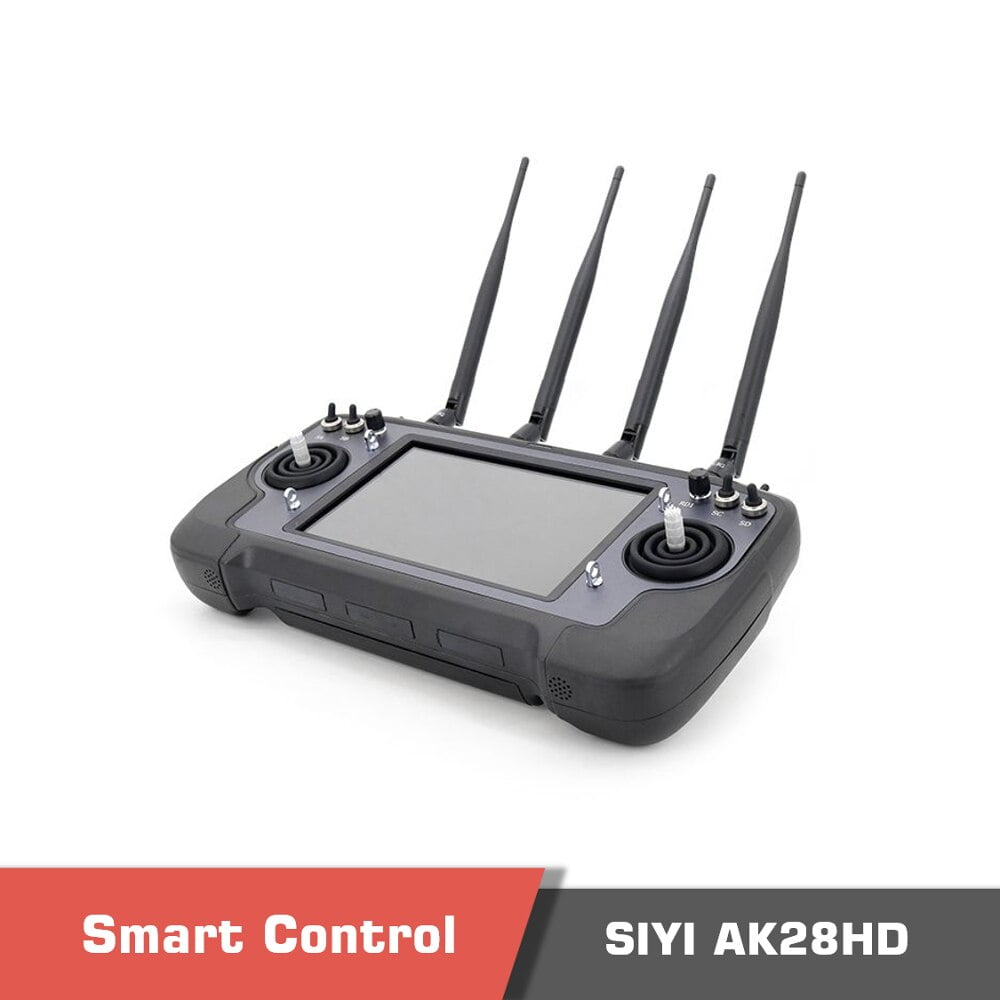

SIYI AK28HD – FPV Smart Control for Drone

1127.44 $

Description

Overview of SIYI AK28HD

-1080p@24fps Private Ethernet Video Stream
-2.4GHz Data/5.8GHz Video Working Frequency
-Integrate with Datalink,Radiolink and Videolink
-High Brightness Colorful LCD Touch Screen
-English/Chinese Menu
-Parameter Adjustment on PC
-USB direct connection charging
-Dual Self-Centering Dial
-Customized VTOL Flying Mode
-4h Endurance Time
-Support Fixedwings/Helicopters/multirotors

Ub6b0f94e93e4469380e1f5fcc93fddb6k - siyi ak28hd,fpv smart control,mini handheld,gcs - motionew - 6

Uef631a8656644d2ea6bf05e3cb0c5a99i - siyi ak28hd,fpv smart control,mini handheld,gcs - motionew - 7
U1761ed987c8a476d88e8508723ca57fcd - siyi ak28hd,fpv smart control,mini handheld,gcs - motionew - 8
Ud26e365d82784c4586c34c6a38df4b38e - siyi ak28hd,fpv smart control,mini handheld,gcs - motionew - 9

Additional information

Weight 1.300 kg

Specifications



Receiver
Signal Output 14-channel S.Bus, 5-channel PWM
FC Connecting Port UART
Size 61x60x21mm
Weight 82g
Antenna Gain 5dBi
Working Voltage 15V-50V
Working Temperature -10℃-55℃



Remote Control
Size 308x148x72mm
Weight 1300g
Battery Micro USB 5V 2A
Charging 4

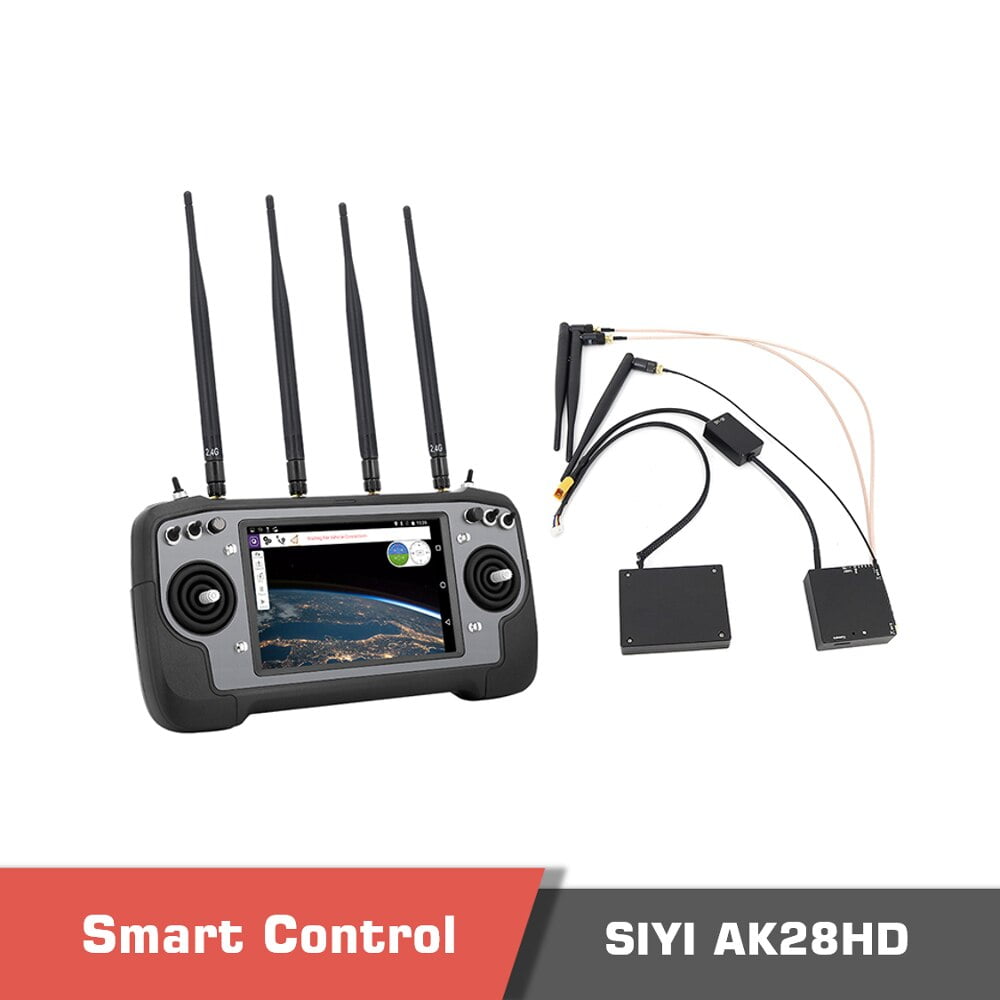

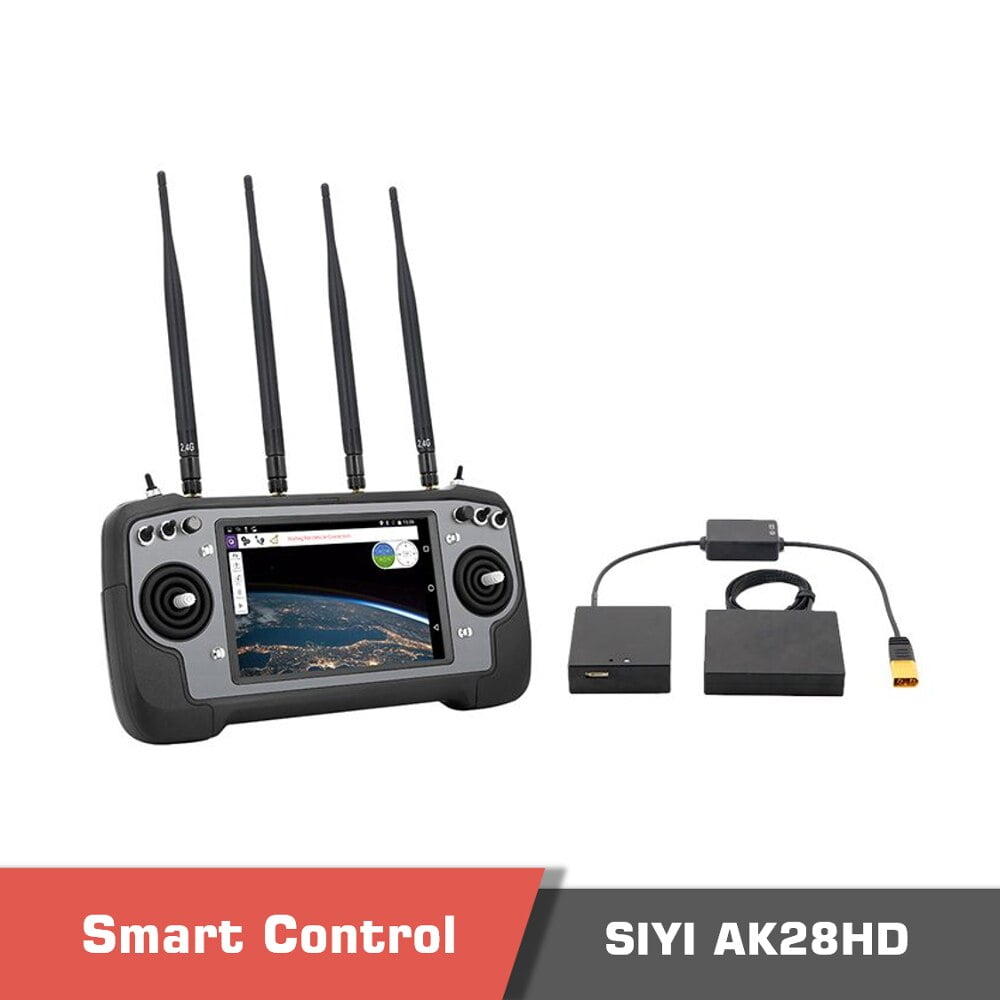

Product contents

1 x Transmitter
1 x Sky Station
1 x FPV Camera / 1 x HDMI Module
1 x High Resolution Video Cable
1 x 4-pin Data Cable (or a flight controller cable)
1 x Micro-USB Cable
1 x OTG USB Male to Male Cable
1 x 5V/2A USB Charger
1 x Upgrading Tool
1 x Strap Belt
1 x Storage Case
