SIYI MK15 Mini Handheld

450.00 $549.00 $

PayPal
Visa
Master

Description

SIYI MK15 Mini Handheld Overview

SIYI MK15 Mini Handheld is one of the frontiers in drone operation. Precision-engineered and powered by cutting-edge technology, this handheld remote controller is poised to redefine your aerial missions with unmatched clarity and control.

Advanced 15km 1080P Digital Image Transmission with 5.5″ HD Display for Exceptional Clarity and Control

Equipped with a 15km long-range 1080P digital image transmission capability and a vibrant 5.5″ HD high-brightness screen, the SIYI MK15 sets a new standard for clarity and control. Whether you’re navigating complex landscapes or monitoring vast areas, rest assured that every detail is captured with unrivaled precision and clarity.

SIYI Mini Handheld Remote Controller: Versatile Solution for Agriculture, Industrial Applications, and More

Designed to cater to diverse industries, the SIYI Mini Handheld Remote Controller is a versatile solution suitable for agriculture, industrial applications, and beyond. Tailored to seamlessly integrate with various drones, it offers tailored solutions for every operation.

Robust Android 9.0 Controller with 8-Core CPU, IP53 Rating, and 5.8G ISM Band Connectivity

Powered by Android 9.0 OS, featuring an 8-Core CPU, 2GB RAM, and 16GB internal storage, the SIYI MK15 ensures seamless performance and operation. Its IP53 Waterproof/Dustproof rating ensures durability and reliability in challenging environments, while operating on the 5.8G ISM Band guarantees stable connectivity and interference-free communication.

SIYI MK15: High-Brightness 5.5″ HD Screen, Integrated Radio & Datalink, and IP67 Camera for Superior Control and Visibility

Moreover, the SIYI MK15 boasts a 5.5″ 1000 cd/m2 High Brightness HD screen for optimal visibility even in bright sunlight, enhancing situational awareness. Its integrated radio and datalink capabilities enable seamless communication and control, while an IP67-rated camera and LED enhance functionality and versatility.

Long-Lasting 24000mAh Battery with Fast Charging and Dual FPV for Comprehensive Monitoring

With a robust 24000mAh built-in battery, providing up to 15 hours of continuous operation and supporting 3-hour fast charging for minimal downtime, the SIYI MK15 ensures uninterrupted performance. It also supports dual FPV for front and back camera, offering comprehensive monitoring and surveillance capabilities.

SIYI MK15: Ultra-Low Latency, Dual RTK Mapping, and Comprehensive Control for Advanced UAV Operations

Furthermore, with an ultra-low latency of 180ms, the SIYI MK15 ensures real-time responsiveness for precise control. Plus, it supports dual RTK mapping modules for enhanced accuracy and efficiency in mapping applications.

For other drone Ground control station, we recommend you visit our Handheld GCS  in MotioNew.

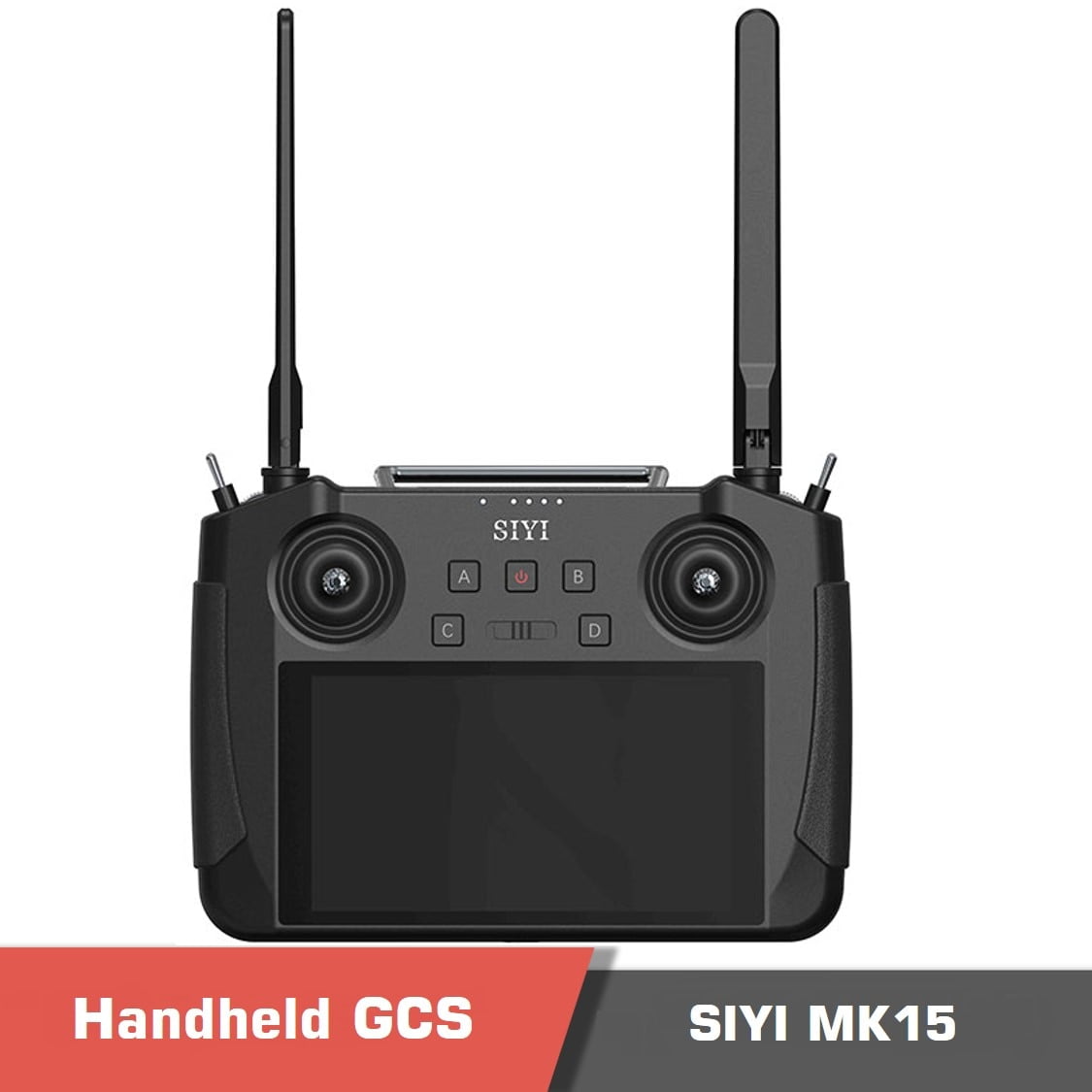

SIYI MK15

SIYI MK15 Mini Handheld p2 MotioNew

SIYI MK15 Mini Handheld p3 MotioNew

In case you have any questions regarding our product, please feel free to contact our engineering team using the Motionew Contact page.

Additional information

Weight 2 kg
Dimensions 19 × 14 × 5 cm

Specifications

Overall
Max Transmission Range 15 km (Unobstructed, free of interference)
Channels 13 physical channels

16 communication channels

Datalink Compatible Flight Controllers PX4 / Ardupilot Open-source Flight Controllers: SIYI N7, etc.
Video Stream Compatible Android App SIYI Original App: SIYI FPV
Open-source GCS: QGroundControl/Mission Planner
Video Stream Compatible Windows GCS Open-source GCS: QGroundControl/Mission Planner (H264 only)



Ground Unit (Remote Controller)
Monitor 5.5-inch High Definition and High Brightness LCD Touchscreen
System Android 9.0 OS
2G RAM, 16G ROM
Battery Capacity & Type 10200 mAh 7.4V 2S Li-ion, 75.48 Wh
Fast Charging Protocol PD 20W
Charging Time 5 hours (PD 20W)
Battery Life 13 hours
Antenna Gain Omni Antenna: 5 dBi
Long Range Antenna: 11 dBi (included in enterprise edition)
Lollipop Antenna: 5 dBi (optional)

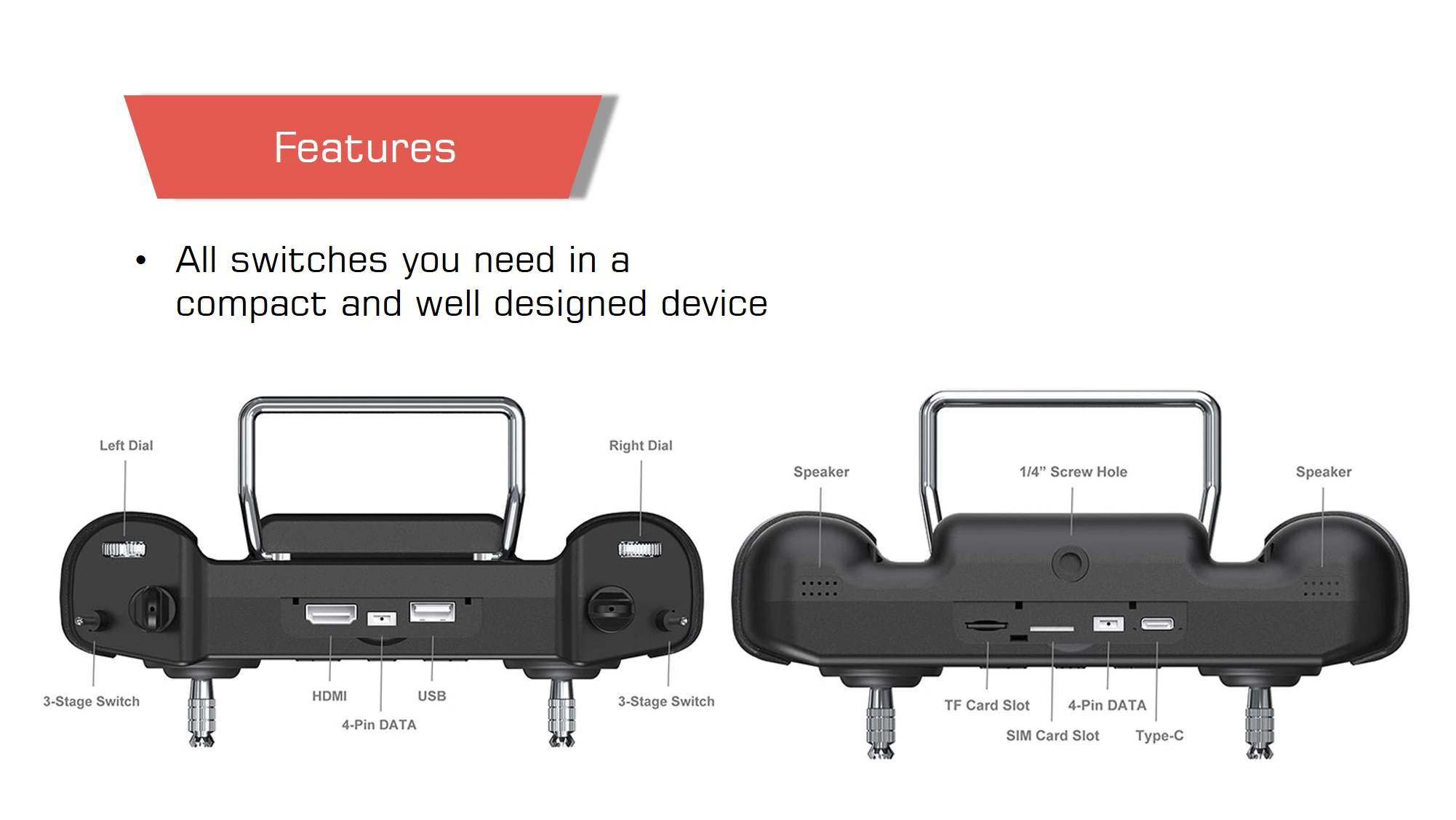

Interface & Ports Video Output: Standard HDMI *Enterprise edition only
External Device (Mouse, USB Disk): USB-A
Charging: Type-C Firmware
Upgrade: Upgrade Port (Bottom GH1.25 4Pin)
File Transfer: Type-C / USB-A
Mobile Network: SIM Card Slot
External Storage: TF Card Slot
Tripod Mount: 1/4-inch Standard Screw Hole
Dimensions (Antenna Overlapped) 189 x 138 x 41 mm
Weight (Antenna Overlapped) 850 g
Waterproof Level IP53
Working Temperature -10℃ ~ 50℃



Air Unit
Signal Output 16 channels of SBUS
5 channels of PWM
Interface & Ports S.Bus RC Signal Output: RC (GH1.25 3-Pin)
Datalink (to FC): UART (GH1.25 4-Pin)
PWM Channel 1 to 5: PWM (GH1.25 6-Pin)
Video Input / Network Communication: LAN (GH1.25 8-Pin)
Firmware Upgrade: Type-C
Antenna Gain Omni Antenna: 5 dBi
Lollipop Antenna: 5 dBi (optional)
Working Voltage


MK15 Air Unit (included in MK15 agriculture edition):

4S ~ 18S / 16.8 ~ 75.6 V
(Early manufacturing lots support only 6S to 14S, please carefully confirm)

HM30 Air Unit (included in MK15 enterprise edition and MK32):

3S ~ 6S / 12.6 ~ 25.2 V
(Early manufacturing lots of MK15 enterprise edition came with MK15 air unit)
(Early manufacturing lots of HM30 air unit support only 3S to 4S, please carefully confirm)

4S to 18S Power Module (included in MK15 enterprise edition and MK32):

16.8 ~ 75.6 V

Power Consumption


MK15 Air Unit (included in agriculture edition):
– Average: 3.2 W
– Summit: 12 W
HM30 Air Unit:
– Average: 2.8 W
– Summit: 12 W
HM30 Air Unit + 4S to 18S Power Module:
– Average: 3.2 W
– Summit: 12 W
Dimensions (Antenna excluded) 70 x 55 x 16 mm (fan included)
Weight (Antenna excluded)


MK15 Air Unit (included in agriculture edition): 100 g
HM30 Air Unit: 74 g
HM30 Air Unit + 4S to 18S Power Module: 109 g
Working Temperature -10℃ ~ 50℃



Air Unit HDMI Input Converter (Optional, packed with MK32 / MK15 HDMI combo)

Video Input Micro HDMI
Video Output Ethernet
Working Voltage 12 V
Power Consumption 3 W
Video Recording Resolution

1080p (1920 × 1080) @ 30 fps7
20p (1080 × 720) @ 30 fps
Video Storage Bitrate 12 Mbps (H265 codec)
File Storage Format FAT32
Video Recording Format H265
Supported TF / SD Card Type MicroSD Class10, Less than 32GB
Dimensions 42x41x11 mm
Weight 26 g
Working Temperature -10℃ ~ 50℃



R1M Recording FPV Camera (Optional, packed with both HM30 combos)
Video Output Port Ethernet
Image Sensor 1/2.9 Inch, 2 MP
FOV Diagonal: 90°
Horizontal: 80°
Working Voltage 12 V
Power Consumption 2.5 W
Video Recording Resolution 1080p (1920*1080) @ 30 fps
720p (1280*720) @ 30 fps
Recording Bitrate 12 Mbps
Video Recording Format MP4
Supported TF / SD Card Type MicroSD Class10 Less than 32GB
File Storage Format FAT32
Dimensions 42 x 42 x 25 mm
Weight 23 g
Working Temperature -10℃ ~ 50℃

Product contents

MK15 AG Standard Includes:
1 x Transmitter
1 x Receiver
1 x IP67 Camera with Dual LED
1 x PIX Telemetry Cable
*Other Accessories TBD

MK15 AG Dual FPV Combo Includes:
1 x Transmitter
1 x Receiver
2 x IP67 Camera with Dual LED
1 x Camera Hub
1 x PIX Telemetry Cable
*Other Accessories TBD

MK15 Standard Includes:
1 x Transmitter
1 x Receiver
2 x Long Range Antenna
1 x PIX Telemetry Cable
*Other Accessories TBD

MK15 HDMI Combo Includes:
1 x Transmitter
1 x Receiver
2 x Long Range Antenna
1 x HDMI Module
1 x PIX Telemetry Cable
*Other Accessories TBD
