SIYI AK28 9-16 Ch 5km FPV Radio RC

(1 customer review)

574.49 $

Payment Methods:

Description



SIYI AK28

SIYI AK28 is an all in one design concept with advanced SHTT frequency hoping technology. It has 14 full function channels which support multiple modes. Excellent grip and flexible control helps the pilot to better operate the drone during the missions. High-brightness color LCD with a touchscreen allows you to operate under direct sunlight and harsh conditions without any problem.

Customized OS

  • Improved operating system with deep knowledge of drone usersโ€™ requirement, powered by Android
  • Stable, convenient and efficient experience
  • Many hardware extending port

Industry Level

  • Industry Level Protection
  • Water proof and Dust proof
  • Keep performing smoothly and stable, no matter how bad the weather is

Features

  • 480p@24fps Private Ethernet Video Stream
  • 2km Data Transmission Distance
  • 2.4GHz Data
  • 14 physical channels, 14 output channels
  • Integrate with Datalink, Radiolink
  • High Brightness Colorful LCD Touch Screen
  • English/Chinese Menu
  • Parameter Adjustment on PC
  • USB direct connection charging
  • Dual Self-Centering Dial
  • Customized VTOL Flying Mode
  • Endurance Time >9h
  • Support Fixedwings/Helicopters/multirotors





Siyi ak28

Siyi ak28
Siyi ak28
Siyi ak28

For a comprehensive reading of related products, please visit theย Motionewย website.

SIYI AK28 9โ€“16 Channel 5 km FPV Radio Controller โ€“ FAQ

  1. What are the key features and specifications of the SIYI AK28?
    The AK28 integrates a radio controller, HD video transmission system, and touchscreen display into a single handheld unit. It supports up to 16 control channels, features a 5 km transmission range, and operates on a 2.4 GHz frequency band with low-latency video feedback.

  2. Which systems and drones are compatible with the AK28?
    The controller supports SIYI video transmitters and is compatible with most open-source flight controllers, including PX4 and ArduPilot-based systems.

  3. What are the display and control features?
    It includes a built-in HD touchscreen for live FPV video, telemetry data, and mission control. The ergonomic design features dual joysticks, programmable buttons, and customizable channel mapping for UAV and gimbal operation.

  4. Does MotioNew offer OEM or customization services for the AK28?
    Yes, MotioNew provides OEM options for enterprise and bulk clients, including logo branding, software configuration, and custom packaging.

  5. What payment methods are accepted for purchasing the AK28?
    MotioNew accepts major international payment methods, including credit cards, PayPal, and bank transfers.

  6. Are user manuals and technical documents provided with the product?
    Yes, each unit comes with full documentation, including setup guides, firmware update instructions, and system integration manuals. Additional resources are available upon request.

Specifications

Specifications

Frequency 2.4GHz
Model Number ย AK28
Transmission Range 2 km (effective operation range, ground to ground) ; 4 km / 2.5 miles (unobstructed, free of interference)
Frequency Band 2.400-2.483 GHz
Channels 14 physical channels, 14 output channels



Remote Control
Channel 14 physical channels, 14 output channels
Weight 1100g
Battery 12690mAh 1S Lipo
Charging Micro USB 5V 2A



ย

Receiver
Signal Output 14 Channels of S.BUS, 5
FC Connecting Port UART
Size 59 x 59 x 16 mm
Weight 50g
Antenna Gain 5dBi
Working Voltage 15V-50V
Working Temperature -10โ„ƒ-55โ„ƒ

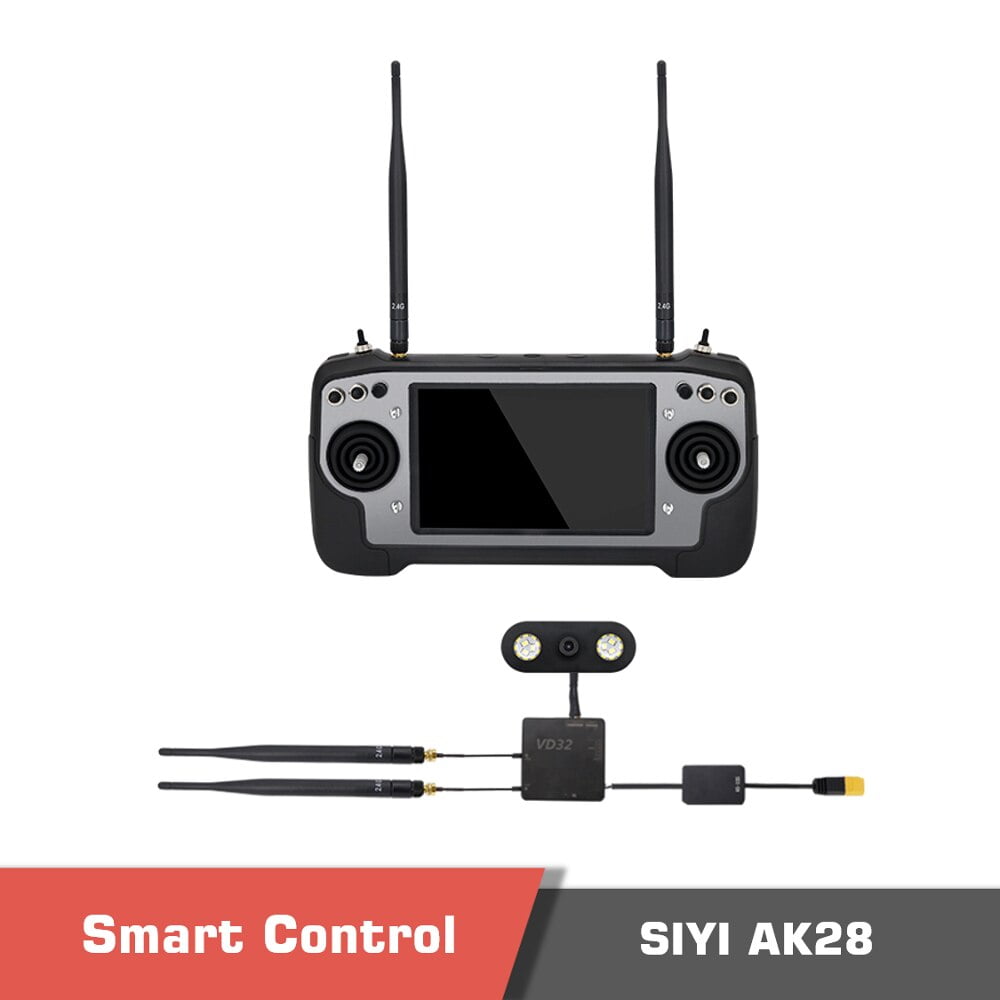

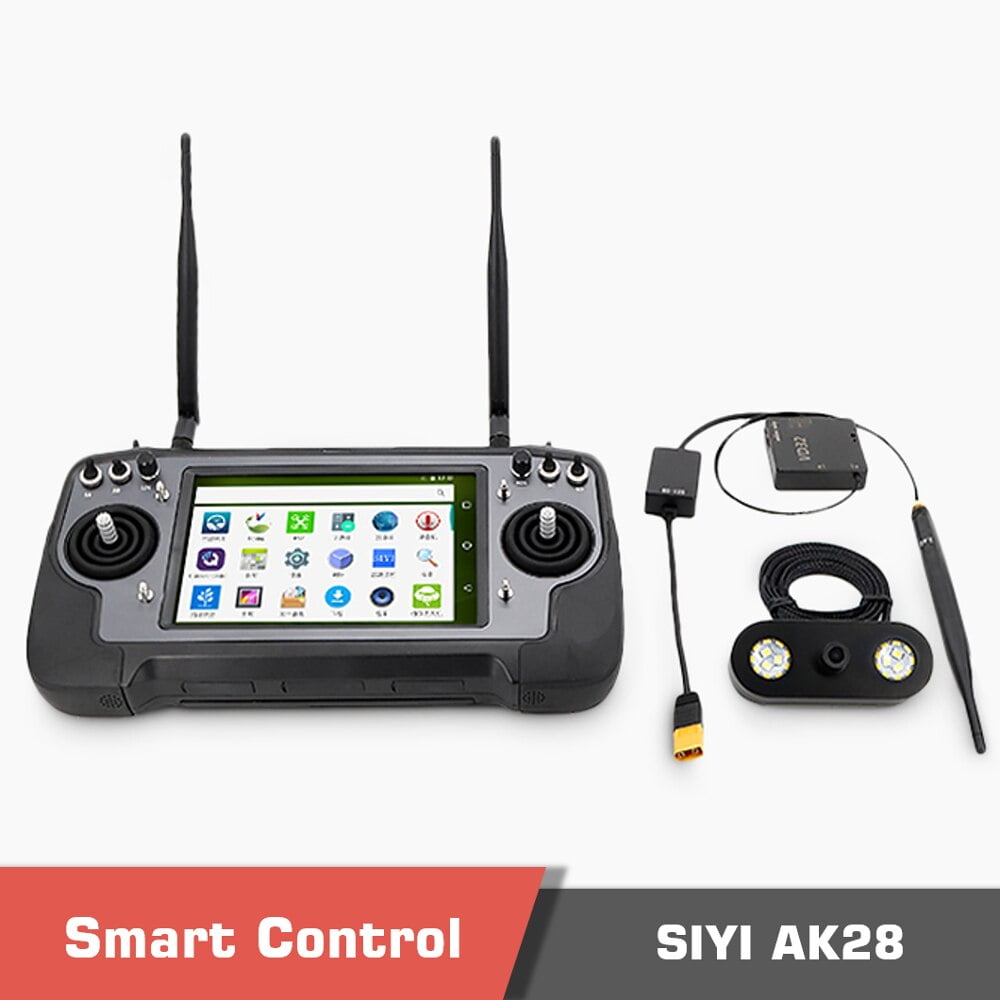

Product contents

Product contents

1 x Transmitter
1 x VD32 Sky Station
1 x FPV Camera with Dual Navigation Lights
1 x 4-pin Data Cable (or a flight controller cable)
1 x Micro-USB Cable
1 x OTG USB Male to Male Cable
1 x USB Charger
1 x Upgrading Tool
1 x Strap Belt
1 x Storage Case

Documents

Documents

Pleaseย contact usย for more information.
